Diagram 1
| Pic No. | Parts ID | Parts Name | Link |
| 100 | 1025018 | HOUSING ASSY.,LOWER | Find 100 |
| 101 | 1025039 | COVER FRONT LQ-2170/2070 | Find 101 |
| 102 | 1028345 | HOUSING,UPPER | Find 102 |
| 103 | 1028340 | COVER PRINTER REAR LQ-2070/2180 | Find 103 |
| 104 | 1028579 | COVER ASSY.,PRINTER LQ-2070/2180 | Find 104 |
| 105 | 1025034 | EDGE GUIDE ASSY FRONT LQ-2070/2170 | Find 105 |
| 106 | 1028580 | EDGE GUIDE ASSY REAR LQ-2070/2080 | Find 106 |
| 107 | 1025043 | COVER BOTTOM LQ-2070/2170 | Find 107 |
| 108 | 1025042 | KNOB LQ-2170/2180 | Find 108 |
| 109 | 1025044 | SHIELD PLATE | Find 109 |
| 110 | 1002045 | COVER CONNECTOR,UPPER | Find 110 |
| 111 | 1026742 | SHIELD PLATE UPPER E LQ-2070/2080/2170/2180 | Find 111 |
| 112 | 1005480 | GROUNDING PLATE | Find 112 |
| 113 | 1025669 | GROUNDING PLATE,I/F | Find 113 |
| 114 | 1026336 | STOPPER,COVER,FRONT | Find 114 |
| 115 | 1026337 | COVER,COMPRESSION SPRING | Find 115 |
| 116 | 1026338 | HOLDR DETECTOR LQ-2170 | Find 116 |
| 117 | 1006374 | GUIDE,I/F BOARD | Find 117 |
| 118 | 1026339 | COMPRESSION SPRING,2.94 | Find 118 |
| 119 | 2018967 | DETECTOR ASSY,CASE OPEN | Find 119 |
| 120 | 1028997 | LOGO PLATE | Find 120 |
| 121 | B310206511 | C.B.B. SCREW | Find 121 |
| 122 | 1006901 | C.B.C.LAMITITE LQ-870/2070/2170/2080/2180 | Find 122 |
| 123 | B310204511 | C.B.B. SCREW | Find 123 |
| 124 | B310204311 | CAP,LEVER | Find 124 |
| 125 | B010350211 | C.BSCREW | Find 125 |
| 126 | 1025409 | PRINTER MECHANISM MOUNTING SCREW | Find 126 |
| 127 | B310204511 | C.B.B SCREW | Find 127 |
| 128 | B070200411 | HEXAGON NUT | Find 128 |
| 129 | B310206419 | C.B.B. SCREW | Find 129 |
| 130 | 2020073 | FERRITE CORE | Find 130 |
| 133 | 1002674 | C.B.S-TITE SCREW | Find 133 |
| 137 | 1011863 | GROUNDING PLATE,I/F,UPPER | Find 137 |
| 200 | 2021665 | BOARD ASSY., MAIN | Find 200 |
| 300 | 2024567 | BOARD ASSY,PSE LQ-2170/2180 | Find 300 |
| 330 | 2021660 | HARNESS LQ-2070/2080 | Find 330 |
| 380 | 2021422 | FAN LQ-2070/2170/2080/2180 | Find 380 |
| 400 | 2002364 | POWER CABLE,BS31303SD | Find 400 |
| 450 | 2021486 | BOARD ASSY,PANEL LQ-2070 | Find 450 |
| 500 | 2022338 | PRINTER MECHAISM(ASP),M-5N60-100 | Find 500 |
| 541 | 1025246 | TRACTOR ASSY.,REAR LQ-2070/2170/2080/2180 | Find 541 |
| 542 | 1025293 | TRACTOR,LEFT LQ-2070/2170/2080/2180 | Find 542 |
| 543 | 1025294 | TRACTOR,RIGHT LQ-2070/2170/2080/2180 | Find 543 |
| 544 | 1025291 | SHAFT,TR,DRIVE | Find 544 |
| 545 | 1025292 | SHAFT,TR,GUIDE | Find 545 |
| 546 | 1039415 | FRAME,TR,LEFT LQ-2070/2170/2080/2180 | Find 546 |
| 547 | 1025288 | FRAME,TR,RIGHT LQ-2070/2170/2080/2180 | Find 547 |
| 548 | 1025289 | LEVER,TR,LEFT,REAR | Find 548 |
| 549 | 1025290 | LEVER,TR,RIGHT,REAR | Find 549 |
| 550 | 1025296 | PAPER SUPPORT | Find 550 |
| 551 | 1039507 | SPUR GEAR,20 LQ-670/2170/2070/2180/2080/580 | Find 551 |
| 633 | B150300911 | RETAINING RING | Find 633 |
| 643 | B070200411 | HEXAGON NUT | Find 643 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

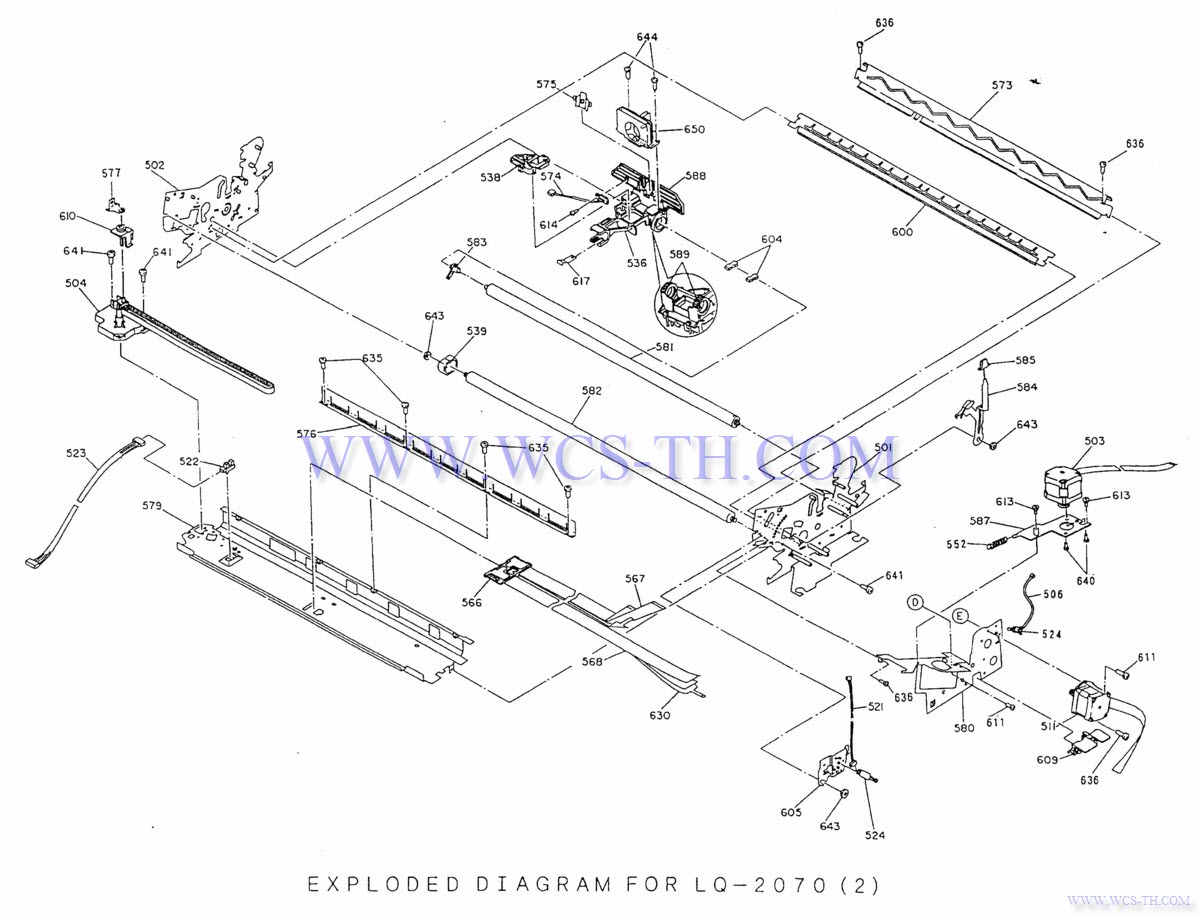

Diagram 2
| Pic No. | Parts ID | Parts Name | Link |
| 501 | 1039889 | FRAME ASSY.,RIGHT | Find 501 |
| 502 | 1039892 | FRAME ASSY.,LEFT | Find 502 |
| 503 | 2021270 | MOTOR,CR | Find 503 |
| 504 | 1025199 | RD ASSY. | Find 504 |
| 506 | 2021438 | HARNESS,PE,RIGHT LQ-2070/2080/2180 | Find 506 |
| 511 | 2019034 | MOTOR,PF | Find 511 |
| 521 | 2019017 | HARNESS,PG | Find 521 |
| 522 | 2021854 | DETECTOR,HP | Find 522 |
| 523 | 2019016 | HARNESS,HP | Find 523 |
| 524 | 2014328 | CONNECTOR SWITCH;B | Find 524 |
| 536 | 1028531 | CARRIAGE ASSY. | Find 536 |
| 538 | 1025344 | COVER,CR | Find 538 |
| 539 | 1025348 | BUSHING,14 | Find 539 |
| 552 | 1025350 | EXTENSION SPRING,15.7 | Find 552 |
| 566 | 1025334 | HOLDER,HEAD,CABLE,LQ-2070/2080/2170/2180 | Find 566 |
| 567 | 2021268 | CABLE HEAD, LOWER | Find 567 |
| 568 | 2021269 | CABLE HEAD, UPPER | Find 568 |
| 573 | 1025351 | CVER, PLATEN | Find 573 |
| 574 | 2018904 | DETECTOR ASSY., PW | Find 574 |
| 575 | 1025345 | RIBBON MASK | Find 575 |
| 576 | 1025352 | PAPER GUIDE, SUPPORT | Find 576 |
| 577 | 1025280 | HOLDER, DRIVEN PULLEY | Find 577 |
| 579 | 1025327 | FRAME,FRONT | Find 579 |
| 580 | 1028578 | FRAME,SUB,RIGHT | Find 580 |
| 581 | 1028347 | SHAFT,CR,GUIDE,REAR LQ-2070/2080 | Find 581 |
| 582 | 1028348 | SHAFT,CR,GUIDE,FORNT LQ-2070/2080 | Find 582 |
| 583 | 1025331 | BUSHING,PARALLEL,ADJUST | Find 583 |
| 584 | 1025332 | LEVER,GAP,ADJUST | Find 584 |
| 585 | 1025333 | CAP,LEVER | Find 585 |
| 587 | 1025349 | MOUNTING PLATE,MOTOR,CR | Find 587 |
| 588 | 1025346 | HOLDER,RIBBON MASK | Find 588 |
| 589 | 1027101 | OIL PAD,LOWER | Find 589 |
| 600 | 1025354 | PAPER GUIDE,FRONT LQ-2070/2170/2080/2180 | Find 600 |
| 604 | 1030844 | OIL PAD | Find 604 |
| 605 | 1025343 | HOLDER,DETECTOR,PG | Find 605 |
| 609 | 1026551 | HOLDER,CABLE | Find 609 |
| 610 | 1026620 | COVER,DRIVEN PULLEY | Find 610 |
| 611 | B010303411 | C.B.SCREW | Find 611 |
| 613 | 1005416 | SHARFT, MOUNT, CR | Find 613 |
| 614 | B010302211 | C.B.SCREW | Find 614 |
| 617 | 1025356 | LEAF SPRING,CR | Find 617 |
| 630 | 2019015 | CABLE,DETECTOR | Find 630 |
| 635 | B302704211 | C.P.S.P.S. SCREW | Find 635 |
| 636 | B300204211 | C.B.S. SCREW | Find 636 |
| 640 | B010303311 | C.B.S. SCREW | Find 640 |
| 641 | B300204311 | C.B.S. SCREW | Find 641 |
| 643 | B070200411 | HEXAGON NUT | Find 643 |
| 644 | B300204411 | C.B.S. SCREW | Find 644 |
| 650 | F052000 | PRINT HEAD LQ-2070 | Find 650 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

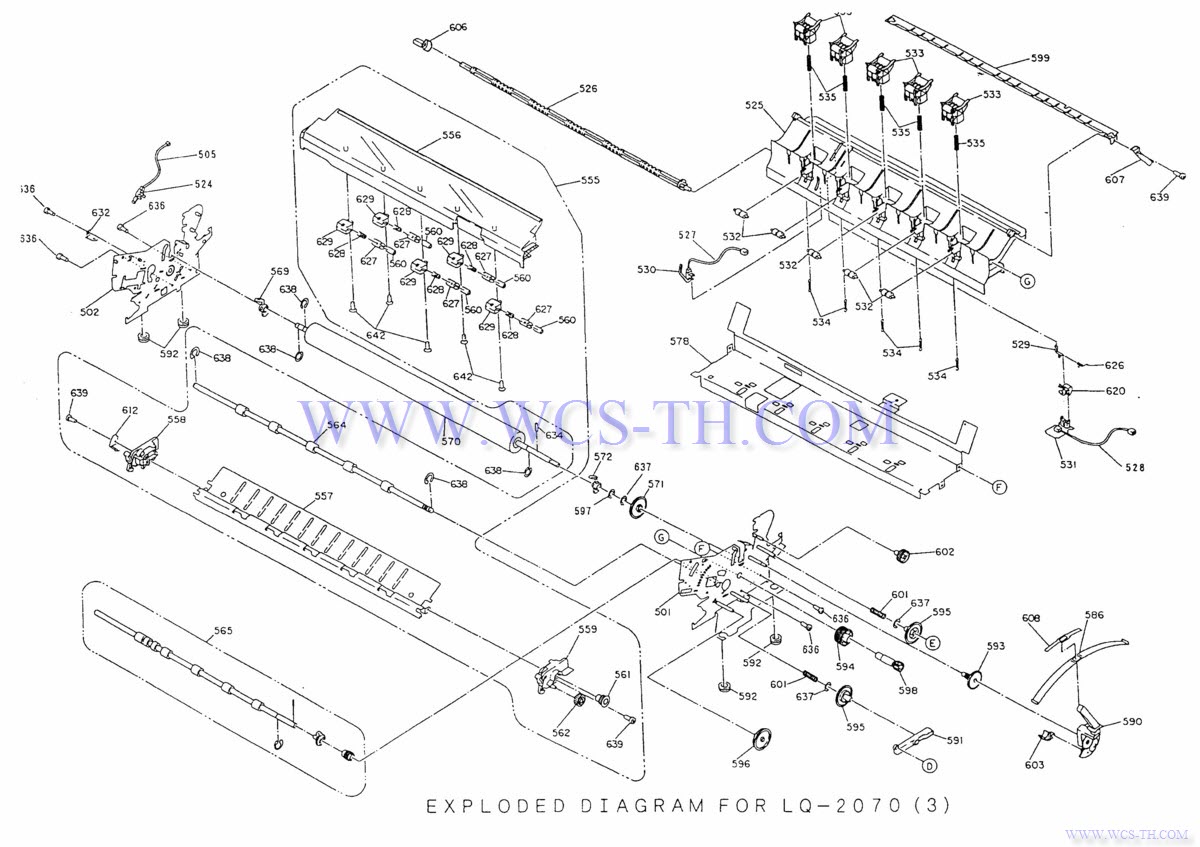

Diagram 3
| Pic No. | Parts ID | Parts Name | Link |
| 501 | 1039889 | FRAME ASSY.,RIGHT | Find 501 |
| 502 | 1039892 | FRAME ASSY.,LEFT | Find 502 |
| 505 | 2021437 | HARNESS, PE,LEFT | Find 505 |
| 524 | 2014328 | CONNECTOR SWITCH;B | Find 524 |
| 525 | 1025321 | PAPER GUIDE | Find 525 |
| 526 | 1025322 | SHAFT,RELEASE | Find 526 |
| 527 | 2019010 | HARNESS PE FRONT LQ-2070/2080/2170/2180 | Find 527 |
| 528 | 2019009 | HARNESS,PE,REAR LQ-2070/2170/2080/2180 | Find 528 |
| 529 | 1025324 | LEVER,PE,SUPPORT | Find 529 |
| 530 | 2019011 | DETECTOR,PE,FRONT LQ-2070/2170/2080/2180 | Find 530 |
| 531 | 1005727 | DETECTOR ASSY., REAR | Find 531 |
| 532 | 1005213 | ROLLER,PF,DRIVEN,LOWER | Find 532 |
| 533 | 1047761 | ROLLER ASSY.,PF | Find 533 |
| 534 | 1005215 | EXTENSION SPRING,70 | Find 534 |
| 535 | 1025363 | COMPRESSION SPRING,10.8 | Find 535 |
| 555 | 1025248 | PAPER EJECT ASSY. | Find 555 |
| 556 | 1025301 | COVER,PAPER EJECT | Find 556 |
| 557 | 1029507 | FRAME,PAPER EJECT,BASE | Find 557 |
| 558 | 1025302 | FRAME,PAPER EJECT,LEFT | Find 558 |
| 559 | 1025303 | FRAME,PAPER EJECT,RIGHT | Find 559 |
| 560 | 1025306 | ROLLER,PAPER EJECT,DRIVEN | Find 560 |
| 561 | 1025310 | SPUR GEAR,15 | Find 561 |
| 562 | 1005245 | SPUR GEAR,18 | Find 562 |
| 564 | 1025305 | ROLLER,PAPER EJECT,DRIVE | Find 564 |
| 565 | 1025203 | ROLLER ASSY.,PF,DRIVE | Find 565 |
| 569 | 1025355 | BUSHING,8 LEFT LQ-2070/2170/2080/2180 | Find 569 |
| 570 | 1046241 | PLATEN LQ-2070/2170/2080/2180 | Find 570 |
| 571 | 1031612 | SPUR GEAR,36 LQ-2070/2080/2170/2180 | Find 571 |
| 572 | 1025285 | BUSHING,8 RIGHT LQ-2070/2170/2080/2180 | Find 572 |
| 578 | 1025326 | FRAME,REAR | Find 578 |
| 586 | 1025374 | SHEET,RELEASE,CAP | Find 586 |
| 590 | 1028356 | LEVER RELEASE | Find 590 |
| 591 | 1028357 | CAM,CLUTCH TRACTOR LQ-2070/2080/2170/2180 | Find 591 |
| 592 | 1025335 | BASE RUBBER | Find 592 |
| 593 | 1005222 | COMBINATION GEAR,8.30,LQ-1170/870/2070/2080 | Find 593 |
| 594 | 1005224 | SPUR GEAR,27 LQ-870/1170/2070/2170/2080/2180 | Find 594 |
| 595 | 1013093 | SPUR GEAR,34.5 LQ-2070/2170/2080/2180 | Find 595 |
| 596 | 1005226 | SPUR GEAR,34 LQ-1070/1170/2070/2170/2080/2180 | Find 596 |
| 597 | B101253990 | LEAF SPRING | Find 597 |
| 598 | 1028359 | INTERMITTENT GEAR LQ-2070/2080/2180 | Find 598 |
| 599 | 1025353 | PAPER GUIDE,MIDDLE | Find 599 |
| 601 | 1005232 | COMPRESSION SPRING,200 | Find 601 |
| 602 | 1025360 | SPUR GEAR,21 | Find 602 |
| 603 | 1039411 | LEVER RELEASE,TRANSMISSION 2070/2080/2180 | Find 603 |
| 606 | 1029076 | LEVER,RELEASE,DETECTOR LQ-2080/2170/2180 | Find 606 |
| 607 | 1025375 | GROUNDING PLATE,PAPER GUIDE,MIDDLE | Find 607 |
| 608 | 1026439 | SHEET,RELEASE,CAP,SUB | Find 608 |
| 612 | 1025311 | GROUNDING PLATE,PAPER EJECT | Find 612 |
| 620 | 1025323 | LEVER,DETECTOR,PE,REAR | Find 620 |
| 626 | 1025325 | TORSION SPRING,0.26 LQ-2070/2170/2080/2180 | Find 626 |
| 627 | 1025307 | HOLDER,PAPER EJECT,DRIVEN | Find 627 |
| 628 | 1025309 | COMPRESSION SPRING,1.08 | Find 628 |
| 629 | 1025308 | HOLDER,PAPER EJECT,SPRING | Find 629 |
| 632 | 1028344 | GUIDE,PAPER EJECT | Find 632 |
| 634 | 1031702 | SPRING PIN,2X18,F/B | Find 634 |
| 636 | B300204211 | C.B.S. SCREW | Find 636 |
| 637 | B100166012 | PLAIN WASHER | Find 637 |
| 638 | B160101412 | RETAINING RING | Find 638 |
| 639 | 1006901 | C.B.C-LAMITITE | Find 639 |
| No pic | 2018877 | MICRO CONTROLLER (IC1) | |
| No pic | 2013161 | EEP ROM,AT93C46-10SC (IC8) | |
| No pic | X422350069 | TTL-IC SN74LS06NS-TPL (IC9) | |
| No pic | 2009451 | RESET IC,PS T592DMT (IC10) | |
| No pic | 2000592 | HYBRID IC SLA7024M LQ-870/1170/2170/2180/... (IC12) | |
| No pic | 2013130 | PHOTO COUPLER LQ-2070/2170/2080/2180 (PC1) |
