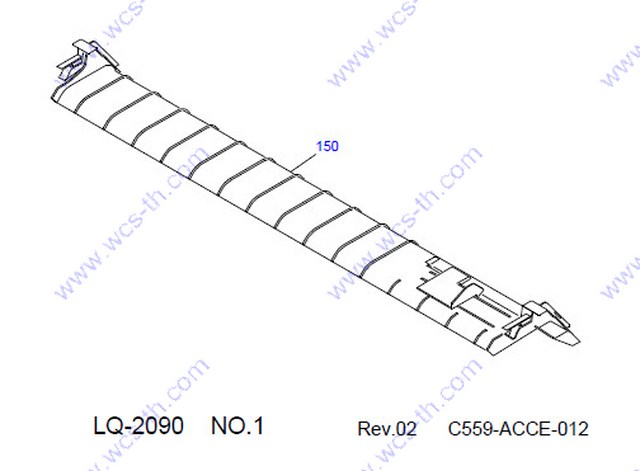

Diagram 1
| Pic No. | Parts ID | Parts Name | Link |
| 150 | 1302654 | SHEET GUIDE ASSY | Find 150 |

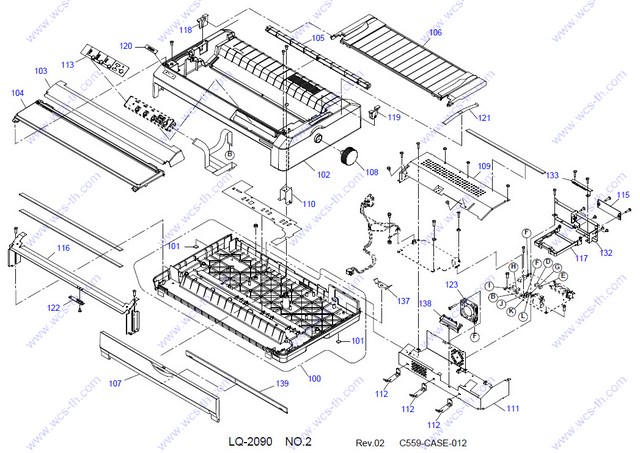

Diagram 2
| Pic No. | Parts ID | Parts Name | Link |
| 100 | 1277181 | HOUSING ASSY.,LOWER LQ-2090 | Find 100 |
| 101 | 1004605 | FOOT LQ-690/2090 | Find 101 |
| 102 | 1266428 | HOUSING ASSY;UPPER LQ-2090 | Find 102 |
| 103 | 1285811 | COVER ASSY.,PRINIER,REAR;B LQ-2090 | Find 103 |
| 104 | 1285810 | COVER ASSY,PRINIER;B LQ-2090 | Find 104 |
| 105 | 1242626 | WIHG;EPAG LQ-2090 | Find 105 |
| 106 | 1266433 | SHEET GUIED ASSY LQ-2090 | Find 106 |
| 107 | 1266429 | COVER ASSY.,FRONT LQ-2090 | Find 107 |
| 108 | 1234171 | KNOB LQ-590/2090 | Find 108 |
| 109 | 1233915 | SHELD PLATE.UPPER LQ-590/2090 | Find 109 |
| 110 | 1233914 | SHELD PLATE,B LQ-590/2090 | Find 110 |
| 111 | 1233912 | SHELD PLATE LQ-590/2090 | Find 111 |
Diagram 3
| Pic No. | Parts ID | Parts Name | Link |
| 200 | 2088258 | BOARD ASSY.,MAIN LQ-2090 | Find 200 |
| 300 | 2080699 | BOARD ASSY.,POWER SUPPLY LQ-590/2090 | Find 300 |
| 350 | 2082139 | HARNESS LQ-2090 | Find 350 |
| 372 | 2081151 | HARNESS LQ-590/2090 | Find 372 |
| 450 | Find 450 |
Diagram 4
| Pic No. | Parts ID | Parts Name | Link |
| 500 | 2088498 | PRINTER MECHANISM(ASP),N-6Z10-100 LQ-2090 | Find 500 |
| 501 | 1272177 | FRAME ASSY., RIGHT LQ-590/2090 | Find 501 |
| 502 | 1232302 | FRAME ASSY., LEFT LQ-590/2090 | Find 502 |
| 503 | 2035035 | MOTOR ASSY.,CR LQ-590/2090 | Find 503 |
| 504 | 1242126 | RD ASSY LQ-2090 | Find 504 |
| 511 | 2032831 | MOTOR ,PF LQ-2090 | Find 511 |
| 521 | 2026508 | HARNESS,PG LQ-2090 | Find 521 |
| 522 | 2004004 | DETECTOR,HP LQ-590/2090 | Find 522 |
| 523 | 2026507 | HARNESS,HP LQ-2090 | Find 523 |
| 524 | 2014328 | CONNECTOR SWITCH;B LQ-590/2090 | Find 524 |
| 525 | 1265824 | PAPER GUIED ASSY.,REAR LQ-2090 | Find 525 |
| 526 | 1005217 | SHAFT RELEASE LQ-2090 | Find 526 |
| 527 | 2026505 | HARNESS,PE,FRONT LQ-2090 | Find 527 |
| 528 | 2026506 | HARNESS,PE,REAR LQ-2090 | Find 528 |
| 529 | 2025897 | HARNESS,RE LQ-590/2090 | Find 529 |
| 530 | 2071496 | DETECTOR,PE,FRONT,S LQ-590/2090 | Find 530 |
| 531 | 1005727 | DETECTOR ASSY;REAR LQ-590/2090 | Find 531 |
| 532 | 1005213 | ROLLER PF DRIVEN LOWER LQ-590/2090 | Find 532 |
| 533 | 1005282 | ROLLER ASSY.,PF LQ-590/2090 | Find 533 |
| 534 | 1005215 | EXTENSION SPRING.70 LQ-590/2090 | Find 534 |
| 535 | 1005214 | COMPRESSION SPRING;1000 LQ-590/2090 | Find 535 |
| 536 | 1269394 | CARRIAGE SUB ASSY LQ-2090 | Find 536 |
| 541 | 1261641 | TRACTOR ASSY LQ-2090 | Find 541 |
| 542 | 1251317 | TRACTOR,RIGHT;REGB LQ-2090 | Find 542 |
| 543 | 1251318 | SHAFT CR GUIED LQ-590/2090 | Find 543 |
| 544 | 1036500 | SHAFT TR. DRIVE LQ-2090 | Find 544 |
| 545 | 1005251 | SHAFT TR.GUIED LQ-2090 | Find 545 |
| 546 | 1251312 | FRAME TR LEFT EPAG LQ-590/2090 | Find 546 |
| 547 | 1251313 | FRAME TR RIGHT EPAG LQ-590/2090 | Find 547 |
| 548 | 1251314 | LEVER ,TR LEFT.EDGG LQ-590/2090 | Find 548 |
| 549 | 1251315 | CAP,LEVER EDGB LQ-590/2090 | Find 549 |
| 550 | 1025296 | PAPER SUPPORT LQ-590/2090 | Find 550 |
| 551 | 1039507 | SPUR GEAR,20 LQ-509/2090 | Find 551 |
| 552 | 1074768 | RETAINING RING LQ-590/2090(OLD B150300911) | Find 552 |
| 556 | 1277107 | COVER,PAPER EJECT LQ-2090 | Find 556 |
| 560 | 1005243 | LEAF SPRING PAPER EJECT DOUBER LQ-590/2090 | Find 560 |
| 561 | 1235581 | SPUR GEAG,15 LQ-590/2090 | Find 561 |
| 562 | 1004929 | SPUR GEAG 11.5 LQ-590/2090 | Find 562 |
| 563 | 1005514 | LEAF SPRING PAPER EJECT SINGLE LQ-590/2090 | Find 563 |
| 564 | 1038502 | ROLLER EJ,DRIVE LQ-2090 | Find 564 |
| 568 | 2085778 | CABLE,HEAD LQ-2090 | Find 568 |
| 569 | 1090459 | ROLLER ASSY.,DRIVE LQ-2090 | Find 569 |
| 570 | 1242127 | PLATEN ASSY LQ-2090 | Find 570 |
| 571 | 1236997 | FRAME .REAR LQ-2090 | Find 571 |
| 572 | 1232297 | BUSHING,8,RIGHT LQ-590/2090 | Find 572 |
| 573 | 1243506 | COVER,PLATEN LQ-2090 | Find 573 |
| 574 | 123229 | BUSHING,8,LEFT LQ-590/2090 | Find 574 |
| 575 | 1274547 | RIBBON MASK LQ-590/2090 | Find 575 |
| 576 | 1043222 | PAPER GUIED ASSY.,SUPPORT LQ-2090 | Find 576 |
| 577 | 1237002 | FRAME,BASE LQ-2090 | Find 577 |
| 580 | 1235586 | FRAME,SUB ,RIGHT LQ-590/2090 | Find 580 |
| 582 | 1239999 | GUIED PAPER LOAD LQ-2090 | Find 582 |
| 583 | 1232294 | BUSHING PARALLEL,ADJUST LQ-590/2090 | Find 583 |
| 585 | 1251316 | TRACTOR,LEFT,EDGB LQ-590/2090 | Find 585 |
| 588 | 1259448 | HOLDER RIBBON MASK LQ-590/2090 | Find 588 |
| 589 | 1038496 | OIL PAD LQ-2090 | Find 589 |
| 590 | 1251311 | LEVER RELEASE.EDGG LQ-590/2090 | Find 590 |
| 591 | 1028357 | CAM ,CLUTCH,TRACTOR LQ-590/2090 | Find 591 |
| 592 | 1036498 | HOLDER,CABLE LQ-590/2090 | Find 592 |
| 593 | 1005222 | COMBINATION GEAR 8.30 LQ-590/2090 | Find 593 |
| 594 | 1005224 | SPUR GEAR,27 LQ-590/2090 | Find 594 |
| 595 | 1013093 | SPUR GEAR,34.5 LQ-590/2090 | Find 595 |
| 596 | 1005226 | SPUR GEAR,34 LQ-590/2090 | Find 596 |
| 598 | 1028359 | INTERMITTENT GEAR LQ-590/2090 | Find 598 |
| 600 | 1005201 | EXTENSION SPRING,71 LQ-590/2090 | Find 600 |
| 601 | 1005232 | COMPRESSION SPRING;2000 LQ-590/2090 | Find 601 |
| 602 | 1031702 | SPRING PIN,2X18,F/B LQ-590/2090 | Find 602 |
| 607 | 1076264 | PLAIN WASHER LQ-590/2090 (OLD B100166012) | Find 607 |
| 613 | 1005416 | SHAFT MOUNT CR LQ-509/2090 | Find 613 |
| 617 | 1076285 | LEAF SPRING LQ-590/2090 (OLD B101253990) | Find 617 |
| 618 | 1031612 | SPUR GEAR,36 LQ-590/2090 | Find 618 |
| 619 | 1074777 | RETAINING RING LQ-590/2090(OLD B160101412) | Find 619 |
| 620 | 1025323 | LEVER DETECTOR PE REAR LQ590/2090 | Find 620 |
| 621 | 1025324 | LEVER PE SUPPORT LQ-590/2090 | Find 621 |
| 622 | 1025325 | TORSION SPRING 0.26 LQ-590/2090 | Find 622 |
| 624 | 1039448 | EXTENION SPRING,1.18 LQ-2090 | Find 624 |
| 650 | 1279490 | HEAD KIT ASP LQ-590/2090 (PRINT HEAD) | Find 650 |
| 651 | 1080933 | EXTENSION SPRING,16.45 LQ-590/2090 | Find 651 |
| 652 | 1080936 | HOLDER PULLEY DRIVEN LQ-590/2090 | Find 652 |
| 662 | 1277106 | PAPER EJECT ASSY LQ-2090 | Find 662 |
| 663 | 1039973 | GROUNDING WIRE,PLATEN LQ-2090 | Find 663 |
