Diagram 1
| Pic No. | Parts ID | Parts Name | Link |
| 100 | 1521023 | HOUSING ASSY,LOWER | Find 100 |
| 101 | 1520474 | COVER,FRONT | Find 101 |
| 102 | 1521013 | HOUSING ASSY.,UPPER | Find 102 |
| 103 | 1522839 | COVER,PRINTER REAR,ASSY | Find 103 |
| 104 | 1522840 | COVER,PRINTER ASSY | Find 104 |
| 105 | 1521017 | SHEET GUIDE,FRONT,ASSY | Find 105 |
| 106 | 1521018 | SHEET GUIDE,REAR,ASSY | Find 106 |
| 107 | 2084079 | SWITCH,COVER OPEN | Find 107 |
| 108 | 1520609 | KNOB;EDG2 | Find 108 |
| 112 | 1520473 | HOUSING,PANEL | Find 112 |
| 113 | 1535885 | SHEET,PANEL;C | Find 113 |
| 114 | 1530192 | LABEL,MODEL NAME | Find 114 |
| 115 | 1438861 | COVER,CONNECTOR,UPPER;C;EPAG | Find 115 |
| 450 | 2128470 | BOARD ASSY.,PNL | Find 450 |

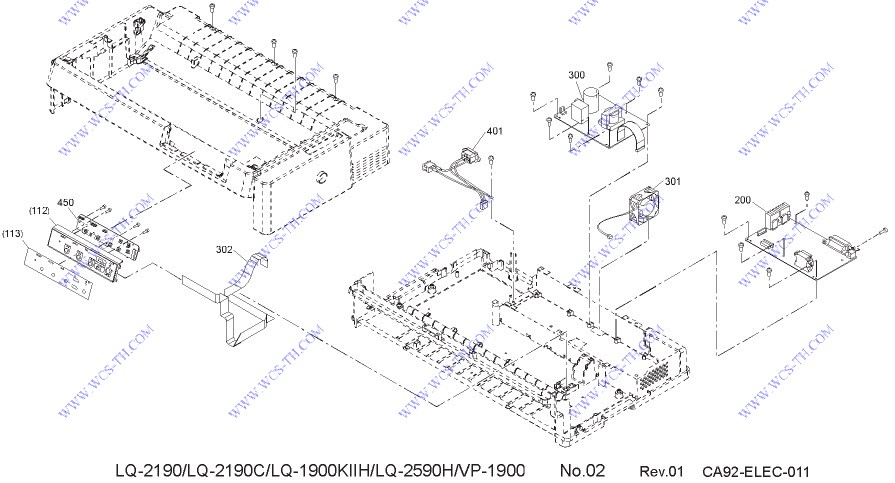

Diagram 2
| Pic No. | Parts ID | Parts Name | Link |
| 112 | 1520473 | HOUSING,PANEL | Find 112 |
| 113 | 1535885 | SHEET,PANEL;C | Find 113 |
| 200 | 2131873 | BOARD ASSY.,MAIN | Find 200 |
| 300 | 2128483 | POWER SUPPLY UNIT | Find 300 |
| 301 | 2122575 | FAN ASSEMBLY | Find 301 |
| 302 | 2128468 | HARNESS PNL | Find 302 |
| 401 | 2128464 | HARNESS AC INLET | Find 401 |
| 450 | 2128470 | BOARD ASSY.,PNL | Find 450 |
Diagram 3
| Pic No. | Parts ID | Parts Name | Link |
| 500 | 2130519 | PRINTER MECHANISM(ASP),CA92-100 | Find 500 |
| 501 | 1519920 | FRAME ASSY,RIGHT | Find 501 |
| 502 | 1519921 | FRAME ASSY,LEFT | Find 502 |
| 503 | 2128694 | MOTOR ASSY,CR | Find 503 |
| 504 | 1521008 | RD ASSY | Find 504 |
| 511 | 2128690 | MOTOR ASSY,PF | Find 511 |
| 521 | 2128687 | HARNESS,PG | Find 521 |
| 522 | 2032842 | DETECTOR,HP;E | Find 522 |
| 523 | 2128692 | HARNESS,HP | Find 523 |
| 524 | 2014328 | CONNECTOR SWITCH;B | Find 524 |
| 536 | 1519922 | CARRIAGE,SUB ASSY | Find 536 |
| 538 | 1025344 | COVER,CR | Find 538 |
| 541 | 1521647 | TRACTOR ASSY.,FRONT | Find 541 |
| 542 | 1408766 | TRACTOR,LEFT;EDGB | Find 542 |
| 543 | 1408768 | TRACTOR,RIGHT;EDGB | Find 543 |
| 546 | 1519958 | FRAME,TR,LEFT;EPAG | Find 546 |
| 547 | 1519959 | FRAME,TR,RIGHT;EPAG | Find 547 |
| 548 | 1519960 | LEVER,TR,LEFT,FRONT;EDGB | Find 548 |
| 549 | 1519961 | LEVER,TR,RIGHT,FRONT;EDGB | Find 549 |
| 550 | 1025296 | PAPER SUPPORT | Find 550 |
| 551 | 1039507 | SPUR GEAR,20 | Find 551 |
| 565 | 1025203 | ROLLER ASSY.,PF,DRIVE | Find 565 |
| 566 | 1025334 | HOLDER,HEAD,CABLE | Find 566 |
| 567 | 2128685 | CABLE,PW | Find 567 |
| 568 | 2128691 | CABLE,HEAD | Find 568 |
| 573 | 1025351 | COVER,PLATEN | Find 573 |
| 575 | 1479450 | RIBBON MASK | Find 575 |
| 580 | 1028578 | FRAME,SUB,RIGHT | Find 580 |
| 581 | 1519925 | SHAFT,CR,GUIDE | Find 581 |
| 583 | 1025331 | BUSHING,PARALLEL,ADJUST | Find 583 |
| 584 | 1025332 | LEVER,GAP,ADJUST | Find 584 |
| 585 | 1251316 | CAP,LEVER;EDGB | Find 585 |
| 588 | 1479451 | HOLDER,RIBBON MASK | Find 588 |
| 589 | 1027101 | OIL PAD,LOWER | Find 589 |
| 604 | 1520623 | OIL PAD | Find 604 |
| 609 | 1026551 | HOLDER,CABLE | Find 609 |
| 633 | 1283665 | E-RING,6,F/UC-3C | Find 633 |
| 650 | 1526977 | HEAD KIT ASP (P/H) | Find 650 |
Diagram 4
| Pic No. | Parts ID | Parts Name | Link |
| 501 | 1519920 | FRAME ASSY,RIGHT | Find 501 |
| 502 | 1519921 | FRAME ASSY,LEFT | Find 502 |
| 505 | 2128686 | HARNESS,RE,LEFT | Find 505 |
| 524 | 2014328 | CONNECTOR SWITCH;B | Find 524 |
| 525 | 1519929 | PAPER GUIDE | Find 525 |
| 526 | 1519931 | SHAFT,RELEASE | Find 526 |
| 527 | 2128688 | HARNESS,PE,FRONT | Find 527 |
| 528 | 2128693 | HARNESS,PE,REAR | Find 528 |
| 529 | 1025324 | LEVER,PE,SUPPORT | Find 529 |
| 530 | 2019011 | DETECTOR,PE,FRONT | Find 530 |
| 531 | 1005727 | DETECTOR ASSY., REAR | Find 531 |
| 532 | 1005213 | ROLLER,PF,DRIVEN,LOWER | Find 532 |
| 533 | 1530462 | ROLLER ASSY.,PF | Find 533 |
| 534 | 1005215 | EXTENSION SPRING,70 | Find 534 |
| 535 | 1025363 | COMPRESSION SPRING,10.8 | Find 535 |
| 537 | 1519977 | ROLLER,PF,DRIVEN,REAR | Find 537 |
| 540 | 1521010 | PAPER GUIDE ASSY.,REAR | Find 540 |
| 541 | 1521647 | TRACTOR ASSY.,FRONT | Find 541 |
| 542 | 1408766 | TRACTOR,LEFT;EDGB | Find 542 |
| 543 | 1408768 | TRACTOR,RIGHT;EDGB | Find 543 |
| 546 | 1519958 | FRAME,TR,LEFT;EPAG | Find 546 |
| 547 | 1519959 | FRAME,TR,RIGHT;EPAG | Find 547 |
| 548 | 1519960 | LEVER,TR,LEFT,FRONT;EDGB | Find 548 |
| 549 | 1519961 | LEVER,TR,RIGHT,FRONT;EDGB | Find 549 |
| 550 | 1025296 | PAPER SUPPORT | Find 550 |
| 551 | 1039507 | SPUR GEAR,20 | Find 551 |
| 553 | 1519930 | HOLDER,PF,ROLLER,RIGHT | Find 553 |
| 554 | 1519941 | COMPRESSION SPRING,16.5 | Find 554 |
| 555 | 1521012 | PAPER EJECT ASSY | Find 555 |
| 556 | 1519934 | COVER,PAPER EJECT | Find 556 |
| 557 | 1519935 | FRAME,PAPER EJECT,BASE | Find 557 |
| 560 | 1025306 | ROLLER,PAPER EJECT,DRIVEN | Find 560 |
| 561 | 1025310 | SPUR GEAR,15 | Find 561 |
| 562 | 1005245 | SPUR GEAR,18 | Find 562 |
| 569 | 1025355 | BUSHING,8,LEFT | Find 569 |
| 571 | 1031612 | SPUR GEAR,36 | Find 571 |
| 574 | 1519919 | FRAME,REAR | Find 574 |
| 590 | 1251311 | LEVER,RELEASE;EDGB | Find 590 |
| 591 | 1028357 | CAM,CLUTCH,TRACTOR | Find 591 |
| 593 | 1025357 | COMBINATION GEAR,8,30 | Find 593 |
| 594 | 1005224 | SPUR GEAR,27 | Find 594 |
| 595 | 1013093 | SPUR GEAR,34.5 | Find 595 |
| 596 | 1005226 | SPUR GEAR,34 | Find 596 |
| 598 | 1028359 | INTERMITTENT GEAR | Find 598 |
| 599 | 1025353 | PAPER GUIDE,MIDDLE | Find 599 |
| 601 | 1005232 | COMPRESSION SPRING,200 | Find 601 |
| 602 | 1025360 | SPUR GEAR,21 | Find 602 |
| 603 | 1235585 | LEVER,RELEASE,TRANSMISSION;W | Find 603 |
| 606 | 1029076 | LEVER,RELEASE,DETECTOR | Find 606 |
| 607 | 1025375 | GROUNDING PLATE,PAPER GUIDE,MIDDLE | Find 607 |
| 616 | 1242257 | SHEET,RELEASE,CAP | Find 616 |
| 620 | 1025323 | LEVER,DETECTOR,PE,REAR | Find 620 |
| 626 | 1025325 | TORSION SPRING,0.26 | Find 626 |
| 627 | 1519937 | HOLDER,PAPER EJECT,DRIVEN | Find 627 |
| 628 | 1025309 | COMPRESSION SPRING,0.392 | Find 628 |
| 633 | 1283665 | E-RING,6,F/UC-3C | Find 633 |
| 637 | 1076264 | PLAIN WASHER(B100166012) | Find 637 |
| 646 | 1532916 | PLATEN ASSY.,UNIT,IEI | Find 646 |
