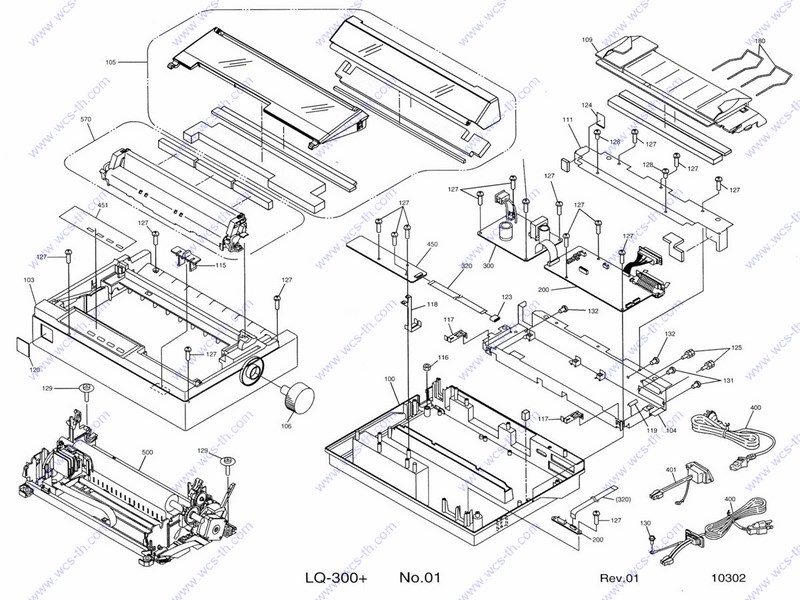

Diagram 1
| Pic No. | Parts ID | Parts Name | Link |
| 100 | 1050623 | HOUSING ASSY LOWER LQ-300+ | Find 100 |
| 101 | 1052607 | INSULATOR ;A | Find 101 |
| 102 | 1052608 | INSULATOR;B | Find 102 |
| 103 | 1060748 | HOUSING,UPPER LQ-300+ | Find 103 |
| 104 | 1050444 | SHIELDPLATE,LOWER | Find 104 |
| 105 | 1050626 | COVER ASSY.,PRINTER LQ-300+ | Find 105 |
| 106 | 1051718 | KNOB;W LQ-300+ | Find 106 |
| 109 | 1050625 | SHEET GUIDE ASSY LQ-300+ | Find 109 |
| 115 | 1051972 | COVER CONNECTION,CS;W | Find 115 |
| 116 | B070200411 | HEXAGON NUT | Find 116 |
| 117 | 1050446 | GROUNDINGPLATE | Find 117 |
| 118 | 1052564 | GROUNDING PLATE,PANEL | Find 118 |
| 119 | 1054191 | EDGING;A | Find 119 |
| 120 | 1056595 | LOGO PLATE | Find 120 |
| 123 | 1053926 | FERRITE CORE,FPC-25-20 | Find 123 |
| 124 | 1054471 | SHEET,PROTECT | Find 124 |
| 125 | X610058724 | CONNECTOT LOCK NUT | Find 125 |
| 127 | 1012350 | C.B.P-TITE,3X10,F/ZN | Find 127 |
| 128 | B300200111 | C.B.S SCREW | Find 128 |
| 129 | 1013733 | C.B.B-TITE(P(13)),3X14,F/ZN | Find 129 |
| 130 | B045800115 | C.B.(O) SCREW 4X8 FX8 F/ZG | Find 130 |
| 131 | B010109511 | C.P.SCREW | Find 131 |
| 132 | B300204211 | C.B.S SCREW | Find 132 |
| 180 | 1054395 | GUIDE,STACKER | Find 180 |
| 200 | 2037147 | BOARD ASSY,MAIN LQ-300+ | Find 200 |
| 300 | 2056545 | BOARD ASSY,PSE LQ-300+ | Find 300 |
| 320 | 2034843 | HARNESS LQ-300+ | Find 320 |
| 400 | 2002364 | POWER CABLE | Find 400 |
| 401 | 2056520 | HARNESS | Find 401 |
| 450 | 2037523 | BOARD ASSY,PANEL LQ-300+ | Find 450 |
| 451 | 1061325 | SHEET PANEL | Find 451 |
| 500 | 2048914 | PRINTER MECHANISM,M-3M | Find 500 |
| 570 | 1050616 | PAPER EJECT ASSY LX-300+/LQ-300+ | Find 570 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

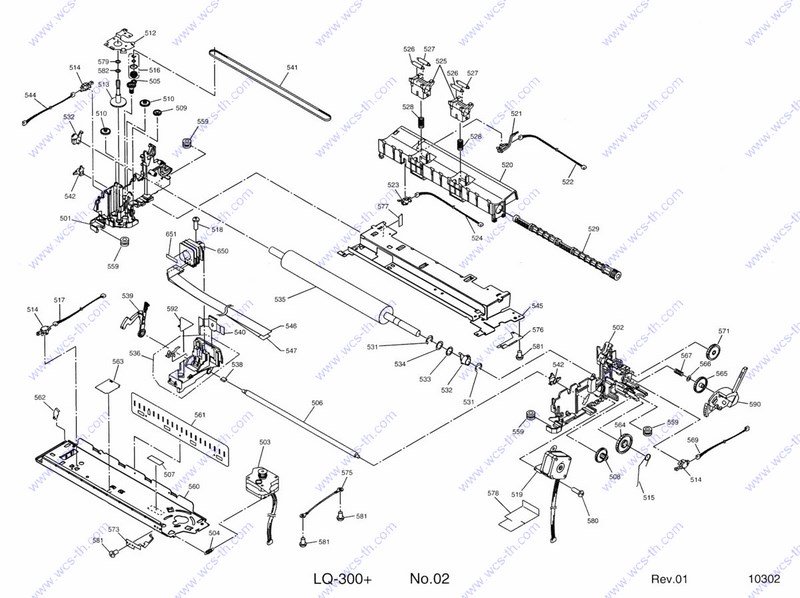

Diagram 2
| Pic No. | Parts ID | Parts Name | Link |
| 501 | 1072716 | FRAME ASSY.,LEFT | Find 501 |
| 502 | 1063465 | FRAME ASSY.,RIGHT | Find 502 |
| 503 | 2032892 | MOTOR ASSY.,CR | Find 503 |
| 504 | 1050423 | EXTENSION SPRING,8.10 | Find 504 |
| 505 | 1050611 | LEVER ASSY PLANET | Find 505 |
| 506 | 1060743 | SHARFT,CR,GUIDE | Find 506 |
| 509 | 1018157 | SPUR GEAR,13.2 LQ-300/LX-300 | Find 509 |
| 510 | 1018158 | COMBINATION GEAR,5.1,16.2,LX-300/LQ-300 | Find 510 |
| 512 | 1061328 | COVER,RD | Find 512 |
| 513 | 1022466 | RATCHET,RD LQ-300/LX-300 | Find 513 |
| 514 | 2014283 | DETECTOR,LEAF,B1 | Find 514 |
| 515 | 1018191 | GROUNDING WIRE,PLATEN | Find 515 |
| 516 | 1050612 | PULLEY ASSY DRIVEN LX-300+ | Find 516 |
| 517 | 2037827 | HARNESS,HP | Find 517 |
| 518 | 1011130 | C.P.B SCREW | Find 518 |
| 519 | 2037829 | MOTOR ASSY.,PF | Find 519 |
| 520 | 1050407 | PAPER GUIDE LX-300+/LQ-300+ | Find 520 |
| 521 | 2032887 | DETECTOR,PF,REAR LX-300/300+ | Find 521 |
| 522 | 2037830 | HARNESS,PE,REAR | Find 522 |
| 523 | 2032888 | DETECTOR,PE,BOTTOM | Find 523 |
| 524 | 2037831 | HARNESS,PE,BOTTOM | Find 524 |
| 525 | 1050413 | HOLDER,ROLLER,PF | Find 525 |
| 526 | 1050408 | ROLLER,PF,DRIVEN | Find 526 |
| 527 | 1056656 | ROLLER,PF,DRIVE,REAR;B | Find 527 |
| 528 | 1050424 | COMPRESION SPRING,13.7 | Find 528 |
| 529 | 1050406 | SHAFT,RELEASE | Find 529 |
| 531 | 1074776 | RETAINING RING | Find 531 |
| 532 | 1008995 | BUSHING,11 LQ-100/300/LX-300 | Find 532 |
| 533 | 1008637 | U-TYPE,11.02X0.13X16S/N | Find 533 |
| 534 | B100166990 | PLAIN WASHER | Find 534 |
| 535 | 1050435 | PLATEN LQ-300+ | Find 535 |
| 536 | 1060878 | CARRIAGE ASSY.,LQ-300+ | Find 536 |
| 537 | 1052121 | GROUNDING PALTE,HEAD | Find 537 |
| 538 | 1052555 | OIL PAD | Find 538 |
| 539 | 1050405 | LEVER,G,ADJUST | Find 539 |
| 540 | 1018248 | RIBBON MASK | Find 540 |
| 541 | 1050422 | TIMING BELT LX-300+/LQ-300+ | Find 541 |
| 542 | 1012841 | BUSHING,PARALLEL,ADJUST | Find 542 |
| 544 | 2037828 | HARNESS,PG | Find 544 |
| 545 | 1060739 | PAPER GUIDE,LOWER | Find 545 |
| 546 | 2037825 | CABLE HEAD,FRONT LQ-300+ | Find 546 |
| 547 | 2037826 | CABLE HEAD,REAR LQ-300+ | Find 547 |
| 550 | 1018190 | SPURGEAR,17 | Find 550 |
| 551 | 1018219 | PAPER SUPPORT | Find 551 |
| 552 | 1050411 | FRAME,TR,RIGHT | Find 552 |
| 553 | 1050412 | FRAME,TR,LEFT | Find 553 |
| 554 | 1050417 | TRACTOR,LEFT LX-300+/LQ-300+ | Find 554 |
| 555 | 1050418 | TRACTOR,RIGHT LX-300+/LQ-300+ | Find 555 |
| 556 | 1050523 | SHAFT,TR,GUIDE | Find 556 |
| 557 | 1051403 | SHAFT,TR,DRIVE | Find 557 |
| 558 | 1074768 | RETAINING RING | Find 558 |
| 559 | 1018193 | DAMPER | Find 559 |
| 560 | 1050426 | FRAME,BASE | Find 560 |
| 561 | 1050427 | PAPER GUIDE SUPPORT LX-300+/LQ-300+ | Find 561 |
| 562 | 1052120 | GROUNDING PALTE,SHAFT,C | Find 562 |
| 563 | 1052348 | SHEET,CABLE,HEAD | Find 563 |
| 564 | 1021543 | SPUR GEAR,34 LX-300/LQ-100/300 | Find 564 |
| 565 | 1050415 | SPUR GEAR,27.5 | Find 565 |
| 567 | 1050425 | COMPRESSION SPRING,1.18 | Find 567 |
| 568 | 1050416 | COMBINATION GEAR LX-300+ | Find 568 |
| 569 | 2032891 | HARNESS,RELEASE | Find 569 |
| 571 | 1050409 | COMBINATION GEAR,17.527 | Find 571 |
| 573 | 1054470 | GROUNDING PLATE,CS | Find 573 |
| 574 | 2034977 | GROUNDING WIRE,LEFT | Find 574 |
| 575 | 2034978 | GROUNDING WIRE,RIGHT | Find 575 |
| 576 | 1054826 | GROUNDING PLATE,PF | Find 576 |
| 577 | 1054827 | SHEET,PROTECT,CABLE | Find 577 |
| 578 | 1054831 | SHEET,PROTECT,M/B | Find 578 |
| 579 | 1054469 | SHEET,CABLE,CR | Find 579 |
| 581 | B300200111 | C.B.S. SCREW | Find 581 |
| 590 | 1050410 | LEVER RELEASE LX-300+/LQ-300+ | Find 590 |
| 650 | F045000 | PRINT HEAD LQ-300+ | Find 650 |
| 651 | 1027628 | LABEL,WARNING | Find 651 |
