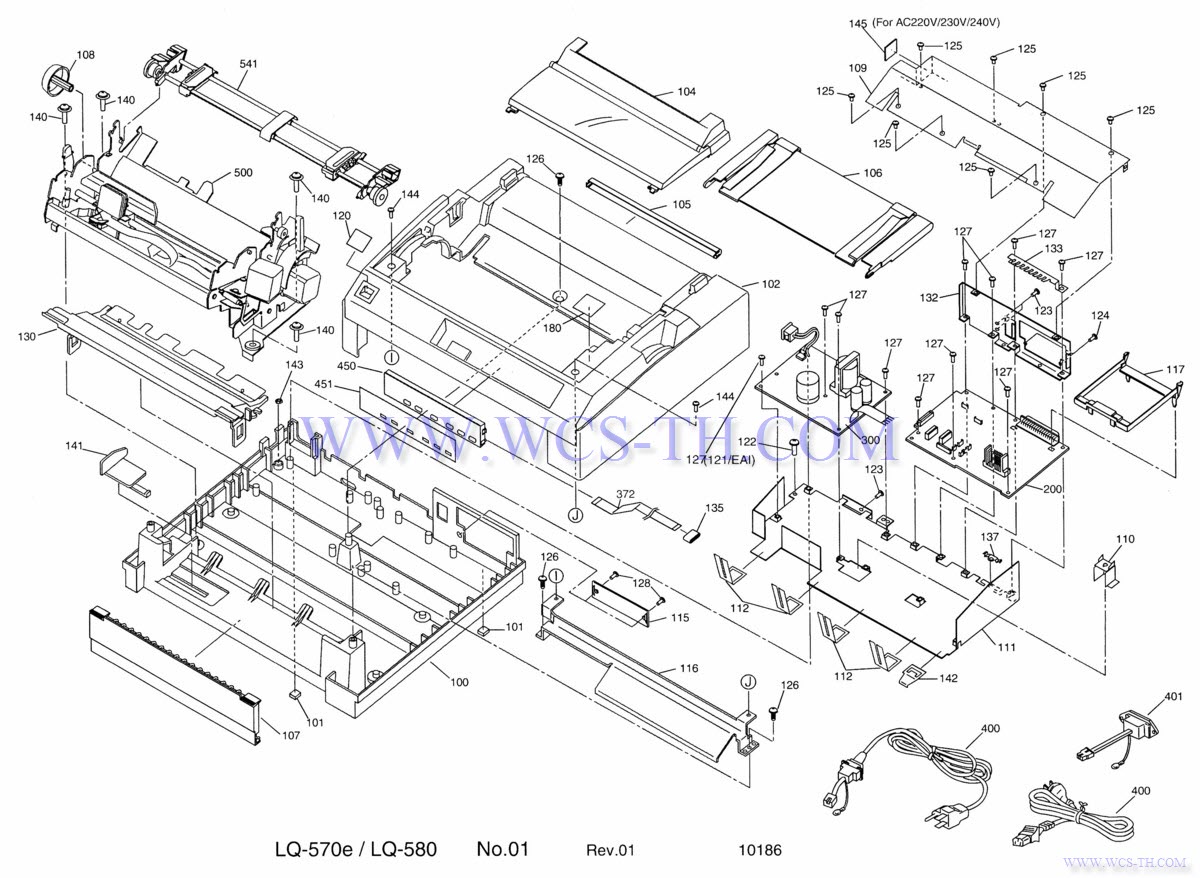

Diagram 1
| Pic No. | Parts ID | Parts Name | Link |
| 100 | 1050322 | HOUSING ASSY., LOWER | Find 100 |
| 101 | 1004605 | FOOT | Find 101 |
| 102 | 1050323 | HOUSING ASSY UPPER LQ-580 | Find 102 |
| 104 | 1050320 | COVER ASSZ., PRINTER | Find 104 |
| 105 | 1039434 | WING | Find 105 |
| 106 | 1050324 | SHEET GUIDE ASSY.,REAR LQ-580 | Find 106 |
| 107 | 1053455 | COVER ASSY., FRONT | Find 107 |
| 108 | 1039337 | KNOB LQ-580 | Find 108 |
| 109 | 1050234 | SHIELD PLATE; UPPER | Find 109 |
| 110 | 1050235 | SHIELD PLATE; B | Find 110 |
| 111 | 1050233 | SHIELD PLATE | Find 111 |
| 112 | 1005480 | GROUNDING PLATE | Find 112 |
| 115 | 1037223 | COVER, CONNECTOR,UPPER | Find 115 |
| 116 | 1050236 | MOUNT, HOUSING | Find 116 |
| 117 | 1039408 | GUIDE,I/F BOARD;B;W | Find 117 |
| 120 | 1053119 | LOGO PLATE ;B | Find 120 |
| 122 | B045800115 | C.B.(O) SCREW 4X8 F/ZG | Find 122 |
| 123 | B300204211 | C.B.S SCREW | Find 123 |
| 124 | B010109511 | C.P. SCREW | Find 124 |
| 125 | B300200111 | C.B.S. SCREW | Find 125 |
| 126 | 1024145 | C.B.P. SCREW, 4X12,F/YN | Find 126 |
| 127 | 1003164 | C.B.P-TITE SCREW,3X12,F/Z | Find 127 |
| 128 | 1002674 | C.B.S-TITE SCREW | Find 128 |
| 130 | 1053456 | PAPER GUIDE ASSY FRONT LQ-580 | Find 130 |
| 132 | 1036516 | GROUNDING PLATE,I/F | Find 132 |
| 133 | 1011863 | GROUNDING PLATE,I/F,UPPER | Find 133 |
| 135 | 1052251 | FERRITE CORE,FPC-25-12 | Find 135 |
| 137 | 1037280 | GROUNDING PLATE; BOTTOM | Find 137 |
| 140 | 1025409 | PRINTER MACHANISM MOUNT SCREW | Find 140 |
| 141 | 1050231 | EDGE GUIDE, FRONT | Find 141 |
| 142 | 1050237 | GROUNDING PLATE; B | Find 142 |
| 143 | B070200411 | HEXAGON NUT | Find 143 |
| 144 | B300204311 | C.B.S SCREW | Find 144 |
| 145 | 1053865 | SHEET, PROTECT | Find 145 |
| 200 | 2033285 | BOARD ASSY,MAIN LQ-580 | Find 200 |
| 300 | 2033291 | BOARD ASSY,PSE LQ-580 | Find 300 |
| 372 | 2033181 | HARNESS | Find 372 |
| 400 | 2031789 | POWER CABLE | Find 400 |
| 401 | 2018028 | HARNESS | Find 401 |
| 450 | 1050321 | HOSING ASSY PANEL LQ-580 | Find 450 |
| 451 | 1051396 | SHEET PANEL LQ-580 | Find 451 |
| 500 | 2034257 | PRINTER MACHANISM (ASP) | Find 500 |
| 541 | 1040231 | TRACTOR ASSY; W | Find 541 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

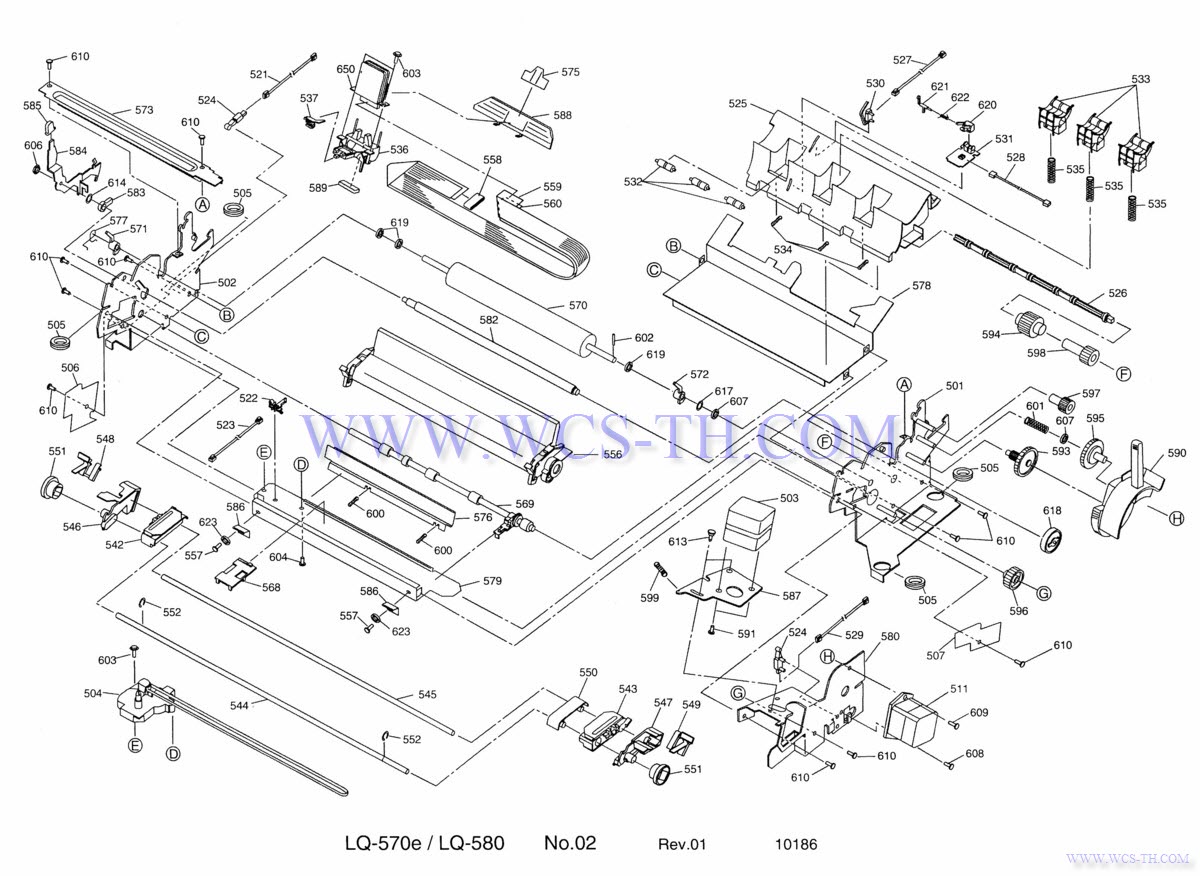

Diagram 2
| Pic No. | Parts ID | Parts Name | Link |
| 501 | 1050315 | FRAME ASSY., RIGHT | Find 501 |
| 502 | 1050316 | FRAME ASSY., LEFT | Find 502 |
| 503 | 2032821 | MOTOR ASSY.,CR LQ-580 | Find 503 |
| 504 | 1050318 | RD ASSY.,LQ-580 | Find 504 |
| 505 | 1025335 | BASE RUBBER | Find 505 |
| 506 | 1053863 | STOPPER,LEFT | Find 506 |
| 507 | 1053864 | STOPPER,RIGHT | Find 507 |
| 511 | 2032831 | MOTOR,PF LQ-580 | Find 511 |
| 521 | 2025898 | HARNESS,PG | Find 521 |
| 522 | 2004004 | DETECTOR,HP LQ-570+/580 | Find 522 |
| 523 | 2025264 | HARNESS,HP | Find 523 |
| 524 | 2014328 | CONNECTOR SWITCH;B 1170/2070/2170/2080/2180.. | Find 524 |
| 525 | 1039435 | PAPER GUIDE LQ-580 | Find 525 |
| 526 | 1005157 | SHAFT,RELEASE | Find 526 |
| 527 | 2025262 | HARNESS,PE,FRONT | Find 527 |
| 528 | 2025263 | HARNESS,PE,REAR | Find 528 |
| 529 | 2025897 | HARNESS, RE | Find 529 |
| 530 | 2019011 | DETECTOR,PE,FRONT LQ-2070/2170/2080/2180 | Find 530 |
| 531 | 1005727 | DETECTOR ASSY,REAR LQ1170/2070/2170/2080/2180 | Find 531 |
| 532 | 1005213 | ROLLER,PF,DRIVEN,LOWER LQ-870/1170/2170/2080/ | Find 532 |
| 533 | 1005282 | ROLLER ASSY.,PF LQ-870/1170 | Find 533 |
| 534 | 1005215 | EXTENSION SPRING,70 | Find 534 |
| 535 | 1005214 | COMPRESSION SPRING,1000 | Find 535 |
| 536 | 1053642 | CARRIAGE SUB LQ-580 | Find 536 |
| 537 | 1008704 | SLIDER, CR | Find 537 |
| 542 | 1039341 | TRACTOR,LEFT;W LQ-2080/2180 | Find 542 |
| 543 | 1039342 | TRACTOR,RIGHT;W LQ-2080/2180 | Find 543 |
| 544 | 1036500 | SHAFT,TR,DRIVE | Find 544 |
| 545 | 1005164 | SHAFT,TR,GUIDE | Find 545 |
| 546 | 1039351 | FRAME,TR,LEFT;W | Find 546 |
| 547 | 1039352 | FRAME,TR,RIGHT;W | Find 547 |
| 548 | 1039353 | LEVER,TR,LEFT;W | Find 548 |
| 549 | 1039354 | LEVER,TR,RIGHT;W | Find 549 |
| 550 | 1025296 | PAPER SUPPORT | Find 550 |
| 551 | 1039507 | SPUR GEAR,20 LQ-670/2170/2080/2180 | Find 551 |
| 552 | B150300911 | RETAINING RING | Find 552 |
| 556 | 1050319 | PAPER EJECT ASSY LQ-580 | Find 556 |
| 557 | B300204211 | C.B.S. SCREW | Find 557 |
| 558 | 2018129 | FERRITE CORE | Find 558 |
| 559 | 2032828 | CABLE HEAD,UPPER LQ-580 | Find 559 |
| 560 | 2032829 | CABLE HEAD,LOWER LQ-580 | Find 560 |
| 568 | 1005176 | HOLDER CABLE HEAD LQ-870/1170/580 | Find 568 |
| 569 | 1054010 | ROLLER ASSY.,DRIVE | Find 569 |
| 570 | 1050482 | PLATEN;B LQ-580 | Find 570 |
| 571 | 1025355 | BUSHING,8 LEFT LQ-2070/2170/2080/2180 | Find 571 |
| 572 | 1025285 | BUSHING,8 RIGHT LQ-2070/2170/2080/2180 | Find 572 |
| 573 | 1051975 | COVER,PLATEN | Find 573 |
| 575 | 1005184 | RIBBON MASK LQ-870/1170/580 | Find 575 |
| 576 | 1014600 | PAPER GUIDE ASSY.,SUPPORT LQ-870/580 | Find 576 |
| 577 | 1039973 | GROUNDING WIRE.,SUPPORT | Find 577 |
| 578 | 1050387 | FRAME,REAR | Find 578 |
| 579 | 1050211 | FRAME, FRONT | Find 579 |
| 580 | 1050212 | FRAME, SUB, RIGHT | Find 580 |
| 582 | 1008698 | SHAFT,CR,GUIDE | Find 582 |
| 583 | 1039818 | BUSHING,PARALLEL,ADJUST | Find 583 |
| 584 | 1051019 | LEVER,GAP,ADJUST | Find 584 |
| 585 | 1039412 | CAP, LEVER;W | Find 585 |
| 586 | 1036501 | GROUNDING PLATE,MECHANICAL | Find 586 |
| 587 | 1050216 | MOUNTING PLATE,MOTOR | Find 587 |
| 588 | 1050215 | HOLDER RIBBON MASK LQ-580 | Find 588 |
| 589 | F334005140 | OIL PAD | Find 589 |
| 590 | 1050220 | LEVER RELEASE LQ-580 | Find 590 |
| 591 | B010303311 | C.B.SCREW | Find 591 |
| 593 | 1005222 | COMBINATION GEAR,8.30,LQ-1170/870/2070/2080/580 | Find 593 |
| 594 | 1005224 | SPUR GEAR,27 LQ-870/1170/2070/2170/2080/2180/580 | Find 594 |
| 595 | 1013093 | SPUR GEAR,34.5 LQ-2070/2170/2080/2180/580 | Find 595 |
| 596 | 1032488 | SPUR GEAR,20 LQ-580/670 | Find 596 |
| 597 | 1005227 | SPUR GEAR,15 LQ-870/1170 | Find 597 |
| 598 | 1005218 | INTERMITTENT GEAR LQ-870/1170/2170 | Find 598 |
| 599 | 1005186 | EXTENSION SPRING,1056 | Find 599 |
| 600 | 1005201 | EXTENSION SPRING,71 | Find 600 |
| 601 | 1005232 | COMPRESSION SPRING,200 | Find 601 |
| 602 | 1031702 | SPRING PIN LQ-2170/2180/580 | Find 602 |
| 603 | 1000972 | C.B.S(P).(0) SCREW | Find 603 |
| 604 | 1005019 | C.B.P.-TILE SCREW,3X8,F/ZN | Find 604 |
| 606 | B070200411 | HEXAGON NUT | Find 606 |
| 607 | B100166012 | PLAIN WASHER | Find 607 |
| 608 | B010303411 | C.B.SCREW | Find 608 |
| 609 | B010303511 | C.B.SCREW | Find 609 |
| 610 | B300204311 | C.B.S. SCREW | Find 610 |
| 613 | 1005416 | SHARFT,MOUNT,CR | Find 613 |
| 617 | B101253990 | LEAF SPRING | Find 617 |
| 618 | 1031612 | SPUR GEAR,36 LQ-2070/2080/2170/2180 | Find 618 |
| 619 | B160101412 | RETAINING RING | Find 619 |
| 620 | 1025323 | LEVER,DETECTOR,PE,REAR LQ580/LQ2170/2070 | Find 620 |
| 621 | 1025324 | LEVER,PE,SUPPORT LQ/2070/2170/2080/2180 | Find 621 |
| 622 | 1025325 | TORSION SPRING,0,26 LQ-2070/2170/2080/2180 | Find 622 |
| 623 | 1039378 | PLAIN WASHER,3X0.5X8,F/Z | Find 623 |
| 650 | F070000 | PRINT HEAD LQ-2080/580 | Find 650 |
| No pic | X600440120 | CONNECTOR (CN4) | |
| No pic | 2027797 | HIC (IC DRIVE MOTOR) (IC10) | |
| No pic | X422350069 | TTL-IC GT-5000/8000/85000/LQ-300 (IC11) | |
| No pic | 2014681 | EEP ROM,AT93C46-10SC S-800/820/100/1500 (IC3) | |
| No pic | 2000592 | HYBRID IC SLA7024M LQ-870/1170/2170/2180/... (IC9) |
