Diagram 1
| Pic No. | Parts ID | Parts Name | Link |
| 100 | 1155763 | HOUSING,ASSY.LOWER | Find 100 |
| 101 | 1253457 | HOUSING ASSY.,UPPER | Find 101 |
| 102 | 1155764 | COVER,PRINTER,ASSY. | Find 102 |
| 103 | 1155766 | SHEET GUIDE ASSY. | Find 103 |
| 104 | 1103764 | OPTICAL TUBE | Find 104 |
| 105 | 1304412 | PANEL,BUTTON;C | Find 105 |
| 106 | 1103766 | COVER,PANEL | Find 106 |
| 107 | 1103767 | HOLDER,AC,CABLE | Find 107 |
| 108 | 1103768 | SHIELD PLATE,COVER | Find 108 |
| 109 | 1103769 | SOUND ABSORBER,A | Find 109 |
| 110 | 1108118 | SHEET,PANEL;B | Find 110 |
| 111 | 1218798 | LOGO PLATE;B | Find 111 |
| 112 | 1103854 | ROLLER,DRIVEN | Find 112 |
| 113 | 1230147 | SOUND ABSORBER;E | Find 113 |
| 114 | 1230146 | SOUND ABSORBER;D | Find 114 |
| 121 | 1283812 | C.B.(O)SCREW,4X8,F/ZG-3C | Find 121 |
| 122 | 1282370 | C.B.S-TITE SCREW,3X6,F/ZN-3C | Find 122 |
| 123 | 1284062 | C.B.S-TITE SCREW,3X16,F/ZN-3C | Find 123 |
| 124 | 1283938 | C.B.P-TITE SCREW,3X12,F/ZN-3C | Find 124 |
| 125 | 1282390 | H.N.-2,4,F/ZN-3C | Find 125 |
| 547 | 1103859 | SPRING,DRIVEN,REAR | Find 547 |

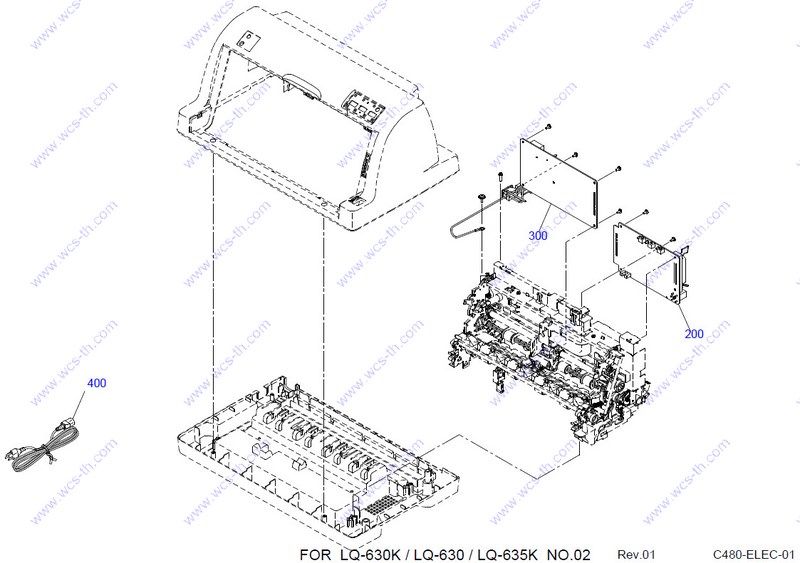

Diagram 2
| Pic No. | Parts ID | Parts Name | Link |
| 200 | 2072984 | BOARD ASSY., MAIN | Find 200 |
| 300 | 2069036 | BOARD ASSY., POWER SUPPLY | Find 300 |

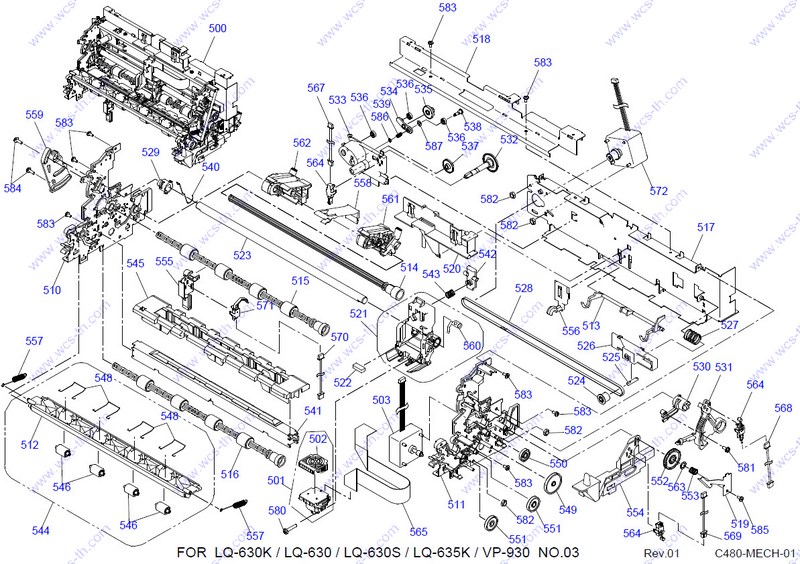

Diagram 3
| Pic No. | Parts ID | Parts Name | Link |
| 500 | 2075983 | PRINTER MECHANISM(ASP),M-5Y10-100 | Find 500 |
| 501 | F101010 | PRINT HEAD, D823V1 | Find 501 |
| 502 | 1156255 | COVER, HEAT SINK | Find 502 |
| 503 | 2068961 | MOTOR ASSY.,PF | Find 503 |
| 510 | 1091661 | FRAME ASSY.,LEFT | Find 510 |
| 511 | 1091663 | FRAME ASSY.,RIGHT | Find 511 |
| 512 | 1428647 | FRAME, ROLLER,DRIVEN,FRONT | Find 512 |
| 513 | 1091665 | LEVER,DETECTOR,PE,REAR | Find 513 |
| 514 | 1091666 | SHAFT,TR | Find 514 |
| 515 | 1091667 | ROLLER,DRIVE,REAR | Find 515 |
| 516 | 1237014 | ROLLER,DRIVE,FRONT | Find 516 |
| 517 | 1251106 | FRAME,CR | Find 517 |
| 518 | 1251107 | GUIDE,CR | Find 518 |
| 519 | 1231616 | SUPPORT PLATE,FRAME,RIGHT | Find 519 |
| 520 | 1103816 | HOLDER,CABLE,HEAD | Find 520 |
| 521 | 1155760 | CARRIAGE ASSY. | Find 521 |
| 522 | 1103820 | OIL PAD | Find 522 |
| 523 | 1103822 | SHAFT,CR,GUIDE | Find 523 |
| 524 | 1103823 | PULLEY,DRIVEN | Find 524 |
| 525 | 1103824 | SHAFT,PULLEY,DRIVEN | Find 525 |
| 526 | 1103825 | HOLDER,PULLEY,DRIVEN | Find 526 |
| 527 | 1103826 | COMPRESSION SPRING,24.78 | Find 527 |
| 528 | 1250576 | TIMING BELT | Find 528 |
| 529 | 1103828 | BUSHING,LEFT | Find 529 |
| 530 | 1103829 | BUSHING,RIGHT | Find 530 |
| 531 | 1103830 | LEVER,G,ADJUST | Find 531 |
| 532 | 1103831 | RATCHET,RD | Find 532 |
| 533 | 1103832 | HOUSING,RD | Find 533 |
| 534 | 1103833 | LEVER,PLANET | Find 534 |
| 535 | 1103834 | COMBINATION GEAR,8.5,20 | Find 535 |
| 536 | 1103835 | SPUR GEAR,9.5 | Find 536 |
| 537 | 1103836 | COMBINATION GEAR,8.5,19 | Find 537 |
| 538 | 1213086 | SHAFT,RD,PLANET;B | Find 538 |
| 539 | 1103843 | COMPRESSION SPRING,1.90 | Find 539 |
| 540 | 1103844 | GROUNDING WIRE,SHAFT,CR | Find 540 |
| 541 | 1103846 | PLATEN ASSY. | Find 541 |
| 542 | 1103819 | SLIDER,CR,REAR | Find 542 |
| 543 | 1103821 | COMPRESSION SPRING,0.98 | Find 543 |
| 544 | 1429097 | PAPER EJECT ASSY. | Find 544 |
| 545 | 1103850 | PAPER GUIDE | Find 545 |
| 546 | 1103854 | ROLLER,DRIVEN | Find 546 |
| 548 | 1103860 | SPRING,DRIVEN,FRONT | Find 548 |
| 549 | 1103862 | COMBINATION GEAR,30,8.5 | Find 549 |
| 550 | 1103863 | SPUR GEAR,18 | Find 550 |
| 551 | 1103864 | SPUR GEAR,22 | Find 551 |
| 552 | 1103865 | SPUR GEAR,27.5 | Find 552 |
| 553 | 1103866 | COMPRESSION SPRING,1.28 | Find 553 |
| 554 | 1103867 | LEVER,DISENGAGE | Find 554 |
| 555 | 1103868 | HOLDER,DETECTOR,PE,FRONT | Find 555 |
| 556 | 1103869 | HOLDER,ROLLER,DRIVE,REAR | Find 556 |
| 557 | 1103870 | EXTENSION SPRING,1.54 | Find 557 |
| 558 | 1103875 | PAPER SUPPORT,TR | Find 558 |
| 559 | 1104282 | LEVER,ADJUST | Find 559 |
| 560 | 1104796 | GROUNDING PLATE,HEAD | Find 560 |
| 561 | 1408780 | TRACTOR ASSY.,RIGHT | Find 561 |
| 562 | 1408779 | TRACTOR ASSY.,LEFT | Find 562 |
| 563 | 1108198 | PLAIN WASHER,6.5X0.5X10,S/Na | Find 563 |
| 564 | 2020393 | DETECTOR,LEAF,B2 | Find 564 |
| 565 | 2089314 | CABLE,HEAD | Find 565 |
| 567 | 2068884 | HARNESS,HP | Find 567 |
| 568 | 2068885 | HARNESS,PG | Find 568 |
| 569 | 2068886 | HARNESS,DISENGAGE | Find 569 |
| 570 | 2068887 | HARNESS,PE,FRONT | Find 570 |
| 571 | 2068889 | DETECTOR,PE,FRONT | Find 571 |
| 572 | 2068960 | MOTOR ASSY.,CR | Find 572 |
| 580 | 1284455 | C.P.B-TITE SCREW,3X14,F/ZN-3C | Find 580 |
| 581 | 1013593 | C.B.B-TITE(O)SCREW,3X8,F/ZN | Find 581 |
| 582 | 1282389 | H.N.-2,3,F/ZN-3C | Find 582 |
| 583 | 1282370 | C.B.S-TITE SCREW,3X6,F/ZN-3C | Find 583 |
| 584 | 1284089 | C.B.S-TITE(P2)SCREW,3X10,F/ZN-3C | Find 584 |
| 585 | 1282377 | C.B.P-TITE SCREW,3X6,F/ZN-3C | Find 585 |
| 586 | 1073568 | CUT WASHER(F334101070) | Find 586 |
| 587 | 1076269 | PLANE WASHER(B100167090) | Find 587 |
