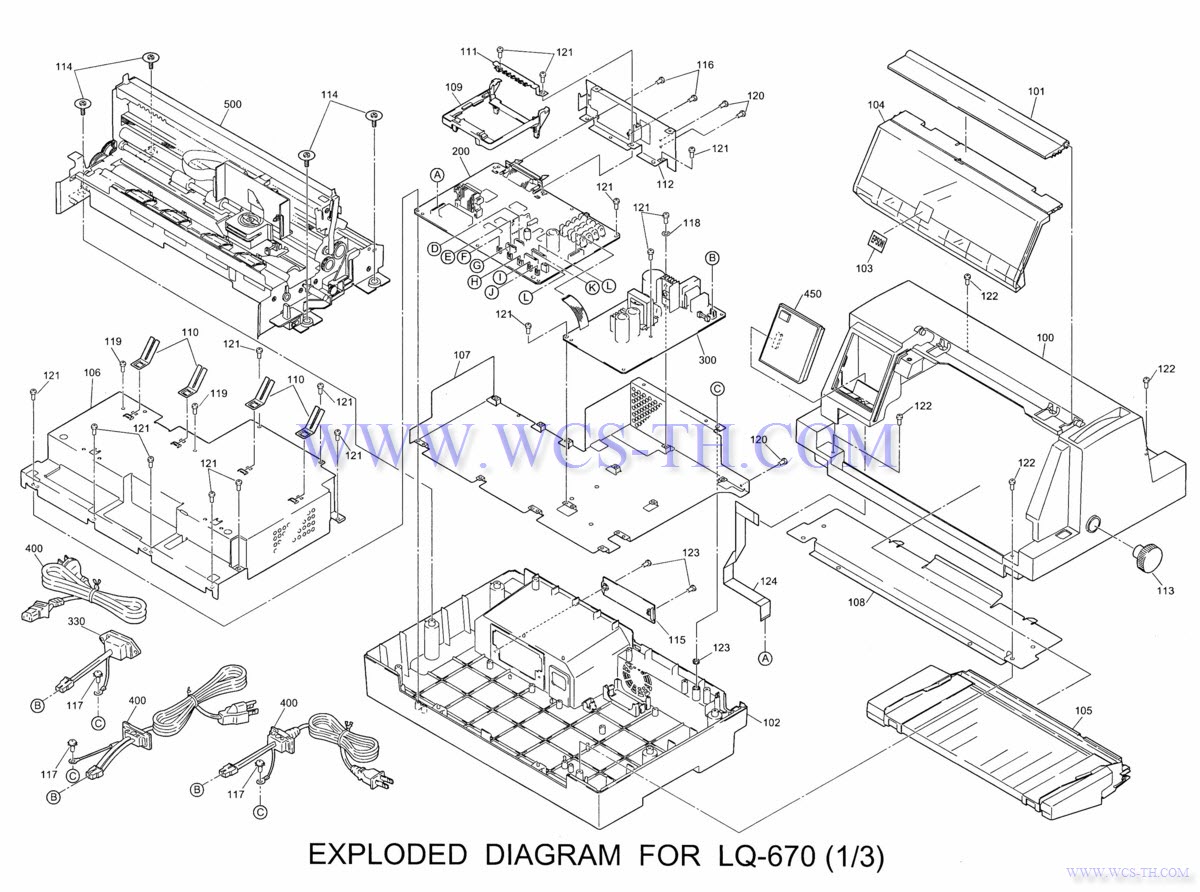

Diagram 1
| Pic No. | Parts ID | Parts Name | Link |
| 100 | 1032438 | HAUSING,UPPER | Find 100 |
| 101 | 1032439 | COVER,PRINTER | Find 101 |
| 102 | 1034102 | HOUSING ASSY., LOWER | Find 102 |
| 103 | 1034610 | LOGO PLATE | Find 103 |
| 104 | 1034101 | COVER ASSY.,PRINTER;B LQ-670 | Find 104 |
| 105 | 1034103 | SHEET GUIDE ASSY.,LQ-670 | Find 105 |
| 106 | 1032451 | SHIELD PLATE,UPPER | Find 106 |
| 107 | 1032450 | SHIELD PLATE | Find 107 |
| 108 | 1032453 | COVER,WIRING | Find 108 |
| 109 | 1006374 | GUIDE,I/F BOARD | Find 109 |
| 110 | 1005480 | GROUNDING PLATE | Find 110 |
| 111 | 1011863 | GROUNDING PLATE,I/F,UPPER | Find 111 |
| 112 | 1032452 | GROUNDING PLATE,I/F | Find 112 |
| 113 | 1032446 | KNOB LQ-670 | Find 113 |
| 114 | 1025409 | PRINTER MECHANISM MOUNT SCREW | Find 114 |
| 115 | 1002045 | COVER CONNECTOR,UPPER | Find 115 |
| 116 | B010109511 | C.P.SCREW | Find 116 |
| 117 | B045800115 | C.B.(O) SCREW 4X8 F/ZG | Find 117 |
| 118 | B100150512 | PLAIN WASHER | Find 118 |
| 119 | B300200111 | C.B.S. SCREW | Find 119 |
| 120 | B300204211 | C.B.S. SCREW | Find 120 |
| 121 | B310204511 | C.B.B.SCREW | Find 121 |
| 122 | B310206511 | C.B.B. SCREW | Find 122 |
| 124 | 2023473 | HARNESS LQ-670 | Find 124 |
| 200 | 2026150 | BOARD ASSY,MAIN LQ-670 | Find 200 |
| 300 | 2023464 | BOARD ASSY., POWER SUPPLY | Find 300 |
| 330 | 2023472 | HARNESS | Find 330 |
| 400 | 2002364 | POWER CABLE | Find 400 |
| 450 | 2024328 | PANEL UNIT | Find 450 |
| 500 | 2024694 | PRINTER MECHANIM(ASP) | Find 500 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

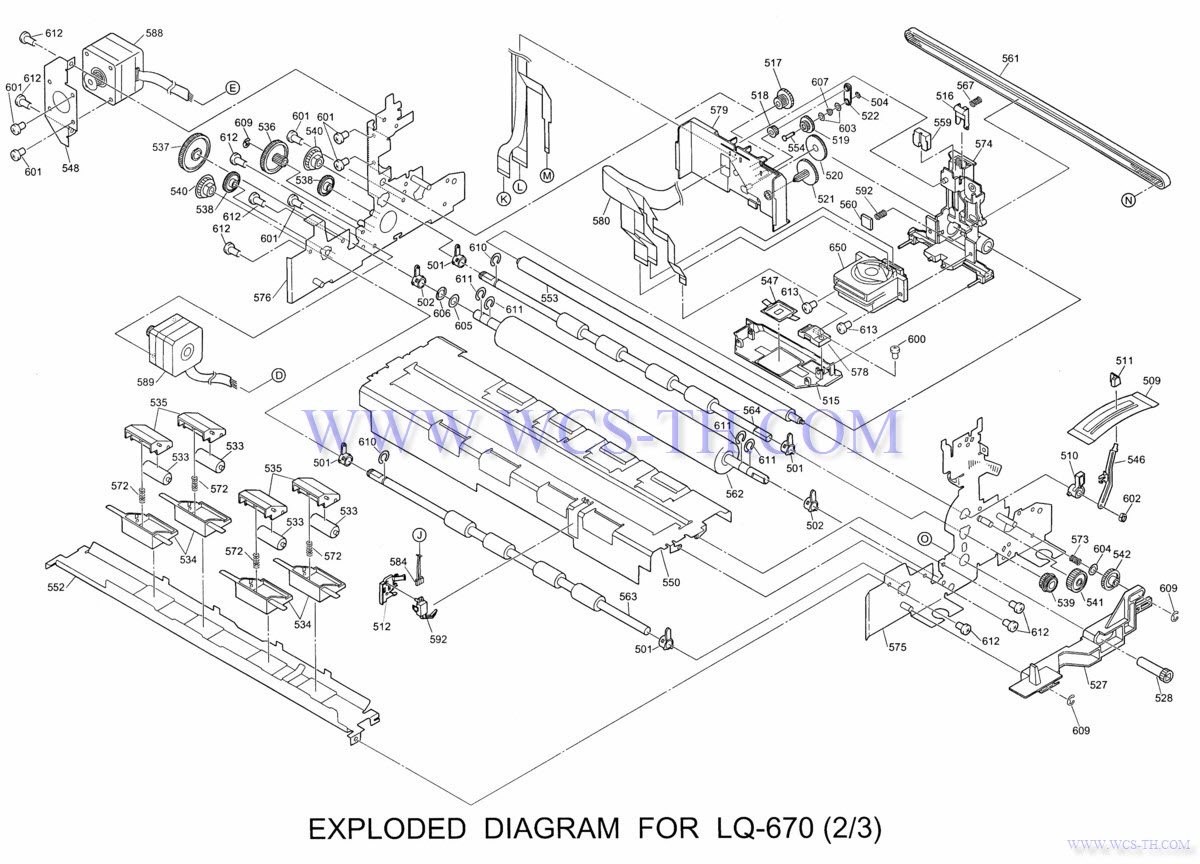

Diagram 2
| Pic No. | Parts ID | Parts Name | Link |
| 501 | F334005230 | PLATEN SHAFT HOLDER | Find 501 |
| 502 | F334005370 | PLATEN SHAFT HOLDER LQ-860/1060+/870/DLQ-2000 | Find 502 |
| 504 | F334101070 | CUT WASHER | Find 504 |
| 509 | 1032456 | HOLDER,ADJUST LEVER | Find 509 |
| 510 | 1032457 | BUSHING,PARALLEL ADJUST LQ-670 | Find 510 |
| 511 | 1032458 | LEVER CAP LQ-670PE,FRONT LQ-670 | Find 511 |
| 512 | 1032459 | HOLDER,DETECTOR,PE,FRONT LQ-670 | Find 512 |
| 515 | 1032462 | HOLDER,RIBBON MASK LQ-670 | Find 515 |
| 516 | 1032463 | SLIDER,REAR | Find 516 |
| 517 | 1032465 | COMBINATION GEAR 10,17.5 LQ-670 | Find 517 |
| 518 | 1032466 | SPUR GEAR,11 LQ-670 | Find 518 |
| 519 | 1032467 | COMBINATION GEAR,9.17 LQ-670 | Find 519 |
| 520 | 1032468 | COMBINATION GEAR,14.26 LQ-670 | Find 520 |
| 521 | 1032469 | RATCHET,RD LQ-670 | Find 521 |
| 522 | 1032470 | LEVER,RD,PLANET | Find 522 |
| 527 | 1032474 | LEVER,RELEASE | Find 527 |
| 528 | 1032475 | RELEASE GEAR | Find 528 |
| 533 | 1032480 | ROLLER,PAPER EJECT,DRIVEN LQ-670 | Find 533 |
| 534 | 1032481 | HOLDER LEVER PAPER | Find 534 |
| 535 | 1032482 | LEVER PAPER EJECT DRIVEN LQ-670 | Find 535 |
| 536 | 1032483 | COMVINATION GEAR,8,30 | Find 536 |
| 537 | 1032484 | SPUR GEAR,36 LQ-670 | Find 537 |
| 538 | 1032485 | SPUR GEAR,18 LQ-670 | Find 538 |
| 539 | 1032486 | COMVINATION GEAR,16,16 | Find 539 |
| 540 | 1032487 | SPUR GEAR,16 LQ-670 | Find 540 |
| 541 | 1032488 | SPUR GEAR,20 LQ-580/670 | Find 541 |
| 542 | 1032489 | SPUR GEAR,20 LQ-670 | Find 542 |
| 546 | 1032495 | LEVER,GAP,ADJUST | Find 546 |
| 547 | 1032496 | RIBBON MASK LQ-670 | Find 547 |
| 548 | 1032497 | MOUNTING PLATE,MOTOR,CR | Find 548 |
| 550 | 1032499 | PAPER GUIDE LQ-670 | Find 550 |
| 552 | 1032501 | FRAME,PAPER EJECT | Find 552 |
| 553 | 1032508 | SHAFT,CR,GUIDE | Find 553 |
| 554 | 1032510 | SHAFT,RD,PLANET | Find 554 |
| 559 | 1032519 | SLIDER,FRONT | Find 559 |
| 560 | 1032520 | OIL PAD | Find 560 |
| 561 | 1032521 | TIMING BELT LQ-670 | Find 561 |
| 562 | 1032522 | PLATEN LQ-670 | Find 562 |
| 563 | 1034016 | ROLLER PAPER EJECT,DRIVE LQ-670 | Find 563 |
| 564 | 1032524 | ROLLER PAPER LOAD,DRIVE LQ-670 | Find 564 |
| 567 | 1032527 | COMPRESSION SPRING 1.96 LQ-670 | Find 567 |
| 572 | 1032532 | COMPRESSION SPRING 1.47 LQ-670 | Find 572 |
| 573 | 1032533 | COMPRESSION SPRING 1.96 LQ-670 | Find 573 |
| 574 | 1032534 | CARRIAGE ASSY.,LQ-670 | Find 574 |
| 575 | 1032591 | FRAME ASSY.,RIGHT | Find 575 |
| 576 | 1032592 | FRAME ASSY.,LEFT | Find 576 |
| 578 | 1032594 | P.C.B ASSY.,PW LQ-670 | Find 578 |
| 579 | 1034099 | HOLDER ASSY,RIBBON CARTRIDGE LQ-670 | Find 579 |
| 580 | 1034100 | CABLE HEAD LQ-670 | Find 580 |
| 584 | 2023488 | HARNESS,PE,FRONT LQ-670 | Find 584 |
| 588 | 2023492 | MOTOR ASSY.,CR LQ-670 | Find 588 |
| 589 | 2023494 | MOTOR ASSY.,PF LQ-670 | Find 589 |
| 592 | 1033552 | COMPRESION SPRING,0,049 | Find 592 |
| 600 | B010302211 | C.B.SCREW | Find 600 |
| 601 | B010303311 | C.B.SCREW | Find 601 |
| 602 | B070200411 | HEXAGON NUT | Find 602 |
| 603 | B100150512 | PLAIN WASHER | Find 603 |
| 604 | B100153090 | PLAIN WASHER | Find 604 |
| 605 | B100166012 | PLAIN WASHER | Find 605 |
| 606 | B101253990 | LEAF SPRING | Find 606 |
| 607 | B101254190 | LEAF SPRING | Find 607 |
| 609 | B150300711 | RETAINING RING | Find 609 |
| 610 | B150300911 | RETAINING RING | Find 610 |
| 611 | B160101412 | RETAINING RING | Find 611 |
| 612 | B300204211 | C.B.S. SCREW | Find 612 |
| 613 | B300204411 | C.B.S. SCREW | Find 613 |
| 650 | F060000 | PRINT HEAD LQ-670 | Find 650 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

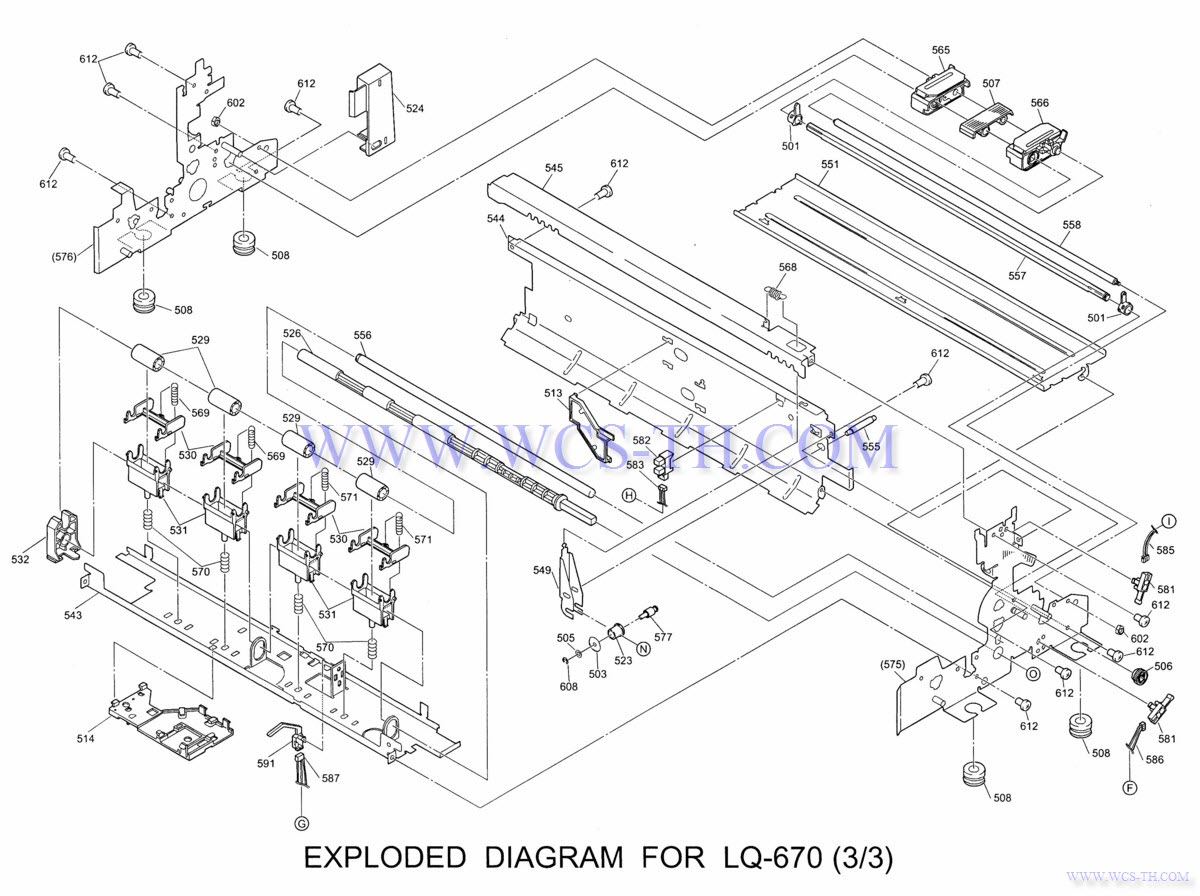

Diagram 3
| Pic No. | Parts ID | Parts Name | Link |
| 501 | F334005230 | PLATEN SHAFT HOLDER | Find 501 |
| 503 | F334101020 | **BELT DRIVE PULLEY LQ-670 | Find 503 |
| 505 | 1006142 | PLAIN WASHER LQ-670 | Find 505 |
| 506 | 1039507 | SPUR GEAR,20 SC-400/600 SP-700 LQ-670/2170... | Find 506 |
| 507 | 1025296 | PAPER SUPPORT | Find 507 |
| 508 | 1025335 | BASE RUBBER | Find 508 |
| 513 | 1032460 | HOLDER,CABLE,UPPER | Find 513 |
| 514 | 1032461 | HOLDER,CABLE,LOWER | Find 514 |
| 523 | 1032471 | PULLEY,DRIVEN | Find 523 |
| 524 | 1032472 | COVER,MOTOR,CR | Find 524 |
| 526 | 1032473 | SHAFT,RELEASE | Find 526 |
| 529 | 1032476 | ROLLER,PAPER LOAD,DRIVEN LQ-670 | Find 529 |
| 530 | 1032477 | LEVER,PAPER GUIDE | Find 530 |
| 531 | 1032478 | HOLDER,PAPER OAD,DRIVEN | Find 531 |
| 532 | 1032479 | BEARING,PAPER LOAD,DRIVEN | Find 532 |
| 543 | 1032492 | FRAME,BASE | Find 543 |
| 544 | 1032493 | FRAME,CR | Find 544 |
| 545 | 1032494 | GUIDE,CR | Find 545 |
| 549 | 1032498 | LEVER,PULLEY,DRIVEN | Find 549 |
| 551 | 1032500 | COVER,TRACTOR | Find 551 |
| 555 | 1032513 | SHAFT,LEVER,PULLEY,DRIVE | Find 555 |
| 556 | 1032516 | SHAFT,PAPER LOAD,DRIVEN | Find 556 |
| 557 | 1032517 | SHAFT,TR,DRIVE | Find 557 |
| 558 | 1032518 | SHAFT,TR,GUIDE | Find 558 |
| 565 | 1032525 | TRACTOR,LEFT | Find 565 |
| 566 | 1032526 | TRACTOR,RIGHT | Find 566 |
| 568 | 1032528 | EXTENSION SPRING,14.5 | Find 568 |
| 569 | 1032529 | COMPRESSION SPRING,1.47 | Find 569 |
| 570 | 1032530 | EXTENSION SPRING,0.55 | Find 570 |
| 571 | 1032531 | COMPRESSION SPRING,1.96 | Find 571 |
| 575 | 1032591 | FRAME ASSY.,RIGHT | Find 575 |
| 576 | 1032592 | FRAME ASSY.,LEFT | Find 576 |
| 577 | 1032593 | BUSHING ASSEMBLY DRIVE LQ-670 | Find 577 |
| 581 | 2020393 | DETECTOR,LEAF,B2 SC-200/500... | Find 581 |
| 582 | 2025848 | DETECTOR,LEAF,B2 | Find 582 |
| 583 | 2023487 | HARNESS,HP LQ-670 | Find 583 |
| 585 | 2023489 | HARNESS,PG | Find 585 |
| 586 | 2023490 | HARNESS,PE,REAR | Find 586 |
| 587 | 2023491 | HARNESS,PE,REAR | Find 587 |
| 591 | 2023550 | DETECTOR,PE,REAR | Find 591 |
| 602 | B070200411 | HEXAGON NUT | Find 602 |
| 608 | B150300611 | RETAINING RING GT-9000/8500/5000/9500/12000 | Find 608 |
| 612 | B300204211 | C.B.S. SCREW | Find 612 |
| 656 | 1032525 | TRACTOR,LEFT DLQ-3000+/LQ-670 | Find 656 |
