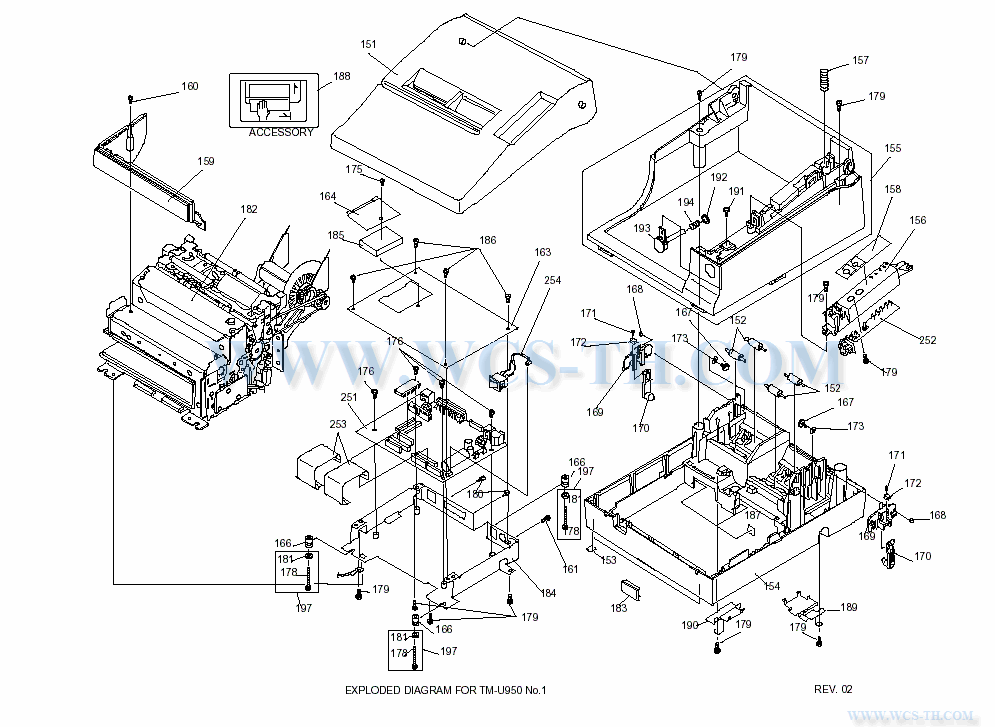

Diagram 1
| Pic No. | Parts ID | Parts Name | Link |
| 151 | 1017616 | COVER,MAIN ASSY | Find 151 |
| 152 | F701001030 | ROLLED PAPER ROLLER | Find 152 |
| 153 | Y583001013 | RUBBER STAND | Find 153 |
| 154 | 1022071 | CASE,LOWER | Find 154 |
| 155 | 1017618 | CASE,UPPER ASSY | Find 155 |
| 156 | 1017075 | HOLDER,SWITCH CIRCUIT BOARD,A | Find 156 |
| 157 | 1017078 | SPRING,COVER | Find 157 |
| 158 | 1017080 | SWITCH PANEL | Find 158 |
| 159 | 1017071 | COVER FASE | Find 159 |
| 160 | B300104211 | C.P.S. SCREW | Find 160 |
| 161 | B302404211 | C.P.S.(O) SCREW | Find 161 |
| 163 | 1022080 | PLATE,CIRCUIT BOARD | Find 163 |
| 164 | 1022081 | COVER ROM | Find 164 |
| 166 | 1017620 | SPACER,VIBRATION ASSY | Find 166 |
| 167 | C109302051 | DETECTOR ADJUSTMENT SCREW | Find 167 |
| 168 | B070100311 | HEXAGON NUT | Find 168 |
| 169 | 1017364 | HOLDER,N.E.DETECTOR | Find 169 |
| 170 | 1017365 | LEVER,N.E.DETECTOR | Find 170 |
| 171 | 1017753 | C.B.B-TITE SCREW | Find 171 |
| 172 | 2011867 | MICROSWITCH | Find 172 |
| 173 | 1020228 | SPACER,N.E.,DETECTOR | Find 173 |
| 175 | B300104211 | C.P.S. SCREW | Find 175 |
| 176 | B302404211 | C.P.S.(O) SCREW | Find 176 |
| 178 | B310206811 | C.B.B. SCREW | Find 178 |
| 179 | B018101811 | C.P.T.SCREW | Find 179 |
| 180 | X610220000 | HEXAGON SCREW | Find 180 |
| 181 | 1017085 | PLANE WASHER | Find 181 |
| 182 | 1017615 | MECHANISM ASSY | Find 182 |
| 183 | 1020008 | COVER,POWER SWITCH | Find 183 |
| 184 | 1022078 | FRAME,CIRCUIT BOARD ASSY | Find 184 |
| 185 | 1022083 | SPACER,ROM | Find 185 |
| 186 | B300104211 | C.P.S. SCREW | Find 186 |
| 187 | 1023411 | SEAL,CAUTION | Find 187 |
| 188 | 1023563 | CAUTION SEAL | Find 188 |
| 251 | 2016074 | MAIN CIRCUIT BOARD ASSY | Find 251 |
| 252 | 2011955 | SWITCH CIRCUIT BOARD UNITE | Find 252 |
| 253 | 2012311 | FLEXIBLE FLAT CABLE | Find 253 |
| 254 | 2014473 | POWER CABLE ASSY | Find 254 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

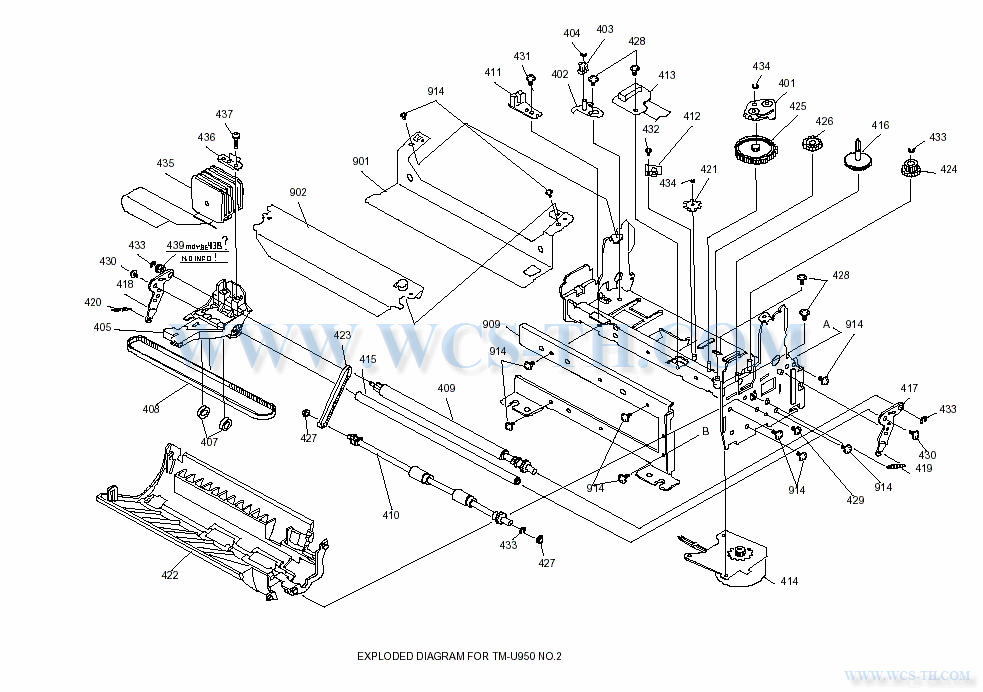

Diagram 2
| Pic No. | Parts ID | Parts Name | Link |
| 401 | 1017837 | LEVER, RIBBON FEED PLANET, ASSY | Find 401 |
| 402 | 1017839 | PULLEY BASE, CARRIAGE TRANSMISSION, SUB | Find 402 |
| 403 | 1017357 | PULLEY, CARRIAGE TRANSMISSION | Find 403 |
| 404 | B150300611 | RETAINING RING | Find 404 |
| 405 | 1017841 | CARRIAGE, HEAD, SUB ASSY | Find 405 |
| 406 | 1017348 | SPRING, CARRIAGE HOLD | Find 406 |
| 407 | 1017350 | OIL RING | Find 407 |
| 408 | F150203010 | CARRIAGE DELIVERY BELT | Find 408 |
| 409 | 1017842 | ROLLER, SLIP PAPER HOLD, ASSY | Find 409 |
| 410 | 1017843 | ROLLER, SUB SLIP PAPERHOLD, ASSY | Find 410 |
| 411 | 2012440 | DETECTOR, HOME POSITION, SUB ASSY | Find 411 |
| 412 | 2012441 | DETECTOR, CARRIAGE, SUBASSY | Find 412 |
| 413 | 2012442 | BOARD, HEAD RELAY, ASSY | Find 413 |
| 414 | 2012085 | MOTOR, CARRIAGE | Find 414 |
| 415 | 1017351 | SHAFT, CARRIAGE GUIDE | Find 415 |
| 416 | 1017406 | GEAR, RIBBON FEED | Find 416 |
| 417 | 1017352 | LEVER, GUIDE SHAFT SUPPORT, J | Find 417 |
| 418 | 1017353 | LEVER, GUIDE SHAFT SUPPORT, R | Find 418 |
| 419 | 1017853 | SPRING, SUPPORT LEVER, J | Find 419 |
| 420 | 1017355 | SPRING, SUPPORT LEVER, R | Find 420 |
| 421 | 1017360 | GEAR, CARRIAGE DETECTOR | Find 421 |
| 422 | 1017389 | PAPER GUIDE, SLIP PAPER, UPPER | Find 422 |
| 423 | 1017854 | BELT, SLIP PAPER FEED | Find 423 |
| 424 | F150205050 | LEAD CARRIAGE PULLEY | Find 424 |
| 425 | F150353010 | RIBBON FEED TRANSMISSION GEAR | Find 425 |
| 426 | F352709020 | PLARETARY GEAR | Find 426 |
| 427 | C732211010 | PRINT SHAFT HOLDER | Find 427 |
| 428 | B302304211 | C.P.S.(P) SCREW | Find 428 |
| 429 | B312104311 | C.P.B.(P). SCREW | Find 429 |
| 430 | B040552211 | C.P.S.P.SCREW | Find 430 |
| 431 | B300304111 | C.C.S. SCREW | Find 431 |
| 432 | 1003034 | C.B.SCREW | Find 432 |
| 433 | B150300611 | RETAINING RING | Find 433 |
| 434 | B150300411 | RETAINING RING | Find 434 |
| 435 | 1017319 | PRINT HEAD, E, UNIT | Find 435 |
| 436 | 1019057 | GUIDE, NOSE | Find 436 |
| 437 | 1019731 | C.P.P-TITE SCREW | Find 437 |
| 901 | 1017844 | COVER, CARRIAGE, ASSY | Find 901 |
| 902 | 1017845 | COVER, HEAD, ASSY | Find 902 |
| 909 | 1017340 | FRAME, FRONT | Find 909 |
| 914 | B300304111 | C.C.S. SCREW | Find 914 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

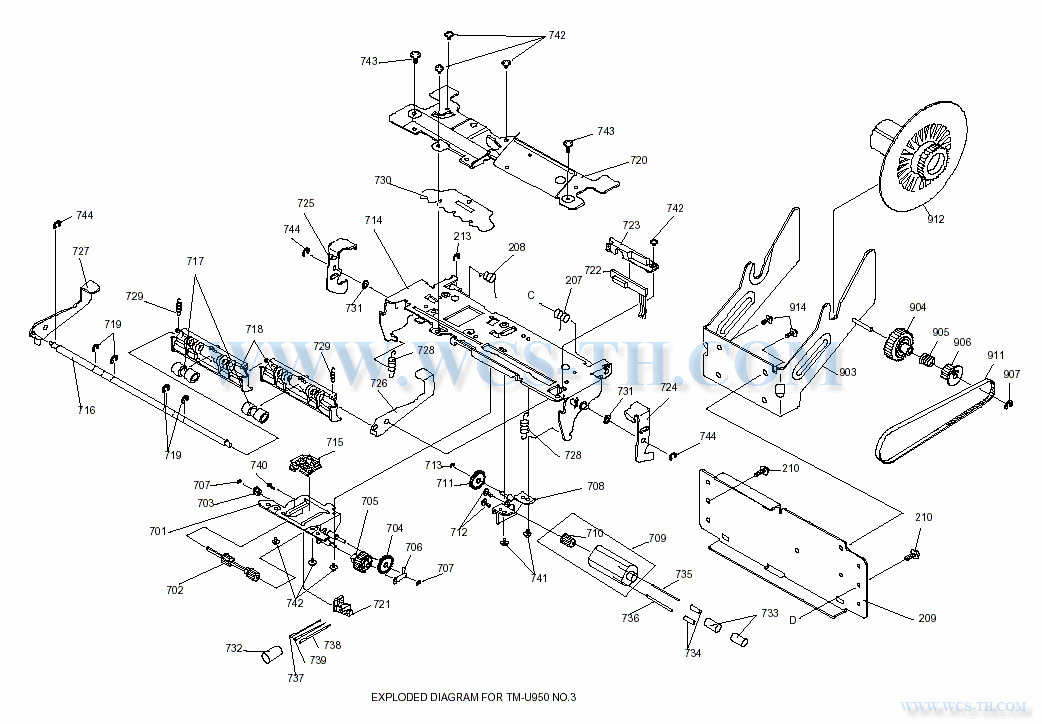

Diagram 3
| Pic No. | Parts ID | Parts Name | Link |
| 207 | 1017422 | SPRING, CUTTER UNIT SHAFT, J | Find 207 |
| 208 | 1017423 | SPRING, CUTTER UNIT SHAFT, R | Find 208 |
| 209 | 1017338 | FRAME, REAR | Find 209 |
| 210 | B300304111 | C.C.S. SCREW | Find 210 |
| 213 | B150300611 | RETAINING RING | Find 213 |
| 701 | F150503000 | CUTTER FRAME SUB ASSY | Find 701 |
| 702 | F150504000 | CUTTER DRIVE SHAFT SUB ASSY | Find 702 |
| 703 | F201506030 | DRIVE SHAFT HOLDER | Find 703 |
| 704 | F201504010 | REDUCTION GEAR A | Find 704 |
| 705 | F201504020 | REDUCTION GEAR B | Find 705 |
| 706 | F201504030 | AUXILIARY PLATE | Find 706 |
| 707 | B150300314 | RETAINING RING | Find 707 |
| 709 | 2013814 | MOTOR, CUTTER, SUB ASSY | Find 709 |
| 710 | F201508020 | MOTOR GEAR | Find 710 |
| 712 | B010109411 | C.P.SCREW | Find 712 |
| 714 | 1017830 | FRAME, CUTTER BLADE RECEIVING, ASSY | Find 714 |
| 716 | 1017372 | SHAFT, PAPER HOLD ROLLER | Find 716 |
| 717 | F150510030 | PAPER HOLD ROLLER | Find 717 |
| 718 | 1017375 | PAPER GUIDE, ASSIST | Find 718 |
| 719 | 1004577 | C RING | Find 719 |
| 720 | 1017832 | COVER, CUTTER BLADE RECEIVING, ASSY | Find 720 |
| 721 | F201507000 | CONTACT HOLD SUB ASSY | Find 721 |
| 722 | 2013815 | DETECTOR, SLIP PAPER EJECTION, SUB ASSY | Find 722 |
| 723 | 1017362 | HOLDER, SLIP PAPER EJECTION DETECTOR | Find 723 |
| 724 | F150501130 | CUTTER UNIT LOCK LEVER J | Find 724 |
| 725 | F150501140 | CUTTER UNIT LOCK LEVER R | Find 725 |
| 726 | 1017373 | LEVER, RELEASE, J | Find 726 |
| 727 | 1017374 | LEVER, RELEASE, R | Find 727 |
| 728 | F150501040 | PAPER HOLD SPRING | Find 728 |
| 729 | F150501010 | SPARE PAPER GUIDE SPRING | Find 729 |
| 730 | F150501050 | CUTTER BLADE | Find 730 |
| 731 | F352709040 | LEAF SPRING | Find 731 |
| 732 | F150501190 | PROTECTIVE TUBE | Find 732 |
| 733 | 1018113 | TUBE, PROTECTIVE | Find 733 |
| 734 | F201508030 | SHIELD TUBE | Find 734 |
| 735 | 2012902 | LEAD WIRE, O | Find 735 |
| 736 | 2012903 | LEAD WIRE, P | Find 736 |
| 737 | 2012904 | LEAD WIRE, Q | Find 737 |
| 738 | 2012905 | LEAD WIRE, R | Find 738 |
| 739 | 2012906 | LEAD WIRE, S | Find 739 |
| 740 | B012601511 | C.T.B.SCREW | Find 740 |
| 741 | 1001804 | C.P.S. SCREW | Find 741 |
| 742 | B300500211 | CUP SCREW S TIGHT (FLAT TYPE) | Find 742 |
| 743 | B300304111 | C.C.S. SCREW | Find 743 |
| 744 | B150300611 | RETAINING RING | Find 744 |
| 903 | 1017847 | FRAME, PAPER TAKE UP, SUB ASSY | Find 903 |
| 904 | F150303010 | PAPER TAKE-UP GEAR | Find 904 |
| 905 | F150303020 | PAPER TAKE-UP SPRING | Find 905 |
| 906 | F150303030 | PAPER TAKE-UP PULLEY | Find 906 |
| 907 | B150300411 | RETAINING RING | Find 907 |
| 911 | F150310010 | PAPER TAKE-UP BELT | Find 911 |
| 912 | 1015438 | PAPER ROLLING SHAFT | Find 912 |
| 914 | B30030411 | C.C.S SCREW | Find 914 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000
Diagram 4
| Pic No. | Parts ID | Parts Name | Link |
| 207 | 1017422 | SPRING, CUTTER UNIT SHAFT, J | Find 207 |
| 208 | 1017423 | SPRING, CUTTER UNIT SHAFT, R | Find 208 |
| 209 | 1017338 | FRAME, REAR | Find 209 |
| 210 | B300304111 | C.C.S. SCREW | Find 210 |
| 213 | B150300611 | RETAINING RING | Find 213 |
| 701 | F150503000 | CUTTER FRAME SUB ASSY | Find 701 |
| 702 | F150504000 | CUTTER DRIVE SHAFT SUB ASSY | Find 702 |
| 703 | F201506030 | DRIVE SHAFT HOLDER | Find 703 |
| 704 | F201504010 | REDUCTION GEAR A | Find 704 |
| 705 | F201504020 | REDUCTION GEAR B | Find 705 |
| 706 | F201504030 | AUXILIARY PLATE | Find 706 |
| 707 | B150300314 | RETAINING RING | Find 707 |
| 709 | 2013814 | MOTOR, CUTTER, SUB ASSY | Find 709 |
| 710 | F201508020 | MOTOR GEAR | Find 710 |
| 712 | B010109411 | C.P.SCREW | Find 712 |
| 714 | 1017830 | FRAME, CUTTER BLADE RECEIVING, ASSY | Find 714 |
| 716 | 1017372 | SHAFT, PAPER HOLD ROLLER | Find 716 |
| 717 | F150510030 | PAPER HOLD ROLLER | Find 717 |
| 718 | 1017375 | PAPER GUIDE, ASSIST | Find 718 |
| 719 | 1004577 | C RING | Find 719 |
| 720 | 1017832 | COVER, CUTTER BLADE RECEIVING, ASSY | Find 720 |
| 721 | F201507000 | CONTACT HOLD SUB ASSY | Find 721 |
| 722 | 2013815 | DETECTOR, SLIP PAPER EJECTION, SUB ASSY | Find 722 |
| 723 | 1017362 | HOLDER, SLIP PAPER EJECTION DETECTOR | Find 723 |
| 724 | F150501130 | CUTTER UNIT LOCK LEVER J | Find 724 |
| 725 | F150501140 | CUTTER UNIT LOCK LEVER R | Find 725 |
| 726 | 1017373 | LEVER, RELEASE, J | Find 726 |
| 727 | 1017374 | LEVER, RELEASE, R | Find 727 |
| 728 | F150501040 | PAPER HOLD SPRING | Find 728 |
| 729 | F150501010 | SPARE PAPER GUIDE SPRING | Find 729 |
| 730 | F150501050 | CUTTER BLADE | Find 730 |
| 731 | F352709040 | LEAF SPRING | Find 731 |
| 732 | F150501190 | PROTECTIVE TUBE | Find 732 |
| 733 | 1018113 | TUBE, PROTECTIVE | Find 733 |
| 734 | F201508030 | SHIELD TUBE | Find 734 |
| 735 | 2012902 | LEAD WIRE, O | Find 735 |
| 736 | 2012903 | LEAD WIRE, P | Find 736 |
| 737 | 2012904 | LEAD WIRE, Q | Find 737 |
| 738 | 2012905 | LEAD WIRE, R | Find 738 |
| 739 | 2012906 | LEAD WIRE, S | Find 739 |
| 740 | B012601511 | C.T.B.SCREW | Find 740 |
| 741 | 1001804 | C.P.S. SCREW | Find 741 |
| 742 | B300500211 | CUP SCREW S TIGHT (FLAT TYPE) | Find 742 |
| 743 | B300304111 | C.C.S. SCREW | Find 743 |
| 744 | B150300611 | RETAINING RING | Find 744 |
| 903 | 1017847 | FRAME, PAPER TAKE UP, SUB ASSY | Find 903 |
| 904 | F150303010 | PAPER TAKE-UP GEAR | Find 904 |
| 905 | F150303020 | PAPER TAKE-UP SPRING | Find 905 |
| 906 | F150303030 | PAPER TAKE-UP PULLEY | Find 906 |
| 907 | B150300411 | RETAINING RING | Find 907 |
| 911 | F150310010 | PAPER TAKE-UP BELT | Find 911 |
| 912 | 1015438 | PAPER ROLLING SHAFT | Find 912 |
| 914 | B30030411 | C.C.S SCREW | Find 914 |
