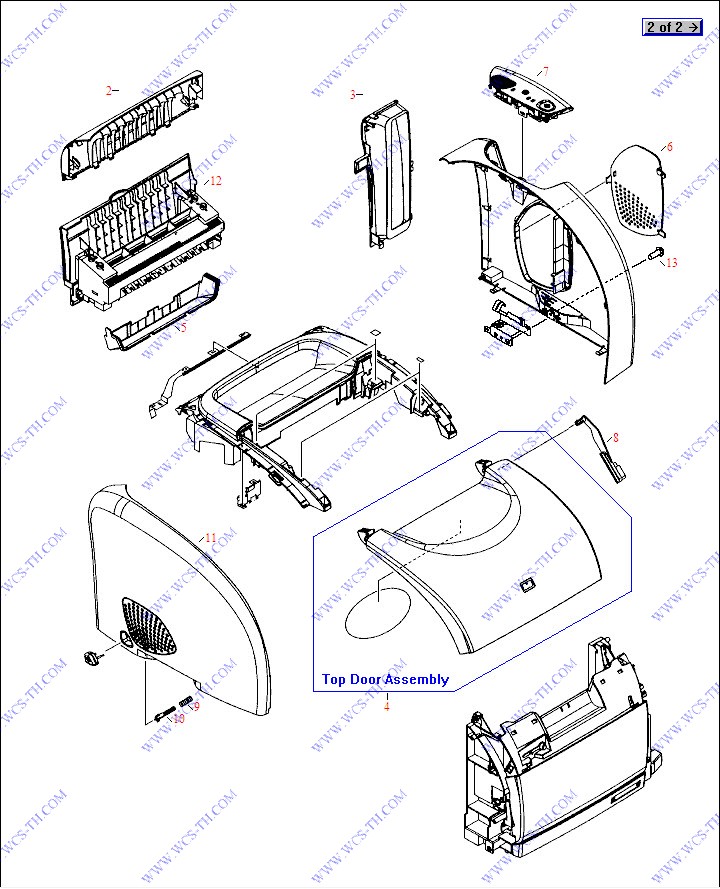

External Covers
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RB9-0880-000CN | Upper rear cover (Alloy Gray plastic) | Find 2 |
| 3 | RB3-1112-000CN | Interface bezel (Alloy Gray plastic) - Vertical cover that surronds the interface connectors | Find 3 |
| 4 | RF5-4069-000CN | Top cover door (Graphite Black plastic) - For accessing the toner cartridges and the imaging drum/transfer assembly | Find 4 |
| 5 | RB9-0881-000CN | Face-down paper output cover (L-Shaped Graphite Black plastic) - Serves as the rear of the tray for the face-down output tray on top of the printer | Find 5 |
| 6 | RB9-0884-000CN | DIMM memory door (Alloy Gray perforated plastic) - Access door for adding or removing printer memory or font DIMM | Find 6 |
| 7 | RG5-7570-020CN | Control panel assembly (mechanical only) - Includes the |Rotate Carousel|, |Cancel Job| and the |Go| buttons, plus the various indicator light pipes - All switches and LED|s are on the formatter PC board - Mounts to the top of the right cover assembly | Find 7 |
| 7 | RG5-7570-000CN | Control panel assembly (mechanical only) - Includes the |Rotate Carousel|, |Cancel Job| and the |Go| buttons, plus the various indicator light pipes - All switches and LED|s are on the formatter PC board | Find 7 |
| 8 | RB3-0089-000CN | Top cover rack arm (Black) - Plastic arm with teeth on bottom edge - Disengages the imaging drum/transfer assembly drive cams when the top door is open | Find 8 |
| 8 | RB3-0089-030CN | Top cover rack arm (Black) - Plastic arm with teeth on bottom edge - Disengages the imaging drum/transfer assembly drive cams when the top door is open | Find 8 |
| 9 | RS6-2759-000CN | Compression spring | Find 9 |
| 10 | RB3-0037-000CN | Power switch rod - Goes between the power button and the power switch on the low voltage power supply board | Find 10 |
| 11 | RB9-0886-000CN | Left side cover ONLY (Alloy Gray plastic) - Does not include any attaching parts | Find 11 |
| 12 | RG5-7573-000CN | Fusing assembly - For 220V to 240V AC operation - Bonds the toner to the paper with heat | Find 12 |
| 12 | RG5-7572-110CN | Fusing assembly - For 110V to 127V AC operation - Bonds the toner to the paper with heat | Find 12 |
| 12 | RG5-7572-000CN | Fusing assembly - For 110V to 127V AC operation - Bonds the toner to the paper with heat | Find 12 |
| 12 | RG5-7573-110CN | Fusing assembly - For 220V to 240V AC operation - Bonds the toner to the paper with heat | Find 12 |
| 13 | XA9-1291-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 13 |
| 13 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 13 |

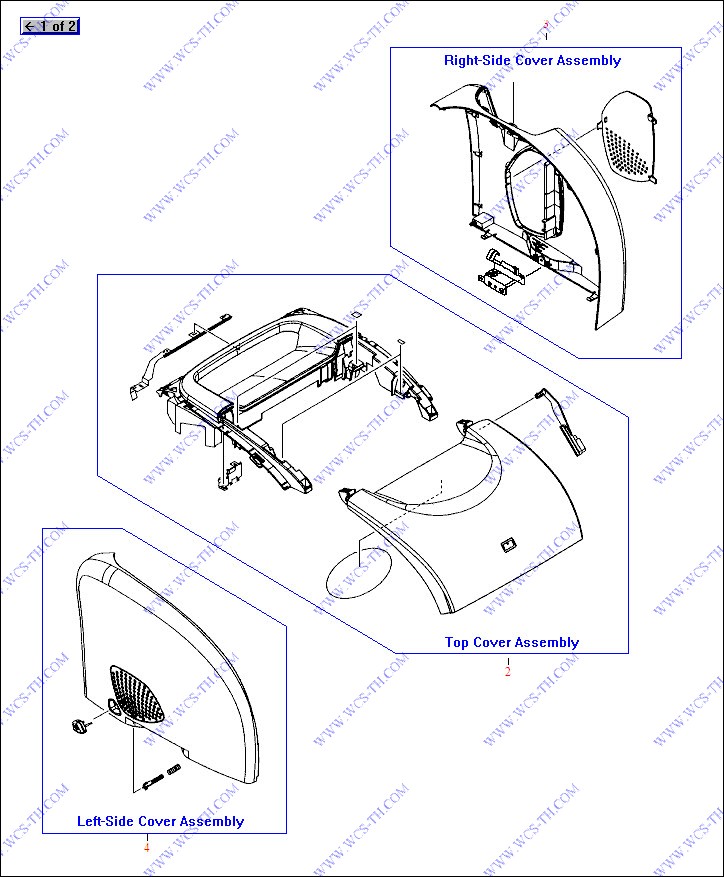

External Covers (Assemblies)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RG5-7567-000CN | Top cover assembly (Graphite Black plastic) - Includes the molded-in face-down output tray and the lift-up top cover door assembly | Find 2 |
| 3 | RG5-7569-000CN | Right side cover assembly (Light Gray plastic) - Includes the DIMM memory door | Find 3 |
| 4 | RG5-7571-000CN | Left side cover assembly (Alloy Gray plastic) - Includes the power switch button, rod and spring (The power switch is located on the low voltage power supply board) | Find 4 |
Front Frame Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-9952-000CN | Tray 1 flag spring - Provides torsion for the tray 1 paper sensor flag | Find 1 |
| 2 | RB9-0889-000CN | Tray hinge - |L| shaped plastic arm - For the left side of the multi-purpose front input tray (tray 1) | Find 2 |
| 3 | RB9-0890-000CN | Tray hinge - |L| shaped plastic arm - For the right side of the multipurpose front input tray (tray 1) | Find 3 |
| 4 | RB2-3043-000CN | Left roller bushing - Acts as the bearing and retainer for the left end of the paper pickup roller assembly (tray 1) | Find 4 |
| 5 | RB2-3044-000CN | Right roller bushing - Acts as the bearing and retainer for the right end of the paper pickup roller assembly (tray 1) | Find 5 |
| 6 | RB3-1108-000CN | Front inner cover (Graphite Black plastic) - Mounts on the front frame above the multi-purpose input tray | Find 6 |
| 7 | RB9-0897-000CN | Front lower cover (Graphite Black plastic) - Front lower strip below the multipurpose input tray - Has recessed area for the printer logo | Find 7 |
| 8 | RB2-6248-000CN | Damper assembly (Gray plastic piece with small 13-tooth gear on it) | Find 8 |
| 9 | RB3-0104-000CN | Roller cover - Covers the multipurpose paper pickup roller assembly - Mounts on the lower front of the front frame assembly | Find 9 |
| 10 | RB3-0111-000CN | Paper flag - Plastic rod with paper sensing flag on one end and sensor activator flag on the other | Find 10 |
| 11 | RG5-7624-000CN | Cable assembly (two 3-pin connectors) | Find 11 |
| 12 | RB3-0120-020CN | Solenoid cover (Steel) - For magnetic wave sheilding - Mounts over the solenoid on the right side of the front frame assembly | Find 12 |
| 12 | RB3-0120-000CN | Solenoid cover (Steel) - For magnetic wave sheilding | Find 12 |
| 13 | RB3-0121-000CN | Right retaining spring - Helps to secure and ground the imaging drum/transfer assembly in the printer | Find 13 |
| 14 | RB3-0122-000CN | Left retaining spring - Helps to secure the imaging drum/transfer assembly in the printer | Find 14 |
| 15 | RB3-0135-000CN | Test print flag (Black lever) | Find 15 |
| 16 | RH7-5338-000CN | Solenoid assembly - (SL92) Lever on the solenoid disengages the stop on the drive gear on the paper pickup roller for the multipurpose input tray (tray 1) | Find 16 |
| 16 | RH7-5383-000CN | Solenoid assembly - (SL92) Lever on the solenoid disengages the stop on the drive gear on the paper pickup roller for the multipurpose input tray (tray 1) | Find 16 |
| 17 | RF5-4012-000CN | Separation pad assembly - Includes the separation pad, holder and spring | Find 17 |
| 18 | RS6-2030-000CN | Tension spring | Find 18 |
| 19 | XA9-1262-000CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 19 |
| 19 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 19 |
| 20 | RS7-0418-000CN | 26 tooth gear (Black plastic) - Has 1/8th portion of gear cut away | Find 20 |
| 21 | RS7-0424-000CN | Dual gear - 20 tooth / 40 tooth | Find 21 |
| 22 | RS7-0426-000CN | Dual gear - 26 tooth / 50 tooth (White plastic) | Find 22 |
| 23 | RS7-0429-000CN | 26 tooth gear (White plastic) - Has recess for shaft drive pin | Find 23 |
| 24 | WG8-5382-000CN | Sensor PC board - Small board with flag activated photosensor | Find 24 |
| 24 | WG8-5593-000CN | Sensor PC board - Small board with flag activated photosensor | Find 24 |
| 25 | RG5-7585-000CN | Multipurpose front input tray assembly (tray 1) - Includes the front cover piece, pull-out paper support, and the flip-out extender - Mounts on front of printer (on the front frame assembly) | Find 25 |
| 26 | RG5-6938-000CN | Gear assembly - Metal plate with two white plastic gears attached | Find 26 |
| No pic | RG5-6938-030CN | Gear assembly - Metal plate with two white plastic gears attached | |
| No pic | RG5-7584-000CN | Paper guide assembly - Paper width adjustable guide assembly for the multipurpose front input tray (tray 1) | |
| 28 | RG5-6952-000CN | Paper pickup roller assembly - Includes the shaft, guide assembly cams, the D-shaped roller, and roller retainers - Picks paper from the multipurpose front input tray (tray 1) | Find 28 |
| 29 | WT2-5700-000CN | Cable clamp - White plastic clamp with mounting pin | Find 29 |
| 30 | RG5-6956-000CN | E-label reader (contact board only) - Connects the cartridge non-volitale memory to the DC controller board | Find 30 |
| 30 | RG5-7131-000CN | E-label reader (contact board only) - Connects the cartridge non-volitale memory to the DC controller board | Find 30 |
| 31 | WT2-5056-000CN | Cable clip - |C| shaped White plastic | Find 31 |
| 32 | RS7-0425-000CN | 30 tooth gear (White plastic) | Find 32 |
| 33 | RS5-1635-000CN | Shaft bushing | Find 33 |
| 34 | RF5-4047-000CN | Light blocking pad assembly - Black plastic frame with soft rubber gasket and stiff conductive Mylar piece (grounded) | Find 34 |
| 35 | RB2-9954-000CN | Left paper feed guide (small Black plastic arm) | Find 35 |
| 36 | RS6-8662-000CN | Image cartridge label - Shows the imaging drum/transfer assembly removal steps | Find 36 |
| 37 | RB2-9955-000CN | Right paper feed guide (small Black plastic arm) | Find 37 |
| 38 | RS5-1638-000CN | Bushing | Find 38 |
| 39 | RG5-7612-000CN | Top of page photoelectric sensor PC board - Includes the photoelectric top of page sensor and the print engine test switch | Find 39 |
| 39 | RG5-6966-000CN | Top of page photoelectric sensor PC board - Includes the photoelectric top of page sensor and the print engine test switch | Find 39 |
| 40 | RG5-7648-000CN | Waste toner sensor assembly PC board - Detects excess level of waste toner in the imaging drum/transfer assembly cartridge | Find 40 |
| 40 | RG5-7607-000CN | Waste toner sensor assembly PC board - Detects excess level of waste toner in the imaging drum/transfer assembly cartridge | Find 40 |
| 41 | RH7-7158-000CN | Density photoelectric sensor PC board | Find 41 |
| 41 | RH7-7146-000CN | Density photoelectric sensor PC board | Find 41 |
| 42 | XD2-1100-502CN | E-ring clip | Find 42 |
| 43 | RB3-0160-000CN | Paper pickup roller (|D| shaped) | Find 43 |
| 44 | Q3702-67902 | LaserJet 2550L Nameplate | Find 44 |
| 44 | Q3704-67902 | LaserJet 2550n nameplate | Find 44 |
| 44 | Q3703-67902 | LaserJet 2550Ln Nameplate | Find 44 |
Internal Components (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB3-0019-000CN | Toner catch tray (curved Black plastic piece) - Holds residual toner from photosensitive drum | Find 1 |
| 2 | RB2-9932-000CN | RFI shield - Parallel wire form mounted over the fan | Find 2 |
| 3 | RB9-0901-000CN | Airflow guide (duct) / fan holder bracket assembly (Alloy Gray plastic) | Find 3 |
| 4 | RB3-0091-000CN | 16 tooth gear (Black plastic) - Gear with large stop tooth and shaft lock tab | Find 4 |
| 5 | RB3-0092-000CN | 15 tooth gear with drive shaft (Black plastic) | Find 5 |
| 6 | RB3-1113-000CN | Grounding plate - Small plate with grounding finger | Find 6 |
| 7 | RH7-1630-000CN | Cooling fan (Panaflo Model FBA08T24H - 80mm X 80mm X 15mm high, DC brushless, 24V DC, 190mA) | Find 7 |
| 7 | RH7-1537-000CN | Cooling fan (Panaflo Model FBA08T24H - 80mm X 80mm X 15mm high, DC brushless, 24V DC, 190mA) | Find 7 |
| 8 | RH7-5366-000CN | Electromagnetic clutch assembly (24V) - Electrical clutch between the clutch drive gear and shaft | Find 8 |
| 8 | RH7-5389-000CN | Electromagnetic clutch assembly (24V) - Electrical clutch between the clutch drive gear and shaft | Find 8 |
| 9 | RH7-7149-000CN | Thermistor | Find 9 |
| 9 | RH7-7159-000CN | Thermistor | Find 9 |
| 10 | RG5-7160-000CN | Upper cable assembly (seven connectors) | Find 10 |
| 10 | RG5-7622-000CN | Upper cable assembly (seven connectors) | Find 10 |
| 11 | RG5-7145-000CN | Front cable assembly (six connectors) | Find 11 |
| 12 | RG5-6897-020CN | Upper top bin output roller assembly - Includes the shaft with four rubber rollers, two bushing/shaft retainers, two anti-reversing flaps, and the drive gear | Find 12 |
| 12 | RG5-6897-000CN | Upper top bin output roller assembly - Includes the shaft with four rubber rollers, two bushing/shaft retainers, two anti-reversing flaps, and the drive gear | Find 12 |
| 13 | RG5-7620-000CN | Cable assembly (two 5-pin connectors) | Find 13 |
| 14 | RH7-1628-000CN | Fusing motor assembly - 24VDC motor mounted on a motor controller PC board | Find 14 |
| 15 | RS7-0435-000CN | Dual gear - 32 tooth / 37 tooth (White plastic) | Find 15 |
| 16 | RS7-0436-000CN | Dual gear - 37 tooth / 43 tooth (White plastic) | Find 16 |
| 17 | RS7-0437-000CN | 51 tooth gear (White plastic) | Find 17 |
| 18 | RB2-9905-000CN | Torsion spring | Find 18 |

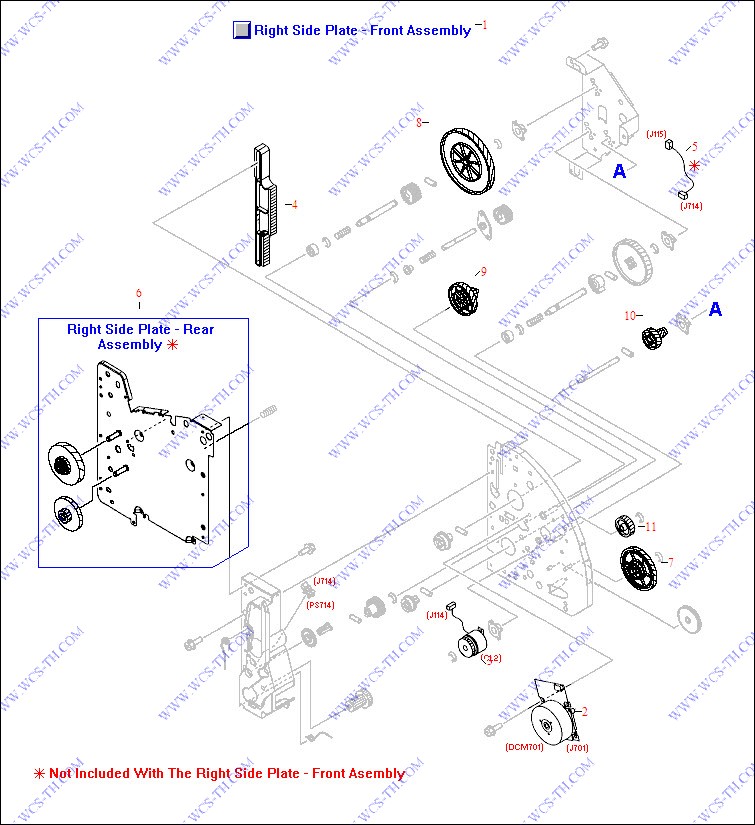

| 19 | RG5-7579-070CN | Main drive (right side plate) assembly - Includes the right side plate front assembly (with main motor, clutch, and gears) and the right side plate rear assembly (with drive gears) | Find 19 |
| 19 | RG5-7579-000CN | Main drive (right side plate) assembly - Includes the right side plate front assembly (with main motor, clutch, and gears) and the right side plate rear assembly (with drive gears) | Find 19 |
| 20 | XD2-1100-502CN | E-ring clip | Find 20 |
| 23 | RS6-8668-000CN | High voltage caution label | Find 23 |
| 24 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 24 |
| 24 | XA9-1262-000CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 24 |
| 25 | XA9-0849-000CN | M3 truss-head phillips screw with machine threads - 6mm long | Find 25 |
| 25 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 25 |
| 26 | XA9-1449-000CN | M3 pan-head Phillips screw with machine threads - 8mm long | Find 26 |
| 26 | XA9-1355-000CN | M3 pan-head Phillips screw with machine threads - 8mm long | Find 26 |
| 27 | XA9-1328-000CN | M3 pan-head Phillips screw - 10mm long | Find 27 |
| 27 | XA9-1501-000CN | M3 pan-head Phillips screw - 10mm long | Find 27 |
Internal Components (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RH2-5524-000CN | Flat flexible cable (FFC) assembly | Find 1 |
| 2 | RB3-0023-000CN | Interlock switch holder (Quartz Gray plastic) - Does NOT include the micro-switch | Find 2 |
| 3 | RG5-6907-000CN | Laser/scanner support assembly (sheet metal plate) | Find 3 |
| 3 | RG5-6907-030CN | Laser/scanner support assembly (sheet metal plate) | Find 3 |
| 4 | RB2-9903-000CN | Cable guide (Quartz Gray plastic) | Find 4 |
| 5 | RG5-6880-000CN | Laser/scanner assembly | Find 5 |
| 5 | RG5-6890-030CN | Laser/scanner assembly | Find 5 |
| 6 | RG5-7114-000CN | Cable assembly (two 4-pin connectors) with shield | Find 6 |
| 6 | RG5-7114-020CN | Cable assembly (two 4-pin connectors) with shield - Connects between the cartridge drive motor and the DC controller board | Find 6 |
| 7 | XA9-0849-000CN | M3 truss-head phillips screw with machine threads - 6mm long | Find 7 |
| 7 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 7 |
| 8 | RB2-9852-000CN | Rotary release guide - Small plastic clip that allows for manual carousel rotation (with a straightened paper clip) for removing toner cartridges without power | Find 8 |
| 9 | RH7-6051-000CN | Microswitch with lever activator | Find 9 |
| 10 | RG5-6935-000CN | Left cartridge guide assembly | Find 10 |
| 10 | RG5-6935-020CN | Left cartridge guide assembly | Find 10 |
| 11 | RG5-7117-000CN | Cable assembly (two 3-pin connectors) | Find 11 |

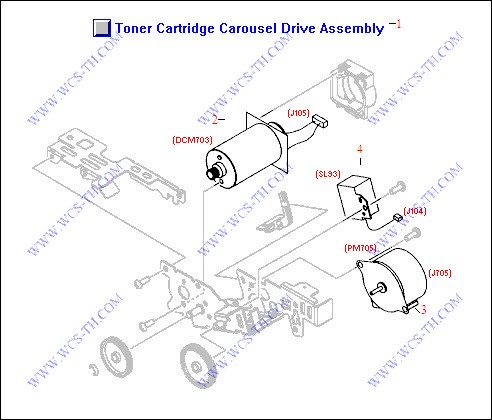

| 12 | RG5-7842-000CN | Rotary drive assembly - Includes the carousel rotating motor (DCM703), toner cartridge drive motor (PM705), developing rotary stopper solenoid (SL93), bracket, and gears | Find 12 |
| 12 | RG5-7592-000CN | Rotary drive assembly - Includes the carousel rotating motor (DCM703), toner cartridge drive motor (PM705), developing rotary stopper solenoid (SL93), bracket, and gears | Find 12 |
| 13 | RG5-7611-030CN | DC controller board | Find 13 |
| 13 | RG5-7605-000CN | DC controller board | Find 13 |
| 14 | RG5-7579-000CN | Main drive (right side plate) assembly - Includes the right side plate front assembly (with main motor, clutch, and gears) and the right side plate rear assembly (with drive gears) | Find 14 |
| 14 | RG5-7579-070CN | Main drive (right side plate) assembly - Includes the right side plate front assembly (with main motor, clutch, and gears) and the right side plate rear assembly (with drive gears) | Find 14 |

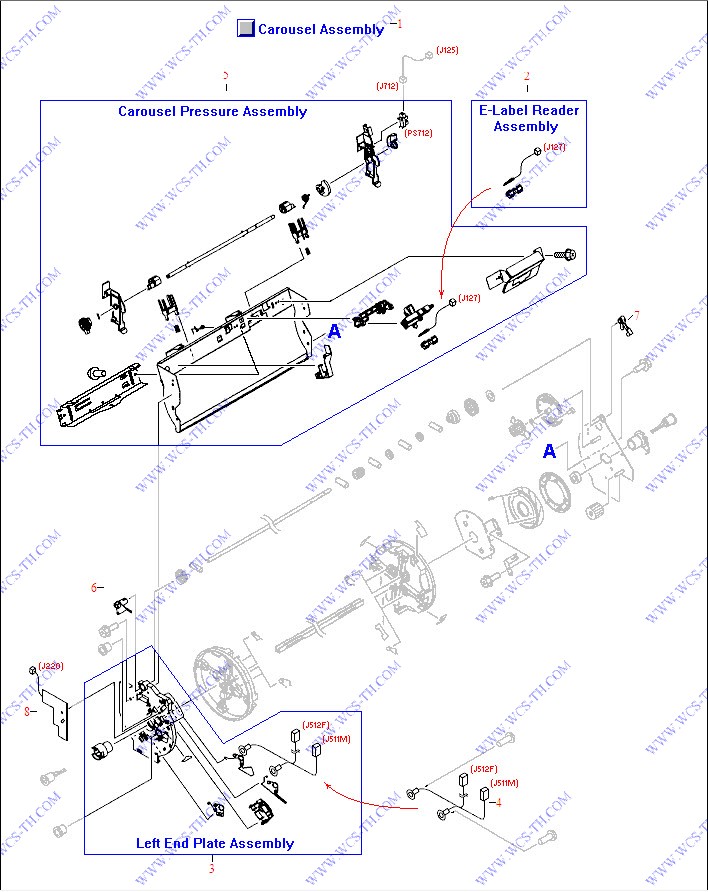

| 16 | RG5-7587-090CN | Carousel (rotary) assembly - Includes the carousel assembly, the support assembly, end plates, drive gears and shaft, sensors, and cables | Find 16 |
| 16 | RG5-7587-000CN | Carousel (rotary) assembly - Includes the carousel assembly, the support assembly, end plates, drive gears and shaft, sensors, and cables | Find 16 |
| 17 | Q3963-67901 | HP Color LaserJet smart Magenta print cartridge - Will print approximately 4,000 pages based on a 5% print density (not for Europe) | Find 17 |
| 17 | Q3973A | HP Color LaserJet smart Magenta print cartridge - Will print approximately 2,000 pages based on a 5% print density | Find 17 |
| 17 | Q3962-67902 | HP Color LaserJet smart Yellow print cartridge - Will print approximately 4,000 pages based on a 5% print density (Europe) | Find 17 |
| 17 | Q3961-67902 | HP Color LaserJet smart Cyan print cartridge - Will print approximately 4,000 pages based on a 5% print density (Europe) | Find 17 |
| 17 | Q3972A | HP Color LaserJet smart Yellow print cartridge - Will print approximately 2,000 pages based on a 5% print density | Find 17 |
| 17 | Q3971-67901 | HP Color LaserJet smart Cyan print cartridge - Will print approximately 2,000 pages at based on a 5% print density (not for Europe) | Find 17 |
| 17 | Q3963-67902 | HP Color LaserJet smart Magenta print cartridge - Will print approximately 4,000 pages based on a 5% print density (Europe) | Find 17 |
| 17 | Q3960A | HP Color LaserJet smart Black print cartridge - Will print approximately 5,000 pages based on a 5% print density | Find 17 |
| 17 | Q3961A | HP Color LaserJet smart Cyan print cartridge - Will print approximately 4,000 pages based on a 5% print density | Find 17 |
| 17 | Q3971-67902 | HP Color LaserJet smart Cyan print cartridge - Will print approximately 2,000 pages based on a 5% print density (Europe) | Find 17 |
| 17 | Q3972-67901 | HP Color LaserJet smart Yellow print cartridge - Will print approximately 2,000 pages based on a 5% print density (not for Europe) | Find 17 |
| 17 | Q3960-67901 | HP Color LaserJet smart Black print cartridge - Will print approximately 5,000 pages based on a 5% print density (not for Europe) | Find 17 |
| 17 | Q3973-67901 | HP Color LaserJet smart Magenta print cartridge - Will print approximately 2,000 pages based on a 5% print density (not for Europe) | Find 17 |
| 17 | Q3971A | HP Color LaserJet smart Cyan print cartridge - Will print approximately 2,000 pages based on a 5% print density | Find 17 |
| 17 | Q3972-67902 | HP Color LaserJet smart Yellow print cartridge - Will print approximately 2,000 pages based on a 5% print density (Europe) | Find 17 |
| 17 | Q3963A | HP Color LaserJet smart Magenta print cartridge - Will print approximately 4,000 pages based on a 5% print density | Find 17 |
| 17 | Q3960-67902 | HP Color LaserJet smart Black print cartridge - Will print approximately 5,000 pages based on a 5% print density (Europe) | Find 17 |
| 17 | Q3962A | HP Color LaserJet smart Yellow print cartridge - Will print approximately 4,000 pages based on a 5% print density | Find 17 |
| 17 | Q3962-67901 | HP Color LaserJet smart Yellow print cartridge - Will print approximately 4,000 pages based on a 5% print density (not for Europe) | Find 17 |
| 17 | Q3961-67901 | HP Color LaserJet smart Cyan print cartridge - Will print approximately 4,000 pages based on a 5% print density (not for Europe) | Find 17 |
| 17 | Q3973-67902 | HP Color LaserJet smart Magenta print cartridge - Will print approximately 2,000 pages based on a 5% print density (Europe) | Find 17 |
| 18 | Q3964-67901 | Imaging drum/transfer assembly cartridge - Inserts into printer through the top door - Life expectancy is 20,000 pages for black print ONLY, 5,000 pages for color (typical combined life is approximately 8,000 to 10,000 pages) | Find 18 |
| 18 | Q3964A | Imaging drum/transfer assembly cartridge - Inserts into printer through the top door - Life expectancy is 20,000 pages for black print only, 5,000 pages for color (typical combined life is approximately 8,000 to 10,000 pages) | Find 18 |
Main Assembly Locator
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RG5-7573-000CN | Fusing assembly - For 220V to 240V AC operation - Bonds the toner to the paper with heat | Find 3 |
| 3 | RG5-7572-000CN | Fusing assembly - For 110V to 127V AC operation - Bonds the toner to the paper with heat | Find 3 |
| 3 | RG5-7572-110CN | Fusing assembly - For 110V to 127V AC operation - Bonds the toner to the paper with heat | Find 3 |
| 3 | RG5-7573-110CN | Fusing assembly - For 220V to 240V AC operation - Bonds the toner to the paper with heat | Find 3 |
| 6 | RG5-7842-000CN | Rotary drive assembly - Includes the carousel rotating motor (DCM703), toner cartridge drive motor (PM705), developing rotary stopper solenoid (SL93), bracket, and gears | Find 6 |
| 6 | RG5-7592-000CN | Rotary drive assembly - Includes the carousel rotating motor (DCM703), toner cartridge drive motor (PM705), developing rotary stopper solenoid (SL93), bracket, and gears | Find 6 |
| 7 | RG5-7579-000CN | Main drive (right side plate) assembly - Includes the right side plate front assembly (with main motor, clutch, and gears) and the right side plate rear assembly (with drive gears) | Find 7 |
| 7 | RG5-7579-070CN | Main drive (right side plate) assembly - Includes the right side plate front assembly (with main motor, clutch, and gears) and the right side plate rear assembly (with drive gears) | Find 7 |
| 8 | RG5-7587-090CN | Carousel (rotary) assembly - Includes the carousel assembly, the support assembly, end plates, drive gears and shaft, sensors, and cables | Find 8 |
| 8 | RG5-7587-000CN | Carousel (rotary) assembly - Includes the carousel assembly, the support assembly, end plates, drive gears and shaft, sensors, and cables | Find 8 |
Main Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7579-070CN | Main drive (right side plate) assembly - Includes the right side plate front assembly (with main motor, clutch, and gears) and the right side plate rear assembly (with drive gears) | Find 1 |
| 1 | RG5-7581-060CN | Right side plate front assembly - Includes the front half of the metal frame assembly, gears, imaging drum/transfer assembly drive cams, cover engaging mechanism, roller engaging clutch (CL2), and main drive motor (DCM701) - Mounts on the right side | Find 1 |
| 1 | RG5-7579-000CN | Main drive (right side plate) assembly - Includes the right side plate front assembly (with main motor, clutch, and gears) and the right side plate rear assembly (with drive gears) | Find 1 |
| 1 | RG5-7581-000CN | Right side plate front assembly - Includes the front half of the metal frame assembly, gears, imaging drum/transfer assembly drive cams, cover engaging mechanism, roller engaging clutch (CL2), and main drive motor (DCM701) - Mounts on the right side | Find 1 |
| 2 | RF5-4063-030CN | Main motor assembly - Large motor mounted on a controller PC board - (DCM701) Mounts on the inside of the metal right side frame assembly | Find 2 |
| 2 | RF5-4063-000CN | Main motor assembly - Large motor mounted on a controller PC board | Find 2 |
| 3 | RH7-5335-000CN | Electromagnetic clutch assembly (24VDC) - Electrical clutch between the clutch drive gear and shaft | Find 3 |
| 4 | RB3-0090-000CN | Rack slide - White plastic piece with gear teeth layed out in rack form on both sides | Find 4 |
| 5 | RG5-7115-000CN | Cable assembly (two 3-pin connectors) | Find 5 |
| 6 | RG5-7580-020CN | Right side plate rear assembly - Includes the rear half of the metal right side plate and the two associated gears | Find 6 |
| 6 | RG5-7580-000CN | Right side plate rear assembly - Includes the rear half of the metal right side plate and the two associated gears | Find 6 |
| 6 | RG5-7579-000CN | Main drive (right side plate) assembly - Includes the right side plate front assembly (with main motor, clutch, and gears) and the right side plate rear assembly (with drive gears) | Find 6 |
| 6 | RG5-7579-070CN | Main drive (right side plate) assembly - Includes the right side plate front assembly (with main motor, clutch, and gears) and the right side plate rear assembly (with drive gears) | Find 6 |
| 7 | RS7-0574-000CN | Dual gear - 32 tooth / 123 tooth | Find 7 |
| 8 | RS7-0573-000CN | 186 tooth gear | Find 8 |
| 9 | RS7-0572-000CN | Dual gear - 31 tooth / 90 tooth | Find 9 |
| 10 | RS7-0571-000CN | Dual gear - 23 tooth / 54 tooth | Find 10 |
| 11 | RS7-0570-000CN | 81 tooth gear | Find 11 |
Middle Frame Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-6297-000CN | Rubber foot - Square self-adhesive rubber foot | Find 1 |
| 2 | RB1-8668-030CN | Feed guide drive belt - Small belt approximately 5/16 inch wide with |A| shaped ribs on it | Find 2 |
| 3 | RB3-0061-000CN | Pulley roller (accommodates three feed belts) - Small black roller approximately 3.49cm (1-3/4 inches) long with three ball type pulleys | Find 3 |
| 4 | RB3-0063-000CN | Paper feed belt - Small black rubber belt approximately 1/8 inch wide with little |A| shaped ribs on it | Find 4 |
| 5 | RB3-0286-000CN | Contact plate | Find 5 |
| 6 | RB3-0009-000CN | Static eliminator ground plate - Right angled metal piece with small teeth on top edge | Find 6 |
| 7 | RB3-0011-000CN | Feed drive shaft - Long shaft with eight feed belt ball type pulleys and one ribbed feed guide drive belt pulley | Find 7 |
| 8 | RB3-0012-000CN | Belt roller - Small oval shaped roller approximately 1-3/4 inches long | Find 8 |
| 9 | RB3-0060-000CN | Idler gear shaft - Short metal rod | Find 9 |
| 9 | RB3-0060-020CN | Idler gear shaft - Short metal rod | Find 9 |
| 10 | RB3-0010-030CN | Feed plate - Center metal plate with slots that the ribs on the middle frame assembly go through | Find 10 |
| 10 | RB3-0010-000CN | Feed plate - Center metal plate with slots that the ribs on the middle frame assembly go through | Find 10 |
| 11 | RB3-0045-000CN | Electrical contact spring | Find 11 |
| 12 | RB3-0022-000CN | 22 tooth gear (Black plastic) - Small gear with diagonally cut teeth | Find 12 |
| 13 | RB3-0016-000CN | Electrical contact spring - Spring steel wire with compression springs formed on both ends | Find 13 |
| 14 | RB3-0042-000CN | Electrical contact spring | Find 14 |
| 15 | RB3-0043-000CN | Electrical contact spring | Find 15 |
| 16 | RB3-0044-000CN | Electrical contact spring | Find 16 |
| 17 | RB3-0046-000CN | Electrical contact spring | Find 17 |
| 18 | RB3-0047-000CN | Electrical contact spring | Find 18 |
| 19 | RB3-0048-000CN | Electrical contact spring | Find 19 |
| 20 | RS5-1637-000CN | Bushing (black plastic) | Find 20 |
| 21 | RB3-1110-000CN | Insulating sheet (Transparent plastic) - For the power supply base assembly | Find 21 |
| 22 | RB3-0057-000CN | Transfer slide plate - Small |U| shaped metal insert plates | Find 22 |
| 23 | WS1-6336-000CN | Connector assembly - For optional paper tray | Find 23 |
| 23 | RH2-5519-000CN | Connector assembly - For optional paper tray | Find 23 |
| 24 | RS7-0428-000CN | 30 tooth gear (White plastic) | Find 24 |
| 25 | XA9-1262-000CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 25 |
| 25 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 25 |
| 26 | RG5-6939-000CN | Registration roller assembly - Includes the roller, bushings, mounting plate, paper sensor, and the sensor flag | Find 26 |
| 26 | RG5-6939-020CN | Registration roller assembly - Includes the roller, bushings, mounting plate, paper sensor, and the sensor flag | Find 26 |
| 27 | RG5-7123-000CN | Grounding cable assembly | Find 27 |
| 28 | RG5-6940-050CN | Registration shutter assembly - Includes the metal roller, mounting frame, grounding springs, and the dual coupling gear | Find 28 |
| 28 | RG5-6940-000CN | Registration shutter assembly - Includes the metal roller, mounting frame, grounding springs, and the dual coupling gear | Find 28 |
| 29 | RG5-7122-000CN | Cable assembly - |Y| type cable (three connectors) - The 14-pin connector splits into an 8-pin connector and a 6-pin connector | Find 29 |
| 30 | RB3-0052-000CN | Gear Cover (Small Black plastic cover) - Covers the left end of the feed drive shaft | Find 30 |
| 31 | RB3-0065-000CN | Contact plate - copper clad metal spring - Holds the left end of the small 500 Meg-ohm resistor | Find 31 |
| 32 | RB3-0066-000CN | Contact plate - copper clad metal spring - Holds the right end of the small 500 Meg-ohm resistor | Find 32 |
| 33 | RB2-9925-000CN | Sensor arm and flag - Activates the photosensor (Does NOT include the roller) | Find 33 |
| 34 | RB2-7195-000CN | Sensor flag roller (small White plastic roller) | Find 34 |
| 35 | RB2-9924-000CN | Sensor assembly mounting holder | Find 35 |
| 36 | RB3-0067-000CN | Pulley roller (accommodates one feed belt) - Small black roller approximately 1.59cm (5/8 inch) long with one ball type pulley | Find 36 |
| 37 | RG5-7128-000CN | Cable assembly (four 3-pin connectors) | Find 37 |
| 38 | WG8-5593-000CN | Sensor PC board - Small board with flag activated photosensor | Find 38 |
| 38 | WG8-5382-000CN | Sensor PC board - Small board with flag activated photosensor | Find 38 |
| 39 | RS6-2766-000CN | Tension spring | Find 39 |
| 40 | RG5-7130-000CN | High voltage cable assembly | Find 40 |
| 41 | XA9-0890-000CN | M3 truss-head phillips screw with machine threads - 6mm long | Find 41 |
| 42 | WT2-5700-000CN | Cable clamp - White plastic clamp with mounting pin | Find 42 |
| 43 | RB2-9999-000CN | Torsion spring | Find 43 |
| 44 | RF5-4067-030CN | Transfer roller assembly - Long black foam type roller - Transfers static charge to paper | Find 44 |
| 44 | RF5-4067-000CN | Transfer roller assembly - Long black foam type roller - Transfers static charge to paper | Find 44 |
| 45 | RB3-1094-000CN | Bushing assembly (Black plastic bushing with small guide roller on top) | Find 45 |
| 46 | RB3-0015-000CN | Compression spring | Find 46 |
| 47 | RH5-3169-000CN | Resistor - 500 Meg ohm, 300mW | Find 47 |
| 47 | RH5-3115-000CN | Resistor - 500 MegaOhm, 300mW | Find 47 |
| 48 | RB3-1088-000CN | Transfer inlet guide assembly - Angled metal guide between the registration roller and the transfer roller | Find 48 |
| 49 | RF5-4065-000CN | Entrance guide assembly | Find 49 |
| 50 | WT2-5737-000CN | Drawer connector - Connector located on bottom of tray assembly frame on right side, which connects tray assemblies to each other | Find 50 |
| 51 | RG5-6967-000CN | Registration sensor PC Board - Small board with flag activated photosensor | Find 51 |
| 51 | RG5-7613-000CN | Registration sensor PC Board - Small board with flag activated photosensor | Find 51 |

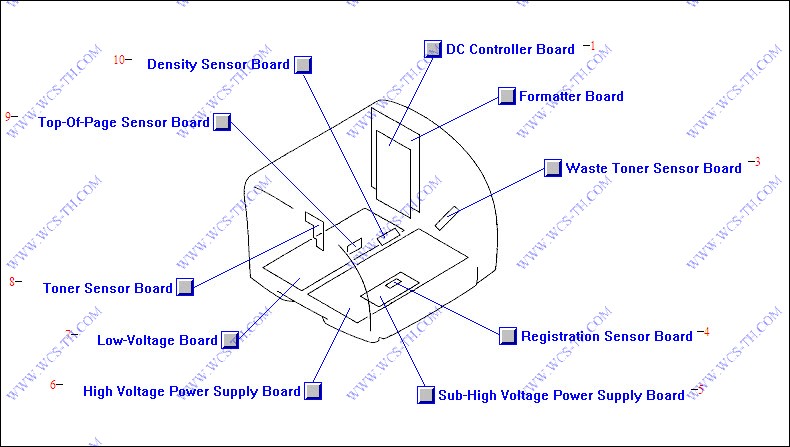

PC Board Assembly Locator
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7605-000CN | DC controller board | Find 1 |
| 1 | RG5-7611-030CN | DC controller board | Find 1 |
| 3 | RG5-7648-000CN | Waste toner sensor assembly PC board - Detects excess level of waste toner in the imaging drum/transfer assembly cartridge | Find 3 |
| 3 | RG5-7607-000CN | Waste toner sensor assembly PC board - Detects excess level of waste toner in the imaging drum/transfer assembly cartridge | Find 3 |
| 4 | RG5-6967-000CN | Registration sensor PC Board - Small board with flag activated photosensor | Find 4 |
| 4 | RG5-7613-000CN | Registration sensor PC Board - Small board with flag activated photosensor | Find 4 |
| 5 | RG5-7616-000CN | Sub-high voltage board - Small auxillary PC board | Find 5 |
| 5 | RG5-7124-000CN | Sub-high voltage board - Small auxillary PC board | Find 5 |
| 6 | RG5-7606-000CN | High voltage power supply board (HVT) assembly - Has contacts for the eight high voltage springs in the printer | Find 6 |
| 6 | RG5-7647-000CN | High voltage power supply board (HVT) assembly - Has contacts for the eight high voltage springs in the printer | Find 6 |
| 7 | RH3-2262-000CN | Low voltage power supply - For 110VAC to 127VAC operation - Includes the AC power input connector and power switch | Find 7 |
| 7 | RH3-2262-020CN | Low voltage power supply - For 110VAC to 127VAC operation - Includes the AC power input connector and power switch | Find 7 |
| 7 | RH3-2263-000CN | Low voltage power supply - For 220VAC to 240VAC operation - Includes the AC power input connector and power switch | Find 7 |
| 7 | RH3-2255-000CN | Low voltage power supply - For 220VAC to 240VAC operation - Includes the AC power input connector and power switch | Find 7 |
| 7 | RH3-2263-020CN | Low voltage power supply - For 220VAC to 240VAC operation - Includes the AC power input connector and power switch | Find 7 |
| 7 | RH3-2254-000CN | Low voltage power supply - For 110VAC to 127VAC operation - Includes the AC power input connector and power switch | Find 7 |
| 8 | RG5-6964-000CN | Carousel position and toner level photoelectric sensor PC board - |L| Shaped PC board with the two sensors | Find 8 |
| 8 | RG5-7609-000CN | Carousel position and toner level photoelectric sensor PC board - |L| Shaped PC board with the two sensors | Find 8 |
| 9 | RG5-6966-000CN | Top of page photoelectric sensor PC board - Includes the photoelectric top of page sensor and the print engine test switch | Find 9 |
| 9 | RG5-7612-000CN | Top of page photoelectric sensor PC board - Includes the photoelectric top of page sensor and the print engine test switch | Find 9 |
| 10 | RH7-7146-000CN | Density photoelectric sensor PC board | Find 10 |
| 10 | RH7-7158-000CN | Density photoelectric sensor PC board | Find 10 |

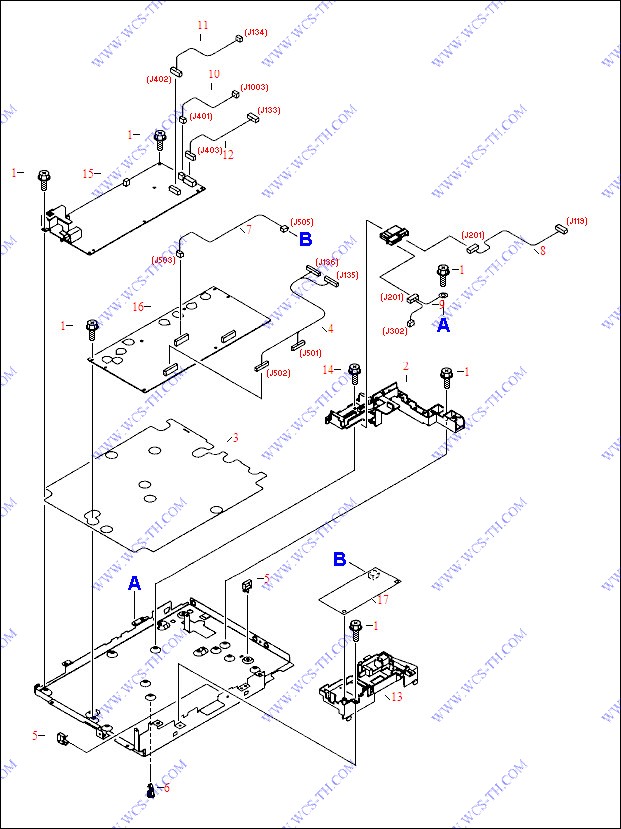

Power Supply Base Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XA9-1355-000CN | M3 pan-head Phillips screw with machine threads - 8mm long | Find 1 |
| 1 | XA9-1449-000CN | M3 pan-head Phillips screw with machine threads - 8mm long | Find 1 |
| 2 | RB3-0006-000CN | Holder - Housing for the fusing connector assembly | Find 2 |
| 3 | RB3-0007-000CN | Insulating sheet (Transparent plastic) | Find 3 |
| 4 | RG5-7146-000CN | High voltage cable assembly (two 15-pin connectors and two 14-pin connectors) | Find 4 |
| 5 | WT2-5737-000CN | Drawer connector - Connector located on bottom of tray assembly frame on right side, which connects tray assemblies to each other | Find 5 |
| 6 | VT2-0012-005CN | PC Board support - Plastic standoff for supporting a PC board | Find 6 |
| 7 | RG5-7126-000CN | Cable assembly (two 5-pin connectors) | Find 7 |
| 8 | RG5-7109-000CN | Cable assembly (two 7-pin connectors) | Find 8 |
| 9 | RG5-6971-000CN | Cable assembly (two 3-pin connectors and a spad lug) | Find 9 |
| 9 | RG5-7161-000CN | Cable assembly (two 3-pin connectors and a spad lug) | Find 9 |
| 10 | RG5-7106-000CN | Cable assembly (two 2-pin connectors) | Find 10 |
| 11 | RG5-7621-000CN | Cable assembly (two 8-pin connectors) | Find 11 |
| 12 | RG5-7108-000CN | Cable assembly (two 8-pin connectors, Purple wire) | Find 12 |
| 13 | RB3-0062-000CN | PC board support (Black plastic holder) | Find 13 |
| 14 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 14 |
| 14 | XA9-1291-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 14 |
| 15 | RH3-2254-000CN | Low voltage power supply - For 110VAC to 127VAC operation - Includes the AC power input connector and power switch | Find 15 |
| 15 | RH3-2255-000CN | Low voltage power supply - For 220VAC to 240VAC operation - Includes the AC power input connector and power switch | Find 15 |
| 15 | RH3-2262-020CN | Low voltage power supply - For 110VAC to 127VAC operation - Includes the AC power input connector and power switch | Find 15 |
| 15 | RH3-2263-000CN | Low voltage power supply - For 220VAC to 240VAC operation - Includes the AC power input connector and power switch | Find 15 |
| 15 | RH3-2263-020CN | Low voltage power supply - For 220VAC to 240VAC operation - Includes the AC power input connector and power switch | Find 15 |
| 15 | RH3-2262-000CN | Low voltage power supply - For 110VAC to 127VAC operation - Includes the AC power input connector and power switch | Find 15 |
| 16 | RG5-7647-000CN | High voltage power supply board (HVT) assembly - Has contacts for the eight high voltage springs in the printer | Find 16 |
| 16 | RG5-7606-000CN | High voltage power supply board (HVT) assembly - Has contacts for the eight high voltage springs in the printer | Find 16 |
| 17 | RG5-7616-000CN | Sub-high voltage board - Small auxillary PC board | Find 17 |
| 17 | RG5-7124-000CN | Sub-high voltage board - Small auxillary PC board | Find 17 |
Rear Frame Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 1 |
| 1 | XA9-1262-000CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 1 |
| 2 | XA9-0849-000CN | M3 truss-head phillips screw with machine threads - 6mm long | Find 2 |
| 2 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 2 |
| 3 | RB2-9904-000CN | Airflow Guide (duct) - Black plastic insert piece which runs the width of the printer and has an air flow hole on right side | Find 3 |
| 4 | RG5-7595-000CN | Lower top bin output roller assembly - Includes the shaft with four rubber rollers, two bushing/shaft retainers, and the drive gear | Find 4 |
| 5 | RB3-1065-000CN | Torsion spring | Find 5 |
| 6 | RB2-9909-000CN | Pressure roller (small Black hard plastic |solid| roller) | Find 6 |
| 7 | RB2-9916-020CN | Cover - For the engaging motor (PM704) - Mounts on the upper left side of the rear frame assembly | Find 7 |
| 7 | RB2-9916-000CN | Cover - For fuser motor | Find 7 |
| 8 | RH7-1629-000CN | Stepping motor - 24VDC | Find 8 |
| 8 | RH7-1533-000CN | Stepping motor - 24VDC | Find 8 |
Toner Cartridge Carousel Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7587-000CN | Carousel (rotary) assembly - Includes the carousel assembly, the support assembly, end plates, drive gears and shaft, sensors, and cables | Find 1 |
| 1 | RG5-7587-090CN | Carousel (rotary) assembly - Includes the carousel assembly, the support assembly, end plates, drive gears and shaft, sensors, and cables | Find 1 |
| 2 | RG5-6957-000CN | E-label reader assembly - Connects cartridge non-volatile memory to the DC controller board | Find 2 |
| 2 | RG5-7132-000CN | E-label reader assembly - Connects cartridge non-volatile memory to the DC controller board | Find 2 |
| 3 | RG5-6942-000CN | Left side carousel plate assembly - End plate under the rotational toner cartridge carousel - Includes all of the high voltage contacts for the toner cartridges | Find 3 |
| 3 | RG5-6942-030CN | Left side carousel plate assembly - End plate under the rotational toner cartridge carousel - Includes all of the high voltage contacts for the toner cartridges - Mounts on the metal carousel support frame | Find 3 |
| 4 | RG5-7129-000CN | Cable assembly (two connectors and two spade lugs) | Find 4 |
| 5 | RG5-7589-000CN | Carousel pressure (support) assembly - Includes the main rear support, E-label reader assembly, engaging sensor, and the engaging rod shaft | Find 5 |
| 6 | RB2-9809-000CN | Bushing/shaft retainer assembly (White plastic) | Find 6 |
| 7 | RB9-0879-000CN | Bushing/shaft retainer assembly (Black plastic) | Find 7 |
| 8 | RG5-7609-000CN | Carousel position and toner level photoelectric sensor PC board - |L| Shaped PC board with the two sensors | Find 8 |
| 8 | RG5-6964-000CN | Carousel position and toner level photoelectric sensor PC board - |L| Shaped PC board with the two sensors | Find 8 |
Toner Cartridge Carousel Rotary Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7592-000CN | Rotary drive assembly - Includes the carousel rotating motor (DCM703), toner cartridge drive motor (PM705), developing rotary stopper solenoid (SL93), bracket, and gears | Find 1 |
| 1 | RG5-7842-000CN | Rotary drive assembly - Includes the carousel rotating motor (DCM703), toner cartridge drive motor (PM705), developing rotary stopper solenoid (SL93), bracket, and gears | Find 1 |
| 2 | RG5-7593-000CN | Rotary motor assembly - (DCM703) Rotates the four color toner cartridges in the carousel to position one of them for printing | Find 2 |
| 2 | RH7-1651-000CN | Rotary motor assembly - (DCM703) Rotates the four color toner cartridges in the carousel to position one of them for printing | Find 2 |
| 3 | RH7-1625-000CN | Stepping motor - 24VDC | Find 3 |
| 3 | RH7-1535-000CN | Stepping motor - 24VDC | Find 3 |
| 4 | RH7-5340-000CN | SOLENOID | Find 4 |
| 4 | RH7-5384-000CN | Solenoid assembly | Find 4 |
