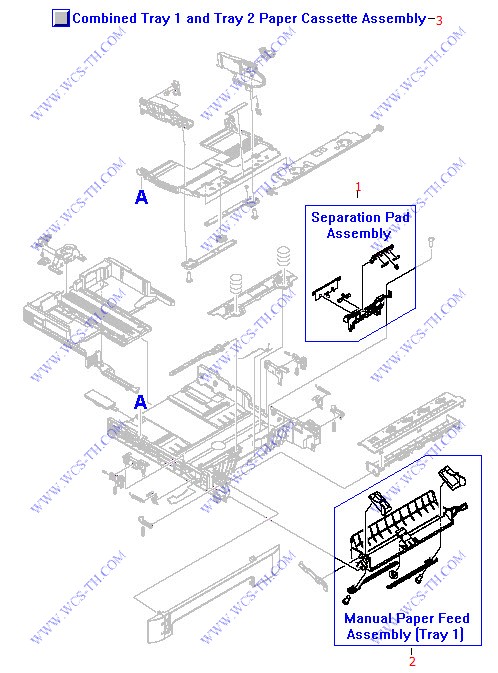

250-Sheet Paper Cassette Tray (Combined Tray 1 and 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1922-000CN | Separation pad assembly - Includes the spring loaded separation pad in a holder assembly - Mounts in the front center of the 250-sheet paper tray - Same part used in both tray 2 and optional tray 3 | Find 1 |
| 2 | RM1-1923-000CN | Manual paper feed assembly (tray 1) - Includes the curved plastic feed structure with width adjustment arms - Mounts on the front of the 250-sheet paper cassette tray frame - (For tray 1 and 2 combined paper tray only) | Find 2 |
| 3 | RM1-1925-000CN | 250-sheet paper cassette tray assembly - Pull out cassette where the paper is loaded into - | Find 3 |

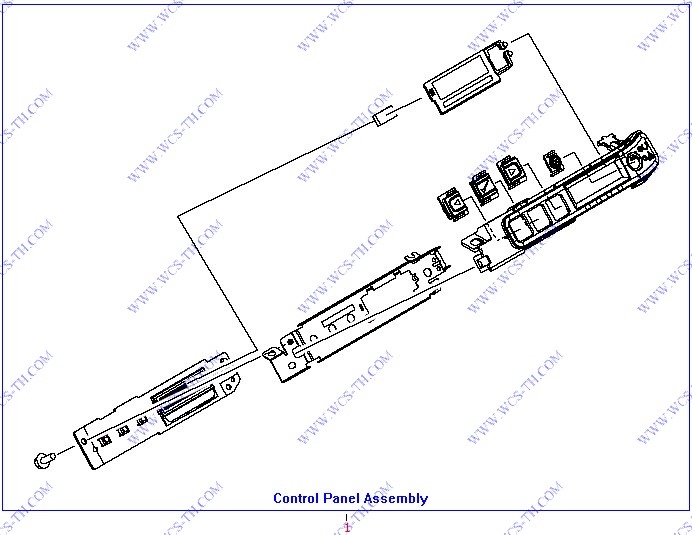

Control Panel Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1983-050CN | Control panel assembly - Includes the support frame, four push buttons, and PC board - Mounts on the front upper right on the printer | Find 1 |
External Covers and Doors (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-5173-000CN | Top cover/output tray - Has molded in |U| shaped tray for face-down paper output - Mounts to the top towards the rear of the printer | Find 1 |
| 2 | RC1-5174-000CN | Top cover front section - Flat |C| shaped dark plastic cover which surrounds the face-down output paper tray - Mounts on the top towards the front on the printer (above the control panel) | Find 2 |
| 3 | RM1-1864-000CN | Left side cover assembly - Plastic cover with molded air louvers | Find 3 |
| 4 | RC1-5184-000CN | Bottom left cover - Small cover with molded hand grip - Covers the input paper cassette (tray 2) area on the printer | Find 4 |
| 5 | RC1-5200-000CN | Dust cover - Small |U| shaped cover that covers the end of the paper cassette tray that protrudes out of the rear of the printer - Mounts just below the metal rear cover (for tray 2) and on the optional tray 3 base assembly (two used if tray 3 is installe | Find 5 |
| 6 | RC1-5227-020CN | Rear cover - Stamped metal cover - Mounts on the upper rear of the printer | Find 6 |
| 7 | RM1-1859-020CN | Tray extender assembly - Provides for additional support for the paper exiting the top of the printer - Has pull-out extender for longer paper - Mounts to the top rear of the printer | Find 7 |
External Covers and Doors (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-5188-030CN | Bottom right cover - Small cover with molded-in hand grip - Covers the input paper cassette (tray 2) area on the printer | Find 1 |
| 2 | RM1-1856-040CN | Front door assembly - Pull-down cover that provides access for changing the toner cartridges | Find 2 |
| 3 | RM1-1858-040CN | Right side cover assembly - Plastic cover with molded-in air louvers and cutout for the USB and RJ-45 LAN connectors | Find 3 |

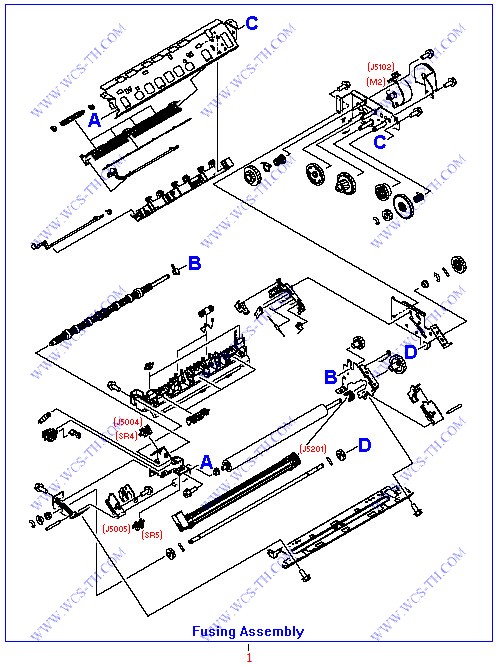

Fusing Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1820-240CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer | Find 1 |
| 1 | RM1-1821-240CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer | Find 1 |

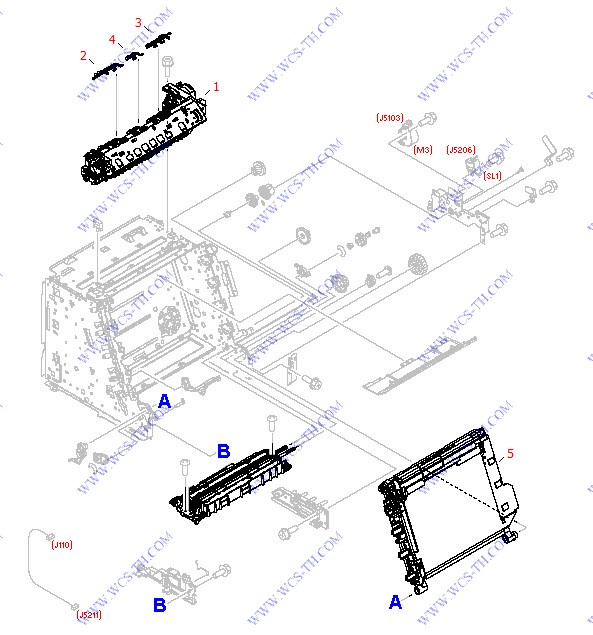

Internal Components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1820-240CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer | Find 1 |
| 1 | RM1-1821-240CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer | Find 1 |
| 2 | RC1-5096-000CN | Left (viewed from front) paper retainer arm - Plastic piece with two pivot pins and five flat retaining fingers - Helps to prevent paper from re-entering the printer from the top paper output tray - Mounts on top of the fusing assembly | Find 2 |
| 3 | RC1-5097-000CN | Right (viewed from front) paper retainer arm - Plastic piece with two pivot pins and five flat retaining fingers - Helps to prevent paper from re-entering the printer from the top paper output tray - Mounts on top of the fusing assembly | Find 3 |
| 4 | RC1-5062-000CN | Center paper retainer arm - Plastic piece with two pivot pins and two flat retaining fingers - Helps to prevent paper from re-entering the printer from the top paper output tray - Mounts on top of the fusing assembly | Find 4 |
| 5 | RM1-1885-020CN | Electrostatic Transfer Belt (ETB) assembly - Includes the assembly structure, ETB belt, drive roller, and four transfer rollers - Wide belt assembly which feeds the paper past each toner cartridge - Mounts to the lower front of the print engine frame | Find 5 |

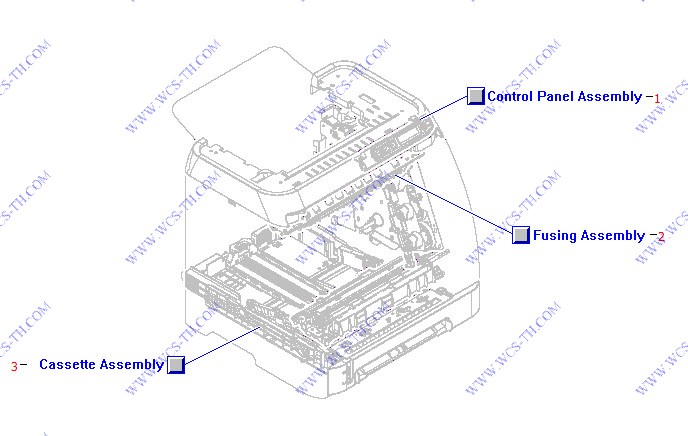

Major Assembly Locator
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1983-050CN | Control panel assembly - Includes the support frame, four push buttons, and PC board - Mounts on the front upper right on the printer | Find 1 |
| 2 | RM1-1820-240CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer | Find 2 |
| 2 | RM1-1821-240CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer | Find 2 |
| 3 | RM1-1925-000CN | 250-sheet paper cassette tray assembly - Pull out cassette where the paper is loaded into - | Find 3 |

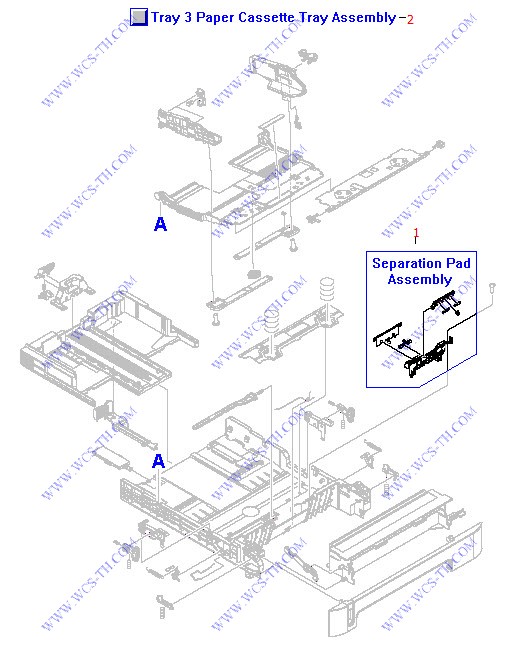

Optional 250-Sheet Paper Tray Assembly (Tray 3) - Cassette Tray
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1922-000CN | Separation pad assembly - Includes the spring loaded separation pad in a holder assembly - Mounts in the front center of the 250-sheet paper tray - Same part used in both tray 2 and optional tray 3 | Find 1 |
| 2 | RM1-1945-080CN | 250-sheet paper cassette tray assembly (Tray 3) - Slides in the opening on the tray base assembly - | Find 2 |

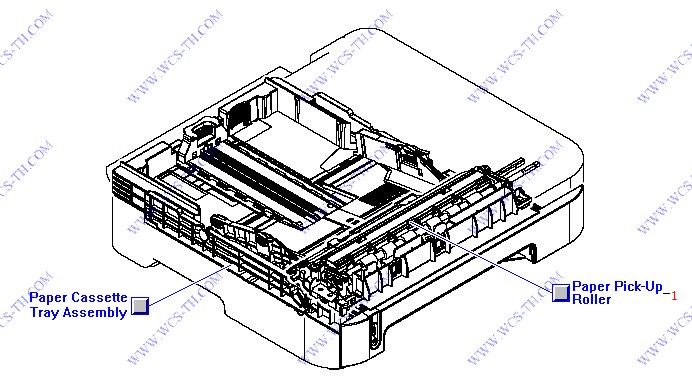

Optional 250-Sheet Paper Tray Assembly (Tray 3) - Major Assemblies
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-5440-000CN | Paper pickup roller (D-shaped roller) - Picks up media from the paper input tray - Clips in the holder on the paper pickup shaft in the paper feeder assembly - Same part used in the paper feeder assemblies for both tray 2 and optional tray 3 | Find 1 |

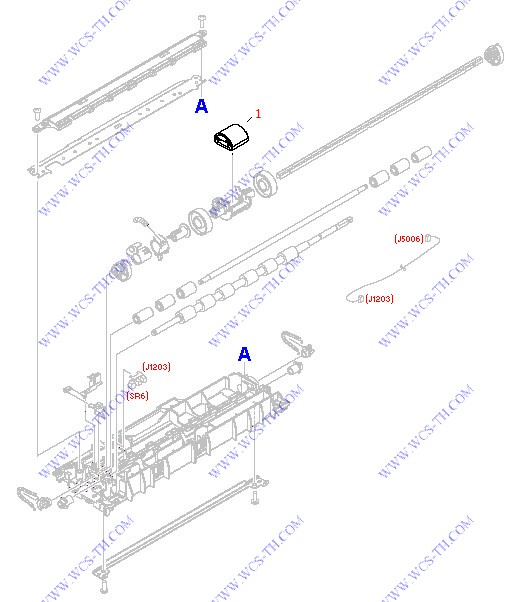

Optional 250-Sheet Paper Tray Assembly (Tray 3) - Paper Pickup / Feeder
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-5440-000CN | Paper pickup roller (D-shaped roller) - Picks up media from the paper input tray - Clips in the holder on the paper pickup shaft in the paper feeder assembly - Same part used in the paper feeder assemblies for both tray 2 and optional tray 3 | Find 1 |

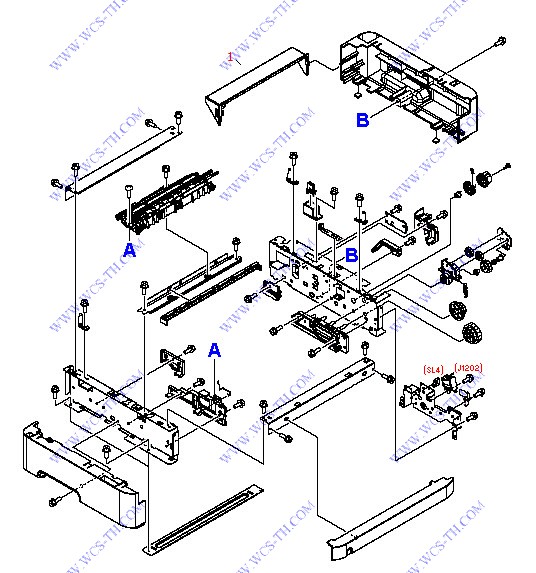

Optional 250-Sheet Paper Tray Assembly (Tray 3) - Tray Base Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-5200-000CN | Dust cover - Small |U| shaped cover that covers the end of the paper cassette tray that protrudes out of the rear of the printer - Mounts just below the metal rear cover (for tray 2) and on the optional tray 3 base assembly (two used if tray 3 is installe | Find 1 |

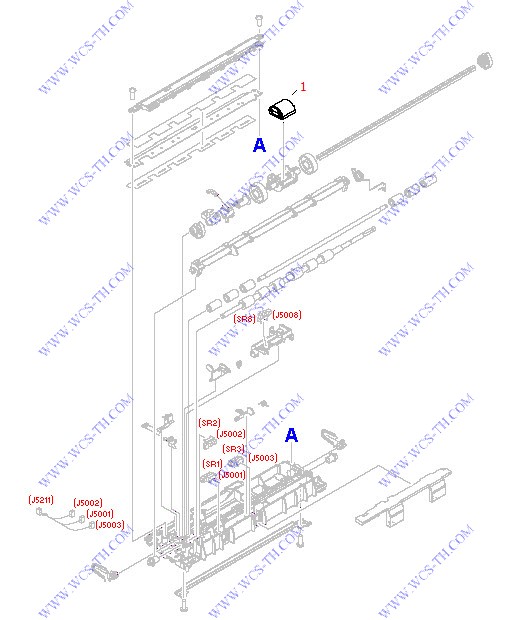

Paper Pickup / Feeder Assembly (Tray 1 and 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-5440-000CN | Paper pickup roller (D-shaped roller) - Picks up media from the paper input tray - Clips in the holder on the paper pickup shaft in the paper feeder assembly - Same part used in the paper feeder assemblies for both tray 2 and optional tray 3 | Find 1 |

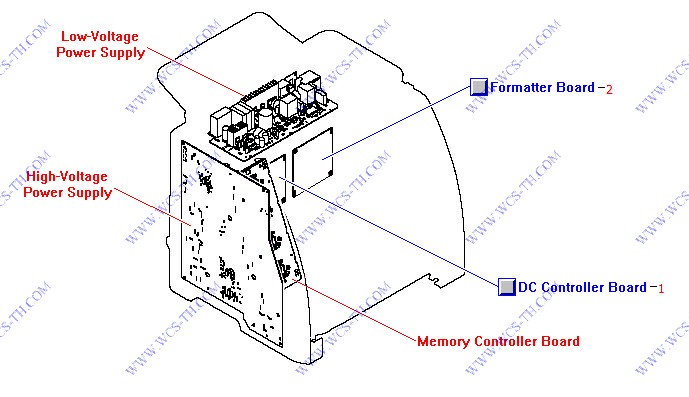

PC Board Assembly Locator
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1975-090CN | DC controller board assembly - Mounts on the rear of the print engine frame (to the right of the formatter board) | Find 1 |
| 2 | Q5965-67901 | Formatter board - Mounts on the rear of the print engine frame (to the left of the DC controller board) | Find 2 |

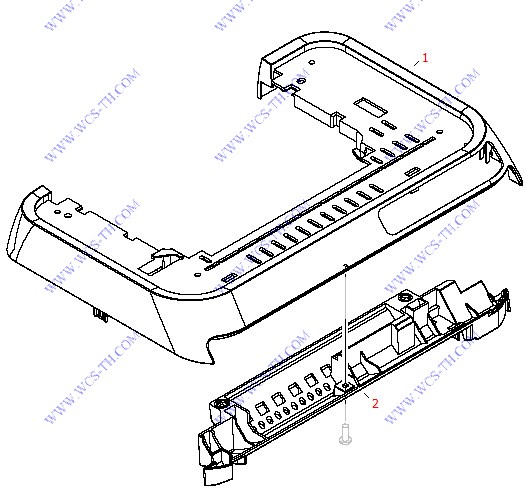

Top Front Sub-Cover / Support Structure
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-5176-050CN | Top front sub-cover / support structure - |C| shaped Gray plastic cover which surrounds the face-down output paper tray and has a cutout for the control panel assembly - Mounts on the top towards the front on the printer | Find 1 |
| 2 | RC1-5178-040CN | Plastic support assembly that attaches under front top cover - For simplex models only | Find 2 |
