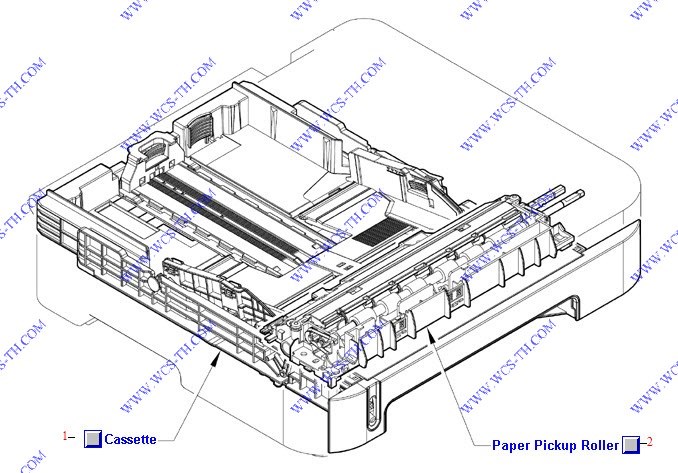

250 Sheet Input Tray (Cassette)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1945-080CN | 250-sheet paper cassette tray assembly (Tray 3) - Slides in the opening on the tray base assembly | Find 1 |
| 1 | RM1-1945-050CN | 250-sheet paper cassette tray assembly | Find 1 |
| 1 | RM1-1945-000CN | 250-sheet paper cassette tray assembly (Tray 3) - Slides in the opening on the tray base assembly | Find 1 |
| 2 | RC1-5440-000CN | Paper pickup roller (D-shaped roller) - Picks up media from the paper input tray - Clips in the holder on the paper pickup shaft in the paper feeder assembly | Find 2 |

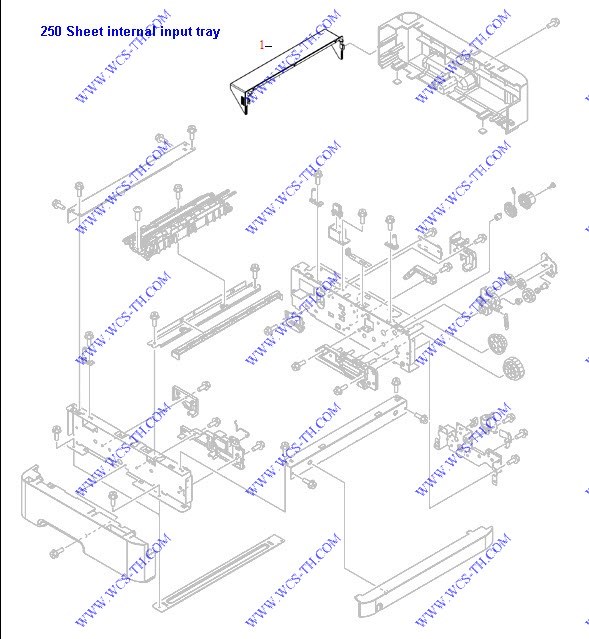

250 Sheet Tray Internal Components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-5200-000CN | Dust cover - Small 'U' shaped cover that covers the end of the paper cassette tray that protrudes out of the rear of the printer | Find 1 |

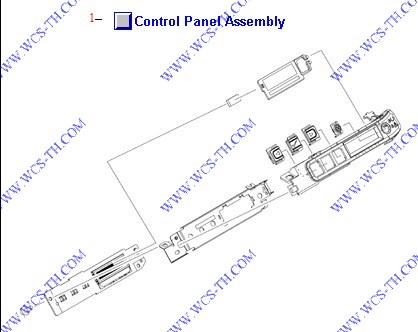

Control Panel Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1861-020CN | Control panel assembly - Mounts on the front upper right of the printer | Find 1 |
| 1 | RM1-1861-000CN | Control panel assembly - Mounts on the front upper right of the printer | Find 1 |

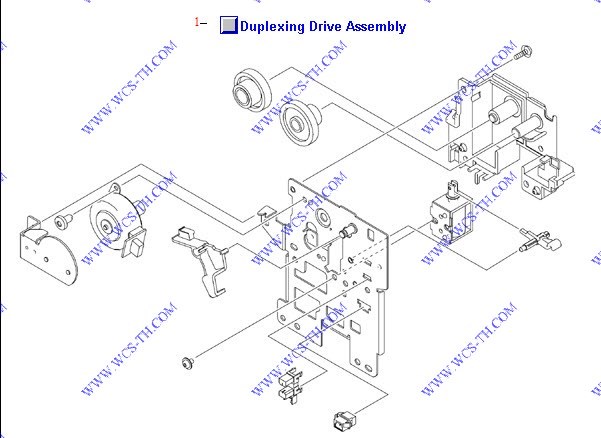

Duplexing Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1832-000CN | Duplex unit main drive assembly - Gear/roller assembly | Find 1 |
| 1 | RM1-1832-030CN | Duplex unit main drive assembly - Gear/roller assembly | Find 1 |

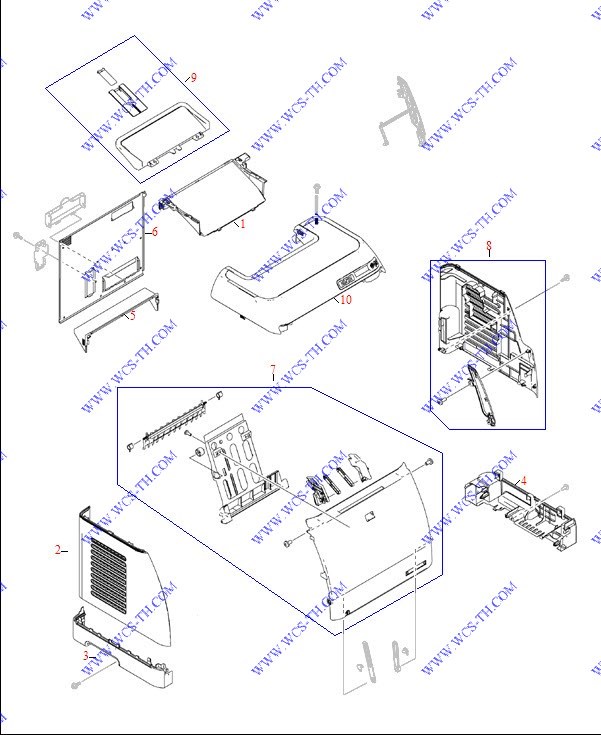

External Panels and Cover
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-5173-000CN | Top cover/output tray - Has molded in 'U' shaped tray for face-down paper output - Mounts to the top towards the rear of the printer | Find 1 |
| 2 | RC1-5183-000CN | Left side cover assembly - Plastic cover with molded air louvers | Find 2 |
| 2 | RM1-1864-000CN | Left side cover assembly - Plastic cover with molded air louvers | Find 2 |
| 3 | RC1-5184-000CN | Bottom left cover - Small cover with molded hand grip - Covers the input paper cassette (tray 2) area on the printer | Find 3 |
| 4 | RC1-5188-030CN | Bottom right cover - Small cover with molded-in hand grip - Covers the input paper cassette (tray 2) area on the printer | Find 4 |
| 5 | RC1-5200-000CN | Dust cover - Small 'U' shaped cover that covers the end of the paper cassette tray that protrudes out of the rear of the printer | Find 5 |
| 6 | RC1-5227-020CN | Rear cover - Stamped metal cover - Mounts on the upper rear of the printer | Find 6 |
| 7 | RM1-1857-030CN | Front door assembly - Pull-down cover that provides access for changing the toner cartridges - For duplex models only | Find 7 |
| 7 | RM1-1856-000CN | Front door assembly - Pull-down cover that provides access for changing the toner cartridges | Find 7 |
| 7 | RM1-1856-040CN | Front door assembly - Pull-down cover that provides access for changing the toner cartridges | Find 7 |
| 7 | RM1-1857-000CN | Front door assembly - Pull-down cover that provides access for changing the toner cartridges - For Duplex models only | Find 7 |
| 7 | RM1-1857-040CN | Front door assembly - Pull-down cover that provides access for changing the toner cartridges - For duplex models only | Find 7 |
| 7 | RM1-1856-030CN | Front door assembly - Pull-down cover that provides access for changing the toner cartridges | Find 7 |
| 8 | RM1-1860-020CN | Right side cover assembly - Plastic cover with molded-in air louvers and cutout for the USB and RJ-45 LAN connectors | Find 8 |
| 8 | RM1-1860-000CN | Right side cover assembly - Plastic cover with molded-in air louvers and cutout for the USB and RJ-45 LAN connectors | Find 8 |
| 9 | RM1-1859-020CN | Tray extender assembly - Provides for additional support for the paper exiting the top of the printer - Has pull-out extender for longer paper - Mounts to the top rear of the printer | Find 9 |
| 10 | RM1-1855-000CN | Top front sub-cover/support structure - 'C' shaped plastic cover which surrounds the face-down output paper tray and has a cutout for the control panel assembly - Mounts on the top towards the front on the printer | Find 10 |

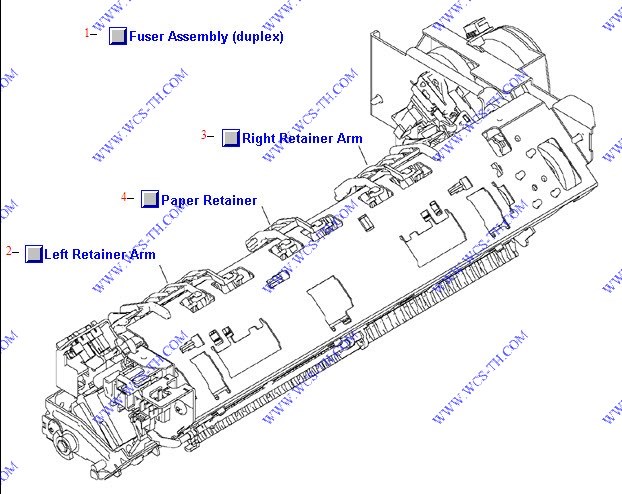

Fuser Assembly (duplex)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1825-030CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer - For duplex printers only | Find 1 |
| 1 | RM1-1825-000CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer - For duplex printers only | Find 1 |
| 1 | RM1-1824-050CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer - For use in duplex printers only | Find 1 |
| 1 | RM1-1825-050CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer - For duplex printers only | Find 1 |
| 1 | RM1-1824-000CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer - For use in duplex printers only | Find 1 |
| 1 | RM1-1824-030CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer - For use in duplex printers only | Find 1 |
| 2 | RC2-0215-000CN | Left paper retainer arm for fusing assembly | Find 2 |
| 3 | RC2-0216-000CN | Right paper retainer arm for fusing assembly | Find 3 |
| 4 | RC2-0269-000CN | Center paper retainer arm for fusing assembly | Find 4 |

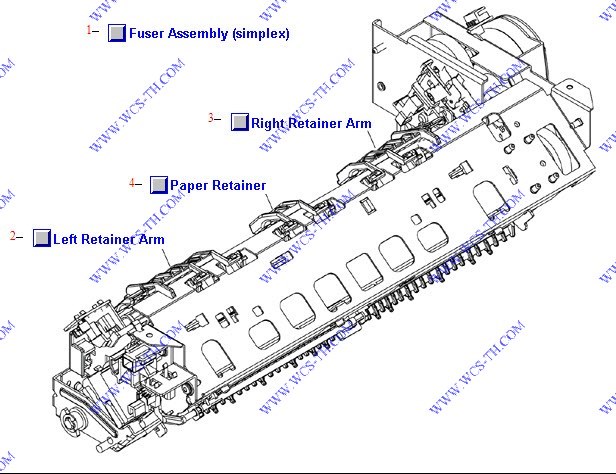

Fuser Assembly (simplex)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1828-000CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer - For use in simplex printers only | Find 1 |
| 1 | RM1-1828-050CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer - For use in simplex printers only | Find 1 |
| 1 | RM1-1829-030CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer - For simplex printers only | Find 1 |
| 1 | RM1-1828-030CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer - For use in simplex printers only | Find 1 |
| 1 | RM1-1829-050CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer - For simplex printers only | Find 1 |
| 1 | RM1-1829-000CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer - For simplex printers only | Find 1 |
| 2 | RC2-0253-000CN | Left side paper retainer arm for fusing assembly | Find 2 |
| 3 | RC2-0254-000CN | Right side paper retainer arm for fusing assembly | Find 3 |
| 4 | RC2-0269-000CN | Center paper retainer arm for fusing assembly | Find 4 |

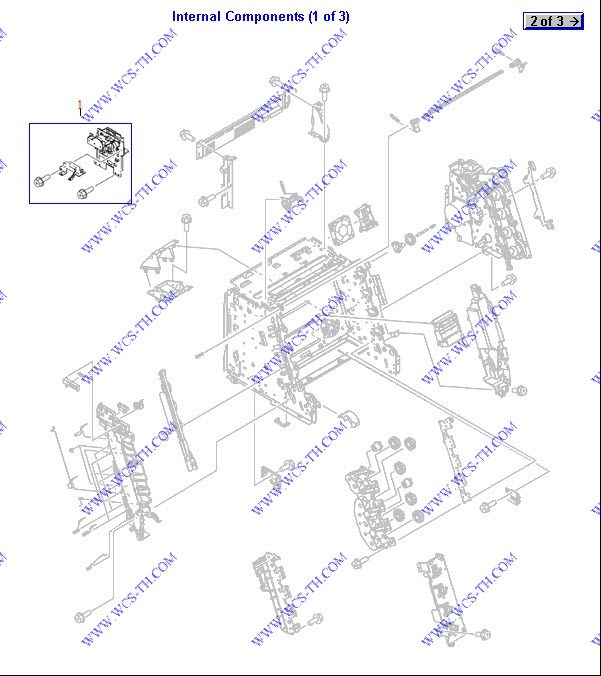

Internal Components (1 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1832-030CN | Duplex unit main drive assembly - Gear/roller assembly | Find 1 |
| 1 | RM1-1832-000CN | Duplex unit main drive assembly - Gear/roller assembly | Find 1 |

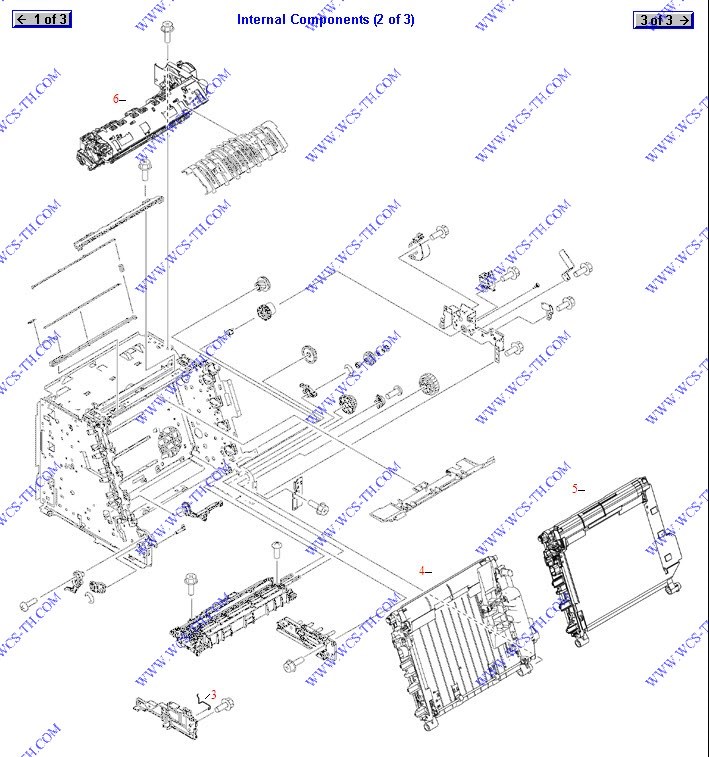

Internal Components (2 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RC1-5147-000CN | Grounding spring - Mounts on the left inside wall of the print engine frame assembly towards the bottom (on the left cassette tray guide) | Find 3 |
| 4 | RM1-1892-000CN | Electrostatic Transfer Belt (ETB) assembly - Includes the assembly structure, ETB belt, drive roller, and four transfer rollers - Mounts to the lower front of the print engine frame - For duplex capable printers only | Find 4 |
| 5 | RM1-1891-000CN | Electrostatic Transfer Belt (ETB) assembly - Includes the assembly structure, ETB belt, drive roller, and four transfer rollers - Mounts to the lower front of the print engine frame - For simplex printers only | Find 5 |
| 6 | RM1-1828-030CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer - For use in simplex printers only | Find 6 |
| 6 | RM1-1829-050CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer - For simplex printers only | Find 6 |
| 6 | RM1-1829-030CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer - For simplex printers only | Find 6 |
| 6 | RM1-1824-030CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer - For use in duplex printers only | Find 6 |
| 6 | RM1-1828-000CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer - For use in simplex printers only | Find 6 |
| 6 | RM1-1825-030CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer - For duplex printers only | Find 6 |
| 6 | RM1-1825-050CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer - For duplex printers only | Find 6 |
| 6 | RM1-1824-000CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer - For use in duplex printers only | Find 6 |
| 6 | RM1-1824-050CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer - For use in duplex printers only | Find 6 |
| 6 | RM1-1828-050CN | Fusing Assembly - Bonds toner to paper with heat - For 110VAC to 127VAC (+/- 10%) operation - Mounts in the upper front of the printer - For use in simplex printers only | Find 6 |
| 6 | RM1-1829-000CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer - For simplex printers only | Find 6 |
| 6 | RM1-1825-000CN | Fusing Assembly - Bonds toner to paper with heat - For 220VAC to 240VAC (+/- 10%) operation - Mounts in the upper front of the printer - For duplex printers only | Find 6 |

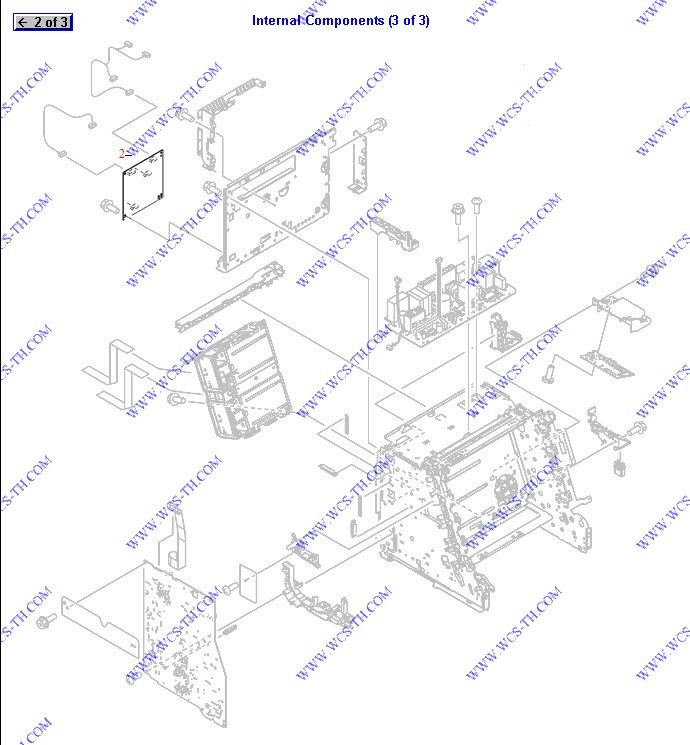

Internal Components (3 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RM1-3423-000CN | DC controller board assembly - Mounts on the rear of the print engine frame (right of the formatter board) | Find 2 |
| 2 | RM1-3423-020CN | DC controller board assembly - Mounts on the rear of the print engine frame (right of the formatter board) | Find 2 |

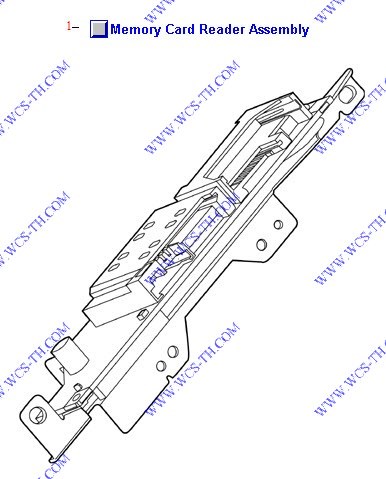

Memory Card Reader Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q5967-60001 | Memory card slot PC board - Memory card slot external access ports - Located at right rear corner of printer | Find 1 |
| 1 | Q7821-67901 | Memory card slot PC board - Memory card slot external access ports - Located at right rear corner of printer | Find 1 |

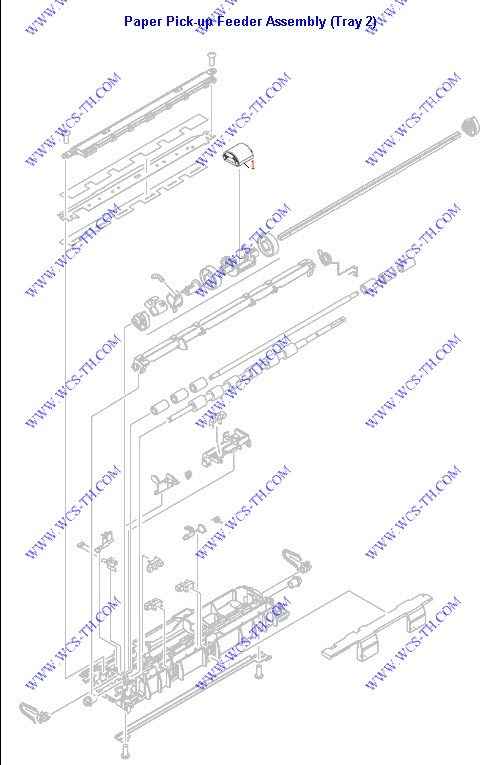

Paper Pick-up Feeder Assembly (Tray 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-5440-000CN | Paper pickup roller (D-shaped roller) - Picks up media from the paper input tray - Clips in the holder on the paper pickup shaft in the paper feeder assembly | Find 1 |
Paper Pick-up Feeder Assembly (Tray 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-5440-000CN | Paper pickup roller (D-shaped roller) - Picks up media from the paper input tray - Clips in the holder on the paper pickup shaft in the paper feeder assembly | Find 1 |
Tray 2 Input Tray (Cassette)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1925-000CN | 250-sheet paper cassette tray assembly - Pull out cassette where the paper is loaded into | Find 1 |
| 1 | RM1-1916-080CN | 250-sheet paper cassette tray assembly with a single-sheet manual feed slot on the front | Find 1 |
| 2 | RM1-1922-000CN | Separation pad assembly - Includes the spring loaded separation pad in a holder assembly | Find 2 |
| 3 | RM1-1923-000CN | Manual paper feed assembly (tray 1) - Includes the curved plastic feed structure with width adjustment arms - Mounts on the front of the 250-sheet paper cassette tray frame | Find 3 |
Tray 3 Input Tray (Cassette)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1922-000CN | Separation pad assembly - Includes the spring loaded separation pad in a holder assembly | Find 1 |
| 2 | RM1-1945-080CN | 250-sheet paper cassette tray assembly (Tray 3) - Slides in the opening on the tray base assembly | Find 2 |
| 2 | RM1-1945-050CN | 250-sheet paper cassette tray assembly | Find 2 |
| 2 | RM1-1945-000CN | 250-sheet paper cassette tray assembly (Tray 3) - Slides in the opening on the tray base assembly | Find 2 |
Upper Cover Assembly - Duplex models
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1855-000CN | Top front sub-cover/support structure - 'C' shaped plastic cover which surrounds the face-down output paper tray and has a cutout for the control panel assembly - Mounts on the top towards the front on the printer | Find 1 |
| 2 | RM1-1861-020CN | Control panel assembly - Mounts on the front upper right of the printer | Find 2 |
| 2 | RM1-1861-000CN | Control panel assembly - Mounts on the front upper right of the printer | Find 2 |
| 3 | RC1-5179-000CN | Upper inside cover - Plastic support assembly that attaches under front top cover - Control panel mounts in this assembly - For duplex models only | Find 3 |
| 4 | RC1-5175-000CN | Lift up cover that attaches to top front cover - Allows access to top paper output tray - This is only the plastic top cover | Find 4 |

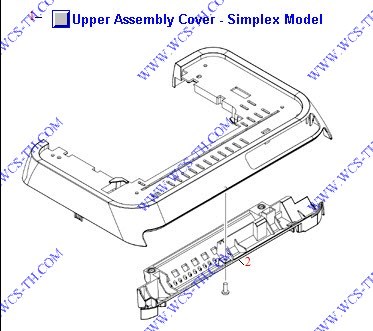

Upper Cover Assembly - Simplex model
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1862-040CN | Top front sub-cover/support structure - C-shaped plastic cover which surrounds the face-down output paper tray - Mounts on the top towards the front on the printer - Simplex models only | Find 1 |
| 1 | RM1-1862-000CN | Top front sub-cover/support structure - C-shaped plastic cover which surrounds the face-down output paper tray - Mounts on the top towards the front on the printer - Simplex models only | Find 1 |
| 2 | RC1-5178-040CN | Plastic support assembly that attaches under front top cover - For simplex models only | Find 2 |
