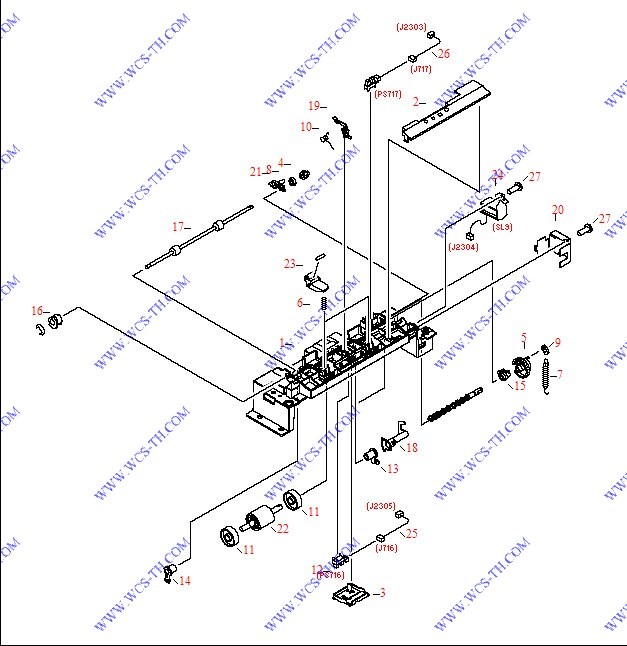

250 Sheet Tray - Center Frame Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB3-0105-000CN | Center support frame (black plastic) - Support structure for the paper pickup roller, feed roller, and paper sensors | Find 1 |
| 1 | RB3-0105-020CN | Center support frame (black plastic) - Support structure for the paper pickup roller, feed roller, and paper sensors | Find 1 |
| 2 | RB3-0165-000CN | Top inner cover (black plastic) - Covers the back half of the pressure roller arms and springs | Find 2 |
| 3 | RB3-0166-000CN | Bottom inner cover (Black) plastic - One covers the paper feed sensor in the center and the other covers sensor wires toward the right side | Find 3 |
| 4 | RS7-0431-000CN | 15 tooth Gear (white plastic) | Find 4 |
| 5 | RS7-0430-000CN | 26 tooth gear - White gear with 1/8th portion of gear cut away and pin for spring tensioning | Find 5 |
| 6 | RS6-2760-000CN | Compression spring | Find 6 |
| 7 | RS6-2025-000CN | Tensioning spring | Find 7 |
| 8 | RS5-1636-000CN | Shaft bushing | Find 8 |
| 9 | RB1-2190-000CN | Pickup roller spring hook | Find 9 |
| 10 | RB9-0843-000CN | Torsion spring - Provides a small amount of back pressure for the paper sensor flag | Find 10 |
| 11 | RB2-2892-000CN | Guide roller (Free spinning white plastic roller) - Mounts on the paper pickup drive shaft on each side of the pickup 'D' shaped roller | Find 11 |
| 12 | WG8-5593-000CN | Sensor (TLP1242) PC board - Small board with flag activated photosensor | Find 12 |
| 13 | RB9-0834-000CN | Shaft bushing/retainer - Right side pickup roller support bushing | Find 13 |
| 14 | RB9-0835-000CN | Shaft bushing/retainer - Left side pickup roller support bushing | Find 14 |
| 15 | RB2-2897-020CN | Shaft bushing/retainer | Find 15 |
| 15 | RB2-2897-000CN | Shaft bushing/retainer | Find 15 |
| 16 | RS5-1638-000CN | Bushing | Find 16 |
| 17 | RB3-0129-000CN | Feed roller assembly - Includes the metal shaft and two small rubber rollers | Find 17 |
| 17 | RB3-0129-020CN | Feed roller assembly - Includes the metal shaft and two small rubber rollers - Feeds paper from the paper cassette (or tray three below) into the printer - Mounts on the top of the center frame in the base on the 250-sheet input tray assembly | Find 17 |
| 18 | RB3-0130-000CN | Shaft mounted sensor flag (black plastic) | Find 18 |
| 19 | RB3-0132-000CN | Mechanical sensor flag (black plastic) | Find 19 |
| 20 | RB3-0136-000CN | Solenoid cover/magnetic shield | Find 20 |
| 20 | RB3-0136-020CN | Solenoid cover/magnetic shield | Find 20 |
| 21 | RB3-0137-000CN | Grounding plate | Find 21 |
| 22 | Q3948-67921 | Paper pickup roller kit - Includes the paper pickup roller assembly, the two free-wheeling guide rollers, the cassette separation pad assembly, and the spring for the paper lift plate in the cassette assembly | Find 22 |
| 22 | RB3-0161-000CN | Paper pickup roller assembly - Includes the 'D' shaped rubber roller on a plastic shaft | Find 22 |
| 23 | RF5-4035-000CN | Pressure roller and arm assembly - Includes the small white roller, the holding arm, and roller scraper | Find 23 |
| 24 | RH7-5385-000CN | Solenoid assembly - Tray 3 (SL95) | Find 24 |
| 25 | RG5-7139-000CN | Cable assembly | Find 25 |
| 26 | RG5-7138-000CN | Cable assembly | Find 26 |
| 27 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 27 |
250 Sheet Tray - External Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 1 |
| 2 | Q3709-67901 | Replacement 250-sheet paper input feeder assembly - Includes tray base which attaches to printer, and the paper cassette tray - Accommodates 148mm x 210mm (5.8 x 8.3 inches) to 216mm x 356mm (8.5 x 14 inches) media - Only one 250-sheet feeder supported | Find 2 |
| 2 | Q3709A | Optional 250 sheet paper input tray - Includes tray base which attaches to printer, and the slide out paper tray - Accommodates 148mm x 210mm (5.8 x 8.3 inches) to 216mm x 356mm (8.5 x 14 inches) media - Only one 250 sheet tray supported per printer | Find 2 |
| 3 | RB3-1168-000CN | Left side support frame/cover assembly - For the base on the 250-sheet input tray assembly | Find 3 |
| 4 | RB3-0108-000CN | Metal support cross-brace - Mounts on the top rear of the left and right support frame/cover assemblies | Find 4 |
| 4 | RB3-0108-020CN | Metal support cross-brace - Mounts on the top rear of the left and right support frame/cover assemblies - For the base on the 250-sheet input tray assembly | Find 4 |
| 5 | RB3-0282-000CN | Inner cover - Covers the small interconnecting PC board | Find 5 |
| 6 | RB3-0283-000CN | Inner cover - Covers the bottom of the connector that interconnects the input tray base to the printer | Find 6 |
| 7 | RB2-3019-000CN | Shipping stopper (bright orange plastic) - Helps to prevent damage to the paper tray by restricting the movement of the lift plate (Removed for normal use) | Find 7 |
| 8 | RB2-6297-000CN | Rubber foot - Square self-adhesive rubber foot | Find 8 |
| 10 | RG5-7635-000CN | 250-sheet paper cassette tray assembly (complete) - Pull out cassette that the paper is loaded into - Does NOT include the paper feed base assembly | Find 10 |
| 11 | RG5-7634-000CN | Right side support frame/cover assembly - Includes the frame/cover, printer interface connector, cable, feed drive PC board, and snap-on lid - For the base on the 250-sheet input tray assembly | Find 11 |
250 Sheet Tray - Paper Cassette Tray
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7635-000CN | 250-sheet paper cassette tray assembly (complete) - Pull out cassette that the paper is loaded into - Does NOT include the paper feed base assembly | Find 1 |
| 2 | RB3-1170-000CN | Front cover - Mounts on the front of the cassette assembly for the 250-sheet input tray assembly | Find 2 |
| 3 | RG5-7639-000CN | 250-sheet cassette tray main body assembly - Includes the main structure frame, paper stops, lift plate, springs, and the separation pad assembly - Does NOT include the plastic front cover | Find 3 |
| 4 | RF5-4258-020CN | Separation pad assembly - Includes the gray plastic frame with the rubber insert strip - For the cassette on the 250-sheet and 500-sheet input tray assemblies - Mounts in the paper cassette tray assembly | Find 4 |
| 4 | Q3948-67921 | Paper pickup roller kit - Includes the paper pickup roller assembly, the two free-wheeling guide rollers, the cassette separation pad assembly, and the spring for the paper lift plate in the cassette assembly | Find 4 |
| 4 | RF5-4258-000CN | Separation pad assembly - Includes the gray plastic frame with the rubber insert strip | Find 4 |
| 5 | RC1-1036-000CN | Separation pad support - Pivoting `L` shaped metal support frame (Does NOT include the separation pad assembly) | Find 5 |
| 5 | RL1-0171-000CN | Pad holder - Separation pad holder on front of tray | Find 5 |
| 6 | RS6-2768-000CN | Compression spring | Find 6 |
| 7 | Q3948-67921 | Paper pickup roller kit - Includes the paper pickup roller assembly, the two free-wheeling guide rollers, the cassette separation pad assembly, and the spring for the paper lift plate in the cassette assembly | Find 7 |
| 7 | RS6-2769-000CN | Compression spring | Find 7 |

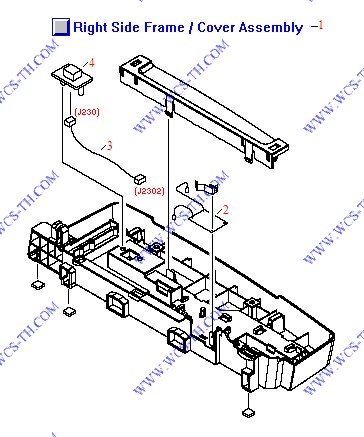

250 Sheet Tray - Right Side Frame / Cover Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7634-000CN | Right side support frame/cover assembly - Includes the frame/cover, printer interface connector, cable, feed drive PC board, and snap-on lid - For the base on the 250-sheet input tray assembly | Find 1 |
| 2 | RG5-7617-000CN | Interconnecting feed drive PC board | Find 2 |
| 3 | RG5-7433-000CN | Cable assembly - Connects between the Interconnecting feed drive PC board and the printer connector | Find 3 |
| 4 | WS1-6337-000CN | Dual connector - Houses both a 8-pin and 6-pin connector | Find 4 |
Automatic Document Feeder (ADF) and Scanner Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q3948-60145 | Paper input tray for the ADF assembly - Includes the plastic try and width adjustment side rails | Find 1 |
| 1 | Q3948-60214 | Paper input tray for the ADF assembly - Includes the plastic try and width adjustment side rails | Find 1 |
| 2 | Q3948-40007 | ADF cover assembly (ONLY) - Covers the paper pickup and feed mechanism | Find 2 |
| 3 | C7296-00014 | ADF glass window (ONLY) | Find 3 |
| 4 | Q1636-40037 | ADF glass retainer (C-shaped plastic frame) | Find 4 |
| 5 | Q3948-60111 | Control panel assembly - Includes alphanumeric, menu, cancel, scan, and copy buttons and the display - Does NOT include the bezel | Find 5 |
| 5 | Q3949-60134 | Control panel assembly - Includes alphanumeric, menu, cancel, scan, copy, and fax buttons and the display - Does NOT include the bezel | Find 5 |
| 6 | Q3948-60160 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Slovak) | Find 6 |
| 6 | Q3950-60117 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Turkish) | Find 6 |
| 6 | Q3950-60110 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Finnish) | Find 6 |
| 6 | Q3948-60156 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Russian) | Find 6 |
| 6 | Q3948-60155 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Danish) | Find 6 |
| 6 | Q3948-60158 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Hungarian) | Find 6 |
| 6 | Q3950-60125 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Vietnamese) | Find 6 |
| 6 | Q3950-60122 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Korean) | Find 6 |
| 6 | Q3950-60104 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (German) | Find 6 |
| 6 | Q3950-60114 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Hungarian) | Find 6 |
| 6 | Q3948-60161 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Turkish) | Find 6 |
| 6 | Q3950-60108 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Swedish) | Find 6 |
| 6 | Q3950-60101 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (English) | Find 6 |
| 6 | Q3948-60168 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Thai) | Find 6 |
| 6 | Q3950-60119 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Hebrew) | Find 6 |
| 6 | Q3950-60116 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Slovak) | Find 6 |
| 6 | Q3948-60154 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Finnish) | Find 6 |
| 6 | Q3950-60115 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Polish) | Find 6 |
| 6 | Q3950-60124 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Thai) | Find 6 |
| 6 | Q3950-60118 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Greek) | Find 6 |
| 6 | Q3950-60112 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Russian) | Find 6 |
| 6 | Q3950-60107 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Italian) | Find 6 |
| 6 | Q3948-60148 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (German) | Find 6 |
| 6 | Q3948-60151 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Italian) | Find 6 |
| 6 | Q3948-60163 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Hebrew) | Find 6 |
| 6 | Q3948-60152 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Swedish) | Find 6 |
| 6 | Q3950-60121 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Traditional Chinese) | Find 6 |
| 6 | Q3948-60150 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Dutch) | Find 6 |
| 6 | Q3950-60120 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Arabic) | Find 6 |
| 6 | Q3950-60109 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Norwegian) | Find 6 |
| 6 | Q3950-60111 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Danish) | Find 6 |
| 6 | Q3948-60147 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Portuguese) | Find 6 |
| 6 | Q3948-60162 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Greek) | Find 6 |
| 6 | Q3948-60164 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Arabic) | Find 6 |
| 6 | Q3948-60159 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Polish) | Find 6 |
| 6 | Q3950-60103 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Portuguese) | Find 6 |
| 6 | Q3950-60105 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (French) | Find 6 |
| 6 | Q3950-60102 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Spanish) | Find 6 |
| 6 | Q3950-60123 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Simplified Chinese) | Find 6 |
| 6 | Q3950-60106 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Dutch) | Find 6 |
| 6 | Q3948-60149 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (French) | Find 6 |
| 6 | Q3950-60113 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Czech) | Find 6 |
| 6 | Q3948-60166 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Korean) | Find 6 |
| 6 | Q3948-60169 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Vietnamese) | Find 6 |
| 6 | Q3948-60153 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Norwegian) | Find 6 |
| 6 | Q3948-60167 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Simplified Chinese) | Find 6 |
| 6 | Q3948-60165 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Traditional Chinese) | Find 6 |
| 6 | Q3948-60146 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Spanish) | Find 6 |
| 6 | Q3948-60157 | Control panel bezel - Rectangular plastic piece with cutouts for the control function keys and display (Czech) | Find 6 |
| 7 | Q3948-60189 | Automatic document feeder (ADF) and flatbed scanner lid - Includes the lid, and the ADF feed mechanism - Does not include ADF input tray | Find 7 |
| 7 | Q3948-67903 | ADF pick roller assembly - Includes two rollers in a bracket assembly - Moves the first few top pages of the input stack where the top page is picked off and feed to the pre-scan drive rollers - Mounts in the middle of the ADF assembly | Find 7 |
External Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XA9-1291-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 1 |
| 1 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 1 |
| 2 | RB3-1130-000CN | Upper rear cover assembly - Also guides the paper from the fusing assembly to the top output (face down) tray | Find 2 |
| 3 | Q3948-67909 | Right link mount kit - Includes the'L' shaped plastic piece that has a recess for the printer-to-scanner link and scanner hinge, and the scanner release lift spring | Find 3 |
| 3 | RS6-2772-000CN | Torsion spring | Find 3 |
| 4 | RB3-0089-030CN | Top cover rack arm (Black) - Plastic arm with teeth on bottom edge - Disengages the imaging drum/transfer assembly drive cams when the top door is open | Find 4 |
| 5 | RF5-4055-000CN | Cartridge access door (ONLY) - Provides access to the toner cartridges and imaging drum/transfer assembly cartridge - Does NOT include the upper front cover | Find 5 |
| 6 | RB3-1136-000CN | Face-down paper output cover ('L' shaped plastic) - Serves as the rear of the tray for the face-down output on top of the printer | Find 6 |
| 7 | RB3-1138-000CN | Memory access door - Provides access for changing or adding DIMM memory modules to the printer | Find 7 |
| 8 | RG5-7645-000CN | Left scanner link assembly - Spring loaded arm - Connects between the top of the printer and the bottom of the scanner - Allows for limited tilting of the scanner assembly for toner cartridges and image drum/transfer assembly cartridge access | Find 8 |
| 9 | RS6-2771-000CN | Compression spring | Find 9 |
| 9 | Q3948-67911 | Power switch rod kit - Includes the power switch push rod, compression spring, and mount retainer | Find 9 |
| 10 | Q3948-67911 | Power switch rod kit - Includes the power switch push rod, compression spring, and mount retainer | Find 10 |
| 10 | RB3-1145-000CN | Power switch rod - Goes between the power button and the power switch on the low voltage power supply board | Find 10 |
| 11 | RB3-1128-000CN | Left side cover (ONLY) - Does NOT include the vent cover or power switch button | Find 11 |
| 12 | RB3-1139-000CN | Vent cover - Rectangular plastic cover with molded-in ventilation louvers | Find 12 |
| 13 | RB3-1146-000CN | Mount retainer - Holds the spring loaded power switch rod on the left side cover | Find 13 |
| 13 | Q3948-67911 | Power switch rod kit - Includes the power switch push rod, compression spring, and mount retainer | Find 13 |
| 14 | RB3-1126-000CN | Upper left cover - Small cover that is part of the inner side wall in the cartridge access area and provides support for the exterior left side cover | Find 14 |
| 15 | RB3-1131-000CN | Left rear cover - 'U' shaped cover that mounts on the under-side of the extension for the left scanner hinge | Find 15 |
| 16 | RB3-1132-000CN | Right rear cover - 'U' shaped cover that mounts on the under-side of the extension for the right scanner hinge - Covers the scanner interconnection cables | Find 16 |
| 17 | RB3-1137-000CN | I/O cover - Rectangular plastic cover with a recessed cutout for the interface connectors | Find 17 |
| 18 | RB3-1147-000CN | Rear foot - Helps in printer stability when the scanner has been lifted up - Also forms a recess for the alignment peg on the optional paper tray | Find 18 |
| 19 | RB3-1154-000CN | Left link mount - Rectangular plastic piece that has a recess for the printer-to-scanner link and includes the bottom half of the scanner hinge | Find 19 |
| 20 | Q3948-67909 | Right link mount kit - Includes the'L' shaped plastic piece that has a recess for the printer-to-scanner link and scanner hinge, and the scanner release lift spring | Find 20 |
| 20 | RB3-1158-000CN | Right link mount - 'L' shaped plastic piece that has a recess for the printer-to-scanner link and includes the bottom half of the scanner hinge | Find 20 |
| 21 | RB3-1125-000CN | Upper front cover - Rectangular plastic piece with recess for the printer logo | Find 21 |
| 22 | RB3-1083-000CN | Face-down paper exit arm - Helps to prevent paper re-entering the printer and paper curl | Find 22 |
| 23 | RG5-7630-000CN | Right scanner link assembly - Spring loaded arm - Connects between the top of the printer and the bottom of the scanner - Allows for limited tilting of the scanner assembly for toner cartridges and image drum/transfer assembly cartridge access | Find 23 |
| 25 | XB4-5300-809CN | M3 pan-head phillips screw with plastite threads - 8mm long | Find 25 |
| 26 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 26 |
External Covers (Assemblies)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RG5-7597-000CN | Top cover assembly - Includes the rear cover with molded-in face-down output tray and the lift-up toner cartridge / imaging drum and transfer assembly cartridge access door - Does NOT include the upper front cover | Find 2 |
| 3 | RG5-7599-000CN | Right side cover assembly - Includes the right side cover, DIMM memory access door, and the formatter grounding plate | Find 3 |
| 4 | RG5-7598-000CN | Left side cover assembly - Includes the main cover, vent cover, power switch button, rod and spring (The power switch is located on the low voltage power supply board) | Find 4 |
Front Frame Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-9952-000CN | Tray 1 flag spring - Provides torsion for the tray 1 paper sensor flag | Find 1 |
| 2 | RB9-0890-000CN | Tray hinge - 'L' shaped plastic arm - For the right side of the multipurpose front input tray (tray 1) | Find 2 |
| 3 | RB9-0889-000CN | Tray hinge - 'L' shaped plastic arm - For the left side of the multi-purpose front input tray (tray 1) | Find 3 |
| 4 | RB2-3043-000CN | Left roller bushing - Acts as the bearing and retainer for the left end of the paper pickup roller assembly (tray 1) | Find 4 |
| 5 | RB2-3044-000CN | Right roller bushing - Acts as the bearing and retainer for the right end of the paper pickup roller assembly (tray 1) | Find 5 |
| 6 | RB2-6248-000CN | Damper assembly (Gray plastic piece with small 13-tooth gear on it) | Find 6 |
| 7 | RB3-1134-000CN | Internal cover (ONLY) - Curved plastic piece with recessed area for grasping the handle on the imaging drum/transfer assembly - Mounts towards the front of the printer just above the multipurpose tray | Find 7 |
| 7 | Q3948-67914 | Internal cover kit - Includes the curved plastic cover (with recessed area for grasping the handle on the imaging drum/transfer assembly) and the cartridge removal label | Find 7 |
| 8 | RB3-1135-000CN | Lower front cover - Rectangular plastic strip - Mounts just below the multipurpose input tray on the front of the printer | Find 8 |
| 9 | RB3-0104-000CN | Roller cover - Covers the multipurpose paper pickup roller assembly - Mounts on the lower front of the front frame assembly | Find 9 |
| 10 | RB3-0111-000CN | Paper flag - Plastic rod with paper sensing flag on one end and sensor activator flag on the other | Find 10 |
| 11 | RG5-7624-000CN | Cable assembly (two 3-pin connectors) | Find 11 |
| 12 | RB3-0120-000CN | Solenoid cover (Steel) - For magnetic wave sheilding | Find 12 |
| 12 | RB3-0120-020CN | Solenoid cover (Steel) - For magnetic wave sheilding - Mounts over the solenoid on the right side of the front frame assembly | Find 12 |
| 13 | RB3-0121-000CN | Right retaining spring - Helps to secure and ground the imaging drum/transfer assembly in the printer | Find 13 |
| 14 | RB3-0122-000CN | Left retaining spring - Helps to secure the imaging drum/transfer assembly in the printer | Find 14 |
| 15 | RB3-0135-000CN | Test print flag (Black lever) | Find 15 |
| 16 | RH7-5383-000CN | Solenoid assembly - (SL92) Lever on the solenoid disengages the stop on the drive gear on the paper pickup roller for the multipurpose input tray (tray 1) | Find 16 |
| 17 | RF5-4012-000CN | Separation pad assembly - Includes the separation pad, holder and spring | Find 17 |
| 17 | Q3948-67907 | Paper pickup roller replacement kit - Includes the pickup roller (`D` shaped roller), separation pad, and illustrated instructions - Picks paper from the multipurpose front input tray (tray 1) | Find 17 |
| 18 | RS6-2030-000CN | Tension spring | Find 18 |
| 19 | RS7-0418-000CN | 26 tooth gear (Black plastic) - Has 1/8th portion of gear cut away | Find 19 |
| 20 | RS7-0424-000CN | Dual gear - 20 tooth / 40 tooth | Find 20 |
| 20 | Q3948-67913 | Front frame gear kit - Includes the 20 tooth/40 tooth dual gear, 26 tooth gear, metal plate with two gears assembly and the bushing for the paper pickup clutch gear shaft | Find 20 |
| 20 | Q3948-67928 | Front frame gear kit - Includes the 20 tooth/40 tooth dual gear, 26 tooth gear, metal plate with two gears assembly and the bushing for the paper pickup clutch gear shaft - All mount on the right side of the front frame assembly | Find 20 |
| 21 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 21 |
| 22 | RS7-0426-000CN | Dual gear - 26 tooth / 50 tooth (White plastic) | Find 22 |
| 23 | Q3948-67928 | Front frame gear kit - Includes the 20 tooth/40 tooth dual gear, 26 tooth gear, metal plate with two gears assembly and the bushing for the paper pickup clutch gear shaft - All mount on the right side of the front frame assembly | Find 23 |
| 23 | RS7-0429-000CN | 26 tooth gear (White plastic) - Has recess for shaft drive pin | Find 23 |
| 23 | Q3948-67913 | Front frame gear kit - Includes the 20 tooth/40 tooth dual gear, 26 tooth gear, metal plate with two gears assembly and the bushing for the paper pickup clutch gear shaft | Find 23 |
| 24 | WG8-5593-000CN | Sensor (TLP1242) PC board - Small board with flag activated photosensor | Find 24 |
| 25 | RG5-7601-000CN | Multipurpose front input tray assembly (tray 1) - Includes the front cover piece, pull-out paper support, and the flip-out extender | Find 25 |
| 26 | RG5-6938-030CN | Gear assembly - Metal plate with two white plastic gears attached | Find 26 |
| 26 | Q3948-67913 | Front frame gear kit - Includes the 20 tooth/40 tooth dual gear, 26 tooth gear, metal plate with two gears assembly and the bushing for the paper pickup clutch gear shaft | Find 26 |
| 26 | Q3948-67928 | Front frame gear kit - Includes the 20 tooth/40 tooth dual gear, 26 tooth gear, metal plate with two gears assembly and the bushing for the paper pickup clutch gear shaft - All mount on the right side of the front frame assembly | Find 26 |
| 26 | RG5-6938-000CN | Gear assembly - Metal plate with two white plastic gears attached | Find 26 |
| 27 | RG5-7584-000CN | Paper guide assembly - Paper width adjustable guide assembly for the multipurpose front input tray (tray 1) | Find 27 |
| 28 | RG5-6952-000CN | Paper pickup roller assembly - Includes the shaft, guide assembly cams, the D-shaped roller, and roller retainers - Picks paper from the multipurpose front input tray (tray 1) | Find 28 |
| 28 | RG5-6952-020CN | Paper pickup roller assembly - Includes the shaft, guide assembly cams, the D-shaped roller, and roller retainers - Picks paper from the multipurpose front input tray (tray 1) - Mounts in the lower portion of the front frame assembly | Find 28 |
| 28 | RB3-0160-000CN | Paper pickup roller ('D' shaped) | Find 28 |
| 28 | Q3948-67912 | Paper pickup roller kit - Includes the `D` shaped the paper pickup roller assembly and the separation pad assembly - For the multipurpose front input tray (tray 1) | Find 28 |
| 28 | Q3948-67907 | Paper pickup roller replacement kit - Includes the pickup roller (`D` shaped roller), separation pad, and illustrated instructions - Picks paper from the multipurpose front input tray (tray 1) | Find 28 |
| 29 | WT2-5700-000CN | Cable clamp - White plastic clamp with mounting pin | Find 29 |
| 30 | RG5-7131-000CN | E-label reader (contact board only) - Connects the cartridge non-volitale memory to the DC controller board | Find 30 |
| 31 | WT2-5056-000CN | Cable clip - `C` shaped White plastic | Find 31 |
| 32 | RS7-0425-000CN | 30 tooth gear (White plastic) | Find 32 |
| 33 | RS5-1635-000CN | Shaft bushing | Find 33 |
| 33 | Q3948-67913 | Front frame gear kit - Includes the 20 tooth/40 tooth dual gear, 26 tooth gear, metal plate with two gears assembly and the bushing for the paper pickup clutch gear shaft | Find 33 |
| 33 | Q3948-67928 | Front frame gear kit - Includes the 20 tooth/40 tooth dual gear, 26 tooth gear, metal plate with two gears assembly and the bushing for the paper pickup clutch gear shaft - All mount on the right side of the front frame assembly | Find 33 |
| 34 | RF5-4047-000CN | Light blocking pad assembly - Black plastic frame with soft rubber gasket and stiff conductive Mylar piece (grounded) | Find 34 |
| 35 | RB2-9954-000CN | Left paper feed guide (small Black plastic arm) | Find 35 |
| 36 | Q3948-67914 | Internal cover kit - Includes the curved plastic cover (with recessed area for grasping the handle on the imaging drum/transfer assembly) and the cartridge removal label | Find 36 |
| 36 | RS6-8687-000CN | Label - Illustrates the imaging drum/transfer assembly cartridge removal procedure - Mounts on the upper internal cover | Find 36 |
| 37 | RB2-9955-000CN | Right paper feed guide (small Black plastic arm) | Find 37 |
| 38 | RS5-1638-000CN | Bushing | Find 38 |
| 39 | XD2-1100-502CN | E-ring clip | Find 39 |
Fusing Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB3-1140-010CN | Rear cover / face-up output tray - When opened, routes printed pages to this cover/tray for face-up output | Find 1 |
| 1 | RB3-1140-000CN | Rear cover / face-up output tray (ONLY) - When opened, routes printed pages to this cover/tray for face-up output | Find 1 |
| 2 | RB3-1025-000CN | Compression spring | Find 2 |
| 3 | WT2-5700-000CN | Cable clamp - White plastic clamp with mounting pin | Find 3 |
| 4 | RB3-1026-000CN | Bushing - Plastic 'U' shaped bushing | Find 4 |
| 5 | RB3-1027-000CN | Bushing - Flanged plastic bushing | Find 5 |
| 6 | RB3-0178-000CN | Right side lock release lever | Find 6 |
| 7 | RB3-0179-000CN | Left side lock release lever | Find 7 |
| 8 | RB3-0180-000CN | Paper inlet guide - Small ribbed plastic piece | Find 8 |
| 9 | RB3-1024-000CN | Pressure plate - Small steel channel shaped plate | Find 9 |
| 10 | RU5-8125-000CN | 'Caution: High temperature' label | Find 10 |
| 11 | RB3-1034-000CN | Pressure roller assembly - Hard rubber roller on a metal drive shaft | Find 11 |
| 12 | RF5-4060-000CN | Base plate - Bottom support plate for the fusing assembly | Find 12 |
| 13 | RS7-0580-000CN | 30 tooth gear | Find 13 |
| 14 | RG5-7163-030CN | Fusing film assembly (for 220VAC to 240VAC operation) - Includes the heater assembly and the fusing film tube | Find 14 |
| 14 | RG5-7162-030CN | Fusing film assembly (for 110VAC to 127VAC operation) - Includes the heater assembly and the fusing film tube | Find 14 |
| 14 | RG5-7162-000CN | Fusing film assembly (for 110VAC to 127VAC operation) - Includes the heater assembly and the fusing film tube | Find 14 |
| 14 | RG5-7163-000CN | Fusing film assembly (for 220VAC to 240VAC operation) - Includes the heater assembly and the fusing film tube | Find 14 |
| 15 | RG5-7576-000CN | Separation upper guide assembly - Ribbed plastic channel with pivot pins on each end and two pinch rollers for the paper delivery roller | Find 15 |
| 16 | RB2-9950-000CN | Pinch-roller - Small roller mounted on a shaft | Find 16 |
| 17 | RB3-1166-000CN | Right pressure release lever - To release pressure between the pressure roller and the heater assembly to clear paper jams | Find 17 |
| 18 | RG5-7604-010CN | Rear cover/face-up output tray assembly - Includes the tray/cover and the lower fusing assembly cover - When opened, routes printed pages to this cover/tray for face-up output | Find 18 |
| 18 | RG5-7604-000CN | Rear cover/face-up output tray assembly - Includes the tray/cover and the lower fusing assembly cover - When opened, routes printed pages to this cover/tray for face-up output | Find 18 |
| 19 | RG5-7577-030CN | Lower guide assembly - Includes the support structure, delivery roller, drive gear, paper photo-sensor, sensor flags, and upper separation guide - Mounts on the rear of the fuser support frame assembly | Find 19 |
| 19 | RG5-7577-000CN | Lower guide assembly - Includes the support structure, delivery roller, drive gear, paper photo-sensor, sensor flags, and upper separation guide | Find 19 |
| 20 | RB3-1167-000CN | Left pressure release lever - To release pressure between the pressure roller and the heater assembly to clear paper jams | Find 20 |
| 21 | RB3-1150-000CN | Grounding spring | Find 21 |
| 22 | RB3-1029-000CN | Gear holder - Hollow tube with locking tab | Find 22 |
| 23 | RB3-1032-000CN | Fusing assembly upper cover - Ribbed cover with end caps | Find 23 |
| 24 | RB2-4933-000CN | Lock release shaft - Small shaft with locking tab - Does NOT include the lock release lever | Find 24 |
| 25 | RG5-7154-000CN | Fusing assembly cable (for 110VAC to 127VAC operation) | Find 25 |
| 25 | RG5-7155-000CN | Fusing assembly cable (for 220VAC to 240VAC operation) | Find 25 |
| 26 | RS7-0582-000CN | 28 tooth idler gear | Find 26 |
| 27 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 27 |
| 28 | XA9-1449-000CN | M3 pan-head Phillips screw with machine threads - 8mm long | Find 28 |
| 29 | RB2-9934-000CN | Right spacer - Shipping lock for the fusing assembly | Find 29 |
| 30 | RB2-9935-000CN | Left spacer - Shipping lock for the fusing assembly | Find 30 |
| 31 | RG5-7603-000CN | Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and the rear cover / face-up output tray - Bonds the toner to the paper with heat - For 220V to 240VAC operation | Find 31 |
| 31 | RG5-7602-000CN | Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and the rear cover/face-up output tray - Bonds the toner to the paper with heat - For 110V to 127VAC operation | Find 31 |
| 31 | RG5-7602-070CN | Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and the rear cover/face-up output tray - Bonds the toner to the paper with heat - For 110V to 127VAC operation | Find 31 |
| 31 | RG5-7603-080CN | Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and the rear cover / face-up output tray - Bonds the toner to the paper with heat - For 220V to 240VAC operation | Find 31 |
| 31 | RG5-7603-070CN | Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and the rear cover / face-up output tray - Bonds the toner to the paper with heat - For 220V to 240VAC operation | Find 31 |
Internal Components (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB3-0019-000CN | Toner catch tray (curved Black plastic piece) - Holds residual toner from photosensitive drum | Find 1 |
| 2 | RB2-9932-000CN | RFI shield - Parallel wire form mounted over the fan | Find 2 |
| 3 | Q3948-67915 | Airflow guide (duct) kit - Includes the airflow guide / fan holder bracket assembly with high voltage label | Find 3 |
| 3 | RB9-0901-000CN | Airflow guide (duct) / fan holder bracket assembly (Alloy Gray plastic) | Find 3 |
| 4 | RB3-0091-000CN | 16 tooth gear (Black plastic) - Gear with large stop tooth and shaft lock tab | Find 4 |
| 5 | RB3-0092-000CN | 15 tooth gear with drive shaft (Black plastic) | Find 5 |
| 6 | XA9-1449-000CN | M3 pan-head Phillips screw with machine threads - 8mm long | Find 6 |
| 7 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 7 |
| 8 | RB3-1113-000CN | Grounding plate - Small plate with grounding finger | Find 8 |
| 9 | RH7-1630-000CN | Cooling fan (Panaflo Model FBA08T24H - 80mm X 80mm X 15mm high, DC brushless, 24V DC, 190mA) | Find 9 |
| 10 | RH7-5389-000CN | Electromagnetic clutch assembly (24V) - Electrical clutch between the clutch drive gear and shaft | Find 10 |
| 11 | XA9-1501-000CN | M3 pan-head Phillips screw - 10mm long | Find 11 |
| 12 | RH7-7159-000CN | Thermistor | Find 12 |
| 13 | RG5-7160-000CN | Upper cable assembly (seven connectors) | Find 13 |
| 14 | RG5-7145-000CN | Front cable assembly (six connectors) | Find 14 |
| 15 | RG5-7637-000CN | Upper top bin output roller assembly - Includes the shaft with four rubber rollers, two bushing/shaft retainers, two anti-reversing flaps, and the drive gear | Find 15 |
| 16 | RG5-7620-000CN | Cable assembly (two 5-pin connectors) | Find 16 |
| 17 | RH7-1628-000CN | Fusing motor assembly - 24VDC motor mounted on a motor controller PC board | Find 17 |
| 18 | Q3948-67916 | Paper output gear kit - Includes the 32 tooth / 37 tooth dual gear, the 37 tooth / 43 tooth dual gear, and the 51 tooth gear | Find 18 |
| 18 | RS7-0435-000CN | Dual gear - 32 tooth / 37 tooth (White plastic) | Find 18 |
| 19 | RS7-0436-000CN | Dual gear - 37 tooth / 43 tooth (White plastic) | Find 19 |
| 19 | Q3948-67916 | Paper output gear kit - Includes the 32 tooth / 37 tooth dual gear, the 37 tooth / 43 tooth dual gear, and the 51 tooth gear | Find 19 |
| 20 | RS7-0437-000CN | 51 tooth gear (White plastic) | Find 20 |
| 20 | Q3948-67916 | Paper output gear kit - Includes the 32 tooth / 37 tooth dual gear, the 37 tooth / 43 tooth dual gear, and the 51 tooth gear | Find 20 |
| 21 | RB2-9905-000CN | Torsion spring | Find 21 |
| 21 | Q3948-67917 | Upper face-down pressure roller kit - Includes the two small Black hard plastic rollers and corresponding torsion springs | Find 21 |
| 22 | Q3948-67917 | Upper face-down pressure roller kit - Includes the two small Black hard plastic rollers and corresponding torsion springs | Find 22 |
| 22 | RF5-4068-000CN | Pressure roller (small Black hard plastic 'solid' roller) | Find 22 |
| 23 | RS6-8668-000CN | High voltage caution label | Find 23 |
| 23 | Q3948-67915 | Airflow guide (duct) kit - Includes the airflow guide / fan holder bracket assembly with high voltage label | Find 23 |
| 24 | XD2-1100-322CN | E-ring retainer clip | Find 24 |
| 25 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 25 |
Internal Components (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RH2-5524-000CN | Flat flexible cable (FFC) assembly | Find 1 |
| 2 | RB3-0023-000CN | Interlock switch holder (Quartz Gray plastic) - Does NOT include the micro-switch | Find 2 |
| 3 | RG5-6907-000CN | Laser/scanner support assembly (sheet metal plate) | Find 3 |
| 3 | RG5-6907-030CN | Laser/scanner support assembly (sheet metal plate) | Find 3 |
| 4 | RB2-9903-000CN | Cable guide (Quartz Gray plastic) | Find 4 |
| 5 | RG5-6890-000CN | Laser/scanner assembly | Find 5 |
| 5 | RG5-6890-030CN | Laser/scanner assembly | Find 5 |
| 6 | RB2-9852-000CN | Rotary release guide - Small plastic clip that allows for manual carousel rotation (with a straightened paper clip) for removing toner cartridges without power | Find 6 |
| 7 | RH7-6051-000CN | Microswitch with lever activator | Find 7 |
| 8 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 8 |
| 8 | XA9-0849-000CN | M3 truss-head phillips screw with machine threads - 6mm long | Find 8 |
| 9 | RG5-7114-020CN | Cable assembly (two 4-pin connectors) with shield - Connects between the cartridge drive motor and the DC controller board | Find 9 |
| 9 | RG5-7114-000CN | Cable assembly (two 4-pin connectors) with shield | Find 9 |
| 10 | RG5-6935-000CN | Left cartridge guide assembly | Find 10 |
| 10 | RG5-6935-020CN | Left cartridge guide assembly | Find 10 |
| 11 | RG5-7117-000CN | Cable assembly (two 3-pin connectors) | Find 11 |
| 12 | RG5-7631-000CN | Right support assembly - Metal frame which supports the top mounted scanner and the camera (photo) memory interface board assembly - Also includes the scanner release button/lever | Find 12 |
| 13 | RG5-7632-000CN | Left support assembly - Metal frame which supports the top mounted scanner | Find 13 |
| 14 | RB2-9976-000CN | Cross-member support - 'L' shaped bracket used to help support the camera (photo) memory card interface boards | Find 14 |
| 15 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 15 |
| 17 | RB3-1379-000CN | Insulator sheet - 'L' shaped plastic insulator sheet - Protects the camera (photo) memory interface assembly from shorting against the support bracket | Find 17 |
| 18 | RG5-7612-000CN | Top of page photoelectric sensor PC board - Includes the photoelectric top of page sensor and the print engine test switch | Find 18 |
| 19 | Q3964-67901 | Imaging drum/transfer assembly cartridge - Inserts into printer through the top door - Life expectancy is 20,000 pages for black print ONLY, 5,000 pages for color (typical combined life is approximately 8,000 to 10,000 pages) | Find 19 |
| 19 | Q3964A | HP CLJ 2550 Series Imaging Dru | Find 19 |
| 20 | Q3971-67902 | HP Color LaserJet smart Cyan print cartridge - Will print approximately 2,000 pages based on a 5% print density (Europe) | Find 20 |
| 20 | Q3961A | HP Color LaserJet smart Cyan print cartridge - Will print approximately 4,000 pages based on a 5% print density | Find 20 |
| 20 | Q3962A | HP Color LaserJet smart Yellow print cartridge - Will print approximately 4,000 pages based on a 5% print density | Find 20 |
| 20 | Q3973-67901 | HP Color LaserJet smart Magenta print cartridge - Will print approximately 2,000 pages based on a 5% print density (not for Europe) | Find 20 |
| 20 | Q3963-67902 | HP Color LaserJet smart Magenta print cartridge - Will print approximately 4,000 pages based on a 5% print density (Europe) | Find 20 |
| 20 | Q3973-67902 | HP Color LaserJet smart Magenta print cartridge - Will print approximately 2,000 pages based on a 5% print density (Europe) | Find 20 |
| 20 | Q3963-67901 | HP Color LaserJet smart Magenta print cartridge - Will print approximately 4,000 pages based on a 5% print density (not for Europe) | Find 20 |
| 20 | Q3962-67902 | HP Color LaserJet smart Yellow print cartridge - Will print approximately 4,000 pages based on a 5% print density (Europe) | Find 20 |
| 20 | Q3960-67902 | HP Color LaserJet smart Black print cartridge - Will print approximately 5,000 pages based on a 5% print density (Europe) | Find 20 |
| 20 | Q3972-67901 | HP Color LaserJet smart Yellow print cartridge - Will print approximately 2,000 pages based on a 5% print density (not for Europe) | Find 20 |
| 20 | Q3961-67902 | HP Color LaserJet smart Cyan print cartridge - Will print approximately 4,000 pages based on a 5% print density (Europe) | Find 20 |
| 20 | Q3963A | HP Color LaserJet smart Magenta print cartridge - Will print approximately 4,000 pages based on a 5% print density | Find 20 |
| 20 | Q3972A | HP Color LaserJet smart Yellow print cartridge - Will print approximately 2,000 pages based on a 5% print density | Find 20 |
| 20 | Q3971A | HP Color LaserJet smart Cyan print cartridge - Will print approximately 2,000 pages based on a 5% print density | Find 20 |
| 20 | Q3972-67902 | HP Color LaserJet smart Yellow print cartridge - Will print approximately 2,000 pages based on a 5% print density (Europe) | Find 20 |
| 20 | Q3971-67901 | HP Color LaserJet smart Cyan print cartridge - Will print approximately 2,000 pages at based on a 5% print density (not for Europe) | Find 20 |
| 20 | Q3960-67901 | HP Color LaserJet smart Black print cartridge - Will print approximately 5,000 pages based on a 5% print density (not for Europe) | Find 20 |
| 20 | Q3960A | HP Color LaserJet smart Black print cartridge - Will print approximately 5,000 pages based on a 5% print density | Find 20 |
| 20 | Q3961-67901 | HP Color LaserJet smart Cyan print cartridge - Will print approximately 4,000 pages based on a 5% print density (not for Europe) | Find 20 |
| 20 | Q3962-67901 | HP Color LaserJet smart Yellow print cartridge - Will print approximately 4,000 pages based on a 5% print density (not for Europe) | Find 20 |
| 20 | Q3973A | HP Color LaserJet smart Magenta print cartridge - Will print approximately 2,000 pages based on a 5% print density | Find 20 |

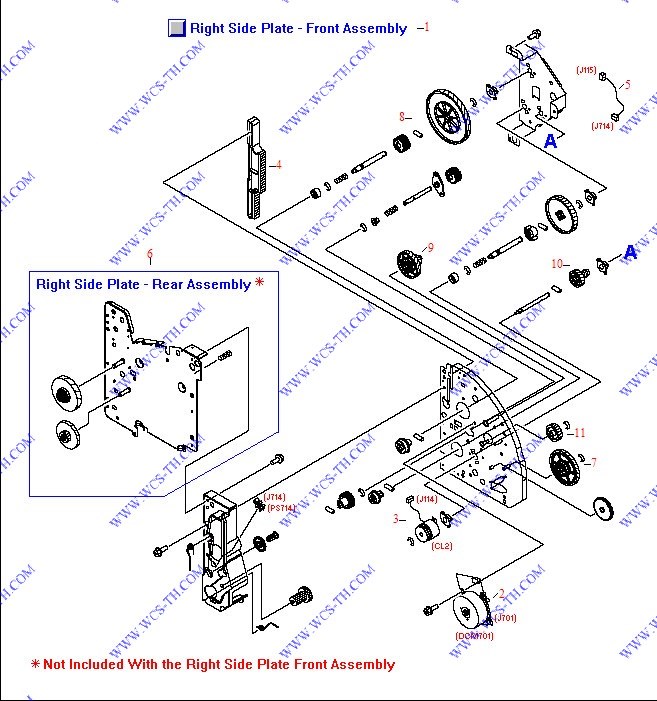

Main Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7581-000CN | Right side plate front assembly - Includes the front half of the metal frame assembly, gears, imaging drum/transfer assembly drive cams, cover engaging mechanism, roller engaging clutch (CL2), and main drive motor (DCM701) - Mounts on the right side | Find 1 |
| 1 | RG5-7581-060CN | Right side plate front assembly - Includes the front half of the metal frame assembly, gears, imaging drum/transfer assembly drive cams, cover engaging mechanism, roller engaging clutch (CL2), and main drive motor (DCM701) - Mounts on the right side | Find 1 |
| 1 | RG5-7579-070CN | Main drive (right side plate) assembly - Includes the right side plate front assembly (with main motor, clutch, and gears) and the right side plate rear assembly (with drive gears) | Find 1 |
| 1 | RG5-7579-000CN | Main drive (right side plate) assembly - Includes the right side plate front assembly (with main motor, clutch, and gears) and the right side plate rear assembly (with drive gears) | Find 1 |
| 2 | RF5-4063-000CN | Main motor assembly - Large motor mounted on a controller PC board | Find 2 |
| 2 | RF5-4063-030CN | Main motor assembly - Large motor mounted on a controller PC board - (DCM701) Mounts on the inside of the metal right side frame assembly | Find 2 |
| 3 | RH7-5335-000CN | Electromagnetic clutch assembly (24VDC) - Electrical clutch between the clutch drive gear and shaft | Find 3 |
| 4 | RB3-0090-000CN | Rack slide - White plastic piece with gear teeth layed out in rack form on both sides | Find 4 |
| 5 | RG5-7115-000CN | Cable assembly (two 3-pin connectors) | Find 5 |
| 6 | RG5-7580-000CN | Right side plate rear assembly - Includes the rear half of the metal right side plate and the two associated gears | Find 6 |
| 6 | RG5-7580-020CN | Right side plate rear assembly - Includes the rear half of the metal right side plate and the two associated gears | Find 6 |
| 7 | RS7-0574-000CN | Dual gear - 32 tooth / 123 tooth | Find 7 |
| 8 | RS7-0573-000CN | 186 tooth gear | Find 8 |
| 9 | RS7-0572-000CN | Dual gear - 31 tooth / 90 tooth | Find 9 |
| 10 | RS7-0571-000CN | Dual gear - 23 tooth / 54 tooth | Find 10 |
| 11 | RS7-0570-000CN | 81 tooth gear | Find 11 |
Major Assembly Locator
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-8668-030CN | Feed guide drive belt - Small belt approximately 5/16 inch wide with 'A' shaped ribs on it | Find 1 |
| 1 | Q3948-67918 | Feed belt kit - Includes one paper feed guide drive (large) belt, two 3-belt pulley rollers, two 1-belt pulley rollers, and eight paper feed (small) belts | Find 1 |
| 2 | RB3-0061-000CN | Pulley roller (accommodates three feed belts) - Small black roller approximately 3.49cm (1-3/4 inches) long with three ball type pulleys | Find 2 |
| 2 | Q3948-67918 | Feed belt kit - Includes one paper feed guide drive (large) belt, two 3-belt pulley rollers, two 1-belt pulley rollers, and eight paper feed (small) belts | Find 2 |
| 3 | RB3-0063-000CN | Paper feed belt - Small black rubber belt approximately 1/8 inch wide with little 'A' shaped ribs on it | Find 3 |
| 3 | Q3948-67918 | Feed belt kit - Includes one paper feed guide drive (large) belt, two 3-belt pulley rollers, two 1-belt pulley rollers, and eight paper feed (small) belts | Find 3 |
| 4 | RB2-6297-000CN | Rubber foot - Square self-adhesive rubber foot | Find 4 |
| 5 | RB3-0286-000CN | Contact plate | Find 5 |
| 6 | RB3-0009-000CN | Static eliminator ground plate - Right angled metal piece with small teeth on top edge | Find 6 |
| 7 | RB3-0010-030CN | Feed plate - Center metal plate with slots that the ribs on the middle frame assembly go through | Find 7 |
| 7 | RB3-0010-000CN | Feed plate - Center metal plate with slots that the ribs on the middle frame assembly go through | Find 7 |
| 8 | RB3-0011-000CN | Feed drive shaft - Long shaft with eight feed belt ball type pulleys and one ribbed feed guide drive belt pulley | Find 8 |
| 8 | Q3948-67919 | Feed shaft kit - Includes the feed drive shaft, the belt roller, the idler gear shaft, and the 23 tooth idler gear | Find 8 |
| 9 | RB3-0012-000CN | Belt roller - Small oval shaped roller approximately 1-3/4 inches long | Find 9 |
| 9 | Q3948-67919 | Feed shaft kit - Includes the feed drive shaft, the belt roller, the idler gear shaft, and the 23 tooth idler gear | Find 9 |
| 10 | RB3-0060-000CN | Idler gear shaft - Short metal rod | Find 10 |
| 10 | RB3-0060-020CN | Idler gear shaft - Short metal rod | Find 10 |
| 10 | Q3948-67919 | Feed shaft kit - Includes the feed drive shaft, the belt roller, the idler gear shaft, and the 23 tooth idler gear | Find 10 |
| 11 | RB3-0045-000CN | Electrical contact spring | Find 11 |
| 12 | RB3-0016-000CN | Electrical contact spring - Spring steel wire with compression springs formed on both ends | Find 12 |
| 13 | Q3948-67919 | Feed shaft kit - Includes the feed drive shaft, the belt roller, the idler gear shaft, and the 23 tooth idler gear | Find 13 |
| 13 | RB3-0022-000CN | 22 tooth gear (Black plastic) - Small gear with diagonally cut teeth | Find 13 |
| 14 | RB3-0042-000CN | Electrical contact spring | Find 14 |
| 15 | RB3-0043-000CN | Electrical contact spring | Find 15 |
| 16 | RB3-0044-000CN | Electrical contact spring | Find 16 |
| 17 | RB3-0046-000CN | Electrical contact spring | Find 17 |
| 18 | RB3-0047-000CN | Electrical contact spring | Find 18 |
| 19 | RB3-0048-000CN | Electrical contact spring | Find 19 |
| 20 | RS5-1637-000CN | Bushing (black plastic) | Find 20 |
| 21 | RB3-1110-000CN | Insulating sheet (Transparent plastic) - For the power supply base assembly | Find 21 |
| 22 | Q3948-67920 | Transfer roller kit - Includes the transfer roller, two transfer side plates ('U' shaped metal inserts), the right end shaft bushing, and the two compression springs at the left end of the roller | Find 22 |
| 22 | RB3-0057-000CN | Transfer slide plate - Small 'U' shaped metal insert plates | Find 22 |
| 23 | WS1-6336-000CN | Connector assembly - For optional paper tray | Find 23 |
| 24 | RS7-0428-000CN | 30 tooth gear (White plastic) | Find 24 |
| 25 | RF5-4065-000CN | Entrance guide assembly | Find 25 |
| 26 | RG5-6939-020CN | Registration roller assembly - Includes the roller, bushings, mounting plate, paper sensor, and the sensor flag | Find 26 |
| 26 | RG5-6939-000CN | Registration roller assembly - Includes the roller, bushings, mounting plate, paper sensor, and the sensor flag | Find 26 |
| 27 | RG5-7123-000CN | Grounding cable assembly | Find 27 |
| 28 | RG5-6940-050CN | Registration shutter assembly - Includes the metal roller, mounting frame, grounding springs, and the dual coupling gear | Find 28 |
| 28 | RG5-6940-000CN | Registration shutter assembly - Includes the metal roller, mounting frame, grounding springs, and the dual coupling gear | Find 28 |
| 29 | RG5-7122-000CN | Cable assembly - 'Y' type cable (three connectors) - The 14-pin connector splits into an 8-pin connector and a 6-pin connector | Find 29 |
| 30 | RB3-0052-000CN | Gear Cover (Small Black plastic cover) - Covers the left end of the feed drive shaft | Find 30 |
| 31 | RB3-0065-000CN | Contact plate - copper clad metal spring - Holds the left end of the small 500 Meg-ohm resistor | Find 31 |
| 32 | RB3-0066-000CN | Contact plate - copper clad metal spring - Holds the right end of the small 500 Meg-ohm resistor | Find 32 |
| 33 | RB2-9925-000CN | Sensor arm and flag - Activates the photosensor (Does NOT include the roller) | Find 33 |
| 34 | RB2-9924-000CN | Sensor assembly mounting holder | Find 34 |
| 35 | RB2-7195-000CN | Sensor flag roller (small White plastic roller) | Find 35 |
| 36 | Q3948-67918 | Feed belt kit - Includes one paper feed guide drive (large) belt, two 3-belt pulley rollers, two 1-belt pulley rollers, and eight paper feed (small) belts | Find 36 |
| 36 | RB3-0067-000CN | Pulley roller (accommodates one feed belt) - Small black roller approximately 1.59cm (5/8 inch) long with one ball type pulley | Find 36 |
| 37 | RG5-7128-000CN | Cable assembly (four 3-pin connectors) | Find 37 |
| 38 | WG8-5593-000CN | Sensor (TLP1242) PC board - Small board with flag activated photosensor | Find 38 |
| 39 | RS6-2766-000CN | Tension spring | Find 39 |
| 40 | RB2-9851-000CN | Terminal contact plate - Provides for a connection between the high voltage cable assembly and the rear toner cartridge contact spring | Find 40 |
| 40 | RB2-9851-020CN | Terminal contact plate - Provides for a connection between the high voltage cable assembly and the rear toner cartridge contact spring | Find 40 |
| 41 | RB2-9850-000CN | Terminal contact plate - Provides for a connection between the high voltage cable assembly and the front toner cartridge contact spring | Find 41 |
| 41 | RB2-9850-020CN | Terminal contact plate - Provides for a connection between the high voltage cable assembly and the front toner cartridge contact spring | Find 41 |
| 42 | WT2-5610-000CN | Cable clip - White plastic push-in clip with mounting pin | Find 42 |
| 42 | WT2-5737-000CN | Drawer connector - Connector located on bottom of tray assembly frame on right side, which connects tray assemblies to each other | Find 42 |
| 43 | RG5-7130-000CN | High voltage cable assembly | Find 43 |
| 44 | WT2-5700-000CN | Cable clamp - White plastic clamp with mounting pin | Find 44 |
| 45 | RB2-9999-000CN | Torsion spring | Find 45 |
| 45 | Q3948-67919 | Feed shaft kit - Includes the feed drive shaft, the belt roller, the idler gear shaft, and the 23 tooth idler gear | Find 45 |
| 46 | Q3948-67920 | Transfer roller kit - Includes the transfer roller, two transfer side plates ('U' shaped metal inserts), the right end shaft bushing, and the two compression springs at the left end of the roller | Find 46 |
| 46 | RF5-4067-000CN | Transfer roller assembly - Long black foam type roller - Transfers static charge to paper | Find 46 |
| 46 | RF5-4067-030CN | Transfer roller assembly - Long black foam type roller - Transfers static charge to paper | Find 46 |
| 47 | RB3-1094-000CN | Bushing assembly (Black plastic bushing with small guide roller on top) | Find 47 |
| 47 | Q3948-67920 | Transfer roller kit - Includes the transfer roller, two transfer side plates ('U' shaped metal inserts), the right end shaft bushing, and the two compression springs at the left end of the roller | Find 47 |
| 48 | RB3-0015-000CN | Compression spring | Find 48 |
| 48 | Q3948-67920 | Transfer roller kit - Includes the transfer roller, two transfer side plates ('U' shaped metal inserts), the right end shaft bushing, and the two compression springs at the left end of the roller | Find 48 |
| 49 | RH5-3169-000CN | Resistor - 500 Meg ohm, 300mW | Find 49 |
| 50 | RB3-1088-000CN | Transfer inlet guide assembly - Angled metal guide between the registration roller and the transfer roller | Find 50 |
| 51 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 51 |
| 52 | XB2-4300-605CN | M3 pan-head phillips screw with flat washer - 6mm long | Find 52 |
Middle Frame Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7612-000CN | Top of page photoelectric sensor PC board - Includes the photoelectric top of page sensor and the print engine test switch | Find 1 |
| 2 | RG5-7646-030CN | DC controller board - Mounts on the right side of the printer (Behind the formatter board assembly) | Find 2 |
| 2 | RG5-7646-000CN | DC controller board | Find 2 |
| 3 | RH3-2260-000CN | Low voltage power supply - For 110VAC to 127VAC operation - Includes the AC power input connector and power switch | Find 3 |
| 3 | RH3-2261-000CN | Low voltage power supply - For 220VAC to 240VAC operation - Includes the AC power input connector and power switch | Find 3 |
| 4 | RG5-7647-000CN | High voltage power supply board (HVT) assembly - Has contacts for the eight high voltage springs in the printer | Find 4 |
| 5 | RG5-7648-000CN | Waste toner sensor assembly PC board - Detects excess level of waste toner in the imaging drum/transfer assembly cartridge | Find 5 |
| 6 | RG5-7613-000CN | Registration sensor PC Board - Small board with flag activated photosensor | Find 6 |
| 7 | RH7-7158-000CN | Density photoelectric sensor PC board | Find 7 |
| 8 | RG5-7609-000CN | Carousel position and toner level photoelectric sensor PC board - `L` Shaped PC board with the two sensors | Find 8 |
| 9 | RG5-7616-000CN | Sub-high voltage board - Small auxillary PC board | Find 9 |
| 10 | Q3948-69006 | Formatter / LIU assembly (for North America) - Includes the formatter PC board, the line interface unit (LIU) PC board, and the metal card cage - Mounts on the right side of the print mechanism | Find 10 |
| 10 | Q3978-60002 | Line interface unit (LIU) PC board - Telephone interface board for the printer (For use in Europe) | Find 10 |
| 10 | Q3948-69003 | Formatter / LIU assembly (for Europe) - Includes the formatter PC board, the line interface unit (LIU) PC board, and the metal card cage | Find 10 |
| 10 | Q3948-69007 | Formatter / LIU assembly (for Europe) - Includes the formatter PC board, the line interface unit (LIU) PC board, and the metal card cage - Mounts on the right side of the print mechanism | Find 10 |
| 10 | Q3978-60012 | Line interface unit (LIU) PC board - Telephone interface board for the printer (For use in Europe) | Find 10 |
| 10 | Q3948-69001 | Formatter assembly - Includes the formatter PC board, the metal card cage cover, and cover plate | Find 10 |
| 10 | Q3948-69002 | Formatter / LIU assembly (for North America) - Includes the formatter PC board, the line interface unit (LIU) PC board, and the metal card cage | Find 10 |

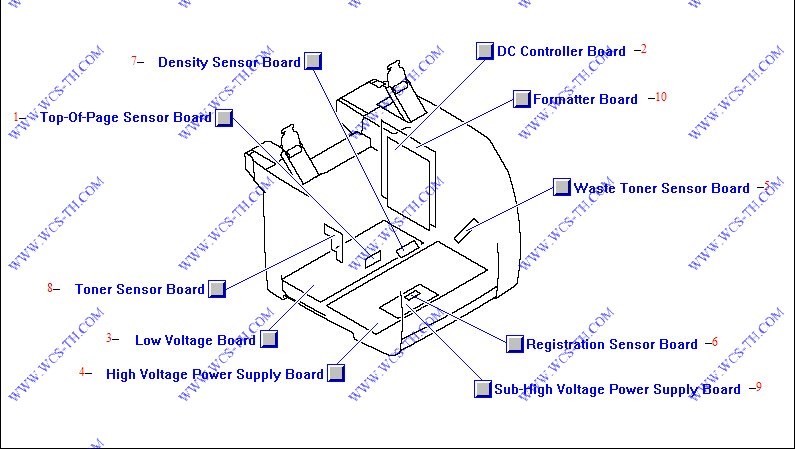

PC Board Assembly Locator
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB3-0006-000CN | Holder - Housing for the fusing connector assembly | Find 1 |
| 2 | RB3-0007-000CN | Insulating sheet (Transparent plastic) | Find 2 |
| 3 | XA9-1449-000CN | M3 pan-head Phillips screw with machine threads - 8mm long | Find 3 |
| 4 | VT2-0012-005CN | PC Board support - Plastic standoff for supporting a PC board | Find 4 |
| 5 | RG5-7146-000CN | High voltage cable assembly (two 15-pin connectors and two 14-pin connectors) | Find 5 |
| 6 | WT2-5737-000CN | Drawer connector - Connector located on bottom of tray assembly frame on right side, which connects tray assemblies to each other | Find 6 |
| 7 | RG5-7126-000CN | Cable assembly (two 5-pin connectors) | Find 7 |
| 8 | RG5-7109-000CN | Cable assembly (two 7-pin connectors) | Find 8 |
| 9 | RG5-7161-000CN | Cable assembly (two 3-pin connectors and a spad lug) | Find 9 |
| 10 | RG5-7106-000CN | Cable assembly (two 2-pin connectors) | Find 10 |
| 11 | RG5-7621-000CN | Cable assembly (two 8-pin connectors) | Find 11 |
| 12 | RG5-7108-000CN | Cable assembly (two 8-pin connectors, Purple wire) | Find 12 |
| 13 | RB3-0062-000CN | PC board support (Black plastic holder) | Find 13 |
| 14 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 14 |
| 15 | RG5-7156-000CN | Cable assembly (two 2-pin connectors) | Find 15 |
| 16 | RH3-2260-000CN | Low voltage power supply - For 110VAC to 127VAC operation - Includes the AC power input connector and power switch | Find 16 |
| 16 | RH3-2261-000CN | Low voltage power supply - For 220VAC to 240VAC operation - Includes the AC power input connector and power switch | Find 16 |
| 17 | RG5-7647-000CN | High voltage power supply board (HVT) assembly - Has contacts for the eight high voltage springs in the printer | Find 17 |
| 18 | RG5-7616-000CN | Sub-high voltage board - Small auxillary PC board | Find 18 |
Power Supply Base Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-9904-000CN | Airflow Guide (duct) - Black plastic insert piece which runs the width of the printer and has an air flow hole on right side | Find 1 |
| 2 | RG5-7595-000CN | Lower top bin output roller assembly - Includes the shaft with four rubber rollers, two bushing/shaft retainers, and the drive gear | Find 2 |
| 3 | RB3-1065-000CN | Torsion spring | Find 3 |
| 3 | Q3948-67922 | Lower face-down pressure roller kit - Includes the two small Black hard plastic rollers and corresponding torsion springs | Find 3 |
| 4 | Q3948-67922 | Lower face-down pressure roller kit - Includes the two small Black hard plastic rollers and corresponding torsion springs | Find 4 |
| 4 | RB2-9909-000CN | Pressure roller (small Black hard plastic 'solid' roller) | Find 4 |
| 5 | RB2-9916-000CN | Cover - For fuser motor | Find 5 |
| 5 | RB2-9916-020CN | Cover - For the engaging motor (PM704) - Mounts on the upper left side of the rear frame assembly | Find 5 |
| 6 | RH7-1629-000CN | Stepping motor - 24VDC | Find 6 |
| 7 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 7 |
| 7 | XA9-0849-000CN | M3 truss-head phillips screw with machine threads - 6mm long | Find 7 |
| 8 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 8 |
Rear Frame Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7132-000CN | E-label reader assembly - Connects cartridge non-volatile memory to the DC controller board | Find 1 |
| 2 | RG5-6942-000CN | Left side carousel plate assembly - End plate under the rotational toner cartridge carousel - Includes all of the high voltage contacts for the toner cartridges | Find 2 |
| 2 | RG5-6942-030CN | Left side carousel plate assembly - End plate under the rotational toner cartridge carousel - Includes all of the high voltage contacts for the toner cartridges - Mounts on the metal carousel support frame | Find 2 |
| 3 | RG5-7129-000CN | Cable assembly (two connectors and two spade lugs) | Find 3 |
| 4 | RG5-7589-000CN | Carousel pressure (support) assembly - Includes the main rear support, E-label reader assembly, engaging sensor, and the engaging rod shaft | Find 4 |
| 5 | RB2-9809-000CN | Bushing/shaft retainer assembly (White plastic) | Find 5 |
| 6 | RB9-0879-000CN | Bushing/shaft retainer assembly (Black plastic) | Find 6 |
| 7 | RG5-7587-090CN | Carousel (rotary) assembly - Includes the carousel assembly, the support assembly, end plates, drive gears and shaft, sensors, and cables | Find 7 |
| 7 | RG5-7587-000CN | Carousel (rotary) assembly - Includes the carousel assembly, the support assembly, end plates, drive gears and shaft, sensors, and cables | Find 7 |
| 8 | RG5-7609-000CN | Carousel position and toner level photoelectric sensor PC board - `L` Shaped PC board with the two sensors | Find 8 |
| 8 | RG5-6964-000CN | Carousel position and toner level photoelectric sensor PC board - `L` Shaped PC board with the two sensors | Find 8 |

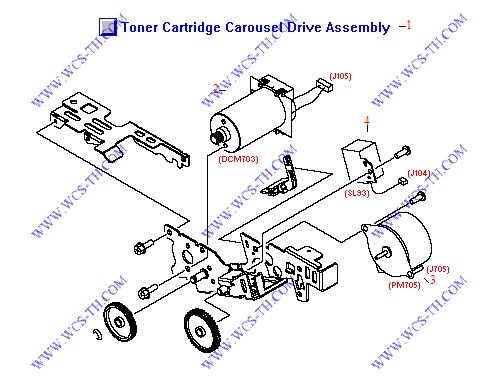

Toner Cartridge Carousel Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7842-000CN | Rotary drive assembly - Includes the carousel rotating motor (DCM703), toner cartridge drive motor (PM705), developing rotary stopper solenoid (SL93), bracket, and gears | Find 1 |
| 2 | RH7-1651-000CN | Rotary motor assembly - (DCM703) Rotates the four color toner cartridges in the carousel to position one of them for printing | Find 2 |
| 3 | RH7-1625-000CN | Stepping motor - 24VDC | Find 3 |
| 4 | RH7-5384-000CN | Solenoid assembly | Find 4 |
Toner Cartridge Carousel Rotary Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
