250 Sheet Cassette
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2705-070CN | 250-sheet paper tray assembly - Pull out cassette that the paper is loaded into - Does NOT include the paper feed base assembly | Find 1 |
| 2 | RC1-6491-000CN | Front cover - Front cover for 250 sheet paper tray/cassette | Find 2 |
| 3 | RM1-2709-000CN | Separation pad assembly (Does not include spring) - Mounts toward the front of the 250 sheet paper cassette tray assembly | Find 3 |
| 1 | RM1-2705-060CN | Paper cassette - 250 sheet paper tray assembly - Pull-out cassette that the paper is loaded into - Does NOT include the paper feed base assembly | Find 1 |
| 1 | RM1-2705-000CN | Paper cassette - 250 sheet paper tray assembly - Pull out cassette that the paper is loaded into - Does NOT include the paper feed base assembly | Find 1 |

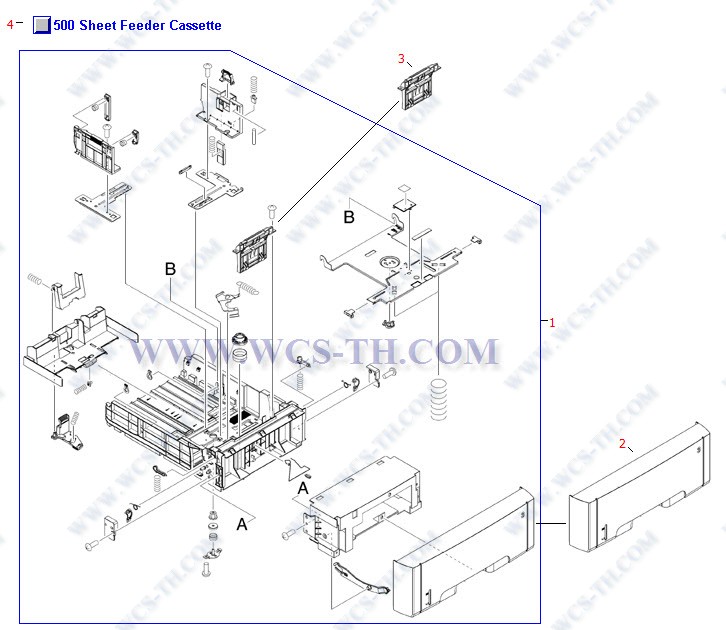

500 Sheet Feeder Cassette (Tray 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2732-030CN | 500 sheet paper input tray | Find 1 |
| 2 | RC1-6945-000CN | Front cassette cover - Plastic front cover for 500 sheet paper tray | Find 2 |
| 3 | Q5985-67901 | 500 sheet tray and feeder assembly - Printer sits on top of this assembly | Find 3 |
| 4 | RM1-2735-020CN | Paper separation pad holder - Attaches to front center of 500 sheet paper cassette | Find 4 |
| 1 | RM1-2732-000CN | 500 sheet paper input tray | Find 1 |
| 4 | RM1-2735-000CN | Paper separation pad holder - Attaches to front center of 500 sheet paper cassette | Find 4 |

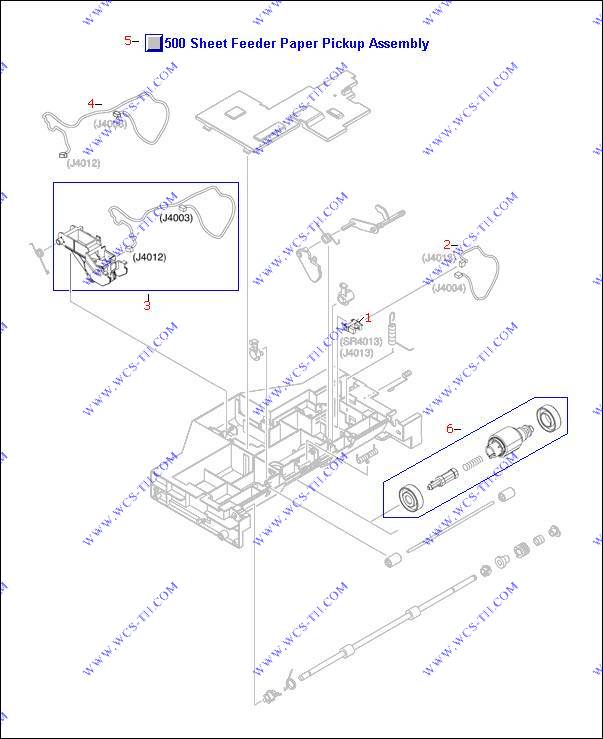

500 Sheet Feeder Paper Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | WG8-5696-000CN | Photo-interrupter sensor assembly (Does not include the sensor flag) | Find 1 |
| 2 | RM1-2625-000CN | Paper sensor cable - Connects paper sensor in front section of 500 sheet tray to 500 Sheet Paper Feeder PC board | Find 2 |
| 3 | RM1-2757-000CN | Media sensor assembly - Sensor that detects the type of media being used | Find 3 |
| 4 | RM1-2624-000CN | Media sensor cable - Connects media type with sensor - Located on the 500-sheet feeder assembly | Find 4 |
| 3 | RM1-2726-000CN | Media sensor assembly - Sensor that detects the type of media being used | Find 3 |
| 5 | RM1-2725-000CN | 500-sheet feeder/paper pickup assembly - Includes both the feeder roller and pickup roller assemblies for the 500 sheet paper tray assembly | Find 5 |
| 5 | RM1-2725-020CN | 500-sheet feeder/paper pickup assembly - Includes both the feeder roller and pickup roller assemblies for the 500 sheet paper tray assembly | Find 5 |
| 5 | RM1-2725-030CN | 500-sheet feeder/paper pickup assembly - Includes both the feeder roller and pickup roller assemblies for the 500 sheet paper tray assembly | Find 5 |
| 6 | RM1-2727-000CN | 500 sheet tray paper pickup roller assembly - Wide gray rubber roller with serrated rollers on each side of it - Located in front upper portion of 500 sheet tray feeder frame | Find 6 |

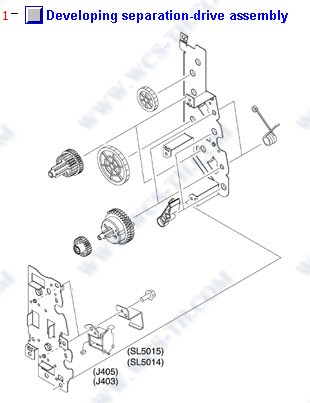

Developing Separation Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2687-000CN | Developer disengagement drive assembly | Find 1 |

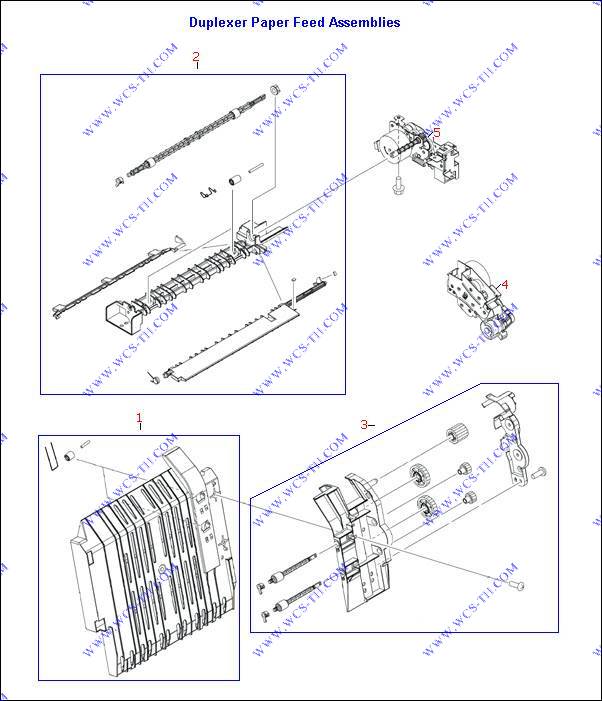

Duplex Paper Feed Assembly (duplex models)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2718-030CN | Paper feed assembly - Feeder assembly that moves the paper through the duplex path along the back side of the ETB | Find 1 |
| 1 | RM1-2718-000CN | Paper feed assembly - Feeder assembly that moves the paper through the duplex path along the back side of the ETB | Find 1 |
| 2 | RM1-2722-010CN | Duplexer paper guide assembly - Helps divert the paper back into the duplex path after the first side is printed - Located near top of Duplexer | Find 2 |
| 2 | RM1-2722-000CN | Duplexer paper guide assembly - Helps divert the paper back into the duplex path after the first side is printed - Located near top of Duplexer | Find 2 |
| 3 | RM1-2719-000CN | Duplexer paper position guide - Keeps the skewing/centering correct for the second side printing done by duplexer | Find 3 |
| 4 | RM1-2720-000CN | Duplexer feed drive assembly - Located under front cover on right side - Includes duplexer drive motor - For duplex models only | Find 4 |
| 5 | RM1-2721-000CN | Reverse drive assembly - Duplexer media reverse direction drive assembly - Includes reverse drive motor M11 | Find 5 |
| 5 | RM1-2721-060CN | Reverse drive assembly - Duplexer media reverse direction drive assembly - Includes reverse drive motor M11 | Find 5 |

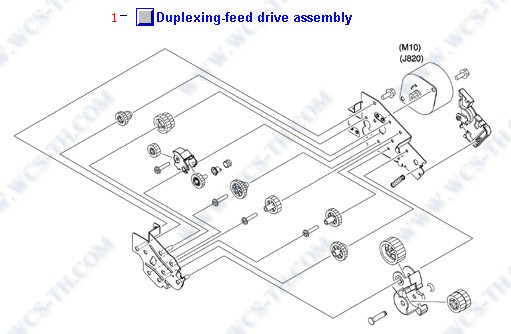

Duplexing Feed Drive Assembly (duplex models)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2720-000CN | Duplexer feed drive assembly - Located under front cover on right side - Includes duplexer drive motor - For duplex models only | Find 1 |

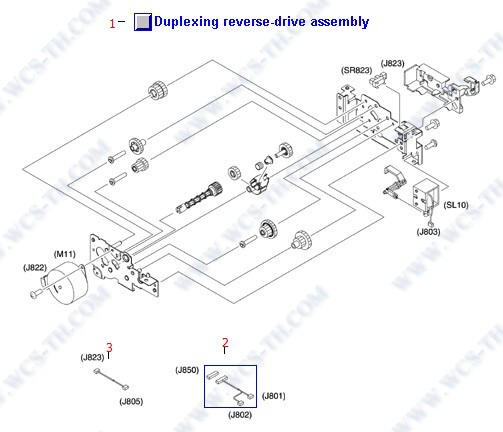

Duplexing Reverse Drive Assembly (duplex models)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2721-060CN | Reverse drive assembly - Duplexer media reverse direction drive assembly - Includes reverse drive motor M11 | Find 1 |
| 1 | RM1-2721-000CN | Reverse drive assembly - Duplexer media reverse direction drive assembly - Includes reverse drive motor M11 | Find 1 |
| 2 | RM1-2616-000CN | Duplexing cable - From Duplex board to Driver board, Duplex feed motor and Duplex fan connector | Find 2 |
| 3 | RM1-2618-000CN | Duplex sensor cable - Connects Duplex board to duplexer switchback paper sensor SR823 | Find 3 |

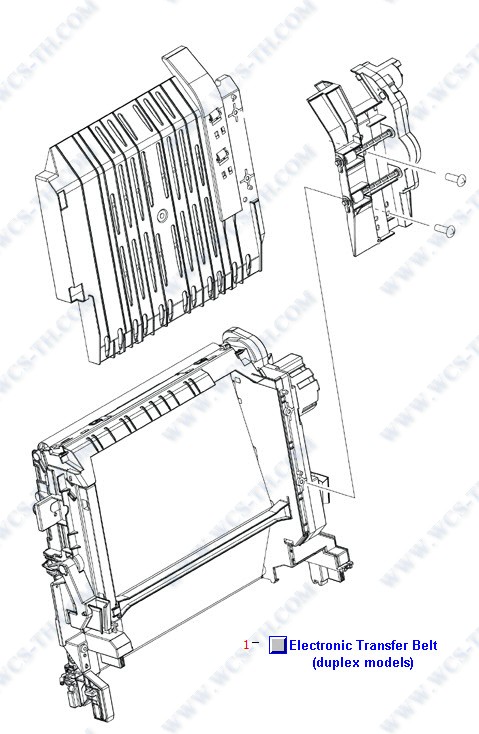

Electronic Transfer Belt (duplex models)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2752-060CN | Electrostatic Tranfer Belt (ETB) assembly - Includes the assembly structure, ETB belt, drive roller and drive motor M5 - Wide belt assembly which feeds the paper past each toner cartridge - Duplex model only | Find 1 |
| 1 | RM1-2752-100CN | Electrostatic Tranfer Belt (ETB) assembly - Includes the assembly structure, ETB belt, drive roller and drive motor (M5) - Wide belt assembly which feeds the paper past each toner cartridge - Duplex model only | Find 1 |

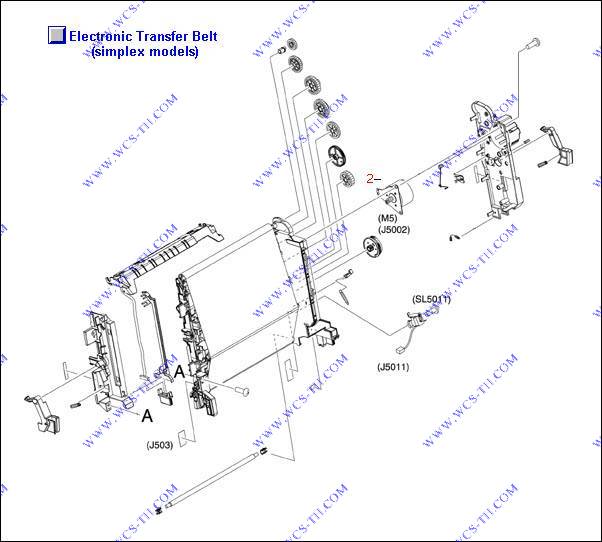

Electronic Transfer Belt (simplex models)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RK2-0937-000CN | DC motor - Electrostatic Transfer Belt drive motor - Motor M5 - Simplex models only | Find 2 |

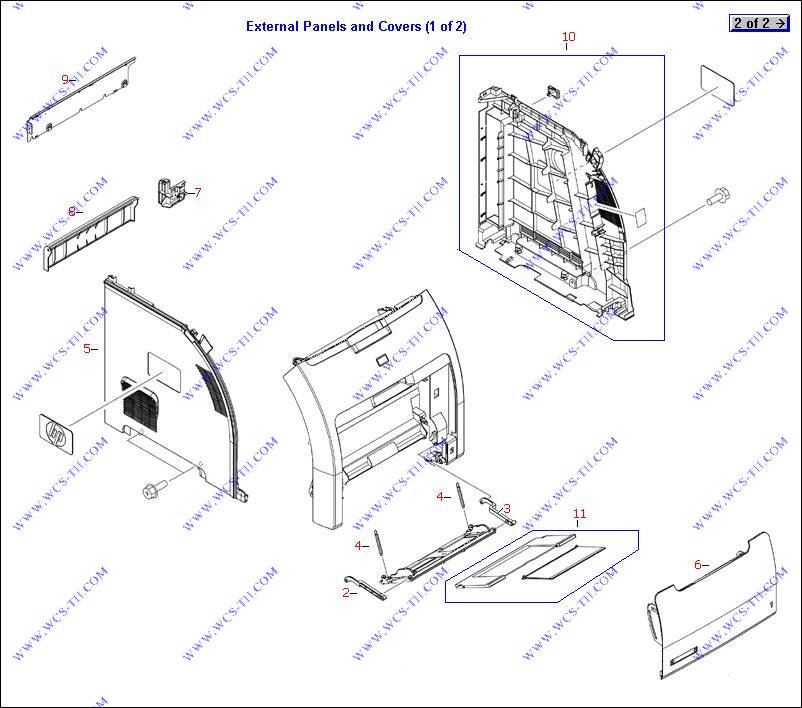

External Panels and Covers (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RC1-6381-000CN | Tray hinge link - Left side link for drop down multipurpose input tray hinge | Find 2 |
| 3 | RC1-6382-000CN | Tray hinge link - Right side link for drop down multipurpose input tray hinge | Find 3 |
| 4 | RC1-6383-000CN | Tension spring - Provides tension for front dropdown multipurpose paper input tray - Two used | Find 4 |
| 5 | RC1-6687-020CN | Left cover assembly - Plastic cover that protects the left side of the printer | Find 5 |
| 5 | RC1-6687-000CN | Left side cover - Plastic cover for left side of printer - Does not include HP logo | Find 5 |
| 6 | RC1-6690-000CN | MP/Tray 1 cover - Front of printer cover that goes over the drop down multi-purpose input tray | Find 6 |
| 6 | RL1-1097-000CN | MP/Tray 1 cover - Front of printer cover that goes over the drop down multi-purpose input tray | Find 6 |
| 7 | RC1-6691-000CN | Right rear cover hinge - Legal paper size tray cover hinge - Located at right rear/bottom of printer | Find 7 |
| 8 | RC1-6792-000CN | Left rear cover - Legal paper size cassette cover - Located at rear/bottom of printer | Find 8 |
| 8 | RC1-6792-010CN | Left rear cover - Legal paper size cassette cover - Located at rear/bottom of printer | Find 8 |
| 9 | RC1-7550-000CN | Rear upper cover - Small upper cover that the internal sheet metal rear cover attaches to | Find 9 |
| 10 | RM1-2669-000CN | Right side cover - Plastic cover for right side of printer | Find 10 |
| 10 | RM1-2669-010CN | Right side cover - Plastic cover for right side of printer | Find 10 |
| 11 | RM1-2710-000CN | MP/Tray 1 extension - Flip out paper support extension for MP/Tray 1 | Find 11 |

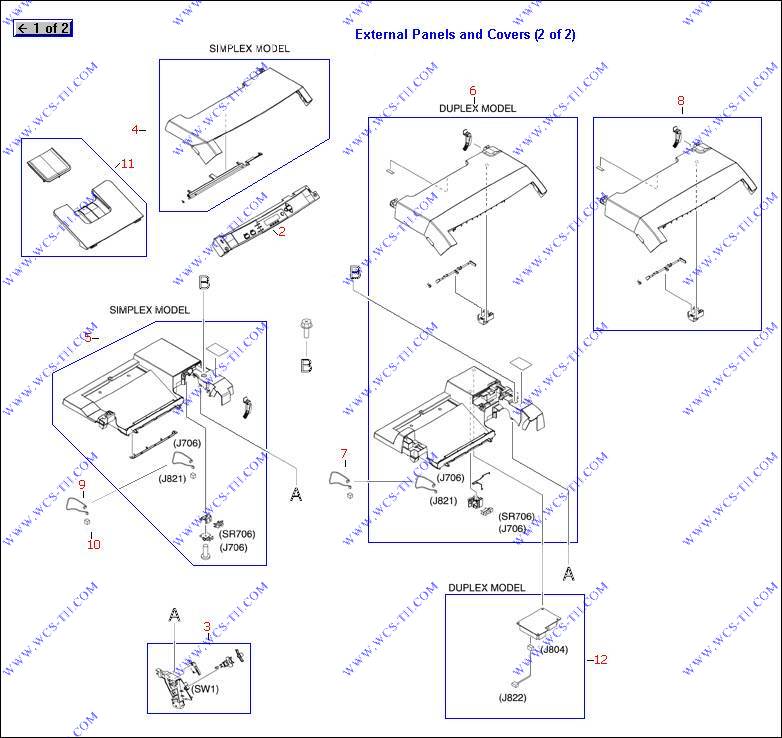

External Panels and Covers (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RK2-0996-040CN | Control panel assembly - Control buttons and display on top front of printer - For Color LaserJet 3000 series printers only | Find 2 |
| 2 | RK2-0996-030CN | Control panel assembly - Control buttons and display on top front of printer - For Color LaserJet 3000 series printers only | Find 2 |
| 2 | RK2-0996-020CN | Control panel assembly - Control buttons and display on top front of printer - For Color LaserJet 3000 series printers only | Find 2 |
| 3 | RM1-2670-000CN | Interlock switch asembly - Front door open switch - SW1 | Find 3 |
| 4 | RM1-2671-010CN | Fuser access door - Flip up access door on top of printer that allows access to fusing assembly - For simplex model only | Find 4 |
| 4 | RM1-2671-000CN | Fuser access door - Flip up access door on top of printer that allows access to fusing assembly - For simplex model only | Find 4 |
| 5 | RM1-2672-030CN | Top cover assembly - Top plastic cover of printer that fuser access door mounts on -Simplex model only | Find 5 |
| 5 | RM1-2672-000CN | Top cover assembly - Top plastic cover of printer that fuser access door mounts on -Simplex model only | Find 5 |
| 6 | RM1-2713-000CN | Top cover assembly - Top plastic cover of printer that fuser access door mounts on - Duplex models only | Find 6 |
| 6 | RM1-2713-030CN | Top cover assembly - Top plastic cover of printer that fuser access door mounts on - Duplex models only | Find 6 |
| 6 | RM1-2713-020CN | Top cover assembly - Top plastic cover of printer that fuser access door mounts on - Duplex models only | Find 6 |
| 7 | RM1-2620-000CN | Paper sensor cable - Cable that connects to the face down paper tray full sensor SR706 - For duplex models only | Find 7 |
| 8 | RM1-2714-000CN | Fuser access door - Flip up access door on top of printer that allows access to fusing assembly - For duplex model only | Find 8 |
| 8 | RM1-2714-010CN | Fuser access door - Flip up access door on top of printer that allows access to fusing assembly - For duplex model only | Find 8 |
| 9 | RM1-2630-000CN | Paper sensor cable - Cable that connects to the face down paper tray full sensor SR706 - For simlex models only | Find 9 |
| 10 | VS1-7207-020CN | 20 pin connector - Connector between color registration array and toner driver PCA | Find 10 |
| 11 | RM1-2750-020CN | Paper output tray - Face down paper output tray assembly on top rear of printer | Find 11 |
| 11 | RM1-2750-000CN | Paper output tray - Face down paper output tray assembly on top rear of printer - For Color LaserJet 3600/3800 series only | Find 11 |
| 12 | RM1-2617-000CN | Duplexing cable - This cable connects Duplexing PCA to the main cabling from the top cover down to DC Controller PCA and Formatter PCA | Find 12 |

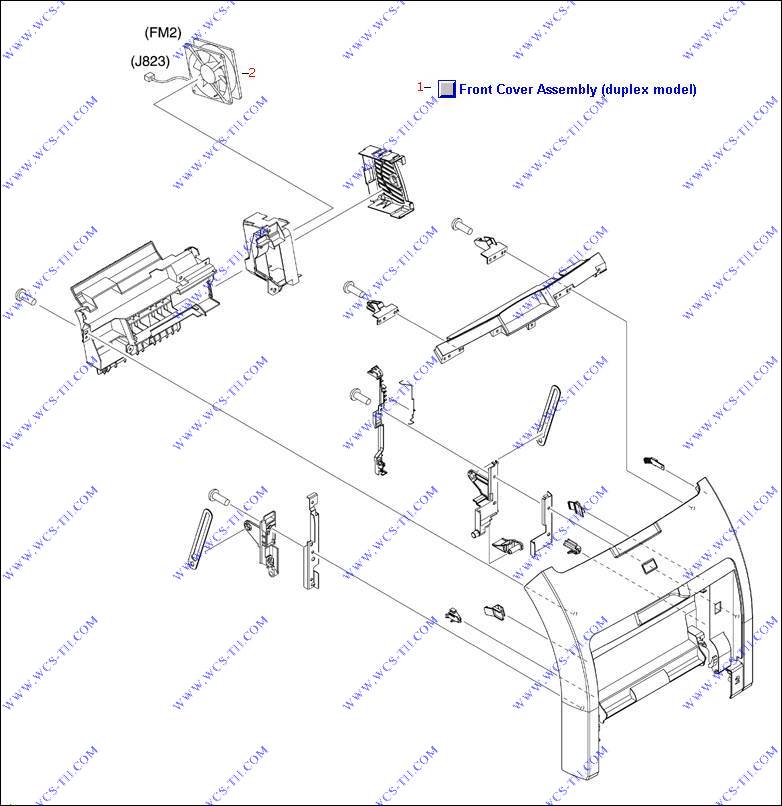

Front Cover Assembly (duplex model)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2715-000CN | Front cover assembly - Plastic front cover assembly for printer - MP/Tray 1 attaches to this assembly - For Color LaserJet 3000/3600/3800 DUPLEX models only | Find 1 |
| 1 | RM1-2715-010CN | Front cover assembly - Plastic front cover assembly for printer - MP/Tray 1 attaches to this assembly - For duplex models only | Find 1 |
| 2 | RK2-0954-000CN | Cooling fan - Provides cooling for printer | Find 2 |

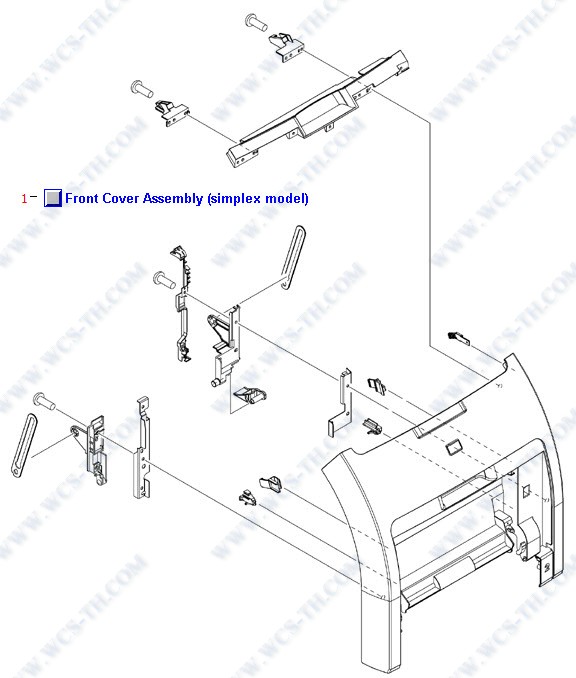

Front Cover Assembly (simplex model)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2673-010CN | Front cover assembly - Plastic cover that protects the front part of the printer | Find 1 |
| 1 | RM1-2673-000CN | Front cover assembly - Plastic cover that protects the front part of the printer | Find 1 |

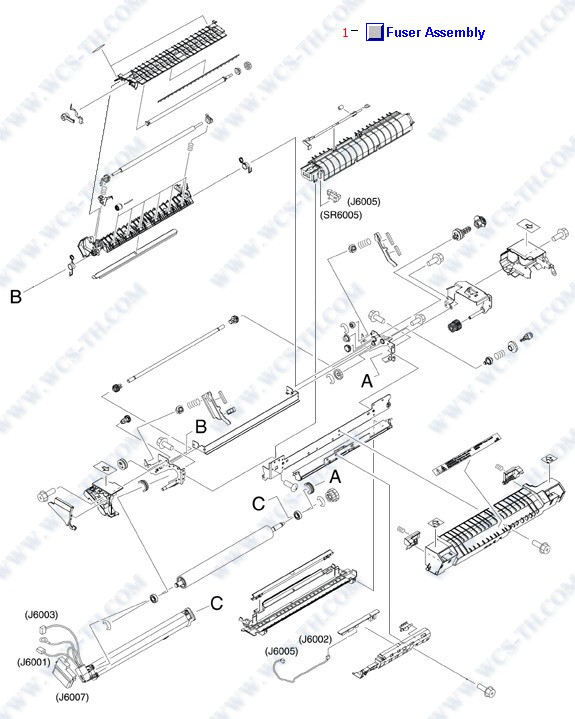

Fuser Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2665-170CN | Fusing assembly - Bonds toner to paper with heat - For 100VAC to 120VAC operation | Find 1 |
| 1 | RM1-2665-180CN | Fusing assembly - For 100 VAC to 120 VAC operation - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-2743-060CN | Fusing assembly (200 - 240VAC) - Bonds toner to paper by heat | Find 1 |
| 1 | RM1-2743-150CN | Fusing assembly - 220/240VAC - Bonds toner to paper by heat | Find 1 |
| 1 | RM1-2743-220CN | Fusing assembly - For 220 VAC to 240 VAC operation - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-2743-180CN | Fusing assembly - 220/240VAC - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-2764-020CN | Fusing assembly - For 220 VAC to 240 VAC operation - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-2665-160CN | Fusing assembly (For 100 to 120VAC operation) - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-2743-160CN | Fusing assembly - 220/240VAC - Bonds toner to paper by heat | Find 1 |
| 1 | RM1-2665-150CN | Fusing assembly (For 100 to 120VAC operation) - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-2763-020CN | Fusing assembly - For 110 VAC operation - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-2665-090CN | Fusing assembly (For 100 to 120VAC operation) - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-2665-220CN | Fusing assembly - For 100 VAC to 120 VAC operation - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-2743-090CN | Fusing assembly (200 - 240VAC) - Bonds toner to paper by heat | Find 1 |
| 1 | RM1-2743-170CN | Fusing assembly - 220/240VAC - Bonds toner to paper by heat | Find 1 |

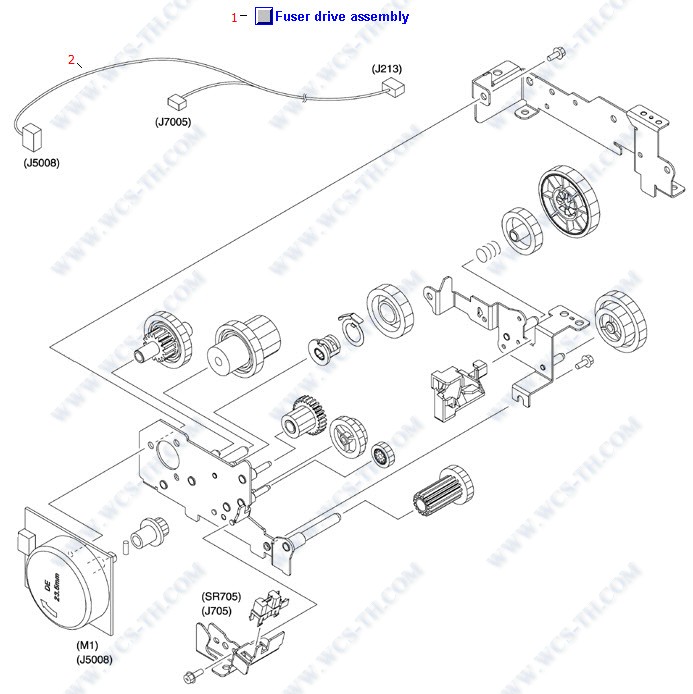

Fuser Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2668-000CN | Fuser drive gear assembly - Includes fuser drive motor - Motor M1 | Find 1 |
| 2 | RM1-2619-000CN | Fuser drive cable - Connects Driver board to Fuser drive motor (M1) and Fuser pressure release sensor | Find 2 |

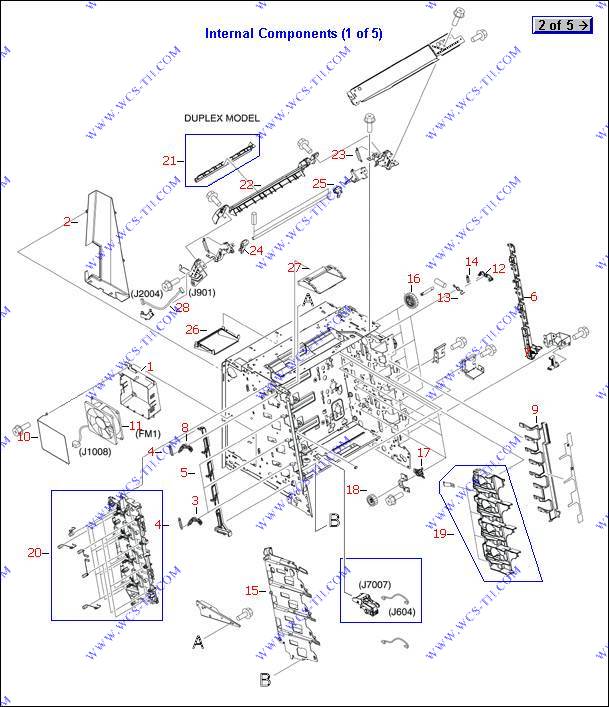

Internal Components (1 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-6631-000CN | Fan holder - Mounting assembly for main cooling fan - Located on lower left side of printer - Fan FM1 | Find 1 |
| 2 | RC1-6632-000CN | Air duct - Deflects air from fan FM1 | Find 2 |
| 3 | RC1-6633-000CN | Lock lever - This is the left side lock for the three color cartridges | Find 3 |
| 5 | RC1-6636-000CN | Lever slide lock - Slide that locks and unlocks the individual levers on the left side | Find 5 |
| 6 | RC1-6643-020CN | Lever slide lock - Slide that locks and unlocks the individual levers on the right side | Find 6 |
| 7 | RC1-6645-010CN | Right slide cam ? Cam that actuates the cartridge levers and locks | Find 7 |
| 8 | RC1-7618-000CN | Lever lock - Left side upper lever lock for Black cartridge | Find 8 |
| 10 | RC1-7583-000CN | Grounding spring - Provides grounding for main cooling fan - Fan FM1 | Find 10 |
| 11 | RK2-0954-000CN | Cooling fan - Provides cooling for printer | Find 11 |
| 12 | RC1-6640-020CN | Lock lever - This is the right side lock for the all four toner cartridges - Four used | Find 12 |
| 13 | RC1-6641-000CN | Grounding spring ? Provides chassis ground for toner cartridges - Four used | Find 13 |
| 14 | RC1-6677-000CN | Tension spring - Provides tension for right side toner cartridge lock lever - Four used | Find 14 |
| 15 | RC1-6629-000CN | Cartridge guide - Left side guide assembly for toner cartridges | Find 15 |
| 16 | RC1-6571-000CN | 58 tooth drive gear - Located between the toner motor and image drive assembly - Fout used | Find 16 |
| 17 | RC1-6573-000CN | Gear bushing - Located between 29 tooth image drive gear and chassis on right side of printer | Find 17 |
| 18 | RC1-6575-000CN | Image drive gear - 29 tooth image drive gear - Located inside chassis on right side of printer | Find 18 |
| 20 | RM1-2683-020CN | High voltage toner contact assembly - Electrical contacts for all four toner cartridges | Find 20 |
| 22 | RC1-6795-000CN | Paper guide crossmember cover - Used as a support to help guide paper through the paper path - Located inside near top of printer | Find 22 |
| 23 | RC1-7552-000CN | Tension spring - Provides tension for right and left paper guides directly under the control panel - Two used | Find 23 |
| 24 | RC1-7554-010CN | Left latch - Left side paper guide/latch directly under control panel | Find 24 |
| 24 | RC1-7554-010CN | Left latch - Left side paper guide/latch directly under control panel | Find 24 |
| 26 | RC1-7547-000CN | Fan duct - Diverts air from Fan 1 near the back of printer - Duct 2 | Find 26 |
| 27 | RC1-7548-000CN | Fan duct - Diverts air from Fan 1 to front of printer and helps cool the Low Voltage Power Supply (LVPS) - Duct 3 | Find 27 |
| 28 | RM1-2596-000CN | Control panel cable - From control panel to High Voltage Power Supply (HVPS) | Find 28 |
| 4 | RC1-6634-000CN | Tension spring - Spring that connects between the cartridge locks and the slider plate on left side of printer - Four used | Find 4 |
| 6 | RC1-6643-000CN | Lever slide lock - Slide that locks and unlocks the individual levers on the right side | Find 6 |
| 7 | RC1-6645-000CN | Right slide cam -- Cam that actuates the cartridge levers and locks | Find 7 |
| 9 | RC1-6824-020CN | Slide cover - Covers right side lock lever slide | Find 9 |
| 9 | RC1-6824-000CN | Slide cover - Covers right side lock lever slide | Find 9 |
| 19 | RM1-2771-000CN | Cartridge guide - Right side guide assembly for toner cartridges | Find 19 |
| 20 | RM1-2683-000CN | High voltage toner contact assembly - Electrical contacts for all four toner cartridges | Find 20 |
| 21 | RC1-6744-000CN | Paper diverter - Diverts the paper so that it is redirected back into the machine and goes through the duplex paper path | Find 21 |
| 25 | RC1-7554-010CN | Left latch - Left side paper guide/latch directly under control panel | Find 25 |
| 25 | RC1-7554-000CN | Left latch - Left side paper guide/latch directly under control panel | Find 25 |

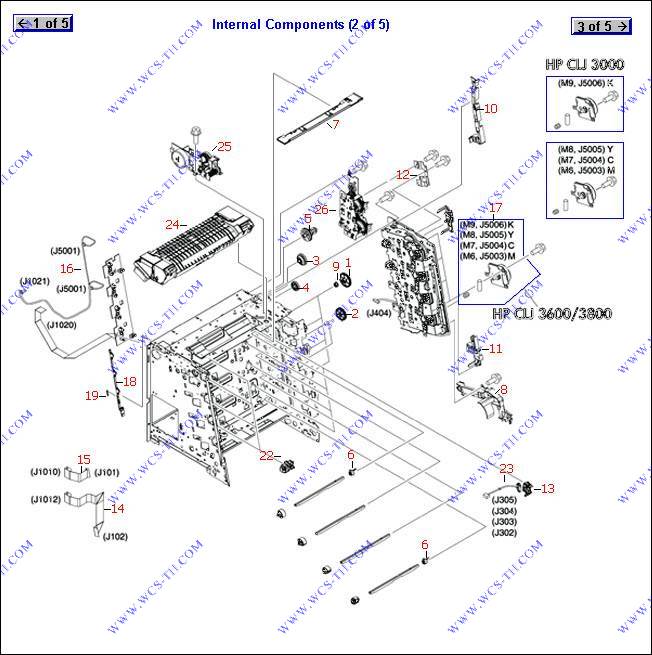

Internal Components (2 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-6584-000CN | Cam gear - 48 tooth gear associated with the cartridge for engaging the developing rollers - Four used | Find 1 |
| 2 | RC1-6589-000CN | 41 tooth gear - Mechanically connects the four cartridge engaging rollers - Two used | Find 2 |
| 3 | RC1-6593-000CN | Cluster gear - 19 tooth/30 tooth gear mounted in gear assembly on right side of printer | Find 3 |
| 4 | RC1-6594-000CN | 31 tooth gear - Gear located in the fuser drive assembly on top | Find 4 |
| 5 | RC1-6596-000CN | Cluster gear - 17 tooth/41 tooth gear mounted in gear assembly on right side of printer | Find 5 |
| 6 | RC1-6605-000CN | Aliention flag - Senses if the black or all the color cartridges are in the proper position - Two used | Find 6 |
| 7 | RC1-6668-000CN | Upper support cover - This is black plastic under the sheet metal that is under the fuser | Find 7 |
| 8 | RC1-6682-000CN | Right side cable guide - Located in the bottom right side of the printer - Round molded part fits over a motor - Black plastic | Find 8 |
| 9 | RC1-6823-000CN | Gear bushing - Located between the 48 tooth cam gear and the metal chassis on the right side of printer - Four used | Find 9 |
| 10 | RC1-7544-000CN | Upper right cable guide - Located on top of the main drive assembly and runs vertically along the almost full length of it - Black plastic. | Find 10 |
| 11 | RC1-7545-000CN | Right side cable guide - Located below upper right cable guide | Find 11 |
| 12 | RC1-7576-000CN | Drive plate cross member - Cross member plate that attaches to duplexer separation drive assembly on right side of printer | Find 12 |
| 22 | RC1-6651-000CN | Shutter cover - Left side toner cartridge shutter cover - Four used | Find 22 |
| 13 | RC1-6771-020CN | Toner cartridge holder - Plastic support for right side of toner cartridge - Four used | Find 13 |
| 14 | RK2-0966-000CN | Scanner cable - Long flat scanner cable | Find 14 |
| 15 | RK2-0967-000CN | Scanner cable - Short flat scanner cable | Find 15 |
| 16 | RM1-2594-000CN | Scanner cable - Cable between scanner motors and DC controller PCA | Find 16 |
| 17 | RM1-2689-000CN | Drive motor - Print cartridge drive motor assembly | Find 17 |
| 18 | RC1-7597-000CN | Sensing lever - This device senses when the packaging material is removed from the toner cartridges | Find 18 |
| 19 | RC1-7598-000CN | Tension spring - Provides tension for sensing lever on left side of printer | Find 19 |
| 23 | RM1-2627-000CN | E-label or memory tag cable | Find 23 |
| 24 | RM1-2665-220CN | Fusing assembly - For 100 VAC to 120 VAC operation - Bonds toner to paper with heat | Find 24 |
| 24 | RM1-2743-220CN | Fusing assembly - For 220 VAC to 240 VAC operation - Bonds toner to paper with heat | Find 24 |
| 25 | RM1-2668-000CN | Fuser drive gear assembly - Includes fuser drive motor - Motor M1 | Find 25 |
| 13 | RC1-6771-000CN | Toner cartridge holder - Plastic support for right side of toner cartridge - Four used | Find 13 |
| 24 | RM1-2665-090CN | Fusing assembly (For 100 to 120VAC operation) - Bonds toner to paper with heat | Find 24 |
| 24 | RM1-2665-170CN | Fusing assembly - Bonds toner to paper with heat - For 100VAC to 120VAC operation | Find 24 |
| 24 | RM1-2743-090CN | Fusing assembly (200 - 240VAC) - Bonds toner to paper by heat | Find 24 |
| 24 | RM1-2743-180CN | Fusing assembly - 220/240VAC - Bonds toner to paper with heat | Find 24 |
| 24 | RM1-2743-160CN | Fusing assembly - 220/240VAC - Bonds toner to paper by heat | Find 24 |
| 24 | RM1-2743-150CN | Fusing assembly - 220/240VAC - Bonds toner to paper by heat | Find 24 |
| 24 | RM1-2665-160CN | Fusing assembly (For 100 to 120VAC operation) - Bonds toner to paper with heat | Find 24 |
| 24 | RM1-2763-020CN | Fusing assembly - For 110 VAC operation - Bonds toner to paper with heat | Find 24 |
| 24 | RM1-2665-150CN | Fusing assembly (For 100 to 120VAC operation) - Bonds toner to paper with heat | Find 24 |
| 24 | RM1-2743-060CN | Fusing assembly (200 - 240VAC) - Bonds toner to paper by heat | Find 24 |
| 24 | RM1-2665-180CN | Fusing assembly - For 100 VAC to 120 VAC operation - Bonds toner to paper with heat | Find 24 |
| 24 | RM1-2764-020CN | Fusing assembly - For 220 VAC to 240 VAC operation - Bonds toner to paper with heat | Find 24 |
| 24 | RM1-2743-170CN | Fusing assembly - 220/240VAC - Bonds toner to paper by heat | Find 24 |
| 26 | RM1-2720-000CN | Duplexer feed drive assembly - Located under front cover on right side - Includes duplexer drive motor - For duplex models only | Find 26 |
Internal Components (3 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-6405-000CN | Gear assembly cover - Cover for paper pickup gear assembly on right lower side of printer | Find 1 |
| 2 | RC1-6499-000CN | Cassette guide - Left side guide for media cassette | Find 2 |
| 3 | RC1-6502-000CN | Cassette guide - Right side guide for media cassette | Find 3 |
| 4 | RC1-6638-000CN | Left slide cam - Small plastic cam that moves inside left side door rod link | Find 4 |
| 6 | RC1-6646-000CN | Right rod link - Right side door rod link | Find 6 |
| 7 | RC1-6650-000CN | Rear foot - Black plastic foot for rear base of printer - Two used | Find 7 |
| 8 | RC1-6673-020CN | Electrostatic Transfer Belt (ETB) holder - Left side ETB support | Find 8 |
| 9 | RC1-6674-000CN | Electrostatic Transfer Belt (ETB) holder - Right side ETB support | Find 9 |
| 10 | RC1-6684-000CN | Left side hinge mount - Left side ETB guide hinge mount | Find 10 |
| 11 | RM1-2609-000CN | Duplex docking cable - This cable goes from the top cover and duplex motors down to the driver PC board | Find 11 |
| 12 | RK2-0939-000CN | Paper pick up/feed motor - Located on lower right front of printer - Motor M4 | Find 12 |
| 13 | RM1-2603-000CN | Sensor cable - Senses when the Electrostatic Transfer Belt (ETB) is locked in place - This is the ETB|s electrical connection with the rest of the printer | Find 13 |
| 14 | RM1-2576-000CN | Cassette sensor PCA - Senses when paper tray is correctly installed | Find 14 |
| 21 | RM1-2678-000CN | Right rear base assembly - Right side guide for paper tray - Rear black plastic printer foot attaches to this piece | Find 21 |
| 15 | RL1-1069-000CN | Gear assembly - Small gear assembly that comes off when removing paper pickup drive assembly on lower right front of printer | Find 15 |
| 16 | RL1-1067-000CN | Rubber foot - Black rubber foot for front base of printer - Two used | Find 16 |
| 5 | RC1-6639-000CN | Left rod link - Left side door rod link | Find 5 |
| 8 | RC1-6673-000CN | Electrostatic Transfer Belt (ETB) holder - Left side ETB support | Find 8 |
| 20 | RM1-2752-100CN | Electrostatic Tranfer Belt (ETB) assembly - Includes the assembly structure, ETB belt, drive roller and drive motor (M5) - Wide belt assembly which feeds the paper past each toner cartridge - Duplex model only | Find 20 |
| 20 | RM1-2752-060CN | Electrostatic Tranfer Belt (ETB) assembly - Includes the assembly structure, ETB belt, drive roller and drive motor M5 - Wide belt assembly which feeds the paper past each toner cartridge - Duplex model only | Find 20 |

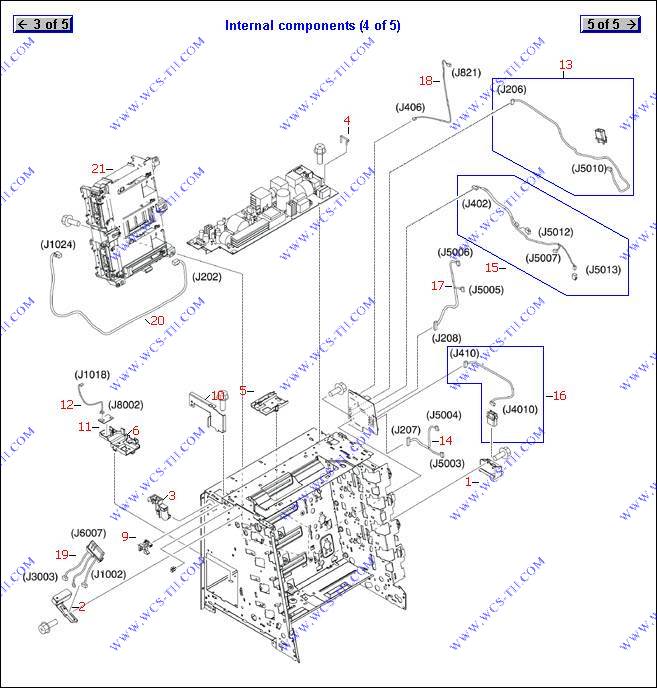

Internal Components (4 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-6652-000CN | Drawer connector holder - This is the connector holder for Tray 3, where the electrical connections are made between the printer and Tray 3 - Black plastic | Find 1 |
| 3 | RC1-6681-000CN | Cable guide - Fuser cable housing - Located in upper left side of printer | Find 3 |
| 4 | RC1-6700-000CN | Switch link arm - Connects the on/off switch on the right side door to the actual switch on the LVPS - Metal rod link | Find 4 |
| 5 | RC1-6772-000CN | Flat cable guide - Located on the bottom of the printer and help guide flat cables from the Driver PCA, Memory board, and the Tray 2 media sensor up to the DC Controller PCA - This is the guide on the right rear side of printer | Find 5 |
| 6 | RC1-6773-000CN | Flat cable guide - Located on the bottom of the printer and help guide flat cables from the Driver PCA, Memory board, and the Tray 2 media sensor up to the DC Controller PCA - This is the guide on the left rear side of printer | Find 6 |
| 9 | RC1-6825-000CN | Cable guard - Protects the cables (non-flat type) from being pinched between PC boards and sheet metal on upper left side of printer | Find 9 |
| 10 | RC1-7551-000CN | Left rear bracket - This is the sheet metal box that supports the Low Voltage Power Supply so the top cover fits | Find 10 |
| 11 | WP2-5214-000CN | Temperature sensor - Also referred to as environment sensor | Find 11 |
| 12 | RM1-2595-000CN | Temperature sensor cable - Connects environment sensor to DC controller board | Find 12 |
| 13 | RM1-2608-000CN | Electrostatic Transfer Belt (ETB) cable - Connects Driver PC board to ETB | Find 13 |
| 14 | RM1-2610-000CN | Drum motor cable - Connects cartridge drive motors M6 and M7 to Driver PCA | Find 14 |
| 15 | RM1-2611-000CN | Solenoid and motor cable - Connects CST pickup and MP Tray pickup solenoids to Driver PCA - Also connects feed motor M4 to Driver PCA | Find 15 |
| 16 | RM1-2613-000CN | Cassette feeder cable - Connects Driver PCA to 500 sheet paper feeder PCA | Find 16 |
| 18 | RM1-2628-000CN | Paper full cable - From Driver PCA to connector J821 | Find 18 |
| 19 | RM1-2597-000CN | Fuser cable - Connects Fuser to DC controller and Low Voltage power supply | Find 19 |
| 20 | RM1-2605-000CN | Driver cable - From DC Controller board to Driver board | Find 20 |
| 24 | RM1-6338-000CN | Laser/scanner assembly - For Color LaserJet 3600/3800/CP3505 series | Find 24 |
| 2 | RC1-6653-000CN | Drawer holder - Sheet metal piece that holds the connector for the fuser - Left side of printer | Find 2 |
| 17 | RM1-2614-000CN | Drum motor cable - Connects cartridge drive motors M8 and M9 to Driver PCA - For Color LaserJet 3600/3800/Cp3505 series | Find 17 |
| 21 | RM1-2640-000CN | Laser/scanner assembly - For Color LaserJet 3600/3800/CP3505 series | Find 21 |

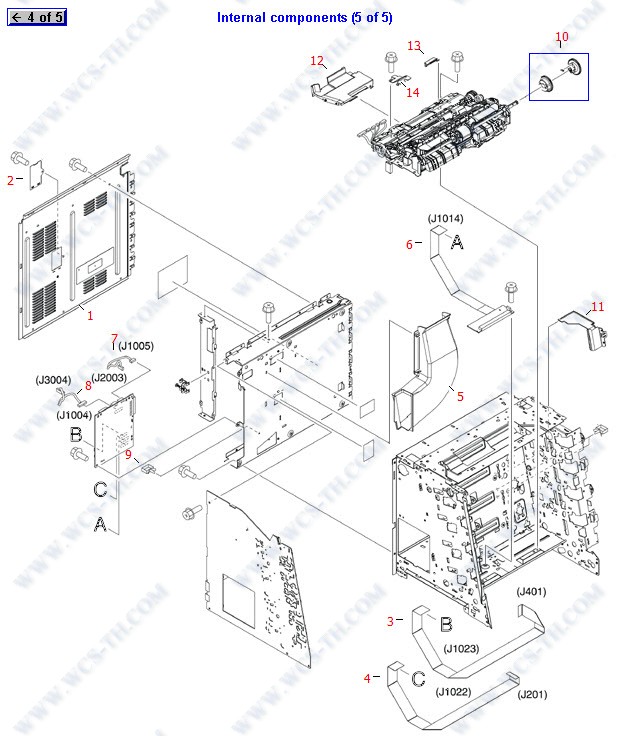

Internal Components (5 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-6627-000CN | Rear cover - External metal rear cover of printer | Find 1 |
| 2 | RC1-7577-000CN | Small rear cover - Small metal cover that attaches with one screw to large metal rear cover of printer | Find 2 |
| 3 | RK2-0969-000CN | Flat cable - Ribbon cable that connects the DC controller board to the Driver board - Flat drive cable 1 - Connector J1023 to J401 | Find 3 |
| 4 | RK2-0970-000CN | Flat cable - Ribbon cable that connects the DC controller board to the Driver board - Flat drive cable 2 - Connector J1022 to J201 | Find 4 |
| 5 | RC1-7546-000CN | Air duct - This duct goes from fan FM1 to under the Low Voltage power supply | Find 5 |
| 6 | RM1-2632-000CN | Relay PC board - Includes ribbon cable that connects to DC controller board | Find 6 |
| 7 | RM1-2587-000CN | Control panel cable - Connects control panel to Low Voltage power supply | Find 7 |
| 8 | RM1-2592-000CN | Power control cable - Connects DC Controller board to Low Voltage power supply | Find 8 |
| 9 | WT2-5944-000CN | Cable clamp - Used to attach Driver board ribbon cable 1 and 2 to DC controller board | Find 9 |
| 10 | RM1-2704-000CN | Gear assembly - MP/Tray 1 paper pickup gear assembly | Find 10 |
| 11 | RC1-7599-000CN | PC board shield - Driver PC board shield - Black plastic piece that covers Driver PCA | Find 11 |
| 12 | RC1-6607-000CN | PC board cover - Pickup and feed driver PCA cover | Find 12 |
| 13 | RC1-6611-000CN | Sensor cover - Small metal cover for paper sensor located at right rear of paper pickup assembly | Find 13 |
| 14 | RC1-6612-000CN | Paper registration cover - Small metal cover for paper registration sensor located at left rear of paper pickup assembly | Find 14 |

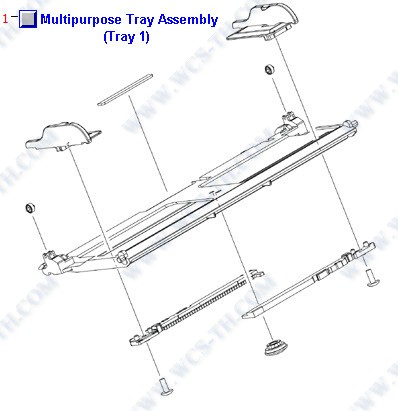

Multipurpose Tray Assembly (Tray 1)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2711-040CN | Multi-purpose/tray 1 paper input tray asembly - Drop down tray on front of printer | Find 1 |
| 1 | RM1-2711-000CN | Input tray assembly - MP/Tray 1 paper input tray asembly - Drop down tray on front of printer | Find 1 |
| 1 | RM1-2711-030CN | Multi-purpose/tray 1 paper input tray asembly - Drop down tray on front of printer | Find 1 |
Paper Pickup Assembly (HP CLJ 3600/3800)
| Pic No. | Parts ID | Parts Name | Link |
| 5 | Q5982-67926 | Paper pickup roller - 250 sheet cassette paper pickup roller | Find 5 |
| 1 | RM1-2755-080CN | Paper pick-up assembly - Includes both multipurpose/tray 1 and tray 2 pickup rollers | Find 1 |
| 1 | RM1-2755-050CN | Paper pickup assembly - Includes both MP/Tray and Tray 2 pickup rollers | Find 1 |
| 1 | RM1-2755-060CN | Paper pickup assembly - Includes both multipurpose/tray 1 and tray 2 pickup rollers | Find 1 |
| 2 | RM1-2699-000CN | Separtation pad - MP/Tray 1 separation pad assembly | Find 2 |
| 3 | RM1-2741-000CN | Paper pickup roller - MP/Tray 1 paper pickup roller | Find 3 |
| 4 | RM1-2741-000CN | Paper pickup roller - MP/Tray 1 paper pickup roller | Find 4 |
| 5 | RM1-2702-000CN | Paper pickup roller - 250 sheet cassette paper pickup roller | Find 5 |

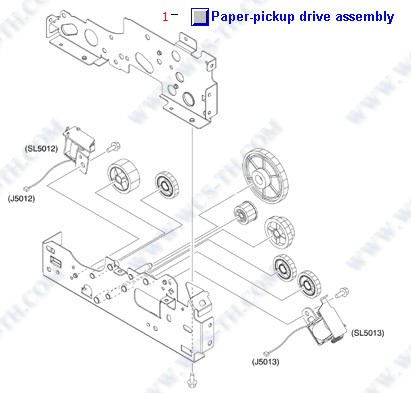

Paper Pickup Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2679-020CN | Paper pickup drive assembly - Gear assembly located on right side of paper pickup assembly | Find 1 |
| 1 | RM1-2679-000CN | Paper pickup drive assembly - Gear assembly located on right side of paper pickup assembly | Find 1 |

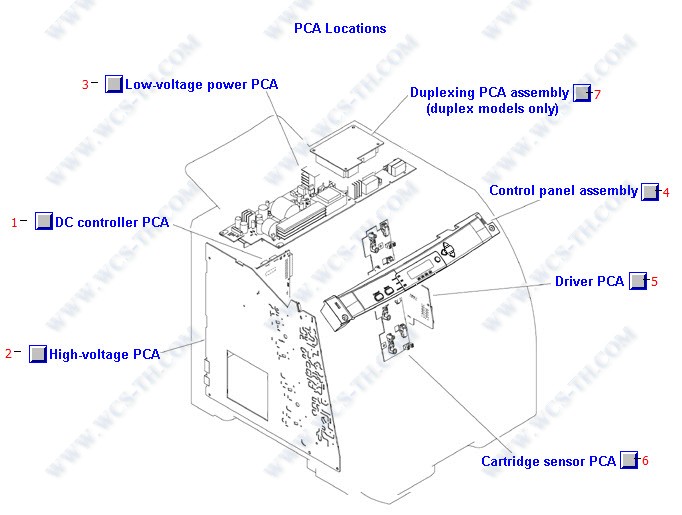

PCA Locations
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2580-120CN | DC controller board - For Color LaserJet 3600 and 3800 printers | Find 1 |
| 2 | RM1-2578-100CN | High voltage power supply board | Find 2 |
| 4 | RK2-0989-040CN | Control panel assembly - Control buttons and display on top front of printer - For Color LaserJet 3600/3800/CP3505 series printers only | Find 4 |
| 5 | RM1-2581-000CN | Driver PC board assembly | Find 5 |
| 6 | RM1-2585-000CN | Toner cartridge sensor PC board | Find 6 |
| 7 | Q5987-67903 | Formatter (main logic) board - For HP Color LaserJet 3600 Series only | Find 7 |
| 1 | RM1-2580-080CN | DC controller board - For Color LaserJet 3600 and 3800 printers | Find 1 |
| 1 | RM1-2580-100CN | DC controller board - For Color LaserJet 3600 and 3800 printers | Find 1 |
| 2 | RM1-2578-070CN | High voltage power supply board | Find 2 |
| 3 | RK2-0956-000CN | Low voltage power supply board - 110 to 127VAC input | Find 3 |
| 3 | RK2-0957-000CN | Low voltage power supply board - 220 to 240VAC input | Find 3 |
| 4 | RK2-0989-030CN | Control panel assembly - Control buttons and display on top front of printer - For Color LaserJet 3600/3800/CP3505 series printers only | Find 4 |
| 4 | RK2-0989-020CN | Control panel assembly - Control buttons and display on top front of printer - For Color LaserJet 3600 and 3800 series printers only | Find 4 |
