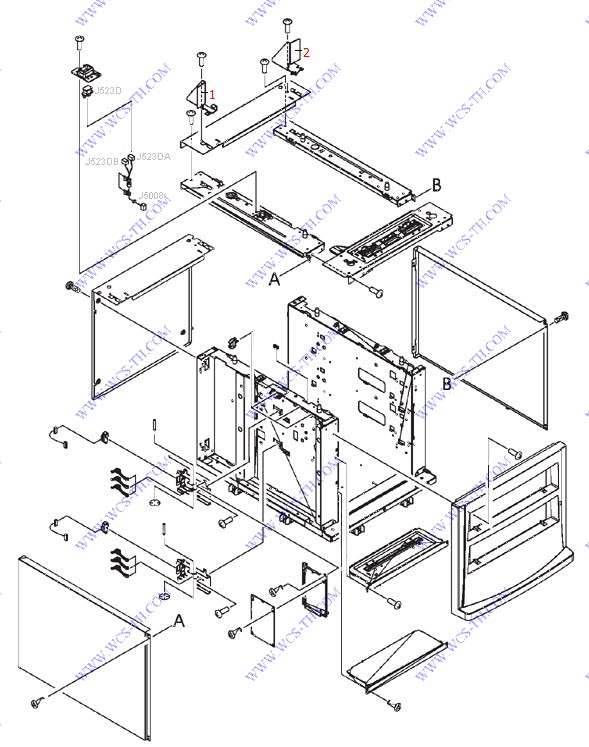

2 X 500 Feeder Internal Parts (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB3-0978-020CN | Mounting bracket - Bracket that secures the 2 X 500 sheet feeder/tray assembly to printer - Located on top left rear of feeder/tray assembly | Find 1 |
| 2 | RB3-0979-020CN | Mounting bracket - Bracket that secures the 2 X 500 sheet feeder/tray assembly to printer - Located on top right rear of feeder/tray assembly | Find 2 |
2 X 500 Feeder Internal Parts (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-3739-000CN | Paper pickup roller - White plastic with black friction pad - Mounts on the paper pickup shaft (two used) | Find 1 |
| 2 | RB2-3691-000CN | Outrigger cover - Adjustable stabilizer leg cover - Six used | Find 2 |
| 3 | RG5-7523-000CN | Outrigger stabilizer assembly - Side stabilizer leg with adjustable foot - Six used | Find 3 |
2 X 500 Feeder Paper Lower Paper Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7530-000CN | Paper pickup assembly - 2 X 500 sheet feeder lower paper pickup assembly - Paper pickup assembly for lower paper cassette | Find 1 |

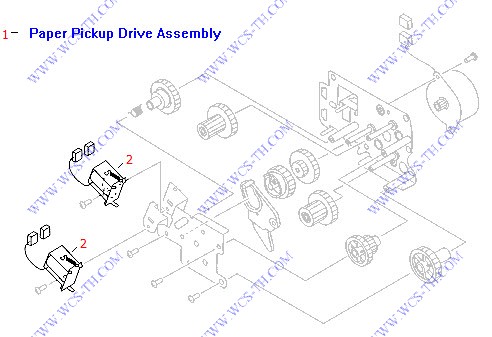

2 X 500 Feeder Paper Pickup Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7531-000CN | Drive assembly - 2 X 500 paper pickup feeder drive assembly - Includes motor and both solenoids | Find 1 |
2 X 500 Feeder Upper Paper Pickup Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7529-000CN | Paper pickup assembly - 2 X 500 sheet feeder upper paper pickup assembly - Paper pickup assembly for upper paper cassette | Find 1 |
2 X 500 Paper Feeder
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7535-050CN | Paper cassette - Upper 500 sheet paper cassette - Top paper cassette of 2 X 500 sheet feeder/tray assembly | Find 1 |
| 2 | RG5-7534-050CN | Paper cassette - Lower 500 sheet paper cassette - Bottom paper cassette of 2 X 500 sheet feeder/tray assembly | Find 2 |
| 3 | RG5-7518-000CN | Paper feeder driver PCA assembly - Driver PC board for 2 X 500 feeder tray assembly | Find 3 |

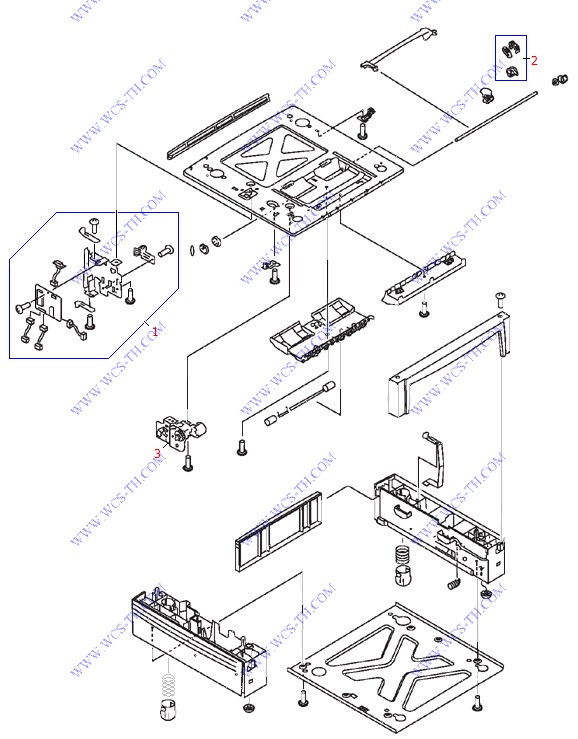

500 Sheet Paper Feeder Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7542-000CN | Controller PC board - For the 500-sheet paper feeder assembly - Includes the control circuitry and paper size detection sensor fingers - Mounts on the left side of the feeder base assembly | Find 1 |
| 2 | RF5-3739-000CN | Paper pickup roller - White plastic with black friction pad - Mounts on the paper pickup shaft (two used) | Find 2 |
| 3 | RG5-7541-020CN | Feed drive assembly - Includes the metal plate, drive motor, pickup drive solenoid, and drive gears - For the 500-sheet paper feeder assembly - Mounts on the left side of the feeder base assembly | Find 3 |

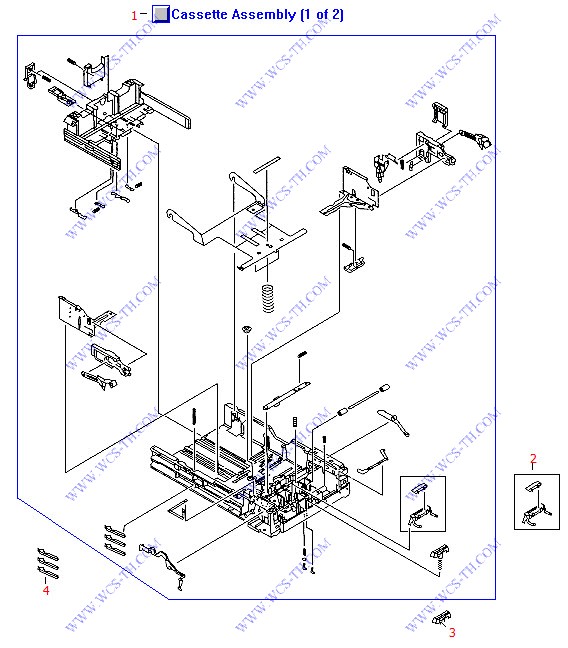

Cassette Assembly (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-3750-020CN | Tray 2 separation pad | Find 1 |
| 2 | RB2-8349-000CN | Paper size arm - Senses paper size in paper tray - 3 used | Find 2 |
| 3 | RG9-1529-000CN | Pickup roller for multi-purpose tray/Tray 1 - Mounts in top/front of Tray 2 | Find 3 |

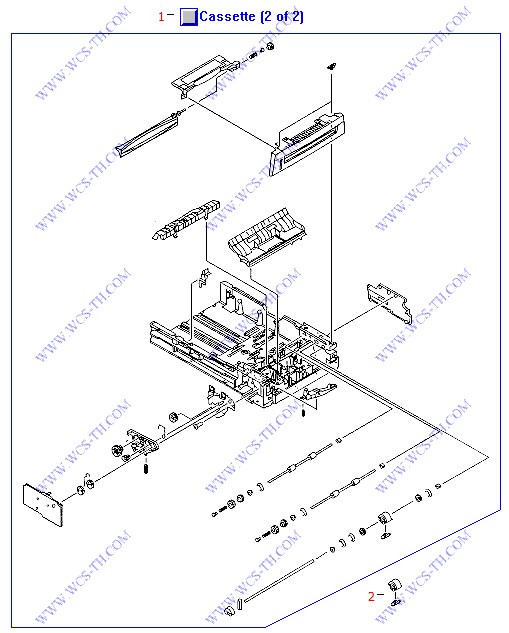

Cassette Assembly (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7459-120CN | Tray 2 paper cassette assembly | Find 1 |
| 2 | RG9-1529-000CN | Pickup roller for multi-purpose tray/Tray 1 - Mounts in top/front of Tray 2 | Find 2 |
Disengaging Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-6507-020CN | Developer disengagement drive assembly | Find 1 |
| 2 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated - | Find 2 |
| 3 | RH7-1494-000CN | 24VDC motor - Disengaging drive motor - Motor M7 | Find 3 |

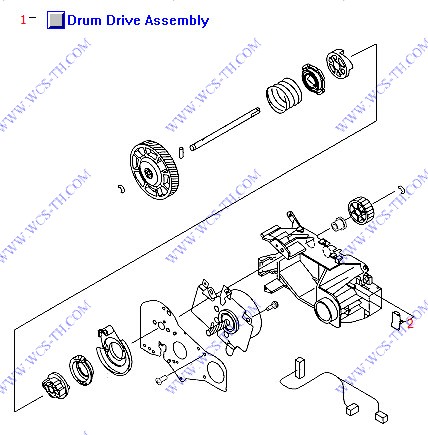

Drum Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7467-000CN | Drum drive assembly - For magenta and cyan cartridges | Find 1 |
| 1 | RG5-7468-000CN | Drum drive assembly - For black cartridge | Find 1 |
| 1 | RG5-7469-000CN | Drum drive assembly - For yellow cartridge | Find 1 |
| 2 | RG5-6394-000CN | LED PC Board - The LED PC Board assembly that performs the function called primary exposure - Erases the latent image off each drum in drum drive assembly | Find 2 |

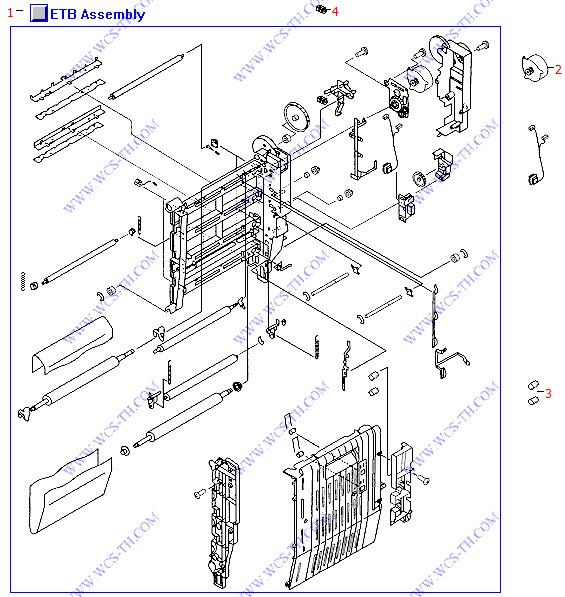

ETB Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7455-000CN | Electrostatic transfer belt (ETB) assembly - For HP Color LaserJet 4600 series | Find 1 |
| 2 | RH7-1605-000CN | 24 VDC brushless motor - Fuser drive assembly motor and ETB (Electrostatic Transfer Belt) drive motor - Motors M8 and M6 | Find 2 |
| 3 | RB1-2155-000CN | Oblique roller - Right side of ETB - 2 used | Find 3 |
| 4 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated - | Find 4 |

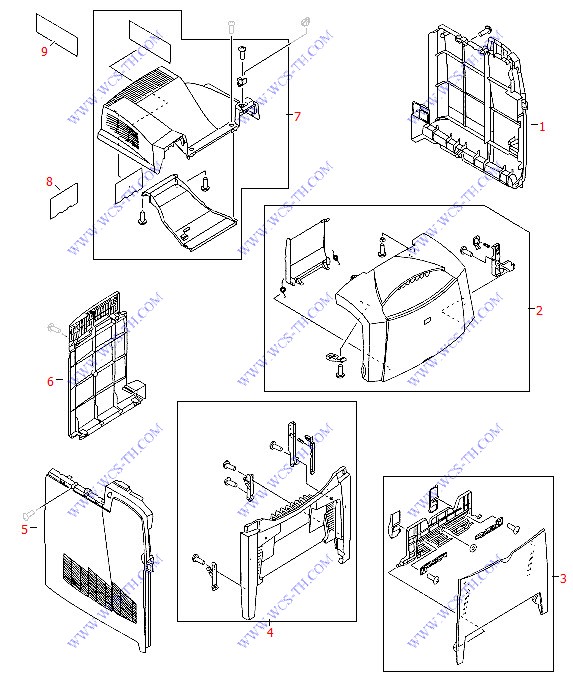

External Covers and Panels
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-8591-000CN | Side cover - Right side of printer cover | Find 1 |
| 2 | RG5-6465-000CN | Top/front printer cover assembly - Lift-up front cover | Find 2 |
| 3 | RG5-6467-000CN | MP/Tray 1 assembly - Front drop-down Multipurpose/Tray 1 assembly | Find 3 |
| 4 | RG5-6466-000CN | Lower front cover assembly - Front of printer that Tray 1 attaches to | Find 4 |
| 5 | RB2-8590-040CN | Left cover - Left side of printer cover | Find 5 |
| 6 | RG5-7494-000CN | Rear cover - Rear of printer cover | Find 6 |
| 7 | RG5-6464-000CN | Top cover assembly - Rear portion of printer top cover | Find 7 |
| 8 | RB3-0607-000CN | Air filter at top rear of printer - Formatter fan air filter | Find 8 |
| 9 | RB2-8596-000CN | Air filter on upper left side | Find 9 |

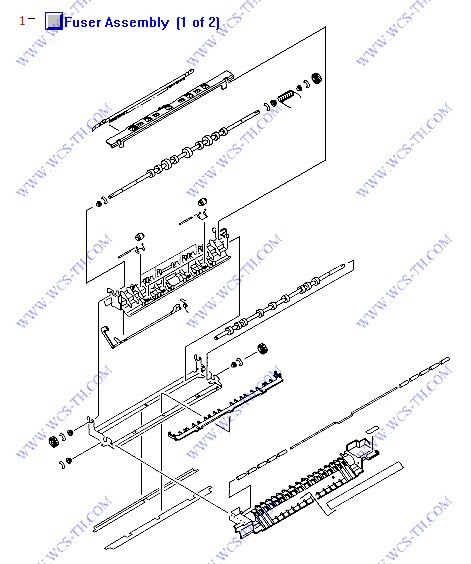

Fuser Assembly (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
Fuser Assembly (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7450-130CN | HP LaserJet 4650 fusing assembly - For 110 VAC operation - Bonds toner to paper with heat | Find 1 |
| 1 | RG5-7451-130CN | HP LaserJet 4650 fusing assembly - For 220 VAC operation - Bonds toner to paper with heat | Find 1 |
| 2 | RB2-8498-030CN | Paper sensor flag in fuser assembly | Find 2 |
| 3 | RF5-3774-030CN | Left side cover of fuser assembly | Find 3 |
| 4 | RF5-3775-030CN | Right side cover of fuser assembly | Find 4 |

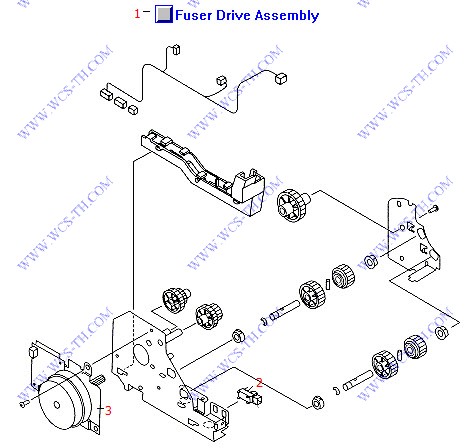

Fuser Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7452-000CN | Fuser drive assembly | Find 1 |
| 2 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated - | Find 2 |
| 3 | RH7-1605-000CN | 24 VDC brushless motor - Fuser drive assembly motor and ETB (Electrostatic Transfer Belt) drive motor - Motors M8 and M6 | Find 3 |

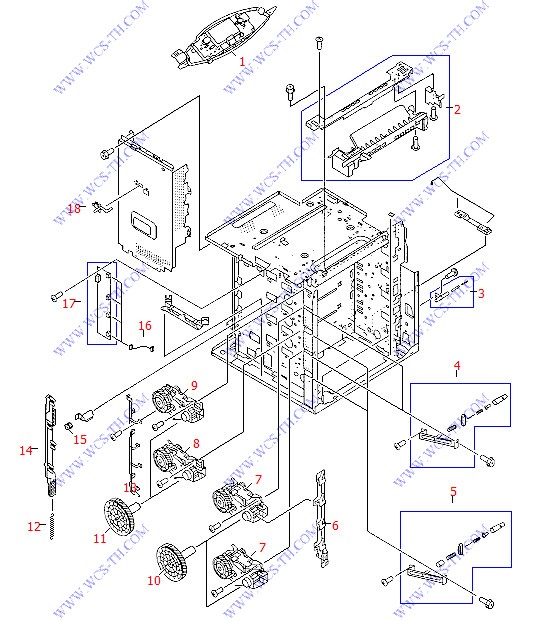

Internal Components (1 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-6432-070CN | Control panel assembly - 100/127 volt | Find 1 |
| 1 | RG5-6433-070CN | Control panel assembly - 220/240VAC | Find 1 |
| 2 | RG5-6510-020CN | Control panel crossmember assembly - Supports control panel | Find 2 |
| 3 | RG5-6492-000CN | Contact pin assembly | Find 3 |
| 4 | RG5-6474-000CN | Drum ground assembly - Chassis to toner cartridge ground strap that goes across the large gear - Used on the black and yellow toner cartridges | Find 4 |
| 5 | RG5-6475-000CN | Drum ground assembly - Chassis to toner cartridge ground strap that goes across the large gear - Used on the mgenta and can toner cartridges | Find 5 |
| 6 | RB2-8225-000CN | Drum drive interlock plate | Find 6 |
| 7 | RG5-7467-000CN | Drum drive assembly - For magenta and cyan cartridges | Find 7 |
| 8 | RG5-7469-000CN | Drum drive assembly - For yellow cartridge | Find 8 |
| 9 | RG5-7468-000CN | Drum drive assembly - For black cartridge | Find 9 |
| 10 | RS7-0137-000CN | Large drum drive gear - 200 teeth - Used with magenta and cyan drum drives | Find 10 |
| 11 | RS7-0138-000CN | Large drum drive gear - 200 teeth - Used with black and yellow drum drives | Find 11 |
| 12 | RS6-2537-000CN | Tension spring - Provides tension for developer disengagement plate | Find 12 |
| 13 | RB2-8255-000CN | Grounding plate - Provides ground for developer units | Find 13 |
| 14 | RB2-8239-030CN | Developer disengagement plate - Mechanical link that disengages developer from drum | Find 14 |
| 15 | RS7-0139-000CN | Disengagement plate gear - Drives developer disengagement plate | Find 15 |
| 16 | RG5-6418-000CN | Antenna cable - Between toner cartridge memory tag and antenna memory PC board - Four used | Find 16 |
| 17 | RG5-6396-000CN | Memory controller PC Board - Between DC controller and toner antenna | Find 17 |
| 18 | RB2-8250-000CN | Test print arm - External test print button/rod | Find 18 |

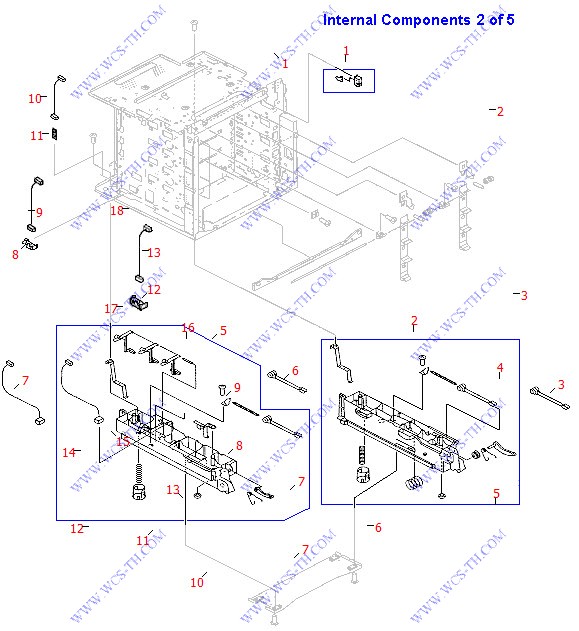

Internal Components (2 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| No pic | RB2-8195-000CN | Cartridge pressure lever | |
| No pic | RG5-6432-070CN | Control panel assembly - 100/127 volt | |
| 1 | RG5-6433-070CN | Control panel assembly - 220/240VAC | Find 1 |
| 2 | RG5-6460-000CN | Paper cassette frame - Right side Tray 2 support frame assembly | Find 2 |
| 2 | RG5-6510-020CN | Control panel crossmember assembly - Supports control panel | Find 2 |
| 3 | RB2-8213-000CN | Spring rod - Provides mechanical link for spring pressure to assist opening Tray1/MP tray - Two used | Find 3 |
| 3 | RG5-6492-000CN | Contact pin assembly | Find 3 |
| 4 | RG5-6474-000CN | Drum ground assembly - Chassis to toner cartridge ground strap that goes across the large gear - Used on the black and yellow toner cartridges | Find 4 |
| 5 | RG5-6459-000CN | Paper cassette frame - Left side Tray 2 support frame assembly | Find 5 |
| 5 | RG5-6475-000CN | Drum ground assembly - Chassis to toner cartridge ground strap that goes across the large gear - Used on the mgenta and can toner cartridges | Find 5 |
| 6 | RB2-8213-000CN | Spring rod - Provides mechanical link for spring pressure to assist opening Tray1/MP tray - Two used | Find 6 |
| 6 | RB2-8225-000CN | Drum drive interlock plate | Find 6 |
| 7 | RG5-6430-000CN | Optional feeder and cassette size cable/connector | Find 7 |
| 7 | RG5-7467-000CN | Drum drive assembly - For magenta and cyan cartridges | Find 7 |
| 8 | RG5-7469-000CN | Drum drive assembly - For yellow cartridge | Find 8 |
| 8 | WC2-5452-000CN | Cassette paper size switch - Senses paper size in paper tray | Find 8 |
| 9 | RG5-6430-000CN | Optional feeder and cassette size cable/connector | Find 9 |
| 9 | RG5-7468-000CN | Drum drive assembly - For black cartridge | Find 9 |
| 10 | RG5-7471-000CN | Environment/humidity sensor cable - From environment/humidity sensor to DC controller board | Find 10 |
| 10 | RS7-0137-000CN | Large drum drive gear - 200 teeth - Used with magenta and cyan drum drives | Find 10 |
| 11 | RS7-0138-000CN | Large drum drive gear - 200 teeth - Used with black and yellow drum drives | Find 11 |
| 11 | WP2-5200-000CN | Environment/humidity sensor - Located at lower left side of printer | Find 11 |
| 12 | RS6-2537-000CN | Tension spring - Provides tension for developer disengagement plate | Find 12 |
| 12 | WC2-5452-000CN | Cassette paper size switch - Senses paper size in paper tray | Find 12 |
| 13 | RB2-8255-000CN | Grounding plate - Provides ground for developer units | Find 13 |
| 13 | RG5-6431-000CN | Cable - Cassette size cable | Find 13 |
| 14 | RB2-8239-030CN | Developer disengagement plate - Mechanical link that disengages developer from drum | Find 14 |
| 15 | RS7-0139-000CN | Disengagement plate gear - Drives developer disengagement plate | Find 15 |
| 16 | RG5-6418-000CN | Antenna cable - Between toner cartridge memory tag and antenna memory PC board - Four used | Find 16 |
| 17 | RG5-6396-000CN | Memory controller PC Board - Between DC controller and toner antenna | Find 17 |
| 18 | RB2-8250-000CN | Test print arm - External test print button/rod | Find 18 |

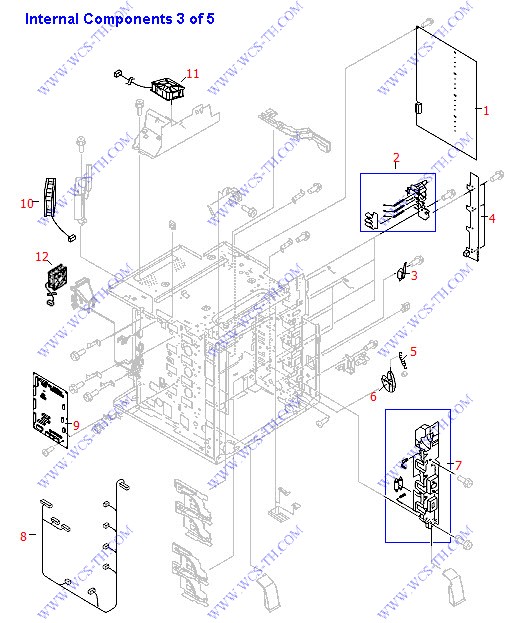

Internal Components (3 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C9660-69022 | High voltage power supply PC Board | Find 1 |
| 2 | RG5-6449-040CN | High voltage toner contact assembly - Electrical contacts for toner cartridge (Four used) | Find 2 |
| 3 | WC4-5169-000CN | Front door micro switch - Front door open switch | Find 3 |
| 4 | RG5-6393-000CN | Toner sensor PC Board - Small vertical board on right side of toner cartridges | Find 4 |
| 5 | RS6-2511-000CN | Tension spring | Find 5 |
| 6 | RB2-8151-020CN | Pressure arm | Find 6 |
| 7 | RG5-6450-000CN | Cartridge inlet assembly - Black plastic piece on right front side | Find 7 |
| 8 | RG5-6413-000CN | Left plate cable | Find 8 |
| 9 | RG5-7470-030CN | DC controller PC board | Find 9 |
| 10 | RH7-1490-000CN | Formatter fan - Exhausts heat from formatter and low voltage power supply - Fan 1 | Find 10 |
| 11 | RH7-1491-020CN | Cartridge fan - Located at left rear corner - Exhausts heat from toner cartridges and fuser assembly - Fan 2 | Find 11 |
| 12 | RH7-1607-000CN | Lower fan - Located near low voltage power supply in bottom of printer | Find 12 |

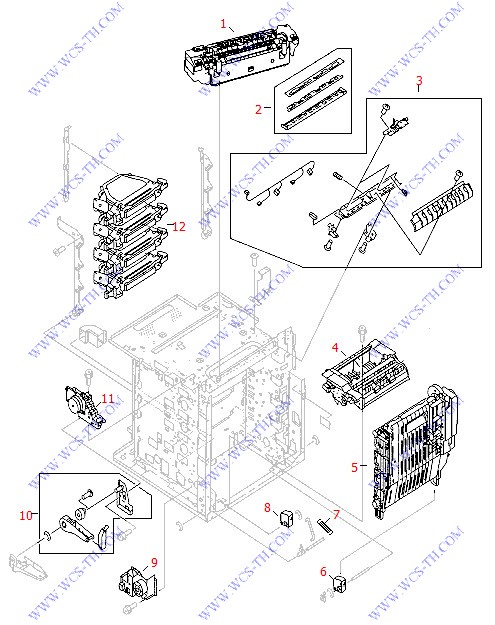

Internal Components (4 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7450-130CN | HP LaserJet 4650 fusing assembly - For 110 VAC operation - Bonds toner to paper with heat | Find 1 |
| 1 | RG5-7451-130CN | HP LaserJet 4650 fusing assembly - For 220 VAC operation - Bonds toner to paper with heat | Find 1 |
| 2 | RF5-3773-020CN | Static eliminator | Find 2 |
| 3 | RG5-6454-000CN | Sensor assembly - Color registration detection assembly - Color sensor for DC controller | Find 3 |
| 4 | RG5-7453-000CN | Paper pick-up assembly - Use for tray 2 | Find 4 |
| 5 | RG5-7455-000CN | Electrostatic transfer belt (ETB) assembly - For HP Color LaserJet 4600 series | Find 5 |
| 6 | C9660-67913 | Grounding plate service kit - Mounts at bottom of ETB assembly - Contains new right side cap, cap shaft, grounding spring, two E-clips, disposable gloves and instruction sheet | Find 6 |
| 7 | RS6-2511-000CN | Tension spring | Find 7 |
| 8 | RB2-8121-000CN | ETB socket - Socket that left side of ETB fits into | Find 8 |
| 9 | RG5-6507-020CN | Developer disengagement drive assembly | Find 9 |
| 10 | RG5-6446-000CN | Top cover hinge assembly - Top cover damper assembly | Find 10 |
| 11 | RG5-7452-000CN | Fuser drive assembly | Find 11 |
| 12 | RG5-7475-000CN | Laser/scanner assembly - Separate scanner used for each toner cartridge | Find 12 |

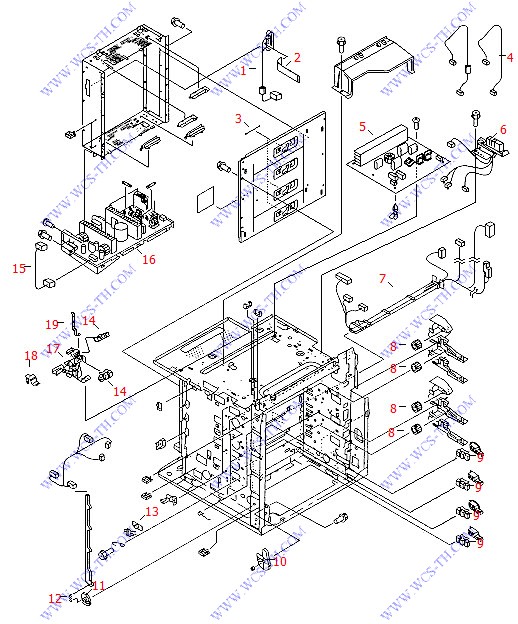

Internal Components (5 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-6422-000CN | Intraface cable - Connects Formatter board to DC controller board and LVPS to Formatter board | Find 1 |
| 2 | RH2-5471-000CN | Flat cable - Connects formatter board to DC controller board | Find 2 |
| 3 | RB2-8246-020CN | Laser scanner support spring - Supports laser scanner module - Three used | Find 3 |
| 4 | RG5-6427-000CN | AC Cable - Connects AC power supply to fuser power supply - 110 volt AC | Find 4 |
| 4 | RG5-6434-000CN | AC Cable - Connects AC power supply to fuser power supply - 220 volt AC | Find 4 |
| 5 | RG5-6399-030CN | Fuser power supply PC Board - 100/127 volts | Find 5 |
| 5 | RG5-6400-050CN | Fuser power supply PC Board - 220/240 volt | Find 5 |
| 6 | RG5-7480-000CN | Fuser drawer fusing cable | Find 6 |
| 7 | RG5-6414-000CN | Relay cable - Connects DC controller to HVPS, interlock switch to DC controller, and Fuser circuit to DC controller | Find 7 |
| 8 | RS7-0136-020CN | Cartridge drive gear - Drives toner cartridge gear - 29 teeth | Find 8 |
| 9 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated - | Find 9 |
| 10 | RB2-8122-020CN | Toner shutter gear - Opens toner shutters when the ETB is closed | Find 10 |
| 11 | RS7-0135-000CN | 66T Cam/gear - Cam/gear that works with toner gear to open the toner shutters | Find 11 |
| 12 | RS6-2510-000CN | Pressure gear spring - Provides tension for cam gear on left side | Find 12 |
| 13 | RG5-7988-000CN | Antenna PC Board - PC Board antenna for toner cartridge memory tag - Four used | Find 13 |
| 14 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated - | Find 14 |
| 15 | RG5-6415-000CN | DC Cable - DC power supply cable | Find 15 |
| 16 | RG5-6410-020CN | Low voltage power supply PC Board - 100/127 VAC 60Hz | Find 16 |
| 16 | RG5-6411-020CN | Low voltage power supply PC Board - 220/240VAC | Find 16 |
| 17 | RB2-8540-000CN | Sensor support bracket - Black plastic piece that holds photo sensors PS12 and PS13 - This is the bracket ONLY | Find 17 |
| 18 | RB2-8541-000CN | Sensor cover - Metal cover for fuser photosensor assembly | Find 18 |
| 19 | RB2-8542-000CN | Grounding plate - Electrical ground connection for fuser sensor assembly | Find 19 |
Paper Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7453-000CN | Paper pick-up assembly - Use for tray 2 | Find 1 |
| 2 | RF5-3739-000CN | Paper pickup roller - White plastic with black friction pad - Mounts on the paper pickup shaft (two used) | Find 2 |
| 3 | RG5-6392-000CN | Paper pickup sensor PC Board - Small board with four sensors on right side of bottom paper pickup assembly | Find 3 |
| 4 | RG5-7466-000CN | Paper pickup drive assembly - Tray 2 paper pickup drive assembly | Find 4 |
| 5 | RG5-6419-000CN | Paper feeder main cable | Find 5 |
Paper Pickup Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7466-000CN | Paper pickup drive assembly - Tray 2 paper pickup drive assembly | Find 1 |
| 2 | RH7-5319-000CN | Paper pickup drive assembly solenoid - 2 used | Find 2 |
