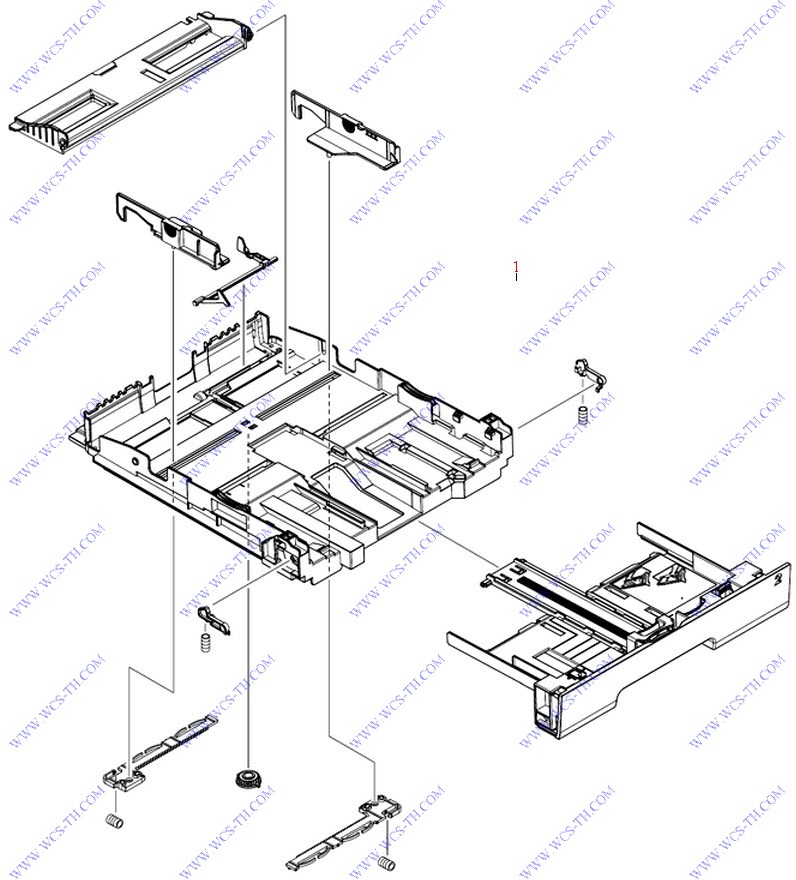

Cassette
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4439-000CN | Tray (cassette) assembly - For the Color LaserJet CP1210 series printer | Find 1 |

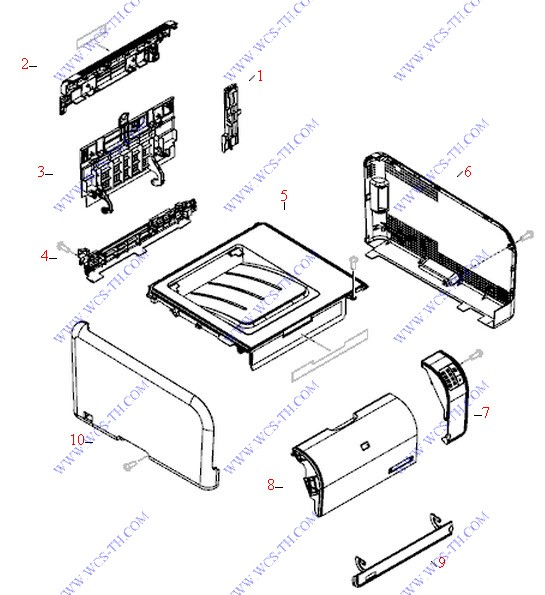

Covers, panels, and doors (Color LaserJet CP1210)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC2-2875-000CN | Center rear cover - Located to the left of the rear door assembly - For the Color LaserJet CP1210 series printer | Find 1 |
| 2 | RC2-1791-000CN | Upper rear cover - Located above the rear door assembly - For the Color LaserJet CP1210 series printer | Find 2 |
| 3 | RC2-2115-000CN | Rear door assembly - For the Color LaserJet CP1210 series printer | Find 3 |
| 4 | RC2-1790-000CN | Lower rear cover - Located below the rear door - For the Color LaserJet CP1210 series printer | Find 4 |
| 5 | RM1-4465-000CN | Top cover assembly - For the Color LaserJet CP1210 series printer | Find 5 |
| 6 | RC2-1788-000CN | Right side cover assembly - For the Color LaserJet CP1210 series printer | Find 6 |
| 7 | RM1-4468-000CN | Control panel assembly - For the Color LaserJet CP1210 series printer | Find 7 |
| 8 | RC2-1786-000CN | Front door assembly - For the Color LaserJet CP1210 series printer | Find 8 |
| 9 | RC2-2005-000CN | Cleanout assembly door - Front access door that provides access to paper jams - For the Color LaserJet CP1210 series printer | Find 9 |
| 10 | RC2-1789-000CN | Left side cover assembly - For the Color LaserJet CP1210 series printer | Find 10 |
Covers, panels, and doors (Color LaserJet CP1510)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC2-3097-000CN | Photo card cover - For the Color LaserJet CP1515n series printer | Find 1 |
| 2 | RC2-3076-000CN | Center rear cover - Located to the left of the rear door assembly - For the Color LaserJet CP1510 series printer | Find 2 |
| 3 | RC2-3098-000CN | Light guide - For the Color LaserJet CP1510/CM1312 series printer | Find 3 |
| 4 | RC2-1797-000CN | Right side cover assembly - For the Color LaserJet CP1510 series printer | Find 4 |
| 5 | RC2-1798-000CN | DIMM memory module cover - For the Color LaserJet CP1510 series printer | Find 5 |
| 6 | RM1-4461-000CN | Front door assembly - For the Color LaserJet CP1510 series printer | Find 6 |
| 7 | RM1-4463-000CN | Cleanout assembly door - Front access door that provides access to paper jams - For the Color LaserJet CP1510 series printer | Find 7 |
| 8 | RM1-4466-000CN | Top cover assembly - For the Color LaserJet CP1510 series printer | Find 8 |
| 9 | RM1-4469-000CN | Control panel assembly - For the Color LaserJet CP1510 series printer | Find 9 |
| 10 | RC2-3077-000CN | Rear door assembly - For the Color LaserJet CP1510 series printer | Find 10 |
| 11 | RC2-3073-000CN | Left side cover assembly - For the Color LaserJet CP1510 series printer | Find 11 |
| 12 | RC2-3074-000CN | Lower rear cover - Located below the rear door - For the Color LaserJet CP1510 series printer | Find 12 |
| 13 | RC2-3075-000CN | Upper rear cover - Located above the rear door assembly - For the Color LaserJet CP1510 series printer | Find 13 |
| 14 | RC2-2916-000CN | Photo card cover - For the Color LaserJet CP1515ni series printer | Find 14 |
Fuser Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4430-000CN | Fusing Assembly - Bonds toner to paper with heat - For 110-127VAC (+/- 10%) operation | Find 1 |
| 1 | RM1-4431-000CN | Fusing Assembly - Bonds toner to paper with heat - For 220-240VAC (+/- 10%) operation | Find 1 |
Internal Components 1
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4426-000CN | Paper pickup roller (D-shaped roller) - Picks up media from the paper input tray | Find 1 |
| 2 | RM1-4425-000CN | Feed/separation roller - For the Color LaserJet CP1210/CP1510/CM1312MFP series printer | Find 2 |
| 3 | RC2-1878-000CN | Front left cassette rail assembly - For the Color LaserJet CP1210/CP1510 series printer | Find 3 |
| 4 | RC2-2014-000CN | Cover holder - Located below the separation roller - For Color LaserJet series printers | Find 4 |
| 5 | RL1-1849-000CN | Front left cassette rail assembly - For the Color LaserJet CP1210/CP1510 series printer | Find 5 |

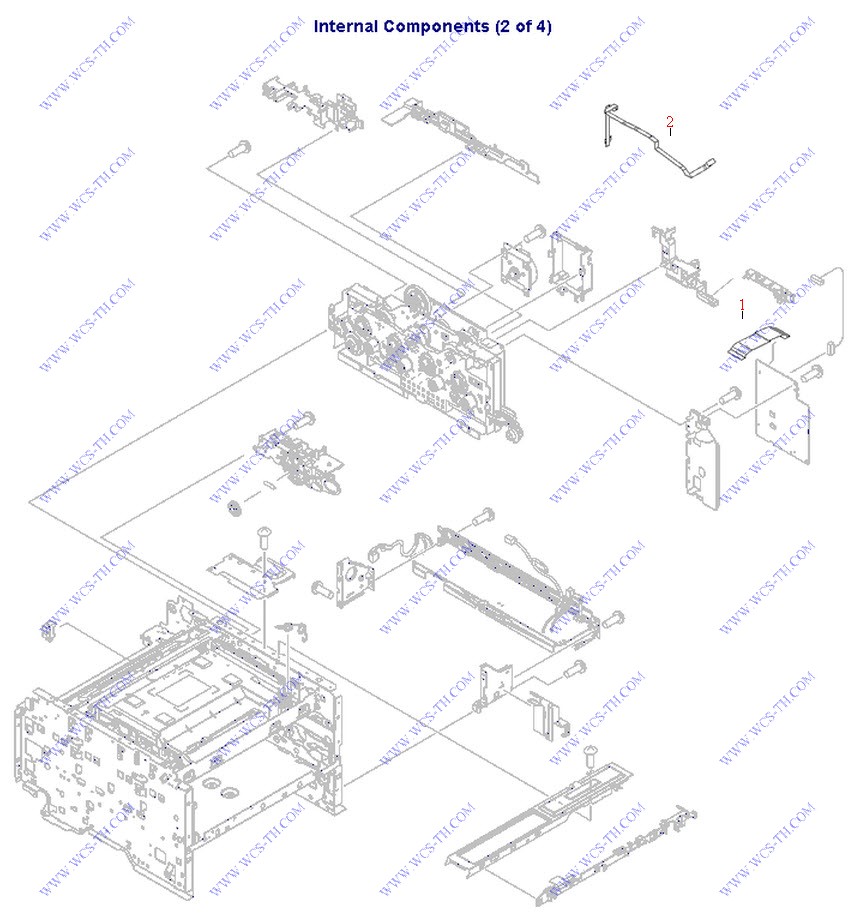

Internal Components 2
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RK2-1955-000CN | Flexible flat cable – Connect to the DC controller PCA assembly | Find 1 |
| 2 | RK2-1960-000CN | Flexible flat cable - For the Color LaserJet CP1210 series printer | Find 2 |

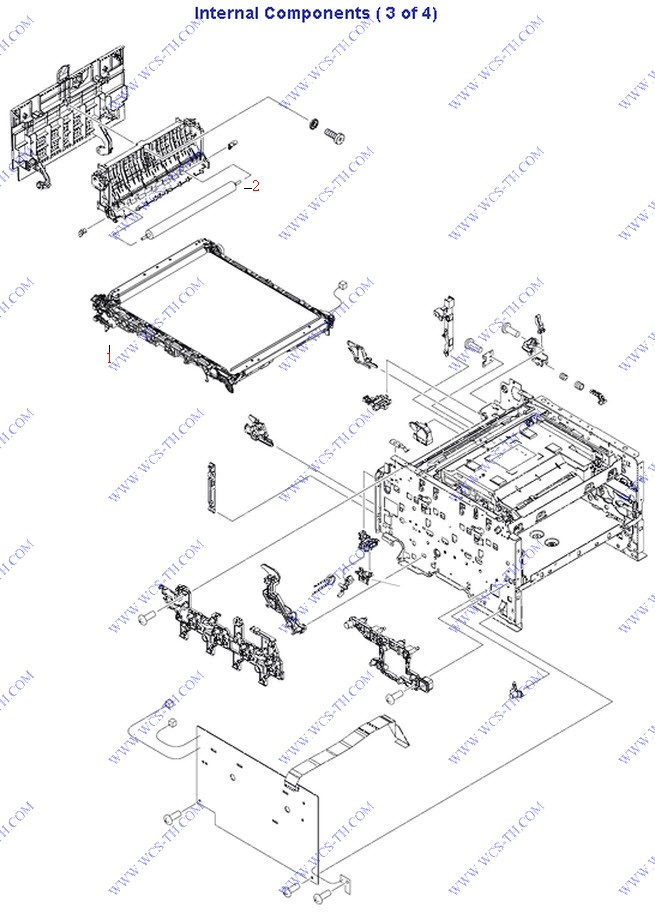

Internal Components 3
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4436-050CN | Intermediate transfer belt assembly | Find 1 |
| 7 | RM1-4436-000CN | Intermediate transfer belt assembly | Find 7 |
| 2 | RM1-4445-000CN | Secondary transfer roller | Find 2 |
Internal Components 4
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC2-3109-000CN | Right side cartridge tray clamp | Find 1 |
| 2 | RC2-3108-000CN | Left side cartridge tray clamp | Find 2 |
| 3 | RM1-4428-000CN | Cartridge tray (drawer) assembly | Find 3 |
PCAs
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4777-000CN | Power supply - For the 220-240VAC (+/- 10%) fusing assembly | Find 1 |
| 1 | RM1-4776-000CN | Power supply - For the 110-127VAC (+/- 10%) fusing assembly | Find 1 |
| 2 | RM1-4689-000CN | High voltage power supply PC board assembly | Find 2 |
| 3 | RM1-4815-000CN | Low voltage power supply - For 110-127VAC (+/- 10%) operation | Find 3 |
| 3 | RM1-4816-000CN | Low voltage power supply - For 220-240VAC (+/- 10%) operation | Find 3 |
| 4 | RM1-4813-000CN | DC controller PC board - Controls the timing and functionality of the multifunction finisher - For the Color LaserJet CP1210 series printer | Find 4 |
| 5 | CB505-60001 | Formatter (Main logic) board - For the Color LaserJet CP1210 series printer | Find 5 |
