500-sheet paper feeder assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0036-020CN | Paper pickup roller - Gray spongy rubber roller on a white cylinder and 24-tooth white gear on one side | Find 1 |
| 2 | RM1-0037-020CN | Paper feed/separation roller assembly - Gray rubber roller on a blue plastic cylinder | Find 2 |
500-sheet paper feeder internal components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1750-030CN | Lifter drive assembly - For paper tray 2 | Find 1 |
| 1 | RM1-1750-000CN | Lifter drive assembly | Find 1 |

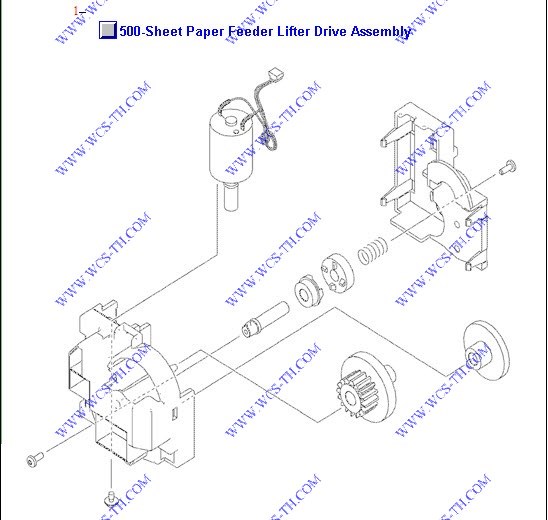

500-sheet paper feeder lifter drive assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1750-030CN | Lifter drive assembly - For paper tray 2 | Find 1 |
| 1 | RM1-1750-000CN | Lifter drive assembly | Find 1 |
| 2 | RM1-0037-020CN | Paper feed/separation roller assembly - Gray rubber roller on a blue plastic cylinder | Find 2 |
| 3 | RC1-3293-000CN | Torque limiter - Located next to paper feeder roller in optional 500 sheet tray assembly | Find 3 |

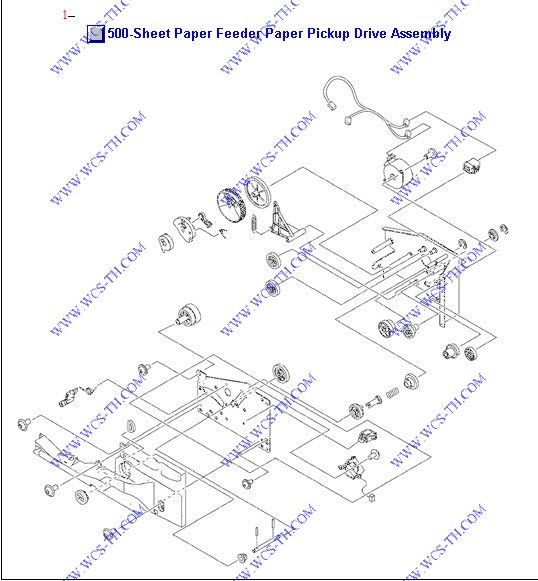

500-sheet paper feeder paper pickup drive assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1760-000CN | Paper pickup drive assembly - For 500 sheet paper feeder assembly | Find 1 |
| 1 | RM1-1760-020CN | Paper pickup drive assembly - For 500 sheet paper feeder assembly | Find 1 |

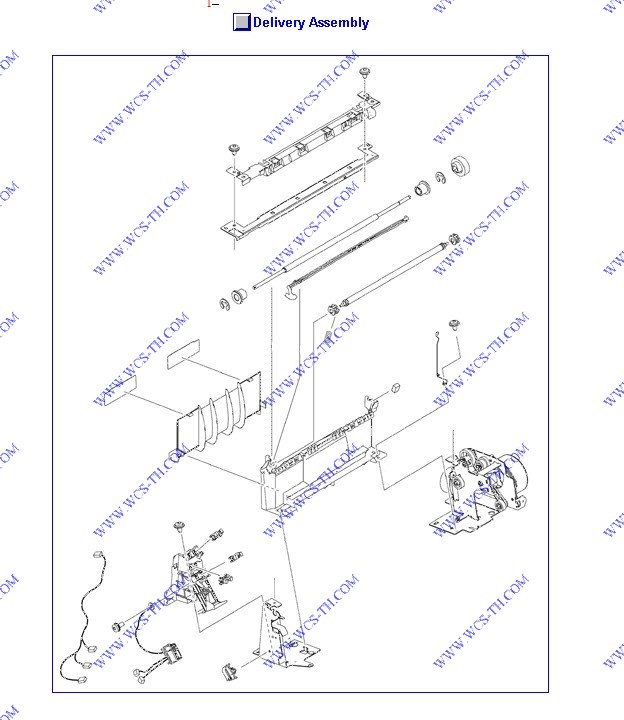

Delivery assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1730-000CN | Delivery assembly - Includes drive motor, rollers and gears - For 100-127VAC operation | Find 1 |
| 1 | RM1-1730-030CN | Delivery assembly - Includes drive motor, rollers and gears - For 100-127VAC operation | Find 1 |

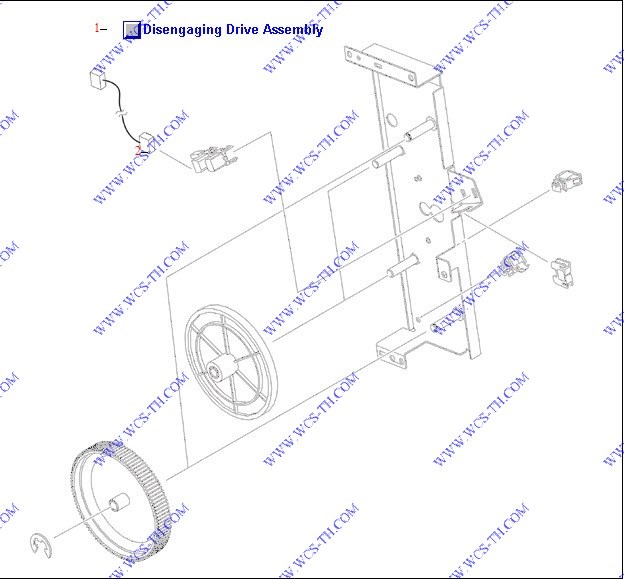

Disengaging drive assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1717-000CN | Disengaging drive assembly | Find 1 |
| 2 | RM1-1644-000CN | Sensor cable - Between DC Controller board and disengaging drive sensor | Find 2 |

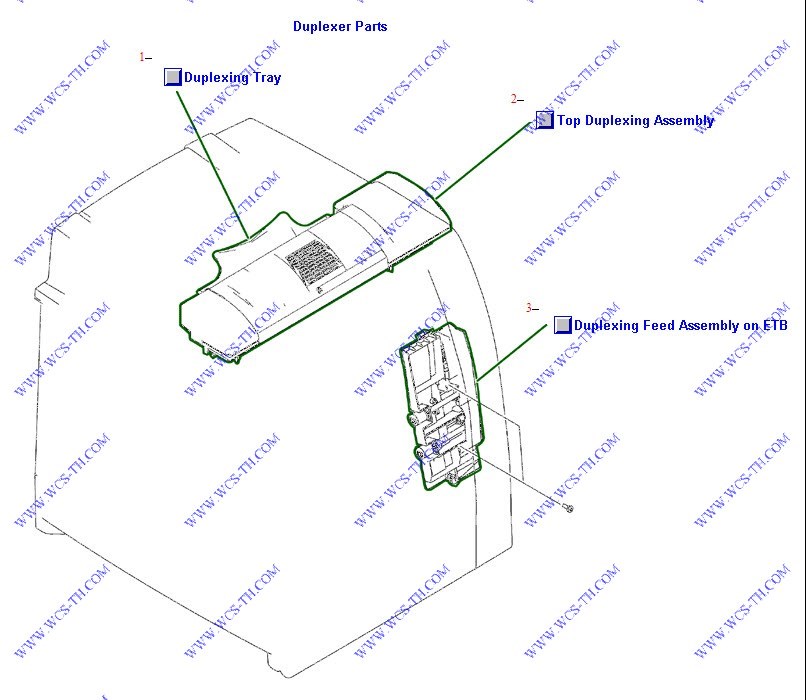

Duplexer
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-5043-020CN | Duplexer output tray | Find 1 |
| 2 | RM1-1784-090CN | Duplexing assembly - Mounts to top of printer | Find 2 |
| 3 | RM1-1785-000CN | Duplexer feed assembly - Mounted on the Electrostatic Transfer Belt (ETB) | Find 3 |
Duplexer parts
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q7499-67901 | 500 sheet paper input feeder/tray assembly | Find 1 |
| 2 | RM1-1764-050CN | 500-sheet paper input tray - Paper cassette for optional paper trays - For use with tray 3, 4, 5, or 6 | Find 2 |
| 2 | RM1-1764-130CN | 500-sheet paper input tray - Paper cassette for optional paper trays - For use with tray 3, 4, 5, or 6 | Find 2 |
| 2 | RM1-1764-000CN | 500 sheet paper input tray - Paper cassette for optional paper trays - For use with Tray 3, 4, 5, or 6 | Find 2 |
| 2 | RM1-1764-020CN | 500 sheet paper input tray - Paper cassette for optional paper trays - For use with Tray 3, 4, 5, or 6 | Find 2 |
| 3 | RM1-1750-000CN | Lifter drive assembly | Find 3 |
| 3 | RM1-1750-030CN | Lifter drive assembly - For paper tray 2 | Find 3 |
| 4 | RM1-1760-000CN | Paper pickup drive assembly - For 500 sheet paper feeder assembly | Find 4 |
| 4 | RM1-1760-020CN | Paper pickup drive assembly - For 500 sheet paper feeder assembly | Find 4 |
| 5 | RM1-2365-020CN | Feed drive board assembly - Mounts on the right side of the 2x500-sheet input tray assembly | Find 5 |

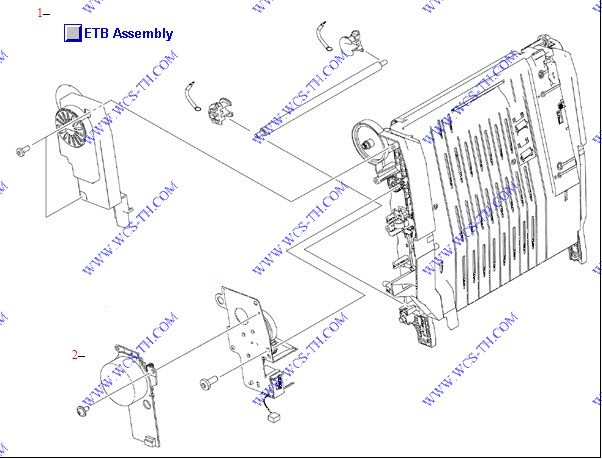

ETB assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-3161-080CN | Image Transfer kit - Electrostatic transfer belt (ETB) assembly with cleaning cloth | Find 1 |
| 1 | RM1-3161-07ACN | Image Transfer kit - Electrostatic transfer belt (ETB) assembly with cleaning cloth | Find 1 |
| 1 | RM1-3161-130CN | Electrostatic transfer belt (ETB) assembly | Find 1 |
| 2 | RK2-0616-000CN | Electrostatic Transfer Belt (ETB) drive motor - Provides power to run ETB drive assembly - Motor (M6) | Find 2 |

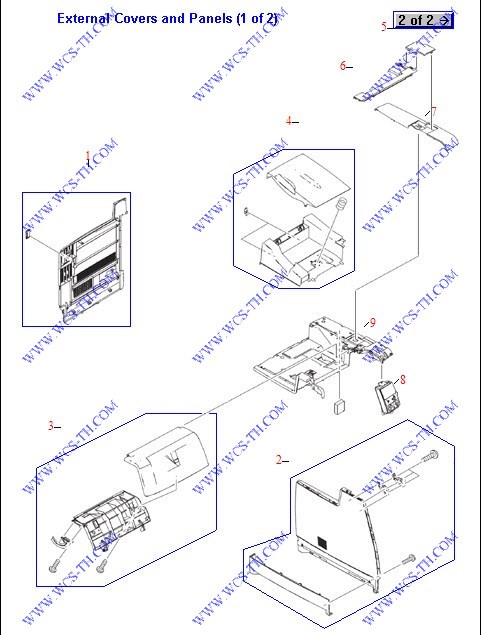

External covers and panels (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1747-000CN | Rear cover assembly - Large plastic piece that covers back of printer | Find 1 |
| 2 | RM1-1739-000CN | Left cover assembly - Left side of printer plastic cover - Includes small plastic strip at bottom | Find 2 |
| 3 | RM1-1745-000CN | Top front cover assembly - Includes the plastic frame piece beneath the outside skin | Find 3 |
| 4 | RM1-1746-000CN | Paper output tray - Top of printer paper output tray - Face down output tray | Find 4 |
| 5 | RC1-4856-000CN | Duplexer cover - Small recatangle shaped plastic piece on top right side of duplexer assembly | Find 5 |
| 6 | RC1-4863-000CN | Duplexer cover - Plastic strip across width of duplexer that attaches in front of paper output tray | Find 6 |
| 7 | RC1-4855-000CN | Top right cover - Plastic cover over top right side of printer | Find 7 |
| 7 | RC1-4855-020CN | Top right cover - Plastic cover over top right side of printer | Find 7 |
| 8 | RM1-1617-000CN | Control panel assembly - Located on upper right front of printer | Find 8 |
| 9 | RC1-4854-030CN | Top cover - Large plastic piece beneath the face down paper output tray | Find 9 |
| 9 | RC1-4854-000CN | Top cover - Large plastic piece beneath the face down paper output tray | Find 9 |
External covers and panels (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1738-020CN | Right cover assembly - Large plastic cover on the right side of printer - Includes small piece on right side under the large piece | Find 1 |
| 1 | RM1-1738-000CN | Right cover assembly - Large plastic cover on the right side of printer - Includes small piece on right side under the large piece | Find 1 |
| 1 | RM1-1738-030CN | Right cover assembly - Large plastic cover on the right side of printer | Find 1 |
| 2 | RM1-1740-040CN | Multi-purpose/Tray 1 assembly - Front drop down paper input tray | Find 2 |
| 2 | RM1-1740-000CN | Multi-purpose/Tray 1 assembly - Front drop down paper input tray | Find 2 |
| 4 | RM1-1742-000CN | Front cover and supporting frame around MP/Tray 1 | Find 4 |

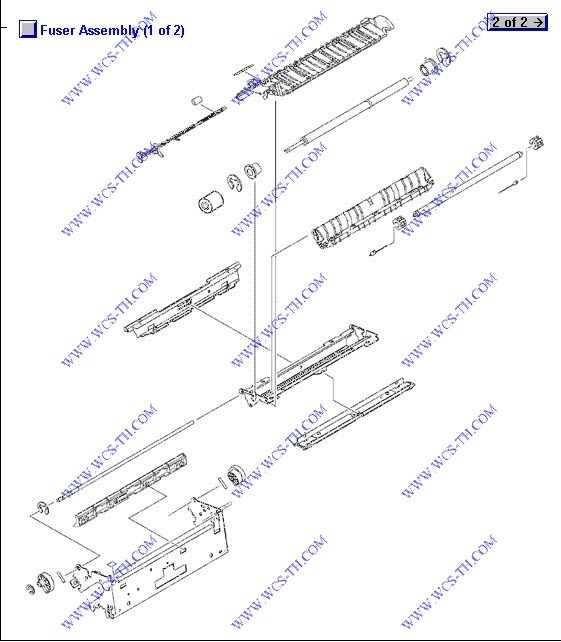

Fuser assembly (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-3146-070CN | Fusing assembly - For 220 VAC to 240 VAC- Bonds toner to paper with heat | Find 1 |
| 1 | RM1-3131-060CN | Fusing assembly - For 100 VAC to 127 VAC - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-3146-060CN | Fusing assembly - For 220 VAC to 240 VAC - Bonds toner to paper with heat | Find 1 |

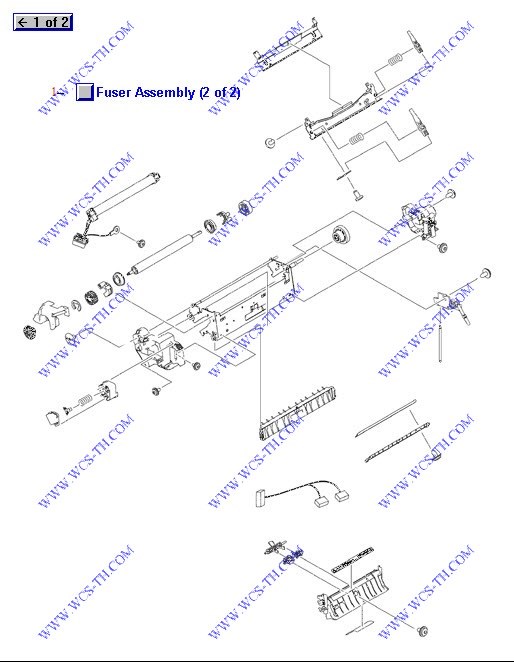

Fuser assembly (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-3146-070CN | Fusing assembly - For 220 VAC to 240 VAC- Bonds toner to paper with heat | Find 1 |
| 1 | RM1-3131-060CN | Fusing assembly - For 100 VAC to 127 VAC - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-3146-060CN | Fusing assembly - For 220 VAC to 240 VAC - Bonds toner to paper with heat | Find 1 |

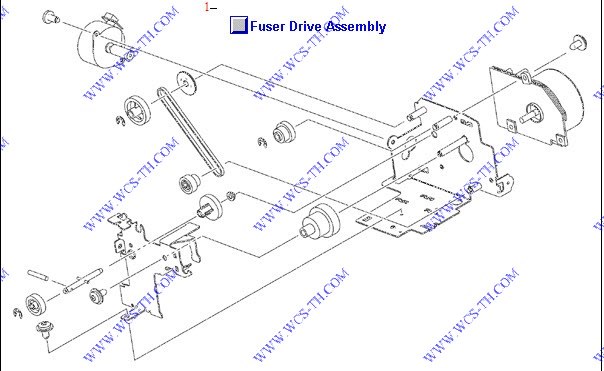

Fuser drive assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1729-000CN | Fuser roller drive assembly - Includes both motors (M5,M6) | Find 1 |

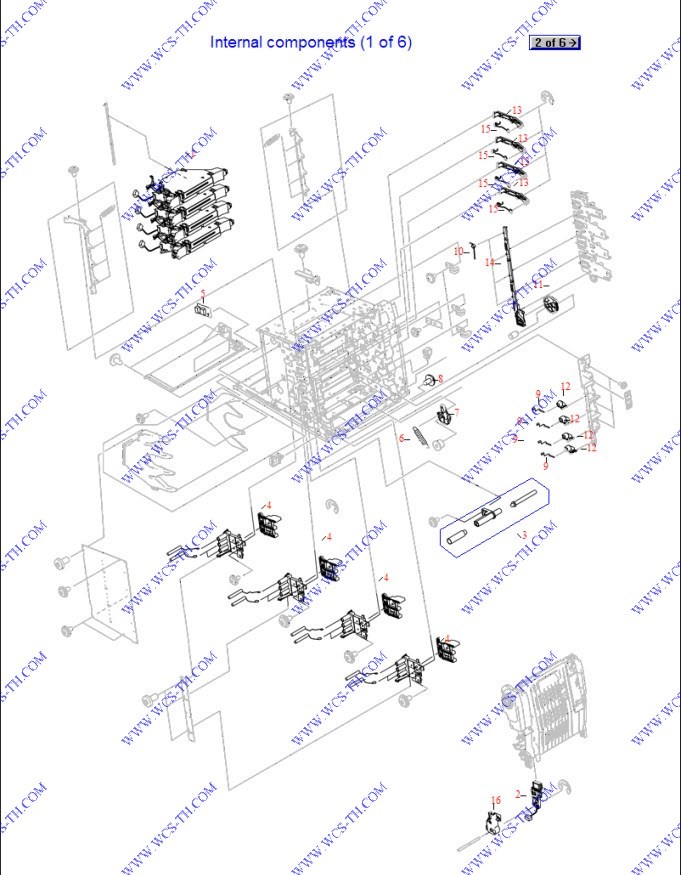

Internal components (1 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1591-000CN | Laser/scanner assembly - Separate scanner used for each toner cartridge - Four used | Find 1 |
| 1 | RM1-1591-030CN | Laser/scanner assembly - Separate scanner used for each toner cartridge - Four used | Find 1 |
| 2 | RM1-1675-000CN | Guide assembly - Connector guide assembly for Electrostatic Transfer Belt (ETB) - Located on lower left side of ETB | Find 2 |
| 3 | RM1-1676-000CN | Contact assembly - High voltage contact for attraction roller | Find 3 |
| 4 | RM1-1677-000CN | High voltage terminal assembly - Laser scanner assembly high voltage contact assembly - Four used | Find 4 |
| 5 | WP2-5156-000CN | Humidity sensor unit - Located upper left rear portion of printer - Above fan FM1 | Find 5 |
| 5 | WP2-5187-000CN | Humidity sensor assembly - Located at bottom of left side ETB fan duct | Find 5 |
| 6 | RC1-4423-000CN | Tension spring - Provides tension for ETB right side lower pressure plate | Find 6 |
| 7 | RC1-4397-000CN | Pressure plate - When this plate is pushed, it rotates the bar on the left side of cartridges | Find 7 |
| 8 | XA9-1418-000CN | M3x6 TP screw | Find 8 |
| 9 | RC1-4396-000CN | Compression spring - Contact spring for toner cartridge - Four used | Find 9 |
| 10 | RC1-4393-000CN | Tension spring - Provides tension for bar on left side of cartridge electrical contacts - Four used | Find 10 |
| 11 | RC1-4392-000CN | 70-tooth gear - Moves the cartridge interlock plate on left side of printer | Find 11 |
| 12 | RC1-4394-000CN | High voltage terminal block - High voltage contact for toner cartridge - Four used | Find 12 |
| 13 | RC1-4387-000CN | Left side cartridge pressure lever - Holds cartridge against high voltage contact - Four used | Find 13 |
| 14 | RC1-4385-000CN | Cartridge interlock plate - Left side plate that provides motion for cartridge pressure levers | Find 14 |
| 15 | Q7491-67911 | Tension spring - Provides tension for left side cartridge lever - Four used | Find 15 |
| 15 | RC1-4395-000CN | Tension spring - Provides tension for left side cartridge lever - Four used | Find 15 |
| 15 | RC1-4395-020CN | Tension spring - Provides tension for left side cartridge lever - Four used | Find 15 |
| 16 | RC1-4386-000CN | Left Electrostatic Transfer Belt (ETB) cap - Lower left side of Electrostatic Transfer Belt (ETB) assembly - Slides into a purple plastic piece | Find 16 |

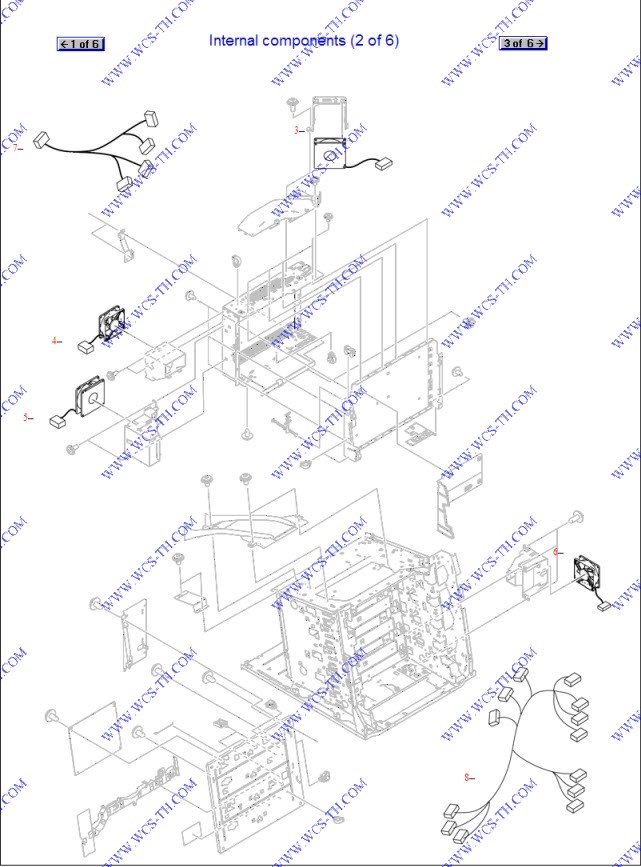

Internal components (2 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RK2-0623-000CN | Cooling fan - Sub power supply fan - Fan FM2 | Find 3 |
| 4 | RM1-1757-000CN | Cooling fan - Used on cartridge area, fuser area and delivery area cooling fans - Fans FM5, FM6 and FM7 | Find 4 |
| 5 | RK2-0623-000CN | Cooling fan - Sub power supply fan - Fan FM2 | Find 5 |
| 6 | RK2-0622-000CN | Fuser fan - Provides cooling for Fuser area - Fan FM1 | Find 6 |
| 7 | RM1-1646-000CN | Fan cable assembly - From DC Controller board to Fans 1 through 4 | Find 7 |
| 8 | RM1-1629-000CN | Sensor cable assembly | Find 8 |

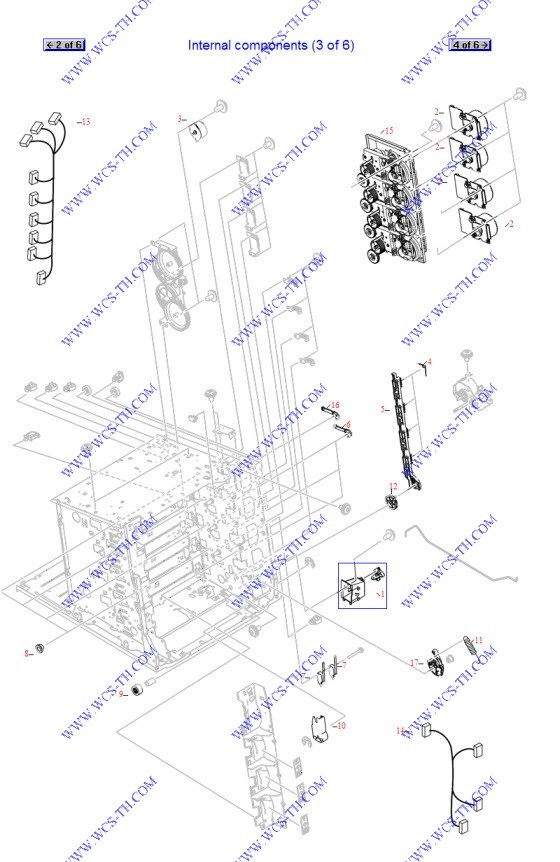

Internal components (3 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1671-000CN | Power switch assembly | Find 1 |
| 2 | RM1-1659-000CN | Drum motor assembly - Provides power for all four drums - For motors (M1) through (M4) - One each - Four used | Find 2 |
| 3 | RK2-0618-000CN | Stepper motor - Disengaging motor (M8) | Find 3 |
| 4 | RC1-4357-000CN | Tension spring - | Find 4 |
| 5 | RC1-4354-000CN | Cartridge interlock plate - Right side plate that provides motion for cartridge pressure levers | Find 5 |
| 6 | RC1-4353-000CN | Right side cartridge pressure lever - Holds cartridge against high voltage contact - Three used | Find 6 |
| 7 | WC4-5242-000CN | Front door ajar switch - Switch SW1 | Find 7 |
| 7 | WC4-5188-000CN | Front door ajar switch - Switch SW1 | Find 7 |
| 8 | RC1-4352-000CN | Right Electrostatic Transfer Belt (ETB) cap - Lower right side of Electrostatic Transfer Belt (ETB) assembly - Slides into a purple plastic piece | Find 8 |
| 9 | RC1-4352-000CN | Right Electrostatic Transfer Belt (ETB) cap - Lower right side of Electrostatic Transfer Belt (ETB) assembly - Slides into a purple plastic piece | Find 9 |
| 10 | RC1-4352-000CN | Right Electrostatic Transfer Belt (ETB) cap - Lower right side of Electrostatic Transfer Belt (ETB) assembly - Slides into a purple plastic piece | Find 10 |
| 11 | RC1-4423-000CN | Tension spring - Provides tension for ETB right side lower pressure plate | Find 11 |
| 12 | RC1-4356-000CN | 70-tooth gear - Located at bottom of right side cartridge interlock plate | Find 12 |
| 13 | RM1-1628-000CN | Motor cable - From DC Controller to all four drum motor assemblies | Find 13 |
| 14 | RM1-1643-000CN | Door switch cable assembly | Find 14 |
| 15 | RM1-1716-000CN | Main drive assembly - Large gear assembly on right side that all four drum motors attach to | Find 15 |
| 16 | RL1-0639-000CN | Top right side cartridge pressure lever - Holds cartridge against high voltage contact - One used | Find 16 |
| 17 | RC1-4360-000CN | Pressure plate - When this plate is pushed, it rotates a gear, which then moves a bar which engages the main drive assembly | Find 17 |
Internal components (4 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1653-000CN | Memory contact cable - Connects to e-label sensors | Find 1 |
| 2 | RM1-1662-000CN | Electrostatic Transfer Belt (ETB) lever assembly - Right top of ETB clips into this | Find 2 |
| 3 | RM1-1663-000CN | Electrostatic Transfer Belt (ETB) lever assembly - Top left of ETB assembly clips into this | Find 3 |
| 6 | RM1-1668-000CN | Cartridge guide assembly - Guide assembly for the right side of the upper two toner cartridges | Find 6 |
| 7 | RM1-1669-000CN | Cartridge guide assembly - Guide assembly for the right side of the lower two toner cartridges | Find 7 |
| 8 | RC1-4309-000CN | 30-tooth gear - Cartridge gear that drives 29-tooth gear | Find 8 |
| 9 | RC1-4310-000CN | 29-tooth gear - Cartridge drive gear | Find 9 |
| 10 | RC1-4382-000CN | Cartridge alienation couple - Coupler that connects the alienation gears, inside the printer, to the alienation mechanisms in the cartridge atrium - Four used | Find 10 |
| 11 | RC1-4383-000CN | Compression spring - Provides pressure for developer release coupler | Find 11 |
| 12 | RM1-1640-000CN | Control panel cable | Find 12 |
| 13 | RM1-1756-000CN | Paper feed assembly - Includes metal plate, pickup drive solenoid, drive gears and media sensor | Find 13 |
| 14 | RM1-1617-000CN | Control panel assembly - Located on upper right front of printer | Find 14 |

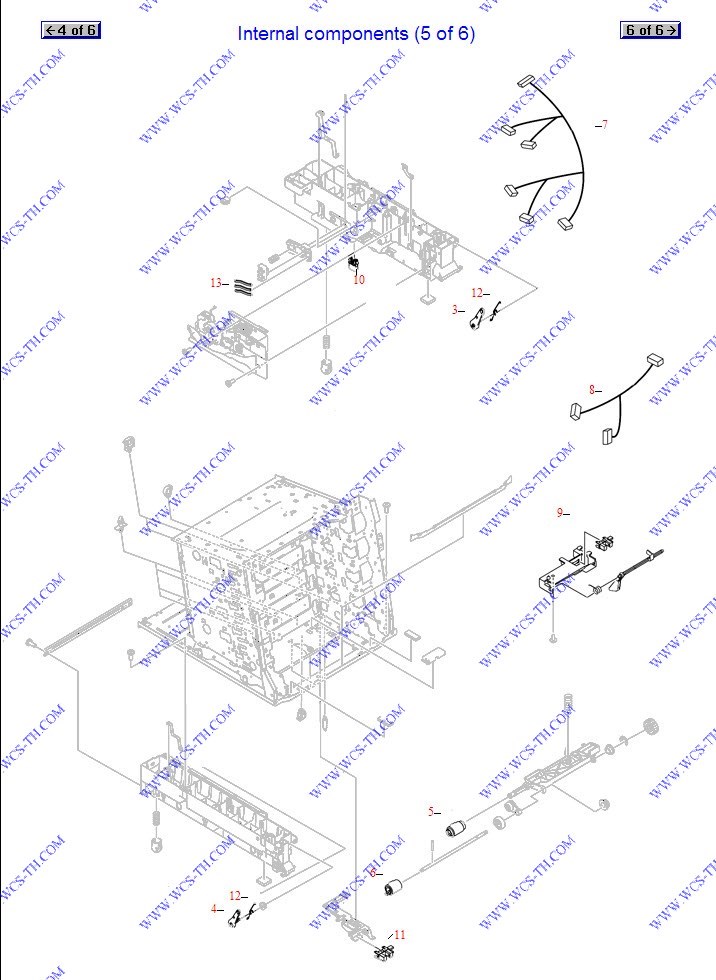

Internal components (5 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RC1-4439-000CN | Multipurpose/tray 1 right link arm | Find 3 |
| 4 | RC1-4441-000CN | Multipurpose/tray 1 left link arm | Find 4 |
| 5 | RM1-0036-020CN | Paper pickup roller - Gray spongy rubber roller on a white cylinder and 24-tooth white gear on one side | Find 5 |
| 6 | RM1-0037-020CN | Paper feed/separation roller assembly - Gray rubber roller on a blue plastic cylinder | Find 6 |
| 7 | RM1-1633-000CN | Paper pickup cable - From DC Controller to several connections in paper pickup area including paper size sensors | Find 7 |
| 8 | RM1-1641-000CN | Paper sensor cable - Between DC Controller and cassette paper sensor | Find 8 |
| 9 | RM1-1692-000CN | Paper detect assembly - Paper flag and sensor assembly for Tray 2 | Find 9 |
| 10 | VS1-7258-007CN | Drawer connector - Connector located on bottom of tray assembly frame on right side, which connects tray assemblies to each other | Find 10 |
| 11 | WG8-5696-000CN | Photo-interrupter sensor assembly (Does not include the sensor flag) | Find 11 |
| 12 | RC1-4440-000CN | Torsion spring - Provides tension for MP Tray link arms - One used per side | Find 12 |
| 13 | RC1-0503-000CN | Paper size detect lever for tray 2 - Also used in optional trays 3 and 4 - Three used per tray - One each | Find 13 |

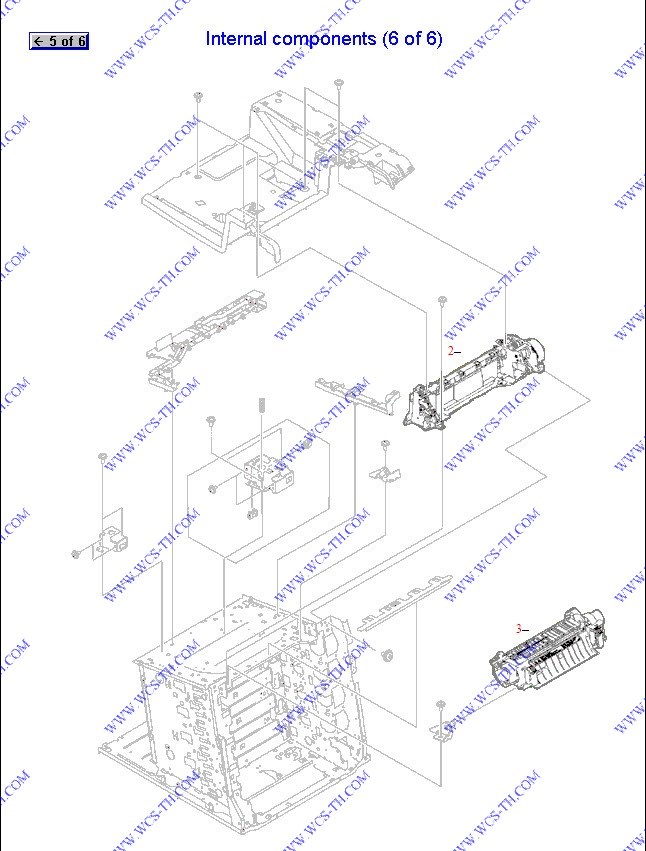

Internal components (6 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RM1-1730-000CN | Delivery assembly - Includes drive motor, rollers and gears - For 100-127VAC operation | Find 2 |
| 2 | RM1-1730-030CN | Delivery assembly - Includes drive motor, rollers and gears - For 100-127VAC operation | Find 2 |
| 2 | RM1-1737-030CN | Delivery assembly - Includes drive motor, rollers and gears - For 220-240VAC operation | Find 2 |
| 2 | RM1-1737-000CN | Delivery assembly - Includes drive motor, rollers and gears - For 220-240VAC operation | Find 2 |
| 3 | RM1-3131-000CN | Fusing assembly - For 100 VAC to 127 VAC - Bonds toner to paper with heat | Find 3 |
| 3 | RM1-3146-070CN | Fusing assembly - For 220 VAC to 240 VAC- Bonds toner to paper with heat | Find 3 |
| 3 | RM1-3146-060CN | Fusing assembly - For 220 VAC to 240 VAC - Bonds toner to paper with heat | Find 3 |
| 3 | RM1-3131-060CN | Fusing assembly - For 100 VAC to 127 VAC - Bonds toner to paper with heat | Find 3 |
| 3 | RM1-3146-000CN | Fusing assembly - For 220 VAC to 240 VAC- Bonds toner to paper with heat | Find 3 |

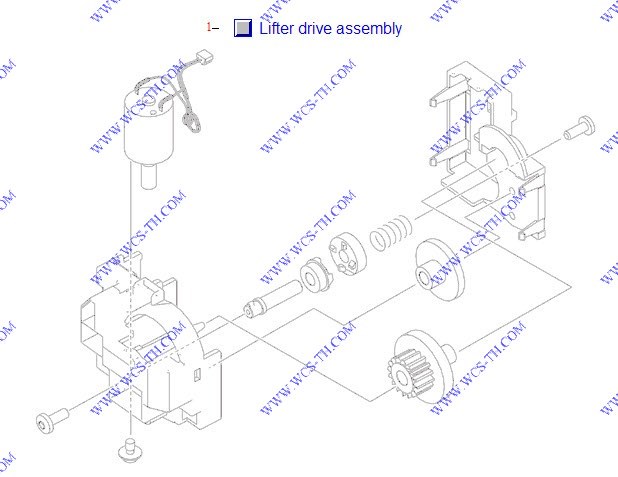

Lifter drive assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1750-030CN | Lifter drive assembly - For paper tray 2 | Find 1 |
| 1 | RM1-1750-000CN | Lifter drive assembly | Find 1 |

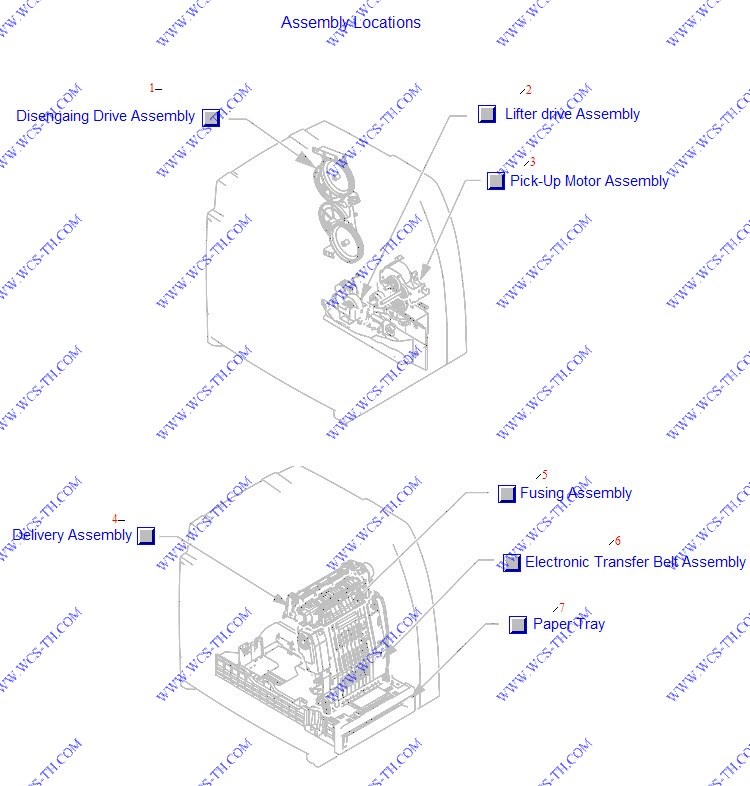

Major components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1717-000CN | Disengaging drive assembly | Find 1 |
| 2 | RM1-1750-030CN | Lifter drive assembly - For paper tray 2 | Find 2 |
| 3 | RM1-1666-000CN | Pick-up motor assembly | Find 3 |
| 4 | RM1-1737-030CN | Delivery assembly - Includes drive motor, rollers and gears - For 220-240VAC operation | Find 4 |
| 4 | RM1-1730-030CN | Delivery assembly - Includes drive motor, rollers and gears - For 100-127VAC operation | Find 4 |
| 5 | RM1-3146-060CN | Fusing assembly - For 220 VAC to 240 VAC - Bonds toner to paper with heat | Find 5 |
| 5 | RM1-3146-070CN | Fusing assembly - For 220 VAC to 240 VAC- Bonds toner to paper with heat | Find 5 |
| 5 | RM1-3131-060CN | Fusing assembly - For 100 VAC to 127 VAC - Bonds toner to paper with heat | Find 5 |
| 6 | RM1-3161-130CN | Electrostatic transfer belt (ETB) assembly | Find 6 |
| 7 | RM1-1693-190CN | 500-sheet paper input tray - Paper cassette for tray 2 | Find 7 |
Paper pick-up drive assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1666-000CN | Pick-up motor assembly | Find 1 |

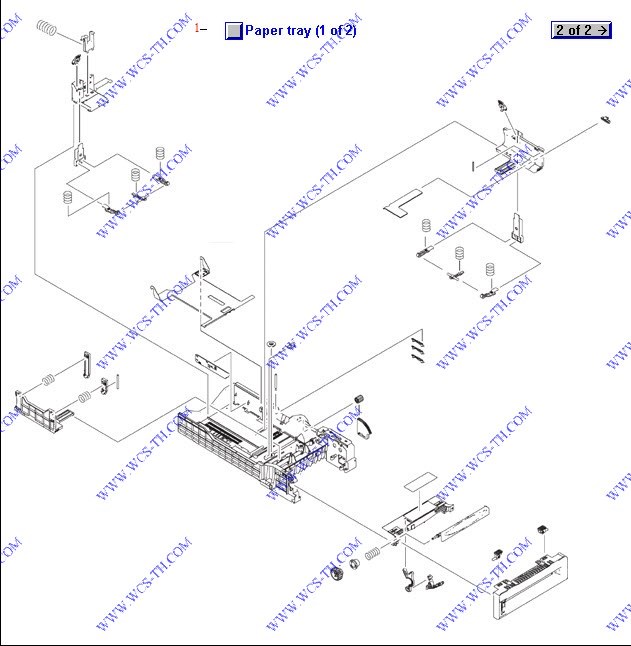

Paper tray (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1693-000CN | 500 sheet paper input tray - Paper cassette for tray 2 | Find 1 |
| 1 | RM1-1693-190CN | 500-sheet paper input tray - Paper cassette for tray 2 | Find 1 |
| 1 | RM1-1693-020CN | 500 sheet paper input tray - Paper cassette for tray 2 | Find 1 |
Paper tray (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1693-190CN | 500-sheet paper input tray - Paper cassette for tray 2 | Find 1 |
| 1 | RM1-1693-020CN | 500 sheet paper input tray - Paper cassette for tray 2 | Find 1 |
| 1 | RM1-1693-000CN | 500 sheet paper input tray - Paper cassette for tray 2 | Find 1 |
| 3 | RC1-3293-000CN | Torque limiter - Located next to paper feeder roller in optional 500 sheet tray assembly | Find 3 |
| 4 | RF5-3749-000CN | Separation plate for tray 2 - Black plastic T shape with friction pad | Find 4 |
| 5 | RF5-3750-020CN | Multipurpose/tray 1 separation pad assembly | Find 5 |
| 6 | RL1-0019-000CN | Tray 1 pickup roller - D-shaped roller located under the envelope cover | Find 6 |
| 7 | RM1-0037-020CN | Paper feed/separation roller assembly - Gray rubber roller on a blue plastic cylinder | Find 7 |
Printer PCBs
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1607-080CN | DC Controller PC board assembly | Find 1 |
| 1 | RM1-1607-070CN | DC Controller PC board assembly | Find 1 |
| 1 | RM1-1607-090CN | DC Controller PC board assembly | Find 1 |
| 2 | RM1-1618-000CN | Memory board PCA | Find 2 |
| 3 | RM1-1609-000CN | Toner sensor PC Board - Small vertical board on right side of toner cartridges | Find 3 |
| 4 | RM1-1608-000CN | High voltage power supply PC board | Find 4 |
| 5 | RM1-1642-000CN | Formatter board power cable assembly | Find 5 |
| 6 | RK2-1171-000CN | Flat cable - Connects formatter board to DC controller board | Find 6 |
| 7 | RK2-0627-000CN | Low voltage power supply board - 110 VAC | Find 7 |
| 7 | RK2-0628-000CN | Low voltage power supply board - 220 VAC | Find 7 |
| 8 | Q7725-67942 | Firmware - Compact flash memory - For the HP Color LaserJet CP4005 Series only | Find 8 |
| 8 | Q7725-67984 | Compact flash firmware memory module - For the HP Color LaserJet CP4005 Series only - Version 46.034.1 | Find 8 |
| 9 | CB503-69001 | Formatter (main logic) board - For HP Laserjet CP4005dn Series only | Find 9 |
Stapler/stacker
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q7003-67908 | Stapler/Stacker accessory for Color LaserJet 4700, 4730mfp, and CP4005 printers | Find 1 |
| 2 | PF4138K067NI | Top cover - For the stapler/stacker accessory | Find 2 |
| 3 | C8085-60541 | Staple cartridge - Contains 5000 staples - For the add-on staple/stacker unit | Find 3 |
Stapler/stacker parts
| Pic No. | Parts ID | Parts Name | Link |
| 1 | PF4138K203NI | Stapler PCB board assembly | Find 1 |
| 2 | PF4138K064NI | Stapler unit assembly - For 24 VAC 2.5 Amp | Find 2 |
