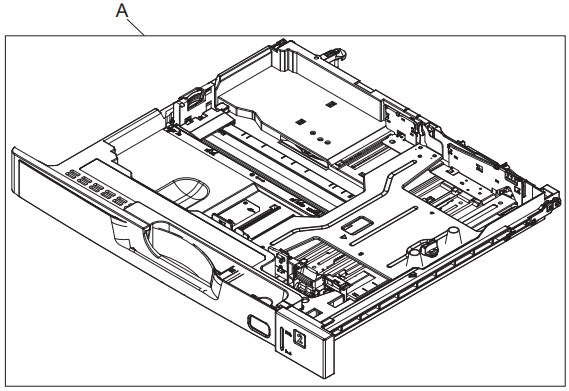

Cassette
| Pic No. | Parts ID | Parts Name | Link |
| A | RM1-7138-000CN | Cassette | Find A |

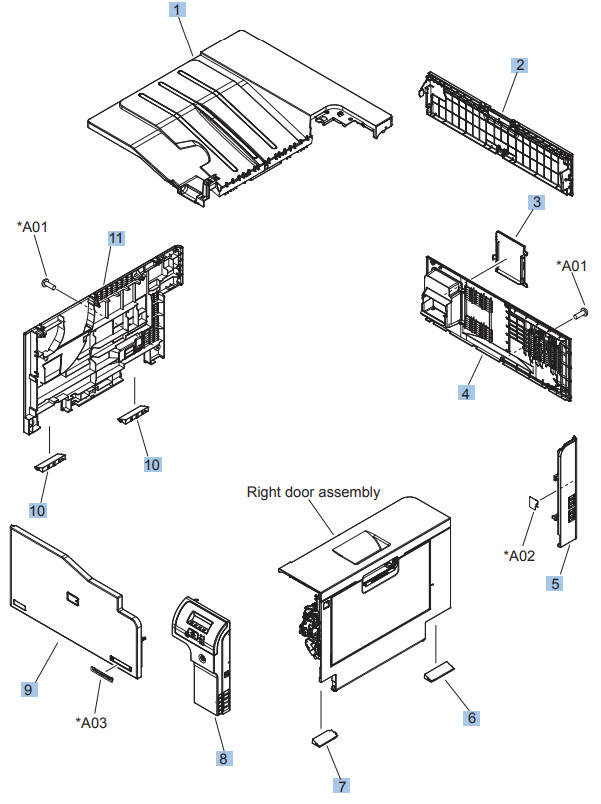

External covers, panels, and doors
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-7149-000CN | Cover, top | Find 1 |
| 2 | RC2-7034-000CN | Door, toner collection unit access | Find 2 |
| 3 | RC2-9033-000CN | Cover, DIMM | Find 3 |
| 4 | RM1-7146-000CN | Cover, rear | Find 4 |
| 5 | RM1-7142-000CN | Cover, right rear | Find 5 |
| 6 | RC2-6626-000CN | Cover, handle, lower-right, rear | Find 6 |
| 7 | RC2-6627-000CN | Cover, handle, lower-right, front | Find 7 |
| 8 | RM1-7145-000CN | Cover, right front assembly | Find 8 |
| 9 | RM1-7133-000CN | Cover, front assembly | Find 9 |
| 10 | RC2-6625-000CN | Cover, handle, lower-left | Find 10 |
| 11 | RM1-7143-000CN | Cover, left assembly | Find 11 |

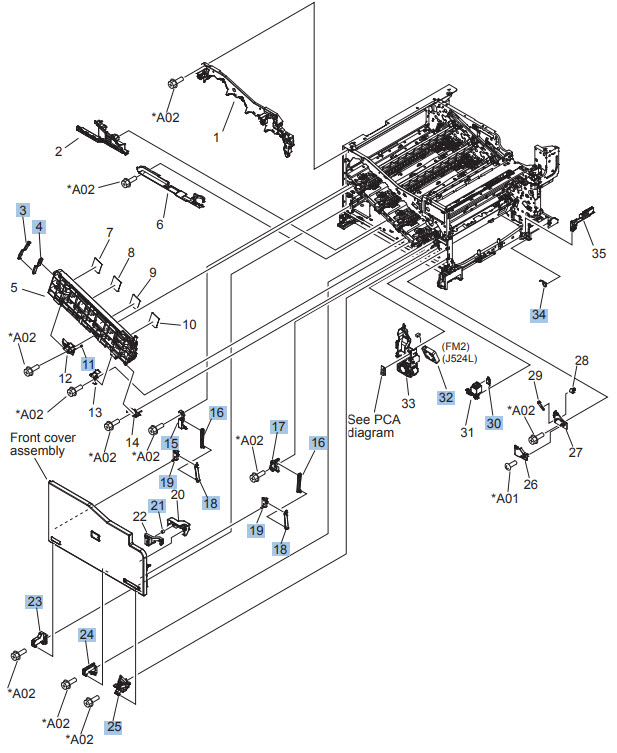

Internal components (1 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RC2-6719-000CN | Stopper, inner door, 1 | Find 3 |
| 4 | RC2-6736-000CN | Stopper, inner door, 2 | Find 4 |
| 11 | RC2-7209-000CN | Spring, grounding | Find 11 |
| 15 | RC2-6735-000CN | Mount, cover arm, front | Find 15 |
| 16 | RC2-6732-000CN | Arm, front cover, 1 | Find 16 |
| 17 | RC2-6717-000CN | Mount, inner door toggle | Find 17 |
| 18 | RC2-6733-000CN | Arm, front cover, 2 | Find 18 |
| 19 | RC2-6745-000CN | Mount, stopper arm | Find 19 |
| 21 | RU6-2721-000CN | Spring, compression | Find 21 |
| 23 | RC2-6713-000CN | Hinge, front cover, left | Find 23 |
| 24 | RC2-6738-000CN | Hinge, front cover, center | Find 24 |
| 25 | RC2-6715-000CN | Hinge, front cover, right | Find 25 |
| 30 | WC4-5251-000CN | Microswitch | Find 30 |
| 32 | RK2-2728-000CN | Fan, fuser | Find 32 |
| 34 | RC2-7092-000CN | Spring, leaf, grounding | Find 34 |
Internal components (2 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-6167-000CN | Drive assembly, duplex reverse (duplex model only) | Find 1 |
| 1 | RM1-6121-000CN | Drive assembly, simplex model | Find 1 |
| 4 | CE710-69001 | Fuser assembly, 110V (included in service kit) | Find 4 |
| 4 | CD710-69002 | Fuser assembly, 220V (included in service kit) | Find 4 |
| 6 | RM1-6076-000CN | Fuser drive assembly | Find 6 |
| 7 | RM1-6075-000CN | Fuser motor assembly | Find 7 |
| 8 | RM1-7914-000CN | Gear assembly, fuser | Find 8 |
| 9 | RM1-6868-000CN | Cable, SV joint, low-voltage power supply | Find 9 |
| 10 | RU6-2710-000CN | Spring, tension, registration sensor | Find 10 |
| 11 | RC2-7197-000CN | Support, frame, rear | Find 11 |
| 12 | RM1-6002-000CN | Registration sensor assembly | Find 12 |
| 13 | RC2-7196-000CN | Support, frame, front | Find 13 |
| 14 | CE710-69007 | Separation roller assembly (included in service kit) | Find 14 |
| 15 | VS1-7207-019CN | Connector, snap tight, black | Find 15 |
| 16 | RC2-7297-000CN | Guide, paper feed | Find 16 |
| 17 | RM1-6164-000CN | Sensor, cassette last paper presence | Find 17 |
| 18 | RC2-6642-000CN | Cover, connector, lower | Find 18 |

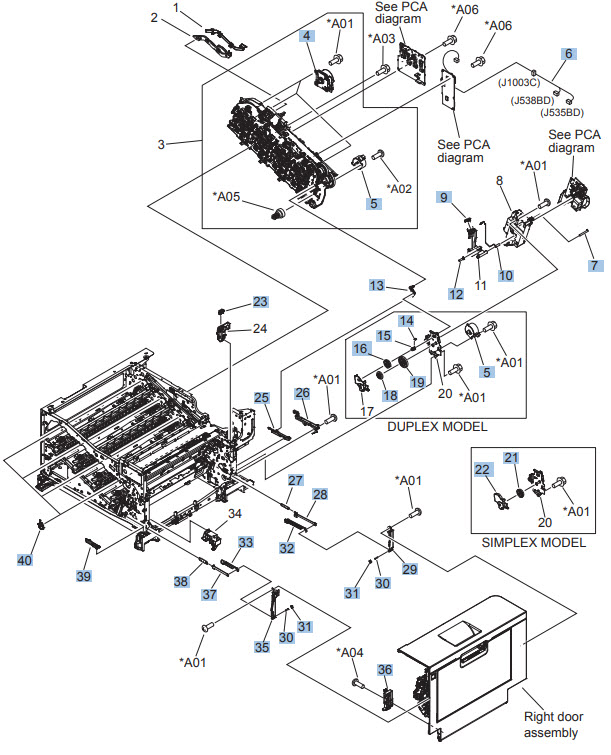

Internal components (3 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 4 | RM1-6089-000CN | Motor, main drive assembly | Find 4 |
| 5 | RK2-0997-000CN | Motor, drive, simplex model | Find 5 |
| 5 | RK2-0997-000CN | Motor, duplex drive (duplex model only) | Find 5 |
| 6 | RM1-6847-000CN | Cable, feed joint, environment sensor | Find 6 |
| 7 | RU6-2772-000CN | Spring, grounding, second-transfer high-voltage PCA | Find 7 |
| 9 | RC2-6691-000CN | Cap, T2 contact, second-transfer high-voltage PCA | Find 9 |
| 10 | RU6-2771-000CN | Spring, contact, second-transfer high-voltage PCA | Find 10 |
| 12 | RC2-6700-000CN | Spring, grounding, second-transfer high-voltage PCA | Find 12 |
| 13 | RC2-6823-000CN | Link, ITB coupling release | Find 13 |
| 14 | RU6-2671-000CN | Spring, tension, duplex model | Find 14 |
| 15 | RC2-6932-000CN | Hook, duplexing spring (duplex model only) | Find 15 |
| 16 | RU6-0771-000CN | Gear, 25T, duplex model | Find 16 |
| 18 | RU6-0772-000CN | Gear, 25T, duplex model | Find 18 |
| 19 | RU6-0773-000CN | Gear, 74T, duplex model | Find 19 |
| 21 | RU6-0775-000CN | Gear, 18T/29T, simplex model | Find 21 |
| 22 | RC3-0688-000CN | Cover, gear, simplex model | Find 22 |
| 23 | WG8-5696-000CN | Sensor, right door | Find 23 |
| 25 | RC2-6824-000CN | Arm, ITB coupling release | Find 25 |
| 26 | RC2-6635-000CN | Rail, door link, rear lower | Find 26 |
| 27 | RU6-2744-000CN | Spring, tension, rear | Find 27 |
| 28 | RC2-7273-000CN | Plate, right door link, rear | Find 28 |
| 29 | RL1-2282-000CN | Plate, right door link, fixed, rear | Find 29 |
| 30 | RU5-4979-000CN | Shaft, right door link | Find 30 |
| 31 | RC2-7234-000CN | Lock, door link, right | Find 31 |
| 32 | RC2-7236-000CN | Link, right door, 2 rear | Find 32 |
| 33 | RC2-7233-000CN | Link, right door, 2 front | Find 33 |
| 35 | RL1-2281-000CN | Plate, right door link, fixed, front | Find 35 |
| 36 | RC2-7094-000CN | Hinge, right door, front | Find 36 |
| 37 | RC2-7272-000CN | Plate, right door link, front | Find 37 |
| 38 | RU6-2727-000CN | Spring, tension, front | Find 38 |
| 39 | RC2-6634-000CN | Rail, door link, front lower | Find 39 |
| 40 | RC2-6811-000CN | Support, developing coupling | Find 40 |

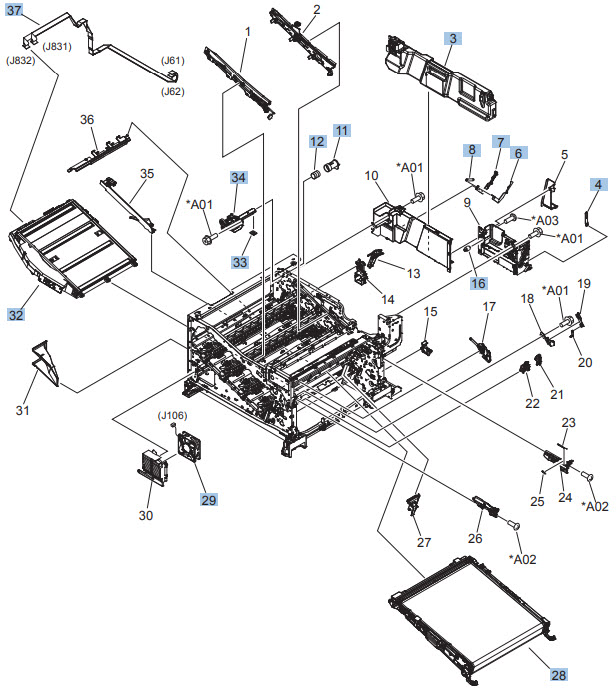

Internal components (4 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 3 | CE710-69005 | Toner collection unit (included in the service kit) | Find 3 |
| 4 | RC2-7035-000CN | Arm, waste toner, left | Find 4 |
| 6 | RC2-9649-000CN | Plate, arm reinforcement | Find 6 |
| 7 | RC2-7036-000CN | Arm, waste toner, right | Find 7 |
| 8 | RU6-2831-000CN | Spring, tension | Find 8 |
| 11 | RC2-7010-000CN | Shutter, exhaust | Find 11 |
| 12 | RU6-2683-000CN | Spring, compression | Find 12 |
| 16 | RU6-0795-000CN | Gear, link worm | Find 16 |
| 28 | CE710-69003 | ITB assembly (included in the service kit) | Find 28 |
| 29 | RK2-2276-000CN | Fan, power supply | Find 29 |
| 32 | RM1-6122-000CN | Laser scanner assembly | Find 32 |
| 33 | RC2-7018-000CN | Seal, toner supporter guide 1 | Find 33 |
| 34 | RM1-6040-000CN | Toner feed assembly | Find 34 |
| 37 | RM1-6804-000CN | Cable assembly, flat-flexible | Find 37 |

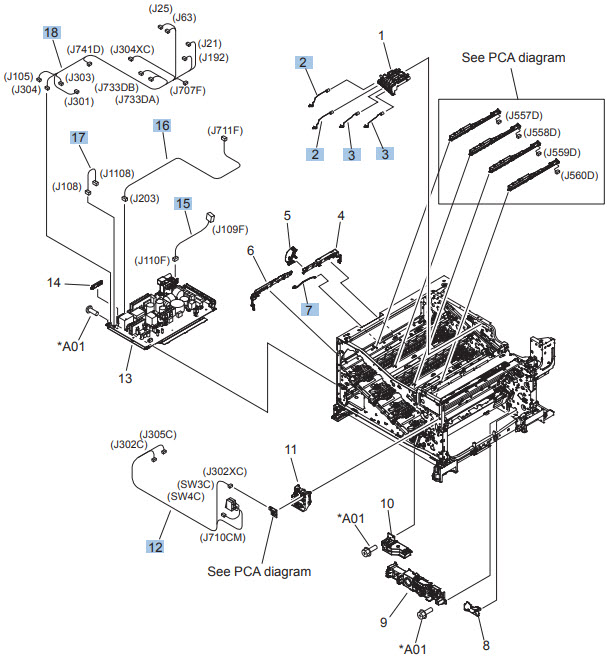

Internal components (5 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RU6-2767-000CN | Spring, contact | Find 2 |
| 3 | RU6-2768-000CN | Spring, contact | Find 3 |
| 7 | RC2-6611-000CN | Spring, rod | Find 7 |
| 12 | RM1-6831-000CN | Cable, switch | Find 12 |
| 15 | RM1-6811-000CN | Cable, low-voltage AC joint | Find 15 |
| 16 | RM1-6807-000CN | Cable, low voltage power supply | Find 16 |
| 17 | RM1-6813-000CN | Cable, low-voltage power supply, test | Find 17 |
| 18 | RM1-6835-000CN | Cable, left, high-voltage power supply to low-voltage power supply | Find 18 |

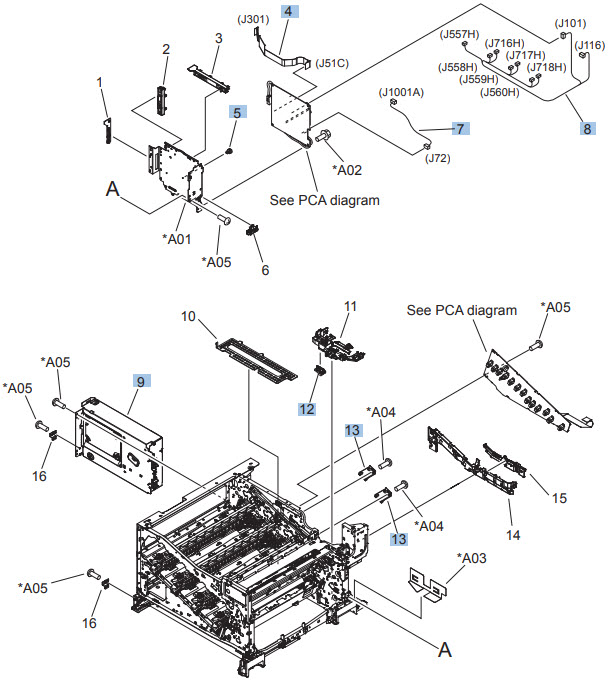

Internal components (6 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 4 | RK2-2969-000CN | Cable, flat flexible, 3 | Find 4 |
| 5 | VT2-5176-004CN | Spacer, DC controller PCA | Find 5 |
| 7 | RM1-6822-000CN | Cable, primary transfer | Find 7 |
| 8 | RM1-6863-000CN | Cable, rear | Find 8 |
| 9 | RM1-6066-000CN | Formatter case | Find 9 |
| 12 | VS1-7514-008CN | Connector, 8-pin, paper-pickup | Find 12 |
| 13 | RC2-6673-000CN | Plate, box pillar | Find 13 |

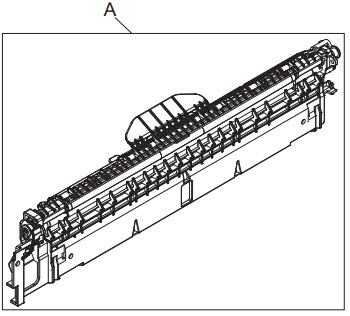

Paper delivery assembly
| Pic No. | Parts ID | Parts Name | Link |
| A | RM1-6165-000CN | Paper delivery assembly | Find A |

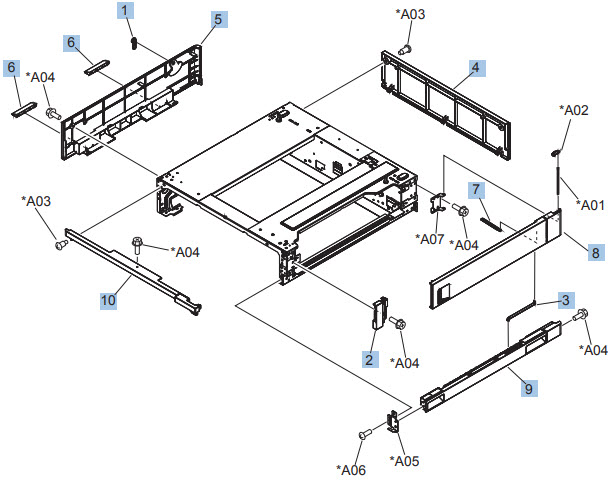

Paper feeder external components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC2-9303-000CN | Handle, lock, rear (paper feeder) | Find 1 |
| 2 | RC2-9320-000CN | Cover, right front (paper feeder) | Find 2 |
| 3 | RC2-9327-000CN | Link, right door, lower (paper feeder) | Find 3 |
| 4 | RC2-9330-000CN | Cover, rear (paper feeder) | Find 4 |
| 5 | RC2-9331-000CN | Cover, left (paper feeder) | Find 5 |
| 6 | RC2-9332-000CN | Cover, handle, lower (paper feeder) | Find 6 |
| 7 | RC2-9335-000CN | Link, right door, upper (paper feeder) | Find 7 |
| 8 | RM1-6946-000CN | Right door assembly (paper feeder) | Find 8 |
| 9 | RM1-6948-000CN | Cover, right lower assembly (paper feeder) | Find 9 |
| 10 | RM1-6949-000CN | Cover, upper front assembly (paper feeder) | Find 10 |

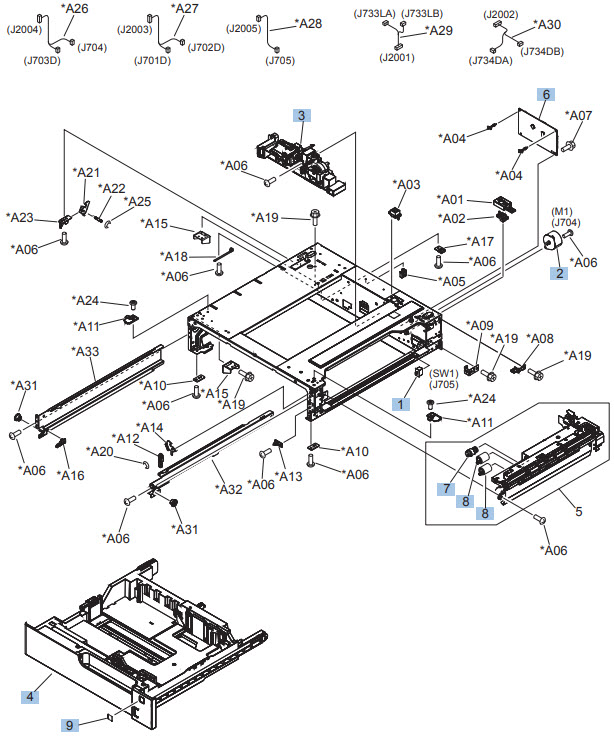

Paper feeder internal components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | WC2-5512-000CN | Switch, bottom (paper feeder) | Find 1 |
| 2 | RK2-1331-000CN | Motor, pickup (paper feeder) | Find 2 |
| 3 | RM1-3819-000CN | Lifter drive assembly (paper feeder) | Find 3 |
| 4 | RM1-6942-000CN | Cassette (paper feeder) | Find 4 |
| 5 | RM1-6944-000CN | Paper pickup assembly (paper feeder) | Find 5 |
| 6 | RM1-6987-000CN | Paper feeder driver PCA | Find 6 |
| 7 | CE710-69008 | Roller, pickup, paper feeder (included in service kit) | Find 7 |
| 8 | CE710-69008 | Roller, feed, paper feeder (included in service kit) | Find 8 |
| 9 | RC2-9363-000CN | Label, cassette number | Find 9 |

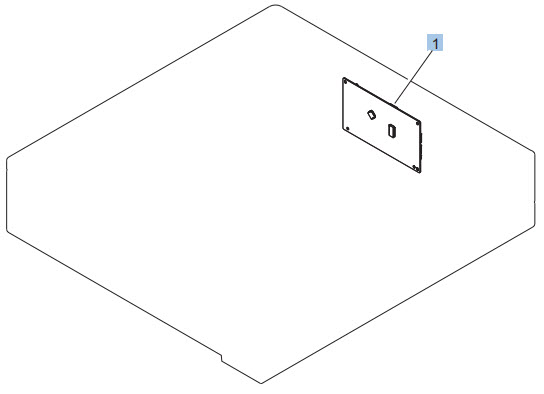

Paper feeder PCA
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-6987-000CN | Paper feeder driver PCA | Find 1 |

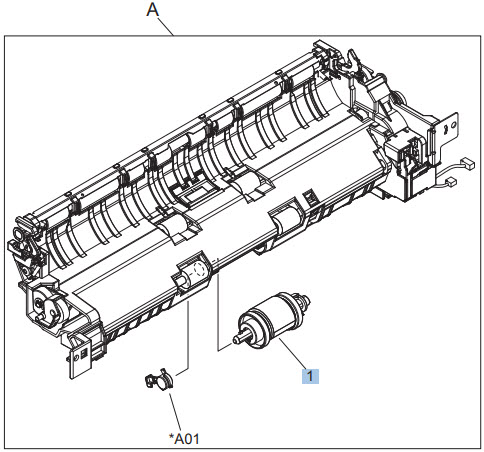

Paper pickup assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | CE710-69007 | Paper pickup roller assembly (included in service kit) | Find 1 |
| A | RM1-6106-000CN | Paper pickup assembly (simplex model) | Find A |
| A | RM1-6105-000CN | Paper pickup assembly (duplex model) | Find A |

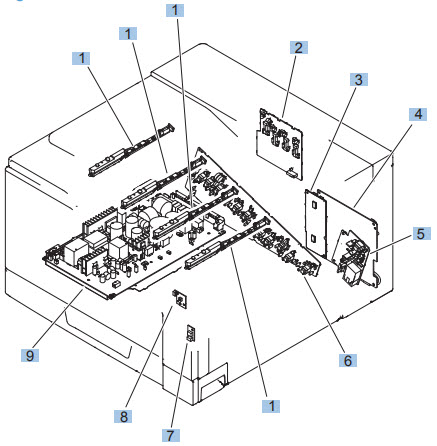

PCAs
| Pic No. | Parts ID | Parts Name | Link |
| A | CE490-67901 | Formatter PCA (not illustrated) | Find A |
| 1 | RM1-6779-000CN | Waste toner detection PCA | Find 1 |
| 2 | RM1-6801-000CN | Primary transfer high-voltage PCA | Find 2 |
| 3 | RM1-6743-000CN | Driver PCA (duplex model) | Find 3 |
| 3 | RM1-6783-000CN | Driver PCA (simplex model) | Find 3 |
| 4 | RM1-6639-000CN | DC Controller PCA (duplex model) | Find 4 |
| 4 | RM1-6796-000CN | DC Controller PCA (simplex model) | Find 4 |
| 5 | RM1-6802-000CN | Secondary transfer high-voltage PCA | Find 5 |
| 6 | RM1-6800-000CN | Imaging high-voltage PCA | Find 6 |
| 7 | RK2-2884-000CN | Environment sensor PCA | Find 7 |
| 8 | RM1-6761-000CN | Power switch PCA | Find 8 |
| 9 | RM1-6755-000CN | Low-voltage power supply PCA (110V) | Find 9 |
| 9 | RM1-6756-000CN | Low-voltage power supply PCA (220V) | Find 9 |

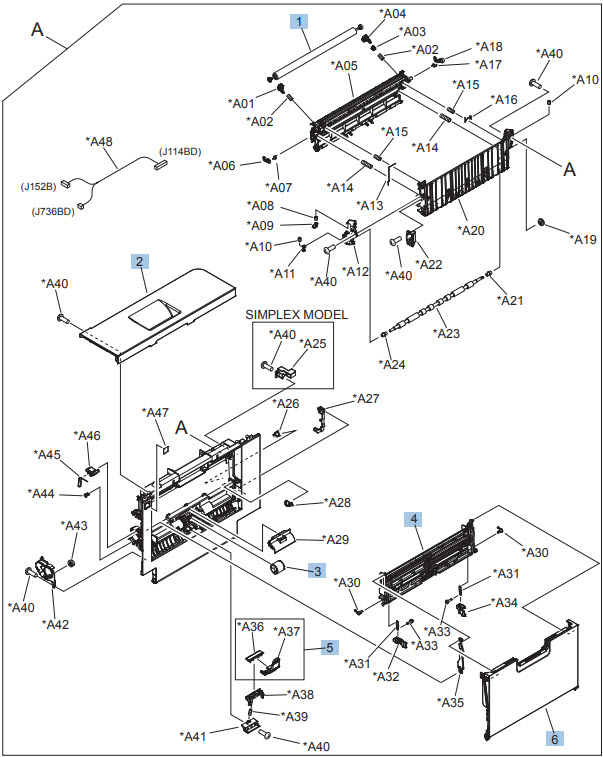

Right door assembly
| Pic No. | Parts ID | Parts Name | Link |
| 5 | CE710-69006 | Separation pad, Tray 1 (included in the service kit) | Find 5 |
| 6 | RM1-6045-000CN | Tray 1 (MP tray) assembly | Find 6 |
| A | RM1-6104-000CN | Right door assembly, duplex model | Find A |
| A | RM1-6139-000CN | Right door assembly, simplex model | Find A |
| 1 | CE710-69004 | Roller, secondary transfer, T2 (included in the service kit) | Find 1 |
| 2 | RC2-7091-000CN | Door, right upper | Find 2 |
| 3 | CE710-69006 | Roller, paper pickup, Tray 1 (included in the service kit) | Find 3 |
| 4 | RM1-6043-000CN | Lifter plate assembly, Tray 1 | Find 4 |
