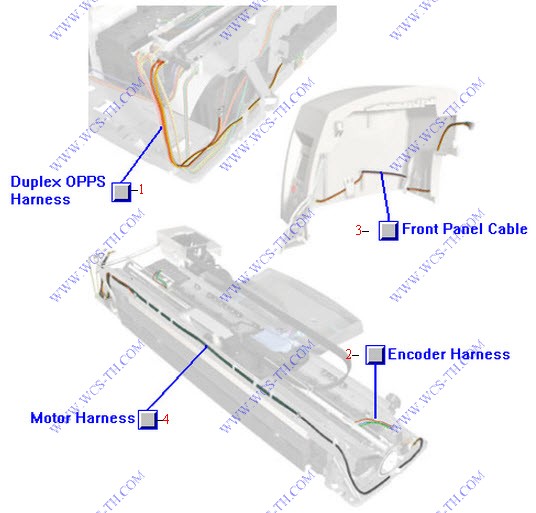

Cable Harness
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C7791-60231 | Duplexer out of paper sensor (OOPS) harness | Find 1 |
| 1 | Q1292-67016 | Duplexer out of paper sensor (OOPS) harness | Find 1 |
| 2 | C7791-60214 | Encoder harness | Find 2 |
| 2 | Q1292-67014 | Encoder harness | Find 2 |
| 3 | C7790-60421 | Front panel cable - Connects the front panel to the main logic PC board | Find 3 |
| 3 | Q1292-67010 | Front panel cable - Connects the front panel to the main logic PC board | Find 3 |
| 4 | Q1292-67029 | Motor harness kit | Find 4 |
| 4 | C7791-60213 | Motor harness | Find 4 |
Cover Assemblies
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C7791-60277 | Access door - Covers the top of the printer and provides access to the printheads and carriage | Find 1 |
| 2 | Q1292-60258 | Back/center cover - Covers the back and center of the printer and is located under the access door | Find 2 |
| 2 | C7791-60285 | Back/center cover - Covers the back and center of the printer and is located under the access door | Find 2 |
| 3 | Q1292-67022 | Door sensor assembly - Senses when the access door is opened or closed | Find 3 |
| 3 | C7790-60119 | Door sensor assembly | Find 3 |
| 3 | Q1293-60054 | Door sensor assembly - Senses when the access door is opened or closed | Find 3 |
| 4 | C7790-60295 | Filter assembly - Located inside the right side cover | Find 4 |
| 4 | C7790-60146 | Filter Assembly - Located inside the right cover assembly | Find 4 |
| 4 | Q1292-67009 | Filter assembly - Located inside the right side cover | Find 4 |
| 5 | C7791-60294 | Ink cartridge door - Provides access to the ink cartridges - DesignJet 130 ONLY | Find 5 |
| 5 | C7791-60295 | Ink cartridge door - Provides access to the ink cartridges - DesignJet 130nr ONLY | Find 5 |
| 6 | C7791-60300 | Left cover assembly - Houses the control panel | Find 6 |
| 7 | C7790-60457 | Printhead door assembly - Provides access to the printheads - Includes ink cartridge door hinge | Find 7 |
| 8 | Q1292-60271 | Right cover assembly - Houses the ink supply station and service station | Find 8 |
| 8 | C7791-60286 | Right cover assembly - Houses the ink supply station and service station | Find 8 |
| 9 | C7796-67002 | Rear trim kit - Attaches to the rear of the printer on either side of the back/center cover (two used) | Find 9 |
| 9 | C7791-60216 | Rear trim kit - Attaches to the rear of the printer on either side of the back/center cover (two used) | Find 9 |

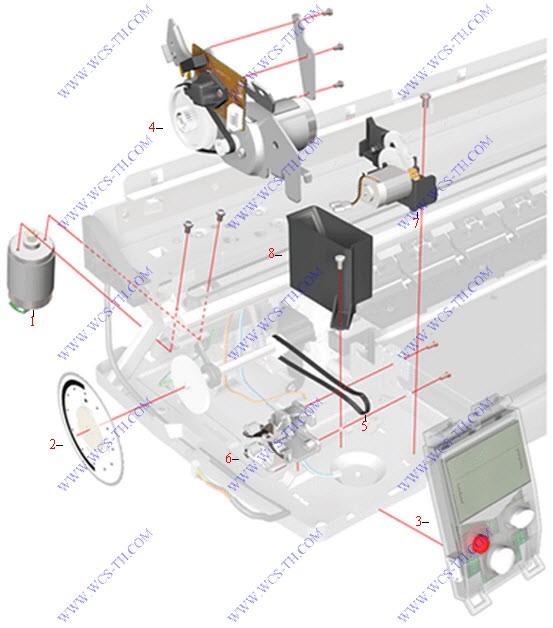

Left-side Assemblies
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C7791-60143 | Carriage drive motor - Drives the carriage belt | Find 1 |
| 1 | Q1292-60207 | Carriage drive motor - Drives the carriage belt | Find 1 |
| 2 | C8108-67051 | Paper motor encoder disk | Find 2 |
| 3 | C7796-67004 | Control panel - Front left control panel | Find 3 |
| 3 | C7796-67005 | Control panel - Front left control panel | Find 3 |
| 3 | C7791-60141 | Control panel - Front left control panel | Find 3 |
| 3 | C7796-60208 | Control panel - Front left control panel | Find 3 |
| 4 | Q1292-60218 | Paper motor assembly | Find 4 |
| 4 | C8108-67038 | Paper motor assembly | Find 4 |
| 5 | C8108-67048 | Drive belt for the output mechanism assembly | Find 5 |
| 6 | Q1293-60068 | Output mechanism support assembly | Find 6 |
| 6 | C8108-67042 | Output mechanism support assembly | Find 6 |
| 7 | C8108-67040 | Ramp motor assembly | Find 7 |
| 8 | C7791-60203 | Ink spittoon | Find 8 |

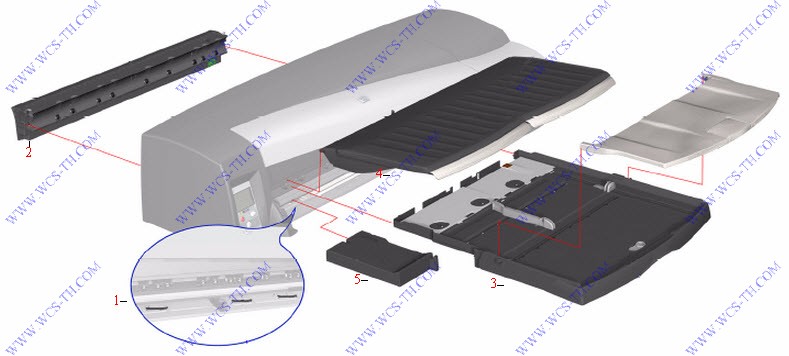

Paper Feed Assembies
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C8108-67050 | Drawer and spring cam | Find 1 |
| 2 | Q1292-60215 | Rear cleanout door assembly | Find 2 |
| 2 | C7791-60127 | Rear cleanout door assembly | Find 2 |
| 2 | Q1292-60283 | Cleanout assembly door - D-size packed - Rear access door that provides access to paper jams | Find 2 |
| 3 | Q1292-60097 | Paper input tray assembly - Holds paper supply for printer | Find 3 |
| 3 | C7791-60298 | Paper input tray assembly - Holds paper supply for printer | Find 3 |
| 4 | C7791-60280 | Paper output tray assembly | Find 4 |
| 5 | C7791-60297 | Paper input tray cover - Black platic cover that is placed on top of the paper input tray | Find 5 |
Printer Stand and Paper Bin
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q1246-60007 | Legs assembly (two used) | Find 1 |
| 2 | Q1246-60008 | X-brace assembly | Find 2 |
| 3 | Q1246-60009 | Foot assembly - Includes 2 rollers and mounting plate - Also includes mounting hardware and T-handle screw driver tool | Find 3 |
| 4 | Q1246-60011 | Base adaptor kit (two used) - For connecting the base of the plotter to the stand assembly | Find 4 |
| 5 | Q1246-60012 | Input tray support | Find 5 |
| 6 | Q1246-60010 | Paper bin assembly | Find 6 |

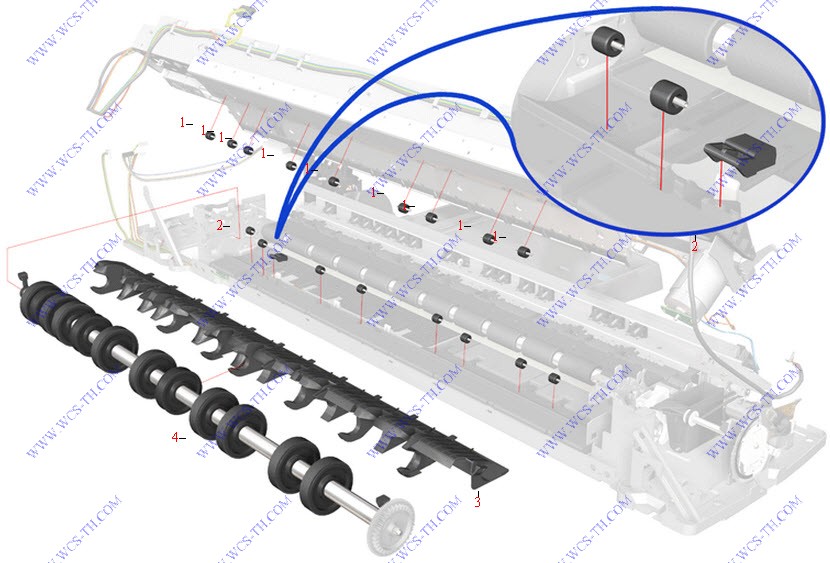

Rear Paper Path Assemblies
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q1292-67015 | Upper paper guide roller - Helps to guide media through paper path | Find 1 |
| 1 | C7791-60230 | Upper paper guide roller kit (includes 8 rollers) | Find 1 |
| 2 | Q1292-67018 | Lower paper guide roller kit - Helps to guide media through paper path | Find 2 |
| 2 | C7791-60235 | Lower paper guide roller kit | Find 2 |
| 3 | C7791-60202 | Inner paper guide - Guides the paper through the paper path - Mounts behind the pickup roller assembly | Find 3 |
| 3 | Q1292-67023 | Inner paper guide - Guides the paper through the paper path - Mounts behind the pickup roller assembly | Find 3 |
| 4 | C7791-60200 | Pick roller assembly | Find 4 |
| 4 | Q1292-60210 | Pick roller assembly - Picks media from the input paper tray and feeds it through the paper path | Find 4 |
Right-side Assemblies
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C7796-67001 | Ink Service Station (ISS) rear absorber foam - Absorbs ink during the cleaning process | Find 1 |
| 1 | C7790-60144 | Ink Service Station (ISS) rear absorber foam - Absorbs ink during the cleaning process | Find 1 |
| 2 | C8109-67022 | ISS bottom aborber foam | Find 2 |
| 3 | C7790-60089 | Ink supply station assembly | Find 3 |
| 3 | C7790-60419 | Ink supply service station (ISS) assembly - Holds the ink cartridges and pumps ink out to the printheads | Find 3 |
| 4 | Q1292-67038 | Worldwide input power supply - 100-240VAC, 50/60Hz, 68W - Includes fan | Find 4 |
| 4 | C7790-60091 | Worldwide input power supply - 100-240VAC, 50/60Hz, 68W - Includes fan | Find 4 |
| 4 | Q1292-67033 | Worldwide input power supply - 100-240VAC, 50/60Hz, 68W - Includes fan | Find 4 |
| 4 | Q1293-60053 | Worldwide input power supply - 100-240VAC, 50/60Hz, 68W - Includes fan | Find 4 |
| 5 | Q1292-60208 | Cleanout interconnect PCA | Find 5 |
| 5 | C7791-60219 | Cleanout interconnect PCA | Find 5 |
| 5 | Q1292-67020 | Cleanout interconnect PCA | Find 5 |
| 6 | Q1292-67034 | Electronics module assembly | Find 6 |

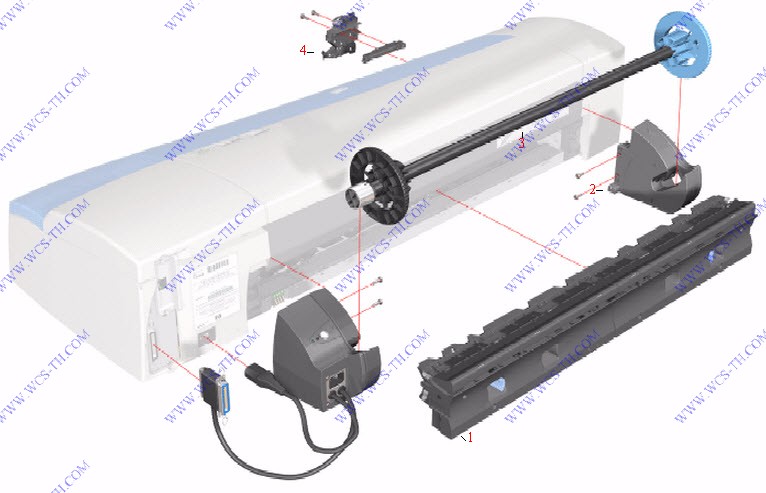

Rollfeed Components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q1247-60188 | Automatic rollfeed kit - Complete automatic paper rollfeed assembly - Includes motor and large bracket that motor attaches to back of plotter | Find 1 |
| 1 | Q1247-60189 | Automatic roll feeder cleanout - Includes packaging and the automatic roll feeder cleanout service devise | Find 1 |
| 1 | Q1247-60023 | Automatic roll feeder cleanout service kit - Includes motor and large bracket that motor attaches to on the back of plotter | Find 1 |
| 1 | Q1247-60187 | Service automatic rollfeed (ARSS) bracket - Large bracket that the ARSS cleanout service kit attaches to, located at the back of the plotter | Find 1 |
| 2 | C7791-60215 | Rollfeed support bracket - Used in conjunction with the automatic rollfeed kit | Find 2 |
| 2 | Q1292-60238 | Rollfeed support bracket - Used in conjunction with the automatic rollfeed kit | Find 2 |
| 3 | C7797-60008 | 24-inch spindle assembly | Find 3 |
| 4 | Q1292-60064 | Media cutter assembly | Find 4 |

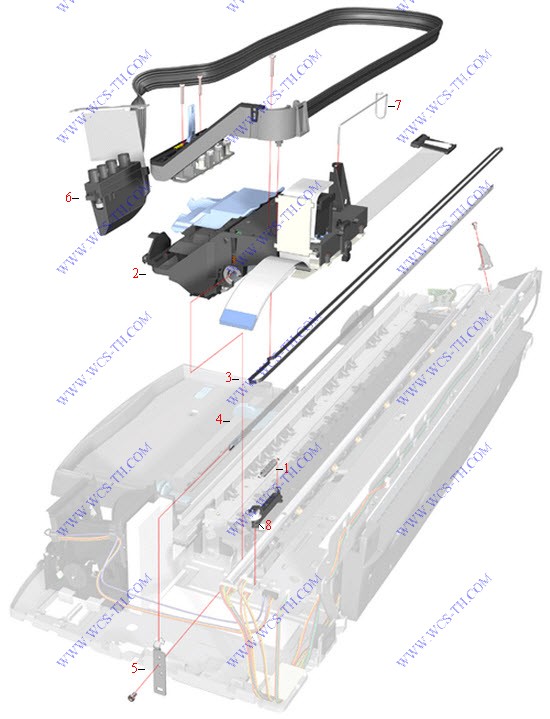

Scan-Axis Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q1292-67006 | Belt tensioner spring | Find 1 |
| 1 | C7790-60125 | Belt tensioner spring | Find 1 |
| 2 | C7791-60142 | Carriage assembly - Includes trailing cable | Find 2 |
| 3 | C7791-60233 | Carriage belt | Find 3 |
| 3 | Q1292-67026 | Carriage belt - Used to move the carriage from side to side | Find 3 |
| 4 | Q1292-67003 | Encoder strip - Clear strip with position marks - Used by the sensor in the carriage assembly to determine position | Find 4 |
| 4 | C7791-60205 | Encoder strip | Find 4 |
| 5 | Q1292-60152 | Encoder strip holder - Wire loop that connects to the carriage assembly that is used to hold the encoder strip | Find 5 |
| 5 | C7790-60104 | Encoder strip holder - Wire loop that connects to the carriage assembly that is used to hold the encoder strip | Find 5 |
| 6 | C7791-60129 | RIDS assembly - Transports ink from the ink supply station to the printheads | Find 6 |
| 7 | C7790-60124 | Ink tube holder | Find 7 |
| 7 | Q1292-67005 | Ink tube holder | Find 7 |
| 8 | Q1292-67012 | Turnaround assembly | Find 8 |
| 8 | C7791-60212 | Turnaround assembly | Find 8 |
Top Paper Path Assemblies
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q1292-60282 | Out-of-paper sensor (OOPS) - Detects when paper supply is empty | Find 1 |
| 1 | Q1292-60150 | Out-of-paper sensor (OOPS) - Detects when paper supply is empty | Find 1 |
| 1 | C7791-60229 | OOPS sensor | Find 1 |
| 2 | Q1292-67017 | Pick cam - Located on the left-side of the print mechanism | Find 2 |
| 2 | C7791-60232 | Pick cam - Located on the left-side of the print mechanism | Find 2 |
| 3 | C7791-60220 | Bypass platen assembly | Find 3 |
| 4 | Q1292-60211 | Feed roller assembly - Includes encoder disk - Feeds media under the carriage assembly | Find 4 |
| 4 | C7791-60201 | Feed roller assembly - Includes encoder disk and paper-axis motor assembly | Find 4 |
| 5 | C7796-60217 | Pivot assembly - Black plastic part under platten - Supports pick roller | Find 5 |
| 5 | C7796-60026 | Pivot assembly - Black plastic part under platten - Supports pick roller | Find 5 |
| 6 | C7791-60144 | Print platen - Surface that supports paper during printing | Find 6 |
| 6 | Q1292-60227 | Print platen - Surface that supports paper during printing | Find 6 |
| 7 | C7791-60245 | Starwheel assembly - Provides downward pressure on media as it passes through the feed rollers | Find 7 |
