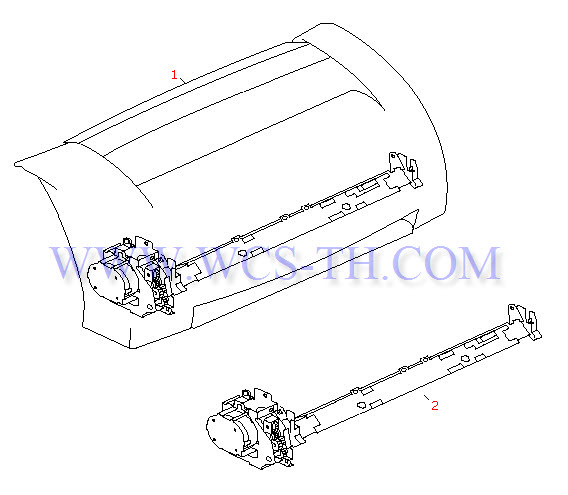

Document Scanner
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG9-1512-000CN | Document scanner assembly - Mounts to front of printer | Find 1 |
| 2 | RG5-4561-000CN | Contact image sensor assembly | Find 2 |

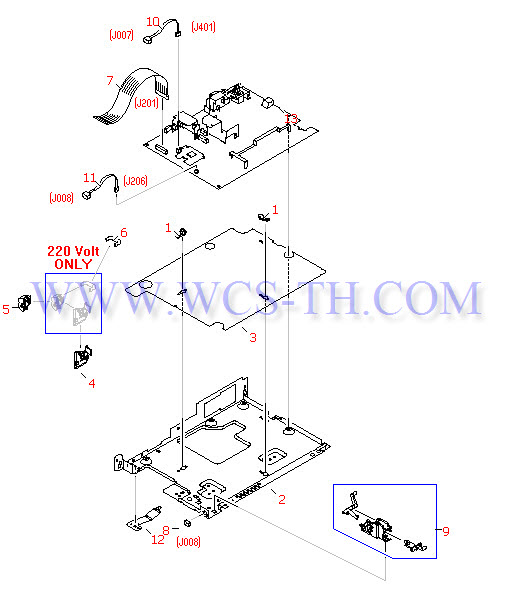

Engine Controller Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-7303-000CN | Stand-off spacer between ECU PC board and metal ECU pan | Find 1 |
| 2 | RB2-3984-000CN | ECU plate (L-shaped) - Metal plate that supports engine controller PC board | Find 2 |
| 3 | RB2-3985-000CN | Insulating sheet - Between ECU PC board and metal pan | Find 3 |
| 4 | RB2-3986-000CN | Power switch lever holder | Find 4 |
| 5 | RB2-3987-000CN | Power switch lever | Find 5 |
| 6 | RB2-3988-000CN | Power switch lever connector rod | Find 6 |
| 7 | RH2-5381-000CN | Flex cable - Has two 20-pin (M) edge connectors - 8.2cm (3.2in) long - From ECU board to formatter board | Find 7 |
| 8 | VS1-7177-002CN | Fuser electrical connector | Find 8 |
| 9 | RG5-4599-000CN | Door switch/sensor assembly | Find 9 |
| 10 | RG5-4618-000CN | Motor cable - J007 to J401 | Find 10 |
| 11 | RG5-4619-000CN | Thermistor cable - J008 to J206 | Find 11 |
| 12 | RB2-4049-000CN | Ground connection - ECU plate to formatter plate | Find 12 |
| 13 | RG5-4605-080CN | Engine contoller unit PC board - 100-127VAC | Find 13 |
| 13 | RG5-4606-080CN | Engine contoller unit PC board - 220-240VAC | Find 13 |

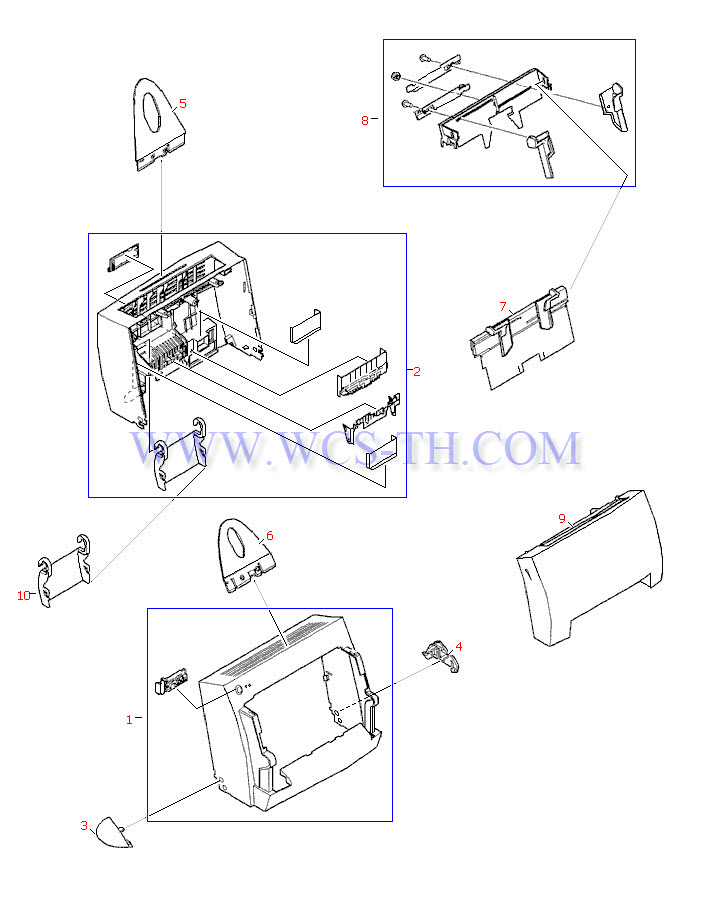

External Covers and Trays
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-2827-000CN | Printer door frame and scanner output cover | Find 1 |
| 2 | RF5-2828-000CN | Back side chassis cover | Find 2 |
| 3 | RB2-4018-000CN | Left side chassis pod - Left pod - Left side chassis pod | Find 3 |
| 4 | RB2-4019-000CN | Right side chassis pod - Right pod - Right aide chassis pod | Find 4 |
| 5 | RG9-1332-000CN | Input paper support - Printer input media support | Find 5 |
| 6 | RG9-1329-000CN | Paper support - Scanner input support and printer face-up output support | Find 6 |
| 7 | RG5-4601-000CN | Single sheet input tray | Find 7 |
| 8 | RG5-4602-000CN | Input paper bin - Paper input for printer | Find 8 |
| 9 | RG5-4604-000CN | Printer door - Front printer access door | Find 9 |
| 10 | RB2-4014-000CN | Memory door - Covers option | Find 10 |

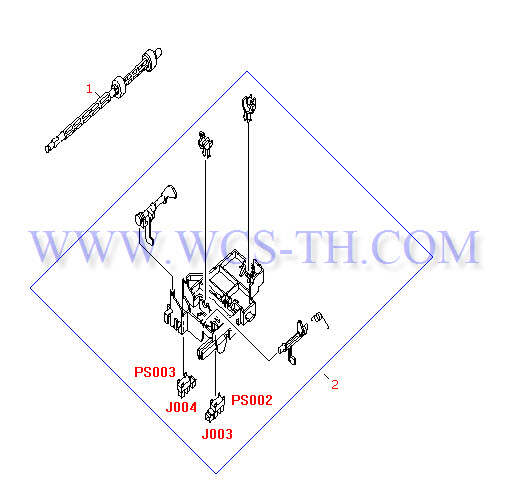

Feeder Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-3912-000CN | Feeder roller | Find 1 |
| 2 | RG5-4581-000CN | Feeder roller assembly - Includes flags and sensors | Find 2 |

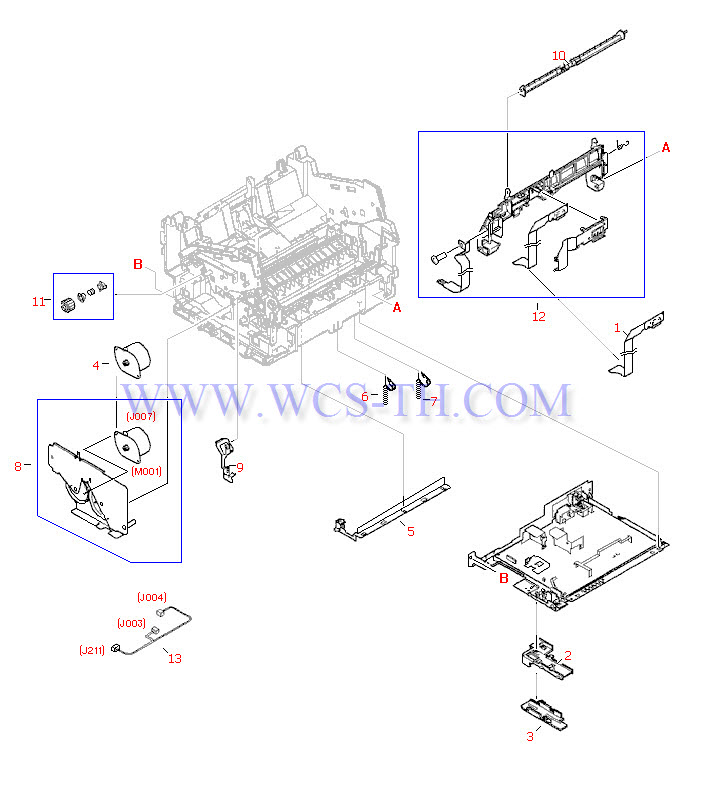

Internal Components 1 of 4
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RH2-5379-000CN | Flex cable - A 30-pin (F) connector on a circuit board to a 30-pin (M) edge connector - 37.5cm (14.8in) long - From document scanner to formatter board | Find 1 |
| 2 | RB2-4017-000CN | Cable holder - Flat cable holder | Find 2 |
| 3 | RB2-4030-000CN | Holder cover - Flat cable holder cover | Find 3 |
| 4 | RH7-1669-000CN | Gear drive assembly motor | Find 4 |
| 5 | RB2-3951-000CN | Static charge eliminator brush | Find 5 |
| 6 | RB2-3952-000CN | Tension spring - Provides tension for toner cartridge high voltage contact - Rear contact | Find 6 |
| 7 | RB2-3953-000CN | Tension spring - Provides tension for toner cartridge high voltage contact - Front contact | Find 7 |

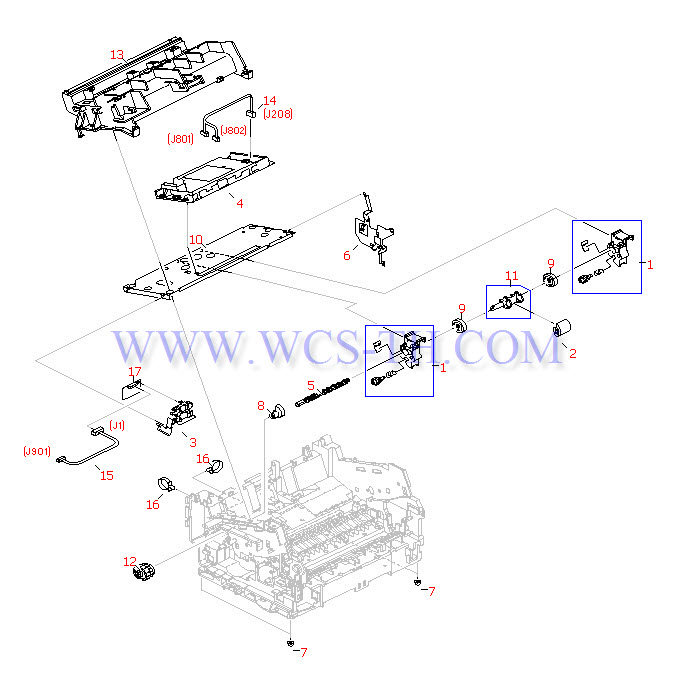

Internal Components 2 of 4
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-4584-000CN | Roller holder - Pickup roller support assembly - (Two used) | Find 1 |
| 2 | RB2-4026-000CN | Paper pickup roller | Find 2 |
| 3 | RB2-4001-000CN | PCB support - Printer status display PC board holder | Find 3 |
| 4 | RG5-4570-000CN | Laser/scanner assembly | Find 4 |
| 5 | RB2-3943-000CN | Paper pickup roller drive shaft - Mates to the shaft that pickup roller is attached to - Pickup roller drive shaft - Mates to the shaft that pickup roller is attached to | Find 5 |
| 6 | RB2-3944-000CN | Leaf spring - Contact for toner cartridge | Find 6 |
| 7 | RB2-3945-000CN | Rubber foot - Non-slip replacement rubber foot (four used) | Find 7 |
| 8 | RB2-3949-000CN | Pickup roller shaft cam - Provides mechanical engagement of pickup roller against separation pad | Find 8 |
| 9 | RB2-3931-000CN | Idler roller - Supports pickup roller shaft in holder | Find 9 |
| 10 | RB2-3932-000CN | Scanner plate - Provides laser/scanner mount - Located on top of chassis | Find 10 |
| 11 | RB2-3930-000CN | Pickup roller shaft - Pickup roller shaft - Pickup roller mounts to this shaft | Find 11 |
| 12 | RG5-4585-000CN | Paper pickup shaft drive clutch/gear assembly | Find 12 |
| 13 | RB2-3999-000CN | Laser/scanner cover | Find 13 |
| 14 | RG5-4616-000CN | Cable assembly - 12-pin (F) connector, 8-pin (F) connector, and 4-pin (F) connector - 62.9cm (24.8in) long - Scanner cable - Connects J208, J801 and J802 | Find 14 |
| 15 | RG5-4620-000CN | Display cable - Connects J1 to J901 on status display | Find 15 |
| 16 | WT2-5041-000CN | Cable tie wrap | Find 16 |
| 17 | RG5-4608-000CN | Printer status display PC board | Find 17 |

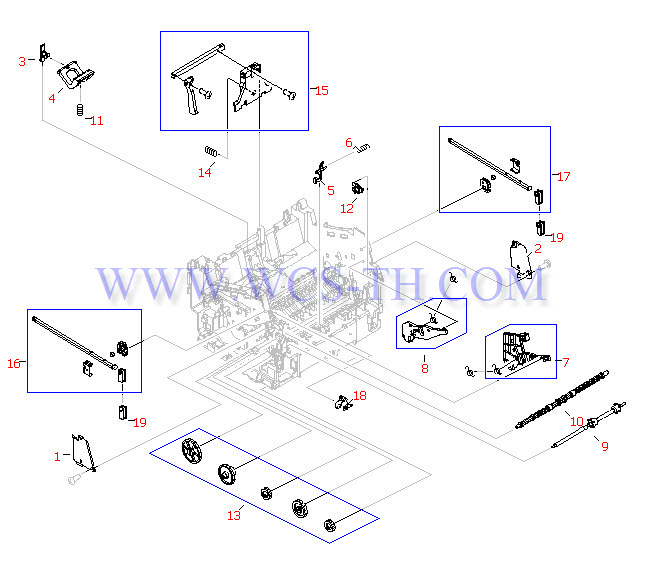

Internal Components 3 of 4
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-3941-000CN | Arm plate - Supports printer door guide arm - Left side | Find 1 |
| 2 | RB2-3942-000CN | Arm plate - Supports printer door guide arm - Right side | Find 2 |
| 3 | RB2-3947-000CN | Separation pad holder retainer - White plastic clip | Find 3 |
| 4 | RF5-2886-000CN | Separation pad - Separation pad and holder arm | Find 4 |
| 5 | RB2-3960-000CN | Paper output sensor flag | Find 5 |
| 6 | RB2-3961-000CN | Torsion spring - Provides tension for output sensor flag | Find 6 |
| 7 | RF5-2818-000CN | Cartridge guide - Left side toner cartridge guide | Find 7 |
| 8 | RF5-2819-000CN | Cartridge guide - Right side toner cartridge guide | Find 8 |
| 9 | RF5-2822-000CN | Output roller - Face-up output roller | Find 9 |
| 10 | RF5-2830-000CN | Output roller - Face-down output roller | Find 10 |
| 11 | RS5-2502-000CN | Compression spring - Provides tension for separation pad | Find 11 |
| 12 | RB2-4016-000CN | Slide stop - Holds end of output roller in place | Find 12 |
| 13 | RY7-5049-000CN | Gear kit - Driven by gear/motor assembly - Drives fuser, pressure, transfer and output rollers | Find 13 |
| 14 | RS6-2122-000CN | Compression spring - Provides tension for paper kick plate | Find 14 |
| 15 | RG5-4582-000CN | Paper guide plate assembly - Pushes paper to pickup roller | Find 15 |
| 16 | RG5-4587-000CN | Printer door support rail - Left side | Find 16 |
| 17 | RG5-4588-000CN | Printer door support rail - Right side | Find 17 |
| 18 | RB2-4219-000CN | Grounding plate - Transfer roller ground path | Find 18 |
| 19 | RB2-4034-000CN | Printer door rail arm mount | Find 19 |

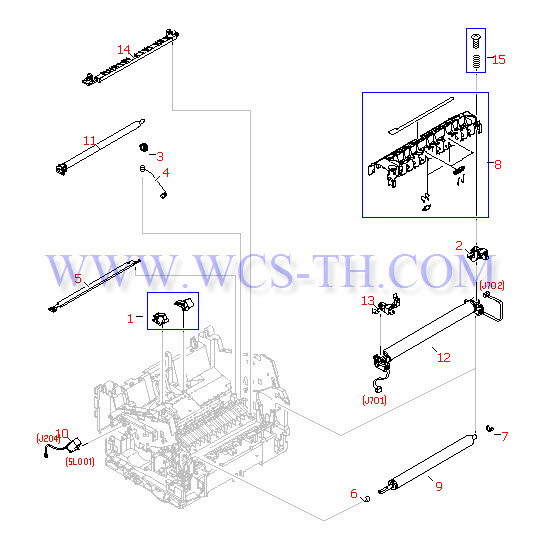

Internal Components 4 of 4
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RY7-5050-000CN | Subpad kit - Helps separation of media at pickup roller | Find 1 |
| 2 | RG5-4592-000CN | Roller mount - Provides fusing element with correct tension and holds it secure on mounting points | Find 2 |
| 3 | RB2-3939-000CN | Transfer roller bushing - Right side | Find 3 |
| 4 | RB2-3940-000CN | Compression spring - Rrovides tension for transfer roller | Find 4 |
| 5 | RB2-3950-000CN | Transfer guide - Mounts in the middle of the printer frame (Under the transfer roller) | Find 5 |
| 6 | RB2-3956-000CN | Pressure roller bushing - Left side | Find 6 |
| 7 | RB2-3957-000CN | Pressure roller bushing - Right side | Find 7 |
| 8 | RG5-4593-000CN | Delivery assembly - Paper output assembly - Has yellow 'avoid contact' label in several languages on top | Find 8 |
| 9 | RF5-2823-000CN | Pressure roller - Provides pressure for media as it passes through the fuser roller | Find 9 |
| 10 | RH7-5227-000CN | Solenoid - Engages pickup roller | Find 10 |
| 11 | RG5-4657-000CN | Transfer roller assembly - Includes drive gear | Find 11 |
| 12 | RG5-4589-040CN | Heating element assembly (For 100V to 127V operation) - Bonds the toner to the paper with heat - Mounts above the pressure roller | Find 12 |
| 12 | RG5-4590-040CN | Heating element assembly (For 220V to 240V operation) - Bonds the toner to the paper with heat - Mounts above the pressure roller | Find 12 |
| 13 | RG5-4591-000CN | Pressure roller mount - Left side | Find 13 |
| 14 | RB2-3958-000CN | Fixing guide - Stabilizes media under pressure roller | Find 14 |
| 15 | RY7-5060-000CN | Compression spring - Provides tension between fuser and pressuer roller - Includes screw fastener | Find 15 |
