250 Sheet Tray - Internal Components (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2891-000CN | Pickup roller assembly - Black and white 'D' shaped pickup roller with a slot in the end of the shaft - Mounts in the middle-front of the optional paper feed assembly | Find 1 |
| 2 | RB2-2892-000CN | Guide roller (Free spinning white plastic roller) - Mounts on the paper pickup drive shaft on each side of the pickup 'D' shaped roller - Mounts on the paper feed drive shaft | Find 2 |
| 3 | RC1-1902-000CN | 25 tooth / 38 tooth dual gear assembly - Engages the drive gear from the printer - Mounts in the gear support arm on the right side plate | Find 3 |

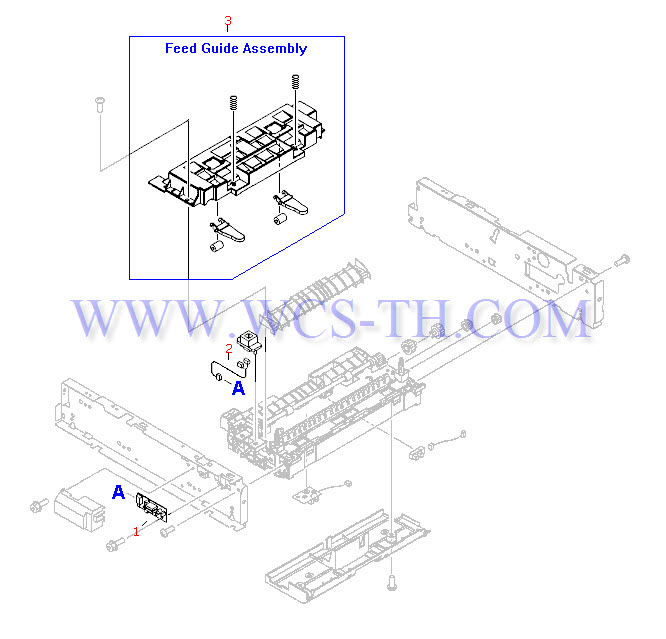

250 Sheet Tray - Internal Components (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0580-000CN | Connector PC board assembly - Small interconnecting board - Mounts on the left side plate | Find 1 |
| 2 | RM1-0581-000CN | Cable assembly | Find 2 |
| 3 | RM1-0610-000CN | Feed guide assembly - Plastic frame structure/guide with two spring loaded rollers - Mounts on top of the paper feed guide assembly | Find 3 |
250 Sheet Tray - Main Assembly Locator
| Pic No. | Parts ID | Parts Name | Link |

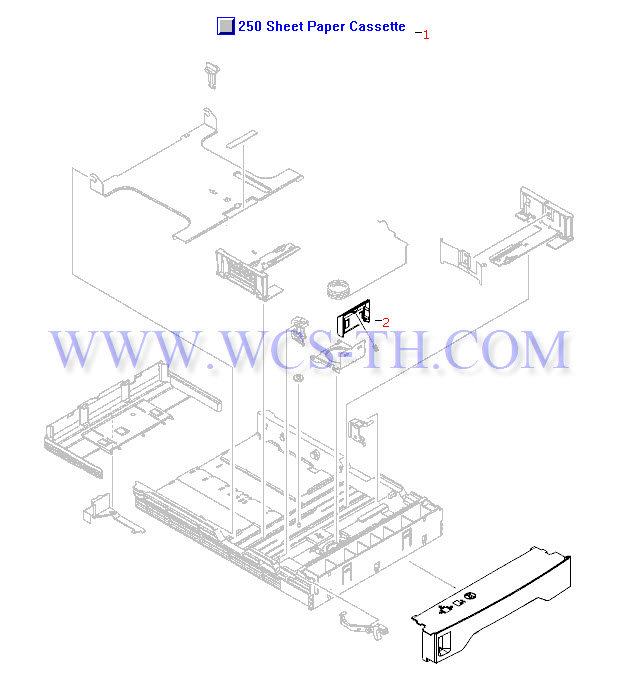

250 Sheet Tray - Paper Cassette Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0613-030CN | 250 sheet paper input cassette assembly - Does NOT include the front cover - Inserts into the optional paper feeder base assembly | Find 1 |
| 2 | RC1-0954-000CN | Separation pad assembly in front portion of 250 sheet tray - Mounts on the spring loaded arm in the rear of the paper cassette assembly | Find 2 |
250 Sheet Tray - Paper Feed Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0608-020CN | Paper feed guide assembly - Includes the housing and drive rollers - Feeds paper from the paper cassette into the printer - Mounts in the front part of optional paper feeder assembly | Find 1 |
Engine Control Board and Related Parts
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0564-060CN | Engine control PC board - Control and power supply board for the printer (For 110V to 127V operation) - Includes the power cord connector and power switch - Mounts in the bottom of the printer | Find 1 |
| 2 | RC1-1813-000CN | Support pan (case) for the engine controller PC board - Metal pan which also acts as part of the bottom of the printer | Find 2 |

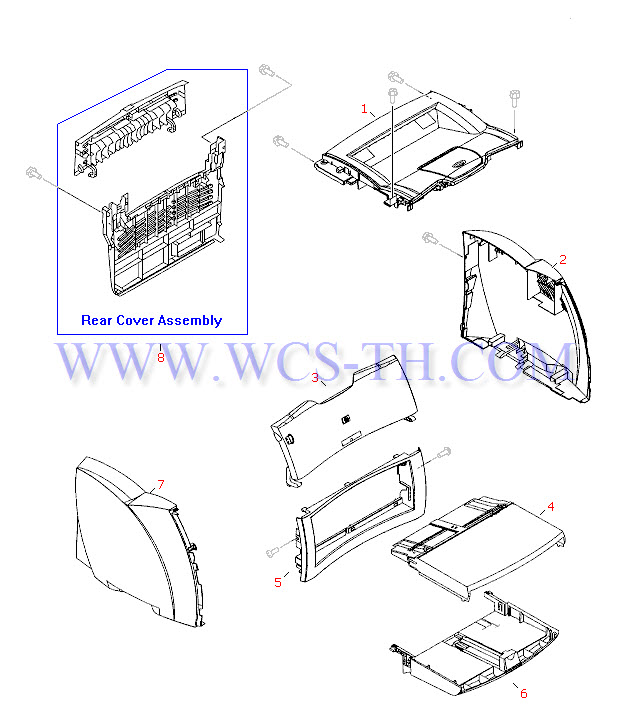

External Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0552-000CN | Top cover assembly - Has face-down paper output tray molded into it | Find 1 |
| 2 | RC1-1822-000CN | Right side cover assembly - Has molded-in air intake louvers | Find 2 |
| 3 | RM1-0543-030CN | Toner cartridge door - Fold down door used when accessing the toner cartridge - Mounts to the top of the front cover | Find 3 |
| 4 | RM1-0554-000CN | Paper tray cover assembly - Includes translucent blue plastic cover with plastic width adjustment guides (Blue) for 'priority' paper input | Find 4 |
| 5 | RC1-1821-000CN | Front cover - Lower front of printer - With opening for inserting the paper input tray assembly | Find 5 |
| 6 | RM1-0553-000CN | Printer input paper tray assembly - Includes bottom tray, paper length adjustment lever, and extension arm | Find 6 |
| 7 | RC1-1823-000CN | Left side printer cover - Covers the USB and LIO port connectors (On the formatter board) | Find 7 |
| 8 | RM1-0544-000CN | Rear cover assembly - Includes rear cover and fold down face-up (or straight through) paper output tray (Tray is NOT sold separately) | Find 8 |

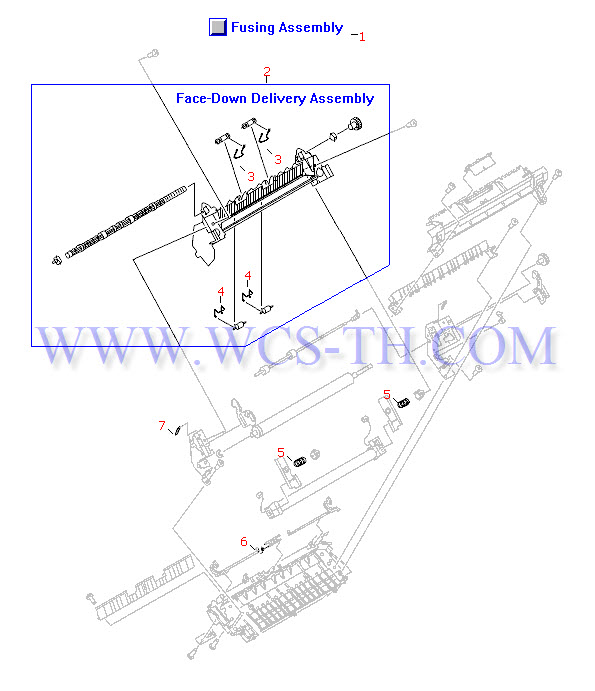

Fusing Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0715-030CN | Fusing assembly - Bonds toner to paper with heat (For 100V to 127V operation) - Mounts in the upper rear of the printer | Find 1 |
| No pic | RM1-0716-030CN | Fusing assembly - Bonds toner to paper with heat (For 220V to 240V operation) - Mounts in the upper rear of the printer | |
| 2 | RM1-0556-020CN | Face-down delivery assembly - Includes the support frame, drive roller and gear, and the four spring loaded pressure rollers - Mounts in the upper rear of the fusing assembly | Find 2 |
| 3 | RA0-1116-000CN | Torsion spring - Provides pressure for the upper serrated rollers on the face-down paper delivery assembly (two used) | Find 3 |
| 4 | RA0-1115-000CN | Torsion spring - Provides pressure for the lower solid rollers on the face-down paper delivery assembly (two used) | Find 4 |
| 5 | RU5-2140-000CN | Compression spring - Provides downward pressure on each end of the fusing roller (two used) - Mounts in the upper part of the fusing assembly | Find 5 |
| 6 | RA0-1099-000CN | Torsion spring - Provides a small amount of back pressure for the delivery sensor flag - Mounts in the rear center of the fusing assembly | Find 6 |
| 7 | RA0-1090-000CN | Tension spring - Provides upward tension for the green release lever (two used) - Mounts in the left and right rear corners of the fusing assembly | Find 7 |
Internal Components (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RK2-0029-000CN | Flex cable - Has two 14-pin (M) edge connectors - From laser/scanner assembly to formatter board | Find 1 |
| 2 | RM1-0563-000CN | Cable assembly - 4-pin (F) connector to 4-pin (F) connector - Scanner motor cable - From laser/scanner assembly to formatter board | Find 2 |
| 3 | RM1-0527-040CN | Right side plate assembly - Includes the right side plate, drive motor, most all drive gears, and cam levers - Does not come with the pickup roller solenoid or 69 tooth gear - Right side of the internal printer mechanism | Find 3 |
| 4 | RM1-0550-000CN | Transfer roller assembly - Transfers static charge to the media being printed on - Mounts in the top of the paper feed guide assembly | Find 4 |
| 5 | RM1-0551-000CN | Gear/clutch assembly kit - Includes double-gear body, shaft attachment piece and spring - For driving the paper feed roller | Find 5 |
| 6 | RM1-0530-000CN | Paper feed guide assembly - Support structure for the transfer roller - Black plastic frame with metal guide plates and the left high voltage contact springs for the toner cartridge - Mounts behind the paper pickup assembly (below the toner cartridge) | Find 6 |
| 7 | RL1-0303-000CN | Paper pickup roller (D-shaped roller) - Picks up media from the paper input tray - Clips in the holder on the paper pickup shaft | Find 7 |
| 8 | RM1-0531-000CN | Paper pickup assembly - Includes separation pad, plastic housing and other associated parts - Does not include the pickup roller and paper feed roller assembly - Mounts in the bottom of the printer | Find 8 |
| 9 | RM1-0564-060CN | Engine control PC board - Control and power supply board for the printer (For 110V to 127V operation) - Includes the power cord connector and power switch - Mounts in the bottom of the printer | Find 9 |
| 10 | RM1-0529-000CN | Connector and holder assembly - To interconnect the optional lower paper tray to the printer - Mounts on the left side frame assembly | Find 10 |
| 11 | RM1-0528-030CN | Left plate assembly - Left side of internal printer mechanism - Plate that the formatter PC board mounts on | Find 11 |
| 12 | RM1-0542-000CN | E-label contact and holder assembly - Contacts the non-volatile memory in the toner cartridge - Mounts on the bottom of the laser/scanner support shelf | Find 12 |
| 13 | RU5-2143-000CN | Tension spring - Provides upward pressure on the linkage to swing the e-label contact assembly back when the toner cartridge access door is open | Find 13 |

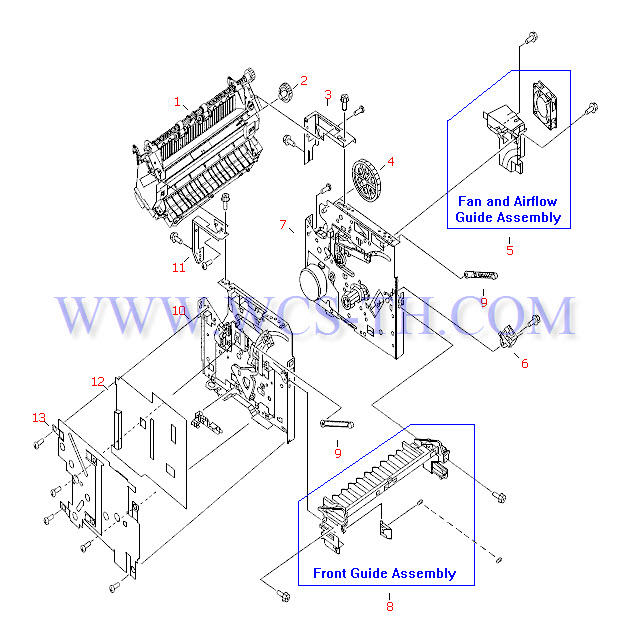

Internal Components (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0715-030CN | Fusing assembly - Bonds toner to paper with heat (For 100V to 127V operation) - Mounts in the upper rear of the printer | Find 1 |
| 1 | RM1-0716-030CN | Fusing assembly - Bonds toner to paper with heat (For 220V to 240V operation) - Mounts in the upper rear of the printer | Find 1 |
| 2 | RA0-1088-000CN | 29 tooth gear - Mounts on the end of the pressure roller - Largest of the three gears on the fusing assembly | Find 2 |
| 3 | RA0-1186-000CN | Right side fuser bracket (L-shaped) - Provides mounting support for the fusing assembly - Mounts to the upper rear corner of the right side plate | Find 3 |
| 4 | RA0-1176-000CN | 69 tooth gear - Large gear with ribs and six small holes - Mounts on on a rod in the upper rear corner of the right side plate | Find 4 |
| 5 | RM1-0547-000CN | Fan and airflow guide assembly - Mounts to the upper front on the right side plate assembly | Find 5 |
| 6 | RH7-5315-000CN | 24V DC Solenoid - Engages the pickup roller gear/clutch assembly - Engages the pickup roller gear/clutch assembly - Mounts on the right side plate assembly | Find 6 |
| 7 | RM1-0527-040CN | Right side plate assembly - Includes the right side plate, drive motor, most all drive gears, and cam levers - Does not come with the pickup roller solenoid or 69 tooth gear - Right side of the internal printer mechanism | Find 7 |
| 8 | RM1-0546-000CN | Front guide assembly - Ribbed plastic piece that runs the width of the printer - Mounts to the front of the left and right side plates | Find 8 |
| 9 | RA0-1023-000CN | Connecting link - Connects between the sliding linkage on the left and right side plates and the toner cartridge access door (two used) | Find 9 |
| 10 | RM1-0528-030CN | Left plate assembly - Left side of internal printer mechanism - Plate that the formatter PC board mounts on | Find 10 |
| 11 | RA0-1185-000CN | Left side fuser bracket (L-shaped) - Provides mounting support for the fusing assembly - Mounts to the upper rear corner of the left side plate | Find 11 |
| 12 | Q1890-60001 | Formatter PC board assembly - Mounts to the left side frame assembly | Find 12 |
| 13 | Q1334-00001 | RFI shield - Metal plate that covers the formatter PC board | Find 13 |

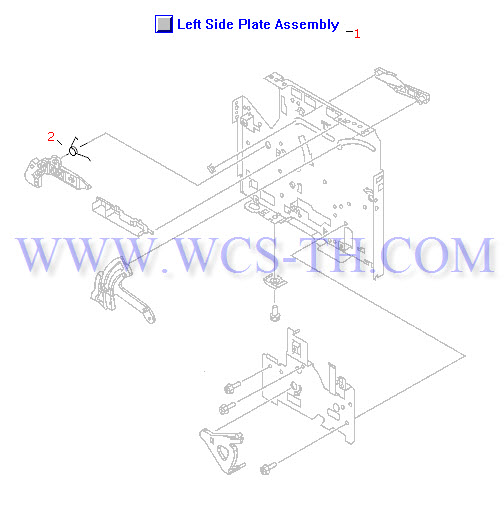

Left Side Plate Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0528-030CN | Left plate assembly - Left side of internal printer mechanism - Plate that the formatter PC board mounts on | Find 1 |
| 2 | RC1-1765-000CN | Torsion spring - Mounts under the toner cartridge retainer arm on the rear of the left side plate | Find 2 |
Major Assembly Locator
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0715-030CN | Fusing assembly - Bonds toner to paper with heat (For 100V to 127V operation) - Mounts in the upper rear of the printer | Find 1 |
| 1 | RM1-0716-030CN | Fusing assembly - Bonds toner to paper with heat (For 220V to 240V operation) - Mounts in the upper rear of the printer | Find 1 |
| 2 | RM1-0543-030CN | Toner cartridge door - Fold down door used when accessing the toner cartridge - Mounts to the top of the front cover | Find 2 |
| 3 | RM1-0552-000CN | Top cover assembly - Has face-down paper output tray molded into it | Find 3 |
| 4 | RM1-0554-000CN | Paper tray cover assembly - Includes translucent blue plastic cover with plastic width adjustment guides (Blue) for 'priority' paper input | Find 4 |
| 5 | RM1-0553-000CN | Printer input paper tray assembly - Includes bottom tray, paper length adjustment lever, and extension arm | Find 5 |
| 6 | RM1-0531-000CN | Paper pickup assembly - Includes separation pad, plastic housing and other associated parts - Does not include the pickup roller and paper feed roller assembly - Mounts in the bottom of the printer | Find 6 |
| 7 | RM1-0530-000CN | Paper feed guide assembly - Support structure for the transfer roller - Black plastic frame with metal guide plates and the left high voltage contact springs for the toner cartridge - Mounts behind the paper pickup assembly (below the toner cartridge) | Find 7 |
| 8 | RM1-0564-060CN | Engine control PC board - Control and power supply board for the printer (For 110V to 127V operation) - Includes the power cord connector and power switch - Mounts in the bottom of the printer | Find 8 |

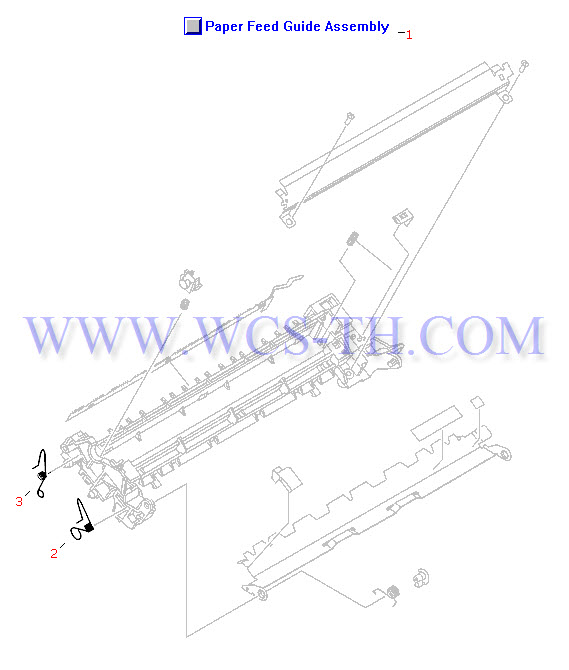

Paper Feed Guide Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0530-000CN | Paper feed guide assembly - Support structure for the transfer roller - Black plastic frame with metal guide plates and the left high voltage contact springs for the toner cartridge - Mounts behind the paper pickup assembly (below the toner cartridge) | Find 1 |
| 2 | RA0-1035-000CN | Torsion spring - Provides high voltage connection to the toner cartridge (developing cylinder) - Mounts on the left front side of the paper feed guide assembly | Find 2 |
| 3 | RA0-1200-000CN | Torsion spring - Provides high voltage connection to the toner cartridge (primary charging roller) - Mounts on the left rear side of the paper feed guide assembly | Find 3 |

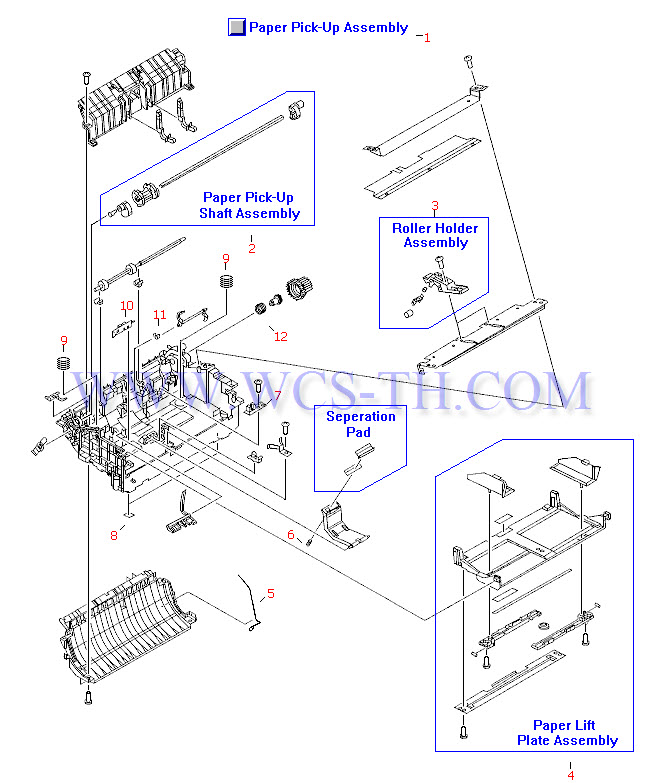

Paper Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0531-000CN | Paper pickup assembly - Includes separation pad, plastic housing and other associated parts - Does not include the pickup roller and paper feed roller assembly - Mounts in the bottom of the printer | Find 1 |
| 2 | RM1-0533-000CN | Paper pickup shaft assembly - Includes the shaft, the two cams, pickup roller holder, and end cap - Mounts in the paper pickup assembly | Find 2 |
| 3 | RG0-1019-000CN | Roller and holder assembly - Spring loaded roller in a black plastic holder assembly - Mounts on top of the paper pickup assembly - (Two used) | Find 3 |
| 4 | RM1-0532-000CN | Lift plate assembly - Quartz Gray plastic plate with two Blue paper width adjusters - Mounts on the top front of the paper pickup assembly | Find 4 |
| 5 | RC1-1792-000CN | Torsion spring - Functions as an electrical connection between the engine control board and the transfer roller contact spring - Mounts in the lower right corner of the paper pickup assembly | Find 5 |
| 6 | RA0-1060-000CN | Compression spring - Provides upward pressure for the separation pad assembly - Mounts in the paper pickup assembly | Find 6 |
| 7 | RM1-0572-000CN | Paper sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing leading edge of paper - Mounts in the bottom right of the paper pickup assembly | Find 7 |
| 8 | RA0-1003-000CN | Rubber foot - For bottom of printer - Three used | Find 8 |
| 9 | RA0-1061-000CN | Compression spring - Provides upward pressure for the rear of the lift plate assembly (two used) - Mounts on top of the paper pickup assembly | Find 9 |
| 10 | RM1-0574-000CN | Paper sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing 'out of paper' in the paper tray - Mounts in the bottom left of the paper pickup assembly | Find 10 |
| 11 | RC1-1782-000CN | Torsion spring - Provides a small amount of back pressure for the paper pickup sensor flag - Mounts in the bottom rear of the paper pickup assembly | Find 11 |
| 12 | RA0-1050-000CN | Compression spring - Provides upward pressure for the separation pad assembly - Mounts in the paper pickup assembly | Find 12 |

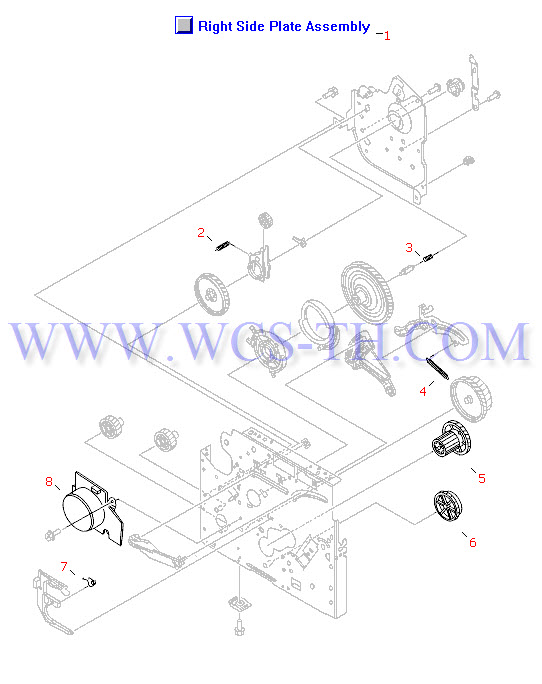

Right Side Plate Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0527-040CN | Right side plate assembly - Includes the right side plate, drive motor, most all drive gears, and cam levers - Does not come with the pickup roller solenoid or 69 tooth gear - Right side of the internal printer mechanism | Find 1 |
| 2 | RA0-1006-000CN | Tension spring - Provides tension for the floating gear holder (drive gear for the fusing assembly) - Mounts on the right side plate assembly | Find 2 |
| 3 | RA0-1012-000CN | Compression spring - Grounds the pin in the toner cartridge drive gear - Mounts on the right side plate assembly | Find 3 |
| 4 | RA0-1212-000CN | Tension spring - Provides tension for the linkage which engages the toner cartridge drive gear - Mounts on the right side plate | Find 4 |
| 5 | RC1-1752-000CN | 87 tooth / 23 tooth dual gear assembly (Reduction gear) - Drives the optional lower paper tray gear and the paper feed roller gear - Mounts on the right side plate assembly | Find 5 |
| 6 | RC1-1755-000CN | 41 tooth gear - Used to drive the optional lower paper tray - Mounts toward the bottom of the right side plate | Find 6 |
| 7 | RA0-1026-000CN | Torsion spring - Provides grounding connection to the toner cartridge (photo sensitive drum) - Mounts on the inside of the right side plate assembly | Find 7 |
| 8 | RK2-0063-000CN | DC stepper motor assembly - Drives all rollers and fusing assembly via the gear train on the right side plate - | Find 8 |
