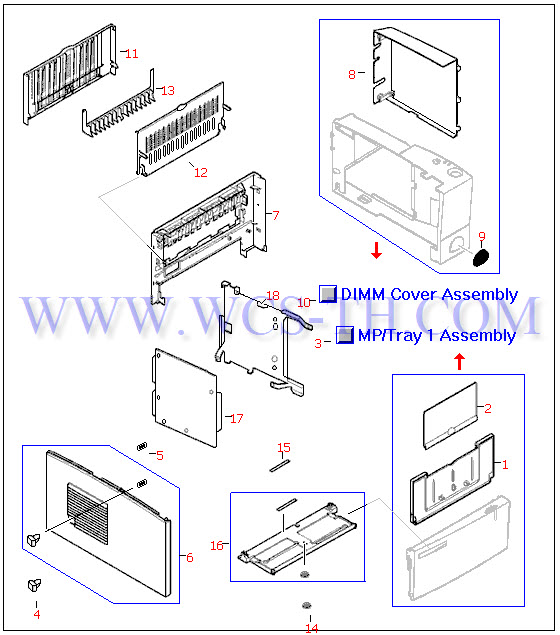

External Covers and Panels
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-3036-000CN | Tray 1 extender - Pull-out tray extension - Attaches to flip-out tray extender | Find 1 |
| 2 | RB2-3037-000CN | Tray 1 extender - Flip-out paper extender | Find 2 |
| 3 | RG5-4121-000CN | Multi-purpose input tray cover assembly - Includes pull-out and flip-out tray extensions | Find 3 |
| 4 | RB2-2859-000CN | Power switch button | Find 4 |
| 5 | RB2-2860-000CN | Power button spring - Provides tension for power button | Find 5 |
| 6 | RG5-4139-000CN | Left cover assembly - Includes power button and spring | Find 6 |
| 7 | RB2-2857-020CN | Rear cover - Located on back of the printer | Find 7 |
| 8 | RB2-2862-000CN | Right rear side cover - Swing away I/O cover - Has slots on back for I/O cable plug-in access | Find 8 |
| 9 | RB2-2866-000CN | I/R port cover - Black 'D' shaped piece on front right side | Find 9 |
| 10 | RG5-4123-140CN | DIMM Cover Assembly - Right Side Cover - Includes I/O Cover on Right Rear, Optical Filter Cover on Right Front, Control Buttons and LEDs on top right side | Find 10 |
| 11 | RB2-2875-000CN | Face-up output tray pull out extender | Find 11 |
| 12 | RB2-2876-000CN | 'Face-up' drop-down output tray - Output tray - Face-up output tray - Drop down output tray | Find 12 |
| 13 | RB2-2877-000CN | Paper guide - Curved teeth at bottom of face-up output tray | Find 13 |
| 14 | RB2-2885-000CN | 18 tooth gear - Mechanism for keeping the two width guides equidistant from the center - Mounts between the two guides on the multipurpose input tray inner plate assembly (tray 1) | Find 14 |
| 15 | RB2-2886-000CN | Separation sheet - Mounts on the paper width adjustable guide assembly for the multipurpose front input tray (tray 1) | Find 15 |
| 16 | RG5-4126-000CN | Multi-Purpose input tray (Tray 1) - Multi-Purpose Input Tray - Input Tray 1 | Find 16 |
| 17 | C4132-69001 | Formatter (Main logic) board | Find 17 |
| 18 | C4170-60101 | Formatter board RFI shield - RFI shield - Formatter board RFI shield | Find 18 |
Fuser Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2990-000CN | Grounding plate - On end of delivery roller | Find 1 |
| 2 | RG5-4132-170CN | Fusing Roller Assembly (For 100V to 127V operation) - Bonds the toner to the paper with heat | Find 2 |
| 2 | RG5-4133-170CN | Fusing Roller Assembly (For 220V operation) - Bonds the toner to the paper with heat | Find 2 |
| 3 | RB2-2973-000CN | Support bushing - Pressure Roller Support Bushing - Two used | Find 3 |
| 4 | RB2-2974-000CN | Entrance guide - Paper input guide to fusing assembly | Find 4 |
| 5 | RB2-2975-000CN | Pressure plate - Covers top of fusing roller | Find 5 |
| 6 | RB2-2985-000CN | Roller bushing - Right side delivery roller support bushing | Find 6 |
| 7 | RF5-2601-020CN | Pressure roller - Applies pressure to paper as it feeds through the fusing roller | Find 7 |
| 8 | RF5-2603-000CN | Delivery roller - Feeds paper out of fusing assembly | Find 8 |
| 9 | RS6-0442-000CN | Upper delivery roller drive gear - 14 tooth - 14 tooth gear - Drives delivery roller - Attaches to lower delivery guide | Find 9 |
| 10 | RS6-0443-000CN | Delivery roller gear - 15 tooth - 15 tooth gear - Attaches to end of delivery roller | Find 10 |
| 11 | RS6-0458-000CN | Pressure roller gear - 26 tooth - 26 tooth gear - Attaches to end of pressure roller | Find 11 |
| 12 | RS6-2029-000CN | Compression spring - Between fusing roller and pressure plate above fusing roller - Two used | Find 12 |
| 13 | RB2-2986-000CN | Roller bushing - Left side delivery roller support bushing | Find 13 |
| 14 | RB2-2979-000CN | Delivery roller guide - Supports delivery roller | Find 14 |
| 15 | RF5-2609-000CN | Contact holder - Anchors fusing assembly to chassis | Find 15 |
| 16 | WG8-5593-000CN | Sensor PC board - Small board with flag activated photosensor - | Find 16 |
| 17 | RG5-4134-040CN | Fusing roller assembly (For 100V to 120V operation) - Includes heating element and fixing film sleeve | Find 17 |
| 17 | RG5-4135-040CN | Fusing roller assembly (For 220V to 240V operation) - Includes heating element and fixing sleeve | Find 17 |
| 18 | RB2-2978-000CN | Compression spring - Provides tension for upper delivery rollers mounted on upper delivery guide - 4 used | Find 18 |
| 19 | RB2-2977-000CN | Delivery roller - Roller for upper delivery guide - Four used | Find 19 |
| 20 | RG5-4141-000CN | Upper delivery guide - Has four separate rollers and springs | Find 20 |
| 21 | RB2-2981-030CN | Paper sensor lever - Actuates PS503 Paper Sensor | Find 21 |
| 22 | RB2-2982-020CN | Torsion spring - Provides tension for paper sensor lever | Find 22 |

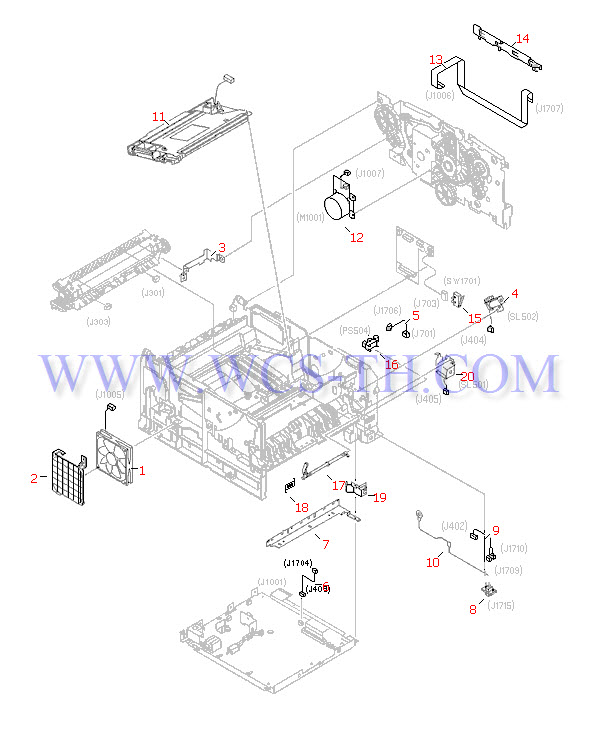

Internal Components (1 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RH7-1382-000CN | Tubeaxial fan (low profile) | Find 1 |
| 2 | RB2-2817-000CN | Dust filter for cooling fan | Find 2 |
| 3 | RB2-2812-000CN | Grounding plate - Ground plate for fusing assembly RFI | Find 3 |
| 4 | RH7-5212-000CN | Solenoid (SL502) - Multipurpose tray (Tray 1) solenoid - | Find 4 |
| 5 | RG5-4254-000CN | Multi-purpose input tray sensor cable - Right side | Find 5 |
| 6 | RG5-4255-000CN | Cable assembly - DC power cable | Find 6 |
| 7 | RB2-2826-000CN | Static dissipator - Discharges static electric charge as paper moves out of transfer charge roller | Find 7 |
| 8 | VS1-6173-006CN | Frame ground connector - Frame ground cable plugs into this connector | Find 8 |
| 9 | RG5-4262-000CN | Cable assembly - Paper feeder cable | Find 9 |
| 10 | RG5-4263-000CN | Cable assembly - Frame ground cable | Find 10 |
| 11 | RG5-4172-000CN | Laser/scanner assembly - Mounts on top of print structure | Find 11 |
| 12 | RH7-1381-000CN | Main motor - Provides power for main printer drive assembly | Find 12 |
| 13 | RH2-5350-000CN | Flat cable (White) - Top right side of printer - From interconnect board to formatter board | Find 13 |
| 14 | RB2-2946-000CN | FFC guide plate - Holds white flat cable in place | Find 14 |
| 15 | RH7-6051-000CN | Microswitch with lever activator - Cartridge access door switch - SW1701 | Find 15 |
| 16 | WG8-5593-000CN | Sensor PC board - Small board with flag activated photosensor - | Find 16 |
| 17 | RB2-2836-000CN | Paper sensor lever - Mechanical device that engages photo sensor PS504 | Find 17 |
| 18 | RB2-2837-000CN | Torsion spring - Provides tension for paper sensor lever | Find 18 |
| 19 | RB2-2847-000CN | Leaf spring - Electrical ground connection | Find 19 |
| 20 | RH7-5253-000CN | Solenoid | Find 20 |
Internal Components (2 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2900-000CN | Pickup roller - MP/TRAY 1 pickup roller | Find 1 |
| 2 | RB2-2902-000CN | Pickup roller cam - Left side | Find 2 |
| 3 | RB2-2903-000CN | Pickup roller cam - Right side | Find 3 |
| 4 | RB2-2904-000CN | Guide roller (free spinning white plastic roller) - Mounts on the paper pickup drive shaft on each side of the pickup 'D' shaped roller | Find 4 |
| 5 | XD9-0159-000CN | Dowel pin - Holds roller/cam pieces on roller dowel | Find 5 |
| 6 | RG5-4128-000CN | Multi-purpose tray pickup roller assembly - Includes pickup roller, roller cam, right and left cams, both round rollers and dowel pin | Find 6 |
| 7 | RG5-4156-000CN | Cassette pickup gear assembly | Find 7 |
| 8 | RS6-2025-000CN | Tensioning spring - For the paper pickup gear assembly | Find 8 |
| 9 | RB2-6400-000CN | Face-down delivery roller - Lower rollers - | Find 9 |
| 10 | RG5-4119-000CN | Delivery roller assembly - Lower face-down output roller assembly - Includes roller and holder Four used | Find 10 |
| 11 | RB2-2850-000CN | Upper delivery roller bushing - Roller bushing - Supports face-down upper delivery roller | Find 11 |
| 12 | RF5-2604-000CN | Delivery roller - Upper face-down delivery roller | Find 12 |
| 13 | RS6-0441-000CN | Upper delivery roller drive gear - 15 tooth - Drive gear - Upper delivery roller drive gear - 15 tooth | Find 13 |
| 14 | RS6-0459-000CN | Transfer roller drive gear - 17 tooth | Find 14 |
| 15 | RG5-4164-030CN | Transfer roller assembly - Includes left side bushing | Find 15 |
| 16 | RC1-1009-000CN | Compression spring - Provides electrical ground connection | Find 16 |
| 17 | RB2-2842-000CN | Paper sensor lever - Flag that mounts below registration assembly and passes through middle of metal plate - Activates PS502 the top of paper sensor | Find 17 |
| 18 | RB2-2843-000CN | Torsion spring - Provides a small amount of back pressure for the paper sensor flag | Find 18 |
| 19 | RB2-2816-000CN | Rubber foot - Non-slip replacement rubber foot - Attaches to the bottom of the tray-3 assembly (four used) | Find 19 |
| 20 | RS6-2023-000CN | Comprssion spring - Provides tension for the lower face-down delivery roller assembly | Find 20 |
| 21 | RB2-2830-020CN | Cartridge guide - Right side toner cartridge guide | Find 21 |
| 22 | RB2-2831-020CN | Cartridge guide - Left side toner cartridge guide | Find 22 |
| 23 | RB2-2926-020CN | Transfer roller bushing - Supports right side of transfer roller | Find 23 |
| 24 | RB2-3040-000CN | Gear - 26 tooth - Tray 1 pickup roller drive gear | Find 24 |
| 25 | RB2-3043-000CN | Left roller bushing - Acts as the bearing and retainer for the left end of the paper pickup roller assembly (tray 1) | Find 25 |
| 26 | RB2-3044-000CN | Right roller bushing - Acts as the bearing and retainer for the right end of the paper pickup roller assembly (tray 1) | Find 26 |
| 27 | RS6-0445-000CN | Registration roller drive gear - 14 tooth - Gear - 14 tooth - Drives registration roller | Find 27 |
| 28 | RS6-2022-000CN | Compression spring - Provides tension for right side of transfer roller bushing | Find 28 |
| 29 | RG5-4129-000CN | Registration assembly - Registration shutter and roller with holder frame assembly | Find 29 |
Internal Components (3 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-6348-000CN | Separation pad - MP/TRAY 1 separation pad | Find 1 |
| 2 | RB2-6405-000CN | Tray hinge - For the left side of the multi-purpose front input tray (Tray 1) | Find 2 |
| 3 | RB2-6406-000CN | Tray hinge - For the right side of the multi-purpose front input tray (Tray 1) | Find 3 |
| 4 | RS6-2024-000CN | Compression spring - Provides pressure for the separation pad for the multipurpose tray (tray 1) | Find 4 |
| 5 | RS6-2030-000CN | Tension spring | Find 5 |
| 6 | RB2-2828-000CN | Compression spring - Toner cartridge bias connection - Rear left side | Find 6 |
| 7 | RB2-2829-000CN | Compression spring - Toner cartridge bias connection - Forward left side | Find 7 |
| 8 | RB2-2845-000CN | Registration roller ground connection | Find 8 |
| 9 | RB2-3045-000CN | Chassis ground connection leaf spring | Find 9 |
| 10 | RB2-3058-000CN | Paper feed belt - Wide middle belt | Find 10 |
| 11 | RB2-3059-000CN | Paper feed belt - Paper feed belt - Long narrow rear belts - Two used | Find 11 |
| 12 | RB2-3073-000CN | Belt drive shaft 1 - Between wide middle belt and the two narrower rear belts - Transfers power from gear assembly | Find 12 |
| 13 | RB2-3056-000CN | Belt drive shaft 2 - Front of middle wide belt - Tiny drive belts attach on each end of this shaft | Find 13 |
| 14 | RB2-2825-000CN | Belt shaft 3 - Belt shaft 3 - Tiny idler shafts at back of narrow paper belts - Two used | Find 14 |
| 15 | RB2-3074-000CN | Idler shaft holder - Holds small rear idler shafts - (Two used) | Find 15 |
| 16 | RS6-0464-000CN | Feed belt drive gear - 20 tooth - Drive gear - Engages feed belt gear assembly - 20 tooth | Find 16 |
| 17 | RB2-2838-000CN | Separation pad holder for MP/tray 1 | Find 17 |
| 18 | RB2-3046-000CN | Guide roller - Provides pressure against feed roller - For MP tray and tray 1 (two used) | Find 18 |
| 19 | RB2-3047-000CN | Roller holder - Holds white guide roller - (Two used) | Find 19 |
| 20 | RB2-3048-000CN | Guide roller shaft - Guide roller shaft - Axle for white guide roller - Two used | Find 20 |
| 21 | RS6-2033-000CN | Roller spring - Provides pressure for guide roller - Two used | Find 21 |
| 22 | RB2-2818-000CN | Ribbon cable guide - Protects ribbon cable on right side | Find 22 |
| 23 | RB2-3080-000CN | Grounding plate - Electrical chassis ground connection | Find 23 |
| 24 | RB2-3054-000CN | Idler shaft - Idler shaft - Small front pulleys attached to small belts | Find 24 |
| 25 | RB2-3057-000CN | Tension roller - Under middle paper transfer belt - Provides tension and guides bottom of middle belt | Find 25 |
| 26 | RB2-3060-000CN | Paper feed belt - Short/tiny belts in front of and on each side of middle belt of paper transfer assembly | Find 26 |
| 27 | RB2-3050-000CN | Toner cartridge RFI ground connection | Find 27 |
| 28 | XD2-1100-322CN | E-ring retainer clip - Used to secure the electromagnetic clutch assembly (CL1) on the paper pickup shaft | Find 28 |
| 29 | RG5-4160-000CN | Gear assembly - Drives paper transfer belt assembly | Find 29 |
| 30 | RF5-2611-000CN | Toner cartridge bias control (varistor) | Find 30 |
| 31 | RY7-5053-000CN | Transport belt kit - Contains all of the belts used in the paper transport assembly | Find 31 |
| 32 | RY7-5052-000CN | Transport roller kit - Contains all of the rollers used in the paper transport assembly | Find 32 |
Paper Tray Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | R98-1003-150CN | 250 sheet paper tray - Adjusts for letter, legal, Executive, and A4 paper - 250 sheet paper tray - Adjusts for letter, legal, Executive, and A4 paper - Used for tray 2 and optional tray 3 | Find 1 |
| 2 | RB2-3000-000CN | Front cover - Front cover and pull handle for paper tray | Find 2 |
| 3 | RS6-2035-000CN | Plate spring - Provides tension for left side width plate | Find 3 |
| 4 | RG5-4159-000CN | Adjustable width plate - Left side paper width stop plate | Find 4 |
| 5 | RB2-3003-040CN | Plate end - Movable end plate at back of Tray 2 paper cassette | Find 5 |
| 6 | RB2-3004-000CN | Release arm - Left side lifting plate release arm | Find 6 |
| 7 | RB2-3005-000CN | Release arm - Right side lifting plate release arm | Find 7 |
| 8 | RB2-3009-040CN | Lock arm - Locks rear paper length adjustment plate | Find 8 |
| 9 | RB2-3010-000CN | Paper sensor arm - Indicates on front cover the quantity of paper in tray | Find 9 |
| 10 | RB2-3007-000CN | Separation pad - Small rectangular rubber pad on front of metal lifting plate | Find 10 |
| 11 | RF5-2599-000CN | Upper lifting plate - Metal plate that supports paper in tray | Find 11 |
| 12 | RB2-3012-000CN | Leaf spring - Provides side tension for the paper input tray - Attaches to right side width adjustment plate | Find 12 |
| 13 | RF5-2606-000CN | Adjustable width plate - Right side paper width stop plate | Find 13 |
| 14 | RS6-0440-000CN | Gear - 10 tooth - Mechanical connection between right and left side paper plates - 10 tooth gear - Provides for coordinated movement of width adjustment plates | Find 14 |
| 15 | RS6-2020-000CN | Plate spring - Provides pressure for paper lifting plate | Find 15 |
| 16 | RS6-2021-000CN | Pad spring - Provides tension for separation pad on front of paper tray | Find 16 |
| 17 | RB9-0695-020CN | Separation pad - Moveable pad on front of Optional 250 sheet paper tray (C4793A) | Find 17 |
| 18 | RB2-3013-000CN | Pad holder - Separation pad holder on front of tray | Find 18 |
Printer Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-4131-020CN | Printer drive assembly | Find 1 |
| 2 | RB2-2935-000CN | Gear coupler - Between plate bushing and largest drive gear | Find 2 |
| 3 | RB2-2936-000CN | Coupler bushing - Supports largest drive gear coupler | Find 3 |
| 4 | RB2-2937-000CN | Motor plate - Metal plate that secures coupler assembly | Find 4 |
| 5 | RB2-2939-000CN | Drive release lever - Mechanical link between drive coupling assembly and drive arm assembly | Find 5 |
| 6 | RB2-2944-000CN | PCA guide - Holds extended I/O PC board | Find 6 |
| 7 | RB2-2945-000CN | Mount plate - Protective plate for extended I/O PCA | Find 7 |
| 8 | RS6-0446-000CN | Gear '#5' - 201 tooth gear - 201 tooth gear - Largest gear in assembly - Gear #5 | Find 8 |
| 9 | RS6-0447-000CN | Cluster gear '#4' - 58/92 tooth - 58 tooth/92 tooth cluster gear - Gear #4 | Find 9 |
| 10 | RS6-0448-000CN | Cluster gear '#11' - 17/68 tooth - 17 tooth/68 tooth cluster gear - Gear #11 | Find 10 |
| 11 | RS6-0449-000CN | Cluster gear '#10' - 25/41 tooth - 25 tooth/41 tooth cluster gear - Gear #10 | Find 11 |
| 12 | RS6-0450-000CN | Printer drive gear '#9' - 31 tooth - 31 tooth gear - Printer drive gear #9 | Find 12 |
| 13 | RS6-0451-000CN | Printer drive gear '#8' - 26 tooth - 26 tooth gear - Printer drive gear #8 | Find 13 |
| 14 | RS6-0453-000CN | Cluster gear '#2' - 23/46 tooth - 23 tooth/46 tooth cluster gear - Gear #2 | Find 14 |
| 15 | RS6-0455-000CN | Printer drive gear '#1' - 67 tooth - 67 tooth gear - Printer drive gear #1 | Find 15 |
| 16 | RS6-0456-000CN | Cluster gear '#6' - 22/86 tooth - 22 tooth/86 tooth cluster gear - Gear #6 | Find 16 |
| 17 | RS6-0457-000CN | Printer drive gear '#7' - 53 tooth - 53 tooth gear - Printer drive gear #7 | Find 17 |
| 18 | RS6-0454-000CN | Gear - 48 tooth - 48 tooth gear - Upper gear of drive arm assembly | Find 18 |
| 19 | RB2-2943-000CN | Clutch pin - Holds drum drive clutch springs - Between pin holder and clutch spring plate | Find 19 |
| 20 | RS6-2027-020CN | Compression spring - Drum drive clutch spring - Spring closest to spring plate | Find 20 |
| 21 | RB2-2947-000CN | Pin holder - Holds drum drive clutch pin | Find 21 |
| 22 | RB2-2948-000CN | Spring plate - Holds clutch pin and springs in place | Find 22 |
| 23 | RB2-2949-000CN | Gear washer - Between largest drive gear and mounting plate | Find 23 |
| 24 | RB2-2950-000CN | Spring spacer - Fits between the two drum clutch springs | Find 24 |
| 25 | RS6-2031-000CN | Compression spring - Drum drive clutch spring - Spring closest to drive gear assembly mounting plate | Find 25 |
| 26 | RG5-4140-000CN | Coupling assembly - Engages drive gear assembly | Find 26 |
| 27 | RB2-2938-000CN | Drive arm - Engages/disengages motor to drum drive assembly | Find 27 |
| 28 | RS6-0452-000CN | Cluster gear - 22/93 tooth - 22 tooth/93 tooth cluster gear - Lower gear of drive arm assembly | Find 28 |

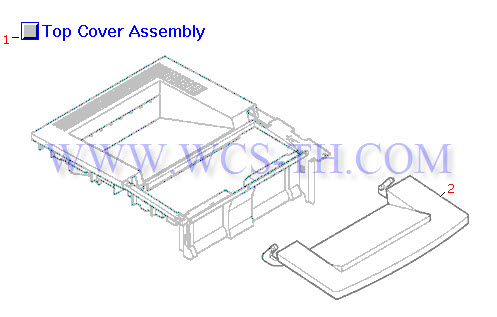

Top Cover Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-4122-000CN | Top cover asembly - Face-down output tray and toner cartridge access door | Find 1 |
| 2 | RB2-2856-000CN | Toner cartridge access door | Find 2 |
Tray 2 Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XD9-0135-000CN | Shaft E-clip - Pickup drive gear shaft E-Clip | Find 1 |
| 2 | RB2-2891-000CN | Pickup roller assembly - Black and white 'D' shaped pickup roller with a slot in the end of the shaft - Tray 2 and 3 - Located near middle-front of tray | Find 2 |
| 3 | RB2-2892-000CN | Guide roller (Free spinning white plastic roller) - Mounts on the paper pickup drive shaft on each side of the pickup 'D' shaped roller - Two used | Find 3 |
| 4 | RB2-2893-000CN | Drive shaft - Drives pickup roller | Find 4 |
| 5 | RB2-2894-000CN | Paper sensor lever - Senses paper in Tray 2 pickup assembly | Find 5 |
| 6 | RB2-2895-000CN | Shaft bushing/retainer - Right side pickup roller support bushing - Pickup roller right side support bushing | Find 6 |
| 7 | RB2-2896-000CN | Shaft bushing/retainer - Left side pickup roller support bushing - Pickup roller left side dupport bushing | Find 7 |
| 8 | RB2-2897-020CN | Shaft bushing/retainer - | Find 8 |
| 9 | RB2-2899-000CN | Gear holder - Holds two gears that engage pickup roller | Find 9 |
| 10 | RB2-3081-000CN | Feed roller bushing - Right side feed roller support | Find 10 |
| 11 | RB2-3082-000CN | Feed roller bushing - Left side feed roller support | Find 11 |
| 12 | RB2-3083-000CN | Gear shaft - Axle for 14 tooth gear on drive gear holder | Find 12 |
| 13 | RS6-0462-000CN | Gear - 14 tooth - 14 tooth gear - Back gear in drive gear holder assembly | Find 13 |
| 14 | RS6-0463-000CN | Gear - 13 tooth - 13 tooth gear - Front gear in drive gear holder assembly | Find 14 |
| 15 | RS6-2034-000CN | Torsion spring - Provides tension for gear holder assembly | Find 15 |

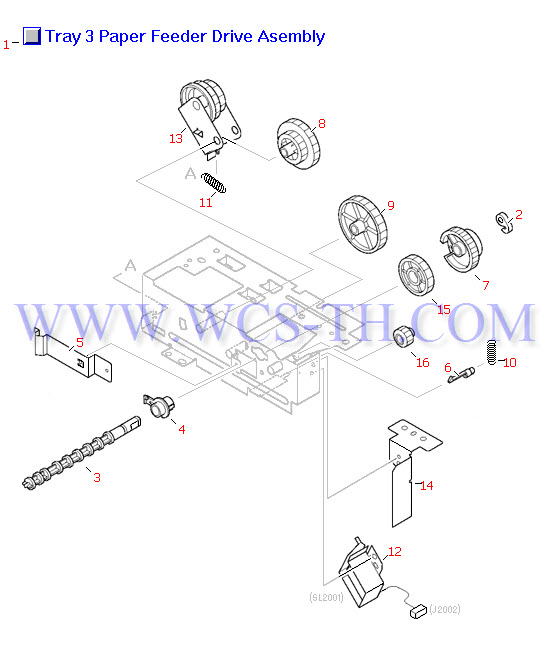

Tray 3 Paper Feeder Drive Asembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-4391-080CN | Paper feeder drive assembly - Clutch gear - 27 tooth - | Find 1 |
| 2 | RB1-2190-000CN | Pickup roller spring hook - Tray three hook - Connects gear to spring | Find 2 |
| 3 | RB2-2893-000CN | Drive shaft - Drives pickup roller | Find 3 |
| 4 | RB2-3475-000CN | Support bushing - Feeder drive shaft bushing | Find 4 |
| 5 | RB2-3478-000CN | Leaf spring - Provides tension for drive shaft bushing | Find 5 |
| 6 | RB1-6133-000CN | Hook spring anchor pin | Find 6 |
| 7 | RG5-4391-080CN | Paper feeder drive assembly - Clutch gear - 27 tooth - | Find 7 |
| 8 | RS6-0497-000CN | Cluster gear - 39/34 tooth - 39 tooth/34 tooth cluster gear - Bottom gear of wwing gear assembly | Find 8 |
| 9 | RS6-0498-000CN | Gear - 45 tooth - 45 tooth gear - Largest gear of drive assembly | Find 9 |
| 10 | RS6-2061-000CN | Clip spring - Provides tension for clip - Attaches to hook | Find 10 |
| 11 | RS6-2062-000CN | Swing gear spring - Provides tension for swing gear assembly | Find 11 |
| 12 | RH7-5213-000CN | Drive solenoid - Engages swing gear assembly | Find 12 |
| 13 | RF5-2755-020CN | Swing gear - Swing assembly includes upper cluster gear | Find 13 |
| 14 | RB2-3481-000CN | Solenoid plate | Find 14 |
| 15 | RS6-0499-000CN | Gear - 39 tooth - 39 tooth gear - Connects to drive shaft | Find 15 |
| 16 | RS6-0500-000CN | Gear - 17 tooth - 17 tooth gear - Smallest gear in drive assembly | Find 16 |

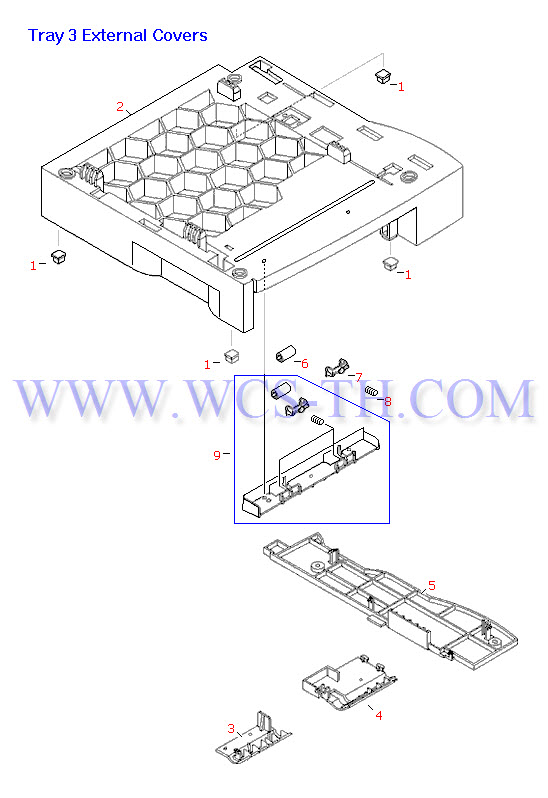

Tray 3 Parts (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2816-000CN | Rubber foot - Non-slip replacement rubber foot - Attaches to the bottom of the tray-3 assembly (four used) | Find 1 |
| 2 | RB2-3471-040CN | Tray 3 housing - Bare frame that printer sits on top of printer | Find 2 |
| 3 | RB2-3489-000CN | Inner cover (Small Quartz Gray plastic cover) - Tray 3 Cover - Covers Bottom of Front Lower Left Corner | Find 3 |
| 4 | RB2-3479-000CN | 250 sheet feeder cover - Covers bottom of the front lower right corner | Find 4 |
| 5 | RB2-3480-000CN | 250 sheet feeder drive cover - Covers bottom of the drive assembly - Located on the right side - Tray 3 Cover - Covers Bottom of Drive Assembly - Right Side | Find 5 |
| 6 | RB2-3484-020CN | Feed roller - Feed roller for sheet feeder - White plastic roller - | Find 6 |
| 7 | RB2-3485-000CN | Roller holder - For Tray 3 - Two used | Find 7 |
| 8 | RS6-2063-000CN | Roller spring - Provides pressure for feed roller - For tray 3 feed roller | Find 8 |
| 9 | RG5-4394-020CN | Feed roller assembly - Includes roller, holder and spring - For tray three | Find 9 |

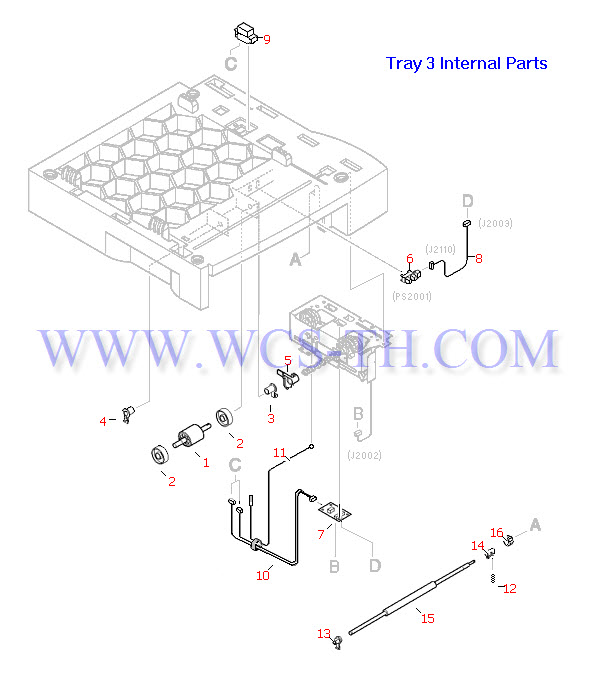

Tray 3 Parts (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2891-000CN | Pickup roller assembly - Black and white 'D' shaped pickup roller with a slot in the end of the shaft - Tray 2 and 3 - Located near middle-front of tray | Find 1 |
| 2 | RB2-2892-000CN | Guide roller (Free spinning white plastic roller) - Mounts on the paper pickup drive shaft on each side of the pickup 'D' shaped roller - Two used | Find 2 |
| 3 | RB2-2895-000CN | Shaft bushing/retainer - Right side pickup roller support bushing - Pickup roller right side support bushing | Find 3 |
| 4 | RB2-2896-000CN | Shaft bushing/retainer - Left side pickup roller support bushing - Pickup roller left side dupport bushing | Find 4 |
| 5 | RB2-3474-000CN | Paper sensor lever - Mechanical link to Photosensor PS2001 | Find 5 |
| 6 | WG8-5593-000CN | Sensor PC board - Small board with flag activated photosensor - | Find 6 |
| 7 | RG5-4277-000CN | Tray 3 controller board - Paper feed drive PCA | Find 7 |
| 8 | RG5-4278-000CN | Sensor cable - From photo sensor PS2001 to tray 3 paper feeder drive PC board - J2110 to J2003 | Find 8 |
| 9 | VS1-6174-006CN | Feed drive assembly connector - Electrical connection between tray 3 and printer | Find 9 |
| 10 | RG5-4280-000CN | Relay cable - One connector to two connectors - Six wires - From feed drive controller board to feed drive relay | Find 10 |
| 11 | RG5-4281-000CN | Frame ground cable - Ground connection to feed drive housing - Round crimp lug to push-on connector with green wire | Find 11 |
| 12 | RS6-2064-000CN | Bushing spring - Provides tension for right side feed roller support bushing - For tray 3 | Find 12 |
| 13 | RB2-6470-000CN | Roller bushing - Left side feed roller bushing | Find 13 |
| 14 | RB2-3487-000CN | Roller bushing - Right side feed roller bushing - Roller bushing - Tray 3 right side feed roller bushing | Find 14 |
| 15 | RB2-3490-000CN | Feed roller - Tray 3 feed roller | Find 15 |
| 16 | RS6-0501-000CN | Drive gear - 15 tooth - 15 tooth drive gear - Drives Tray 3 feed roller | Find 16 |
