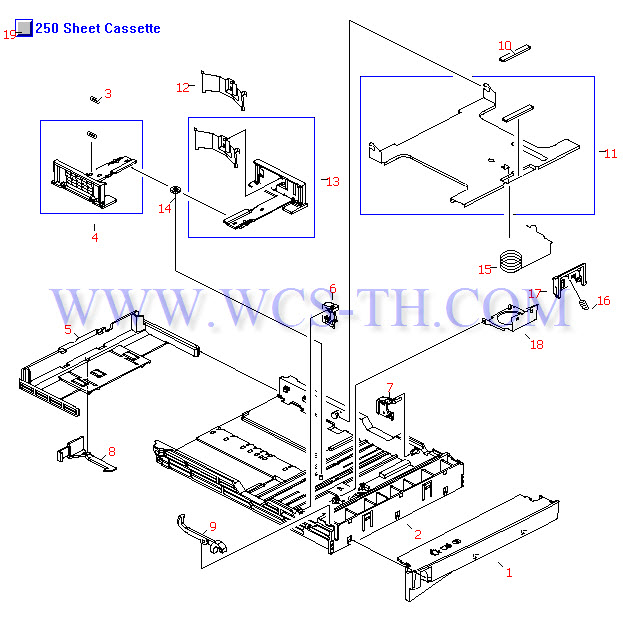

250 Sheet Cassette
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-3000-000CN | Front cover - Front cover and pull handle for paper tray | Find 1 |
| 2 | R98-1003-150CN | 250 sheet paper tray - Adjusts for letter, legal, Executive, and A4 paper - Paper cassette - Bare paper tray frame | Find 2 |
| 3 | RS6-2035-000CN | Plate spring - Provides tension for left side width plate | Find 3 |
| 4 | RG5-4159-000CN | Adjustable width plate - Left side paper width stop plate | Find 4 |
| 5 | RB2-3003-040CN | Plate end - Movable end plate at back of Tray 2 paper cassette | Find 5 |
| 6 | RB2-3004-000CN | Release arm - Left side lifting plate release arm | Find 6 |
| 7 | RB2-3005-000CN | Release arm - Right side lifting plate release arm | Find 7 |
| 8 | RB2-3009-040CN | Lock arm - Locks rear paper length adjustment plate | Find 8 |
| 9 | RB2-3010-000CN | Paper sensor arm - Indicates on front cover the quantity of paper in tray | Find 9 |
| 10 | RB2-3007-000CN | Separation pad - Small rectangular rubber pad on front of metal lifting plate | Find 10 |
| 11 | RF5-2599-000CN | Upper lifting plate - Metal plate that supports paper in tray | Find 11 |
| 12 | RB2-3012-000CN | Leaf spring - Provides side tension for the paper input tray - Attaches to right side width adjustment plate | Find 12 |
| 13 | RF5-2606-000CN | Adjustable width plate - Right side paper width stop plate | Find 13 |
| 14 | RS6-0440-000CN | Gear - 10 tooth - Mechanical connection between right and left side paper plates - 10 tooth gear - Provides for coordinated movement of width adjustment plates | Find 14 |
| 15 | RS6-2020-000CN | Plate spring - Provides pressure for paper lifting plate | Find 15 |
| 16 | RS6-2021-000CN | Pad spring - Provides tension for separation pad on front of paper tray | Find 16 |
| 17 | RB9-0695-020CN | Separation pad - Moveable pad on front of Optional 250 sheet paper tray (C4793A) | Find 17 |
| 18 | RB2-3013-000CN | Pad holder - Separation pad holder on front of tray | Find 18 |
| 19 | RG5-5580-060CN | 250 sheet paper tray - 250 sheet paper tray - Adjusts for letter, legal, Executive, and A4 paper - Used for Tray 2 | Find 19 |

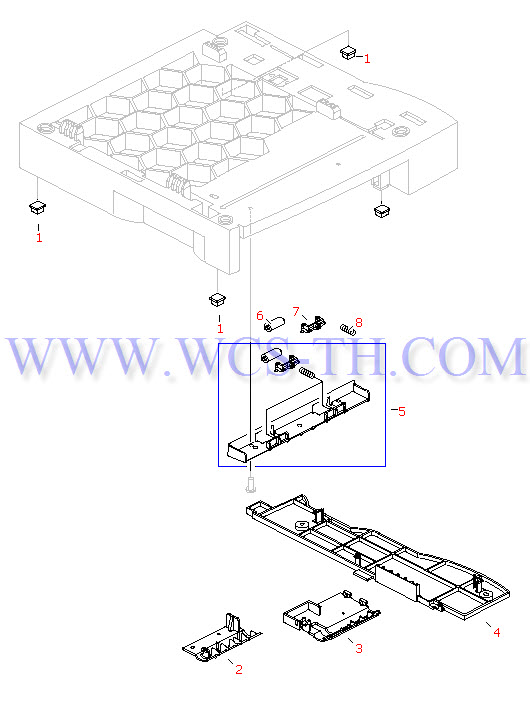

250 Sheet Feeder Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2816-000CN | Rubber foot - Non-slip replacement rubber foot - Attaches to the bottom of the 250-sheet feeder (four used) | Find 1 |
| 2 | RB2-3489-000CN | Inner cover (Small Quartz Gray plastic cover) - 500 Sheet Feeder Cover - Covers Bottom of Front Lower Left Corner | Find 2 |
| 3 | RB2-3479-000CN | 250 sheet feeder cover - Covers bottom of the front lower right corner - 250 Sheet Feeder Cover - Covers Bottom of Front Lower Right Corner | Find 3 |
| 4 | RB2-3480-000CN | 250 sheet feeder drive cover - Covers bottom of the drive assembly - Located on the right side | Find 4 |
| 5 | RG5-4394-020CN | Feed roller assembly - Includes roller, holder and spring - For the 250 sheet feeder | Find 5 |
| 6 | RB2-3484-020CN | Feed roller - Feed roller for sheet feeder - White plastic roller | Find 6 |
| 7 | RB2-3485-000CN | Roller holder - For 500 sheet feeder - Two used | Find 7 |
| 8 | RS6-2063-000CN | Roller spring - Provides pressure for feed roller - For 500 sheet feeder feed roller | Find 8 |

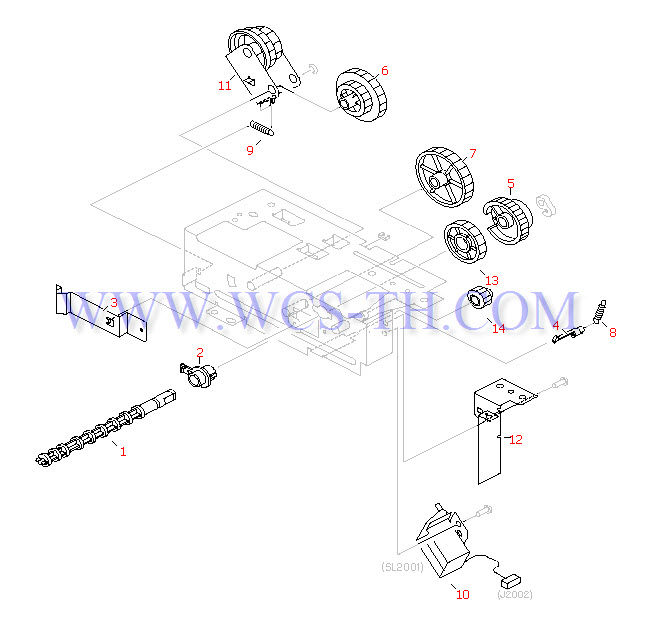

250 Sheet Feeder Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2893-000CN | Drive shaft - Drives pickup roller | Find 1 |
| 2 | RB2-3475-000CN | Support bushing - Feeder drive shaft bushing | Find 2 |
| 3 | RB2-3478-000CN | Leaf spring - Provides tension for drive shaft bushing | Find 3 |
| 4 | RB1-6133-000CN | Hook spring anchor pin | Find 4 |
| 5 | RG5-4391-080CN | Paper feeder drive assembly - Clutch gear - 27 tooth - | Find 5 |
| 6 | RS6-0497-000CN | Cluster gear - 39/34 tooth - 39 tooth/34 tooth cluster gear - Bottom gear of wwing gear assembly | Find 6 |
| 7 | RS6-0498-000CN | Gear - 45 tooth - 45 tooth gear - Largest gear of drive assembly | Find 7 |
| 8 | RS6-2061-000CN | Clip spring - Provides tension for clip - Attaches to hook | Find 8 |
| 9 | RS6-2062-000CN | Swing gear spring - Provides tension for swing gear assembly | Find 9 |
| 10 | RH7-5213-000CN | Drive solenoid - Engages swing gear assembly | Find 10 |
| 11 | RF5-2755-020CN | Swing gear - Swing assembly includes upper cluster gear | Find 11 |
| 12 | RB2-3481-000CN | Solenoid plate | Find 12 |
| 13 | RS6-0499-000CN | Gear - 39 tooth - 39 tooth gear - Connects to drive shaft | Find 13 |
| 14 | RS6-0500-000CN | Gear - 17 tooth - 17 tooth gear - Smallest gear in drive assembly | Find 14 |

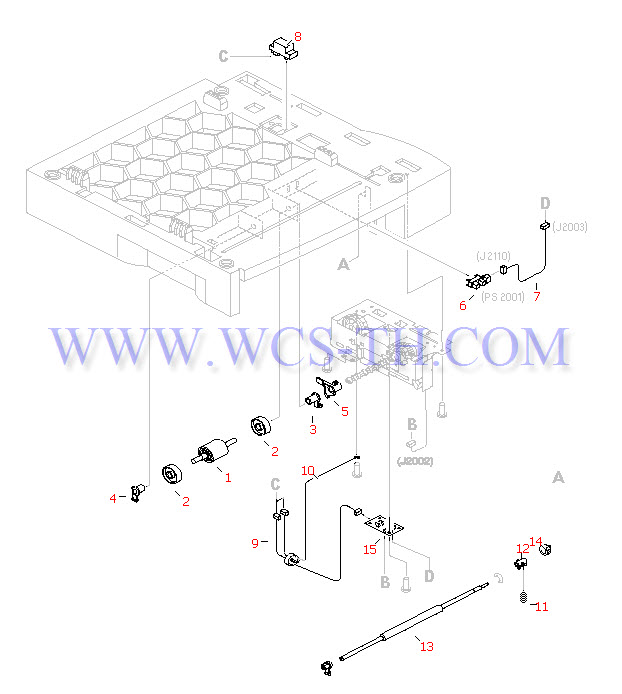

250 Sheet Feeder Internal Components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2891-000CN | Pickup roller assembly - Black and white 'D' shaped pickup roller with a slot in the end of the shaft - 250 sheet feeder - Located near middle-front of tray | Find 1 |
| 2 | RB2-2892-000CN | Guide roller (Free spinning white plastic roller) - Mounts on the paper pickup drive shaft on each side of the pickup 'D' shaped roller - Two used | Find 2 |
| 3 | RB2-2895-000CN | Shaft bushing/retainer - Right side pickup roller support bushing - Pickup roller right side support bushing | Find 3 |
| 4 | RB2-2896-000CN | Shaft bushing/retainer - Left side pickup roller support bushing - Pickup roller left side dupport bushing | Find 4 |
| 5 | RB2-3474-000CN | Paper sensor lever - Mechanical link to Photosensor PS2001 | Find 5 |
| 6 | WG8-5593-000CN | Sensor PC board - Small board with flag activated photosensor - | Find 6 |
| 7 | RG5-4278-000CN | Sensor cable - From photo sensor PS2001 to 250 sheet feeder drive PC board - J2110 to J2003 | Find 7 |
| 8 | VS1-6174-006CN | Feed drive assembly connector - Electrical connection between 500-sheet tray and printer | Find 8 |
| 9 | RG5-4280-000CN | Relay cable - One connector to two connectors - Six wires - From feed drive controller board to feed drive relay | Find 9 |
| 10 | RG5-4281-000CN | Frame ground cable - Ground connection to feed drive housing - Round crimp lug to push-on connector with green wire | Find 10 |
| 11 | RS6-2064-000CN | Bushing spring - Provides tension for right side feed roller support bushing - For 500 sheet tray | Find 11 |
| 12 | RB2-3487-000CN | Roller bushing - Right side feed roller bushing - Roller bushing - 250 sheet tray right side feed roller bushing | Find 12 |
| 13 | RB2-3490-000CN | Feed roller - Tray 3 feed roller - 250 sheet tray feed roller | Find 13 |
| 14 | RS6-0501-000CN | Drive gear - 15 tooth - 15 tooth drive gear - Drives 500 Sheet tray feed roller | Find 14 |
| 15 | RG5-4277-000CN | Tray 3 controller board - Paper feed drive PCA - 250 Tray Controller Board - Paper Feed Drive PCA | Find 15 |
500 Sheet Cassette
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-3007-000CN | Separation pad - Small rectangular rubber pad on front of metal lifting plate | Find 1 |
| 2 | RB2-6474-000CN | 500-sheet separation pad - Small rectangular rubber pad on front of cassette arm - Not the one on metal lifting plate | Find 2 |
| 3 | RG5-5623-000CN | 500 Sheet paper tray assembly - Holds 500 sheets of Letter and A4 size paper - 500 Sheet paper tray assembly - Holds 500 sheets of Letter and A4 size paper - This is only the paper cassette | Find 3 |

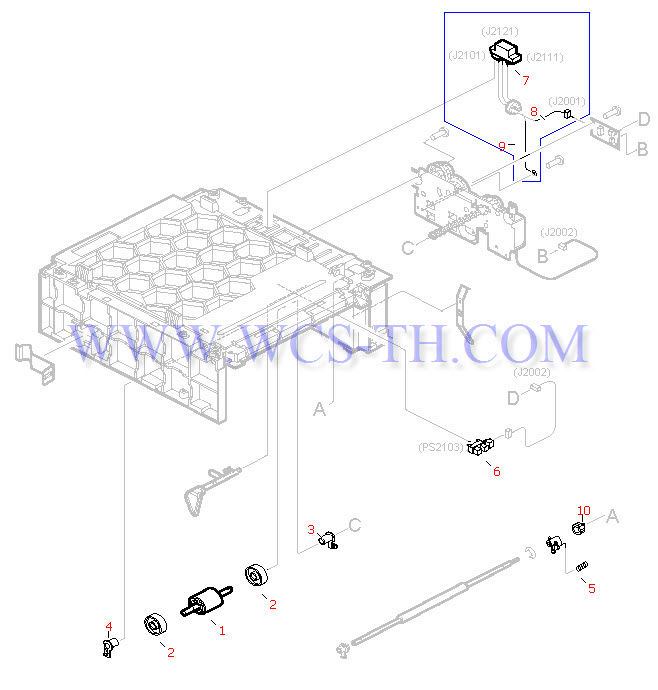

500 Sheet Feeder (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-6304-000CN | Pickup roller assembly - Rubber roller on a short shaft with slots on the end - Does NOT include the two flanking hard plastic rollers - Tray 2 roller located near front middle of tray - Roller has slotted shaft | Find 1 |
| 2 | RB2-2892-000CN | Guide roller (Free spinning white plastic roller) - Mounts on the paper pickup drive shaft on each side of the pickup 'D' shaped roller - Two used | Find 2 |
| 3 | RB2-2895-000CN | Shaft bushing/retainer - Right side pickup roller support bushing - Pickup roller right side support bushing | Find 3 |
| 4 | RB2-2896-000CN | Shaft bushing/retainer - Left side pickup roller support bushing - Pickup roller left side dupport bushing | Find 4 |
| 5 | RS6-2064-000CN | Bushing spring - Provides tension for right side feed roller support bushing - For 500 sheet tray | Find 5 |
| 6 | WG8-5645-000CN | Flag activated photosensor - Photo sensor - Paper sensor PS1305 | Find 6 |
| 7 | VS1-6174-006CN | Feed drive assembly connector - Electrical connection between 500-sheet tray and printer | Find 7 |
| 8 | RG5-4280-000CN | Relay cable - One connector to two connectors - Six wires - From feed drive controller board to feed drive relay | Find 8 |
| 9 | RG5-4281-000CN | Frame ground cable - Ground connection to feed drive housing - Round crimp lug to push-on connector with green wire | Find 9 |
| 10 | RS6-0501-000CN | Drive gear - 15 tooth - 15 tooth drive gear - Drives 500 Sheet tray feed roller | Find 10 |

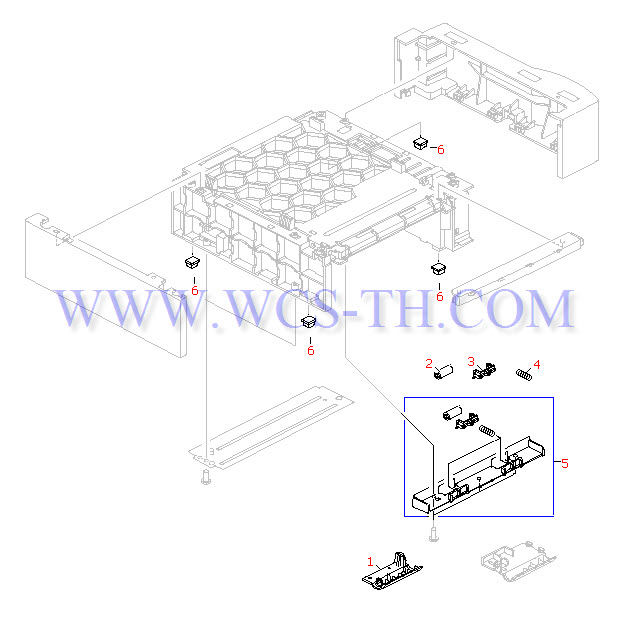

500 Sheet Feeder 1 of 2
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-3489-000CN | Inner cover (Small Quartz Gray plastic cover) - 500 Sheet Feeder Cover - Covers Bottom of Front Lower Left Corner | Find 1 |
| 2 | RB2-3484-020CN | Feed roller - Feed roller for sheet feeder - White plastic roller | Find 2 |
| 3 | RB2-3485-000CN | Roller holder - For 500 sheet feeder - Two used | Find 3 |
| 4 | RS6-2063-000CN | Roller spring - Provides pressure for feed roller - For 500 sheet feeder feed roller | Find 4 |
| 5 | RG5-4394-020CN | Feed roller assembly - Includes roller, holder and spring - For the 250 sheet feeder | Find 5 |
| 6 | RB2-6297-000CN | Rubber foot - Square self-adhesive rubber foot - Attaches to the bottom of the 500-sheet feeder (four used) | Find 6 |

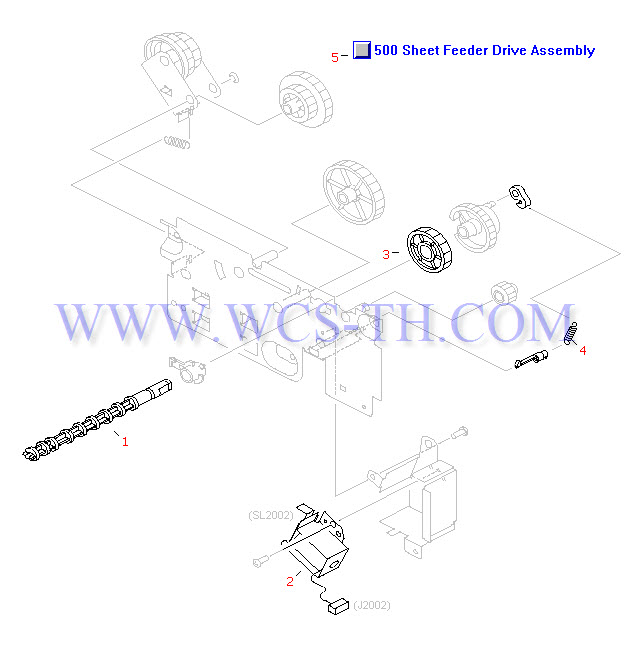

500 Sheet Feeder Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-6133-000CN | Hook spring anchor pin | Find 1 |
| 1 | RB2-2893-000CN | Drive shaft - Drives pickup roller | Find 1 |
| 2 | RH7-5286-000CN | Drive solenoid - Engages swing gear assembly | Find 2 |
| 3 | RS6-0499-000CN | Gear - 39 tooth - 39 tooth gear - Connects to drive shaft | Find 3 |
| 4 | RS6-2061-000CN | Clip spring - Provides tension for clip - Attaches to hook | Find 4 |
| 5 | C7058-67908 | Paper feeder drive assembly for 500 sheet tray | Find 5 |

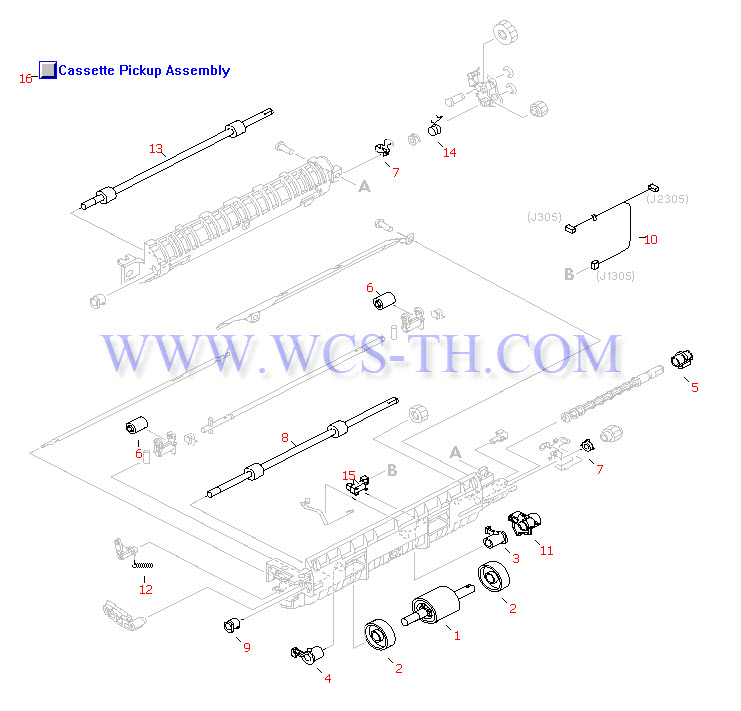

Cassette Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-6304-000CN | Pickup roller assembly - Rubber roller on a short shaft with slots on the end - Does NOT include the two flanking hard plastic rollers - Tray 2 roller located near front middle of tray - Roller has slotted shaft | Find 1 |
| 2 | RB2-2892-000CN | Guide roller (Free spinning white plastic roller) - Mounts on the paper pickup drive shaft on each side of the pickup 'D' shaped roller - Two used | Find 2 |
| 3 | RB2-2895-000CN | Shaft bushing/retainer - Right side pickup roller support bushing - Pickup roller right side support bushing | Find 3 |
| 4 | RB2-2896-000CN | Shaft bushing/retainer - Left side pickup roller support bushing - Pickup roller left side dupport bushing | Find 4 |
| 5 | RB2-2897-020CN | Shaft bushing/retainer - | Find 5 |
| 6 | RB2-3046-000CN | Guide roller - Provides pressure against feed roller | Find 6 |
| 7 | RB2-3081-000CN | Feed roller bushing - Right side feed roller support | Find 7 |
| 8 | RB2-6302-000CN | Feed roller - Shaft with two rollers - Feed roller for the paper cassette | Find 8 |
| 9 | RB2-6303-000CN | Feed roller bushing - Left side feed roller support | Find 9 |
| 10 | RG5-5583-000CN | Sensor cable - Cable for PS1305 - Paper detection | Find 10 |
| 11 | RB2-6310-000CN | Paper sensor lever - Senses paper at pickup roller | Find 11 |
| 12 | RB2-6314-000CN | Tension spring - Provides tension for duplexer release knob | Find 12 |
| 13 | RB2-6318-000CN | Feed roller - Shaft with two rollers - Feeds paper from the duplexer into the registration assembly | Find 13 |
| 14 | RB2-6321-000CN | Torsion spring - Provides tension for gear on the paper feed roller and gear for registration assembly | Find 14 |
| 15 | WG8-5645-000CN | Flag activated photosensor - Photo sensor - Paper sensor PS1305 | Find 15 |
| 16 | C7058-67907 | Duplex feed/Paper pickup kit - Includes duplex feed guide assembly and cassette paper pickup assembly | Find 16 |

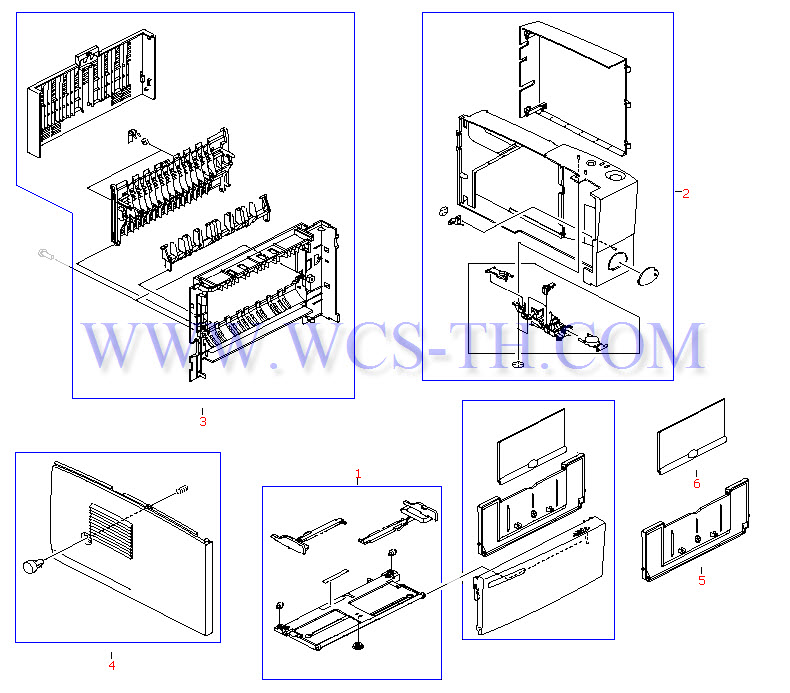

External Covers and Panels
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5576-000CN | Multi-purpose paper input tray assembly (MP Tray, Tray one) | Find 1 |
| 2 | RG5-5545-040CN | DIMM cover assembly - Right side cover - Includes I/O cover on right rear and optical filter cover on right front | Find 2 |
| 3 | RG5-5546-000CN | Rear cover - Includes face-down output tray assembly | Find 3 |
| 4 | RG5-5549-000CN | Left cover assembly - Includes power button and spring | Find 4 |
| 5 | RB2-3036-000CN | Tray 1 extender - Pull-out tray extension - Attaches to flip-out tray extender | Find 5 |
| 6 | RB2-3037-000CN | Tray 1 extender - Flip-out paper extender | Find 6 |

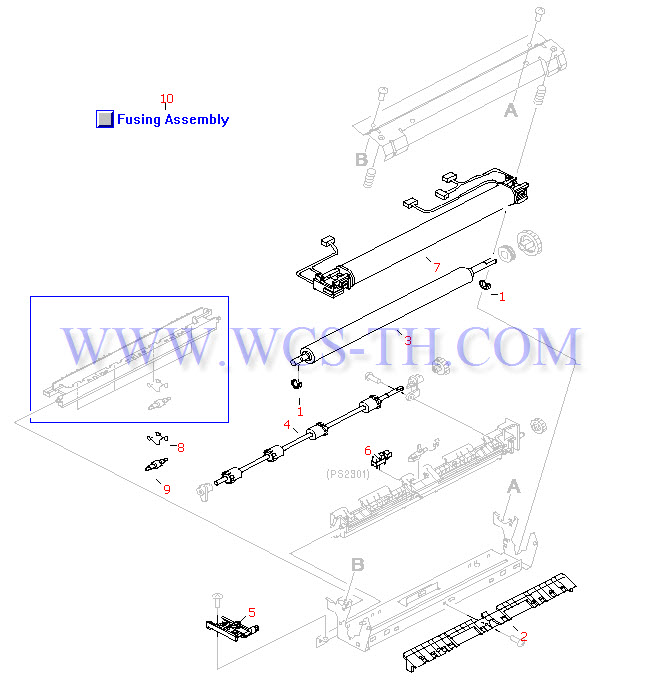

Fusing Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2973-000CN | Support bushing - Pressure Roller Support Bushing - Two used | Find 1 |
| 2 | RB2-6357-000CN | Entrance guide - Paper input guide to fusing assembly | Find 2 |
| 3 | RB2-6369-000CN | Pressure roller - Applies pressure to paper as it feeds through the fusing roller | Find 3 |
| 4 | RB2-6372-020CN | Delivery roller - Feeds paper out of fusing assembly | Find 4 |
| 5 | RF5-2609-000CN | Contact holder - Anchors fusing assembly to chassis | Find 5 |
| 6 | WG8-5593-000CN | Sensor PC board - Small board with flag activated photosensor - | Find 6 |
| 7 | RG5-5560-070CN | Fusing roller - (For 110V to 120V operation) - Includes heating element and fixing sleeve only | Find 7 |
| 7 | RG5-5570-070CN | Fusing roller - (For 220V to 240V operation) - Includes heating element and fixing sleeve only | Find 7 |
| 8 | RB2-2978-000CN | Compression spring - Provides tension for upper delivery rollers mounted on upper delivery guide - 4 used | Find 8 |
| 9 | RB2-6374-000CN | Delivery roller - For upper delivery guide - Four used | Find 9 |
| 10 | RG5-5559-110CN | Fusing roller assembly (For 100V to 120V operation) - Bonds toner to paper with heat | Find 10 |
| 10 | RG5-5569-110CN | Fusing roller assembly (For 220V to 240V operation) - Bonds toner to paper with heat | Find 10 |
Internal Components (1 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RH7-1463-000CN | Cooling fan | Find 1 |
| 2 | RB2-2837-000CN | Torsion spring - Provides tension for paper sensor lever | Find 2 |
| 3 | RB2-2836-000CN | Paper sensor lever - Mechanical device that engages photo sensor PS504 | Find 3 |
| 4 | RG5-5598-000CN | Paper-feed cable - Includes the interface cable from the engine controller PC board to the accessory paper tray connector and the engine controller PC board ground cable. | Find 4 |
| 5 | RG5-5591-000CN | Laser/scanner assembly - Mounts on top of print structure | Find 5 |
| 6 | RH2-5427-000CN | Flat cable - Connects to laser/scanner assembly | Find 6 |
Internal Components (2 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5566-000CN | Engine controller PC board | Find 1 |
| 2 | RH7-1461-000CN | Reverse motor - Provides power to turn paper over when it goes through duplexer | Find 2 |
| 3 | RH2-5423-000CN | Flat ribbon cable that connects engine controller board to Formatter board (J912) | Find 3 |
| 4 | RH7-1458-000CN | Main motor | Find 4 |
| 5 | RH7-6051-000CN | Microswitch with lever activator - Cartridge access door switch - SW1906 | Find 5 |
| 6 | C4209-69001 | Formatter (Main logic) board - For duplex capable printers - Formatter (Main Logic) Board | Find 6 |
| 7 | RB2-2944-000CN | PCA guide - Holds extended I/O PC board | Find 7 |
| 8 | RB2-2945-000CN | Mount plate - Protective plate for extended I/O PCA | Find 8 |
Internal Components (3 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2926-020CN | Transfer roller bushing - Supports right side of transfer roller | Find 1 |
| 2 | RB2-3040-000CN | Gear - 26 tooth - Tray 1 pickup roller drive gear | Find 2 |
| 3 | RB2-3043-000CN | Left roller bushing - Acts as the bearing and retainer for the left end of the paper pickup roller assembly (tray 1) | Find 3 |
| 4 | RS6-0445-000CN | Registration roller drive gear - 14 tooth - Gear - 14 tooth - Drives registration roller | Find 4 |
| 5 | RS6-2022-000CN | Compression spring - Provides tension for right side of transfer roller bushing | Find 5 |
| 6 | RS6-2025-000CN | Tensioning spring - For the paper pickup gear assembly | Find 6 |
| 7 | RB2-2830-020CN | Cartridge guide - Right side toner cartridge guide | Find 7 |
| 8 | RB2-2831-020CN | Cartridge guide - Left side toner cartridge guide | Find 8 |
| 9 | RC1-1009-000CN | Compression spring - Provides electrical ground connection | Find 9 |
| 10 | RB2-2843-000CN | Torsion spring - Provides a small amount of back pressure for the paper sensor flag | Find 10 |
| 11 | RG5-4128-000CN | Multi-purpose tray pickup roller assembly - Includes pickup roller, roller cam, right and left cams, both round rollers and dowel pin | Find 11 |
| 12 | RG5-4156-000CN | Cassette pickup gear assembly | Find 12 |
| 13 | C7058-67905 | Delivery roller kit - Includes all face-down delivery roller assemblies, upper delivery roller supports, and roller drive gear | Find 13 |
| 14 | RB2-2850-000CN | Upper delivery roller bushing - Roller bushing - Supports face-down upper delivery roller | Find 14 |
| 15 | RG5-5581-000CN | Transfer roller assembly - Includes left side bushing | Find 15 |
| 16 | RS6-0441-000CN | Upper delivery roller drive gear - 15 tooth - Drive gear - Upper delivery roller drive gear - 15 tooth | Find 16 |
| 17 | WG8-5593-000CN | Sensor PC board - Small board with flag activated photosensor - | Find 17 |
| 18 | RG5-5556-000CN | Registration assembly - Registration shutter and roller with holder frame assembly | Find 18 |
| 19 | RB2-2900-000CN | Pickup roller - MP/TRAY 1 pickup roller | Find 19 |
| 20 | RB2-6400-000CN | Face-down delivery roller - Lower rollers - | Find 20 |
Internal Components (4 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-6405-000CN | Tray hinge - For the left side of the multi-purpose front input tray (Tray 1) | Find 1 |
| 2 | RB2-6406-000CN | Tray hinge - For the right side of the multi-purpose front input tray (Tray 1) | Find 2 |
| 3 | RF5-3272-000CN | Separation pad assembly - Separation pad, holder and spring | Find 3 |
| 4 | RS6-0464-000CN | Feed belt drive gear - 20 tooth - Drive gear - Engages feed belt gear assembly - 20 tooth | Find 4 |
| 5 | RS6-2030-000CN | Tension spring | Find 5 |
| 6 | RB2-3073-000CN | Belt drive shaft 1 - Between wide middle belt and the two narrower rear belts - Transfers power from gear assembly | Find 6 |
| 7 | RB2-3075-000CN | Leaf spring - Chassis grounding spring | Find 7 |
| 8 | RB2-3080-000CN | Grounding plate - Electrical chassis ground connection | Find 8 |
| 9 | RB2-6268-000CN | Idler shaf - Idler shaft - Small front pulleys attached to small belts | Find 9 |
| 10 | RB2-6269-000CN | Belt drive shaft 2 - Front of middle wide belt - Tiny drive belts attach on each end of this shaft | Find 10 |
| 11 | RB2-6270-000CN | Paper feed belt - Short/tiny belts in front of and on each side of middle belt of paper transfer assembly | Find 11 |
| 12 | RB2-6272-000CN | Paper feed belt - Wide middle belt | Find 12 |
| 13 | RB2-6273-000CN | Paper feed belt - Paper feed belt - Long narrow rear belts - Two used | Find 13 |
| 14 | RB2-6274-000CN | Belt shaft 3 - Tiny idler shafts at back of narrow paper belts - Belt shaft 3 - Tiny idler shafts at back of narrow paper belts - Two used | Find 14 |
| 15 | RG5-5577-000CN | Gear assembly - Drives paper transfer belt assembly | Find 15 |
| 16 | RG5-5568-000CN | Cable and guide assembly - Cables run between solenoids and engine controller board | Find 16 |
| 17 | RH7-5270-000CN | Solenoid (SL1908) - Tray 2 pickup assembly - Solenoid - Tray 2 pickup assembly - SL1908 | Find 17 |
| 18 | RH7-5273-000CN | Solenoid (SL2908) - Tray 1 pickup assembly - Solenoid - Tray 1 pickup assembly - SL2908 | Find 18 |
| 19 | WG8-5593-000CN | Sensor PC board - Small board with flag activated photosensor - | Find 19 |
Internal Components (5 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-6271-000CN | Contact spring - High voltage contact for transfer roller | Find 1 |
| 2 | RG5-5552-000CN | Duplex solenoid assembly - Solenoid and clutch assembly to engage and disengage duplexer | Find 2 |
| 3 | RG5-5548-000CN | Reverse guide assembly - Guides paper back into printer to print back side when in duplex mode. | Find 3 |
| 4 | RG5-5553-000CN | Position guide assembly (Plate with drive gear and rollers) - Mounts on the bottom of the internal chassis | Find 4 |
| 5 | RG5-5554-050CN | Duplex feed guide assembly - Duplex Feed Guide Assembly - Separates paper path from Tray 2 when in duplex mode | Find 5 |
| 6 | RG5-5555-020CN | Feed roller assembly | Find 6 |
| 7 | RB2-6249-000CN | Feed guide hinge | Find 7 |
| 8 | RG5-5565-000CN | Power receptacle - Power input receptacle and cable to power supply | Find 8 |
PC Board Locator
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5566-000CN | Engine controller PC board | Find 1 |
| 2 | RG5-5563-050CN | Power supply board - For 100V-127V operation | Find 2 |
| 2 | RG5-5573-050CN | Power supply board - For 220-240V operation - Power Supply Board - for 220 to 240 Volt Operation | Find 2 |
| 3 | C4209-69001 | Formatter (Main logic) board - For duplex capable printers - Formatter (Main Logic) Board | Find 3 |
Power Supply Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5563-050CN | Power supply board - For 100V-127V operation | Find 1 |
| 2 | RH3-8006-000CN | Fuse - 8A, 250V max - Power supply board fuse - For 220/240V operation | Find 2 |
| 3 | RF5-3279-000CN | Sensor lever holder | Find 3 |

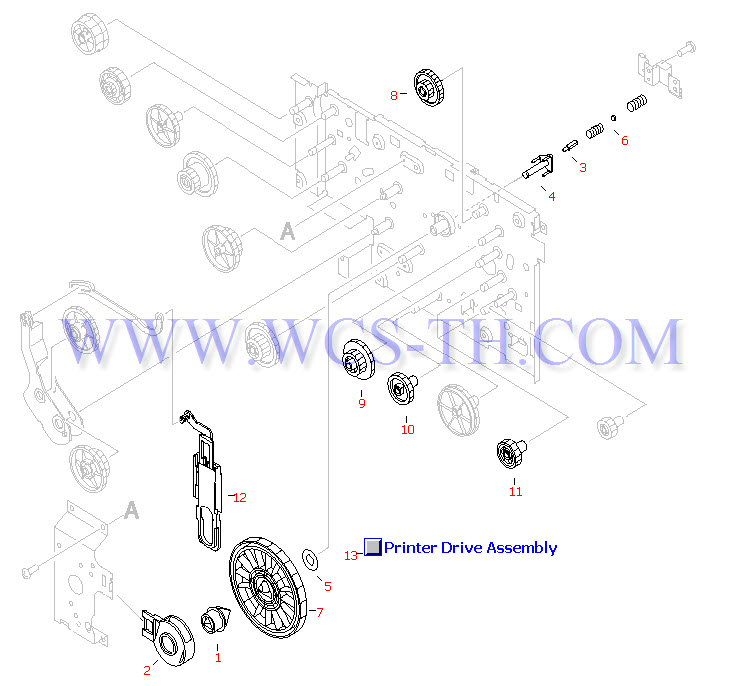

Printer Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2935-000CN | Gear coupler - Between plate bushing and largest drive gear | Find 1 |
| 2 | RB2-2936-000CN | Coupler bushing - Supports largest drive gear coupler | Find 2 |
| 3 | RB2-2943-000CN | Clutch pin - Holds drum drive clutch springs - Between pin holder and clutch spring plate | Find 3 |
| 4 | RB2-2947-000CN | Pin holder - Holds drum drive clutch pin | Find 4 |
| 5 | RB2-2949-000CN | Gear washer - Between largest drive gear and mounting plate | Find 5 |
| 6 | RB2-2950-000CN | Spring spacer - Fits between the two drum clutch springs | Find 6 |
| 7 | RS6-0446-000CN | Gear '#5' - 201 tooth gear - 201 tooth gear - Largest gear in assembly - Gear #5 | Find 7 |
| 8 | RS6-0448-000CN | Cluster gear '#11' - 17/68 tooth - 17 tooth/68 tooth cluster gear - Gear #11 | Find 8 |
| 9 | RS6-0449-000CN | Cluster gear '#10' - 25/41 tooth - 25 tooth/41 tooth cluster gear - Gear #10 | Find 9 |
| 10 | RS6-0450-000CN | Printer drive gear '#9' - 31 tooth - 31 tooth gear - Printer drive gear #9 | Find 10 |
| 11 | RS6-0451-000CN | Printer drive gear '#8' - 26 tooth - 26 tooth gear - Printer drive gear #8 | Find 11 |
| 12 | RG9-1473-000CN | Coupling assembly - Engages drive gear assembly | Find 12 |
| 13 | RG5-5562-050CN | Printer drive assembly - Gear assembly on right side | Find 13 |

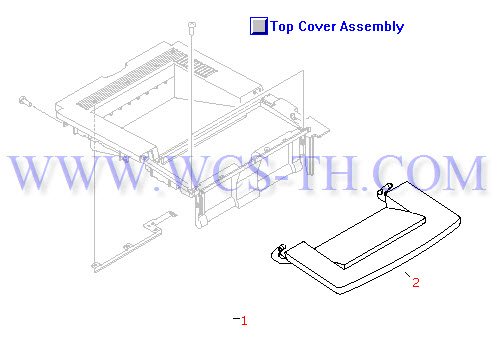

Top Cover Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-6280-020CN | Top cover assembly - Face-down output tray and toner cartridge access door | Find 1 |
| 2 | RB2-2856-000CN | Toner cartridge access door | Find 2 |
