250 Sheet Feeder
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-6304-000CN | Pickup roller assembly - Rubber roller on a short shaft with slots on the end - Does NOT include the two flanking hard plastic rollers | Find 1 |
| 2 | RB2-2892-000CN | Guide roller (Free spinning white plastic roller) - Mounts on the paper pickup drive shaft on each side of the pickup 'D' shaped roller - For the base on the 250-sheet and 500-sheet input tray assemblies | Find 2 |
| 3 | RB2-2895-000CN | Shaft bushing/retainer - Right side pickup roller support bushing - Mounts on and retains the right end of the pickup roller shaft - For the base on the 250 sheet and 500 sheet input tray assemblies | Find 3 |
| 4 | RB2-2896-000CN | Shaft bushing/retainer - Left side pickup roller support bushing - Mounts on and retains the left end of the pickup roller shaft - For the base on the 250 sheet and 500 sheet paper input tray assemblies | Find 4 |
| 5 | RC1-0954-000CN | Separation pad assembly in front portion of 250 sheet tray | Find 5 |
| 6 | C4793-67901 | 250-sheet tray feeder assembly - Includes the feeder base assembly and 250-sheet paper cassette - Can hold letter, legal, executive, A4, A5, ISO B5, JIS B5, or 8.5 x 13-inch size paper | Find 6 |

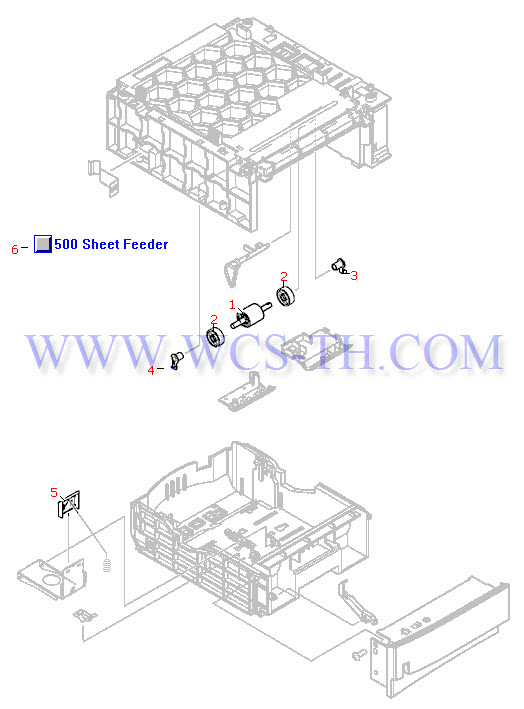

500 Sheet Feeder
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-6304-000CN | Pickup roller assembly - Rubber roller on a short shaft with slots on the end - Does NOT include the two flanking hard plastic rollers | Find 1 |
| 2 | RB2-2892-000CN | Guide roller (Free spinning white plastic roller) - Mounts on the paper pickup drive shaft on each side of the pickup 'D' shaped roller - For the base on the 250-sheet and 500-sheet input tray assemblies | Find 2 |
| 3 | RB2-2895-000CN | Shaft bushing/retainer - Right side pickup roller support bushing - Mounts on and retains the right end of the pickup roller shaft - For the base on the 250 sheet and 500 sheet input tray assemblies | Find 3 |
| 4 | RB2-2896-000CN | Shaft bushing/retainer - Left side pickup roller support bushing - Mounts on and retains the left end of the pickup roller shaft - For the base on the 250 sheet and 500 sheet paper input tray assemblies | Find 4 |
| 5 | RF5-4258-020CN | Separation pad assembly - Includes the gray plastic frame with the rubber insert strip - For the cassette on the 250-sheet and 500-sheet input tray assemblies - Mounts in the paper cassette tray assembly | Find 5 |
| 6 | C7065-67901 | 500 Sheet Feeder and paper tray assembly - Holds 500 sheets of Letter and A4 size paper -Includes the feeder base assembly with pickup roller and the paper cassette tray | Find 6 |
Covers and Panels
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-6286-000CN | Output bin extension - Pull out extension for rear paper output bin | Find 1 |
| 2 | RB2-6288-000CN | Roller guide - Small white plastic roller in rear paper output tray - 2 used | Find 2 |
| 3 | RB2-6287-000CN | Rear output tray - Drop down face up rear paper output tray | Find 3 |
| 4 | RB2-6401-000CN | Rear paper guide - Attaches to base of rear output bin | Find 4 |
| 5 | RM1-0367-000CN | Rear cover - Back of printer cover - Includes face-down output tray assembly | Find 5 |
| 6 | RB2-6283-000CN | I/O cover - Hinged panel located on right rear of printer that allows access to concealed I/O cable connections | Find 6 |
| 7 | RM1-0329-000CN | Right side cover assembly | Find 7 |
| 8 | RC1-1013-000CN | Front cover - White plastic cover behind drop down Tray 1/MP Tray paper input tray - Attaches with two top screws | Find 8 |
| 9 | RG1-4314-000CN | Control panel cable assembly | Find 9 |
| 10 | RH6-0226-020CN | Control panel assembly - Control panel mounted on upper right front of printer | Find 10 |
| 11 | RB2-6404-000CN | Tray 1/MP Tray extension - Flip-out extension part of tray connected to the pull-out extension of tray assembly | Find 11 |
| 12 | RB2-3036-000CN | Tray 1 extender - Pull-out tray extension | Find 12 |
| 13 | RG5-5575-000CN | Tray 1/MP Tray assembly - Drop down tray on front of printer | Find 13 |
| 14 | RM1-0353-000CN | Tray 1 paper input - Adjustable paper width portion of Tray 1 assembly - Mounts above pull-out extension | Find 14 |
| 15 | RB2-6294-000CN | Power button - Located on left side of printer | Find 15 |
| 16 | RB2-2860-000CN | Power button spring - Provides tension for power button | Find 16 |
| 17 | RG5-5549-000CN | Left cover assembly - Includes power button and spring | Find 17 |

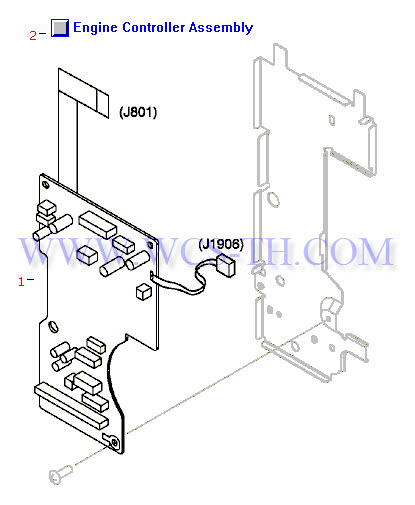

Engine Controller
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG1-4307-000CN | Engine controller PC board only - Does not include metal pan | Find 1 |
| 2 | RM1-0339-000CN | Engine controller assembly - Engine controller PC board and back plate | Find 2 |

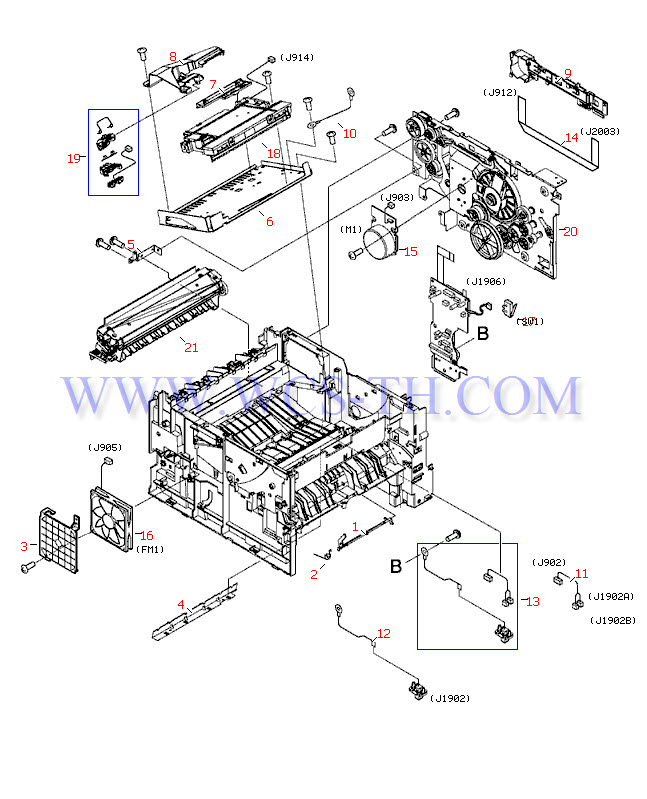

Internal Components (1 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2836-000CN | Paper sensor lever - Mechanical device that engages photo sensor PS504 | Find 1 |
| 2 | RB2-2837-000CN | Torsion spring - Provides tension for paper sensor lever | Find 2 |
| 3 | RB2-6255-000CN | Fan mount - Secures fan to chassis on left side of printer | Find 3 |
| 4 | RC1-0911-000CN | Static charge eleminator | Find 4 |
| 5 | RC1-0917-000CN | Grounding plate - Attaches to right rear corner of Formatter board | Find 5 |
| 6 | RC1-1001-000CN | Laser/scanner mounting plate - Plate that attaches to printer chassis the Laser/scanner assembly mounts to | Find 6 |
| 7 | RC1-1002-000CN | Cable guide - Attaches to rear of Laser/scanner assembly | Find 7 |
| 8 | RC1-1003-000CN | Cooling duct - Provides airflow for Laser/scanner assembly | Find 8 |
| 9 | RC1-1019-000CN | Cable guide - Black plastic cover that protects flat cable on upper right side of printer | Find 9 |
| 10 | RG1-4310-000CN | F/G cable - Chassis to scanner mounting plate ground cable | Find 10 |
| 11 | RG5-5599-000CN | Interface cable - The I/F cable from the Engine Controller PCA to the accessory paper tray connector - Six conductor/three connector cable | Find 11 |
| 12 | RG5-5600-000CN | Grounding cable - Engine Controller PCA ground cable | Find 12 |
| 13 | RG5-5598-000CN | Paper-feed cable - Includes the interface cable from the engine controller PC board to the accessory paper tray connector and the engine controller PC board ground cable. | Find 13 |
| 14 | RH2-5580-000CN | Flat interface cable - Flat cable that connects between the Formatter and ECU board | Find 14 |
| 15 | RH7-1588-000CN | DC Motor - Provides power for drive assembly on right side of printer - Motor M1 | Find 15 |
| 16 | RH7-1591-000CN | Fan - Cooling fan mounted on left side of printer - FM1 | Find 16 |
| 17 | RH7-6051-000CN | Microswitch with lever activator | Find 17 |
| 18 | RM1-0313-020CN | Laser/Scanner Assembly - Mounts on top of print structure | Find 18 |
| 19 | RM1-0335-000CN | E-label reader assembly - Sensor that reads toner cartridge information | Find 19 |
| 20 | RM1-0334-000CN | Printer drive assembly - Large gear drive assembly on right side of printer | Find 20 |
| 21 | RM1-0354-050CN | Fusing roller assembly (For 110V operation) - Bonds toner to paper with heat | Find 21 |
| 21 | RM1-0355-050CN | Fusing roller assembly (For 220V - 240V operation) - Bonds toner to paper with heat | Find 21 |

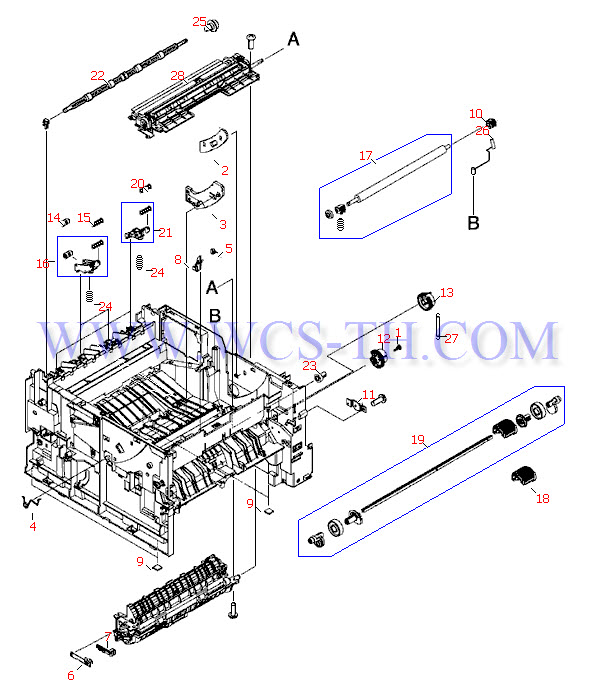

Internal Components (2 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RA0-1068-000CN | Continuity cap - Gear retainer for 30 tooth Tray 1 pickup roller shaft | Find 1 |
| 2 | RB2-2830-020CN | Cartridge guide - Right side toner cartridge guide | Find 2 |
| 3 | RC1-1009-000CN | Compression spring - Provides electrical ground connection | Find 3 |
| 4 | RC1-1009-000CN | Compression spring - Provides electrical ground connection | Find 4 |
| 5 | RB2-2843-000CN | Torsion spring - Provides a small amount of back pressure for the paper sensor flag | Find 5 |
| 6 | RB2-6250-000CN | Jam clearing rod - Helps to clear paper jams | Find 6 |
| 7 | RB2-6251-000CN | Jam clearing lever - Helps to clear paper jams | Find 7 |
| 8 | RB3-0905-000CN | Paper sensor arm - Flag for registration photosensor | Find 8 |
| 9 | RB2-6297-000CN | Rubber foot - Square self-adhesive rubber foot | Find 9 |
| 10 | RB3-0905-000CN | Paper sensor arm - Flag for registration photosensor | Find 10 |
| 11 | RC1-1038-000CN | Tray 1/MP Tray damper - Dampens movement on right side of drop down Tray 1 - White plastic gear mounted on a black plastic arm | Find 11 |
| 12 | RC1-1039-000CN | 26 tooth gear - Tray 1 pickup roller drive gear | Find 12 |
| 13 | RC1-1040-000CN | 29 tooth gear - Cassette pickup gear | Find 13 |
| 14 | RB2-6277-000CN | Top output bin roller - Lower of the two middle set of rollers - 2 used | Find 14 |
| 15 | RB2-6400-000CN | Face-down delivery roller - Lower rollers | Find 15 |
| 16 | RG5-5542-050CN | Face down delivery roller assembly - Middle two roller assemblies in center of top output bin | Find 16 |
| 17 | RM1-0343-000CN | Transfer roller assembly - Includes left side bushing | Find 17 |
| 18 | RC1-0945-000CN | Pickup roller - MP/Tray 1 pickup roller | Find 18 |
| 19 | RM1-0346-000CN | Multi-purpose tray pickup roller assembly - Includes pickup roller, roller cam, right and left cams, both round rollers and dowel pin | Find 19 |
| 20 | RB2-6400-000CN | Face-down delivery roller - Lower rollers | Find 20 |
| 21 | RM1-0370-000CN | Face down top output bin delivery roller assembly - Includes roller and holder | Find 21 |
| 22 | RM1-0371-000CN | Face-down output roller - Black roller shaft with four gray soft rollers attached and white plastic mounting tab on one end | Find 22 |
| 23 | RS6-0445-000CN | Registration roller drive gear - 14 tooth | Find 23 |
| 24 | RS6-2375-000CN | Compression spring - Provides pressure for top output bin delivery roller assembly | Find 24 |
| 25 | RU5-0168-000CN | Drive gear - Upper Delivery Roller drive gear - 15 Tooth | Find 25 |
| 26 | RU5-2109-000CN | Compression spring - Provides tension for right side of transfer roller bushing | Find 26 |
| 27 | RU5-2112-000CN | Tensioning spring - For the paper pickup gear assembly | Find 27 |
| 28 | RM1-0347-000CN | Registration Assembly - Registration shutter and roller with holder frame assembly | Find 28 |

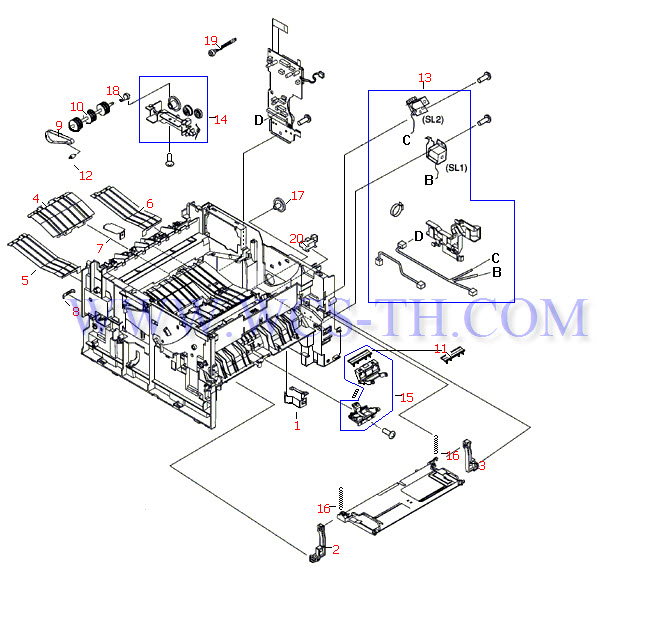

Internal Components (3 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-6266-000CN | Leaf spring - Grounding spring | Find 1 |
| 2 | RB2-6405-000CN | Tray hinge - For the left side of the multi-purpose front input tray (Tray 1) | Find 2 |
| 3 | RB2-6406-000CN | Tray hinge - For the right side of the multi-purpose front input tray (Tray 1) | Find 3 |
| 4 | RC1-0912-000CN | Center feeding plate - Middle metal piece in center of printer paper path | Find 4 |
| 5 | RC1-0913-000CN | Left feeding plate - Left side metal piece in center of printer paper path | Find 5 |
| 6 | RC1-0914-000CN | Right feeding plate - Right side metal piece in center of printer paper path | Find 6 |
| 7 | RC1-0915-000CN | Front feeding plate - Small front side metal pieces in center of printer paper path - 2 used | Find 7 |
| 8 | RC1-0916-000CN | Grounding plate | Find 8 |
| 9 | RC1-0918-000CN | Paper feed belt - Small black belt between paper feed roller and small pulleys toward front - 3 used | Find 9 |
| 10 | RC1-0920-000CN | Paper feed roller - White plastic shaft with three rollers that drive the three paper feed belts | Find 10 |
| 11 | RC1-0939-000CN | Multi-purpose/tray 1 separation pad - Does not include holder | Find 11 |
| 12 | RC1-0933-000CN | Belt pulley - Small pulley opposite paper feed shaft for paper feed belt (three used) | Find 12 |
| 13 | RM1-0324-020CN | Cable and guide Assembly - Cables run between Solenoids SL1/SL2 and Engine Controller board - Includes solenoids SL1 and SL2 | Find 13 |
| 14 | RM1-0337-000CN | Belt drive gear assembly - Gear assembly on the right side of printer that drives paper feed assembly | Find 14 |
| 15 | RM1-0345-000CN | Separation Pad assembly - Separation pad and holder | Find 15 |
| 16 | RS6-2030-000CN | Tension spring - Provides support tension for the multipurpose front input tray guide assembly (two used) | Find 16 |
| 17 | RU5-0155-000CN | Drive gear - Provides power transmission to gear assembly that drives paper feed shaft - 27 tooth | Find 17 |
| 18 | RU5-0156-000CN | Paper feed shaft drive gear - Between paper feed roller and paper feed shaft | Find 18 |
| 19 | RU5-0158-000CN | Paper feed drive shaft - Connects main drive to paper feed drive assembly | Find 19 |
| 20 | WG8-5593-000CN | Sensor PC board - Small board with flag activated photosensor | Find 20 |

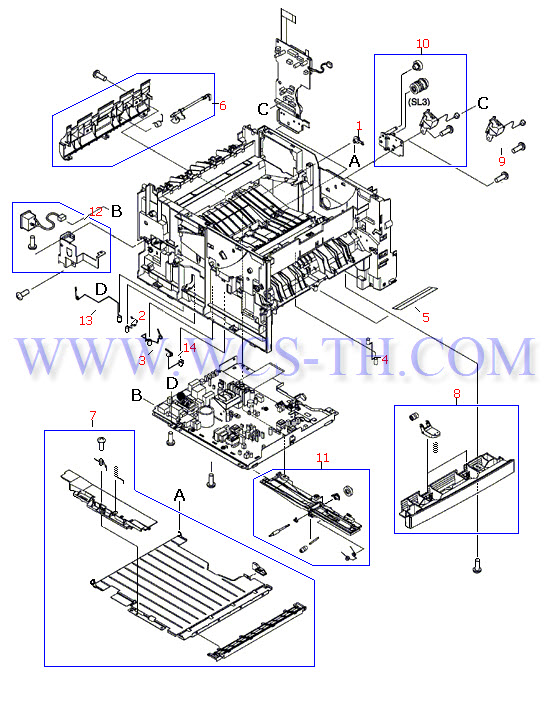

Internal Components (4 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-6249-000CN | Feed guide hinge | Find 1 |
| 2 | RB2-6262-000CN | Compression contact spring - Provides electrical voltage contact | Find 2 |
| 3 | RB2-6263-000CN | Compression contact spring - Provides electrical voltage contact | Find 3 |
| 4 | RB2-6271-000CN | Contact spring - High voltage contact for transfer roller | Find 4 |
| 5 | RC1-0919-000CN | Leakage prevention sheet - Prevents toner from leaking on media | Find 5 |
| 6 | RG5-5548-000CN | Reverse guide assembly - Guides paper back into printer to print back side when in duplex mode. | Find 6 |
| 7 | RG5-5554-050CN | Duplex feed guide assembly | Find 7 |
| 8 | RG5-5555-020CN | Feed roller assembly | Find 8 |
| 9 | RH7-5279-000CN | Solenoid - Automatic duplexer solenoid - SL3 | Find 9 |
| 10 | RM1-0331-000CN | Duplexer solenoid - SL3 | Find 10 |
| 11 | RM1-0333-000CN | Guide assembly - Duplexer portion paper guide assembly | Find 11 |
| 12 | RM1-0342-000CN | Power Receptacle - Power input receptacle and cable going to power supply PCA | Find 12 |
| 13 | RU5-2107-000CN | Compression spring - Provides electrical ground connection | Find 13 |
| 14 | RU5-2108-000CN | Compression contact spring - Provides electrical voltage contact | Find 14 |

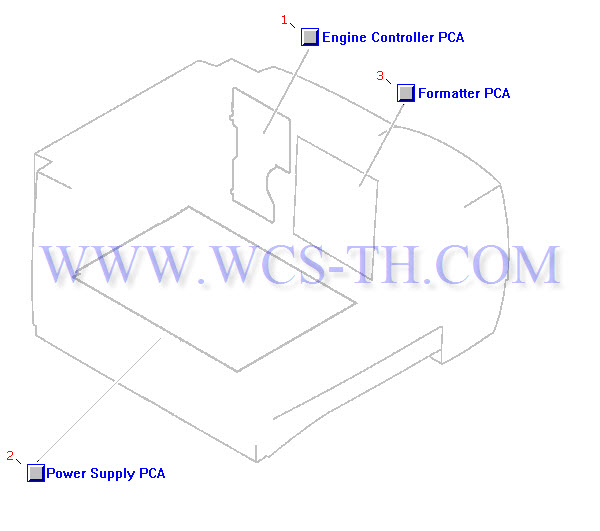

PCA Locations
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG1-4307-000CN | Engine controller PC board only - Does not include metal pan | Find 1 |
| 2 | RG1-4306-020CN | Power supply PCA - Power supply board only - For 110V-127V operation | Find 2 |
| 2 | RG1-4329-020CN | Power supply PCA - Power supply board only - For 220V-240V operation | Find 2 |
| 3 | Q1395-60002 | Formatter (Main logic) board | Find 3 |

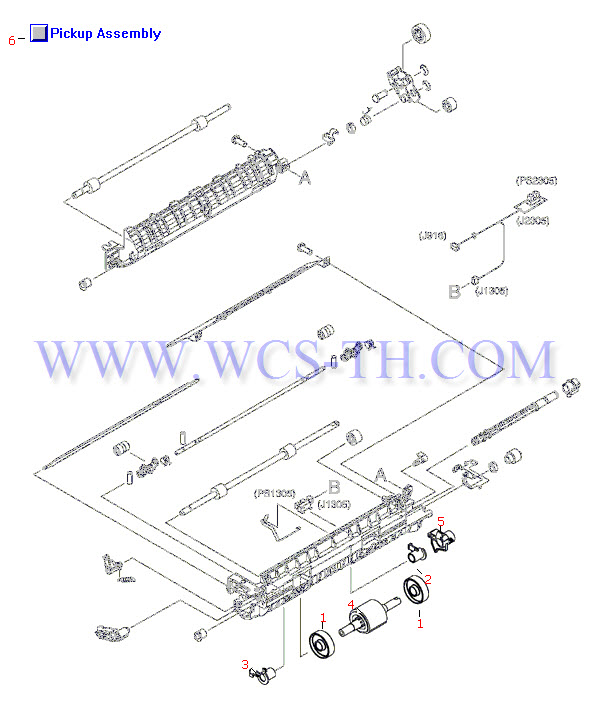

Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2892-000CN | Guide roller (Free spinning white plastic roller) - Mounts on the paper pickup drive shaft on each side of the pickup 'D' shaped roller - For the base on the 250-sheet and 500-sheet input tray assemblies | Find 1 |
| 2 | RB2-2895-000CN | Shaft bushing/retainer - Right side pickup roller support bushing - Mounts on and retains the right end of the pickup roller shaft - For the base on the 250 sheet and 500 sheet input tray assemblies | Find 2 |
| 3 | RB2-2896-000CN | Shaft bushing/retainer - Left side pickup roller support bushing - Mounts on and retains the left end of the pickup roller shaft - For the base on the 250 sheet and 500 sheet paper input tray assemblies | Find 3 |
| 4 | RB2-6304-000CN | Pickup roller assembly - Rubber roller on a short shaft with slots on the end - Does NOT include the two flanking hard plastic rollers | Find 4 |
| 5 | RB2-6310-000CN | Paper sensor lever - Senses paper at pickup roller | Find 5 |
| 6 | RM1-0332-000CN | Paper pickup assembly - Paper pickup assembly for Tray 2 paper cassette | Find 6 |

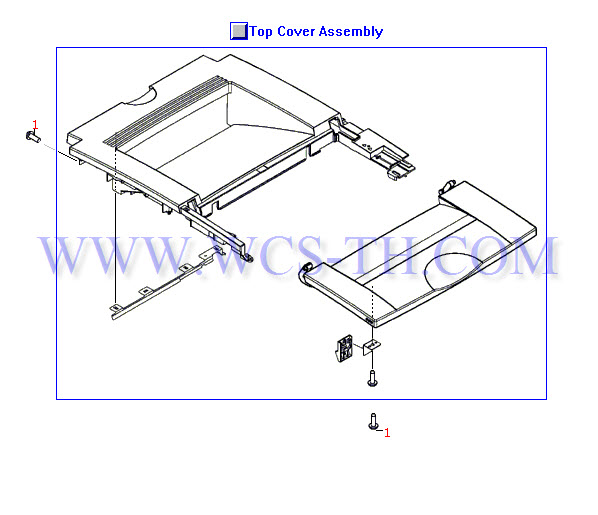

Top Cover Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 1 |
