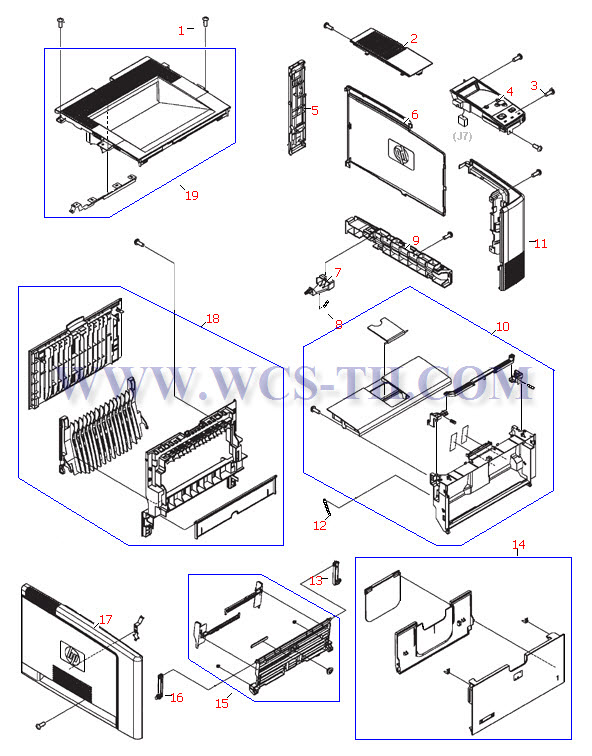

External Covers and Parts
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 1 |
| 2 | RC1-4159-000CN | Right top cover - Right side top case piece behind control panel | Find 2 |
| 3 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 3 |
| 4 | RM1-1519-000CN | Control panel assembly - Control panel mounted on top right corner of printer | Find 4 |
| 5 | RC1-4156-000CN | Right rear cover - Vertical cover at right rear of printer - Covers power input and I/O connectors | Find 5 |
| 6 | RC1-4150-000CN | Right side cover - Removable right side cover for access to DIMM memory | Find 6 |
| 7 | RC1-4173-000CN | Power switch - Located at lower right rear side of printer | Find 7 |
| 8 | RU5-2406-000CN | Spring - Provides tension for power switch | Find 8 |
| 9 | RC1-4157-000CN | Right lower cover - Small cover under slide out DIMM access cover | Find 9 |
| 10 | RM1-1503-000CN | Door assembly - Cartridge access door assembly behind drop down Tray 1 assembly | Find 10 |
| 11 | RC1-4151-000CN | Right front cover - Right front corner of printer cover | Find 11 |
| 12 | RU5-2388-000CN | Tension spring - Provides tension for white plastic arm on left side of cartridge access door | Find 12 |
| 13 | RC1-4058-000CN | Tray hinge - Right side hinge for drop down tray 1 assembly | Find 13 |
| 14 | RM1-1523-000CN | MP/Tray 1 cover assembly - Includes drop down, pull out and flip out trays | Find 14 |
| 15 | RM1-1490-000CN | MP/Tray 1 support assembly - Hinged support and adjustable paper width guide assembly - Tray 1 cover assembly attaches to this assembly | Find 15 |
| 16 | RC1-4057-000CN | Tray hinge - Left side hinge for drop down tray 1 assembly | Find 16 |
| 17 | RC1-4148-000CN | Left cover - Left side of printer plastic cover | Find 17 |
| 18 | RM1-1517-020CN | Rear cover assembly - Drop down face up paper output tray assembly | Find 18 |
| 19 | RM1-1514-000CN | Top cover assembly - Top of printer cover and face down paper output tray assembly | Find 19 |

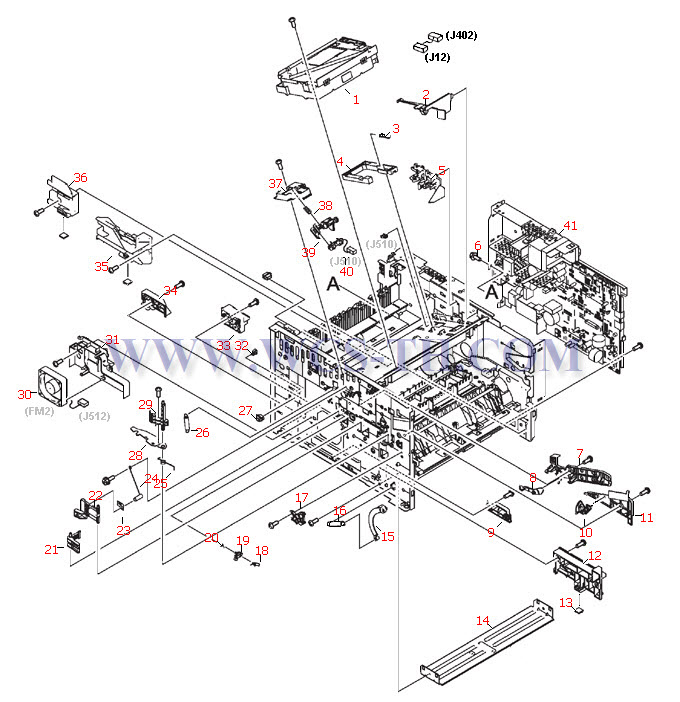

Internal Components (1 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1521-030CN | Laser/Scanner assembly - Mounts on top of print structure | Find 1 |
| 2 | RC1-4128-020CN | Plastic duct that vents air from the lower right front fan to the laser/scanner. | Find 2 |
| 3 | RU5-2404-000CN | Compression spring - Spring provides pressure to the laser shutter which when pulled back (spring is compressed) enables the laser scanner shutter by pressing up the plastic mechanical link on the underside of the laser/scanner assembly | Find 3 |
| 4 | RC1-4125-000CN | Laser shutter link - Enables the laser scanner shutter by pressing up this link on the underside of the laser/scanner assembly | Find 4 |
| 5 | RC1-4129-000CN | Small vent duct to route air from the fan (FM2) to the cartridge area | Find 5 |
| 6 | XB2-7300-605CN | Machine screw with attached washer - M3, 6mm - Used to hold plastic to metal | Find 6 |
| 7 | RC1-4121-020CN | Left upper toner cartridge guide | Find 7 |
| 8 | RC1-4123-020CN | Cartridge clamp lever - Attaches to upper left toner cartridge guide - Provides mechanical lock for toner cartridge | Find 8 |
| 9 | RC1-3949-000CN | Left middle guide - Small black plastic cassette guide on left side of printer | Find 9 |
| 10 | RC1-4138-000CN | Cartridge lever - Link that pushes contact cam and protective plate when cartridge is inserted | Find 10 |
| 11 | RC1-4122-000CN | Left lower toner cartridge guide | Find 11 |
| 12 | RC1-3948-000CN | Left front guide - Small black plastic piece on front left side of chassis in Tray 2 cassette guide slot | Find 12 |
| 13 | RA0-1003-000CN | Rubber foot - For bottom of printer - Three used | Find 13 |
| 14 | RC1-3946-000CN | Front base plate - Metal plate that fits under fuser assembly | Find 14 |
| 15 | RC1-4055-000CN | Door arm - White plastic arm that connects to left side cartridge access door | Find 15 |
| 16 | RU5-2407-000CN | Tension spring - Provides tension for cartridge access door arm | Find 16 |
| 17 | RC1-4056-000CN | Door arm guide - White plastic guide for cartridge door lever | Find 17 |
| 18 | RC1-4059-000CN | Torsion spring - Tiny spring that attaches to small metal U-shaped cartridge grounding contact - Rear cartridge contact spring | Find 18 |
| 19 | RC1-4060-000CN | Grounding contact - Tiny U-shaped metal cartridge grounding contact - Contacts copper grounding strip on left side of toner cartridge | Find 19 |
| 20 | RC1-4061-000CN | Torsion spring - Tiny spring that attaches to small metal U-shaped cartridge grounding contact - Front cartridge contact spring | Find 20 |
| 21 | RC1-4065-000CN | Grounding contact lever - Lever on left side that is moved by contact when the toner cartridge is installed | Find 21 |
| 22 | RC1-4066-020CN | Grounding contact lever - Lever on left side that pushes both contact springs against toner cartridge contacts on left side of cartridge | Find 22 |
| 23 | RC1-4067-000CN | Leaf spring - Leaf spring that provides electrical connection to left side of toner cartridge | Find 23 |
| 24 | RC1-4140-000CN | Compression spring - Provides pressure to grounding contact link on left side of cartridge guide - Pushes link arm away when cartridge is removed | Find 24 |
| 25 | RU5-2410-020CN | Torsion spring - Provides pressure to move protective plate back into cartridge compartment when the cartridge is removed | Find 25 |
| 26 | RU5-2403-000CN | Tension spring - Provides tension for cartridge clamp lever that holds lefts side of cartridge in a stable position when inserted | Find 26 |
| 27 | RG5-1928-000CN | Registration cable assembly - Includes 7P and 3P connectors | Find 27 |
| 28 | RC1-4136-000CN | Protective plate | Find 28 |
| 29 | RC1-4137-020CN | Contact cam - Vertical piece that inserts into protective plate | Find 29 |
| 30 | RK2-0573-000CN | Cooling fan - Fan FM2 - Located on lower left side of printer | Find 30 |
| 31 | RC1-4134-000CN | Fan holder - FM2 fan holder housing | Find 31 |
| 32 | WT2-5694-000CN | Snap-in cable clamp | Find 32 |
| 33 | RC1-4009-000CN | Plate holder - Holds the left rear corner of the paper access plate (duplex pan) | Find 33 |
| 34 | RC1-3950-000CN | Cassette guide - Rear left black plastic paper cassette guide | Find 34 |
| 35 | RC1-3951-000CN | Cassette guide - Right front side black plastic paper cassette guide | Find 35 |
| 36 | RC1-3953-000CN | Cassette guide - Right rear black plastic paper cassette guide | Find 36 |
| 37 | RC1-4126-000CN | Reader holder cover - Plastic housing that covers cartridge E-label reader and holder assembly | Find 37 |
| 38 | RU5-2405-000CN | Compression spring - Provides pressure for E-reader holder | Find 38 |
| 39 | RC1-4127-000CN | E-label reader holder - Housing that holds cartridge E-label reader | Find 39 |
| 40 | RM1-1422-000CN | Reader and cable - E-label reader contact mechanism - Connection to read data from toner catrtridge - Includes cable | Find 40 |
| 41 | RM1-1516-090CN | Engine controller assembly - Engine controller PC board and metal pan - 110/127 VAC | Find 41 |
| 41 | RM1-1524-090CN | Engine controller assembly - Engine controller PC board and metal pan - 220-240 VAC | Find 41 |

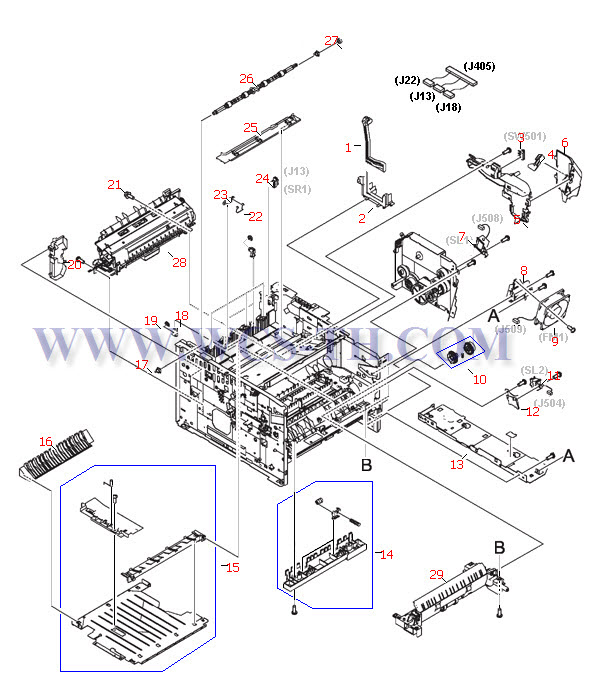

Internal Components (2 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-4170-000CN | Switch link - Mechanical link between power button and ECU board | Find 1 |
| 2 | RC1-4169-000CN | Switch link holder - Supports mechanical link between power button and ECU board | Find 2 |
| 3 | RK2-0534-000CN | Microswitch - Door open switch (SW501) | Find 3 |
| 4 | RC1-4132-000CN | Test switch lever - Mechanical link to test engine switch | Find 4 |
| 5 | RC1-4130-000CN | Air duct - Inside half of air duct from fan FM2 in lower right front corner of printer -Black plastic | Find 5 |
| 6 | RC1-4131-000CN | Air duct - Outside half of air duct from fan FM2 in lower right front corner of printer -Black plastic | Find 6 |
| 7 | RK2-0526-000CN | Tray 1 paper pickup solenoid - Solenoid SL1 | Find 7 |
| 8 | RC1-4133-000CN | Main fan holder - Plastic fan holder for main cooling fan FM1 - Located lower right front side | Find 8 |
| 9 | RK2-0571-000CN | Cooling fan - Main cooling fan FM1 - Located in lower right front side | Find 9 |
| 10 | RM1-1482-020CN | Paper pickup roller gear asembly - Gears that attach to Tray 2 pickup roller | Find 10 |
| 11 | RK2-0526-000CN | Tray 1 paper pickup solenoid - Solenoid SL1 | Find 11 |
| 12 | RC1-3995-000CN | Torsion spring - Provides tension and holds small individual feed roller that rides against face down shaft roller - Four used | Find 12 |
| 13 | RC1-4113-000CN | Right base plate - Metal plate under right side of printer | Find 13 |
| 14 | RM1-1485-000CN | Roller assembly - Black plastic housing that holds rollers in front of tray 2 pickup roller assembly | Find 14 |
| 15 | RM1-1507-000CN | Lower feed guide assembly | Find 15 |
| 16 | RC1-4096-000CN | Guide assembly - Duplexer portion paper input guide assembly | Find 16 |
| 17 | RC1-3665-000CN | Shaft bushing/retainer - Small plastic cylinder with four nubs that twist - Locks into the side frame | Find 17 |
| 18 | RC1-3998-000CN | Roller holder - Holder for small paper delivery rollers at top rear of printer - Four used | Find 18 |
| 19 | RC1-3996-000CN | Delivery roller - Small paper delivery rollers at top rear of printer - Four used | Find 19 |
| 20 | RC1-4000-000CN | Cable cover - Fuser cable cover - Black plastic cover that protects cable in left rear portion of printer | Find 20 |
| 21 | XB2-7300-605CN | Machine screw with attached washer - M3, 6mm - Used to hold plastic to metal | Find 21 |
| 22 | RC1-3995-000CN | Torsion spring - Provides tension and holds small individual feed roller that rides against face down shaft roller - Four used | Find 22 |
| 23 | RC1-3994-000CN | Face down roller - Small individual feed roller that rides against face down shaft roller - Held by torsion spring - Four used | Find 23 |
| 24 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated | Find 24 |
| 25 | RC1-4006-000CN | Cable guide - Small black plastic tray that supports and protects cables that go across rear of printer behind laser scanner | Find 25 |
| 26 | RL1-0580-000CN | Face down output roller - Paper exit roller - Black plastic shaft with four rollers attached | Find 26 |
| 27 | RL1-0580-000CN | Face down output roller - Paper exit roller - Black plastic shaft with four rollers attached | Find 27 |
| 28 | RM1-1535-080CN | Fuser assembly - For 110 VAC - Bonds toner to paper with heat | Find 28 |
| 28 | RM1-1537-050CN | Fusing assembly - For 220 VAC - Bonds the toner to the paper with heat | Find 28 |
| 29 | RM1-1481-020CN | Paper pickup assembly - Tray 2 paper pickup assembly | Find 29 |

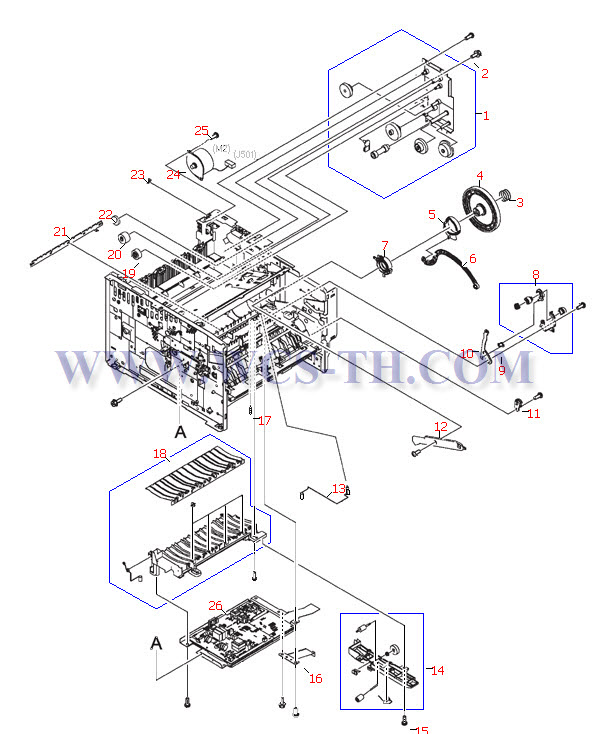

Internal Components (3 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1500-000CN | Fuser drive side plate assembly - Drive gear assembly and mounting plate for fuser - Located on right side of printer | Find 1 |
| 2 | XB2-7300-605CN | Machine screw with attached washer - M3, 6mm - Used to hold plastic to metal | Find 2 |
| 3 | RU5-2401-000CN | Compression spring - Provides pressure for the large 201-tooth white gear on right side of printer | Find 3 |
| 4 | RU5-0389-000CN | Gear - Large white plastic 201 tooth gear on right side of printer | Find 4 |
| 5 | RC1-4114-000CN | Cam - Located between large white 201-tooth gear and drive release lever | Find 5 |
| 6 | RC1-4115-000CN | Coupling lever - White plastic lever between large white gear cam and drive release assembly | Find 6 |
| 7 | RC1-4105-000CN | Inner bushing - Bushing that large white 201 tooth drive gear rides on | Find 7 |
| 8 | RM1-1522-020CN | Drive release assembly | Find 8 |
| 9 | RC1-4117-000CN | Drive release link - | Find 9 |
| 10 | RC1-4116-000CN | Drive release lever | Find 10 |
| 11 | RA0-1172-000CN | 17-tooth gear assembly - Includes the 17-tooth gear mounted on a black plastic lever/bracket | Find 11 |
| 12 | RC1-4106-020CN | Upper right toner cartridge guide | Find 12 |
| 13 | RC1-4185-000CN | Compression spring - Spring under transfer plate that provides electrical connection to transfer plate | Find 13 |
| 14 | RM1-1506-000CN | Position guide assembly - Guides the paper along the right side duplex path - Attaches just above power supply | Find 14 |
| 15 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 15 |
| 16 | RC1-4085-000CN | Grounding plate - High voltage power supply grounding plate - Attaches to left rear of power supply | Find 16 |
| 17 | RU5-2408-000CN | Compression spring - Right side transfer roller spring - Provides tension for transfer roller | Find 17 |
| 18 | RM1-1504-000CN | Paper feed guide assembly | Find 18 |
| 19 | RU5-0378-000CN | 20 tooth gear - 20 tooth gear in fuser drive assembly on right rear of printer | Find 19 |
| 20 | RU5-0377-000CN | 28 tooth gear - 28 tooth gear in fuser drive assembly on right rear of printer | Find 20 |
| 21 | RC1-4025-000CN | Static charge eliminator - Comb that mounts above upper delivery roller that dissipates static charge as paper exits printer | Find 21 |
| 22 | RU5-0379-000CN | 19 tooth gear - 19 tooth gear in fuser drive assembly on right rear of printer | Find 22 |
| 23 | WT2-5056-000CN | Cable clip - 'C' shaped White plastic | Find 23 |
| 24 | RK2-0523-000CN | Electric stepper motor - Fuser drive assembly motor - Motor M2 | Find 24 |
| 25 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 25 |
| 26 | RM1-1505-000CN | High voltage power supply board | Find 26 |

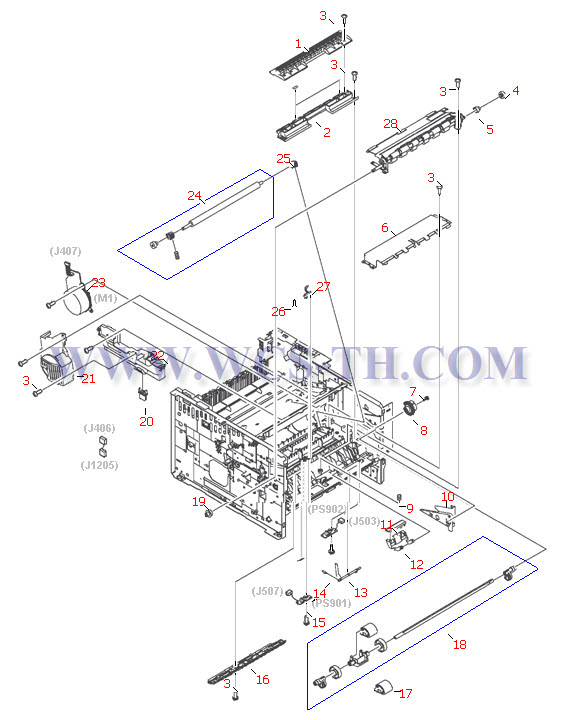

Internal Components (4 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-3936-020CN | Registration roller assembly cover | Find 1 |
| 2 | RC1-3935-000CN | Feed guide assembly - Mounts above transfer roller assembly | Find 2 |
| 3 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 3 |
| 4 | RU5-0409-000CN | Registration roller gear - Mounts on the end of the registration roller - 14-tooth gear | Find 4 |
| 5 | RC1-4189-000CN | Gear stopper - Small bushing between right side of registration assembly and registration roller drive gear | Find 5 |
| 6 | RL1-0581-000CN | Transfer plate - Paper guide plate that mounts under transfer roller assembly | Find 6 |
| 7 | RA0-1068-000CN | Continuity cap - Gear retainer for 30 tooth Tray 1 pickup roller shaft | Find 7 |
| 8 | RU5-0366-000CN | Gear - 30-tooth - Attaches to right side end of tray 1 pickup roller shaft | Find 8 |
| 9 | RU5-2385-000CN | Compression spring - Provides pressure for tray 1 seperation pad | Find 9 |
| 10 | RC1-4107-000CN | Cartridge guide - Lower right side toner cartridge guide | Find 10 |
| 11 | RC1-0939-000CN | Multi-purpose/tray 1 separation pad - Does not include holder | Find 11 |
| 12 | RC1-3937-000CN | Separation pad holder | Find 12 |
| 13 | RC1-3939-000CN | Paper sensor lever - Mechanical device that activates photo sensor (PS902) - For tray 1 | Find 13 |
| 14 | RU5-2386-000CN | Torsion spring - Provides tension for tray 1 paper sensor flag | Find 14 |
| 15 | RM1-1416-000CN | Registration sensor - Top of page photosensor PC board - PS901 | Find 15 |
| 16 | RC1-4083-000CN | Paper guide - Located under the registration roller assembly | Find 16 |
| 17 | RL1-0568-000CN | Tray 1/MP tray pickup roller - D-shaped replacement pickup roller | Find 17 |
| 18 | RM1-1484-000CN | Tray 1/MP Tray pickup roller shaft assembly - Includes roller shaft, bushings and pickup roller | Find 18 |
| 19 | RU5-0400-000CN | 12-tooth gear - On left side of registration roller assembly | Find 19 |
| 20 | VS1-7257-007CN | Drawer connector - Connector located on top of tray assembly frame (right side), which connects tray assemblies to each other | Find 20 |
| 21 | RC1-4108-000CN | Cover for main motor M1 - Located on lower right side of printer | Find 21 |
| 22 | RC1-3954-000CN | Gear cover - Covers fusing and duplexer gears on lower right rear of printer | Find 22 |
| 23 | RL1-0587-000CN | Main motor - 26.2 watt DC motor on lower right side of printer - Motor M1 | Find 23 |
| 24 | RM1-1508-000CN | Transfer roller assembly - Long metal shaft with black roller - Includes right side bushing and tension spring | Find 24 |
| 25 | RC1-0922-000CN | Roller bushing - Right side transfer roller bushing | Find 25 |
| 26 | RC1-4028-000CN | Torsion spring - Provides tension for top of page sensor flag | Find 26 |
| 27 | RC1-4027-000CN | Sensor lever - Top of page sensor flag - Used to detect edge of paper | Find 27 |
| 28 | RM1-1502-020CN | Registration roller assembly - Two roller shafts with six rollers each and frame assembly | Find 28 |

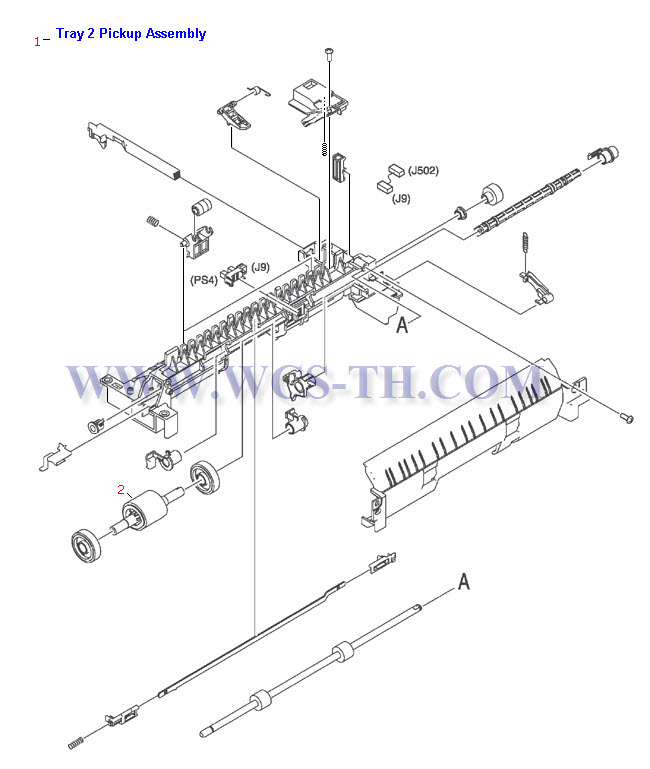

Tray 2 Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1481-020CN | Paper pickup assembly - Tray 2 paper pickup assembly | Find 1 |
| 2 | RL1-0542-000CN | Pickup roller - Tray 2 paper pickup roller | Find 2 |
