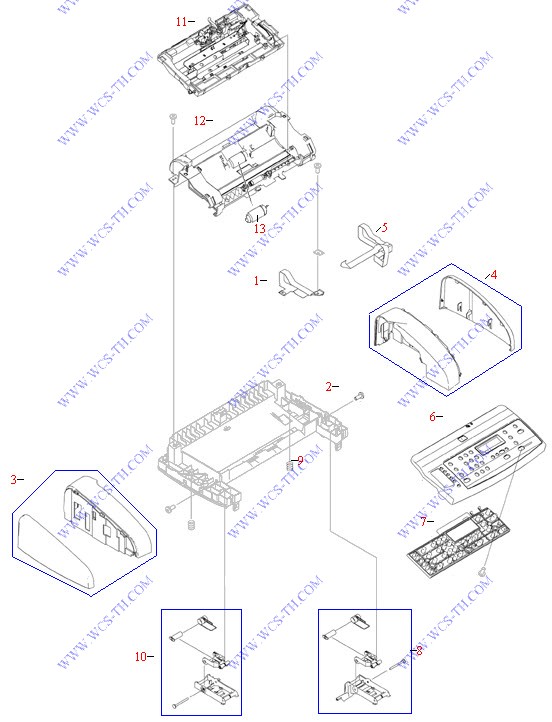

ADF Components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RL1-0376-000CN | Scanner ground plane (or sheet) - Flexible sheet that runs from the ground PC board on the right side of the scanner assembly to the top of the printer chassis | Find 1 |
| 2 | XB4-5401-009CN | Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal | Find 2 |
| 2 | XA9-1469-000CN | M3 X 10mm machine screw with attached washer - Used to hold plastic to metal | Find 2 |
| 3 | RM1-3076-020CN | Left scanner cover - Mounts on the left end of the scanner assembly | Find 3 |
| 3 | RM1-3076-000CN | Left scanner cover - Mounts on the left end of the scanner assembly | Find 3 |
| 4 | RM1-3077-020CN | Right side cover assembly for paper scanner assembly | Find 4 |
| 4 | RM1-3077-000CN | Right side cover assembly for paper scanner assembly | Find 4 |
| 5 | RK2-1214-000CN | Scanner cable - Flat cable from document scanner assembly | Find 5 |
| 6 | RC1-8416-000CN | Scanner top plastic cover - Does not include electronics assembly | Find 6 |
| 7 | RK2-1209-000CN | Control panel electronics assembly - Control panel display and buttons assembly (English) - Does not include cover plastic | Find 7 |
| 8 | RM1-0897-000CN | Right scanner link assembly - Connects between the top of the printer and the bottom of the scanner - Allows for limited tilting of the scanner assembly for toner cartridge access | Find 8 |
| 9 | RU5-2885-000CN | Compression spring - Provides pressure for scanner link - Two used, one on each side | Find 9 |
| 10 | RM1-0896-000CN | Left scanner link assembly - Connects between the top of the printer and the bottom of the scanner - Allows for limited tilting of the scanner assembly for toner cartridge access | Find 10 |
| 11 | RM1-3066-000CN | Scanner guide assembly - Scanner paper guide assembly | Find 11 |
| 12 | RM1-3063-000CN | Paper scanner frame assembly - Includes all paper scanner parts except scanner top cover and control panel | Find 12 |
| 13 | RM1-0885-000CN | Scanner pickup roller assembly - Includes the pickup roller, drive shaft, gear and bushing/retainer | Find 13 |

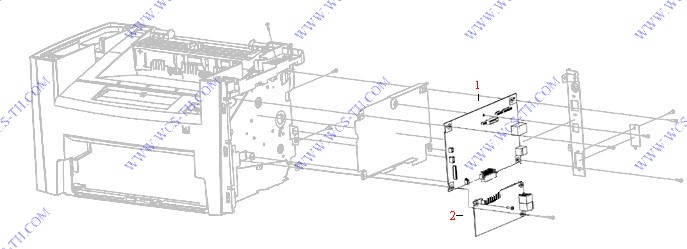

Formatter and LIU
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q7844-60002 | Formatter board - Controls the logic and timing operation of the printer, translates the control panel input, and provides control of the scanner assembly - Mounts on the right side of the printer - For LaserJet 3050AIO model only | Find 1 |
| 2 | Q2687-60002 | Line interface unit (LIU) PC board - provides telephone communications (for fax capabilities) to the printer - For use in Europe | Find 2 |
| 2 | Q2687-60012 | Line interface unit (LIU) PC board - provides telephone communications (for fax capabilities) to the printer - For use in Europe | Find 2 |

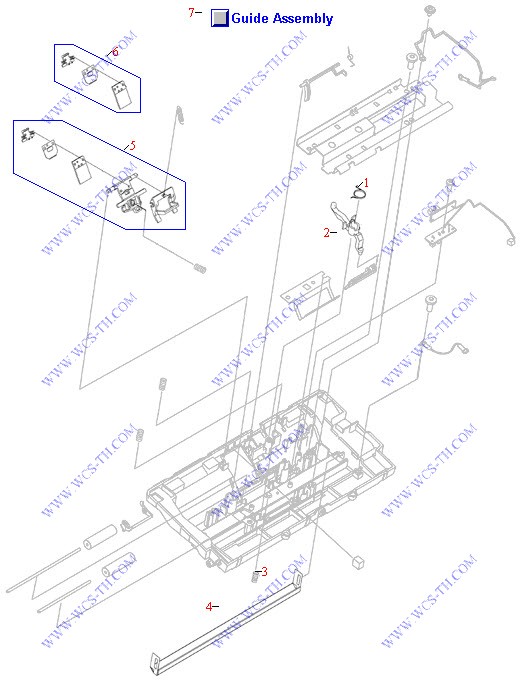

Guide Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-2544-000CN | Torsion spring | Find 1 |
| 2 | RC1-8413-000CN | Scanner meida lever - Paper type selctor lever for scanner ADF input tray | Find 2 |
| 3 | RU5-2196-000CN | Compression spring | Find 3 |
| 4 | RF5-3235-000CN | White platen assembly strip - Used as a white reference for document scanning | Find 4 |
| 5 | RM1-0890-000CN | Scanner separation pad assembly - Includes the holder/frame, tension spring, feed arm and the separation pad set - Should only be replaced by trained service personnel | Find 5 |
| 6 | RM1-0891-000CN | Scanner separation pad (set) - Includes the pad, clear plastic sheet, and pad cover - User replaceable | Find 6 |
| 7 | RM1-3066-000CN | Scanner guide assembly - Scanner paper guide assembly | Find 7 |

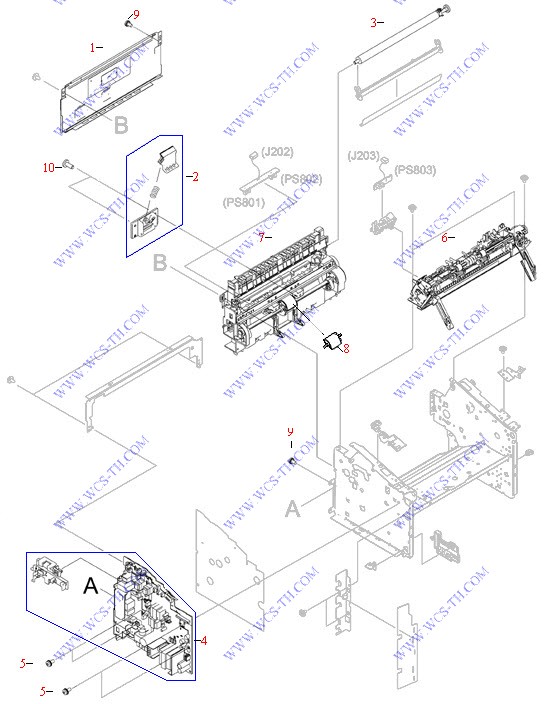

Internal Components of Printer (1 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-8368-000CN | Lower rear cover assembly - Covers the paper pickup assembly - Larger of the two covers on the rear of the printer | Find 1 |
| 2 | RM1-2048-000CN | Separation pad assembly - Includes the holder assembly, separation pad, and spring - The assembly is inserted into the bottom rear of the printer | Find 2 |
| 3 | RM1-2062-000CN | Transfer roller assembly - Steel shaft with black spongy roller and drive gear - Mounts on top of the paper pickup assembly | Find 3 |
| 4 | RM1-3402-000CN | Power supply assembly - For 110 to 127 VAC operation - Includes the power supply board with integrated power switch and power cord receptacle | Find 4 |
| 4 | RM1-3403-000CN | Power supply assembly - For 220 to 240 VAC operation - Includes the power supply board with integrated power switch and power cord receptacle | Find 4 |
| 5 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 5 |
| 6 | RM1-3045-000CN | Fusing assembly - Bonds the toner to the paper with heat - For 220VAC to 240VAC operation - Mounts to the upper rear of the print engine assembly | Find 6 |
| 6 | RM1-3045-020CN | Fusing assembly - For 220 to 240 VAC operation - Bonds the toner to the paper with heat - Mounts to the upper rear of the print engine assembly | Find 6 |
| 6 | RM1-3044-000CN | Fusing assembly - For 110 to 127 VAC operation - Bonds the toner to the paper with heat - Mounts to the upper rear of the print engine assembly | Find 6 |
| 7 | RM1-3043-000CN | Paper pickup assembly - Complete assembly that paper pickup roller mounts in | Find 7 |
| 8 | RL1-0266-000CN | Paper pickup roller (D-shaped roller) - Picks media from paper input tray | Find 8 |
| 9 | XB2-7300-605CN | Machine screw with attached washer - M3, 6mm - Used to hold plastic to metal | Find 9 |
| 10 | XA9-1469-000CN | M3 X 10mm machine screw with attached washer - Used to hold plastic to metal | Find 10 |
| 10 | XB4-5401-009CN | Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal | Find 10 |

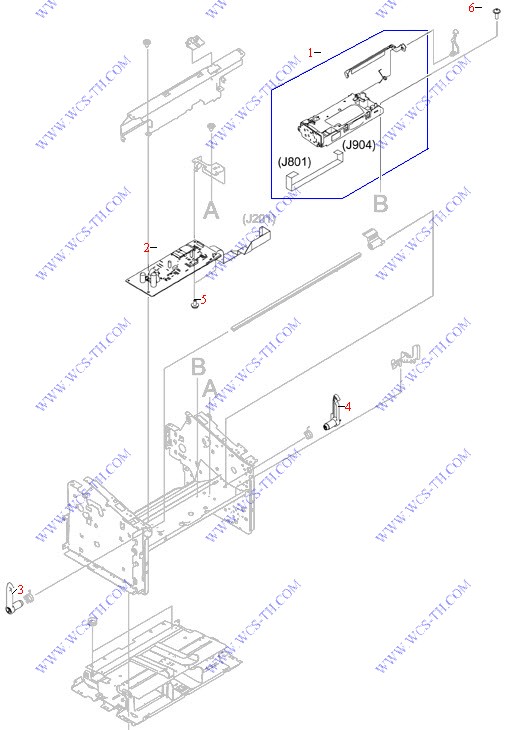

Internal Components of Printer (2 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2033-030CN | Laser/scanner assembly - Mounts on the front support shelf on the printer frame assembly - Mounts just below the engine control unit PC board | Find 1 |
| 2 | RM1-3404-000CN | Engine control unit (ECU) PC board - Controller board - Provides control logic for the printer mechanical functions | Find 2 |
| 3 | RC1-2498-000CN | Left side scanner latch - This latch holds the scanner in place - Cartridge release lever activates this latch to allow scanner to rise and give access to the toner cart area | Find 3 |
| 4 | RC1-2499-000CN | Right side scanner latch - This latch holds the scanner in place - Cartridge release lever activates this latch to allow scanner to rise and give access to the toner cart area | Find 4 |
| 5 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 5 |
| 6 | XA9-1501-000CN | M3 pan-head Phillips screw - 10mm long | Find 6 |

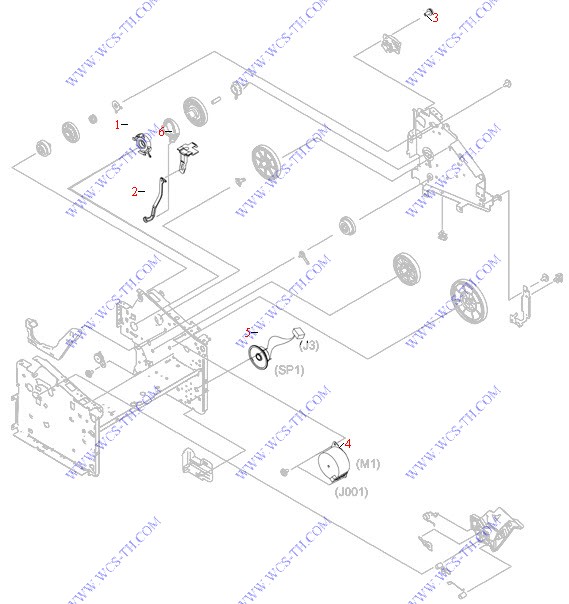

Internal Components of Printer (3 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-1953-000CN | Bushing - Twist locks into place | Find 1 |
| 2 | RC1-2485-000CN | Lower coupler link - Connects between the toner cartridge drive gear disengaging cam and the top link coupler (bracket) | Find 2 |
| 3 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 3 |
| 4 | RK2-0777-000CN | Stepping motor - Main drive motor for the printer - Motor M1 | Find 4 |
| 5 | RM1-3410-000CN | Speaker assembly - Mounted on right front side of printer - Speaker SP1 | Find 5 |
| 6 | RC1-2494-000CN | Top coupler link - L-shaped plastic bracket - Pulls the lower coupler link to disengage to toner cartridge drive gear | Find 6 |

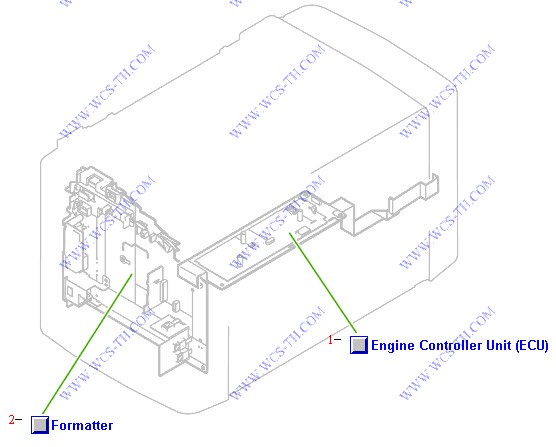

PC Boards
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-3404-000CN | Engine control unit (ECU) PC board - Controller board - Provides control logic for the printer mechanical functions | Find 1 |
| 2 | Q7844-60002 | Formatter board - Controls the logic and timing operation of the printer, translates the control panel input, and provides control of the scanner assembly - Mounts on the right side of the printer - For LaserJet 3050AIO model only | Find 2 |

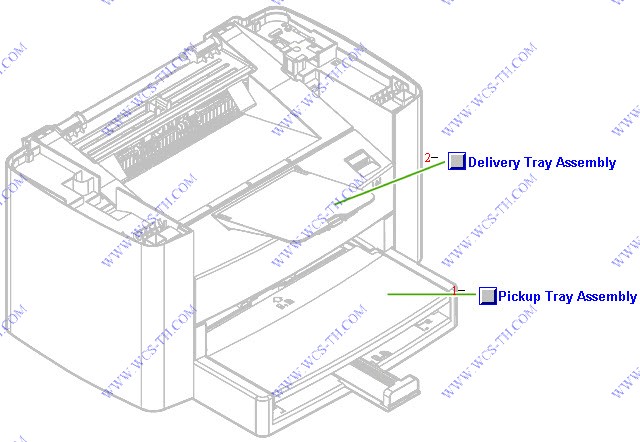

Printer Base
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-3060-000CN | Paper input tray - Top multi-purpose paper input tray - Holds ten sheets of paper | Find 1 |
| 2 | RM1-3059-000CN | Delivery tray assembly - Paper output tray for LaserJet 3050/3052/3055 AIO series printers | Find 2 |

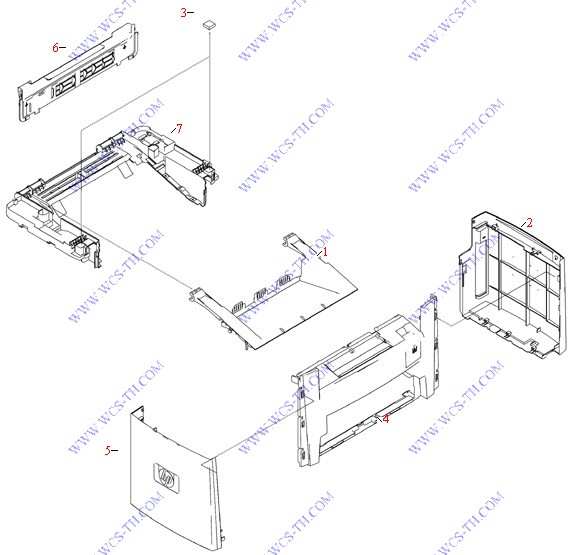

Printer External Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-8372-000CN | Print cartridge access door | Find 1 |
| 2 | RC1-8374-000CN | Right side cover assembly - Slightly curved plastic cover with the HP logo molded into it - Has cutout for the rear panel interface connectors | Find 2 |
| 3 | RC1-2476-000CN | Scanner cushion - Square foam pices that cushion the scanner when locked in place - Mount in the square front recesses on the scanner frame assembly | Find 3 |
| 4 | RL1-1160-000CN | Front cover assembly - Has cutouts for the toner cartridge door release button, and paper input tray assembly | Find 4 |
| 5 | RC1-8373-000CN | Left side cover assembly - Slightly curved plastic cover with the HP logo molded into it - Has cut out for the rear panel power switch and power cord receptacle - Covers the power supply assembly | Find 5 |
| 6 | RC1-2474-020CN | Upper rear cover assembly - Small plastic cover that protects the fusing assembly - Mounts on the top rear of the printer - Has air louvers for ventilation | Find 6 |
| 6 | RC1-2474-040CN | Upper rear cover assembly - Small plastic cover that protects the fusing assembly - Mounts on the top rear of the printer - Has air louvers for ventilation | Find 6 |
| 6 | RC1-2474-000CN | Upper rear cover assembly - Small plastic cover that protects the fusing assembly - Mounts on the top rear of the printer - Has air louvers for ventilation | Find 6 |
| 7 | RL1-1161-000CN | Scanner support frame - C-shaped plastic frame that mounts to the top of the printer - Has rear hinge pins for the top cover and scanner assembly, and recesses for the scanner link arms, lift springs and cushions | Find 7 |

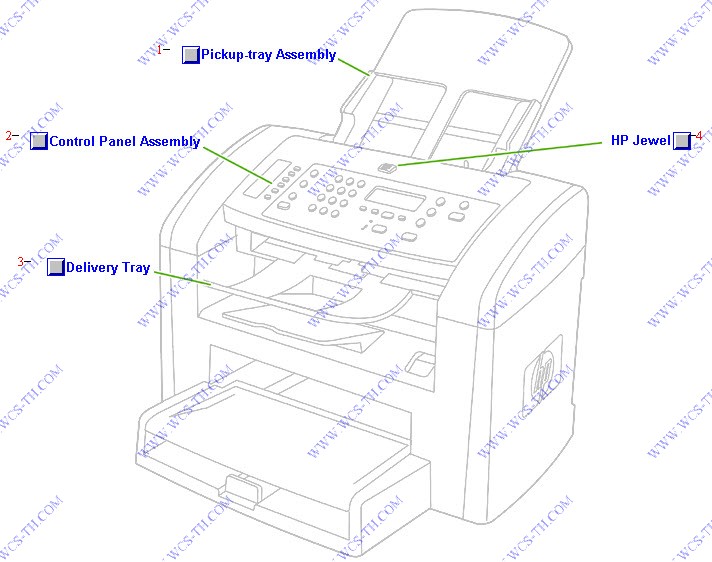

Scanner Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-3419-000CN | Scanner paper input tray assembly | Find 1 |
| 2 | Q6504-00006 | Control panel overlay - Snaps on top of the control panel assembly (Italian) | Find 2 |
| 2 | Q6504-00022 | Control panel overlay - Snaps on top of the control panel assembly (Simplified Chinese) | Find 2 |
| 2 | Q6504-00024 | Control panel overlay - Snaps on top of the control panel assembly (Vietnamese) | Find 2 |
| 2 | Q6504-00021 | Control panel overlay - Snaps on top of the control panel assembly (Korean) | Find 2 |
| 2 | Q6504-00007 | Control panel overlay - Snaps on top of the control panel assembly (Swedish) | Find 2 |
| 2 | Q6504-00010 | Control panel overlay - Snaps on top of the control panel assembly (Danish) | Find 2 |
| 2 | Q6504-00009 | Control panel overlay - Snaps on top of the control panel assembly (Finnish) | Find 2 |
| 2 | Q6504-00012 | Control panel overlay - Snaps on top of the control panel assembly (Czech) | Find 2 |
| 2 | Q6504-00014 | Control panel overlay - Snaps on top of the control panel assembly (Polish) | Find 2 |
| 2 | Q6504-00016 | Control panel overlay - Snaps on top of the control panel assembly (Turkish) | Find 2 |
| 2 | Q6504-00023 | Control panel overlay - Snaps on top of the control panel assembly (Thai) | Find 2 |
| 2 | Q6504-00020 | Control panel overlay - Snaps on top of the control panel assembly (Traditional Chinese) | Find 2 |
| 2 | Q6504-00013 | Control panel overlay - Snaps on top of the control panel assembly (Hungarian) | Find 2 |
| 2 | Q6504-00011 | Control panel overlay - Snaps on top of the control panel assembly (Russian) | Find 2 |
| 2 | Q6504-00008 | Control panel overlay - Snaps on top of the control panel assembly (Norwegian) | Find 2 |
| 2 | Q6504-00017 | Control panel overlay - Snaps on top of the control panel assembly (Greek) | Find 2 |
| 2 | Q6504-00018 | Control panel overlay - Snaps on top of the control panel assembly (Hebrew) | Find 2 |
| 2 | Q6504-00019 | Control panel overlay - Snaps on top of the control panel assembly (Arabic) | Find 2 |
| 3 | RC1-8443-000CN | Document scanner paper delivery guide | Find 3 |
| 4 | 7121-8285 | HP jewel - Small plastic HP logo that attaches to top of printer | Find 4 |

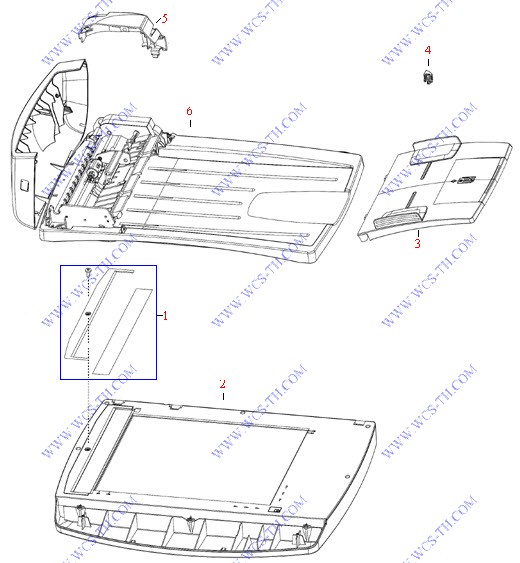

Scanner assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q6500-67904 | Replacement glass kit - Replacement flatbed scanner glass kit - Includes glass, frame mounts and screw | Find 1 |
| 2 | Q6502-60116 | Flatbed scanner assembly for LaserJet 3052/3055 all-in-one - Includes flatbed scanner frame and glass | Find 2 |
| 3 | Q3948-60214 | Paper input tray for the ADF assembly - Includes the plastic try and width adjustment side rails | Find 3 |
| 4 | Q1636-40036 | Hinge locking clip - Locks the ADF/scanner lid assembly on the flatbed scanner | Find 4 |
| 5 | Q1636-40010 | Motor shield - Covers flatbed scanner ADF motor - Located on left rear corner of ADF drive | Find 5 |
| 6 | Q6502-60117 | Scanner ADF lid - Flatbed scanner cover and attached ADF unit - Used on LaserJet 3052/3055 AIO models only | Find 6 |
