Engine Control Board and Support Pan
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RA0-1128-000CN | Printed circuit board spacer | Find 1 |
| 2 | WT2-5694-000CN | Snap-in cable clamp | Find 2 |
| 3 | XA9-0828-000CN | M3 pan head phillips screw with captive star washer - 4mm long | Find 3 |
| 4 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 4 |
| 5 | RM1-0834-030CN | Print engine control board - For 220/240 VAC - Provides motor drive, paper motion monitoring, printing control and power supply | Find 5 |
| 5 | RM1-0833-000CN | Print engine control board - Provides motor drive, paper motion monitoring, printing control and power supply | Find 5 |
| 5 | RM1-0834-000CN | Print engine control board - Provides motor drive, paper motion monitoring, printing control and power supply | Find 5 |
| 5 | RM1-0833-030CN | Print engine control board - For 110/127 VAC - Provides motor drive, paper motion monitoring, printing control and power supply | Find 5 |
| 6 | RA0-1127-000CN | Support pan (case) for the engine controller PC board | Find 6 |

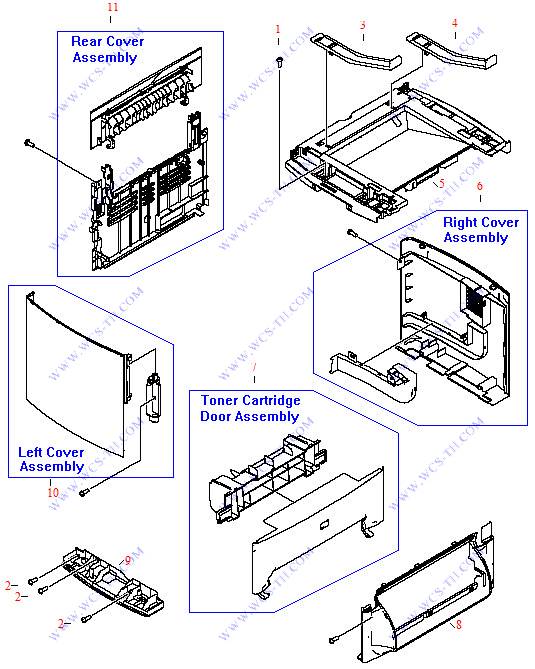

External Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XA9-1583-000CN | M4 truss head (flanged) phillips/hex combo drive screw - 12mm long | Find 1 |
| 1 | XA9-0722-000CN | M4 truss head (flanged) phillips/hex combo drive screw - 12mm long | Find 1 |
| 2 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 2 |
| 3 | RC1-2391-000CN | Left height guide - Plastic channeled strip with locking tab | Find 3 |
| 4 | RC1-2392-000CN | Right height guide - Plastic channeled strip with locking tab | Find 4 |
| 5 | RF0-1100-030CN | Top cover assembly - Has face-down paper output tray molded into it - Mounts to top of printer - Provides mounting support for the scanner assembly | Find 5 |
| 6 | RG0-1116-000CN | Right side cover assembly - Has molded-in air intake louvers | Find 6 |
| 7 | RG0-1115-040CN | Toner cartridge door - Fold down door used when accessing the toner cartridge - Mounts to the top of the front cover | Find 7 |
| 8 | RA0-1450-020CN | Front cover - Lower front of printer - With opening for inserting the paper input tray assembly | Find 8 |
| 9 | RA0-1470-000CN | Support frame - Curved plastic support piece | Find 9 |
| 10 | RG0-1113-000CN | Left side door assembly - Provides access to connect the printer interface cables - Includes door and hinge | Find 10 |
| 11 | RG0-1114-000CN | Rear cover assembly - Includes rear cover and fold down face-up (or straight through) paper output tray (tray is NOT sold separately) | Find 11 |

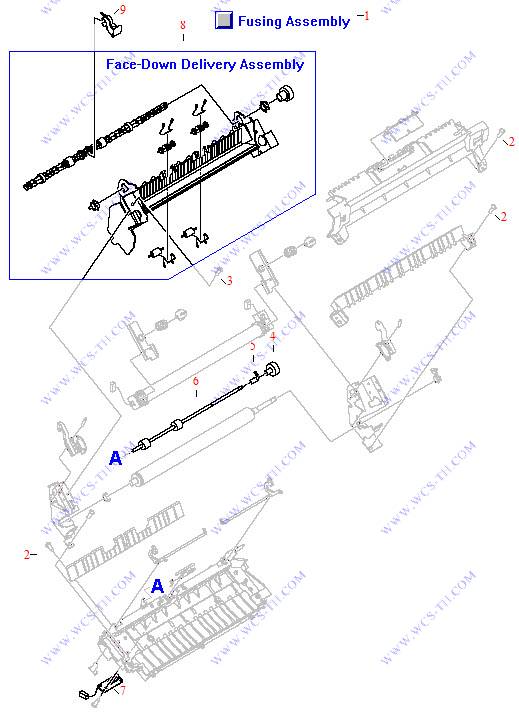

Fusing Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1000-040CN | Fusing assembly - Bonds toner to paper with heat - For 220V to 240VAC operation | Find 1 |
| 1 | RM1-0999-000CN | Fusing assembly - Bonds toner to paper with heat - For 100V to 127VAC operation | Find 1 |
| 1 | RM1-1000-070CN | 220V FIXING FUSER ASSY | Find 1 |
| 1 | RM1-2075-030CN | Fusing assembly - For 100 VAC to 127 VAC - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-0999-040CN | Fusing assembly - Bonds toner to paper with heat - For 100V to 127VAC operation | Find 1 |
| 1 | RM1-2076-030CN | Fusing assembly - Bonds toner to paper with heat - For 220V to 240VAC operation | Find 1 |
| 1 | RM1-2076-000CN | Fusing assembly - Bonds toner to paper with heat - For 220V to 240VAC operation | Find 1 |
| 2 | XA9-1421-000CN | M4x14 screw | Find 2 |
| 3 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 3 |
| 4 | RA0-1089-000CN | 17 tooth gear | Find 4 |
| 5 | RA0-1104-000CN | Roller bushing/retainer | Find 5 |
| 6 | RF0-1003-000CN | Face-up (straight through) output roller - Metal shaft with two rollers | Find 6 |
| 7 | RM1-0852-000CN | Delivery sensor PC board - Small board with optical flag sensor (flag not included) - For sensing paper output | Find 7 |
| 8 | RM1-0556-020CN | Face-down delivery assembly - Includes the support frame, drive roller and gear, and the four spring loaded pressure rollers | Find 8 |
| 9 | RC1-2393-000CN | Height flapper - Small plastic 'L' shaped flapper - Helps to prevent face-down paper output from backing up into the fusing assembly | Find 9 |

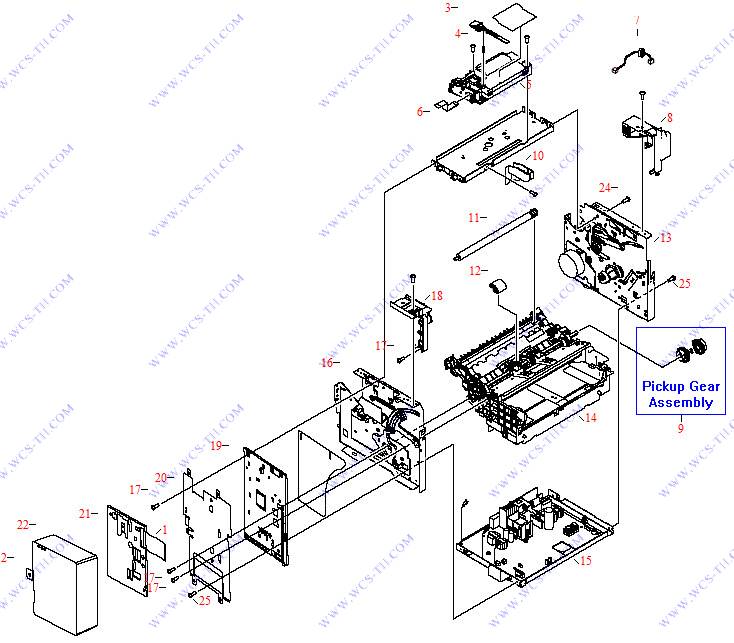

Internal Components (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C9126-60103 | Ribbon flex cable - From line interface unit PC board to printer formatter PC board | Find 1 |
| 2 | C9126-00001 | Ground strap - Small metal plate with two screw holes | Find 2 |
| 3 | RA0-1182-000CN | Shutter lever - Spring loaded lever - Mounts to the top of the laser/scanner assembly | Find 3 |
| 4 | RA0-1169-000CN | Compression spring | Find 4 |
| 5 | RM1-0524-000CN | Laser/scanner assembly | Find 5 |
| 5 | RM1-0710-000CN | Laser/scanner assembly | Find 5 |
| 6 | RK2-0185-000CN | Flat flexible cable (FFC) | Find 6 |
| 7 | RM1-0832-000CN | Cable assembly (four-wire) | Find 7 |
| 8 | RA0-1452-000CN | Front cover support (L-shaped) | Find 8 |
| 9 | RM1-0551-000CN | Gear/clutch assembly kit - Includes double-gear body, shaft attachment piece and spring | Find 9 |
| 10 | RC1-2195-000CN | Guide - For the shutter lever on the laser/scanner assembly | Find 10 |
| 11 | RM1-0550-000CN | Transfer roller assembly - Transfers static charge to the media being printed on | Find 11 |
| 12 | RL1-0303-000CN | Paper pickup roller (D-shaped roller) - Picks up media from the paper input tray | Find 12 |
| 13 | RM1-0835-020CN | Right side plate assembly - Includes the right side plate, drive motor, most all drive gears, and cam levers - Does not come with the pickup roller solenoid or 69 tooth gear - Right side of the internal printer mechanism | Find 13 |
| 13 | RM1-0835-000CN | Right side plate assembly - Includes the right side plate, drive motor, most all drive gears, and cam levers - Does not come with the pickup roller solenoid or 69 tooth gear - Right side of the internal printer mechanism | Find 13 |
| 14 | RM1-0838-000CN | Paper pickup assembly - Includes the pickup roller, paper feed roller assembly, separation pad, plastic housing and other associated parts | Find 14 |
| 15 | RM1-0834-030CN | Print engine control board - For 220/240 VAC - Provides motor drive, paper motion monitoring, printing control and power supply | Find 15 |
| 15 | RM1-0834-000CN | Print engine control board - Provides motor drive, paper motion monitoring, printing control and power supply | Find 15 |
| 15 | RM1-0833-000CN | Print engine control board - Provides motor drive, paper motion monitoring, printing control and power supply | Find 15 |
| 15 | RM1-0833-030CN | Print engine control board - For 110/127 VAC - Provides motor drive, paper motion monitoring, printing control and power supply | Find 15 |
| 16 | RM1-0836-000CN | Left plate assembly - Left side of internal printer mechanism - The printer formatter board mounts to this plate | Find 16 |
| 16 | RM1-0836-020CN | Left plate assembly - Left side of internal printer mechanism - The printer formatter board mounts to this plate | Find 16 |
| 17 | 0515-2908 | Pan head machine screw with washer - M3.0 x 0.5, 6mm long, Number 2 Phillips | Find 17 |
| 18 | RA0-1444-000CN | Front cover support (L-shaped) | Find 18 |
| 19 | Q2658-67901 | Printer formatter board - Controls the logic and timing operation of the printer, translates the control panel input, and provides control of the scanner assembly - Does NOT include the LIU board | Find 19 |
| 20 | Q2660-00002 | Upper RFI shield | Find 20 |
| 21 | C9138-60002 | Line interface unit (LIU) board - provides telephone communications (for fax capabilities) to the printer - For Europe ONLY | Find 21 |
| 21 | C9138-60001 | Line interface unit (LIU) board - provides telephone communications (for fax capabilities) to the printer - For the United States and World Wide EXCEPT Europe | Find 21 |
| 22 | C9126-40003 | PC board cover - Rectangular shaped plastic pan | Find 22 |
| 24 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 24 |
| 25 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 25 |

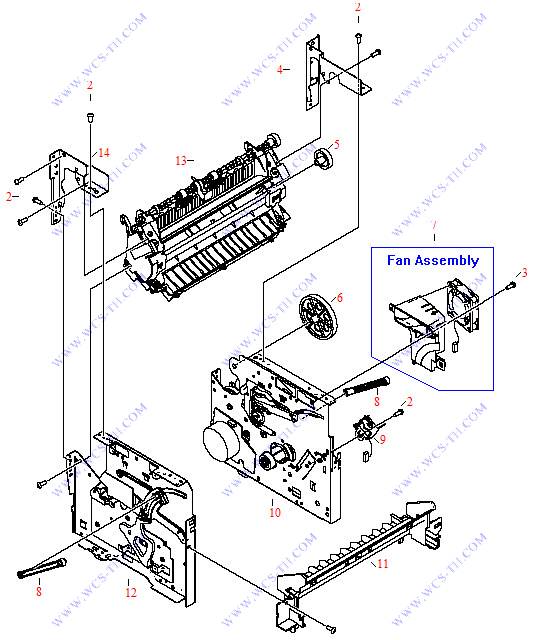

Internal Components (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 2 |
| 3 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 3 |
| 4 | RA0-1447-020CN | Right side fuser bracket (L-shaped) | Find 4 |
| 4 | RA0-1447-000CN | Right side fuser bracket (L-shaped) | Find 4 |
| 5 | RA0-1088-000CN | 29 tooth gear | Find 5 |
| 6 | RA0-1176-000CN | 69 tooth gear - Large gear with ribs and six small holes | Find 6 |
| 7 | RM1-0846-000CN | Fan Assembly - Includes the tubeaxial fan and the plastic mounting bracket/airflow guide | Find 7 |
| 8 | RA0-1457-000CN | Connecting link | Find 8 |
| 9 | RK2-0064-000CN | 24VDC Solenoid | Find 9 |
| 10 | RM1-0835-020CN | Right side plate assembly - Includes the right side plate, drive motor, most all drive gears, and cam levers - Does not come with the pickup roller solenoid or 69 tooth gear - Right side of the internal printer mechanism | Find 10 |
| 10 | RM1-0835-000CN | Right side plate assembly - Includes the right side plate, drive motor, most all drive gears, and cam levers - Does not come with the pickup roller solenoid or 69 tooth gear - Right side of the internal printer mechanism | Find 10 |
| 11 | RA0-1451-000CN | Front guide assembly - Ribbed plastic piece that runs the width of the printer | Find 11 |
| 12 | RM1-0836-020CN | Left plate assembly - Left side of internal printer mechanism - The printer formatter board mounts to this plate | Find 12 |
| 12 | RM1-0836-000CN | Left plate assembly - Left side of internal printer mechanism - The printer formatter board mounts to this plate | Find 12 |
| 13 | RM1-2076-030CN | Fusing assembly - Bonds toner to paper with heat - For 220V to 240VAC operation | Find 13 |
| 13 | RM1-1000-070CN | 220V FIXING FUSER ASSY | Find 13 |
| 13 | RM1-2075-030CN | Fusing assembly - For 100 VAC to 127 VAC - Bonds toner to paper with heat | Find 13 |
| 13 | RM1-1000-040CN | Fusing assembly - Bonds toner to paper with heat - For 220V to 240VAC operation | Find 13 |
| 13 | RM1-0999-040CN | Fusing assembly - Bonds toner to paper with heat - For 100V to 127VAC operation | Find 13 |
| 13 | RM1-2076-000CN | Fusing assembly - Bonds toner to paper with heat - For 220V to 240VAC operation | Find 13 |
| 13 | RM1-0999-000CN | Fusing assembly - Bonds toner to paper with heat - For 100V to 127VAC operation | Find 13 |
| 14 | RA0-1446-000CN | Left side fuser bracket (L-shaped) | Find 14 |
| 14 | RA0-1446-020CN | Left side fuser bracket (L-shaped) | Find 14 |

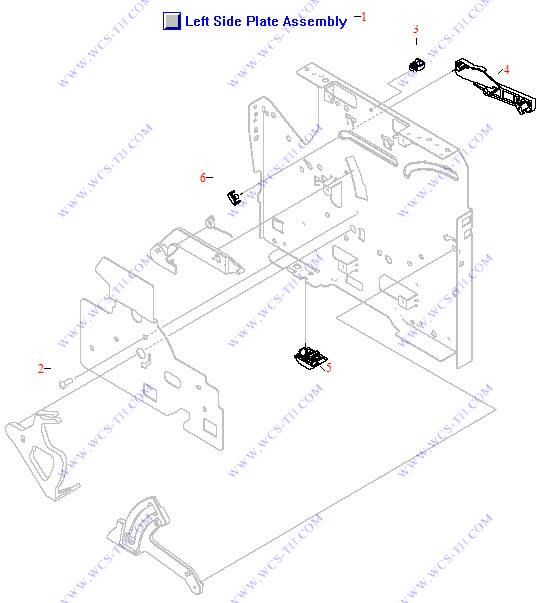

Left Side Plate Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0836-000CN | Left plate assembly - Left side of internal printer mechanism - The printer formatter board mounts to this plate | Find 1 |
| 1 | RM1-0836-020CN | Left plate assembly - Left side of internal printer mechanism - The printer formatter board mounts to this plate | Find 1 |
| 2 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 2 |
| 3 | WT2-5694-000CN | Snap-in cable clamp | Find 3 |
| 4 | 5851-1172 | Service parts kit - Includes the left and right toner cartridge guides and their retaining clips | Find 4 |
| 5 | RA0-1197-000CN | Rubber foot | Find 5 |
| 6 | 5851-1172 | Service parts kit - Includes the left and right toner cartridge guides and their retaining clips | Find 6 |

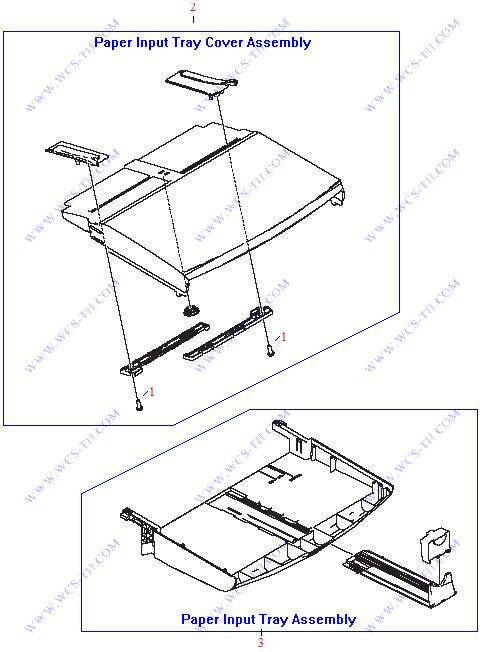

Paper Input Tray Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XB4-7300-809CN | M3 self-tapping pan head phillips screw (Black oxide finish) - 8mm long | Find 1 |
| 2 | RG0-1122-000CN | Paper tray cover assembly - Includes clear plastic cover with blue width adjustment guides for 'priority' paper input | Find 2 |
| 3 | RG0-1121-000CN | Printer input paper tray assembly - Includes bottom tray, blue paper length adjustment lever, and extension arm (does NOT include the paper tray cover) | Find 3 |

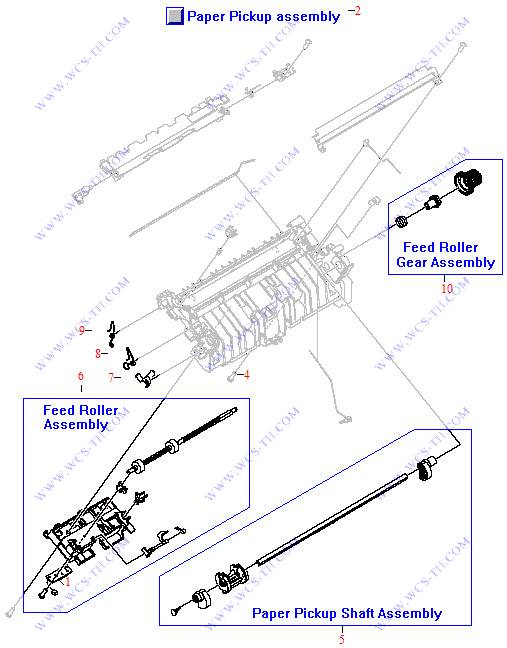

Paper Pickup Assembly (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0851-000CN | Paper sensor board - Small board with optical flag sensor (flag not included) - For sensing leading edge of paper | Find 1 |
| 2 | RM1-0838-000CN | Paper pickup assembly - Includes the pickup roller, paper feed roller assembly, separation pad, plastic housing and other associated parts | Find 2 |
| 4 | XA9-1421-000CN | M4x14 screw | Find 4 |
| 5 | RM1-0533-000CN | Paper pickup shaft assembly - Includes the shaft, the two cams, pickup roller holder, and end cap | Find 5 |
| 6 | RM1-0839-000CN | Paper feed roller assembly - Includes feed roller, feed roller base assembly, retainer bushings, paper input leading edge sensor, sensor flag and spring | Find 6 |
| 7 | RA0-1072-000CN | Grounding Plate - L-shaped, spring steel | Find 7 |
| 8 | RA0-1035-000CN | Torsion spring - Provides high voltage connection to the toner cartridge (developing cylinder) | Find 8 |
| 9 | RA0-1200-000CN | Torsion spring - Provides high voltage connection to the toner cartridge (primary charging roller) | Find 9 |
| 10 | RY7-5081-000CN | Gear/clutch assembly kit - Includes double-gear body, shaft attachment piece and spring | Find 10 |

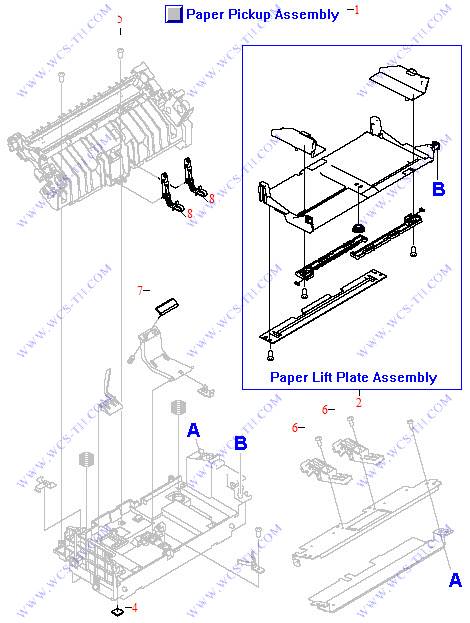

Paper Pickup Assembly (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0838-000CN | Paper pickup assembly - Includes the pickup roller, paper feed roller assembly, separation pad, plastic housing and other associated parts | Find 1 |
| 2 | RM1-0840-000CN | Paper lift plate assembly - Plastic plate assembly that includes the two blue paper width adjusters | Find 2 |
| 4 | RA0-1003-000CN | Rubber foot - For bottom of printer - Three used | Find 4 |
| 5 | XA9-1421-000CN | M4x14 screw | Find 5 |
| 6 | XA9-1418-000CN | M3x6 TP screw | Find 6 |
| 7 | RF0-1014-000CN | Separation pad assembly | Find 7 |
| 7 | RF0-1014-020CN | Separation pad assembly | Find 7 |
| 8 | RC1-1794-000CN | Sub-pad arm - Small curved plastic arm - Help keeps remainder of paper stack in place while the top sheet is picked | Find 8 |

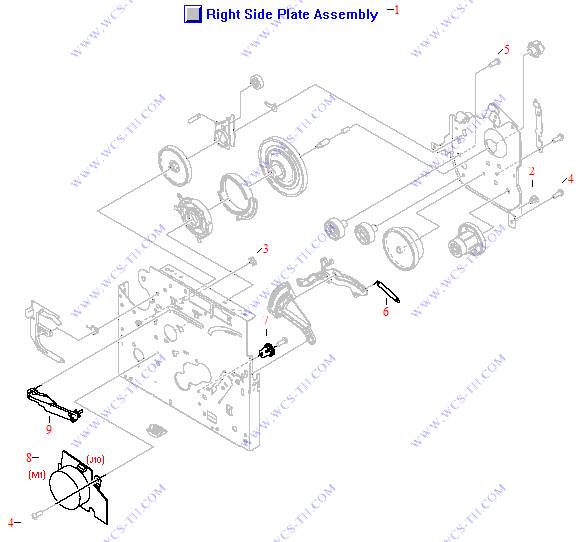

Right Side Plate Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0835-020CN | Right side plate assembly - Includes the right side plate, drive motor, most all drive gears, and cam levers - Does not come with the pickup roller solenoid or 69 tooth gear - Right side of the internal printer mechanism | Find 1 |
| 1 | RM1-0835-000CN | Right side plate assembly - Includes the right side plate, drive motor, most all drive gears, and cam levers - Does not come with the pickup roller solenoid or 69 tooth gear - Right side of the internal printer mechanism | Find 1 |
| 2 | WT2-5694-000CN | Snap-in cable clamp | Find 2 |
| 3 | 5851-1172 | Service parts kit - Includes the left and right toner cartridge guides and their retaining clips | Find 3 |
| 4 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 4 |
| 5 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 5 |
| 6 | RA0-1212-000CN | Tension spring | Find 6 |
| 7 | RA0-1172-000CN | 17-tooth gear assembly - Includes the 17-tooth gear mounted on a black plastic lever/bracket | Find 7 |
| 8 | RK2-0063-000CN | DC stepper motor assembly - Drives all rollers and fusing assembly via the gear train on the right side plate | Find 8 |
| 8 | RK2-0062-000CN | DC stepper motor assembly - Drives all rollers and fusing assembly via the gear train on the right side plate | Find 8 |
| 9 | 5851-1172 | Service parts kit - Includes the left and right toner cartridge guides and their retaining clips | Find 9 |

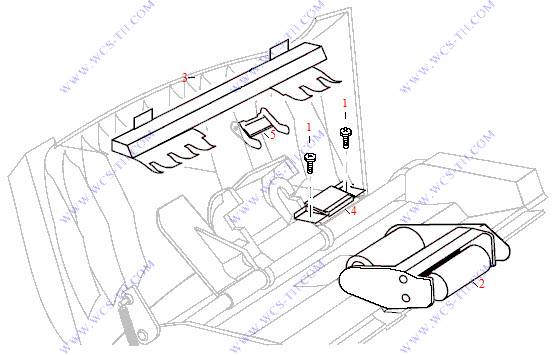

Scanner Assembly - ADF Rollers and Separation Pad
| Pic No. | Parts ID | Parts Name | Link |
| 1 | 0624-1055 | Pan head plastite screw - 2-28 thread, 0.312 inches long, T8 torx | Find 1 |
| 2 | C7309-60049 | ADF pick roller assembly - Includes two rollers in a bracket assembly | Find 2 |
| 2 | C7309-60091 | ADF pick roller assembly - Includes two rollers in a bracket assembly | Find 2 |
| 3 | C7309-40153 | Cleanout assembly strip - Green plastic bar with two grab tabs - Can be removed to help clear paper jams in the automatic document feeder assembly | Find 3 |
| 4 | C7309-60009 | ADF SEPARATION PAD ASSEMBLY | Find 4 |
| 5 | C7309-80013 | Torsion spring | Find 5 |
| 5 | C7309-40013 | Paper sensor flag | Find 5 |

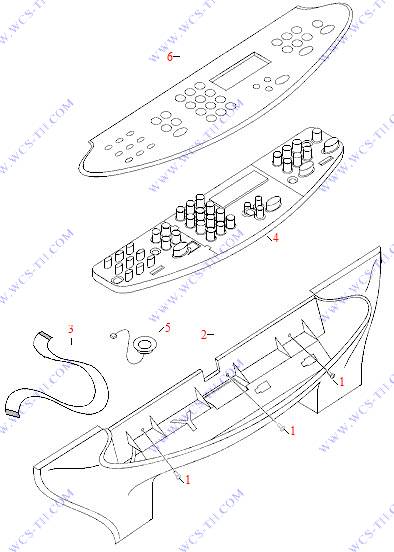

Scanner Assembly - Control Panel Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | 0515-4330 | Pan head plastite screw with washer - M3.0 x 1.27, 9.1mm long, Number 2 Phillips | Find 1 |
| 1 | 0515-4671 | Pan head screw with washer - M3.0 x 1.27, 9.1mm long, Number 2 Phillips recess - Steel, nickel plated finish | Find 1 |
| 2 | C9124-40006 | Support Chassis - Curved plastic piece that supports the control panel keypad | Find 2 |
| 3 | Q2660-60104 | Flat flexible cable (FFC) | Find 3 |
| 4 | Q2660-60101 | Control panel keypad assembly - Has 'Copy', 'Print', 'Scan' and 'Fax' function keys - Does NOT include the bezel | Find 4 |
| 5 | C9124-60113 | Speaker assembly - Includes the speaker and cable | Find 5 |
| 6 | Q2660-67921 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Hebrew) | Find 6 |
| 6 | Q2660-67914 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Hungarian) | Find 6 |
| 6 | Q2660-67905 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (German) | Find 6 |
| 6 | Q2660-67910 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Finnish) | Find 6 |
| 6 | Q2660-67912 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Swedish) | Find 6 |
| 6 | Q2660-67918 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Turkish) | Find 6 |
| 6 | Q2660-67909 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Dutch) | Find 6 |
| 6 | Q2660-67917 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Slovakian) | Find 6 |
| 6 | Q2660-67904 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (French) | Find 6 |
| 6 | Q2660-67907 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Spanish) | Find 6 |
| 6 | Q2660-67915 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Polish) | Find 6 |
| 6 | Q2660-67908 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Danish) | Find 6 |
| 6 | Q2660-67916 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Russian) | Find 6 |
| 6 | Q2660-67913 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Czechoslovakian) | Find 6 |
| 6 | Q2660-67929 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Vietnamese) | Find 6 |
| 6 | Q2660-67903 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (English) | Find 6 |
| 6 | Q2660-67919 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Arabic) | Find 6 |
| 6 | Q2660-67911 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Portuguese) | Find 6 |
| 6 | Q2660-67926 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Norwegian) | Find 6 |
| 6 | Q2660-67928 | Control panel bezel (Unpainted) - Oval shaped plastic piece with cutouts for the control function keys and display (German) | Find 6 |
| 6 | Q2660-67906 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Italian) | Find 6 |
| 6 | Q2660-67920 | Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys and display (Greek) | Find 6 |

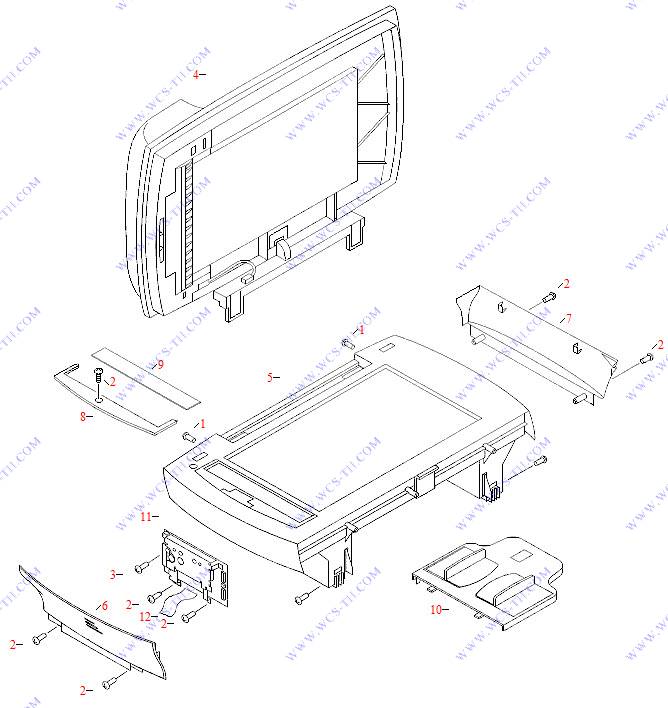

Scanner Assembly - Including the ADF, and Associated Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | 0515-4331 | Pan head plastite screw with washer - M4.0 x 1.75, 13.1mm long, Number 2 Phillips | Find 1 |
| 1 | 0515-4672 | Pan head plastite screw with washer - M4.0 x 1.75, 13.1mm long, Number 2 Phillips recess - Steel, nickel plated finish | Find 1 |
| 2 | 0515-4671 | Pan head screw with washer - M3.0 x 1.27, 9.1mm long, Number 2 Phillips recess - Steel, nickel plated finish | Find 2 |
| 2 | 0515-4330 | Pan head plastite screw with washer - M3.0 x 1.27, 9.1mm long, Number 2 Phillips | Find 2 |
| 3 | 0515-4257 | Pan head screw with washer - M3.0 x 0.5, 6mm long, Number 2 Phillips | Find 3 |
| 4 | C9143-60109 | Automatic document feeder (ADF) and flatbed scanner lid - Includes the lid, the ADF feed mechanism, and scanner input tray | Find 4 |
| 5 | Q2660-60143 | Flatbed scanner assembly | Find 5 |
| 5 | Q2660-60115 | Flatbed scanner assembly | Find 5 |
| 6 | C9124-40002 | Left scanner cover | Find 6 |
| 7 | C9124-40003 | Right scanner cover | Find 7 |
| 8 | C9124-40005 | Retainer frame (U-shaped) - Retains the small piece of glass that is used with the ADF assembly | Find 8 |
| 9 | C7296-00014 | ADF glass window (ONLY) | Find 9 |
| 10 | C9143-60102 | Paper input tray for the ADF assembly | Find 10 |
| 11 | C9124-00002 | RFI sheild for the scanner controller PC board assembly | Find 11 |
| 11 | Q2657-60001 | Scanner control board assembly - Includes the PC board and interconnecting flat flexible cable | Find 11 |
| 11 | Q2657-67901 | Scanner control board assembly - Includes the PC board and interconnecting flat flexible cable | Find 11 |
| 12 | Q2660-60103 | Flat flexible cable (FFC) and RFI shield assembly - Includes the flat flexible cable and its wrap-around RFI shield | Find 12 |
