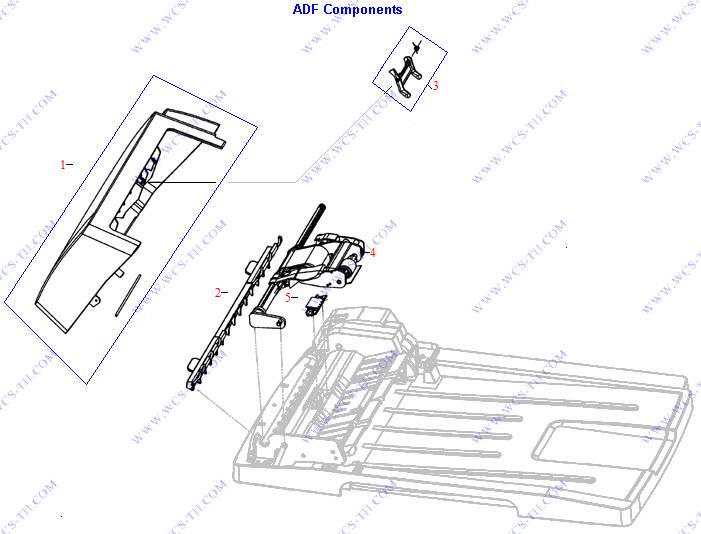

ADF components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q6500-67901 | ADF cover - Replacement cover for ADF mounted on flatbed scanner lid | Find 1 |
| 2 | C7309-40153 | Cleanout assembly strip - Green plastic bar with two grab tabs - Can be removed to help clear paper jams in the automatic document feeder assembly | Find 2 |
| 3 | Q3948-67902 | ADF paper sensor flag replacement kit - Includes the paper sensor flag and spring | Find 3 |
| 4 | 5851-2559 | ADF pickup roller assembly - Includes frame that pickup rollers attach to and both pickup rollers | Find 4 |
| 4 | 5851-3580 | Automatic document feeder (ADF) paper pick-up roller assembly | Find 4 |
| 5 | Q2665-60125 | ADF paper seperation pad assembly - Mounts in the center of the ADF separation pad frame assembly at the rear of the paper input tray | Find 5 |

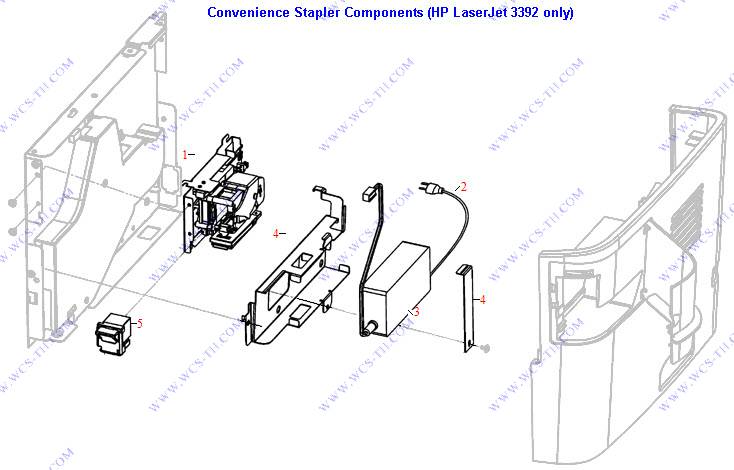

Convenience stapler components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q7429-67101 | LaserJet 3392AIO convenience stapler mechanism - Located on upper right corner of printer | Find 1 |
| 2 | Q6501-60101 | Convenience stapler AC input power cord - Connects the stapler unit to the stapler power supply | Find 2 |
| 3 | Q7429-60501 | Convenience stapler power supply | Find 3 |
| 4 | Q6500-00006 | LaserJet 3392AIO convenience stapler power supply metal mounting frame and holder strap | Find 4 |
| 5 | Q7432-67001 | Convenience stapler cartridge pack - 1,500-staple capacity each - Contains two staple cartridges | Find 5 |
Duplexing assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1313-000CN | Duplexer assembly - Includes the paper guide plate, output guide rollers, and size change assembly - Slides in the opening on the lower rear of the printer | Find 1 |
| 2 | RM1-1318-000CN | Duplexer paper size adjuster assembly - Includes the adjustment lever, holder bracket, and the two drive gears in a spring loaded arm - Mounts on the top right side of the duplexer assembly | Find 2 |

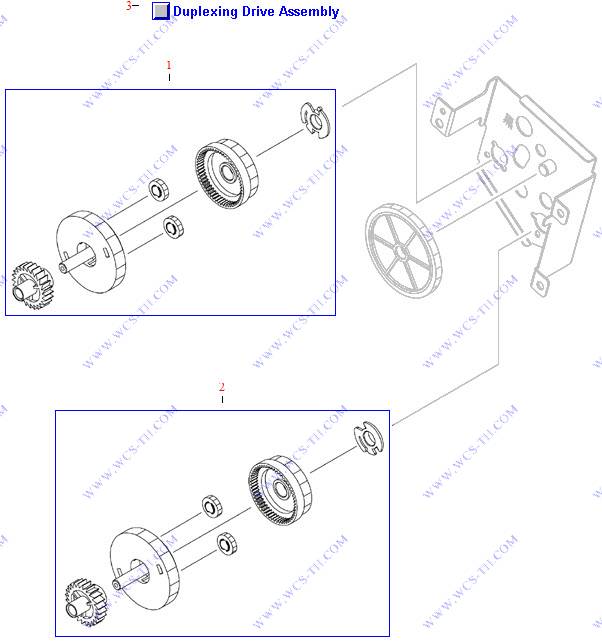

Duplexing-drive assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1303-000CN | Normal rotation gear assembly - Includes the internal/external geared body, two planetary gears, outer gear with shaft, and the black ratchet gear | Find 1 |
| 2 | RM1-1304-000CN | Reverse rotation gear assembly - Includes the internal/external geared body, two planetary gears, outter gear with shaft, and the white ratchet gear | Find 2 |
| 3 | RM1-1302-000CN | Duplexing gear assembly - Includes the normal and reverse rotation gear assemblies, and idler gear mounted on a support bracket - Drives the top output bin and rear rollers | Find 3 |

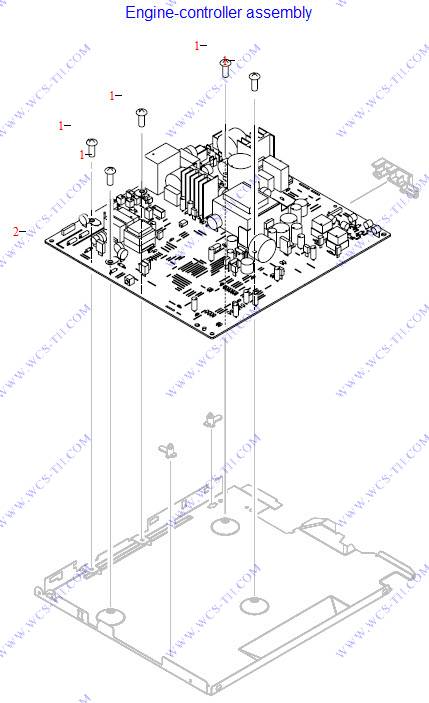

Engine-controller assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 1 |
| 2 | RM1-2567-000CN | Engine control unit (ECU) PC board assembly - Includes the PC board, bottom pan, and standoffs (For 220V to 240V operation) - Does NOT includes the power cord connector or power switch - Mounts in the bottom of the printer | Find 2 |
| 2 | RM1-2566-000CN | Engine control unit (ECU) PC board assembly - Includes the PC board, bottom pan, and standoffs (For 110V to 127V operation) - Does NOT includes the power cord connector or power switch - Mounts in the bottom of the printer | Find 2 |

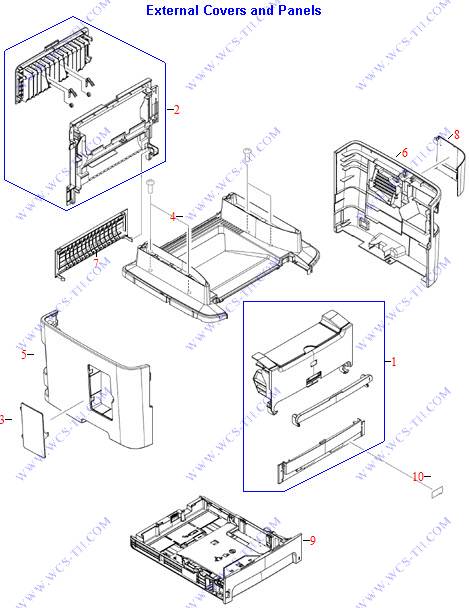

External covers and panels
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2643-000CN | Front cover assembly - Has cutouts for the toner cartridge door release button, and paper input tray assembly | Find 1 |
| 1 | RM1-2643-040CN | Front cover assembly - Has cutouts for the toner cartridge door release button, and paper input tray assembly | Find 1 |
| 2 | RM1-1308-020CN | Rear cover assembly - Includes the rear cover bezel and fold down face-up (or straight through) paper output tray (Tray is NOT sold separately) | Find 2 |
| 2 | RM1-1308-000CN | Rear cover assembly - Includes the rear cover bezel and fold down face-up (or straight through) paper output tray (Tray is NOT sold separately) | Find 2 |
| 3 | RC1-7510-000CN | DIMM memory cover - DIMM memory access door located on left side cover of printer | Find 3 |
| 4 | RC1-7508-000CN | Top cover - Top of printer section that document scanner/ADF assembly mounts to | Find 4 |
| 5 | RC1-7509-000CN | Left side cover - Plastic cover for left side of printer - Does not include DIMM memory access door | Find 5 |
| 6 | RC1-7511-000CN | Right side cover - Plastic cover for right side of printer - Does not include stapler plug cover | Find 6 |
| 7 | RC1-3819-000CN | Rear access door assembly - For adding or removing the duplexer assembly from the printer - Mounts to the lower portion of the rear cover assembly | Find 7 |
| 8 | RC1-7512-000CN | Stapler slot cover - Attaches to right front corner of printer - Used to cover hole if stapler unit is not installed | Find 8 |
| 9 | RM1-1292-080CN | 250-sheet input paper tray (tray 2) assembly - Includes the tray body and front cover assemblies | Find 9 |
| 10 | RC1-3794-000CN | Caution label - Do not run staples through the engine - Has graphic of a staple with a red circle/line through it | Find 10 |

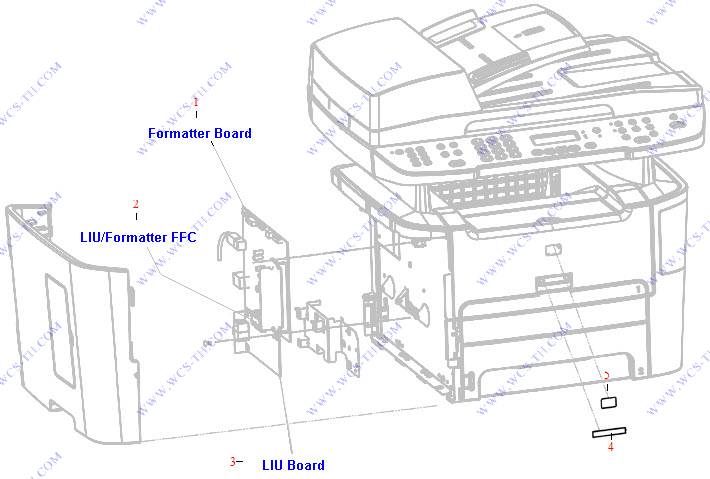

Formatter, LIU, HP jewel, and nameplate
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q6445-60001 | Formatter board - Controls the logic and timing operation of the printer, translates the control panel input, and provides control of the scanner assembly - Does NOT include the LIU board | Find 1 |
| 2 | Q6500-60111 | LaserJet 3390/3392 LIU to Formatter board Flat Flexible Cable (FFC) | Find 2 |
| 3 | Q3978-60012 | Line interface unit (LIU) PC board - Telephone interface board for the printer (For use in Europe) | Find 3 |
| 3 | Q3977-60001 | Line interface unit (LIU) PC board - Telephone interface board for the printer | Find 3 |
| 3 | Q3977-60011 | Line interface unit (LIU) PC board - Telephone interface board for the printer | Find 3 |
| 3 | Q3978-60002 | Line interface unit (LIU) PC board - Telephone interface board for the printer (For use in Europe) | Find 3 |
| 4 | Q6500-40039 | Nameplate for Laserjet 3390 | Find 4 |
| 4 | Q6501-40001 | Nameplate for Laserjet 3392 | Find 4 |
| 5 | 7121-8043 | HP logo (jewel) | Find 5 |

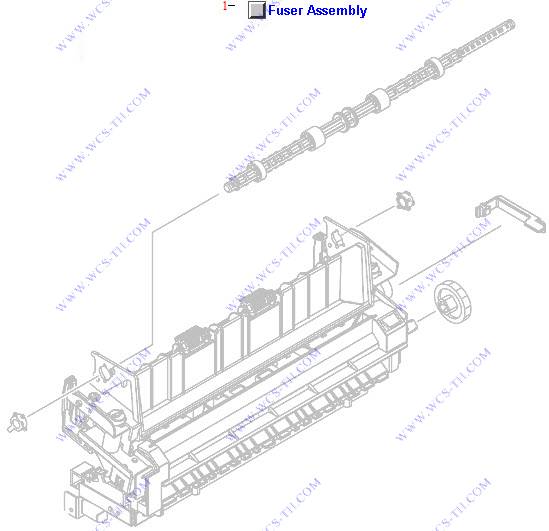

Fuser assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1461-080CN | Fusing assembly - Bonds toner to paper with heat - For 220V to 240VAC operation | Find 1 |
| 1 | RM1-2337-000CN | Fusing assembly - Bonds toner to paper with heat - For 220V to 240VAC operation | Find 1 |

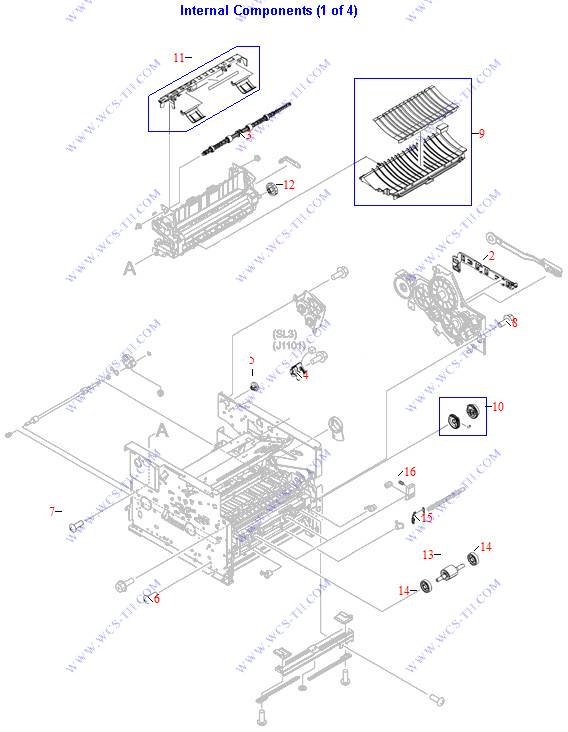

Internal components (1 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RC1-3731-020CN | Cable guide - L-shaped plastic guide with offset fingers - For routing cables through the printer | Find 2 |
| 3 | RL1-0527-000CN | Top output bin delivery roller assembly - Plastic rod with four rubber wheels (two narrow and two wide) | Find 3 |
| 4 | RK2-0910-000CN | Duplexer solenoid - Solenoid SL3 | Find 4 |
| 5 | RU5-0332-000CN | 19-tooth gear (White plastic) | Find 5 |
| 6 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 6 |
| 7 | XA9-1504-000CN | M3 truss head (flanged) screw - 8mm long | Find 7 |
| 8 | XA9-1504-000CN | M3 truss head (flanged) screw - 8mm long | Find 8 |
| 9 | RM1-1286-000CN | Paper feed guide assembly - Support structure to guide the paper into the fusing assembly - Ribbed plastic frame with metal guide plate | Find 9 |
| 10 | RM1-1301-000CN | Double gear assembly - Includes the gear body, inset gear (both with a toothless area) and compression spring - For driving the paper pickup roller | Find 10 |
| 11 | RM1-2340-000CN | Paper retainer assembly - Bracket assembly with two flapper levers - Keeps paper in the top output bin from sliding back into the printer | Find 11 |
| 11 | RM1-1306-000CN | Paper retainer assembly - Bracket assembly with two flapper levers - Keeps paper in the top output bin from sliding back into the printer | Find 11 |
| 12 | RU5-0331-000CN | 29-tooth gear (White plastic) - Main drive gear for the fusing assembly - Mounts on the right end of the fusing assembly | Find 12 |
| 13 | RL1-0540-000CN | Paper pickup roller - Includes the D shaped pickup roller spindle with the rubber tire - Does NOT include the idler rollers on each side of the pickup roller | Find 13 |
| 14 | RC1-3470-000CN | Idler roller (plastic) - Free wheeling roller - Two used | Find 14 |
| 15 | RC1-3472-000CN | Paper sensor flag - Cylindrical plastic piece with a flag on each end (One senses the paper, the other activates the photo-sensor) | Find 15 |
| 16 | RU5-2323-000CN | Compression spring | Find 16 |
Internal components (2 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RC1-7514-000CN | Fan holder - Housing mount for fan FM1 - Located on upper right side of printer | Find 3 |
| 4 | RC1-3539-020CN | Cartridge guide - Upper left side toner cartridge guide | Find 4 |
| 5 | RC1-3544-020CN | Cam arm - Dogleg shaped arm - Disengages the toner cartridge drive gear when the toner cartridge access door is opened - Mounts between the access door and the main drive gear assembly | Find 5 |
| 6 | RC1-3550-000CN | Memory tag arm holder - Supports the tag arm assembly (toner cartridge memory reader) - Mounts towards the right end of the laser/scanner support shelf | Find 6 |
| 7 | RC1-3551-000CN | Tag arm - Spring loaded arm that holds the memory contact and cable (contacts the memory in the toner cartridge) - Mounts in the tag arm holder (Towards the right end of the laser/scanner support shelf) | Find 7 |
| 8 | RC1-3728-000CN | Drawer holder - Right side Tray 2 holder - Also Tray 2 connector mount housing | Find 8 |
| 9 | RC1-3844-000CN | Cartridge guide - Front left side toner cartridge guide | Find 9 |
| 10 | RK2-0912-000CN | Main cooling fan - Fan FM1 | Find 10 |
| 11 | RU5-2335-000CN | Compression spring - Applies downward pressure on the memory tag arm to contact the toner cartridge | Find 11 |
| 12 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 12 |
| 13 | XA9-1504-000CN | M3 truss head (flanged) screw - 8mm long | Find 13 |
| 14 | RM1-2645-000CN | Interlock switch assembly - Disables the printer when the left side cover is removed - Mounts in the upper front corner of the left side plate assembly | Find 14 |
| 15 | RM1-2571-000CN | Speaker assembly | Find 15 |
| 16 | RM1-1470-050CN | Laser/scanner assembly - Mounts on the laser/scanner support shelf | Find 16 |
| 17 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 17 |

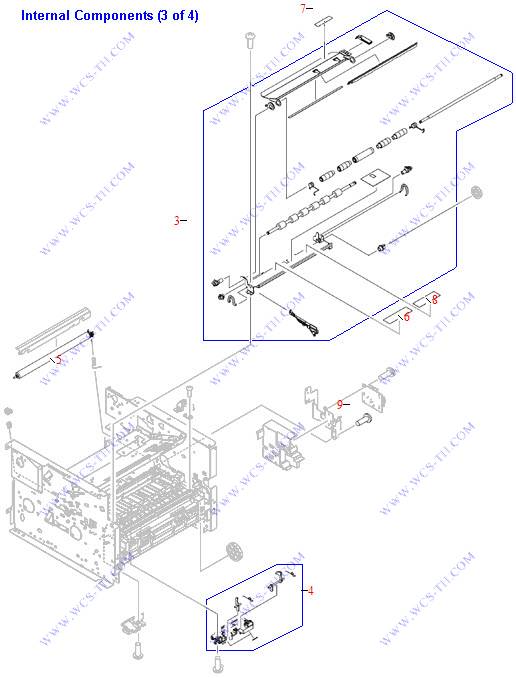

Internal components (3 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RM1-1281-070CN | Registration roller assembly - Includes the frame, the two roller assemblies, and the upper transfer guide - Mounts in the front middle of the print engine assembly | Find 3 |
| 3 | RM1-2339-000CN | Registration roller assembly - Includes the frame, the two roller assemblies, and the upper transfer guide - Mounts in the front middle of the print engine assembly | Find 3 |
| 4 | RM1-1283-000CN | Top sensor assembly - Includes the bracket and flags for the top of page detection sensor (PS912), and paper width detection sensor (PS913) - Mounts behind the registration roller assembly | Find 4 |
| 5 | RM1-1471-000CN | Transfer roller assembly - Transfers static charge to the media being printed on - Mounts in front of the paper feed guide assembly | Find 5 |
| 6 | RC1-7528-000CN | Clear Jam label - Located on registration roller assembly | Find 6 |
| 7 | RC1-3796-000CN | Transfer Guide Open label - Located on registration roller assembly | Find 7 |
| 8 | RC1-7529-000CN | Fixing Pressure Release label - Located on registration roller assembly | Find 8 |
| 9 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 9 |

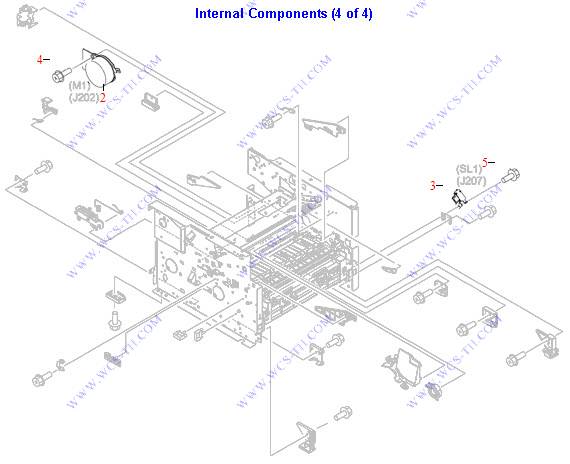

Internal components (4 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RK2-0418-000CN | DC stepper motor assembly - Drives all rollers and fusing assembly via the main drive gear assembly - Mounts on the inside rear of the right side plate assembly | Find 2 |
| 2 | RK2-0419-000CN | DC stepper motor assembly - Drives all rollers and fusing assembly via the main drive gear assembly - Mounts on the inside rear of the right side plate assembly | Find 2 |
| 3 | RK2-0424-000CN | 24V DC Solenoid (SL1) - Engages the pickup roller gear/clutch assembly for tray 2 (250-sheet tray) - Mounts on the right side plate assembly | Find 3 |
| 4 | XA9-1504-000CN | M3 truss head (flanged) screw - 8mm long | Find 4 |
| 5 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 5 |

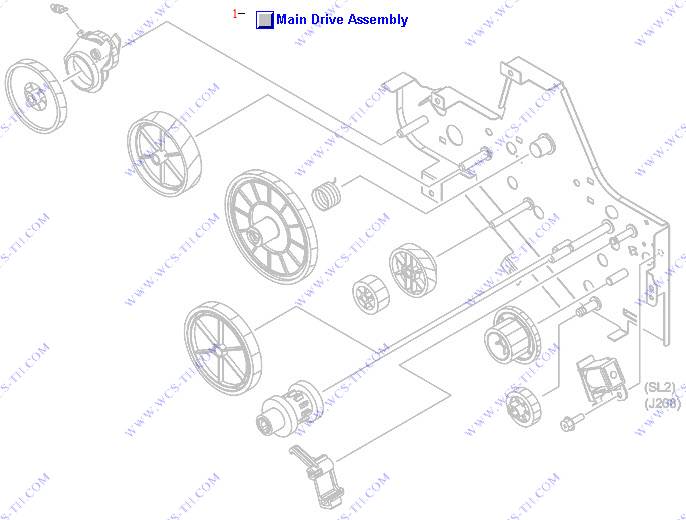

Main-drive assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1299-020CN | Main drive gear assembly - Large plate with ten drive gears and the single sheet priority drive clutch (SL2) - Mounts on the right side plate assembly | Find 1 |
Scanner and ADF assemblies
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q3948-67905 | ADF assembly hinge kit - Includes the left and right hinges and mounting screws | Find 1 |
| 2 | Q6500-67903 | LaserJet 3390/3392 Automatic Document Feeder assembly - Does not include ADF paper input tray. | Find 2 |
| 3 | Q6500-60119 | ADF paper input tray - Holds the paper before is printed - Includes the adjustable width guides | Find 3 |
| 4 | Q6500-67902 | Flatbed scanner assembly for LaserJet 3390/3392 all-in-one - Includes flatbed scanner frame and glass | Find 4 |
Scanner assemblies
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q6500-67904 | Replacement glass kit - Replacement flatbed scanner glass kit - Includes glass, frame mounts and screw | Find 1 |
| 2 | Q6500-40020 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Polish) | Find 2 |
| 2 | Q6500-40010 | LaserJet 3390/3392 control panel bezel - Control panel overlay (French) | Find 2 |
| 2 | Q6500-40027 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Korean) | Find 2 |
| 2 | Q6500-40012 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Italian) | Find 2 |
| 2 | Q6500-40025 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Arabic) | Find 2 |
| 2 | Q6500-40026 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Traditional Chinese) | Find 2 |
| 2 | Q6500-40029 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Taiwanese) | Find 2 |
| 2 | Q6500-40021 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Slovak) | Find 2 |
| 2 | Q6500-40016 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Danish) | Find 2 |
| 2 | Q6500-40006 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Swedish) | Find 2 |
| 2 | Q6500-40019 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Hungarian) | Find 2 |
| 2 | Q6500-40024 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Hebrew) | Find 2 |
| 2 | Q6500-40009 | LaserJet 3390/3392 control panel bezel - Control panel overlay (German) | Find 2 |
| 2 | Q6500-40017 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Russian) | Find 2 |
| 2 | Q6500-40014 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Norwegian) | Find 2 |
| 2 | Q6500-40022 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Turkish) | Find 2 |
| 2 | Q6500-40018 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Czechoslovakian) | Find 2 |
| 2 | Q6500-40028 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Simplified Chinese) | Find 2 |
| 2 | Q6500-40013 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Swedish) | Find 2 |
| 2 | Q6500-40023 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Greek) | Find 2 |
| 2 | Q6500-40015 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Finnish) | Find 2 |
| 2 | Q6500-40040 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Dutch) | Find 2 |
| 2 | Q6500-40011 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Dutch) | Find 2 |
| 2 | Q6500-40030 | LaserJet 3390/3392 control panel bezel - Control panel overlay (Vietnamese) | Find 2 |
| 3 | Q6500-60104 | LaserJet 3390/3392 control panel assembly -Includes the display and control function buttons - Does NOT include the language specific overlay | Find 3 |

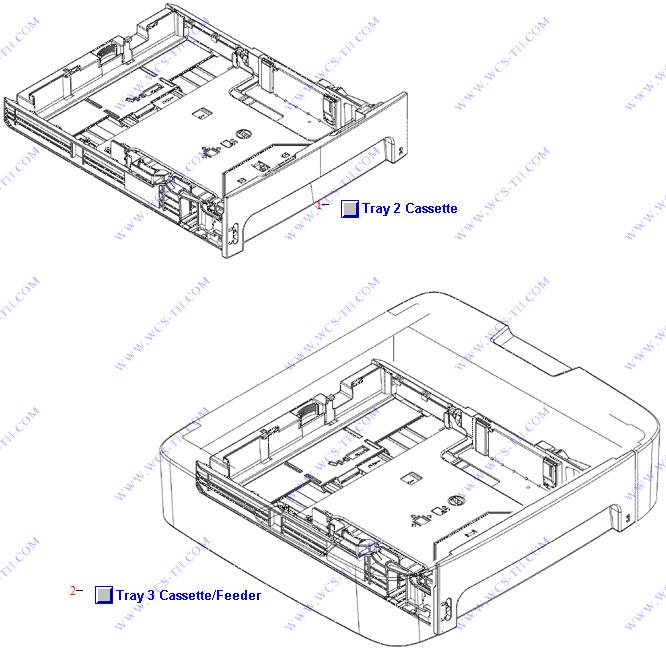

Tray 2 cassette and tray 3 cassette/feeder
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1292-080CN | 250-sheet input paper tray (tray 2) assembly - Includes the tray body and front cover assemblies | Find 1 |
| 2 | Q7556-67901 | Optional 250 sheet paper tray assembly - Includes base assembly and removable paper cassette - Adds an additional bottom paper tray (Tray3 or 4)to the LaserJet 3390/3392 | Find 2 |
