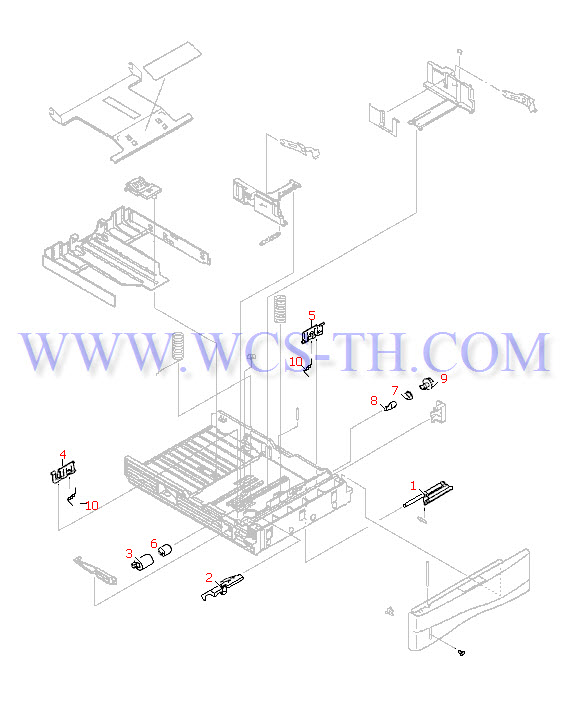

250 Sheet Tray
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-2505-000CN | Separation roller mounting assembly | Find 1 |
| 2 | RB1-9001-000CN | Separation roller access panel | Find 2 |
| 3 | RF5-1885-000CN | Feed/separation roller - Roller is gray with blue tab protruding out one side | Find 3 |
| 4 | RB1-9012-000CN | Lifter arm - White plastic arm that holds top left side metal corner piece up when loading paper in tray | Find 4 |
| 5 | RB1-9013-000CN | Lifter arm - White plastic arm that holds top right side metal corner piece up when loading paper in tray | Find 5 |
| 6 | RB1-8974-000CN | Separation roller clutch - Torque limiter | Find 6 |
| 7 | RB1-8946-000CN | Separation roller bushing | Find 7 |
| 8 | RB1-8945-000CN | Separation roller/gear coupler | Find 8 |
| 9 | RB1-8948-000CN | Separation roller drive gear | Find 9 |
| 10 | RB1-9016-000CN | Torsion spring - Provides tension for right and left tray lifter arms | Find 10 |
500 Sheet Tray
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-1885-000CN | Feed/separation roller - Roller is gray with blue tab protruding out one side | Find 1 |
| 2 | C4125-67901 | 500 sheet universal paper tray assembly - This is ONLY the tray that holds the paper, NOT the optional feeder assembly (C4124A) that the printer sits on - Holds A5 to Legal size paper - Replaces C3122A Tray | Find 2 |
Delivery Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2648-110CN | Paper delivery assembly | Find 1 |
| 2 | RG5-2650-000CN | Delivery sensor arm assembly | Find 2 |

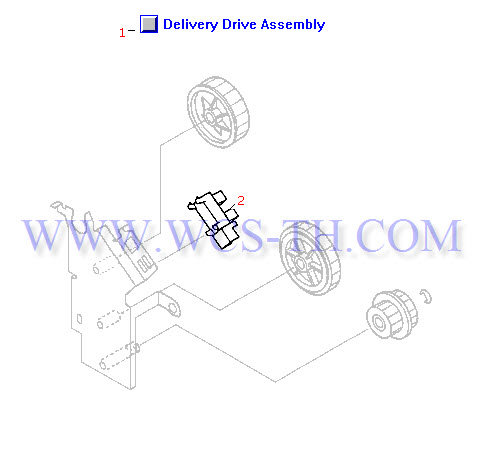

Delivery Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-3721-000CN | Delivery drive assembly | Find 1 |
| 2 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated | Find 2 |
Duplexer Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C4123-69001 | Duplexer assembly - (C4123A) | Find 1 |
| 2 | RB1-9044-000CN | Top cover - Duplexer access top cover | Find 2 |
| 3 | RB1-9047-000CN | Right side duplexer cover | Find 3 |
| 4 | RF5-1876-000CN | Left side duplexer cover - With connector | Find 4 |
| 5 | RB1-9045-000CN | Duplexer rear cover panel | Find 5 |
| 6 | RH7-1361-000CN | Tubeaxial fan - 24VDC - Mounts on the rear of the duplexer assembly | Find 6 |
Engine Control Board Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C4118-69009 | Engine controller board - Provides all power supply and motor control functions, including power switch - 110 volts - Does not include insulator sheet or bottom metal plate | Find 1 |
| 1 | C4118-69010 | Engine controller board - Provides all power supply and motor control functions - 220 volt - Does not include insulator sheet or bottom metal plate | Find 1 |
| 2 | RB1-8838-000CN | Sheet insulator - Plastic sheet between PCA and metal plate | Find 2 |
| 3 | RB2-2404-000CN | Cover plate - Metal bottom plate that attaches to the engine controller PC board | Find 3 |

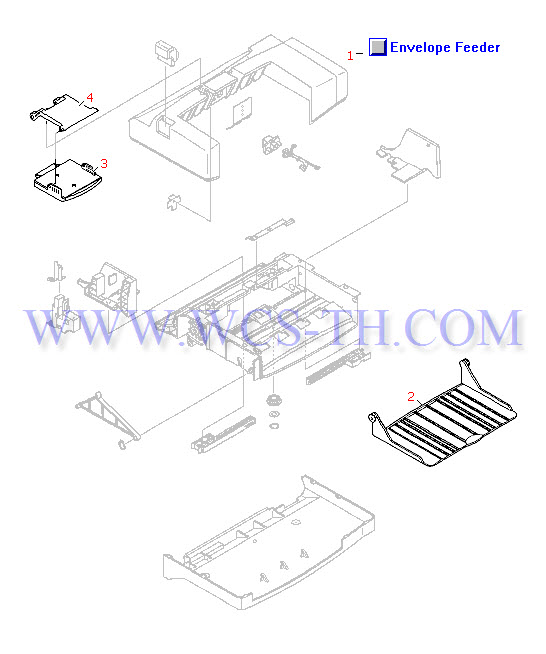

Envelope Feeder
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C8053-69002 | Power envelope feeder - Holds 75 monarch, C5, DL, B5, or COM10 envelopes - (Part of C8053B) | Find 1 |
| 2 | RB1-9088-000CN | Envelope feeder input tray | Find 2 |
| 3 | RF5-2511-000CN | Envelope weight - Provides tension for proper feeding | Find 3 |
| 4 | RB1-9095-020CN | Envelope mount - Pivotal holder for envelope weight | Find 4 |

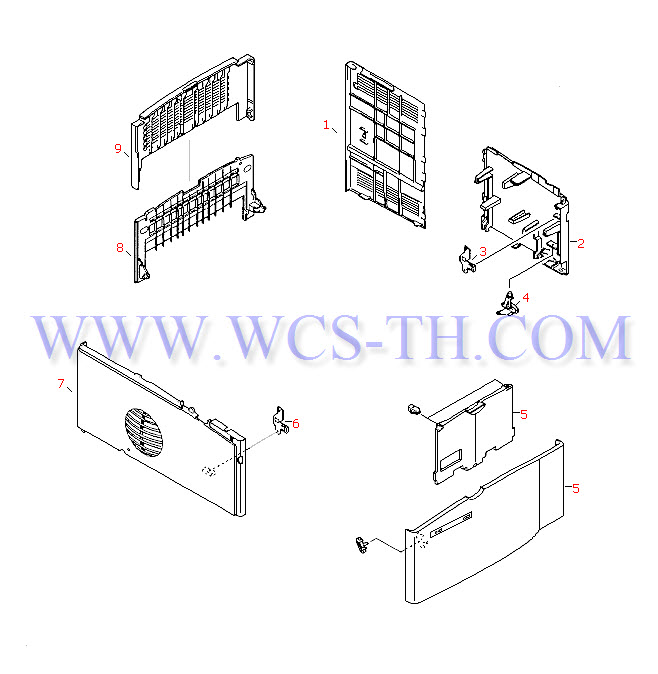

External Covers and Panels
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-8858-000CN | Formatter board cover panel | Find 1 |
| 2 | RG5-2664-070CN | Right front cover assembly - Mounts bedie the formatter panel | Find 2 |
| 3 | RB1-8860-000CN | Right side panel retainer clip | Find 3 |
| 4 | RB1-8849-030CN | Power switch button | Find 4 |
| 5 | C4118-67907 | Tray 1 door assembly kit - New style pull-out tray with extension and new spring - Includes instructions | Find 5 |
| 6 | RB1-8848-000CN | Left side panel retainer clip | Find 6 |
| 7 | RG5-2665-000CN | Left side cover assembly - Includes panel retainer clip | Find 7 |
| 8 | RB1-8843-000CN | Rear output tray | Find 8 |
| 9 | RB1-8844-000CN | Rear output tray pull-out extension | Find 9 |

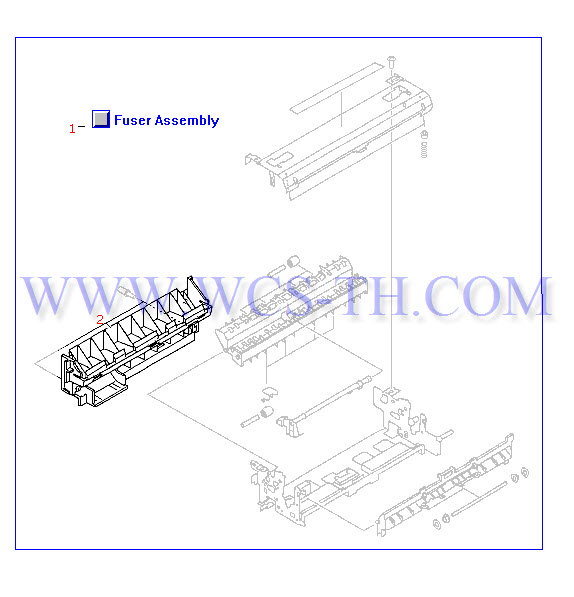

Fuser Assembly (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C4118-69011 | Fusing assembly - 110 volts | Find 1 |
| 1 | C4118-69012 | Fusing assembly - 220 volts | Find 1 |
| 2 | RB1-8805-000CN | Rear fuser cover panel | Find 2 |

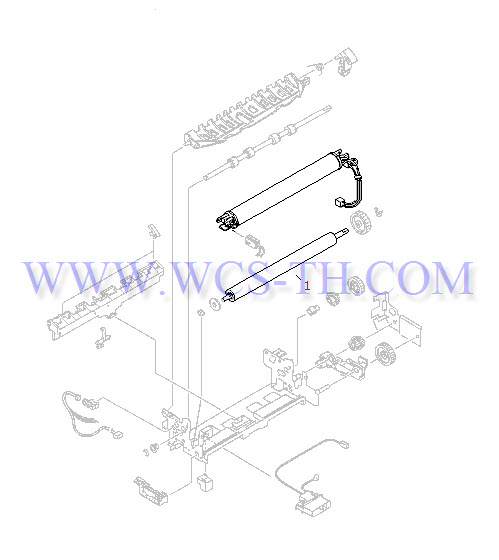

Fuser Assembly (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB9-0684-000CN | Fusing assembly pressure roller | Find 1 |

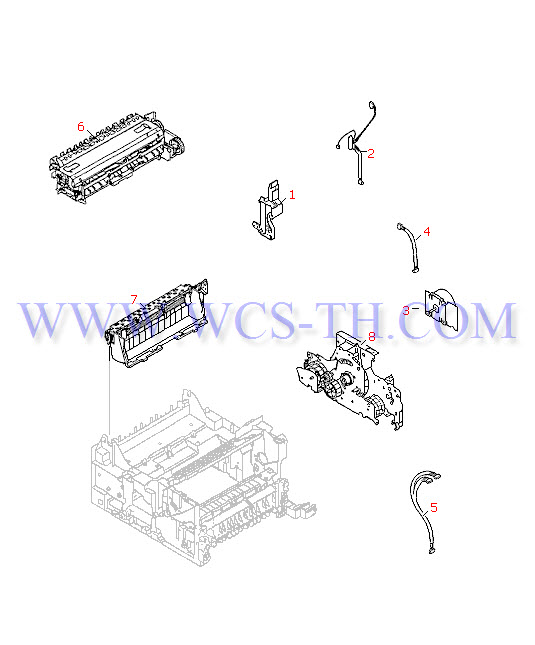

Internal Components (1 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-8862-000CN | Formatter/control panel cable guide | Find 1 |
| 2 | RG5-3708-000CN | Cable assembly - A 38-pin (F) connector to a 14cm (5.5in) ribbon cable with a 26-pin (F) connector, a 20cm (7.9in) ribbon cable with a 10-pin (F) connector, and a 34.6cm (13.6in) 2 wire cable with a 2-pin (F) connector - Formatter/control panel cable | Find 2 |
| 3 | RH7-1331-000CN | Main motor assembly | Find 3 |
| 4 | RG5-3709-000CN | Main motor cable | Find 4 |
| 5 | RG5-3703-000CN | Cable assembly - Large 6-pin (F) connector to both a 6.5cm (2.6in) grounding cable with a ring terminal and a 39.4cm (15.5in) cable with a small 6-pin (F) connector - Paper feed/tray 1 pickup solenoid cable | Find 5 |
| 6 | C4118-69011 | Fusing assembly - 110 volts | Find 6 |
| 6 | C4118-69012 | Fusing assembly - 220 volts | Find 6 |
| 7 | RG5-2648-110CN | Paper delivery assembly | Find 7 |
| 8 | RG5-2653-020CN | Print drive gear assembly | Find 8 |

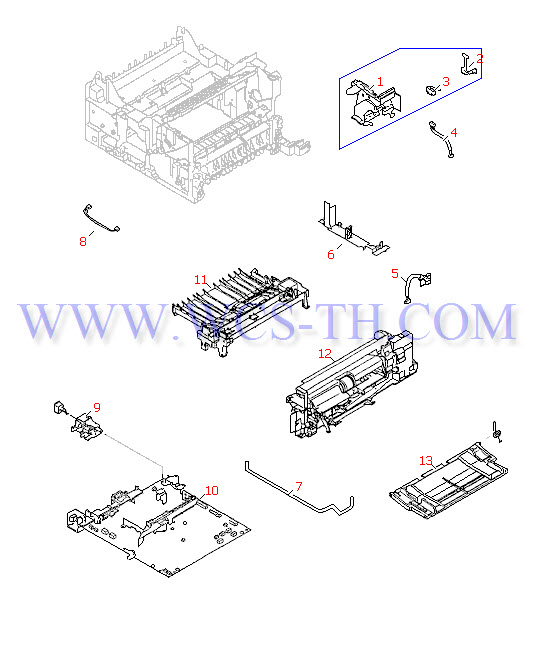

Internal Components (2 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2645-000CN | Right side top cover support assembly | Find 1 |
| 2 | RB1-8694-000CN | Interlock switch support ground strap | Find 2 |
| 3 | WC4-5139-000CN | Top cover interlock access switch | Find 3 |
| 4 | RG5-3705-000CN | Cable assembly - A 6-pin (F) connector to both a 21.3cm (8.4in) cable with a 3-pin (F) connector and a 27.2cm (10.7in) cable with a 3-pin (F) connector - Top cover interlock access switch cable | Find 4 |
| 5 | RG5-3704-000CN | Envelope feeder connector and cable | Find 5 |
| 6 | RB1-8704-030CN | Bottom cable guide | Find 6 |
| 7 | RB1-8851-000CN | Power switch actuator rod | Find 7 |
| 8 | RG5-3700-000CN | Cable assembly - 3-pin (F) connectors on each end - 10.0cm (3.9in) long - Tray 1 sensor cable | Find 8 |
| 9 | RG5-3696-000CN | AC power receptacle - Connector and housing assembly | Find 9 |
| 10 | C4118-69009 | Engine controller board - Provides all power supply and motor control functions, including power switch - 110 volts - Does not include insulator sheet or bottom metal plate | Find 10 |
| 10 | C4118-69010 | Engine controller board - Provides all power supply and motor control functions - 220 volt - Does not include insulator sheet or bottom metal plate | Find 10 |
| 11 | RG5-2643-160CN | Paper feed guide assembly | Find 11 |
| 12 | RG5-2655-360CN | Tray 1 paper pickup assembly - Complete assembly including pickup roller, separation pad, sensor arm, retaining arm and drive solenoid - Separation pad is not available separately | Find 12 |
| 13 | RG5-2656-080CN | Paper input tray (Tray 1) - Multi-Purpose tray assembly | Find 13 |

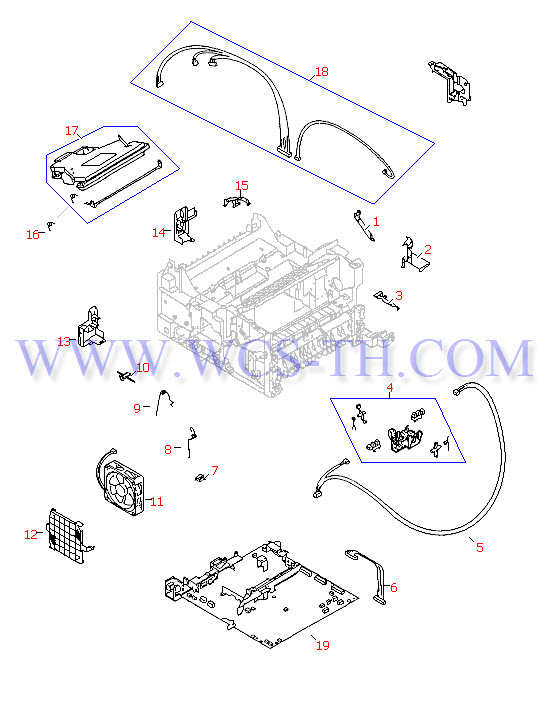

Internal Components (3 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-8827-000CN | Leaf spring | Find 1 |
| 2 | RB1-8689-000CN | Cable holder | Find 2 |
| 3 | RB1-8708-000CN | Gear plate ground strap | Find 3 |
| 4 | RG5-2642-000CN | Registration and feed sensors assembly - Includes PS102/103 | Find 4 |
| 5 | RG5-3706-000CN | Feed/registration sensor assembly cable | Find 5 |
| 6 | RG5-3710-000CN | Paper feeder module cable | Find 6 |
| 7 | RB1-8690-000CN | Toner cartridge sensing spring retainer | Find 7 |
| 8 | RB1-8695-000CN | Toner cartridge sensing spring | Find 8 |
| 9 | RB1-8693-000CN | Toner cartridge drum ground spring | Find 9 |
| 10 | RB1-8688-000CN | Engine test button - Manual test button | Find 10 |
| 11 | RH7-1334-000CN | Main cooling fan | Find 11 |
| 12 | RB1-8706-000CN | Main cooling fan cover | Find 12 |
| 13 | RB2-2400-000CN | Left duplex access panel - Covers the left duplexer mount | Find 13 |
| 14 | RB2-2401-000CN | Right duplex access panel - Covers the right duplexer mount | Find 14 |
| 15 | RB1-8700-000CN | Laser shutter arm | Find 15 |
| 16 | RB1-8702-000CN | Laser shutter spring - Provides tension for laser shutter | Find 16 |
| 17 | C4118-69005 | Laser/scanner assembly | Find 17 |
| 18 | RG5-3876-000CN | Cable assembly with ferrite - A 13-pin (F) connector, a 6-pin (F) connector, a 4-pin (F) connector, and three 3-pin (F) connectors - 38.4cm (15.1in) long - Laser scanner and output bin paper sensor cable | Find 18 |
| 19 | C4118-69009 | Engine controller board - Provides all power supply and motor control functions, including power switch - 110 volts - Does not include insulator sheet or bottom metal plate | Find 19 |
Internal Components (4 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-1867-000CN | Pre-transfer ground plate assembly | Find 1 |
| 2 | RG5-4283-000CN | Transfer roller assembly - Long metal shaft with Black roller and drive gear - Transfers static charge to the media being printed on | Find 2 |
| 3 | RS5-0911-000CN | Coupler gear | Find 3 |
| 4 | RF5-2496-000CN | Coupler gear mounting plate | Find 4 |

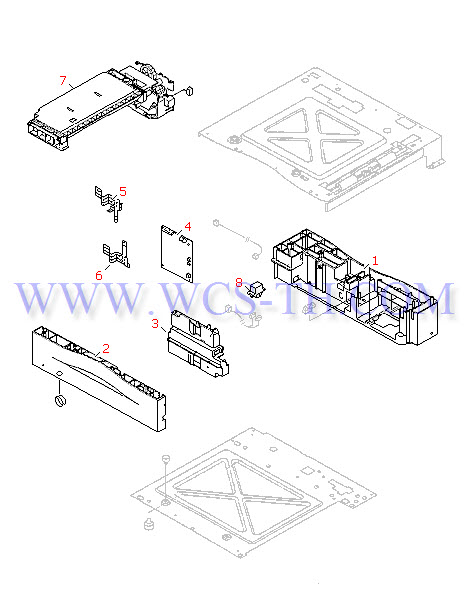

Internal Components of 250 Sheet Feeder (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2679-000CN | Right lower side feeder cover assembly | Find 1 |
| 2 | RG5-2680-000CN | Left lower feeder cover assembly | Find 2 |
| 3 | RB1-8907-000CN | Feeder control PCA cover | Find 3 |
| 4 | RG5-2685-000CN | Feeder control board | Find 4 |
| 5 | RB1-9033-000CN | Upper tray sensing lever - Actuates switches on control board | Find 5 |
| 6 | RB1-9034-000CN | Lower tray sensing lever - Actuates switches on control board | Find 6 |
| 7 | RG5-2684-000CN | Lower paper pickup drive assembly - 250 sheet | Find 7 |
| 8 | VS1-6176-006CN | 250/500 sheet feeder connector - Between frame and printer | Find 8 |

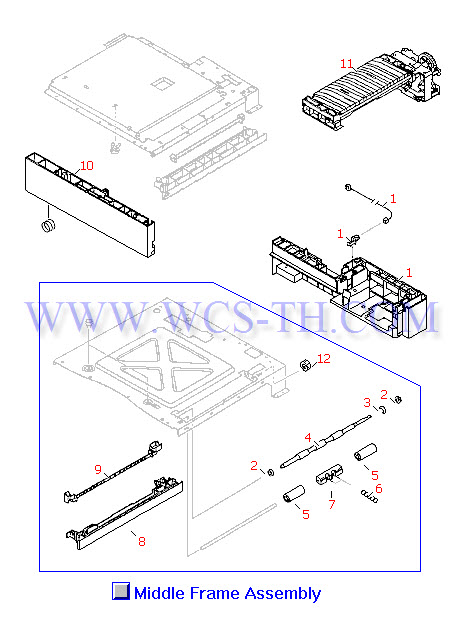

Internal Components of 250 Sheet Module (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2677-000CN | Upper right cover assembly | Find 1 |
| 2 | RS5-1309-000CN | Transport roller bearing - (Two used) | Find 2 |
| 3 | XD9-0135-000CN | Shaft E-clip - Transport roller Shaft E-Clip | Find 3 |
| 4 | RB1-8923-020CN | Transport roller | Find 4 |
| 5 | RB1-8922-000CN | Transport pressure roller - Two used | Find 5 |
| 6 | RU5-2066-000CN | Transport roller spring | Find 6 |
| 7 | RB1-8926-000CN | Transport roller pressure mount | Find 7 |
| 8 | RB1-8913-000CN | Paper guide lower support | Find 8 |
| 9 | RB1-8914-000CN | Lower paper guide | Find 9 |
| 10 | RG5-2678-000CN | Upper left cover assembly | Find 10 |
| 11 | RG5-2683-000CN | Upper paper pickup drive assembly - 250 sheet | Find 11 |
| 12 | RS5-0946-000CN | Transport roller drive gear | Find 12 |

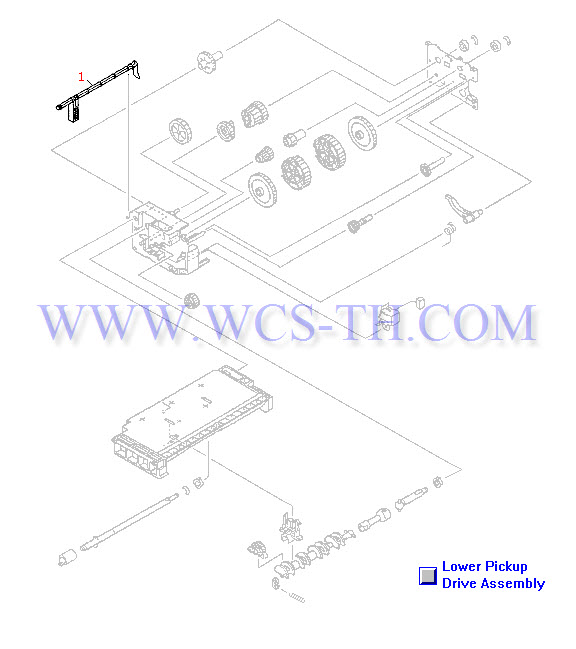

Lower Paper Pickup Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-8910-000CN | Paper tray sensing arm | Find 1 |
Main Assembly Locator (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |

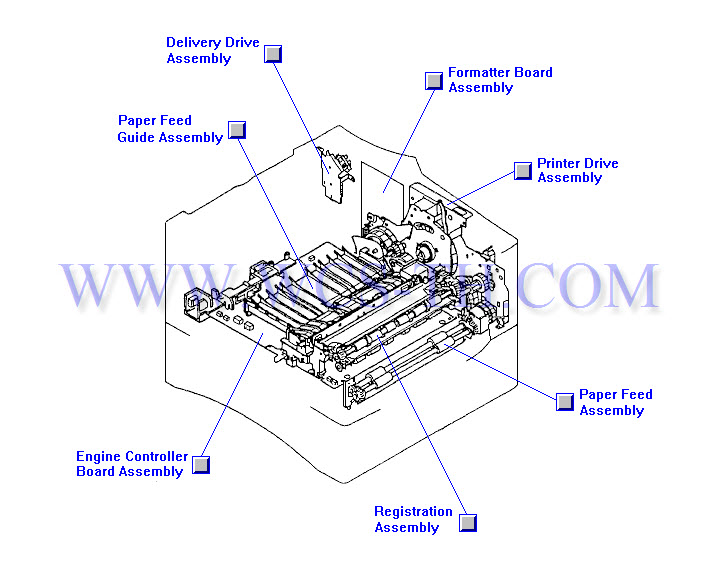

Main Assembly Locator (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |

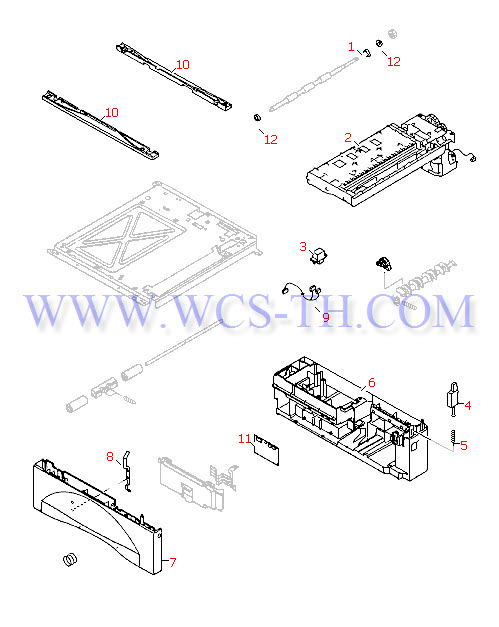

Optional 500 Sheet Feeder
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XD2-1100-502CN | E-ring clip - For the transport roller | Find 1 |
| 2 | RG5-2690-000CN | Optional 500 sheet paper pickup drive assembly | Find 2 |
| 3 | VS1-6174-006CN | Feed drive assembly connector | Find 3 |
| 4 | RB1-8928-000CN | Tray identifier plunger - Identifies tray number installed | Find 4 |
| 5 | RS5-2967-000CN | Compression spring for tray identifier plunger | Find 5 |
| 6 | RG5-2687-000CN | Right side frame assembly | Find 6 |
| 7 | RG5-2688-000CN | Left side frame assembly | Find 7 |
| 8 | RB1-8927-000CN | Left side frame leaf spring | Find 8 |
| 9 | RG5-3822-000CN | Paper feeder cable | Find 9 |
| 10 | RB1-8924-000CN | Optional lower cassette support guide | Find 10 |
| 11 | RG5-3821-000CN | Lower tray logic PCA - With tray size switches | Find 11 |
| 12 | RS5-1179-000CN | Transport roller bearing - (Two used) | Find 12 |

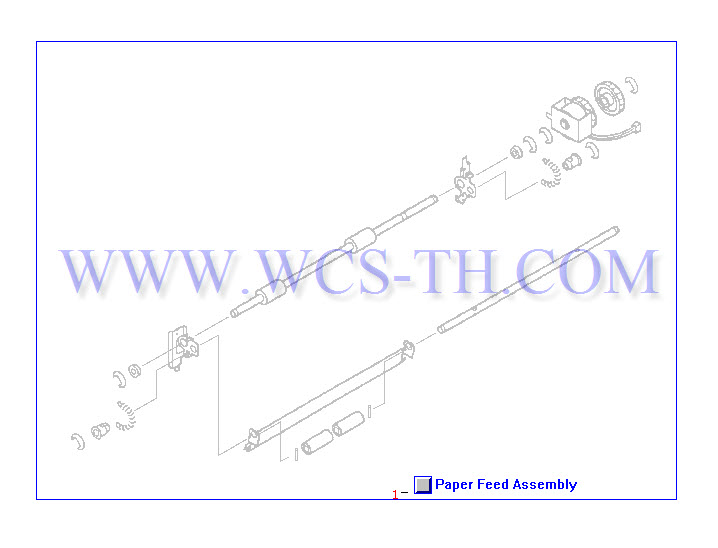

Paper Feed Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2651-090CN | Paper feed assembly | Find 1 |

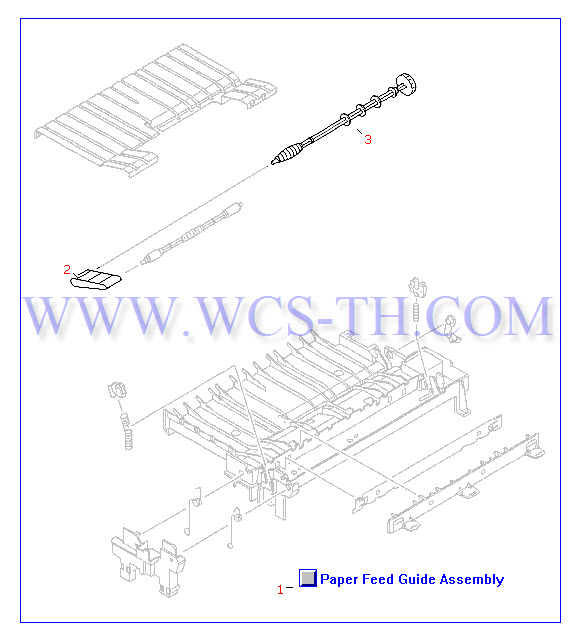

Paper Feed Guide Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2643-160CN | Paper feed guide assembly | Find 1 |
| 2 | RB1-8668-030CN | Feed guide drive belt - Small belt approximately 5/16 inch wide with 'A' shaped ribs on it | Find 2 |
| 3 | RB1-8674-000CN | Belt drive shaft | Find 3 |

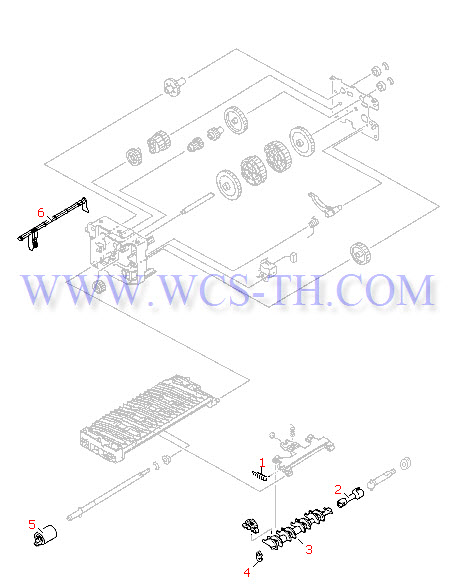

Paper Pickup Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RS5-2632-000CN | Tension spring - Provides tension for pickup roller | Find 1 |
| 2 | C4119-67902 | Coupler kit - Contains pickup roller coupler, four paper tray load limit clips and installation instruction sheet | Find 2 |
| 3 | RF5-2484-000CN | Pickup roller assembly | Find 3 |
| 4 | RB1-2190-000CN | Pickup roller spring hook | Find 4 |
| 5 | RF5-1885-000CN | Feed/separation roller - Roller is gray with blue tab protruding out one side | Find 5 |
| 6 | RB1-8879-000CN | Paper tray sensing arm | Find 6 |

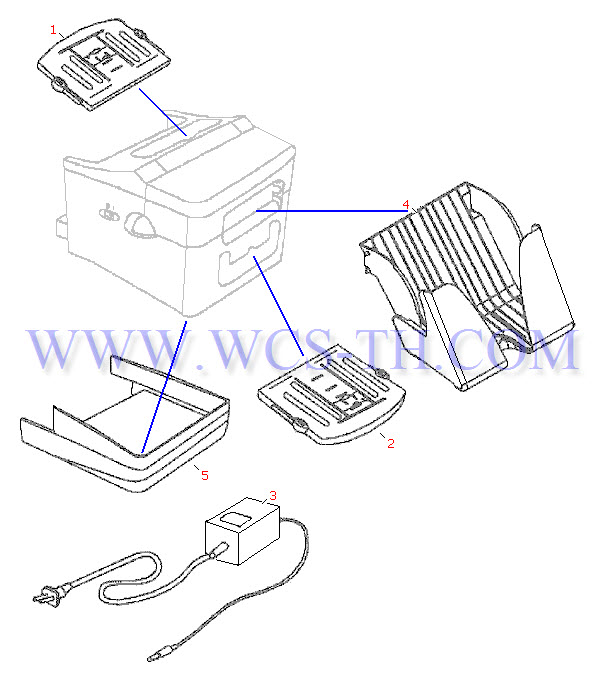

Print to Mail
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C7833-40012 | Upper fold chute stop - Used to set the position of the upper fold on the paper (or form) - Has '1-4' fold indicators - Inserts in the top of the print-to-mail accessory | Find 1 |
| 2 | C7833-40013 | Lower fold chute stop - Used to set the position of the lower fold on the paper (or form) - Has 'A-D' fold indicators - Inserts below the output bin slot on the print-to-mail accessory | Find 2 |
| 3 | C7833-60102 | Power supply module - 100-240VAC input, 50-60Hz - 24VDC output, 2.7A, 65 watts - Includes detachable AC power cord for use in North America (flat blade, polarized, ungrounded) - Part of C7833A | Find 3 |
| 4 | C7833-40015 | Output bin (Exit tray) - Holds the folded paper output - Can be adjusted for legal size forms, or the extendable portion can removed for large mailings (output drops into box) - Mounts to the rear of the pint-to-mail accessory | Find 4 |
| 5 | C7833-40014 | Reversible base assembly - Used in the lower position when one 500-sheet tray is installed on the LaserJet, or the upper position when two 250-sheet trays are installed - The print-to-mail accessory sits on this base | Find 5 |
Printer Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2653-020CN | Print drive gear assembly | Find 1 |
| 2 | RB1-8757-000CN | Gear assembly plate cable guide | Find 2 |
| 3 | RB1-8756-000CN | Toner cartridge drive rod | Find 3 |

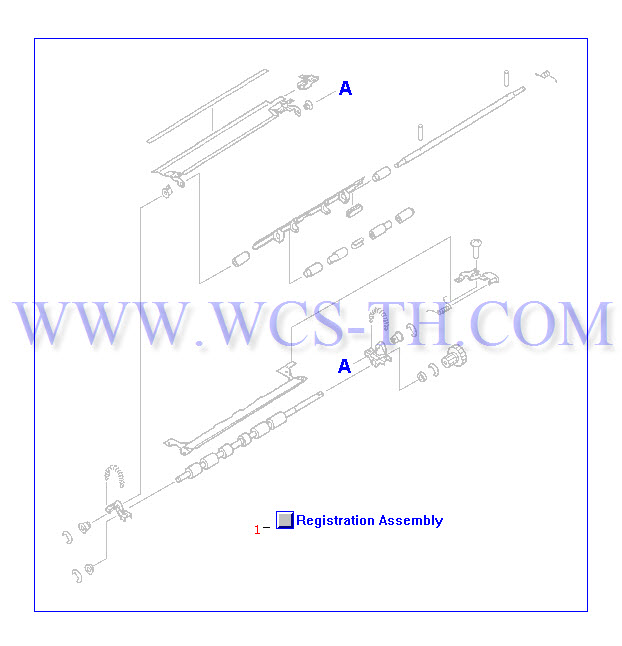

Registration Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2652-170CN | Registration assembly | Find 1 |

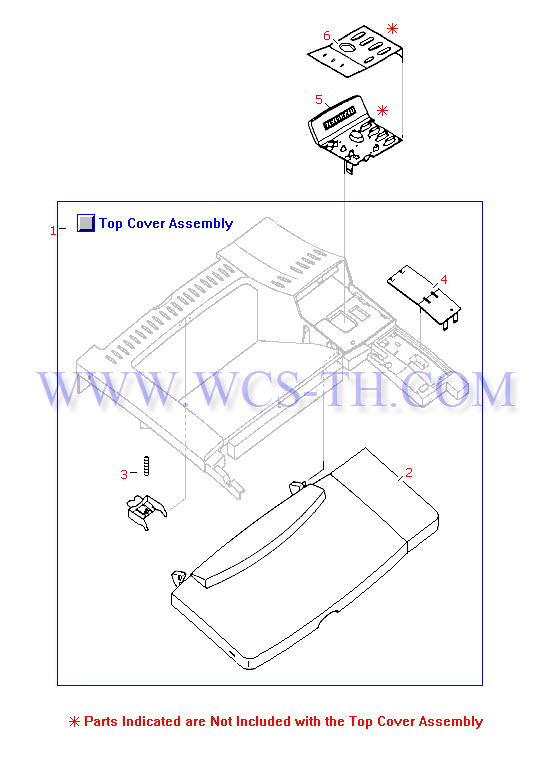

Top Cover Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2663-090CN | Plate cover | Find 1 |
| 2 | RB1-8841-000CN | Toner cartridge access panel | Find 2 |
| 3 | RB1-8847-000CN | Rear tray latch release spring | Find 3 |
| 4 | RG5-2663-090CN | Plate cover | Find 4 |
| 5 | RG5-5372-050CN | Control panel - Does not include overlay | Find 5 |
| 6 | C4251-40001 | LaserJet 4050/4100 control panel overlay (English) | Find 6 |
| 6 | C4251-40002 | LaserJet 4050/4100 control panel overlay (French) | Find 6 |
| 6 | C4251-40003 | LaserJet 4050/4100 control panel overlay (Italian) | Find 6 |
| 6 | C4251-40004 | LaserJet 4050/4100 control panel overlay (Portuguese) | Find 6 |
| 6 | C4251-40005 | LaserJet 4050/4100 control panel overlay (Norwegian) | Find 6 |
| 6 | C4251-40006 | LaserJet 4050/4100 control panel overlay (Hungarian) | Find 6 |
| 6 | C4251-40007 | LaserJet 4050/4100 control panel overlay (Swedish) | Find 6 |
| 6 | C4251-40008 | LaserJet 4050/4100 control panel overlay (Polish) | Find 6 |
| 6 | C4251-40009 | LaserJet 4050/4100 control panel overlay (Russian) | Find 6 |
| 6 | C4251-40010 | LaserJet 4050/4100 control panel overlay (Czechoslovakian) | Find 6 |
| 6 | C4251-40011 | LaserJet 4050/4100 control panel overlay (Korean) | Find 6 |
| 6 | C4251-40012 | LaserJet 4050/4100 control panel overlay (Simplified Chinese) | Find 6 |
| 6 | C4251-40013 | LaserJet 4050/4100 control panel overlay (Traditional Chinese) | Find 6 |
| 6 | C4251-40014 | LaserJet 4050/4100 control panel overlay (German) | Find 6 |
| 6 | C4251-40015 | LaserJet 4050/4100 control panel overlay (Spanish) | Find 6 |
| 6 | C4251-40016 | LaserJet 4050/4100 control panel overlay (Danish) | Find 6 |
| 6 | C4251-40017 | LaserJet 4050/4100 control panel overlay (Dutch) | Find 6 |
| 6 | C4251-40018 | LaserJet 4050/4100 control panel overlay (Greek) | Find 6 |
| 6 | C4251-40019 | LaserJet 4050/4100 control panel overlay (Finnish) | Find 6 |
| 6 | C4251-40020 | LaserJet 4050/4100 control panel overlay (Turkish) | Find 6 |
| 6 | C4251-40021 | LaserJet 4050/4100 control panel overlay (Hebrew) | Find 6 |
| 6 | C4251-40022 | LaserJet 4050/4100 control panel overlay (Arabic) | Find 6 |
| 6 | C4251-40023 | LaserJet 4050/4100 control panel overlay (Japanese) | Find 6 |
| 6 | C4251-40024 | LaserJet 4050/4100 control panel overlay (Thailand) | Find 6 |
Tray - For Optional 500-Sheet Feeder
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-2489-000CN | Separation roller mounting assembly | Find 1 |
| 2 | RB1-9374-000CN | Tray paper stop - Locks paper length plate in slot | Find 2 |
| 3 | RS5-2981-000CN | Paper stop spring - Provides tension for tray plate stop | Find 3 |
| 4 | RB1-9371-000CN | Adjustable paper length stop plate | Find 4 |
| 5 | RF5-1885-000CN | Feed/separation roller - Roller is gray with blue tab protruding out one side | Find 5 |
| 6 | RB1-9009-000CN | Level indicator - Small oval button on front left side of tray - Moves vertically to show amount of paper in tray | Find 6 |
| 7 | RB1-8961-000CN | Arm lifter - White plastic arm that holds top left side metal corner piece up when loading paper in tray | Find 7 |
| 8 | RB1-8962-000CN | Arm lifter - White plastic arm that holds top right side metal corner piece up when loading paper in tray | Find 8 |
| 9 | RB1-8974-000CN | Separation roller clutch - Torque limiter | Find 9 |
| 10 | RB1-8945-000CN | Separation roller/gear coupler | Find 10 |
| 11 | RB1-8948-000CN | Separation roller drive gear | Find 11 |

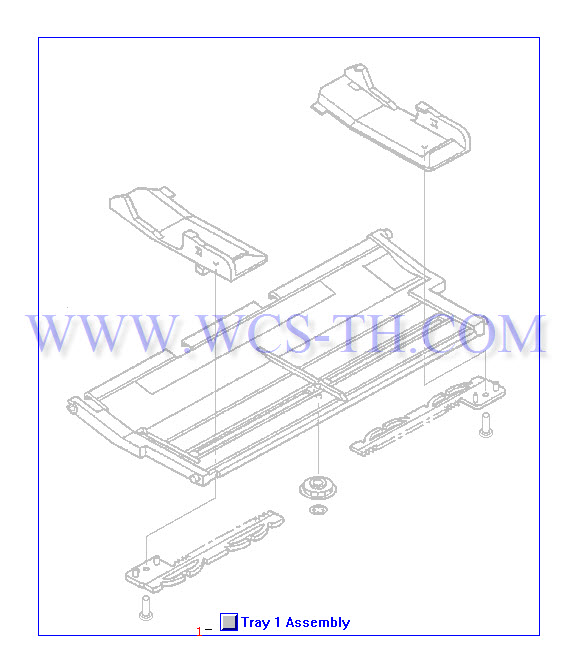

Tray 1 Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2656-080CN | Paper input tray (Tray 1) - Multi-Purpose tray assembly | Find 1 |
Tray 1 Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2655-360CN | Tray 1 paper pickup assembly - Complete assembly including pickup roller, separation pad, sensor arm, retaining arm and drive solenoid - Separation pad is not available separately | Find 1 |
| 2 | RB2-2386-000CN | Envelope feeder drive cover | Find 2 |
| 3 | RG5-3718-000CN | Tray 1 pickup roller assembly - D-shaped roller with blue shaft lock latch | Find 3 |
| 4 | RF5-3116-000CN | Tray 1 paper sensor actuator arm and cover | Find 4 |
| 5 | RB2-2387-000CN | Tray 1 retaining arm | Find 5 |
| 6 | RF5-3116-000CN | Tray 1 paper sensor actuator arm and cover | Find 6 |
| 7 | RH7-5172-000CN | Tray 1 paper pickup drive solenoid | Find 7 |
| 8 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated | Find 8 |

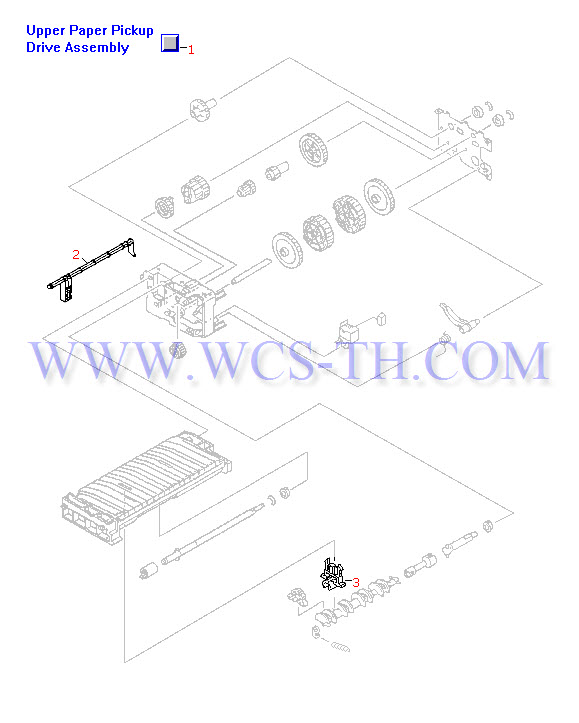

Upper Pickup Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2683-000CN | Upper paper pickup drive assembly - 250 sheet | Find 1 |
| 1 | RG5-2684-000CN | Lower paper pickup drive assembly - 250 sheet | Find 1 |
| 2 | RB1-8910-000CN | Paper tray sensing arm | Find 2 |
| 3 | RB1-8912-000CN | Retainer clip - For left side of D-shaped pickup roller - Retainer clip - Supports left side of D-shaped pickup roller | Find 3 |
