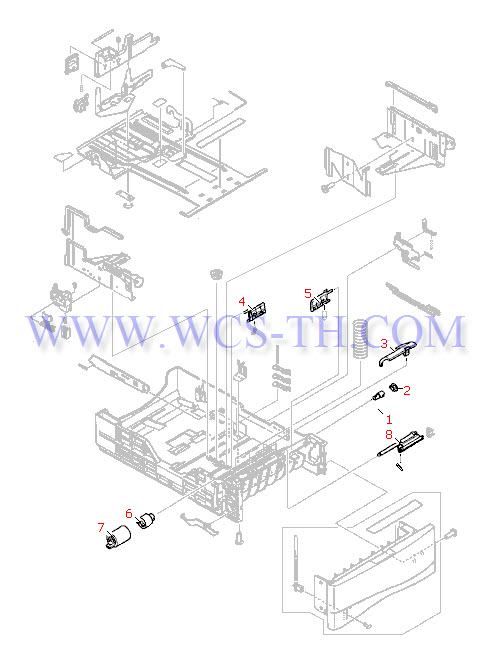

500 Sheet Tray
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-8945-000CN | Separation roller/gear coupler | Find 1 |
| 2 | RB1-8946-000CN | Separation roller bushing | Find 2 |
| 3 | RB1-8947-000CN | Separation roller access panel | Find 3 |
| 4 | RB1-8961-000CN | Arm lifter - White plastic arm that holds top left side metal corner piece up when loading paper in tray | Find 4 |
| 5 | RB1-8962-000CN | Arm lifter - White plastic arm that holds top right side metal corner piece up when loading paper in tray | Find 5 |
| 6 | RB1-8974-000CN | Separation roller clutch - Torque limiter | Find 6 |
| 7 | RF5-3114-000CN | Feed roller - For tray 2 pickup assembly | Find 7 |
| 8 | RF5-2489-000CN | Separation roller mounting assembly | Find 8 |
ADF unit (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |

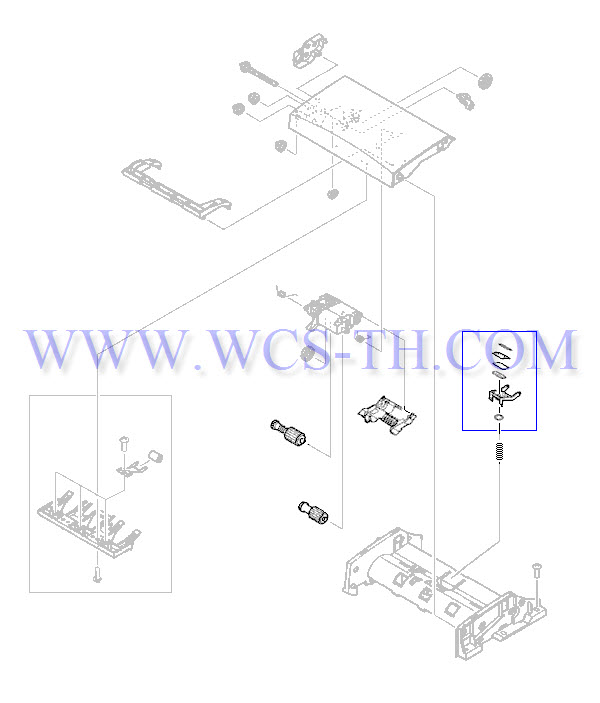

ADF unit (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |

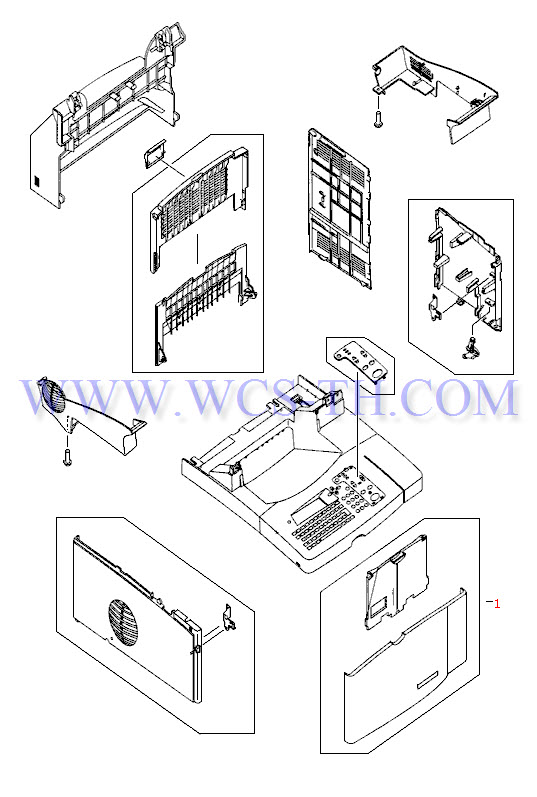

Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5298-000CN | Front cover of automatic document feeder | Find 1 |

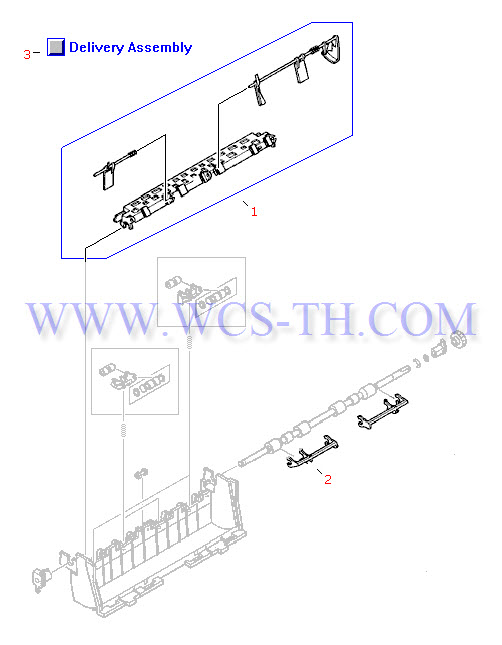

Delivery Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5093-000CN | Delivery sensor arm assembly | Find 1 |
| 2 | C8049-67904 | Left side output kicker - Output kicker - Left side of delivery assembly | Find 2 |
| 3 | RG5-5094-060CN | Paper delivery assembly | Find 3 |

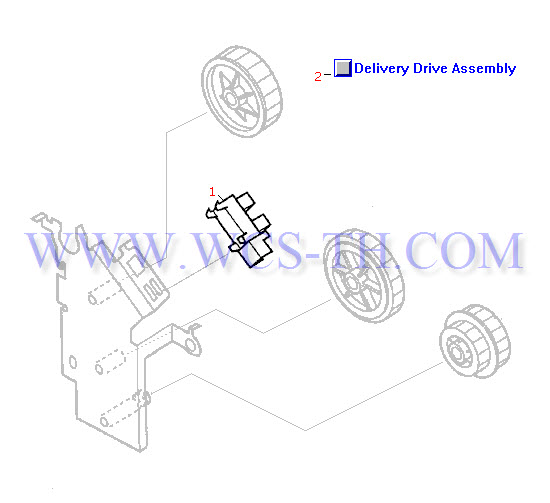

Delivery Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated - | Find 1 |
| 2 | RG5-5095-000CN | Delivery drive assembly | Find 2 |
Duplexer
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-9045-000CN | Duplexer rear cover panel | Find 1 |
| 2 | RB2-4766-000CN | Duplexer access top cover | Find 2 |
| 3 | RB2-4768-000CN | Right side duplexer cover | Find 3 |
| 4 | RF5-3092-000CN | Left side duplexer cover - With connector | Find 4 |
| 5 | RH7-1361-000CN | Tubeaxial fan - 24VDC - Mounts on the rear of the duplexer assembly | Find 5 |
Envelope Feeder
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-4734-020CN | Envelope feeder input tray - Envelope Input Feeder Tray | Find 1 |
| 2 | RG5-2734-000CN | Envelope weight assembly - Pivot mount and tension weight - Provides tension for proper feeding | Find 2 |

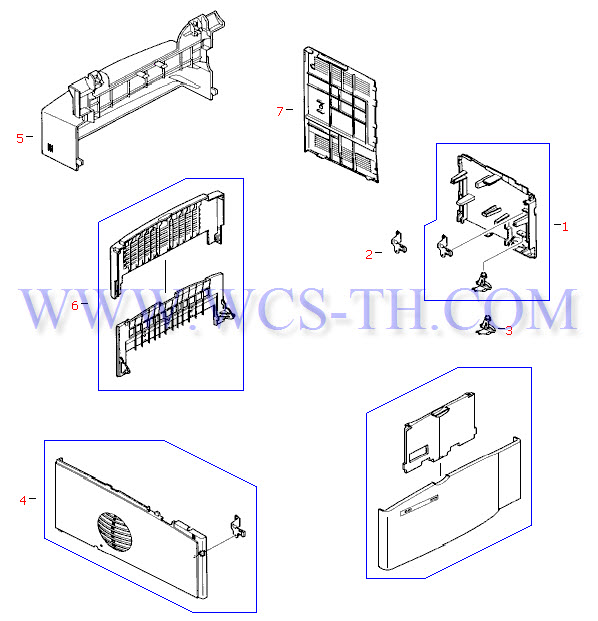

External Covers and Panels
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2664-070CN | Right front cover assembly - Mounts bedie the formatter panel | Find 1 |
| 2 | RB1-8860-000CN | Right side panel retainer clip | Find 2 |
| 3 | RB1-8849-030CN | Power switch button | Find 3 |
| 4 | RG5-5098-000CN | Left side cover assembly - Includes panel retainer clip | Find 4 |
| 5 | RB2-4827-000CN | Duplexer cover - Covers the duplexer on the back of the printer | Find 5 |
| 6 | RG5-5097-000CN | Drop down rear output tray - Rear Output Tray - Drop down rear output tray - Includes pull-out extension | Find 6 |
| 7 | RB1-8858-000CN | Formatter board cover panel | Find 7 |
Glass and formatter
| Pic No. | Parts ID | Parts Name | Link |
Internal Components (1 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-5013-000CN | Machine screw - M4 x 8.3mm - On right front | Find 1 |
| 2 | RB1-8704-030CN | Bottom cable guide | Find 2 |
| 3 | RB1-8851-000CN | Power switch actuator rod | Find 3 |
| 4 | WC4-5139-000CN | Top cover interlock access switch | Find 4 |
| 5 | RG5-5341-000CN | Cable assembly - Sensor cable - Tray 1 sensor cable | Find 5 |
| 6 | RG5-5343-000CN | Paper feed and tray 1 pickup solenoid cable | Find 6 |
| 7 | RG5-5344-000CN | Envelope feeder cable with connector | Find 7 |
| 8 | RG5-5345-000CN | Top cover switch cable | Find 8 |
| 9 | RG5-5346-000CN | Main motor cable | Find 9 |
| 10 | RG5-5351-000CN | Formatter assembly cable | Find 10 |
| 11 | C8049-69013 | Fusing assembly - 110 volts | Find 11 |
| 11 | C8049-69014 | Fusing assembly - 220 volts | Find 11 |
| 12 | C8049-69010 | Engine controller board - Provides all power supply and motor control functions - 220 volt - Does not include insulator sheet or bottom metal plate | Find 12 |
| 12 | C8049-69015 | Engine controller board - Provides all power supply and motor control functions, including power switch - 110 volts - Does not include insulator sheet or bottom metal plate | Find 12 |
| 13 | RG5-5094-060CN | Paper delivery assembly | Find 13 |
| 14 | RH7-1504-000CN | Main motor assembly | Find 14 |
| 15 | RB2-4986-000CN | Fan mounting clip | Find 15 |
| 16 | RG5-5111-000CN | AC power receptacle - Connector and housing assembly - 110VAC | Find 16 |
| 16 | RG5-5280-000CN | AC power receptacle - Connector and housing assembly - 220VAC | Find 16 |
| 17 | RB2-4122-000CN | Tray 1 hinge spring | Find 17 |
| 18 | RG5-2656-080CN | Paper input tray (Tray 1) - Multi-Purpose tray assembly | Find 18 |
| 19 | RG5-5087-000CN | Print drive gear assembly | Find 19 |
| 20 | RG5-5084-040CN | Tray 1 paper pickup assembly | Find 20 |

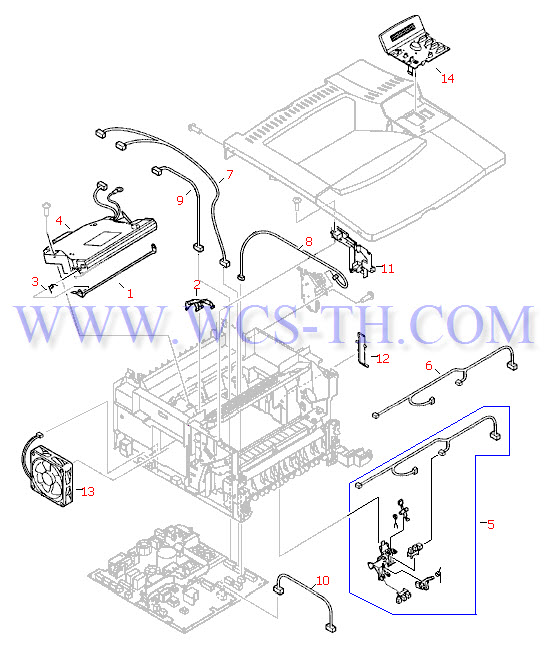

Internal Components (2 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-8699-000CN | Laser/scanner shutter | Find 1 |
| 2 | RB1-8700-000CN | Laser shutter arm | Find 2 |
| 3 | RB1-8702-000CN | Laser shutter spring - Provides tension for laser shutter | Find 3 |
| 4 | C8049-69005 | Laser/scanner assembly | Find 4 |
| 5 | RG5-5275-000CN | Registration and feed sensors assembly - Includes PS 102/103 | Find 5 |
| 6 | RG5-5357-000CN | Feed/registration sensor assembly cable | Find 6 |
| 7 | RG5-5348-000CN | Cable assembly - A 7-pin (F) connector to both a 27.9cm (11in) cable with a 4-pin (F) connector and a 36.8cm (14.5in) cable with a 3-pin (F) connector - Laser/scanner assembly scanner cable | Find 7 |
| 8 | RG5-5349-000CN | Cable assembly - 13-pin (F) connector to 12-pin (F) connector - 30.8cm (12.1in) long - Output bin tray full sensor cable | Find 8 |
| 9 | RG5-5350-000CN | Laser/scanner assembly laser cable | Find 9 |
| 10 | RG5-5470-000CN | Cable assembly - Has two 10-pin (F) connectors - 33.0cm (13in) long - Memory cable | Find 10 |
| 11 | RB2-5003-000CN | Top cover left side support | Find 11 |
| 12 | RB2-4992-000CN | Formatter board cable holder - Right side | Find 12 |
| 13 | RH7-1442-000CN | Main cooling fan | Find 13 |
| 14 | RG5-5372-050CN | Control panel - Does not include overlay | Find 14 |

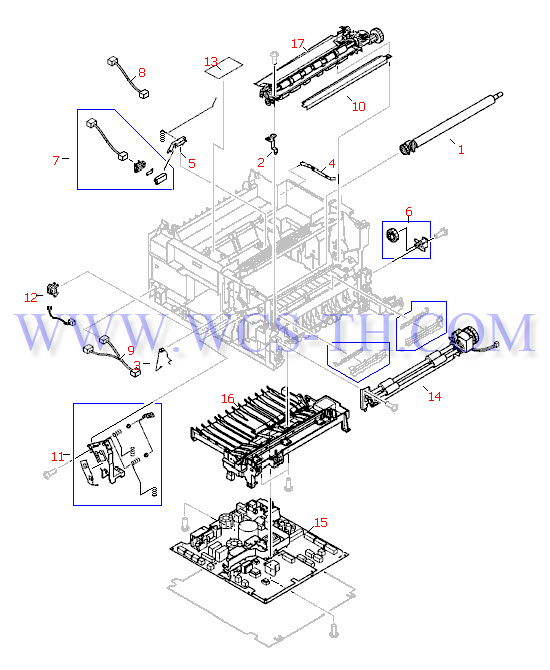

Internal Components (3 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5295-000CN | Transfer roller assembly | Find 1 |
| 2 | RB2-4969-000CN | Registration assembly grounding clip | Find 2 |
| 3 | RB2-4997-020CN | Toner cartridge grounding spring | Find 3 |
| 4 | RB2-5002-000CN | Continuity plate | Find 4 |
| 5 | RB2-5008-000CN | Cartridge memory antenna mounting bracket (support plate) | Find 5 |
| 6 | RG5-3723-000CN | MP tray coupler gear and mounting plate | Find 6 |
| 7 | RG5-5276-000CN | Toner cartridge memory transceiver assembly - Provides communication between memory controller board and toner cartridge memory | Find 7 |
| 8 | RG5-5471-000CN | Cable assembly - Antenna cable | Find 8 |
| 9 | RG5-5358-000CN | Duplexer cable | Find 9 |
| 10 | RB2-5043-000CN | Lower transfer roller guide | Find 10 |
| 11 | RG5-5273-000CN | Antenna assembly - Left side of cartridge contact assembly | Find 11 |
| 12 | RB2-4996-000CN | Thermistor mount for TH3 | Find 12 |
| 13 | RG5-8009-000CN | Cartridge memory controller board - Between ECU and the toner cartridge memory antenna | Find 13 |
| 13 | RK2-0359-000CN | Environment temperature detection thermistor - Detects ambient air temperature to determine length of time for fuser warm up | Find 13 |
| 14 | RG5-5086-000CN | Paper feed assembly | Find 14 |
| 15 | C8049-69010 | Engine controller board - Provides all power supply and motor control functions - 220 volt - Does not include insulator sheet or bottom metal plate | Find 15 |
| 15 | C8049-69015 | Engine controller board - Provides all power supply and motor control functions, including power switch - 110 volts - Does not include insulator sheet or bottom metal plate | Find 15 |
| 16 | RG5-5083-020CN | Paper feed guide assembly | Find 16 |
| 17 | RG5-5085-000CN | Registration assembly | Find 17 |

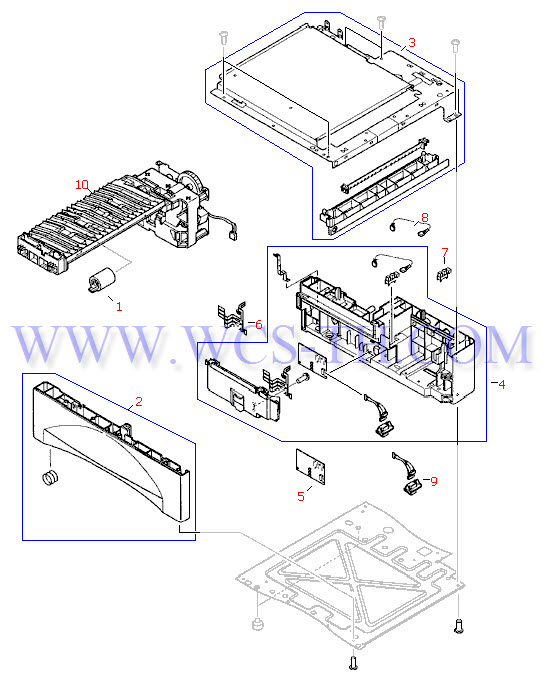

Internal Components (4 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-3114-000CN | Feed roller - For tray 2 pickup assembly | Find 1 |
| 2 | RG5-2669-050CN | Feeder cover left side - Tray 2 | Find 2 |
| 3 | RG5-5072-000CN | Tray 2 upper frame assembly | Find 3 |
| 4 | RG5-5278-000CN | Right side tray 2 frame assembly with paper size PCB | Find 4 |
| 5 | RG5-2673-000CN | Feeder controller board - Paper Size detection - Paper Size detection board for Tray 2 | Find 5 |
| 6 | RB2-4837-000CN | Tray size sensing lever assembly | Find 6 |
| 7 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated - | Find 7 |
| 8 | RG5-3711-000CN | Optical sensor cable | Find 8 |
| 9 | RG5-3712-000CN | Lower tray connector and cable - Tray 2 connector and cable - From paper size PC board | Find 9 |
| 10 | RG5-5277-000CN | Tray 2 pickup assembly | Find 10 |
Optional 500 Sheet Feeder
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-4836-000CN | Rear tray cover | Find 1 |
| 2 | RG5-2689-030CN | Upper frame assembly | Find 2 |
| 3 | RG5-5292-000CN | Left side frame assembly | Find 3 |
| 4 | RG5-5291-000CN | Right side frame assembly | Find 4 |
| 5 | RG5-3711-000CN | Optical sensor cable | Find 5 |
| 6 | RG5-3712-000CN | Lower tray connector and cable - Tray 2 connector and cable - From paper size PC board | Find 6 |
| 7 | RG5-5539-000CN | Lower tray logic PCA - With tray size switches | Find 7 |
| 8 | RG5-3822-000CN | Paper feeder cable | Find 8 |
| 9 | RB1-9397-000CN | Grounding strap | Find 9 |
| 10 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated - | Find 10 |
| 11 | RB2-3497-000CN | Release lever button | Find 11 |
| 12 | RB1-8924-000CN | Optional lower cassette support guide - For the left side | Find 12 |
| 13 | RB1-9385-000CN | Optional lower cassette support guide - For the right side | Find 13 |
| 14 | RB2-2412-000CN | Release lever - Actuated by release button | Find 14 |
| 15 | RS5-2658-000CN | Release lever spring - Provides tension for tray release lever | Find 15 |
| 16 | RB1-8914-000CN | Lower paper guide | Find 16 |
| 17 | RG5-5293-000CN | Optional 500 sheet paper pickup drive assembly | Find 17 |

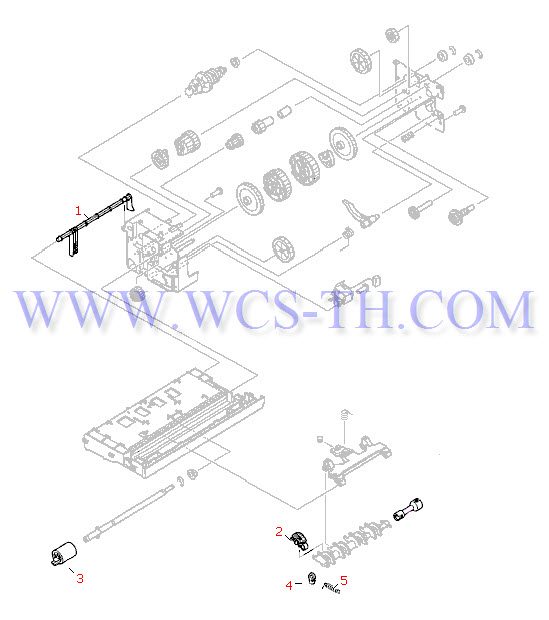

Optional 500 Sheet Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-8879-000CN | Paper tray sensing arm | Find 1 |
| 2 | RB1-8957-000CN | Paper pickup roller - 'D' roller (Sold individually) | Find 2 |
| 3 | RF5-3114-000CN | Feed roller - For tray 2 pickup assembly | Find 3 |
| 4 | RB1-2190-000CN | Pickup roller spring hook | Find 4 |
| 5 | RS5-2632-000CN | Tension spring - Provides tension for pickup roller | Find 5 |

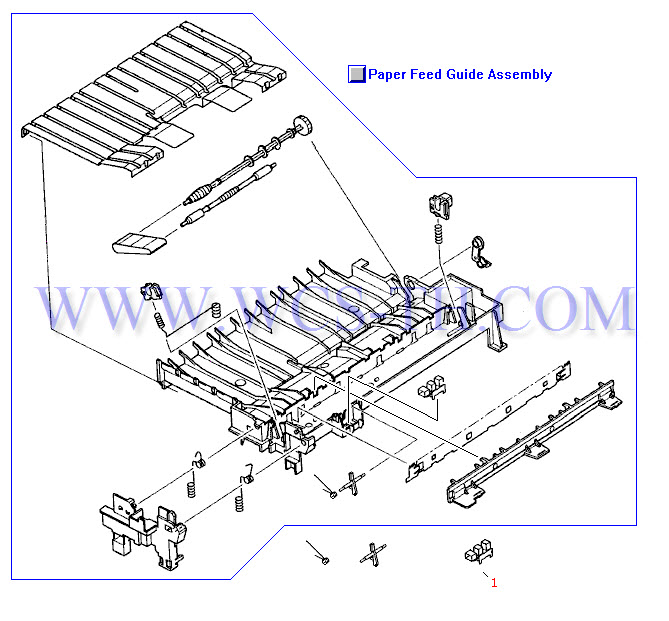

Paper Feed Guide Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated - | Find 1 |

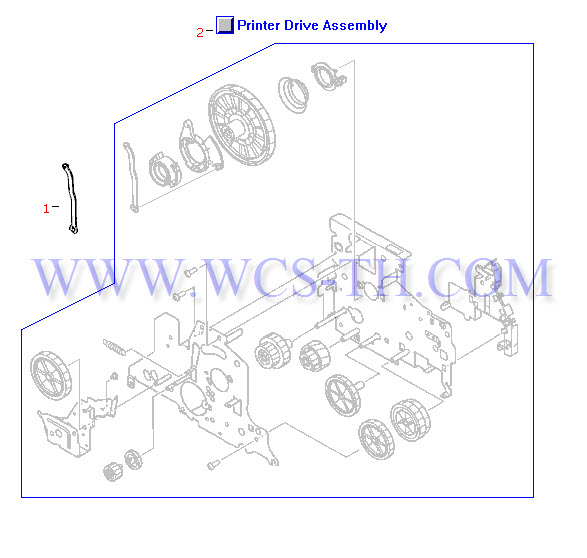

Printer Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-8756-000CN | Toner cartridge drive rod | Find 1 |
| 2 | RG5-5087-000CN | Print drive gear assembly | Find 2 |

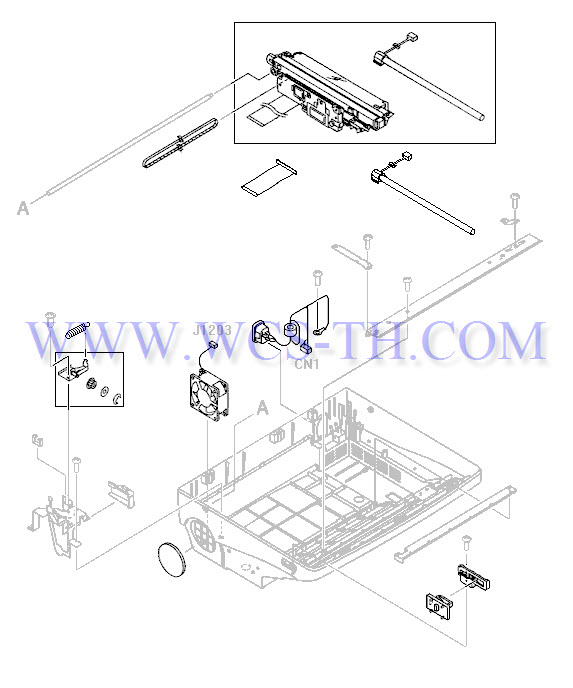

Scanner unit (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |

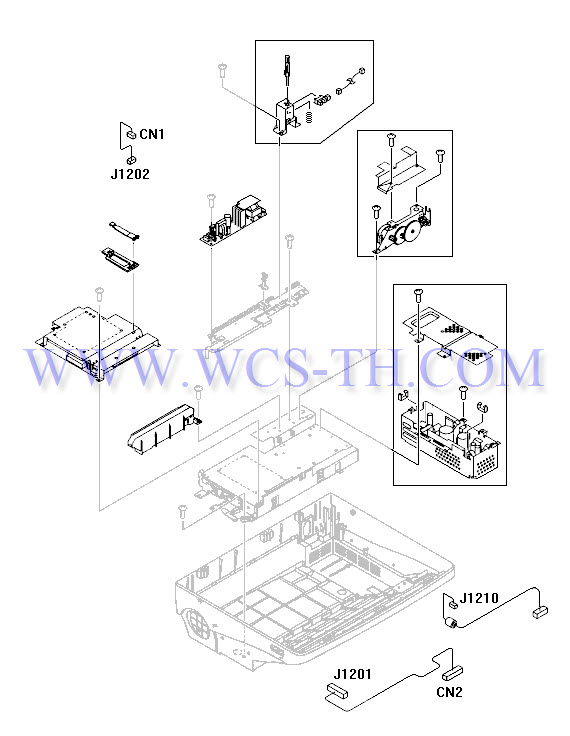

Scanner unit (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
Top Cover Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-8841-000CN | Toner cartridge access panel | Find 1 |
| 2 | RB1-8846-000CN | Rear output tray - Drop down release latch | Find 2 |
| 3 | RB1-8847-000CN | Rear tray latch release spring | Find 3 |
Top cover assembly
| Pic No. | Parts ID | Parts Name | Link |

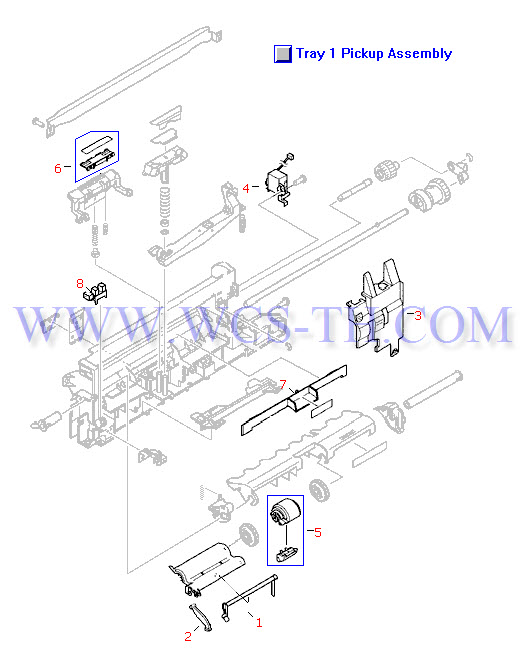

Tray 1 Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-3116-000CN | Tray 1 paper sensor actuator arm and cover | Find 1 |
| 2 | RB2-2387-000CN | Tray 1 retaining arm | Find 2 |
| 3 | RB2-5019-000CN | Gear cover on right side of tray 1 pickup assembly | Find 3 |
| 4 | RH7-5172-000CN | Tray 1 paper pickup drive solenoid | Find 4 |
| 5 | RG5-3718-000CN | Tray 1 pickup roller assembly - D-shaped roller with blue shaft lock latch | Find 5 |
| 6 | RF5-3086-000CN | Separation pad for tray 1 pickup assembly | Find 6 |
| 7 | RB2-5037-000CN | Envelope feeder cover | Find 7 |
| 8 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated - | Find 8 |
Tray 2 Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RS5-2632-000CN | Tension spring - Provides tension for pickup roller | Find 1 |
| 2 | RB1-2190-000CN | Pickup roller spring hook | Find 2 |
| 3 | C4119-67902 | Coupler kit - Contains pickup roller coupler, four paper tray load limit clips and installation instruction sheet | Find 3 |
| 4 | RB1-8879-000CN | Paper tray sensing arm | Find 4 |
| 5 | RB1-8957-000CN | Paper pickup roller - 'D' roller (Sold individually) | Find 5 |
| 6 | RG5-5277-000CN | Tray 2 pickup assembly | Find 6 |
