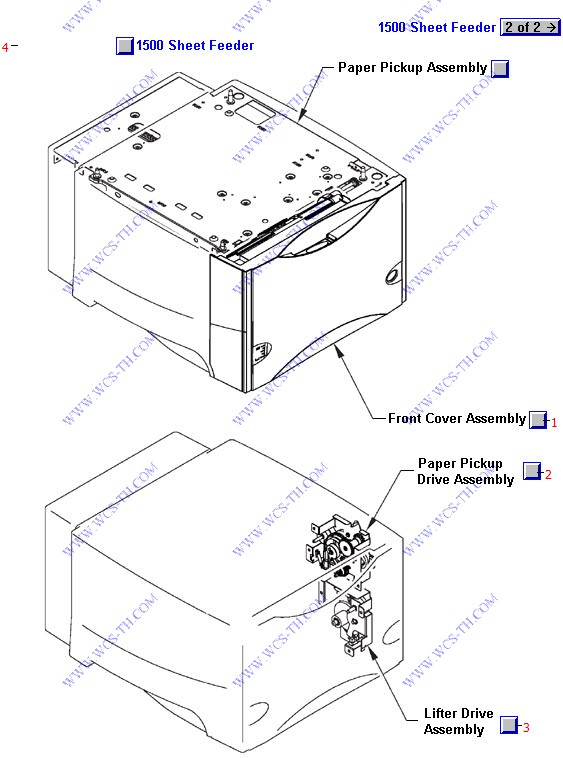

1500 Sheet Feeder (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0273-070CN | Front cover (or door) - Provides access to load paper in the 1,500 sheet paper feeder assembly | Find 1 |
| 2 | RM1-1133-020CN | Paper pickup roller drive assembly for 1500 sheet feeder | Find 2 |
| 3 | RM1-1136-000CN | Lifter drive assembly for 1500 sheet feeder | Find 3 |
| 4 | Q2444-67902 | 1500 sheet paper tray and feeder assembly for LaserJet 4200/4300 series printers | Find 4 |

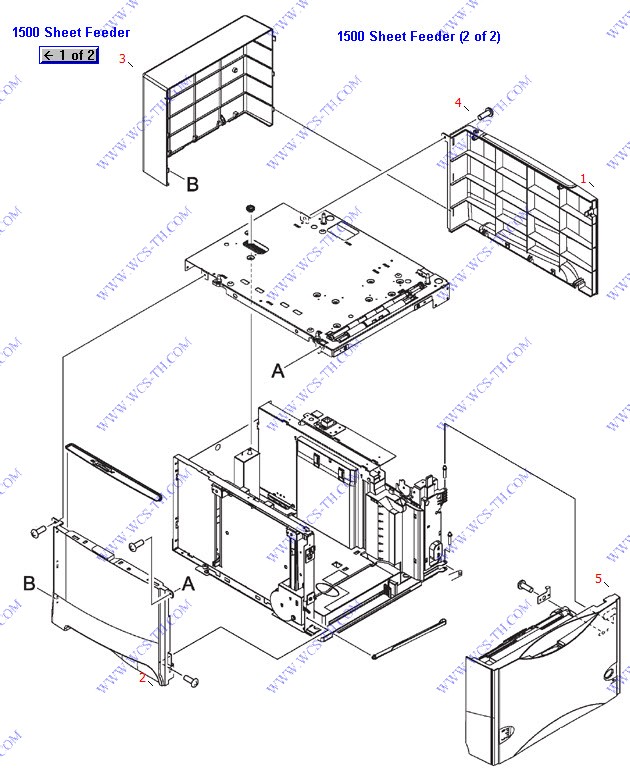

1500 Sheet Feeder (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-0661-000CN | Right side cover assembly - For the 1,500 sheet paper feeder assembly | Find 1 |
| 2 | RC1-0662-000CN | Left side cover assembly - For the 1,500 sheet paper feeder assembly | Find 2 |
| 3 | RC1-0663-000CN | Rear cover assembly - Box type cover for the rear of the 1,500 sheet paper feeder assembly | Find 3 |
| 4 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 4 |
| 5 | RM1-0273-070CN | Front cover (or door) - Provides access to load paper in the 1,500 sheet paper feeder assembly | Find 5 |

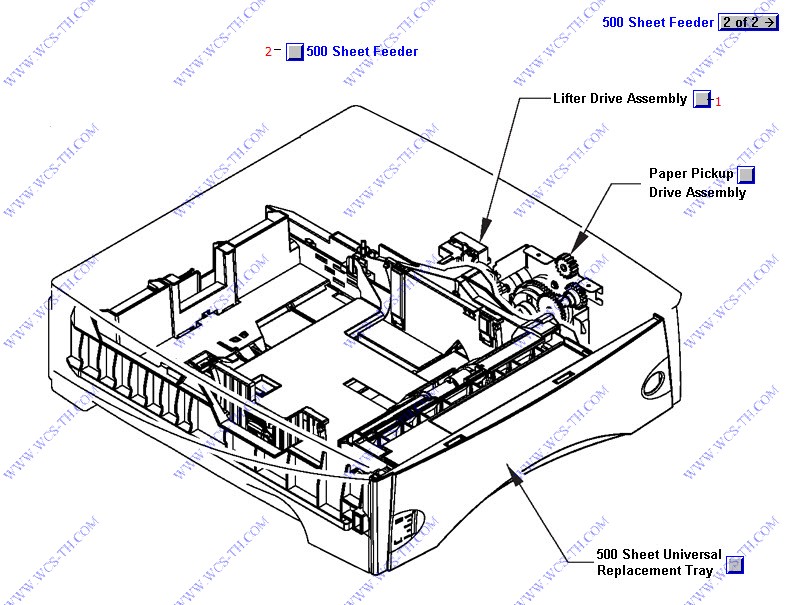

500 Sheet Feeder (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1094-050CN | Lifter drive assembly for 500 sheet feeder | Find 1 |
| 2 | Q2440-67903 | 500-sheet paper feeder and tray/cassette - This is the assembly frame and tray that the printer sits on top of | Find 2 |

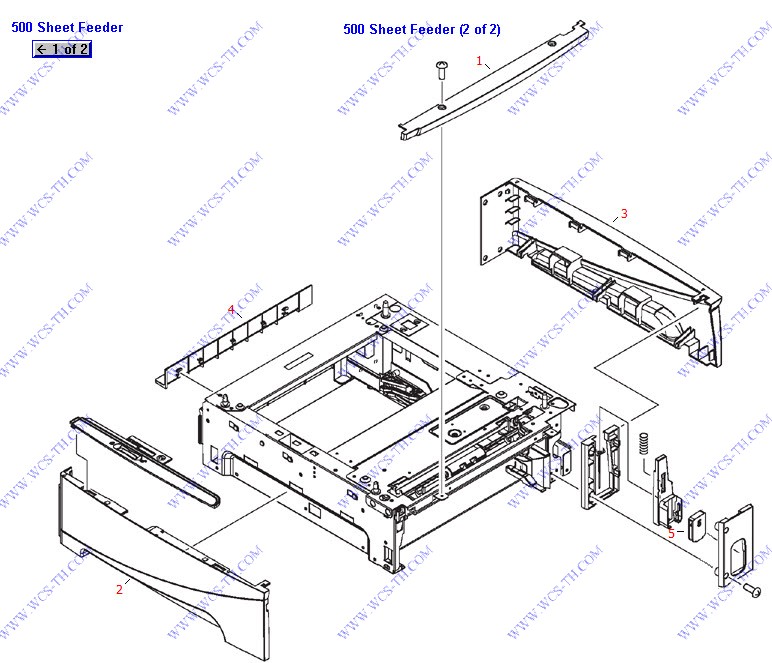

500 Sheet Feeder (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-0486-020CN | Upper front cover - Small piece of plastic on top front edge of 500 sheet feeder | Find 1 |
| 2 | RC1-0487-020CN | Left side cover for 500 sheet paper feeder assembly | Find 2 |
| 3 | RC1-0488-020CN | Right side cover for 500 sheet paper feeder assembly | Find 3 |
| 4 | RC1-0509-000CN | Rear cover - Rear plastic cover for 500 sheet paper feeder | Find 4 |
| 5 | RC1-3304-000CN | Tray number display - Changeable tray number tab for optional 500 sheet feeder | Find 5 |

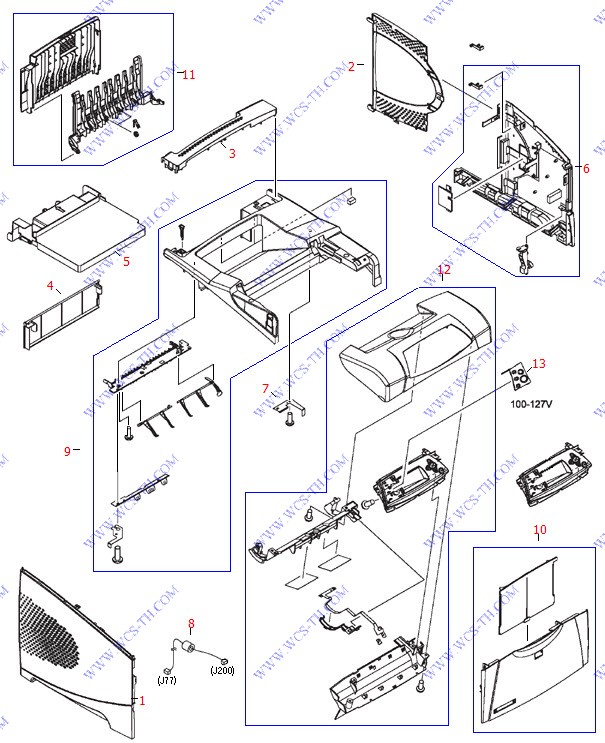

Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1077-000CN | Left side cover panel | Find 1 |
| 2 | RC1-0288-000CN | Formatter board cover | Find 2 |
| 3 | RC1-0289-000CN | Top rear cover of printer - Removes for Stapler/Stacker installation | Find 3 |
| 4 | RC1-3282-000CN | Lower rear cover - Covers rear of standard 500 sheet tray | Find 4 |
| 5 | RC1-3280-000CN | Duplexer slot cover - Removable lower rear cover for Duplexer attachment slot | Find 5 |
| 6 | RM1-1076-000CN | Right side cover assembly | Find 6 |
| 7 | RC1-0307-000CN | Grounding leaf spring - Attaches to right side bottom of top cover assembly | Find 7 |
| 8 | RM1-1190-000CN | Control panel cable | Find 8 |
| 9 | RM1-1081-000CN | Top cover assembly - Top paper output tray and top of printer | Find 9 |
| 10 | RM1-0050-050CN | Front cover - Drop down Tray 1 | Find 10 |
| 11 | RM1-0027-020CN | Rear output tray assembly - Includes upper rear paper output tray and cover | Find 11 |
| 12 | RM1-1080-000CN | Cartridge access door cover for LaserJet 4250/4350 family | Find 12 |
| 13 | RC1-3356-000CN | Control panel overlay - English | Find 13 |

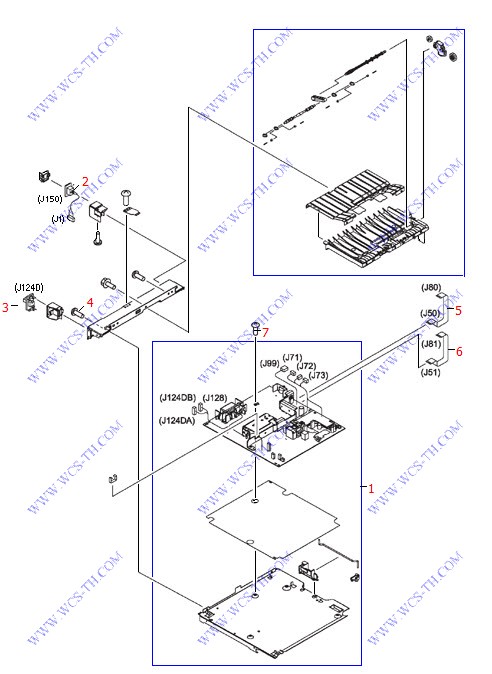

Electrical Components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1070-050CN | Power supply assembly - For LaserJet 4240/4250/4350 - For 110V to 127VAC operation | Find 1 |
| 2 | RM1-1218-000CN | A/C input connector/cable - 120VAC input connector to J1 power supply connector | Find 2 |
| 2 | RM1-1219-000CN | A/C input connector/cable - 220VAC input connector to J1 power supply connector | Find 2 |
| 3 | VS1-7514-006CN | Duplexer connector - Connector on power supply assembly for duplexer | Find 3 |
| 4 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 4 |
| 5 | RK2-0290-000CN | Ribbon cable - Between DC Controller board (J80) and power supply board (J50) | Find 5 |
| 6 | RK2-0288-000CN | Ribbon cable - Between DC Controller board (J81) and power supply board (J51) | Find 6 |
| 7 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 7 |

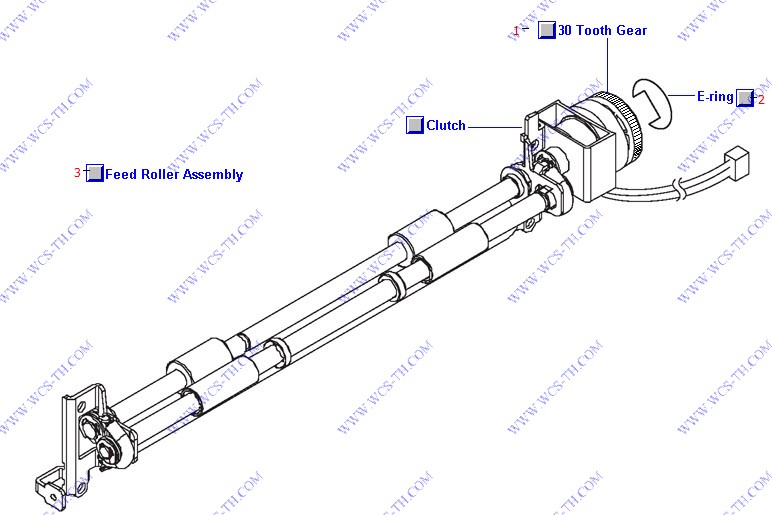

Feed Roller Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RU5-0050-000CN | 30-tooth gear - Black plastic gear that attaches to paper feed assembly clutch | Find 1 |
| 2 | XD9-0234-000CN | E-Type retainer ring | Find 2 |
| 3 | RM1-0012-020CN | Paper feed roller assembly | Find 3 |

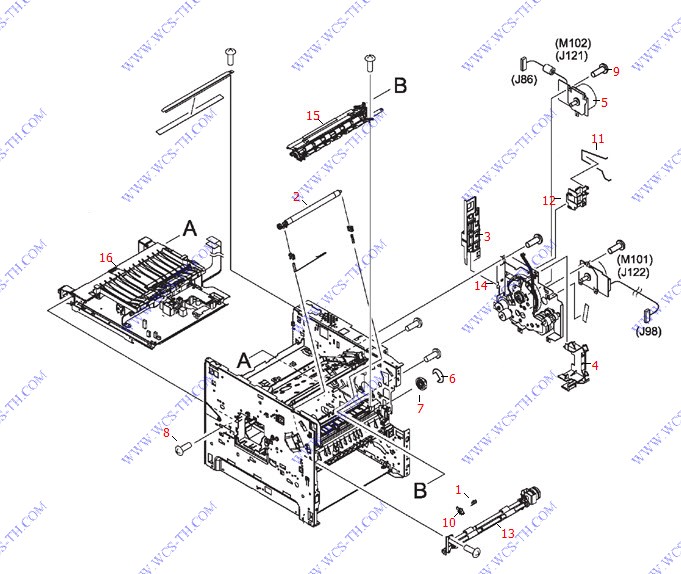

Internal Components (1 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-0061-000CN | Torsion spring | Find 1 |
| 2 | RM1-1110-000CN | Transfer roller assembly - Long black spongy roller that transfers charge to paper | Find 2 |
| 3 | RC1-0269-020CN | DC Controller flat cable guide | Find 3 |
| 4 | RC1-0270-020CN | DC Controller board cable guide | Find 4 |
| 5 | RK2-0273-000CN | Main motor - M101 | Find 5 |
| 6 | XD9-0232-000CN | E-ring keeper - Attaches to drive end of registration roller to secure cluster gear | Find 6 |
| 7 | RU5-0015-000CN | 14T/30T cluster gear - Attaches to drive end of registration roller | Find 7 |
| 8 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 8 |
| 9 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 9 |
| 10 | RC1-0060-050CN | Paper feed sensor flag for Tray 1 | Find 10 |
| 11 | RC1-3339-000CN | Fan rod - Metal rod that mounts against Fan 2 on right side of printer - Used for noise reduction of Fan 2 | Find 11 |
| 12 | RC1-3340-000CN | DC Controller board cable guide | Find 12 |
| 13 | RM1-0012-020CN | Paper feed roller assembly | Find 13 |
| 14 | RM1-1066-000CN | Main drive assembly - Main gear assembly on right side of printer | Find 14 |
| 15 | RM1-1098-030CN | Registration roller assembly | Find 15 |
| 16 | RM1-1070-050CN | Power supply assembly - For LaserJet 4240/4250/4350 - For 110V to 127VAC operation | Find 16 |

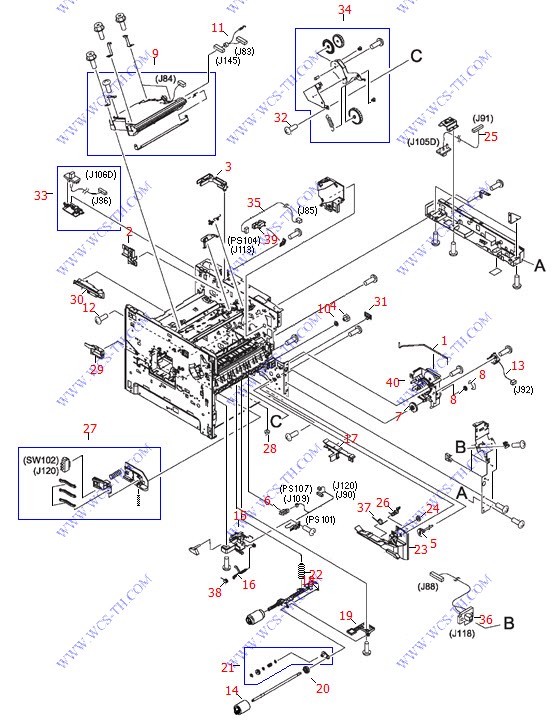

Internal Components (2 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-0268-000CN | Metal rod between external power button and switch on power supply board | Find 1 |
| 2 | RC1-0340-020CN | Guide for scanner cable 1 | Find 2 |
| 3 | RC1-0273-000CN | Paper feed belt guide for left side | Find 3 |
| 4 | RU5-0045-020CN | 18-tooth gear - Located on right side of printer in the Tray 2 paper pickup assembly | Find 4 |
| 5 | RL1-0264-000CN | Gear - Gear with attached shaft - Driven by pickup drive assembly on right front of printer | Find 5 |
| 6 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated | Find 6 |
| 7 | RU5-0040-000CN | Gear - 23 tooth gear in lower front section of pickup drive assembly | Find 7 |
| 8 | RC1-0206-000CN | Bushing - On right side of paper pickup drive assembly | Find 8 |
| 9 | RM1-1067-030CN | Laser/scanner assembly for 4250/4350 series LaserJet printers | Find 9 |
| 10 | RC1-0264-000CN | Feed roller shaft bushing - Bushing on right side of printer that supports the feed roller shaft. | Find 10 |
| 11 | RM1-1198-000CN | Laser cable - Connects between DC Controller board and laser scanner unit - J145 to J83 | Find 11 |
| 12 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 12 |
| 13 | RK2-0269-000CN | Paper pickup solenoid | Find 13 |
| 14 | RM1-0037-020CN | Paper feed/separation roller assembly - Gray rubber roller on a blue plastic cylinder | Find 14 |
| 15 | RC1-0208-030CN | Paper sensor flag holder | Find 15 |
| 16 | RC1-0209-020CN | Paper sensor flag for Tray 2 paper pickup assembly | Find 16 |
| 17 | RC1-0243-000CN | Right front power supply guide - Attaches to right side of printer chassis | Find 17 |
| 18 | RC1-3352-000CN | Paper pickup arm - Pickup and feed roller holder for Tray 2 paper pickup assembly | Find 18 |
| 19 | RC1-0212-000CN | Paper pickup arm holder - Holder for pickup roller shaft | Find 19 |
| 20 | RC1-0371-000CN | 23 Gear - Gear that drives paper feed roller - Attaches to feed roller shaft | Find 20 |
| 21 | RL1-0013-000CN | Swing plate - Pivot mount for pickup roller shaft | Find 21 |
| 22 | RC1-0213-000CN | Compression spring - Provides pressure for paper pickup and feed rollers in Tray 2 pickup assembly | Find 22 |
| 23 | RC1-0153-030CN | Right side Tray 2 paper cassette guide | Find 23 |
| 24 | RC1-0330-020CN | Solenoid damper - Locate on right side of Tray 2 guide - Works with kicker to dampen Tray 2 pickup solenoid on right side of tray guide | Find 24 |
| 25 | RM1-1192-000CN | Power cable for Tray 3 paper feeder - Black connector with 42mm six wire cable to white connector | Find 25 |
| 26 | RL1-0015-000CN | Kicker assembly - Mounts to right side of the printer and is connected to the right side guide - Senses when the paper cassette is inserted into the printer | Find 26 |
| 27 | RM1-0041-020CN | Tray 2 paper size tray sensing assembly - White plastic tray size sensing fingers and microswitch assembly | Find 27 |
| 28 | RB1-8107-000CN | Rubber foot - Replacement rubber foot for the bottom of the printer (four used) | Find 28 |
| 29 | RC1-0242-000CN | Inner right side edge guard - Small plastic guard that protects wires inside chassis on right side of printer. | Find 29 |
| 30 | RC1-0244-000CN | Support guide - Supports right rear side of power supply board | Find 30 |
| 31 | RC1-0247-000CN | Right side edge guard - Small plastic guard that protects wires - Mounts on right outer side of printer chassis. | Find 31 |
| 32 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 32 |
| 33 | RM1-0042-000CN | Accessory cable/connector - Connector for stacker and stacker/stapler accessory at top right rear of printer | Find 33 |
| 34 | 5851-2766 | Swing plate assembly - For Tray 2 paper lift assembly - Located between the main gear assembly and the fuser, just above the power supply - Contains swing plate assembly and new fuser pressure release gear | Find 34 |
| 35 | RM1-1189-000CN | Top bin full sensor cable | Find 35 |
| 36 | RM1-1193-000CN | Envelope feeder cable - From DC Controller board to envelope feeder connector - Includes envelope feeder connector | Find 36 |
| 37 | RC1-0254-000CN | Torsion spring - Provides tension for Tray 2 kicker - Mounts on Tray 2 guide assembly | Find 37 |
| 38 | RC1-1923-000CN | Torsion spring - Provides tension for paper sensor flag | Find 38 |
| 39 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated | Find 39 |
| 40 | RM1-0034-070CN | Paper pickup assembly - Paper pickup drive assembly for Tray 1/Multipurpose input tray | Find 40 |

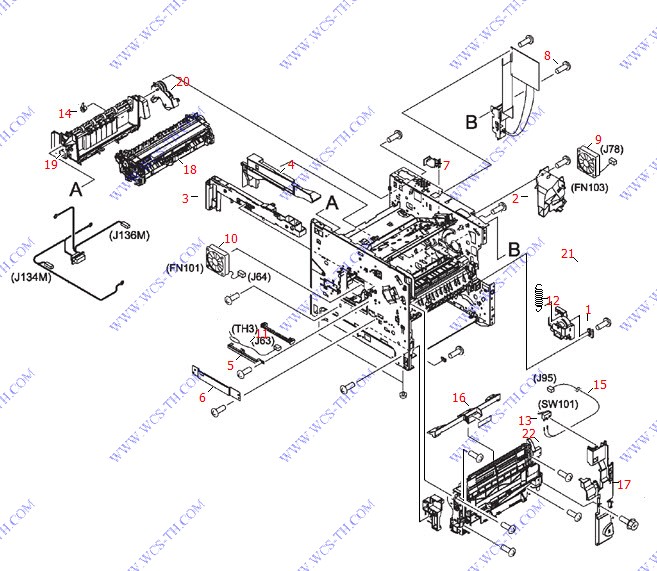

Internal Components (3 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-0200-020CN | Lifter drive assembly support - Tray 2 paper pickup lifter drive support assembly | Find 1 |
| 2 | RC1-3338-000CN | Fan duct - Air duct and fan mount for Fan 2 - Fan duct on right side of printer | Find 2 |
| 3 | RC1-0273-000CN | Paper feed belt guide for left side | Find 3 |
| 4 | RC1-0274-020CN | Paper feed belt guide for right side | Find 4 |
| 5 | RC1-0343-020CN | Thermistor holder - Metal outside half of thermistor holder | Find 5 |
| 6 | RC1-0344-020CN | Fan cover - Metal support strap that main cooling fan fastens to - For fan FN101, main cooling fan on right left side of printer | Find 6 |
| 7 | RC1-0386-000CN | Connecting cable guide - Routes and protects all cables running from top portion of printer to the DC controller board | Find 7 |
| 8 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 8 |
| 9 | RK2-0280-000CN | Cooling fan on right side of printer - Print cartridge fan - FN103 | Find 9 |
| 10 | RK2-0278-000CN | Cooling fan on left side of printer - FN101 | Find 10 |
| 11 | RK2-0359-000CN | Environment temperature detection thermistor - Detects ambient air temperature to determine length of time for fuser warm up | Find 11 |
| 12 | RC1-0198-000CN | Tension spring - Provides tension for lifter drive assembly | Find 12 |
| 13 | WC4-5139-000CN | Top cover interlock access switch | Find 13 |
| 14 | RC1-0136-000CN | Roller bushing - Bushing that supports middle of paper delivery roller | Find 14 |
| 15 | RG1-4213-000CN | Top Cover cable - From top cover microswitch (SW101) to DC Controller board | Find 15 |
| 16 | RC1-0320-000CN | Envelope cover - Plastic piece above Tray 1 pickup roller | Find 16 |
| 17 | RC1-0019-000CN | Inner right front cover | Find 17 |
| 18 | RM1-1083-090CN | Fusing assembly - For 220 VAC - Bonds toner to paper with heat | Find 18 |
| 19 | RM1-0026-040CN | Paper delivery assembly - Paper output roller assembly | Find 19 |
| 20 | RM1-0002-030CN | Duplexing pendulum assembly - Gear assembly that transfers power from main motor to run duplexing capability | Find 20 |
| 21 | RM1-1074-040CN | Tray 2 lifter drive assembly - Provides lift support for paper tray | Find 21 |
| 22 | RM1-1097-040CN | Tray 1 paper input assembly | Find 22 |

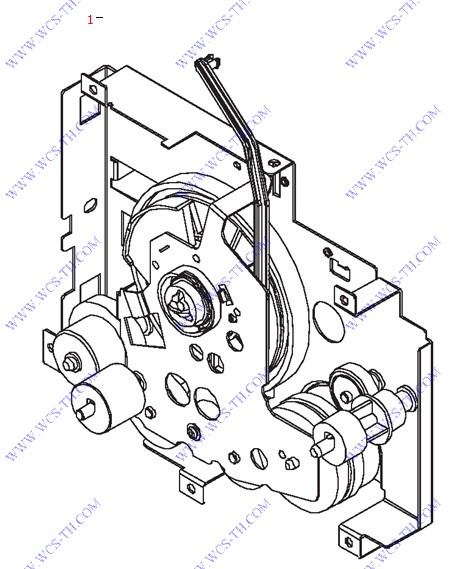

Main Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1066-000CN | Main drive assembly - Main gear assembly on right side of printer | Find 1 |

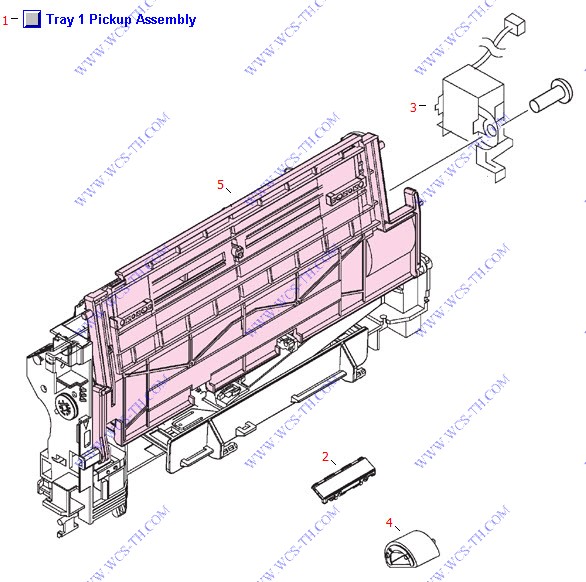

Tray 1 Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1097-040CN | Tray 1 paper input assembly | Find 1 |
| 2 | RL1-0007-000CN | Tray 1 paper separation pad | Find 2 |
| 3 | RK2-0276-000CN | Tray 1 solenoid - Engages Tray 1 pickup roller | Find 3 |
| 4 | RL1-0019-000CN | Tray 1 pickup roller - D-shaped roller under envelope cover | Find 4 |
| 5 | RM1-0005-020CN | Drop down Tray 1 - Includes adjustable paper width guide assembly | Find 5 |
