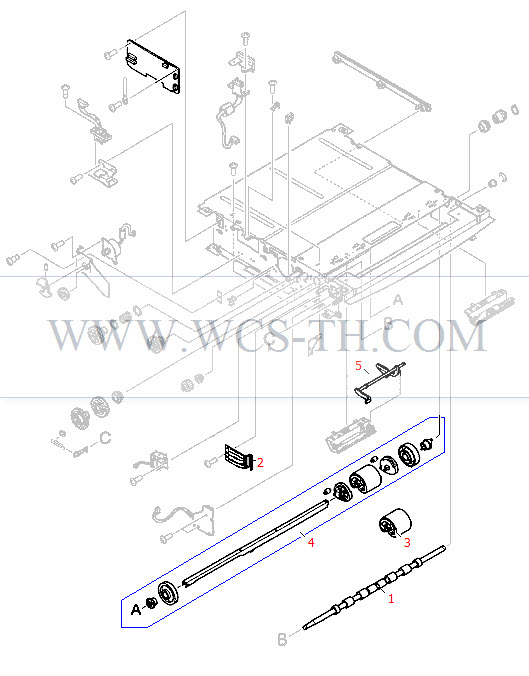

250 Sheet Feeder
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-7499-000CN | Feed roller assembly - Full width shaft with four rubber rollers on it - Mounts in front of the paper pickup roller on the 250-sheet paper feeder assembly base unit | Find 1 |
| 2 | RB1-7503-000CN | Sensor spring - Spring plate with four fingers (which press against the four micro-switches on the paper size sensor board) - Mounts on the front left side of the 250-sheet paper feeder assembly base unit | Find 2 |
| 3 | RB2-1821-030CN | Paper pickup roller assembly (D-shaped) - Rubber roller on a plastic frame - Locks on to the paper pickup shaft in the 250-sheet paper feeder assebmly base unit | Find 3 |
| 4 | RG5-3644-030CN | Pickup roller assembly - Includes the roller shaft with the paper pickup (D-shaped) roller, two hard plastic side cams, and bushings - Mounts in the top front of the 250-sheet paper feeder assembly base unit | Find 4 |
| 5 | RB1-7501-020CN | Paper feed sensor flag - Black plastic shaft with two arms on it (One is moved by the feeding paper, the other activates the photo sensor) - Mounts under the top plate on the 250-sheet paper feeder assembly base unit | Find 5 |

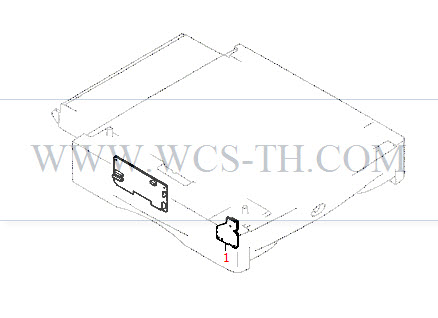

250 Sheet Feeder PCA Locations
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-2125-000CN | Feed sensor/paper size board - Small PC board with four paper size micro-switches and the paper feed photo sensor - Mounts in the front left of the 250-sheet paper feeder assembly | Find 1 |

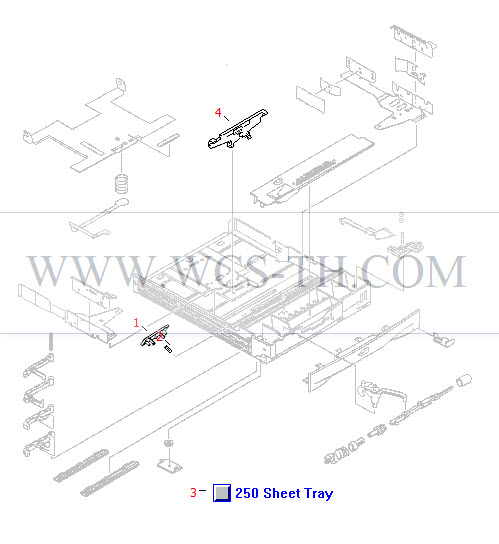

250 Sheet Universal Tray
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-4120-000CN | Separation pad assembly (Does not include the spring) - Mounts toward the front of the 250-sheet paper cassette tray assembly | Find 1 |
| 2 | RS5-2439-000CN | Compression spring - Provides tension for the separation pad in the 250-sheet paper cassette tray assembly | Find 2 |
| 3 | RG5-7188-020CN | 250-sheet paper cassette tray assembly - Includes the paper tray assembly with the separation pad, paper width adjusters, and rear paper stop | Find 3 |
| 4 | RB2-2023-000CN | Paper stop (Blue plastic) - Paper length adjustment stop plate | Find 4 |
500 Sheet Feeder (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |

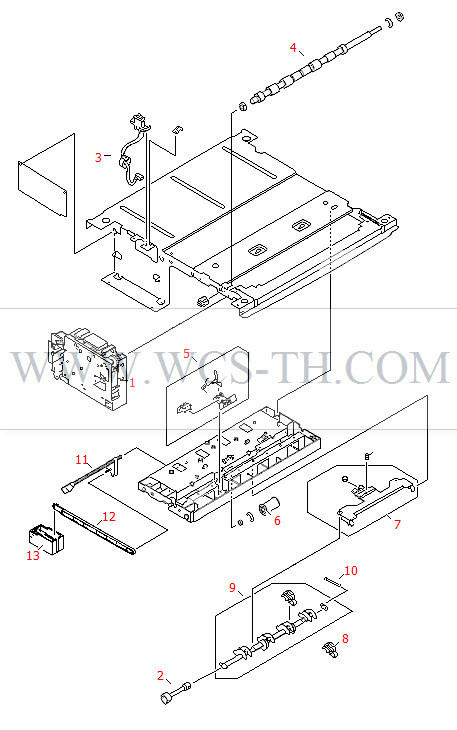

500 Sheet Feeder (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7198-000CN | Upper contact cable | Find 1 |
| 2 | RB3-0431-000CN | Sensor flag lever - Paper feed sensor arm | Find 2 |
| 3 | RB3-0444-000CN | Sensor holder - Holds sensor used with paper sensor flag | Find 3 |

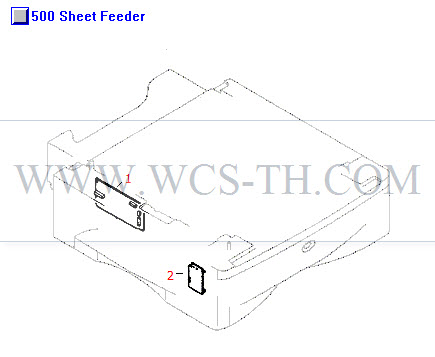

500 Sheet Feeder PCA Assemblies
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7197-000CN | Paper feed controller PCA assembly - For 500 sheet paper feeder assembly | Find 1 |
| 2 | RG5-4212-020CN | Sensor PCA - Tray size sensor PCA - Has four micro switchs acuated by the tray size sensor leaf spring | Find 2 |
External Covers and Panels
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-6134-040CN | Tray 1 sensor arm | Find 1 |
| 2 | RG5-3547-080CN | Front inner cover assembly - With tray 1 sensor arm, arm spring and tray 1 leaf spring | Find 2 |
| 3 | RG5-3552-060CN | Face up tray assembly - Drop down output tray with extension | Find 3 |
| 4 | RB2-1977-000CN | Tray support strap - Supports rear drop down output tray | Find 4 |
| 5 | RG5-3551-100CN | Rear cover assembly | Find 5 |
| 6 | RB2-1749-040CN | Right side cover assembly | Find 6 |
| 7 | RB2-1747-030CN | Face down auxiliary cover | Find 7 |
| 8 | RB2-1745-000CN | Front cover pin - Hinge pins for drop down front cover | Find 8 |
| 9 | RB2-1745-000CN | Front cover pin - Hinge pins for drop down front cover | Find 9 |
| 10 | RB2-1755-020CN | Right corner cover - Located below the front drop down tray | Find 10 |
| 11 | RB2-1756-020CN | Left corner cover - Located below the front drop door tray | Find 11 |
| 12 | RG5-7080-000CN | Front cover assembly - Drop down paper tray assembly | Find 12 |
| 13 | RG5-3548-060CN | Transfer guide assembly - Includes the width adjuster for the drop down tray | Find 13 |
| 14 | RG5-3550-040CN | Left side cover assembly | Find 14 |

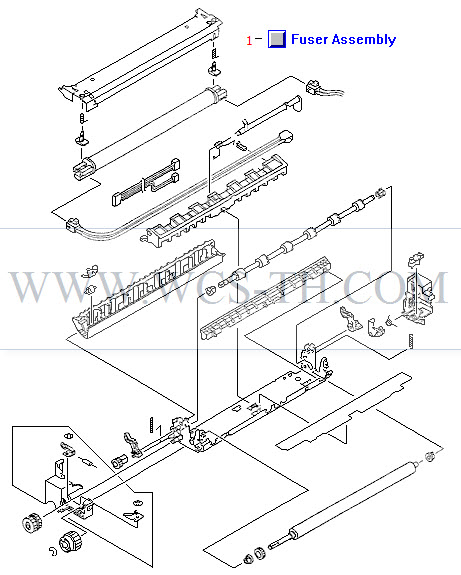

Fuser
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q1860-69032 | Fusing assembly - 110 volts | Find 1 |

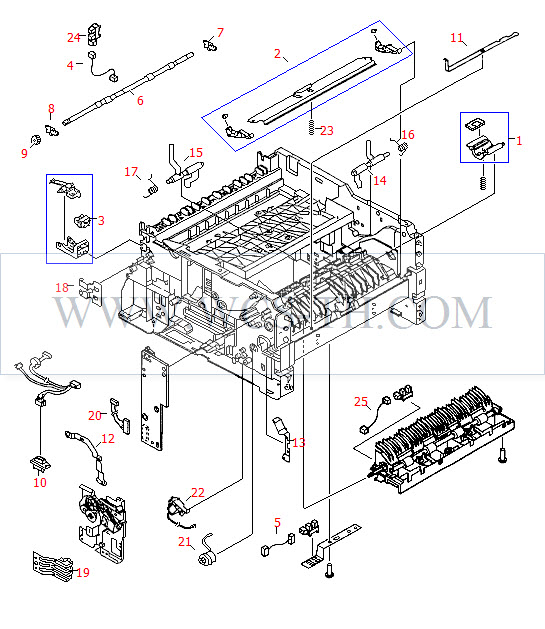

Internal Components (1 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-4119-000CN | Tray 1 separation pad - Does not include holder | Find 1 |
| 2 | RG5-6197-000CN | Paper guide - Tray 1 paper guide plate assembly | Find 2 |
| 3 | RG5-3553-000CN | Rear door sensor assembly - Arm and mount assembly | Find 3 |
| 4 | RG5-3554-000CN | Face down bin full cable | Find 4 |
| 5 | RG5-3558-000CN | Top of page sensor cable | Find 5 |
| 6 | RB2-1985-000CN | Lower output delivery roller - Shaft with four rollers | Find 6 |
| 7 | RB2-1988-020CN | Right side bushing for lower delivery roller | Find 7 |
| 8 | RB2-1989-000CN | Left side bushing for lower delivery roller | Find 8 |
| 9 | RS6-0357-000CN | Delivery roller shaft gear | Find 9 |
| 10 | WS6-5092-000CN | Power connector - Supplies power to optional paper trays | Find 10 |
| 11 | RB1-6141-000CN | Grounding plate | Find 11 |
| 12 | RB2-1734-000CN | Grounding plate | Find 12 |
| 13 | RB2-1735-000CN | Grounding plate | Find 13 |
| 14 | RB2-1781-000CN | Multi purpose tray paper sensor lever | Find 14 |
| 15 | RB2-1782-000CN | Lower tray paper sensor lever | Find 15 |
| 16 | RB2-1783-000CN | Paper sensor lever spring | Find 16 |
| 17 | RB2-1784-000CN | Paper sensor lever spring - Holds tension on sensor arm | Find 17 |
| 18 | RB2-1990-000CN | Grounding plate | Find 18 |
| 19 | RB2-1825-000CN | Leaf spring - Tray size sensor fingers | Find 19 |
| 20 | RG5-7086-000CN | Ribbon cable - From paper handling PC Board to controller PC Board | Find 20 |
| 21 | RH7-5345-000CN | Paper feed clutch - For Tray 2 | Find 21 |
| 22 | RH7-5236-000CN | Cassette paper pickup solenoid - SL306 | Find 22 |
| 23 | RS5-2441-000CN | Compression spring - Provides pressure for Tray 1 paper guide plate | Find 23 |
| 24 | WG8-5375-000CN | Paper sensor - Bin full sensor - Face down bin full sensor - PS307 | Find 24 |
| 25 | RG5-3523-000CN | Cable assembly | Find 25 |

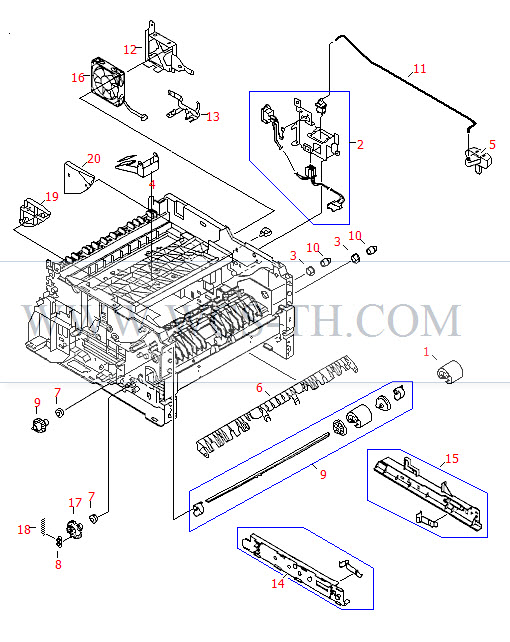

Internal Components (2 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-1820-040CN | Pickup roller - Tray 1 pickup roller | Find 1 |
| 2 | RG5-3545-000CN | Power inlet assembly - A/C input and power switch | Find 2 |
| 3 | RB1-6179-000CN | Tray 1 and 2 pickup shaft bushing - Right side | Find 3 |
| 4 | RF5-2421-000CN | Shutter lever - Connects to laser shutter | Find 4 |
| 5 | RB2-1744-000CN | On/off switch | Find 5 |
| 6 | RB2-1780-000CN | Paper guide - Guides paper from pickup roller to feed roller | Find 6 |
| 7 | RS5-1392-000CN | Tray 1 and 2 left side pickup roller shaft bushing | Find 7 |
| 8 | RB1-2190-000CN | Pickup roller spring hook | Find 8 |
| 9 | RB1-6130-000CN | Tray 1 pickup roller gear | Find 9 |
| 10 | RB1-6177-000CN | Tray 1 and 2 pickup shaft bushing - Right side | Find 10 |
| 11 | RB2-1731-000CN | Switch rod - Mechanical link between on/off switch lever and electrical on/off switch at power inlet assembly | Find 11 |
| 12 | RB3-0352-000CN | Fan grounding plate and fan housing | Find 12 |
| 13 | RB2-1736-000CN | Grounding plate | Find 13 |
| 14 | RF5-2397-000CN | Tray 2 left rail - Left side tray support | Find 14 |
| 15 | RF5-2398-030CN | Tray 2 right rail - Right side tray support | Find 15 |
| 16 | RH7-1552-000CN | Cooling Fan - Lower Right Rear | Find 16 |
| 17 | RS5-0695-000CN | Tray 2 pickup roller shaft drive gear | Find 17 |
| 18 | RS5-2434-000CN | Tray 2 shaft gear spring - Holds tension on shaft hook | Find 18 |
| 19 | RB2-1774-000CN | Toner cartridge guide - Left side | Find 19 |
| 20 | RB2-1775-000CN | Toner cartridge guide - Right side | Find 20 |

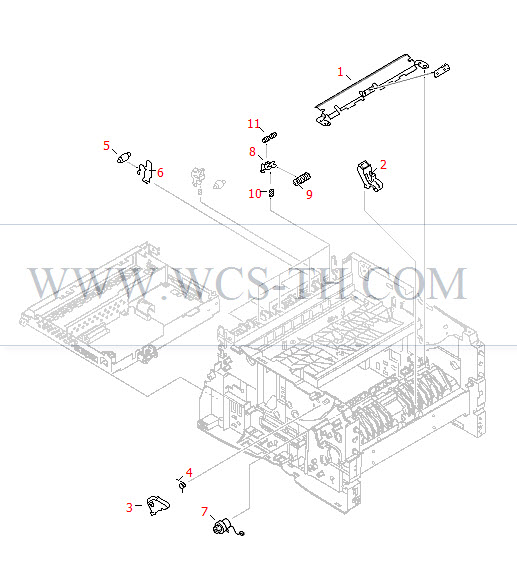

Internal Components (3 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-4118-000CN | Transfer guide assembly - Guides paper into transfer roller | Find 1 |
| 2 | RF5-4117-000CN | Pad assembly | Find 2 |
| 3 | RB2-1732-000CN | Door switch - Indicates when toner door is ajar | Find 3 |
| 4 | RB2-1739-000CN | Door switch spring - Provides tension for toner door switch | Find 4 |
| 5 | RB1-6251-000CN | Lower delivery roller - Presses against the lower delivery roller shaft assembly | Find 5 |
| 6 | RB2-2076-000CN | Delivery roller spring - Provides tension for lower delivery roller (four used) | Find 6 |
| 7 | RH7-5346-000CN | Paper feed roller clutch - For Tray 2 | Find 7 |
| 8 | RB2-1989-000CN | Left side bushing for lower delivery roller | Find 8 |
| 9 | RG9-1337-000CN | Face down guide roller | Find 9 |
| 10 | RS5-2225-020CN | Face down guide roller torsion spring | Find 10 |
| 11 | RB2-1998-000CN | Roller - Upper roller of face-down roller guide - 4 used | Find 11 |
Internal Components (4 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-3561-000CN | Fuser cable | Find 1 |
| 2 | RG5-7072-000CN | Scanner cable | Find 2 |
| 3 | RG5-7041-000CN | Laser/scanner assembly | Find 3 |
| 4 | RG5-4914-000CN | Paper feed belt assembly | Find 4 |
| 5 | RG5-7079-040CN | Main drive gear assembly - Located on left side of the printer | Find 5 |
| 6 | Q1860-69032 | Fusing assembly - 110 volts | Find 6 |

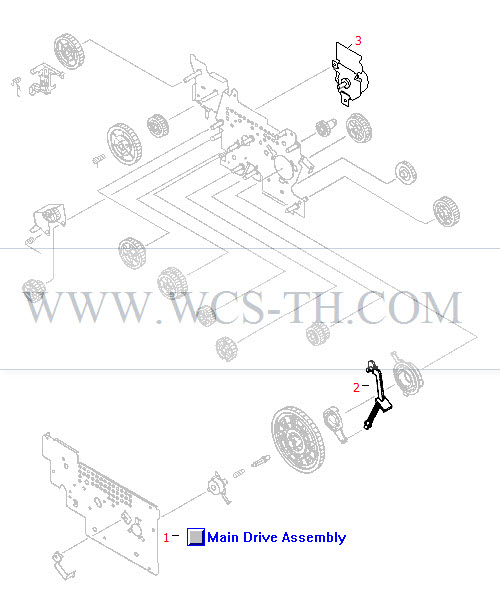

Main Gear Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7079-040CN | Main drive gear assembly - Located on left side of the printer | Find 1 |
| 2 | RB2-1856-040CN | Toner cartridge engagemnet arm | Find 2 |
| 3 | RH7-1428-000CN | Main motor - Drives gears in main drive assembly | Find 3 |

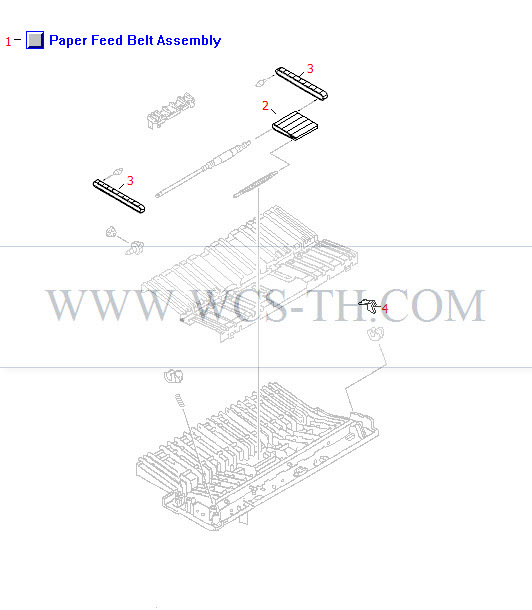

Paper Feed Belt Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-4914-000CN | Paper feed belt assembly | Find 1 |
| 2 | RB2-1887-000CN | Large feed belt - Wide belt in middle of assembly | Find 2 |
| 3 | RB2-1988-020CN | Right side bushing for lower delivery roller | Find 3 |
| 4 | RB2-1905-000CN | Transfer roller bushing cover - Right side | Find 4 |

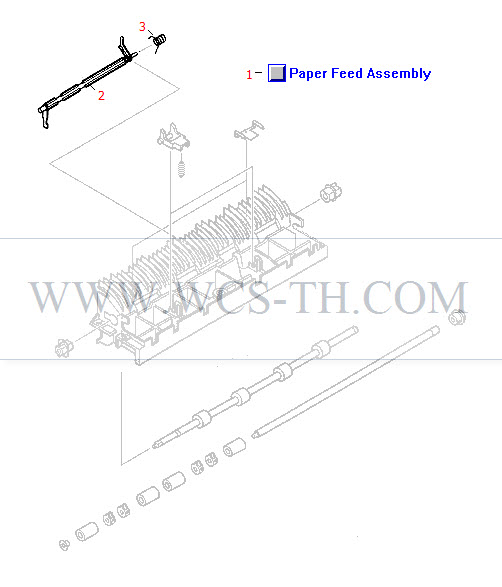

Paper Feed Roller Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7084-000CN | Paper feed roller assembly | Find 1 |
| 2 | RB2-1807-000CN | Sensor flag lever - Paper feed sensor arm | Find 2 |
| 3 | RB2-1808-000CN | Lever spring - Provides tension for paper sensor flag | Find 3 |

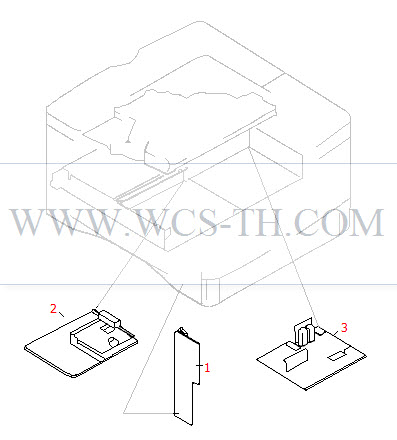

PCA Assembly Locations
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7058-000CN | Paper handling PCA | Find 1 |
| 2 | Q1860-69019 | DC Controller PC Board | Find 2 |
| 3 | RH3-2249-000CN | Power Supply Assembly (for 220V/240V Operation) | Find 3 |

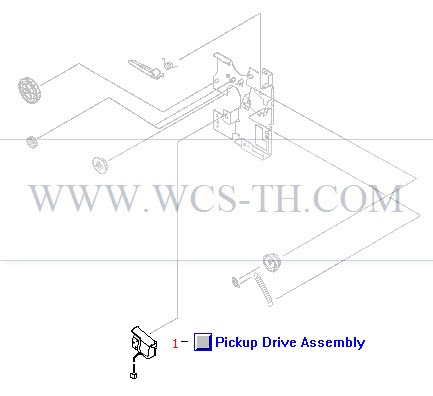

Pickup Gear Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG9-1524-000CN | Paper pickup drive assembly | Find 1 |

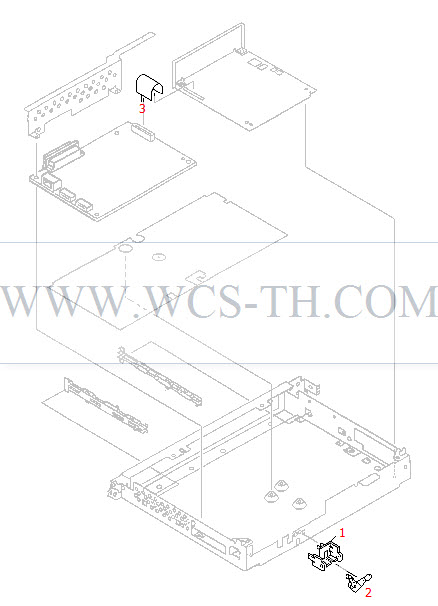

Printer Controller Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-1790-000CN | Sensor mount | Find 1 |
| 2 | RB2-1791-000CN | Sensor lever - Tray 2 paper out sensor | Find 2 |
| 3 | RH2-5337-000CN | Ribbon cable - Has two 40-pin (M) edge connectors - 1.4cm (0.6in) long | Find 3 |

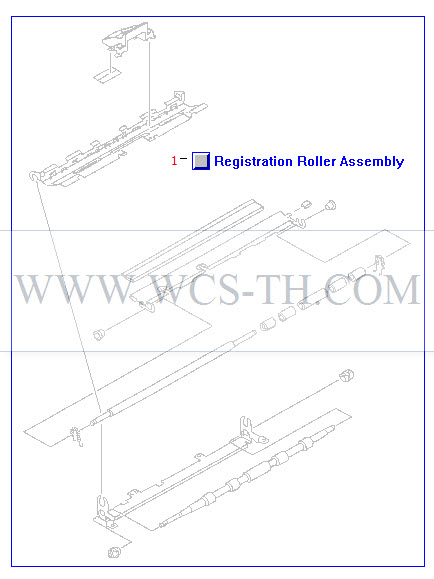

Registration Roller Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-4916-000CN | Registration roller assembly | Find 1 |

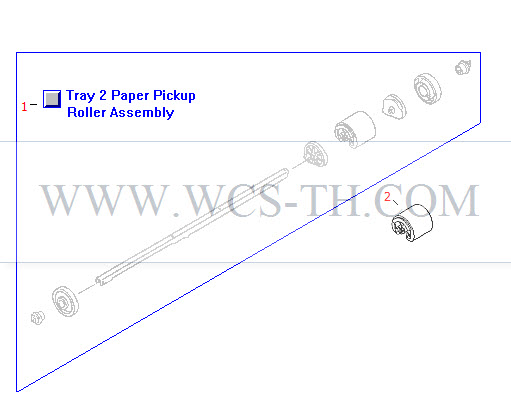

Tray 2 Paper Pickup Roller Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-3521-040CN | Tray 2 paper pickup roller assembly | Find 1 |
| 2 | RB2-1821-030CN | Paper pickup roller assembly (D-shaped) - Rubber roller on a plastic frame - Locks on to the paper pickup shaft in the 250-sheet paper feeder assebmly base unit | Find 2 |

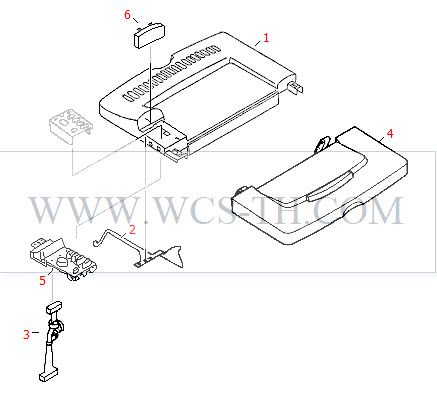

Upper Cover Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-1748-000CN | Top cover - Rear portion of the top cover | Find 1 |
| 2 | RB2-1759-000CN | Control panel leaf spring | Find 2 |
| 3 | RG5-3575-000CN | Control panel cable | Find 3 |
| 4 | RG5-3556-040CN | Toner cartridge access door assembly | Find 4 |
| 5 | RG5-5438-030CN | Control panel - Does not include overlay | Find 5 |
| 6 | RB2-1758-000CN | Display cover - Control panel display cover | Find 6 |

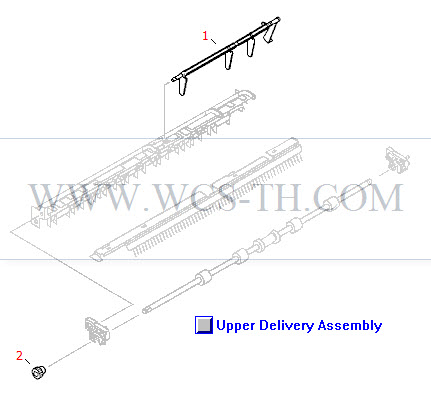

Upper Delivery Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-1980-000CN | Bin full lever - Face down output tray sensor lever | Find 1 |
| 2 | RS6-0357-000CN | Delivery roller shaft gear | Find 2 |
