Diagram HP LaserJet 5200
500 Sheet Feeder Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2909-000CN | Feed drive assembly - Six gears mounted on a plate on right side of 500 sheet paper feeder assembly | Find 1 |
500-sheet Feeder Cassette (Tray 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-7877-000CN | Paper size sensor flag for Tray 3 | Find 1 |
500-sheet Feeder Cassette External Panels and Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-7808-000CN | 500-sheet feeder cassette assembly rear cover | Find 1 |
| 2 | RM1-2899-000CN | 500 sheet feeder right side cover | Find 2 |
| 3 | RC1-7803-000CN | 500 sheet feeder left side cover | Find 3 |
| 4 | RK2-1062-000CN | DC stepper motor - Provides power for mechanical movement parts in 500 sheet feeder assembly - Located on right side of feeder assembly | Find 4 |
| 5 | RC1-7806-000CN | Right front cover - Right front corner cover of 500 sheet feeder assembly | Find 5 |
| 6 | RC1-7807-000CN | Lower frame cover - Lower front cover for 500 sheet feeder assembly | Find 6 |

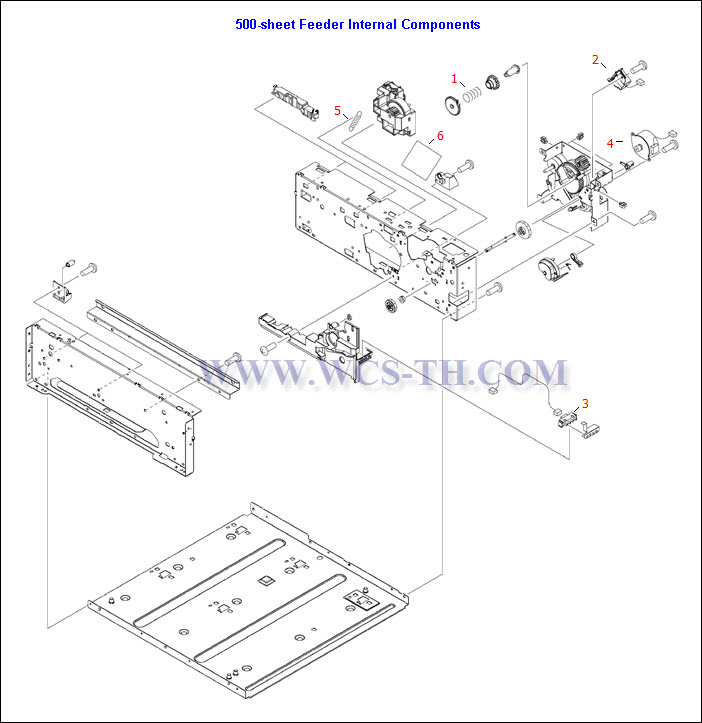

500-sheet Feeder Internal Components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RU5-2061-000CN | Compression spring - | Find 1 |
| 2 | RC1-7804-000CN | Left front corner cover for 500 sheet paper tray assembly | Find 2 |
| 3 | RM1-4292-000CN | Paper feeder driver PCA - Located on right side of 500 sheet paper feeder assembly | Find 3 |
500-sheet Feeder Lifter Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2912-000CN | Lifter drive assembly for 500 sheet feeder | Find 1 |

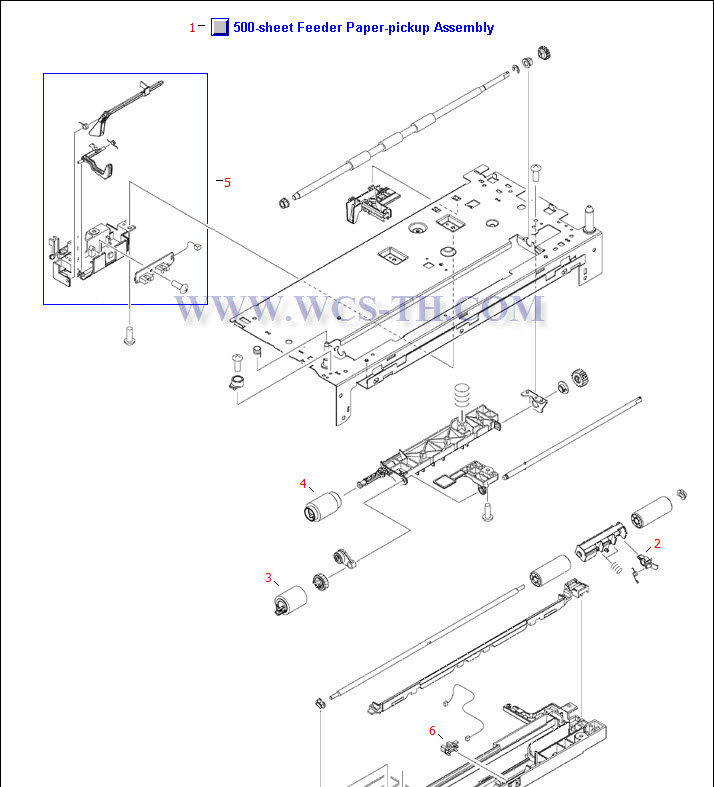

500-sheet Feeder Paper-pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2896-000CN | Paper pickup assembly - 500 sheet feeder paper pickup assembly | Find 1 |
| 2 | RC1-7836-000CN | Sensor flag - Top of paper sensor flag for 500 sheet feeder assembly | Find 2 |
| 3 | RM1-2897-000CN | Sensor assembly - Located on top right rear side of 500 sheet feeder paper pickup assembly | Find 3 |

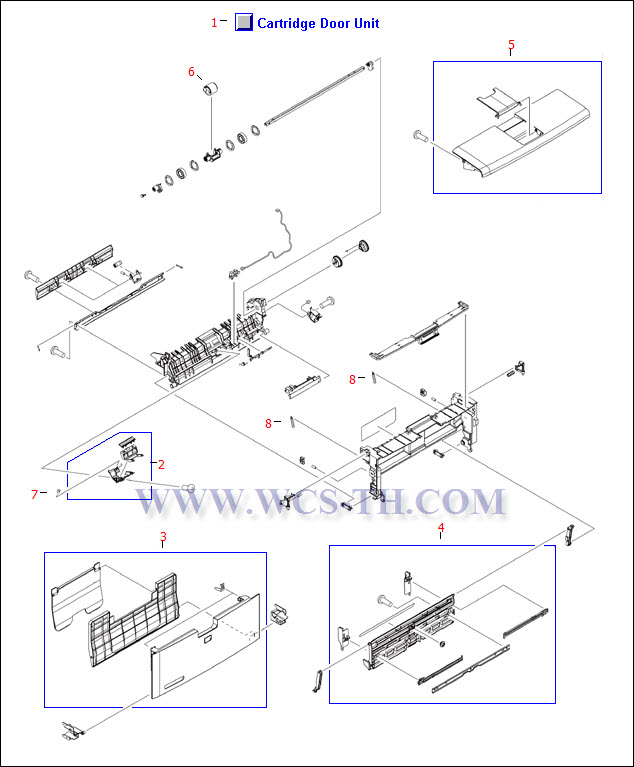

Cartridge Door Unit
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q7829-67927 | Separation pad for multipurpose tray/tray 1 assembly | Find 1 |
| 2 | RM1-2470-000CN | Top front cover of printer - Toner cartridge access cover | Find 2 |
| 3 | Q7829-67926 | Paper pickup roller - MP/Tray 1 paper pickup roller | Find 3 |
| 4 | RU5-2553-000CN | Compression spring - Provides pressure for MP/Tray 1 separation pad assembly | Find 4 |
| 5 | RU5-2548-000CN | Tension spring - Provides tension for MP/Tray 1 separation pad assembly | Find 5 |

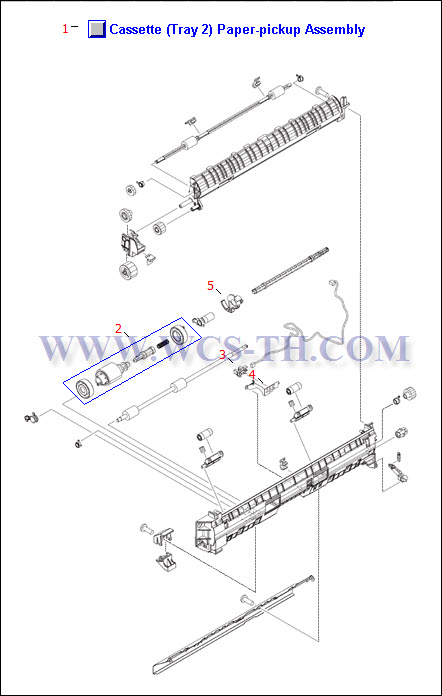

Cassette (Tray 2) Paper-pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2530-000CN | Paper pickup assembly for 250 sheet Tray 2 paper cassette - Includes the base structure with the paper pickup roller, paper feed roller, drive gears, and paper sensors | Find 1 |
| 2 | RC1-7080-000CN | Paper sensor cover - Cover for paper sensor flag on 250 sheet paper cassette | Find 2 |
| 3 | RC1-7410-000CN | Paper sensor flag for Tray 2 paper pickup assembly - Located on paper pickup roller shaft | Find 3 |

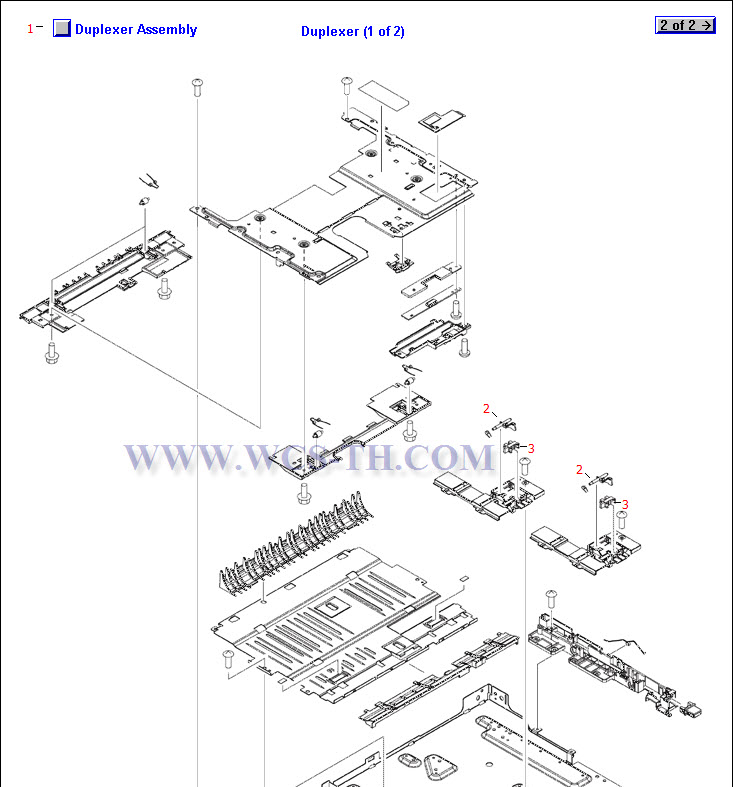

Duplexer (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q7549-67901 | LaserJet 5200 series Duplexer assembly | Find 1 |
| 2 | RC1-7770-000CN | Duplexer paper sensor flag - Black plastic tab located between the two large metal plates of the paper feed path of duplexer assembly - Two used | Find 2 |
| 3 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated | Find 3 |
Duplexer (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-7754-010CN | Duplexer left cover - Dark plastic cover on left end of mechanical section of duplexer assembly | Find 1 |
| 2 | RC1-7755-000CN | Duplexer right cover - Dark plastic cover on right end of mechanical section of duplexer assembly | Find 2 |
| 3 | RC1-7756-000CN | Duplexer top cover - Dark plastic cover on top of mechanical section of duplexer assembly | Find 3 |
| 4 | RC1-7757-000CN | Duplexer rear cover - Dark plastic cover on back of mechanical section of duplexer assembly | Find 4 |
| 5 | RC1-7760-000CN | Duplexer fan holder - Cooling fan housing inside plastic cover of mechanical section of duplexer assembly | Find 5 |
| 6 | RC1-7783-000CN | Duplexer paper feed roller - Front roller of the two feed rollers inside plastic cover of mechanical section of duplexer assembly | Find 6 |
| 7 | RC1-7790-000CN | Duplexer paper feed roller - Rear roller of the two feed rollers inside plastic cover of mechanical section of duplexer assembly | Find 7 |
| 8 | RK2-1067-000CN | Duplexer fan - Cooling fan inside plastic cover of mechanical section of duplexer assembly | Find 8 |
| 9 | RK2-1069-000CN | Light guide module - Provides light source used by sensors in duplexer assembly | Find 9 |
| 10 | RM1-4291-020CN | Duplexer controller PCA - Controller PCA located on left side under the plastic cover of mechanical section of duplexer assembly | Find 10 |

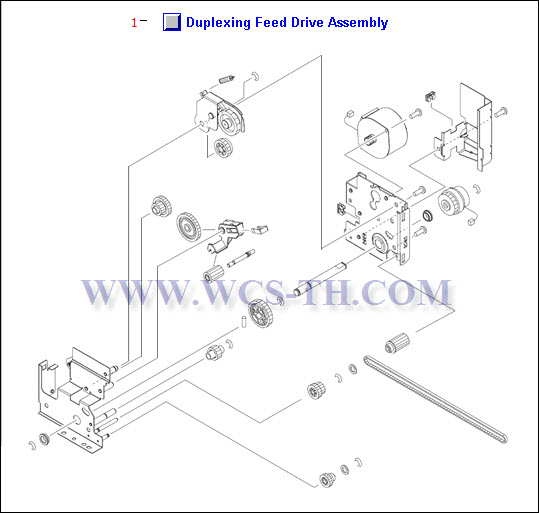

Duplexer Feed Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2891-000CN | Duplexer feed drive assembly - Gear and motor assembly located on right side under the plastic cover of the mechanical section | Find 1 |

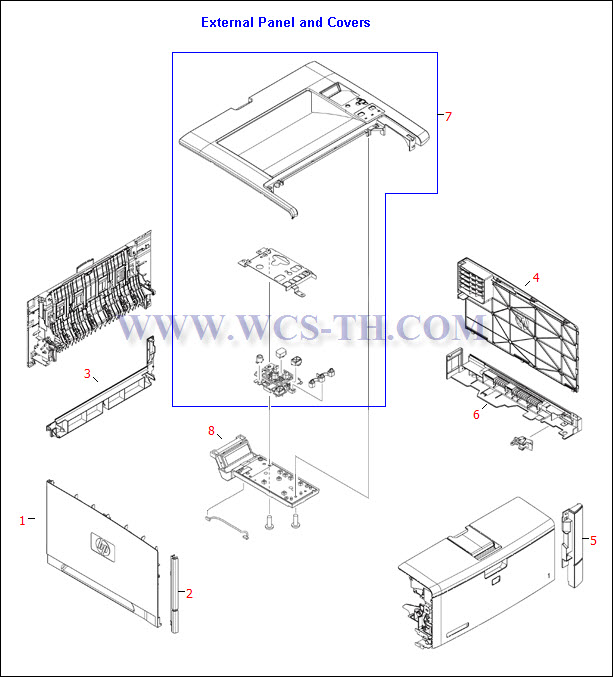

External Panels and Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-7051-000CN | Left side cover assembly | Find 1 |
| 2 | RC1-7052-000CN | Left front corner cover | Find 2 |
| 3 | RC1-7174-000CN | Rear lower cover - Located under face-up delivery assembly | Find 3 |
| 4 | RC1-7211-000CN | Right side upper cover assembly - Has cooling fan vent opening | Find 4 |
| 5 | RC1-7212-000CN | Right side front corner cover | Find 5 |
| 6 | RC1-7210-000CN | Right side cover assembly | Find 6 |
| 7 | RM1-2471-000CN | Top cover assembly - Has face-down paper output tray molded into it - Includes control panel buttons | Find 7 |
| 8 | RK2-1097-000CN | Control panel assembly - Includes the plastic shell and the control panel PC board - (Does NOT include overlays) - Mounts to the top right side of printer | Find 8 |

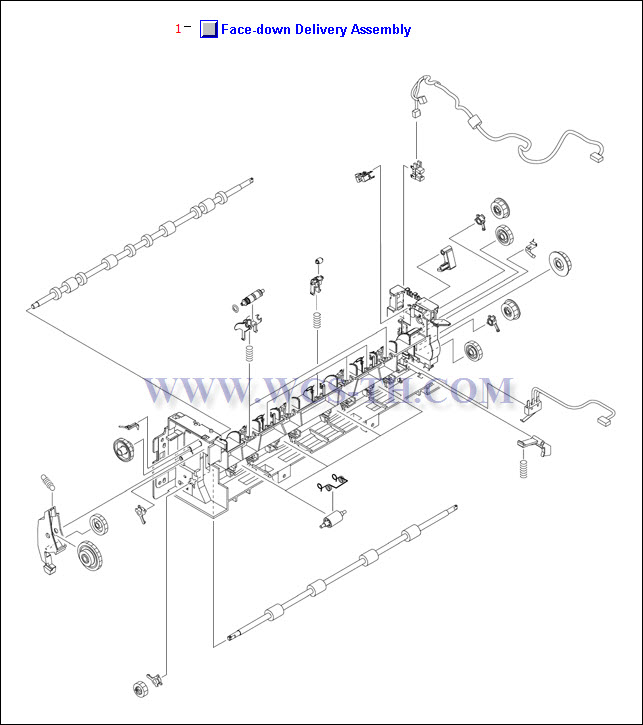

Face-down Delivery Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2490-010CN | Face down top output bin delivery roller assembly - Includes all rollers and holders in assembly | Find 1 |

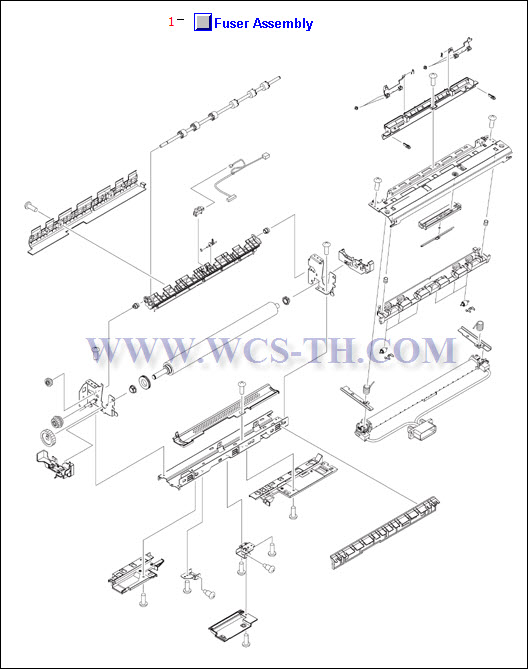

Fuser Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2524-070CN | Fusing assembly - For 220 VAC operation - Bonds toner to paper with heat | Find 1 |
Internal Components (1 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-7047-000CN | Delivery roller cover - Small plastic cover for each of the paper delivery rollers - Four used | Find 1 |
| 2 | RC1-7460-020CN | Paper sensor flag in face down paper delivery assembly | Find 2 |
| 3 | RC1-7459-020CN | Tray full sensor flag for face down paper output tray | Find 3 |
| 4 | RC1-7192-000CN | Front cover for face down paper delivery assembly | Find 4 |
| 5 | RK2-1096-000CN | Solenoid - Located on right front side of printer chassis | Find 5 |
| 6 | RC1-7462-000CN | Face down flag - | Find 6 |
| 7 | RU5-2584-000CN | Torsion spring - Provides tension for face down paper flag | Find 7 |
| 11 | VS1-7258-007CN | Drawer connector - Connector located on bottom of tray assembly frame on right side, which connects tray assemblies to each other | Find 11 |
| 10 | RC1-7268-000CN | Sensor holder - Media leading edge sensor holder | Find 10 |
| 9 | RC1-7121-000CN | Cartridge guide - Front left side toner cartridge guide | Find 9 |
| 12 | RC1-7249-000CN | Support bushing - Axial support for top sensor flag - Two used | Find 12 |
| 13 | RC1-7261-000CN | Paper sensor flag - Leading edge paper sensor flag | Find 13 |
| 14 | RU5-0536-000CN | Drive gear - 13 tooth gear that attaches to left side of transfer roller | Find 14 |
| 15 | RU5-2596-000CN | Torsion spring - Provides tension for top sensor flag | Find 15 |
| 16 | RM1-2474-000CN | Gear assembly - Paper pickup roller gear assembly | Find 16 |
| 18 | RC1-7163-000CN | Fusing shutter - Fuser shutter door - Closes when cartridge access door is opened | Find 18 |
| 19 | RC1-7163-000CN | Fusing shutter - Fuser shutter door - Closes when cartridge access door is opened | Find 19 |
| 21 | RK2-1053-000CN | Flexible flat cable - 21 pin connector | Find 21 |
| 22 | RK2-1055-000CN | Flexible flat cable - 23 pin connector | Find 22 |

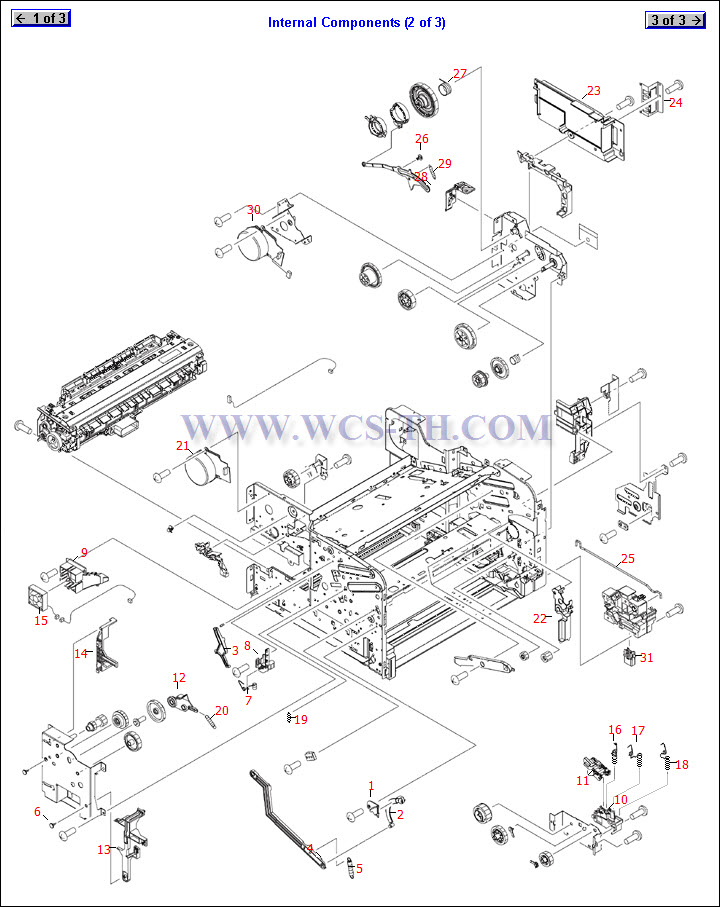

Internal Components (2 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-7022-000CN | Door stop guide - Cartridge door stop guide - Allows the cartridge door to open to maximum open position - Supports cartridge door stopper on left side | Find 1 |
| 3 | RC1-7244-000CN | Lock arm - Connects to cartridge door stop to protect the grounding bias contact pins | Find 3 |
| 4 | RC1-7405-000CN | Release arm - Fuser release arm - Provides mechanical link between fuser release lever and cartridge door | Find 4 |
| 5 | RU5-2550-000CN | Tension spring - Provides tension for fuser release lever | Find 5 |
| 7 | RC1-7127-000CN | Compression spring - Fuser bias contact for fuser grounding | Find 7 |
| 8 | RC1-7128-000CN | Contact holder - Holds the bias contact for fuser grounding | Find 8 |
| 9 | RC1-7169-000CN | Fan holder - Mount for fan on left side of printer | Find 9 |
| 10 | RC1-7241-000CN | Contact holder - Holds fuser bias contacts | Find 10 |
| 11 | RC1-7265-000CN | Contact holder cover - Fuser bias contact cover | Find 11 |
| 12 | RC1-7403-000CN | Swing plate - Diverter plate for simplex to duplex media path | Find 12 |
| 14 | RC1-7406-000CN | Release lever - Fuser release lever on left side of printer | Find 14 |
| 15 | RK2-1091-000CN | Cooling fan - Fan located on upper left side of printer | Find 15 |
| 16 | RU5-2587-000CN | Compression spring - Electrical contact spring for toner cartridge | Find 16 |
| 18 | RU5-2588-000CN | Compression spring - Electrical contact spring for toner cartridge | Find 18 |
| 17 | RU5-2589-000CN | Compression spring - Electrical contact spring for toner cartridge | Find 17 |
| 19 | RU5-2591-000CN | Tension spring - Provides tension for fuser release lever | Find 19 |
| 21 | RM1-2538-000CN | Fusing assembly drive motor | Find 21 |
| 22 | RC1-7020-000CN | Gear assembly cover - Cover for top of lower right gear assembly | Find 22 |
| 23 | RC1-7217-000CN | DC controller board cover on right side of printer | Find 23 |
| 24 | RC1-7220-000CN | Grounding plate connector - Electrical connection for DC controller board cover | Find 24 |
| 25 | RC1-7226-000CN | Power switch rod - Mechanical link between power switch on printer and DC controller board | Find 25 |
| 27 | RU5-2630-000CN | Compression spring - Provides pressure for gear pack at lever arm that couples the drive gear to the toner cartridge | Find 27 |
| 28 | RC1-7285-000CN | Coupling lever - Lever arm that couples the drive gear to the toner cartridge | Find 28 |
| 29 | RU5-2632-000CN | Tension spring - Provides tension for lever arm that couples the drive gear to the toner cartridge | Find 29 |
| 30 | RM1-2516-000CN | Main motor - Drives gears in main drive assembly | Find 30 |
| 31 | VS1-7258-007CN | Drawer connector - Connector located on bottom of tray assembly frame on right side, which connects tray assemblies to each other | Find 31 |
| 2 | RC1-7023-000CN | Door stop - Cartridge door stop arm - Also connects to fuser release lever arm | Find 2 |
| 6 | RC1-0198-000CN | Tension spring - Provides tension for lifter drive assembly | Find 6 |
| 13 | RC1-7406-000CN | Release lever - Fuser release lever on left side of printer | Find 13 |
| 20 | RU5-2644-000CN | Tension spring - Provides tension for fuser swing arm | Find 20 |
| 26 | RC1-7288-000CN | Link stopper - Stop for lever arm that couples the drive gear to the toner cartridge | Find 26 |

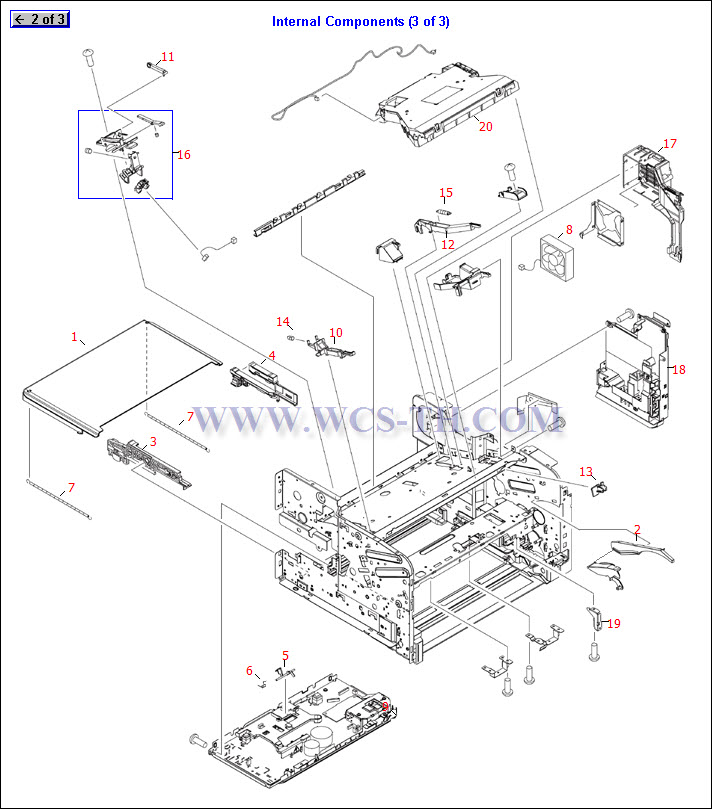

Internal Components (3 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-7118-000CN | Dust cover - | Find 1 |
| 2 | RC1-7286-000CN | Cartridge guide - Lower right side toner cartridge guide | Find 2 |
| 3 | RC1-7379-000CN | Left side duplexer assembly guide - Guide for duplexer assembly to slide in and out of printer | Find 3 |
| 4 | RC1-7380-000CN | Right side duplexer assembly guide - Guide for duplexer assembly to slide in and out of printer | Find 4 |
| 6 | RC1-7145-000CN | Torsion spring - Provides radial tension for loop sensor flag located on the high voltage power supply | Find 6 |
| 7 | RU5-2563-000CN | Tension spring - Provides tension to the dust cover to retract back to its home position | Find 7 |
| 8 | RK2-1089-000CN | Low voltage power supply cooling fan - Located on upper right side of printer above low voltage power supply | Find 8 |
| 9 | RM1-2958-010CN | High voltage power supply PC Board - 220/240VAC input voltage | Find 9 |
| 10 | RC1-7289-000CN | Tag link - This is an arm extension for a mechanical movement - It allows the printer to read the toner cartridge supplies status | Find 10 |
| 11 | RC1-7294-000CN | Tag link lock - An arm extension for a mechanical movement - Allows the printer to read the toner cartridge supplies status | Find 11 |
| 12 | RC1-7451-000CN | Shutter lever - Connects to laser shutter | Find 12 |
| 13 | RC1-7452-000CN | Shutter lever cover - Covers front of shutter lever | Find 13 |
| 17 | RC1-7434-000CN | Fan housing - Housing mount and duct for low voltage power supply fan | Find 17 |
| 18 | RM1-2951-030CN | Low voltage power supply PC Board - 220-240VAC, 50Hz | Find 18 |
| 19 | RC1-7264-000CN | Cross member auxiliary plate | Find 19 |
| 21 | RM1-2555-020CN | Laser/Scanner assembly - Mounts on the support structue in the print engine frame assembly | Find 21 |
| 5 | RC1-7144-000CN | Loop sensor flag - Tracks the paper tension during its movement in the paper path of the printer | Find 5 |
| 14 | RU5-2633-000CN | Compression spring - Provides pressure for tag link | Find 14 |
| 15 | RU5-2651-000CN | Tension spring - Provides tension for shutter lever | Find 15 |
| 16 | RM1-2514-000CN | Tag holder assembly - Holds the toner supplies reader assembly | Find 16 |
PCA Assemblies
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RM1-2958-010CN | High voltage power supply PC Board - 220/240VAC input voltage | Find 2 |
| 1 | RM1-4098-060CN | DC Controller PC Board | Find 1 |
| 3 | RM1-2951-030CN | Low voltage power supply PC Board | Find 3 |

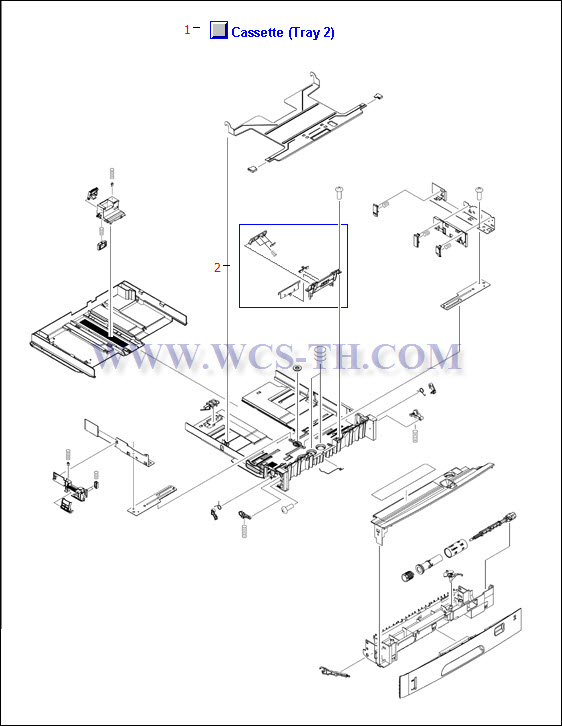

Tray 2 Cassette
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2546-000CN | Separation pad assembly - For Tray 2 - Includes pad holder and separation pad | Find 1 |
