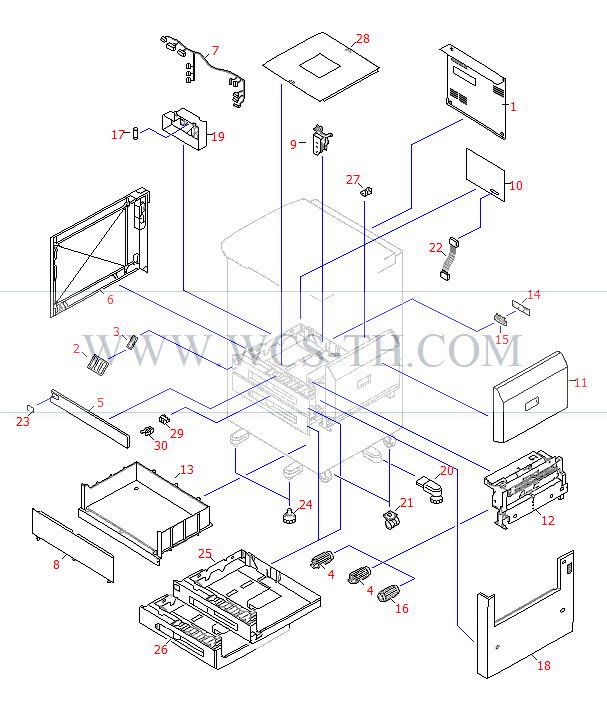

2 X 500 Input Tray
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-3675-000CN | Back cover - Protects back of tray assembly | Find 1 |
| 2 | RB2-5342-000CN | 2000 sheet paper tray cassette size label - C4780A paper tray cassette size label | Find 2 |
| 3 | RB1-6894-000CN | Paper cassette size plate - Self adhesive label NOT included | Find 3 |
| 4 | RF5-1834-000CN | Feed/separation roller - Has a blue gear on one end and blue release tab on the other - Mounts in the paper input unit assembly (four used) | Find 4 |
| 5 | RF5-2762-000CN | Front top cover - Cover where the 'Status' LED is located | Find 5 |
| 6 | RF5-2764-000CN | Left cover - Left side cabinet cover | Find 6 |
| 7 | RG5-4440-000CN | Main cable on input assembly | Find 7 |
| 8 | RB2-3668-000CN | Paper storage tray front cover | Find 8 |
| 9 | RG5-4416-000CN | Paper deck drive assembly - Gear assembly that lifts the paper plate to the pickup roller | Find 9 |
| 10 | RG5-4442-030CN | Controller PCA - 2 x 500-SHEET input tray controller PCA | Find 10 |
| 11 | C4780-69503 | Paper feed assembly - Vertical transfer unit - Transfers paper from pickup assembly up to the printer input - Use with 2x500 tray | Find 11 |
| 12 | C4780-69505 | Paper pickup - Moves paper from trays to feeder assembly | Find 12 |
| 13 | RB2-3669-000CN | Paper storage tray - Stores up to twenty pounds of paper | Find 13 |
| 14 | RG5-1845-020CN | Paper size sensor board - Used to sense paper size in upper and lower paper trays - | Find 14 |
| 15 | RB2-3667-000CN | Holder size PCA - Holder Size PCA - | Find 15 |
| 16 | RF5-2708-000CN | Pickup roller - Used in paper pickup assembly - 2 used | Find 16 |
| 17 | VD7-1893-151CN | Power supply fuse, 250V max - Power supply fuse | Find 17 |
| 18 | RB2-3666-000CN | Right side cabinet cover | Find 18 |
| 19 | RG5-4021-000CN | Universal power supply | Find 19 |
| 20 | RG5-4205-000CN | Cabinet stabilizer (outrigger) - With adjustable foot | Find 20 |
| 21 | XZ9-0442-000CN | Caster wheel - (Four used) | Find 21 |
| 22 | RG5-3909-000CN | Power supply cable - Between power supply and controller PCA | Find 22 |
| 23 | RG5-4441-000CN | Front LED PCA - LED status display board | Find 23 |
| 24 | RG5-4203-000CN | Outrigger adjustable foot - Adjusts up and down | Find 24 |
| 25 | R98-1007-000CN | Tray 4 assembly - Complete tray with identification label | Find 25 |
| 26 | R98-1006-000CN | Tray 5 assembly - Complete tray with identification label | Find 26 |
| 27 | RF5-2556-000CN | Positioning pin - Metal locating pins - Set of three - Maintains proper alignment of printer and optional paper feeder | Find 27 |
| 28 | RF5-2766-000CN | Paper tray top cover - Includes label | Find 28 |
| 29 | RB2-3705-000CN | Latch spacer - Black plastic piece that latch engages | Find 29 |
| 30 | XZ9-0379-000CN | Door latch insert (Black) - Door latch (Black) - For front access door | Find 30 |

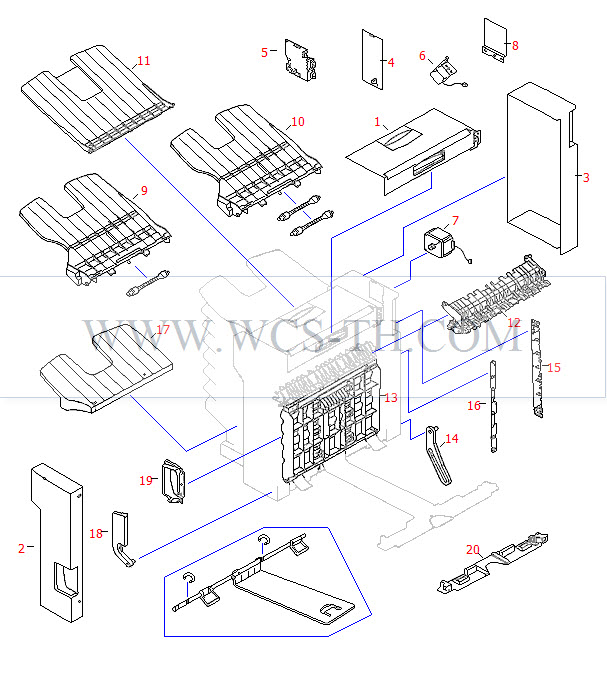

7-bin Tabletop Mailbox
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG1-3838-000CN | Top cover assembly - Upper guide | Find 1 |
| 2 | RF1-4004-000CN | Front cover - Cover with release latch handle | Find 2 |
| 3 | RF1-4008-000CN | Back cover - For 7-bin table top mailbox | Find 3 |
| 4 | RH3-2205-000CN | Power supply PCA for 7-bin tabletop mailbox power supply | Find 4 |
| 5 | RG1-3853-060CN | Controller board - 7-bin tabletop mailbox controller PCA | Find 5 |
| 6 | RH7-5223-000CN | Reversing mechanism solenoid | Find 6 |
| 7 | RF1-4003-000CN | Reversing mechanism motor | Find 7 |
| 8 | RA2-2541-000CN | Motor cover - Reversing mechanism motor cover plate | Find 8 |
| 9 | RG1-3836-000CN | Face down bin assembly - One roller - | Find 9 |
| 10 | RG1-3837-000CN | Face down bin assembly - Two rollers - Even face-down bin assembly | Find 10 |
| 11 | RA2-2487-000CN | Reversing output tray (Face-up) - Reversing tray - Output tray - Face-up | Find 11 |
| 12 | RG1-3844-000CN | Diverter assembly - Flipper | Find 12 |
| 13 | RG1-3840-000CN | Right cover - Right side cover below the diverter assembly | Find 13 |
| 14 | RA2-2527-000CN | Stopper plate - Limits travel of right cover | Find 14 |
| 15 | RG1-3815-000CN | Sensor PCA - Empty bin sensor board | Find 15 |
| 16 | RG1-3814-000CN | Bin full and interlock sensor board | Find 16 |
| 17 | RA2-2408-000CN | Bottom bin tray | Find 17 |
| 18 | RA2-2512-000CN | Release handle - Latch lever handle | Find 18 |
| 19 | RA2-2531-000CN | Release latch handle cover | Find 19 |
| 20 | RF1-4005-000CN | Latch plate | Find 20 |

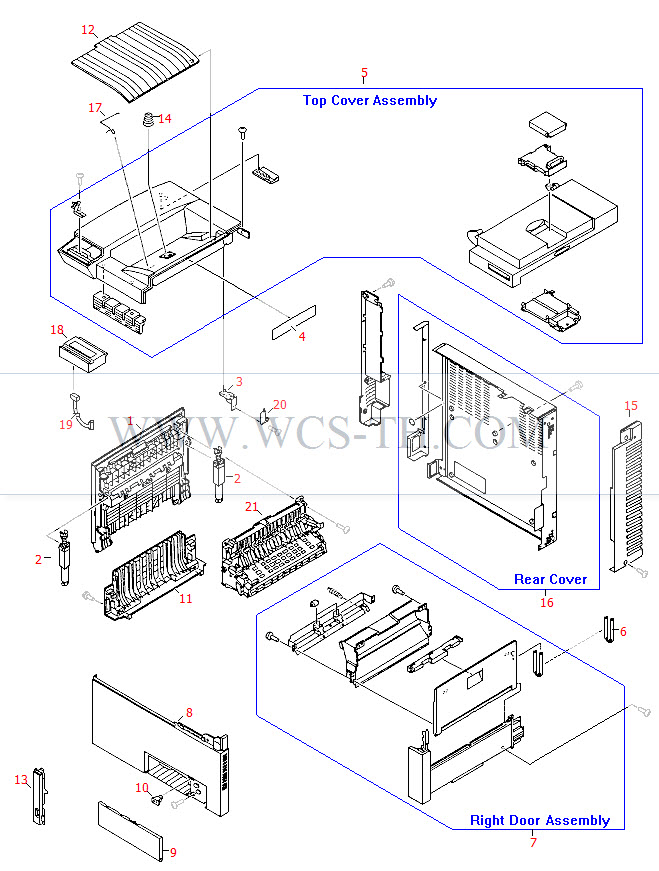

Covers and Doors
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-6667-000CN | Diverter door assembly - Upper door on left side of printer - Two struts are mounted to door | Find 1 |
| 2 | RF5-2701-060CN | Access door struts - Attached to each side of diverter door assembly - Access door struts - Attached to each side of diverter door assembly - Two used | Find 2 |
| 3 | RB2-3641-000CN | Hinge plate - Bottom half of top cover hinge | Find 3 |
| 4 | RS5-8596-000CN | Operation label | Find 4 |
| 5 | RG5-1870-090CN | Top cover assembly - Does NOT include face up tray or control panel display | Find 5 |
| 6 | RB1-6484-000CN | Support strap - Supports door when open - For lower right side door | Find 6 |
| 7 | RG5-1915-040CN | Right door assembly - Door below paper tray 1 - Support strap attached to right side | Find 7 |
| 8 | RB1-6494-050CN | Front cover- Front access door mounts to this cover | Find 8 |
| 9 | RB1-6495-020CN | Front access door | Find 9 |
| 10 | XZ9-0379-000CN | Door latch insert (Black) - Door latch (Black) - For front access door | Find 10 |
| 11 | RB1-6480-000CN | Lower Left Cover - Mounted below diverter door assembly | Find 11 |
| 12 | RB1-6490-000CN | Face-down output tray - At top of printer - Face-Down output tray - Mounted in top of printer | Find 12 |
| 13 | RB1-6492-000CN | Power switch cover - Has cutout for power switch | Find 13 |
| 14 | RB1-6493-000CN | Compression spring - Center support for left output bin | Find 14 |
| 15 | RB1-6498-000CN | Right rear cover - attached to shert metal rear cover | Find 15 |
| 16 | RF5-1402-000CN | Rear cover - Sheet metal | Find 16 |
| 17 | RB1-6509-000CN | Torsion spring - Helps support left output bin tray | Find 17 |
| 18 | RG5-5268-000CN | Control panel - Includes display | Find 18 |
| 19 | RG5-4726-000CN | Cable assembly - Control panel display cable | Find 19 |
| 20 | RB1-6522-000CN | Plate guard - Top cover hinge plate guard | Find 20 |
| 21 | RG9-1150-000CN | Diverter assembly - Diverts paper to duplexer assembly or face up tray or face down delivery assembly | Find 21 |

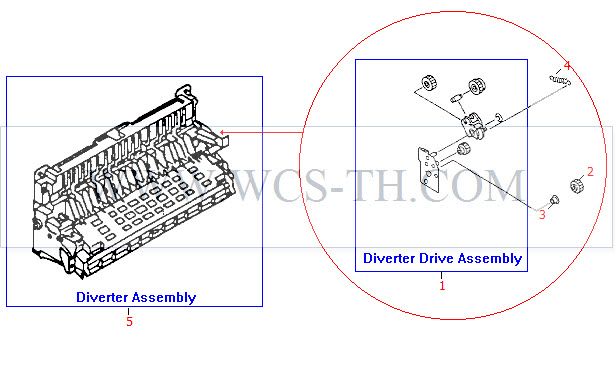

Diverter Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF9-1249-000CN | Diverter drive assembly - Four gear drive assembly - 20-tooth gear NOT included | Find 1 |
| 2 | RA9-1127-000CN | Gear - 20 tooth - 20 tooth gear - Used on diverter drive assembly | Find 2 |
| 3 | RS5-1101-000CN | Conductive bushing | Find 3 |
| 4 | RS5-2490-000CN | Tension spring - Diverter drive assembly tension spring | Find 4 |
| 5 | RG9-1150-000CN | Diverter assembly - Diverts paper to duplexer assembly or face up tray or face down delivery assembly | Find 5 |

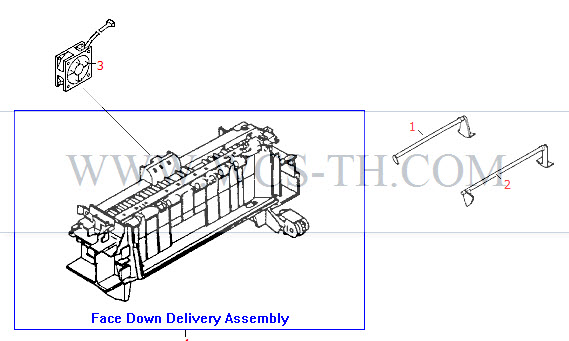

Face Down Delivery Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-6692-000CN | Paper sensing lever - Senses paper in face down delivery assembly | Find 1 |
| 2 | RB1-6693-020CN | Paper height lever - Senses when face-down tray is full | Find 2 |
| 3 | RH7-1289-000CN | Tubeaxial fan - (FM4) - Mounts on the rear of the face down delivery assembly | Find 3 |
| 4 | RG5-1874-110CN | Face down delivery assembly - Feeds paper to top of printer | Find 4 |

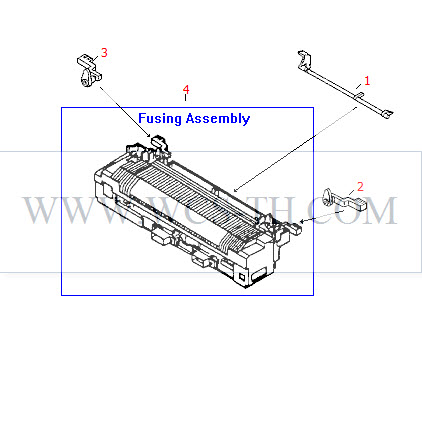

Fusing Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-2694-020CN | Fusing sensor arm - Senses paper in fusing assembly | Find 1 |
| 2 | RB1-6615-020CN | Right fusing assembly lock - Locks fuser in place | Find 2 |
| 3 | RB1-6616-020CN | Left fusing assembly lock - Locks fuser in place | Find 3 |
| 4 | 5182-2811 | Fusing assembly (For 220V to 240V operation) - Bonds the toner to the paper with heat - In quantity price break packaging (Contains five new fusing assemblies) | Find 4 |
| 4 | 5182-2812 | Fusing assembly (For 220V to 240V operation) - Bonds the toner to the paper with heat - In quantity price break packaging (Contains ten new fusing assemblies) | Find 4 |
| 4 | C3166-69017 | Fusing assembly - For 100 VAC to 120 VAC operation - Bonds toner to paper with heat | Find 4 |
| 4 | RG5-4448-030CN | Fusing assembly - For 220 VAC - Bonds toner to paper with heat | Find 4 |
Internal Components (1 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG9-1361-020CN | Transfer roller assembly - Includes transfer roller with attached gear only - | Find 1 |
| 2 | RF5-1394-000CN | Transfer guide - Guide transfer roller is mounted into | Find 2 |
| 3 | RF5-1412-000CN | Transfer charge roller (Black) | Find 3 |
| 4 | RB1-6461-000CN | Damper holder - Front damper holder | Find 4 |
| 5 | RB1-6462-000CN | Damper holder - Rear damper holder | Find 5 |
| 6 | RB1-6443-000CN | Toner cartridge guide - Front guide - Plastic piece with slot to guide toner cartridge | Find 6 |
| 7 | RB2-3631-000CN | Clutch cover - Paper feed clutch cover | Find 7 |
| 8 | RH7-1260-000CN | Main motor - Mounted on rear of chassis | Find 8 |
| 9 | RB1-6444-000CN | Release arm - Front toner cartridge release arm - Hook shaped cartridge holder - Left side of toner cartridge guide slot | Find 9 |
| 10 | RB1-6446-000CN | Release arm - Toner cartridge release arm - Hook shaped cartridge holder - Toner cartridge release arm - Hook shaped cartridge holder - Right side toner cartridge guide slot | Find 10 |
| 11 | RG5-1919-000CN | Cable assembly - From DC controller board to main motor | Find 11 |
| 12 | RG5-1874-110CN | Face down delivery assembly - Feeds paper to top of printer | Find 12 |
| 13 | 5182-2811 | Fusing assembly (For 220V to 240V operation) - Bonds the toner to the paper with heat - In quantity price break packaging (Contains five new fusing assemblies) | Find 13 |
| 13 | 5182-2812 | Fusing assembly (For 220V to 240V operation) - Bonds the toner to the paper with heat - In quantity price break packaging (Contains ten new fusing assemblies) | Find 13 |
| 13 | C3166-69017 | Fusing assembly - For 100 VAC to 120 VAC operation - Bonds toner to paper with heat | Find 13 |
| 13 | RG5-4448-030CN | Fusing assembly - For 220 VAC - Bonds toner to paper with heat | Find 13 |
| 14 | RG5-1875-000CN | Face Up solenoid assembly - Face Up solenoid assembly - Mounted to rear of chassis | Find 14 |
| 15 | RG5-1834-000CN | Feeder assembly - Transfer roller and registration assembly are mounted on this assembly - Mounted on upper right side of chassis | Find 15 |
| 16 | RH7-5203-000CN | Registration assembly clutch - Attached to right side of registration assembly | Find 16 |
| 17 | RG5-1833-090CN | Registration assembly - Set of rollers before toner cartridge and after feed rollers - Has green handle with the number 2 printed on it | Find 17 |
| 18 | RG5-1880-100CN | Paper pickup assembly - For multipurpose paper input tray - Mounted to right side of chassis | Find 18 |
| 19 | RB1-6730-000CN | Multipurpose paper input tray feed roller | Find 19 |
| 20 | RF5-1455-000CN | Multipurpose paper input tray separation pad | Find 20 |
| 21 | RG5-1883-060CN | Multi-Purpose paper input tray (Tray 1) - Includes pull out extender tray | Find 21 |
| 22 | RB1-6749-000CN | Internal cover for Tray 1 pickup assembly | Find 22 |
| 23 | C3166-69020 | Paper pickup assembly - Includes pickup, feed and separation rollers - Picks up paper from upper and lower paper trays | Find 23 |
| 24 | RG5-1847-000CN | Main print drive gear assembly - Driven by main motor - Mounted on rear of chassis | Find 24 |
| 25 | RG5-1887-000CN | Transfer Roller Assembly - Includes transfer guide bushings, transfer guide and transfer roller | Find 25 |
| 26 | RB1-6708-000CN | Retainer clip - Keeps multipurpose/tray 1 hinge in place - Black plastic clip for left side tray 1 hinge stop | Find 26 |
| 27 | RB1-6709-000CN | Retainer clip - Keeps multipurpose/tray1 hinge in place - Black plastic clip for right side tray 1 hinge | Find 27 |
| 28 | RG5-1884-000CN | Multipurpose paper tray board - Includes paper sensors PS1301 and PS1302 - Multipurpose Paper Tray Board - Mounted to Right Side of Pickup Assembly - Includes paper sensors PS1301 and PS1302 | Find 28 |

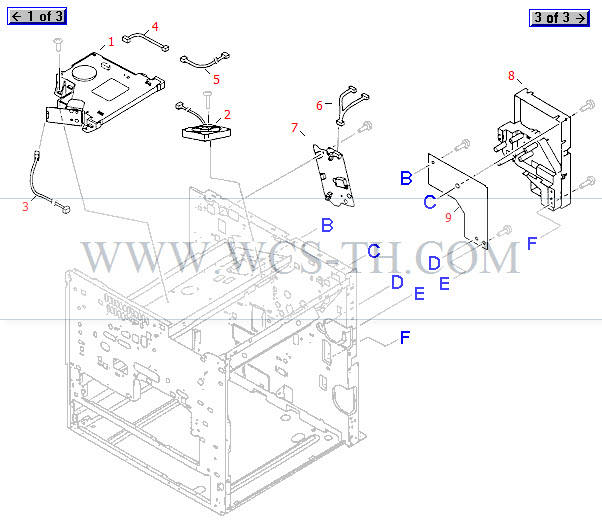

Internal Components (2 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C3166-69006 | Laser/scanner assembly | Find 1 |
| 2 | RH7-1266-000CN | Tubeaxial fan - For the low voltage power supply and the laser/scanner assembly (2 used) | Find 2 |
| 3 | RG5-1924-000CN | Dual cable assembly with ferrites - 10-pin (F) connector, 9-pin (F) connector, and two 6-pin (F) connectors - 1.1m (3.7ft) long - Two cable bundle - From DC controller board to laser scanner and to control panel | Find 3 |
| 4 | RG5-1925-000CN | Cable assembly - 5-pin (F) connector to both a 27cm (10.6in) cable with a 3-pin (M) connector and a 27.2cm (10.7in) cable with a 2-pin (M) connector - Scanner motor cable | Find 4 |
| 5 | RG5-1926-000CN | BD cable - J18 to J2007 | Find 5 |
| 6 | RG5-1927-000CN | ILS cable - From J1401 to J221/J205 | Find 6 |
| 7 | RG5-1846-000CN | Switch/sensor board - Includes face down tray sensors, fusing delivery sensor and door switch - Switch/Sensor Board - Includes Face Down Tray Sensors, Fusing Delivery Sensor and Door Switch - Mounted on Rear of Chassis | Find 7 |
| 8 | C3166-69021 | High voltage power supply assembly | Find 8 |
| 9 | C3166-69010 | DC controller board | Find 9 |

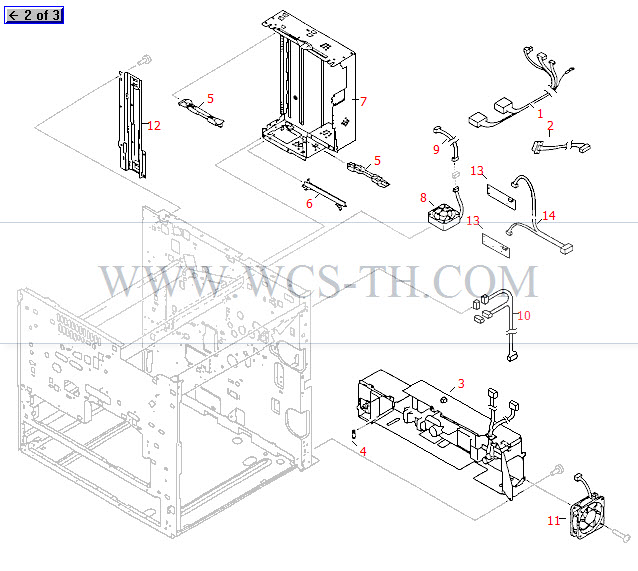

Internal Components (3 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-1849-000CN | Cable assembly - Fuser cable 1 - J50/51 to J10/56/222 | Find 1 |
| 2 | RG5-1850-000CN | Duplexer cable assembly - From duplexer to DC controller | Find 2 |
| 3 | C3166-69008 | Low voltage power supply - 240VAC, 50Hz - Includes power switch, AC receptacle and DC power supply | Find 3 |
| 3 | RG5-3676-000CN | Low voltage power supply - Includes power switch, AC receptacle, and DC power supply | Find 3 |
| 4 | VD5-0066-301CN | Low voltage power supply fuse - For 110/120V operation | Find 4 |
| 4 | VD7-0646-301CN | Low voltage power supply fuse - For 220/240V operation | Find 4 |
| 5 | RB1-6771-000CN | PCA guide - Formatter board support guides | Find 5 |
| 6 | RB1-6775-000CN | Slide guide - Guide for formatter PCA | Find 6 |
| 7 | RF5-1466-000CN | Formatter board EMI shield - EMI shield - Formatter Board EMI protective cover | Find 7 |
| 8 | RH7-1271-000CN | Tubeaxial fan - (FM3) - For the formatter board cooling - Mounts on the rear of the chassis | Find 8 |
| 9 | RG5-1921-000CN | Fan cable - Fan 3 power cable | Find 9 |
| 10 | RG5-1928-000CN | Registration cable assembly - Includes 7P and 3P connectors | Find 10 |
| 11 | RH7-1266-000CN | Tubeaxial fan - For the low voltage power supply and the laser/scanner assembly (2 used) | Find 11 |
| 12 | RF5-1464-000CN | Switch/sensor board plate - Shields switch/sensor PCA | Find 12 |
| 13 | RG5-1845-020CN | Paper size sensor board - Used to sense paper size in upper and lower paper trays - | Find 13 |
| 14 | RG5-1920-000CN | Cassette size sensor cable - Between cassette size sensor PCA's and formatter board | Find 14 |

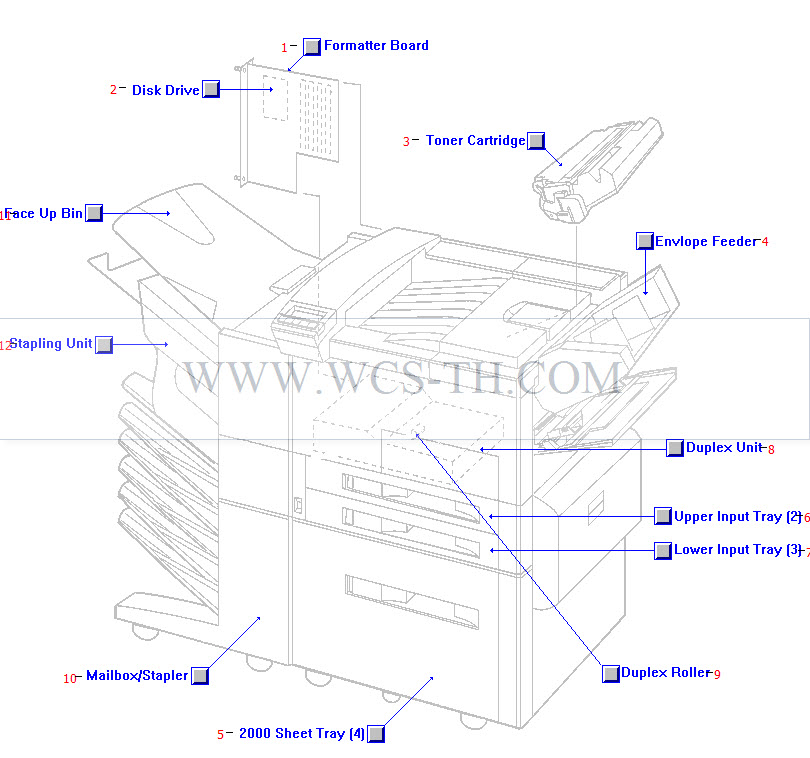

Major Printer and Paper Handling Parts
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C4186-69002 | Formatter board - Main logic PCA | Find 1 |
| 2 | C2985B | 2.1GB hard drive - LaserJet EIO font/print job storage | Find 2 |
| 3 | 5184-5203 | Black (Micro-Fine) toner cartridge - Page yield index 15,000 | Find 3 |
| 3 | C3909A | Black (Micro-Fine) toner cartridge - Page yield index 15,000 | Find 3 |
| 3 | C3909X | Black (Micro-Fine) toner cartridge - Page yield index 17, 100 | Find 3 |
| 4 | C3765-69501 | Replacement optional envelope feeder - Holds 100 envelopes | Find 4 |
| 4 | C3765B | Optional envelope feeder - Automatically feeds 100 envelopes | Find 4 |
| 5 | C4780A | HP LaserJet 8000 and 8100 Series Optional 1000 (2 x 500) sheet paper trays (Trays 4 & 5) - Holds up to 1000 sheets of letter, legal, tabloid/ledger, A3, A4, B, or B4 size paper - Optional 1000 (2 X 500) Sheet Paper Trays (Trays 4 & 5) - Installs Under Pr | Find 5 |
| 5 | C4781A | HP LaserJet 8000, 8100, and 5Si Series Optional 2000 sheet paper tray (Tray 4) - Holds up to 2000 sheets of letter, legal, tabloid/ledger, A3, A4, B, or B4 size paper - Does NOT include paper handling controller board - Optional 2000 sheet paper tray (Tra | Find 5 |
| 6 | R98-1005-000CN | Upper input paper tray (Tray 2) - 500 sheet capacity - For letter, legal, and A4 (210MM x 297MM) size paper - Tray 2 - Holds 500 sheets - Letter, Legal, A4, JISB4 - Also one of two used in Tray 4 with C4780A (2 X 500) configuation | Find 6 |
| 7 | R98-1004-000CN | Lower paper input tray (Tray 3) - 500 sheet capacity - For letter, legal, 11inch x 17inch (B-size), A4 (210MM x 297MM), A3 (297MM x 420MM) and B4 (257MM x 364MM) size paper - Lower paper input tray (Tray 3) - 500 Sheet - For Letter, Legal, 11inch x 17inch | Find 7 |
| 8 | C4782-69501 | Duplexer assembly - For two sided printing capability | Find 8 |
| 9 | RB1-6822-000CN | Duplexer roller assembly - Mounts in the center of the duplexer unit | Find 9 |
| 10 | C4785A | 8 bin mail box - Holds 2600 sheets of paper - Used with 2000 sheet paper tray or printer cabinet | Find 10 |
| 10 | C4787A | 5-bin mail box with stapler - Holds 2100 sheets of paper used with 5Si family, Mopier and 8000 printers | Find 10 |
| 11 | RB1-6491-000CN | Face-up output tray - At upper left side - Face-Up output tray - Mounted on upper left side | Find 11 |
| 12 | C4787-69513 | Stapling unit - Includes top cover, bed assembly, and board | Find 12 |

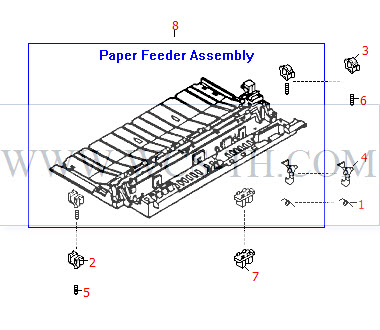

Paper Feeder Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-6409-000CN | Sensor arm spring - Holds tension on paper feeder sensor arm | Find 1 |
| 2 | RB1-6414-000CN | Shaft holding block - Front registration roller support | Find 2 |
| 3 | RB1-6415-000CN | Shaft holding block - Rear registration roller support | Find 3 |
| 4 | RB1-6417-000CN | Registration paper sensor arm - Senses paper in registration assembly | Find 4 |
| 5 | RS5-2463-000CN | Compression spring - Holds tension on front support block | Find 5 |
| 6 | RS5-2466-000CN | Compression spring - Holds tension on rear support block | Find 6 |
| 7 | RY7-5080-000CN | Photo sensor kit - Includes photo sensors PS 1,3,5 and 6 - Photo sensor - For paper registration or paper pickup sensor - Two used | Find 7 |
| 8 | RG5-1834-000CN | Feeder assembly - Transfer roller and registration assembly are mounted on this assembly - Mounted on upper right side of chassis | Find 8 |

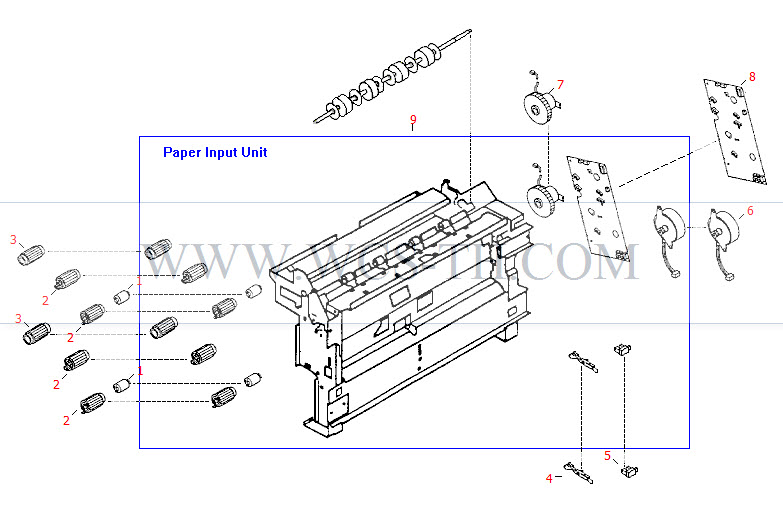

Paper Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-6588-000CN | Torque limiter - Mounted next to separation rollers (two used) | Find 1 |
| 2 | RF5-1834-000CN | Feed/separation roller - Has a blue gear on one end and blue release tab on the other - Mounts in the paper input unit assembly (four used) | Find 2 |
| 3 | RF5-1835-000CN | Pickup roller assembly - Has attached Black plastic gear - Mounts in the paper input unit (two used) | Find 3 |
| 4 | RB1-6557-020CN | Paper input unit sensor arm - Senses when paper passes through paper input unit | Find 4 |
| 5 | RY7-5080-000CN | Photo sensor kit - Includes photo sensors PS 1,3,5 and 6 - Photo sensor - For paper registration or paper pickup sensor - Two used | Find 5 |
| 6 | RH7-1262-000CN | Paper input motor - Drives rollers to pickup and feed paper from lower paper trays | Find 6 |
| 7 | RH7-5204-000CN | Paper feed clutch - On right side of paper input unit | Find 7 |
| 8 | RG5-1860-000CN | Paper pickup board - Includes 8 photosensors - Paper Pickup Board - Includes 8 Photosensors - Mounted to Side of Paper Pickup Assembly | Find 8 |
| 9 | C3166-69020 | Paper pickup assembly - Includes pickup, feed and separation rollers - Picks up paper from upper and lower paper trays | Find 9 |

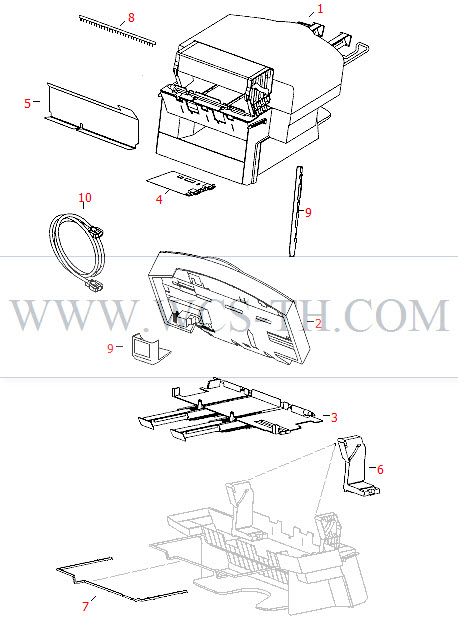

Stapler
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C3766-60501 | Stapling unit top cover | Find 1 |
| 2 | C3766-60503 | Stapling unit bed assembly - Includes sliders that move sheets of paper to stapling position | Find 2 |
| 3 | C4787-60514 | Stapling unit control board - Stapling Unit Control Board - Mounted Behind Back Plate | Find 3 |
| 4 | C3766-60505 | Stapling Unit Back Plate - Covers rear of Stapling Unit | Find 4 |
| 5 | C3766-60506 | Stapling unit hinges - Set of 2 | Find 5 |
| 6 | C3766-60507 | Paper exit guide (Wire-form) - Mounts in the paper exit of the stapling unit | Find 6 |
| 7 | C3766-60508 | Stapling unit antistatic brush - Eliminates static charge on paper | Find 7 |
| 8 | C3766-60510 | Stapling unit kit - Includes plastic staple cover, scan bar, bin full sensor, acutator, and flag | Find 8 |
| 9 | C4787-60507 | Stapler unit C-link cable - Has two high density 15-pin (M) connectors - 91.4cm (36in) long - From multibin mailbox to stapler unit | Find 9 |
