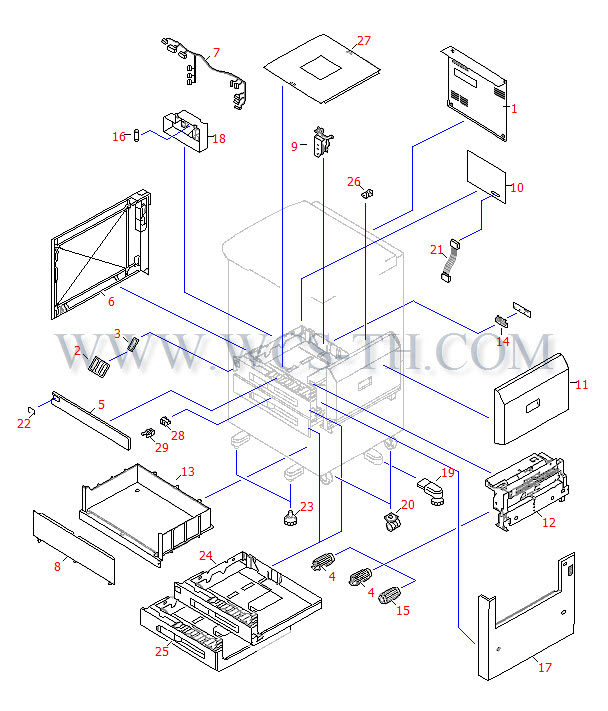

2 X 500 Input Tray
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-3675-000CN | Back cover - Protects back of tray assembly | Find 1 |
| 2 | RB2-5342-000CN | 2000 sheet paper tray cassette size label - C4781A paper tray cassette size label - All three sizes | Find 2 |
| 3 | RB1-6894-000CN | Paper cassette size plate - Self adhesive label NOT included | Find 3 |
| 4 | RF5-1834-000CN | Feed/separation roller - Has a blue gear on one end and blue release tab on the other - Mounts in the paper input unit assembly (four used) | Find 4 |
| 5 | RF5-2762-000CN | Front top cover - Cover where the Status LED is located | Find 5 |
| 6 | RF5-2764-000CN | Left cover - Left side cabinet cover | Find 6 |
| 7 | RG5-4440-000CN | Main cable on input assembly | Find 7 |
| 8 | RB2-3668-000CN | Paper storage tray front cover | Find 8 |
| 9 | RG5-4416-000CN | Paper deck drive assembly - Gear assembly that lifts the paper plate to the pickup roller | Find 9 |
| 10 | RG5-4442-030CN | Controller PCA - 2 x 500-SHEET input tray controller PCA | Find 10 |
| 11 | C4780-69503 | Paper feed assembly - Vertical transfer unit - Transfers paper from pickup assembly up to the printer input - Use with 2x500 tray | Find 11 |
| 12 | C4780-69505 | Paper pickup - Moves paper from trays to feeder assembly | Find 12 |
| 13 | RB2-3669-000CN | Paper storage tray - Stores up to twenty pounds of paper | Find 13 |
| 14 | RB2-3667-000CN | Holder size PCA - Holder Size PCA - | Find 14 |
| 15 | RF5-2708-000CN | Pickup roller - Used in paper pickup assembly - 2 used | Find 15 |
| 16 | VD7-1893-151CN | Power supply fuse, 250V max - Power supply fuse | Find 16 |
| 17 | RB2-3666-000CN | Right side cabinet cover | Find 17 |
| 18 | RG5-4021-000CN | Universal power supply | Find 18 |
| 19 | RG5-4205-000CN | Cabinet stabilizer (outrigger) - With adjustable foot | Find 19 |
| 20 | XZ9-0442-000CN | Caster wheel - (Four used) | Find 20 |
| 21 | RG5-3909-000CN | Power supply cable - Between power supply and controller PCA | Find 21 |
| 22 | RG5-4441-000CN | Front LED PCA - LED status display board | Find 22 |
| 23 | RG5-4203-000CN | Outrigger adjustable foot - Adjusts up and down | Find 23 |
| 24 | R98-1007-000CN | Tray 4 assembly - Complete tray with identification label | Find 24 |
| 25 | R98-1006-000CN | Tray 5 assembly - Complete tray with identification label | Find 25 |
| 26 | RF5-2556-000CN | Positioning pin - Metal locating pins - Maintains proper alignment of printer and optional paper feeder | Find 26 |
| 27 | RF5-2766-000CN | Paper tray top cover - Includes label | Find 27 |
| 28 | RB2-3705-000CN | Latch spacer - Black plastic piece that latch engages | Find 28 |
| 29 | XZ9-0379-000CN | Door latch insert (Black) - Door latch (Black) - For front access door | Find 29 |

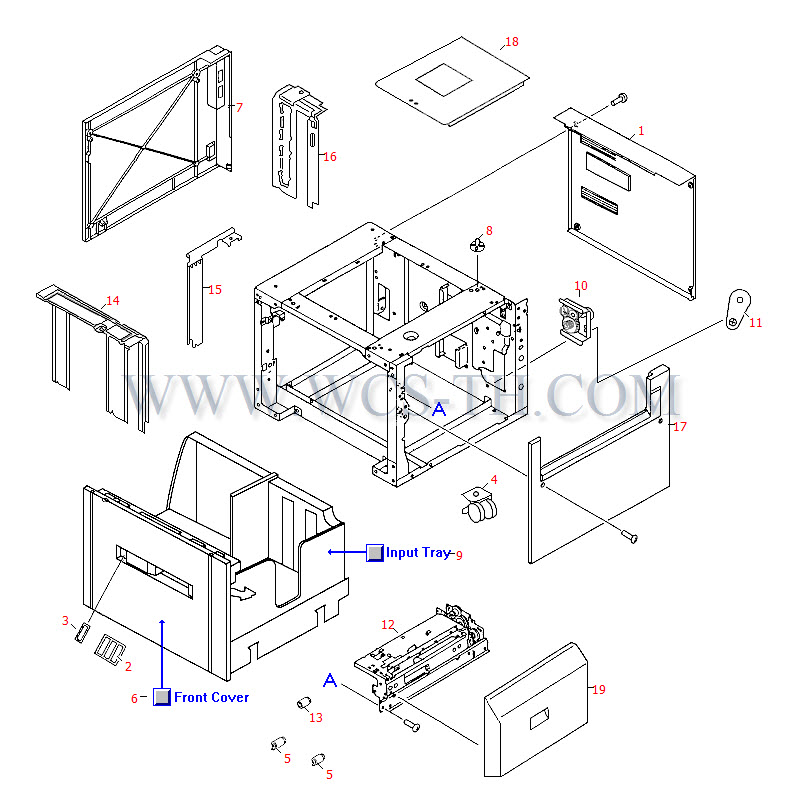

2000 Sheet Input Tray (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-2519-000CN | Back cover - Protects back of tray assembly | Find 1 |
| 2 | RB2-5342-000CN | 2000 sheet paper tray cassette size label - C4781A paper tray cassette size label - All three sizes | Find 2 |
| 3 | RB1-6894-000CN | Paper cassette size plate - Self adhesive label NOT included | Find 3 |
| 4 | XZ9-0442-000CN | Caster wheel - (Four used) | Find 4 |
| 5 | RF5-1834-000CN | Feed/separation roller - Has a blue gear on one end and blue release tab on the other - Mounts in the paper input unit assembly (four used) | Find 5 |
| 6 | RF5-2568-000CN | Front cover - Contains LED status display window | Find 6 |
| 7 | RF5-2646-000CN | Left cover - Left side cabinet cover | Find 7 |
| 8 | RF5-2556-000CN | Positioning pin - Metal locating pins - Maintains proper alignment of printer and optional paper feeder | Find 8 |
| 9 | C4781-69506 | 2000 sheet paper tray (Tray 4) - Paper holder cassette ONLY | Find 9 |
| 10 | RG5-3851-000CN | Paper deck drive assembly - Gear assembly that lifts the paper plate to the pickup roller | Find 10 |
| 11 | RS5-1399-000CN | Drive bushing - Paper deck drive assembly bushing | Find 11 |
| 12 | C4781-69505 | 2000 sheet paper tray paper pickup assembly - Not compatible with C3763A Input Tray - Mounted in upper right side of chassis | Find 12 |
| 13 | RF5-1835-000CN | Pickup roller assembly - Has attached Black plastic gear - Mounts in the 2000 sheet paper tray | Find 13 |
| 14 | RG5-4201-000CN | Rear paper limit plate - Back paper limit plate for 2000 sheet feeder | Find 14 |
| 15 | RG5-3849-000CN | Middle paper limit plate - Middle Paper Limit Plate - | Find 15 |
| 16 | RG5-3850-000CN | Front paper reference plate - Front paper limit plate for 2,000-sheet feeder | Find 16 |
| 17 | RB1-7832-020CN | 2000 sheet paper tray right side cover | Find 17 |
| 18 | RF5-2644-000CN | Paper tray top cover - Includes label | Find 18 |
| 19 | C4781-69510 | Paper feed assembly - Vertical transfer unit - Transfers paper from pick-up assembly up to the printer input - Use with 2000 sheet tray | Find 19 |

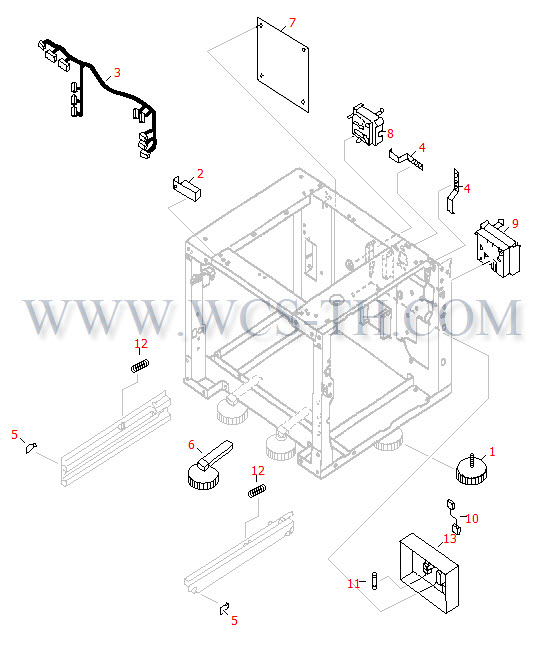

2000 Sheet Input Tray (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-4206-000CN | Adjustable foot - Threaded attachment for leveling | Find 1 |
| 2 | RG5-4204-000CN | LED display - Status display with holder and cable | Find 2 |
| 3 | RG5-3919-000CN | Main cable - Largest cable in C4781A | Find 3 |
| 4 | RB1-7835-000CN | Leaf spring - Retaining spring | Find 4 |
| 5 | RB1-7677-000CN | Retainer tab | Find 5 |
| 6 | RG5-4205-000CN | Cabinet stabilizer (outrigger) - With adjustable foot | Find 6 |
| 7 | RG5-3908-000CN | Paper deck PCA - Input tray controller PCA | Find 7 |
| 8 | RG5-2166-000CN | Sensor PCA - Paper quantity sensor PCA | Find 8 |
| 9 | RG5-2168-000CN | Sensor PCA - Paper size sensor PCA | Find 9 |
| 10 | RG5-3909-000CN | Power supply cable - Between power supply and controller PCA | Find 10 |
| 11 | VD7-1893-151CN | Power supply fuse, 250V max - Power supply fuse | Find 11 |
| 12 | RS5-2561-000CN | Tension spring | Find 12 |
| 13 | RG5-4021-000CN | Universal power supply | Find 13 |
7-bin Tabletop Mailbox
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG1-3838-000CN | Top cover assembly - Upper guide | Find 1 |
| 2 | RF1-4004-000CN | Front cover - Cover with release latch handle | Find 2 |
| 3 | RF1-4008-000CN | Back cover - For 7-bin table top mailbox | Find 3 |
| 4 | RH3-2205-000CN | Power supply PCA for 7-bin tabletop mailbox power supply | Find 4 |
| 5 | RG1-3853-060CN | Controller board - 7-bin tabletop mailbox controller PCA | Find 5 |
| 6 | RH7-5223-000CN | Reversing mechanism solenoid | Find 6 |
| 7 | RF1-4003-000CN | Reversing mechanism motor | Find 7 |
| 8 | RA2-2541-000CN | Motor cover - Reversing mechanism motor cover plate | Find 8 |
| 9 | RG1-3836-000CN | Face down bin assembly - One roller - | Find 9 |
| 10 | RG1-3837-000CN | Face down bin assembly - Two rollers - Even face-down bin assembly | Find 10 |
| 11 | RA2-2487-000CN | Reversing output tray (Face-up) - Reversing tray - Output tray - Face-up | Find 11 |
| 12 | RG1-3844-000CN | Diverter assembly - Flipper | Find 12 |
| 13 | RG1-3840-000CN | Right cover - Right side cover below the diverter assembly | Find 13 |
| 14 | RA2-2527-000CN | Stopper plate - Limits travel of right cover | Find 14 |
| 15 | RG1-3815-000CN | Sensor PCA - Empty bin sensor board | Find 15 |
| 16 | RG1-3814-000CN | Bin full and interlock sensor board | Find 16 |
| 17 | RA2-2408-000CN | Bottom bin tray | Find 17 |
| 18 | RA2-2512-000CN | Release handle - Latch lever handle | Find 18 |
| 19 | RA2-2531-000CN | Release latch handle cover | Find 19 |
| 20 | RF1-4005-000CN | Latch plate | Find 20 |
ADF Unit (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | PA03002-C245FJ | ADF latch spring - Holds tension on ADF release latch | Find 1 |
| 2 | PA03002-C233FJ | Drive roller bearing - Front drive roller bearing | Find 2 |
| 3 | PA03002-C227FJ | Optical unit tie down/hold-down bracket - Optical unit tie down - Optical unit hold-down bracket | Find 3 |
| 4 | PA03002-C230FJ | Drive roller shaft - Two used | Find 4 |
| 5 | PA03002-C240FJ | Pick spring - Provides pressure for separation pad | Find 5 |
| 6 | PA03002-C109FJ | ADF motor unit - Drives ADF rollers | Find 6 |
| 7 | PA03002-C126FJ | LED assembly - Status display with cable - Green LED that indicates when paper is correctly loaded in ADF | Find 7 |
| 8 | PA03002-C241FJ | Key washer | Find 8 |
| 9 | PA03002-C111FJ | ADF belt - Drives automatic document feeder rollers | Find 9 |
| 10 | PA03002-C265FJ | Drive roller bearing - Rear drive roller bearing | Find 10 |
| 11 | PA03002-C232FJ | Reduction cluster gear - Reduction gear - Cluster gear - Used with drive rollers and pickup roller assembly | Find 11 |
| 12 | PA03002-C231FJ | Drive roller gear - Drive roller gear - Attaches to drive roller | Find 12 |
| 13 | PA03002-C236FJ | Pad assembly frame - Supports separation pad assembly | Find 13 |
| 14 | PA03002-C235FJ | Sensor arm - Paper sensor arm for ADF | Find 14 |
| 15 | PA03002-C122FJ | Separation pad assembly | Find 15 |
| 16 | PA03002-C234FJ | Sensor arm - Detects leading edge of ADF paper input | Find 16 |
| 17 | PA03002-C228FJ | Sensor cable - Connects ADF sensors to copier control board | Find 17 |
| 18 | PA03002-C110FJ | Sensor assembly - Includes eight sensors, sensor cable and sensor mount assembly | Find 18 |
| 19 | PA03002-C246FJ | Paper antistatic brush assembly | Find 19 |
ADF Unit (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | PA03002-C232FJ | Reduction cluster gear - Reduction gear - Cluster gear - Used with drive rollers and pickup roller assembly | Find 1 |
| 2 | PA03002-C112FJ | Pickup roller assembly cover | Find 2 |
| 3 | PA03002-C248FJ | Rear ADF lift spring | Find 3 |
| 4 | PA03002-C247FJ | Front ADF lift spring | Find 4 |
| 5 | PA03002-C249FJ | Leaf spring - Idle roller leaf spring | Find 5 |
| 6 | PA03002-C120FJ | Pick roller assembly | Find 6 |
| 7 | PA03002-C269FJ | Pick roller brass bushings - Supports pickup roller | Find 7 |
| 8 | PA03002-C250FJ | Pickup roller clutch/gear assembly | Find 8 |
| 9 | PA03002-C123FJ | Paper guide / pick roller cover thumbscrew - Holds pick roller cover to assembly - Two used | Find 9 |
Carrier Unit
| Pic No. | Parts ID | Parts Name | Link |
| 1 | PA03002-C114FJ | Lower lamp - Front side of carrier unit | Find 1 |
| 2 | PA03002-C206FJ | Rail bushing - Carrier unit support bushing | Find 2 |
| 3 | PA03002-C256FJ | Carrier unit dust cover | Find 3 |
| 4 | PA03002-C259FJ | Lubrication applicator - Carrier unit rail lubricator | Find 4 |
| 5 | PA03002-C113FJ | Carrier unit assembly - Holds optical scanner for flatbed scanner portion of copier | Find 5 |
Covers and Doors
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5268-000CN | Control panel - Includes display | Find 1 |
| 2 | RB1-6490-000CN | Face-down output tray - At top of printer - Face-Down output tray - Mounted in top of printer | Find 2 |
| 3 | RB1-6509-000CN | Torsion spring - Helps support left output bin tray | Find 3 |
| 4 | RB1-6493-000CN | Compression spring - Center support for left output bin | Find 4 |
| 5 | RS5-8676-000CN | Operation label | Find 5 |
| 6 | RB2-3641-000CN | Hinge plate - Bottom half of top cover hinge | Find 6 |
| 7 | RB1-6491-000CN | Face-up output tray - At upper left side - Face-Up output tray - Mounted on upper left side | Find 7 |
| 8 | RB2-3558-000CN | Diverter door assembly - Upper door on left side of printer - Two struts are mounted to door | Find 8 |
| 9 | RF5-2701-060CN | Access door struts - Attached to each side of diverter door assembly - Access door struts - Attached to each side of diverter door assembly - Two used | Find 9 |
| 10 | RB1-6480-000CN | Lower Left Cover - Mounted below diverter door assembly | Find 10 |
| 11 | RB1-6492-000CN | Power switch cover - Has cutout for power switch | Find 11 |
| 12 | RB2-3626-000CN | Front access door - Duplexer jam removal access door | Find 12 |
| 13 | RG5-4362-000CN | Front cover - Front access door mounts to this cover | Find 13 |
| 14 | RG5-1915-040CN | Right door assembly - Door below paper tray 1 - Support strap attached to right side | Find 14 |
| 15 | RB1-6484-000CN | Support strap - Supports door when open - For lower right side door | Find 15 |
| 16 | RB2-3642-000CN | Right rear cover - Attaches to the sheet metal rear cover | Find 16 |
| 17 | RF5-1402-000CN | Rear cover - Sheet metal | Find 17 |
| 18 | RB1-6489-000CN | AC access cover - Has cut out for A/C power cord connection | Find 18 |
| 19 | RG5-4325-000CN | Diverter assembly - Diverts paper to duplexer assembly or face up tray or face down delivery assembly | Find 19 |
| 20 | RG5-4360-000CN | Top cover assembly - Does NOT include face up tray or control panel display | Find 20 |
| 21 | RB2-3636-000CN | Tray lock clip - At rear of top output tray - Tray lock clip - Plastic clip at rear of top output tray | Find 21 |
Delivery Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-1874-110CN | Face down delivery assembly - Feeds paper to top of printer | Find 1 |
| 2 | RH7-1289-000CN | Tubeaxial fan - (FM4) - Mounts on the rear of the face down delivery assembly | Find 2 |
| 3 | RB1-6693-020CN | Paper height lever - Senses when face-down tray is full | Find 3 |
| 4 | RB1-6692-000CN | Paper sensing lever - Senses paper in face down delivery assembly | Find 4 |
Diverter Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF9-1249-000CN | Diverter drive assembly - Four gear drive assembly - 20-tooth gear NOT included | Find 1 |

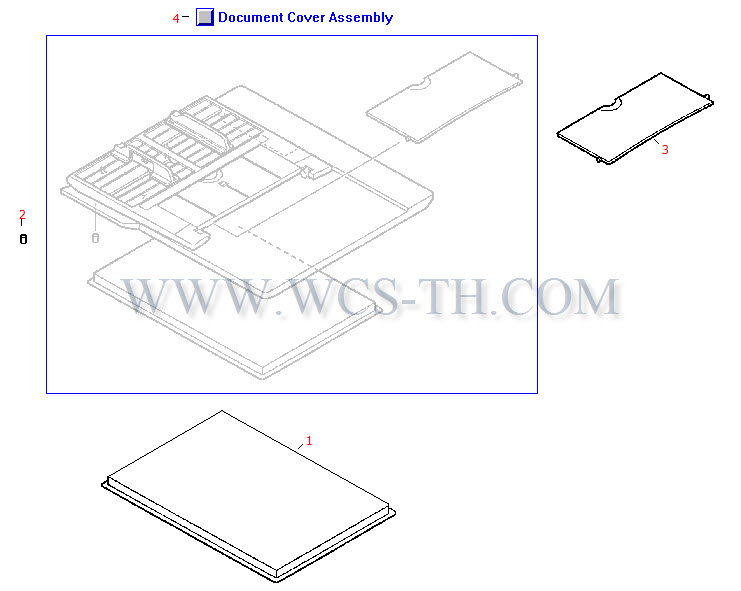

Document Cover Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | PA03002-C105FJ | Document holding pad - Foam piece on bottom of flatbed cover that holds document to copier glass | Find 1 |
| 2 | PA03002-C226FJ | Document cover rubber stop | Find 2 |
| 3 | PA03002-C260FJ | Paper chute flip out - Flip out paper tray extension | Find 3 |
| 4 | PA03002-C104FJ | Flatbed cover assembly - With paper chuter flip out and document holding pad | Find 4 |

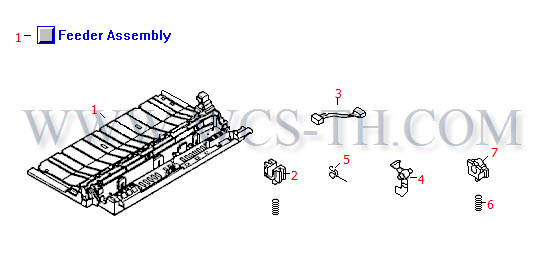

Feeder Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-4305-000CN | Feeder assembly - Transfer roller and registration assembly are mounted on this assembly - Mounted on upper right side of chassis | Find 1 |
| 2 | RB2-3503-000CN | Shaft holding block - Front registration roller support | Find 2 |
| 3 | RG5-1843-000CN | Paper sensor cable - J11 to J15 | Find 3 |
| 4 | RB1-6417-000CN | Registration paper sensor arm - Senses paper in registration assembly | Find 4 |
| 5 | RB1-6409-000CN | Sensor arm spring - Holds tension on paper feeder sensor arm | Find 5 |
| 6 | RS6-2073-000CN | Compression spring - Holds tension on rear support block | Find 6 |
| 7 | RB2-3504-000CN | Shaft holding block - Rear registration roller support | Find 7 |
Flatbed Parts
| Pic No. | Parts ID | Parts Name | Link |
| 1 | PA03002-C205FJ | Carrier rail - Carrier unit front support rail | Find 1 |
| 2 | PA03002-C116FJ | Carrier unit motor - Provides movement for carrier unit across flat bed - With drive belt | Find 2 |
| 3 | PA03002-C214FJ | Carrier tension pulley collar - Sleeve that carrier pulley tension spring slides over | Find 3 |
| 4 | PA03002-C212FJ | Carrier spring - Provides tension for carrier belt pulley | Find 4 |
| 5 | PA03002-C211FJ | Carrier tension pulley shaft - Carrier tension pulley shaft - Axle for carrier belt tension pulley | Find 5 |
| 6 | PA03002-C210FJ | Carrier tension pulley - Carrier belt idler pulley | Find 6 |
| 7 | PA03002-C213FJ | Carrier tension pulley spacer - (Two used) | Find 7 |
| 8 | PA03002-C209FJ | Idle roller coil spring - Provides tension for idle roller | Find 8 |
| 9 | PA03002-C218FJ | Rubber foot - Replacement rubber foot for the bottom of the printer (four used) | Find 9 |
| 10 | PA03002-C267FJ | Junction PCA cover - Protects junction PCA | Find 10 |
| 11 | PA03002-C262FJ | Ferrite core - Attaches to the carrier ribbon cable | Find 11 |
| 12 | PA03002-C125FJ | Front panel cable - Between front panel and junction PCA | Find 12 |
| 13 | PA03002-C270FJ | Front panel cable cover - Protects front panel cable | Find 13 |
| 14 | PA03002-C204FJ | Carrier flex cable - From carrier unit to junction PCA | Find 14 |
| 15 | PA03002-C207FJ | Home postion sensor - Senses when carrier unit is parked in the home position | Find 15 |
| 16 | PA03002-C208FJ | Frame ground spring | Find 16 |
Glass Plate and PCA Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | PA03002-C223FJ | Output tray bracket - Front ADF output tray mount | Find 1 |
| 2 | PA03002-C222FJ | Output tray bracket - Rear ADF output tray mount | Find 2 |
| 3 | PA03002-C224FJ | Exit idle roller | Find 3 |
| 4 | PA03002-C225FJ | V2 HK ring - Special application spacer | Find 4 |
| 5 | PA03002-C118FJ | PC board cooling fan assembly | Find 5 |
| 6 | PA03002-C203FJ | DC cable - From power supply to copier logic board | Find 6 |
| 7 | PA03002-C202FJ | RFI cover shield for PC boards - RFI Cover - RFI shield for PC Boards | Find 7 |
| 8 | PA03002-C229FJ | CCD cable - From control PCA to CCD PCA on optical unit | Find 8 |
| 9 | 8120-8749 | IEEE 1394 (FireWire) cable with two ferrites - 6-pin to 6-pin - 1.9m (6.3ft) long - Copy connect cable - Used between copier and printer | Find 9 |
| 10 | PA03002-C219FJ | Glass plate assembly - Copier flatbed glass, frame and lower ADF exit roller assembly | Find 10 |
Internal Components (1 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG9-1361-020CN | Transfer roller assembly - Includes transfer roller with attached gear only | Find 1 |
| 2 | RG9-1361-020CN | Transfer roller assembly - Includes transfer roller with attached gear only | Find 2 |
| 3 | RG9-1361-020CN | Transfer roller assembly - Includes transfer roller with attached gear only | Find 3 |
| 4 | RG9-1361-020CN | Transfer roller assembly - Includes transfer roller with attached gear only | Find 4 |
| 5 | RB1-6461-000CN | Damper holder - Front damper holder | Find 5 |
| 6 | RB1-6462-000CN | Damper holder - Rear damper holder | Find 6 |
| 7 | RG5-4386-000CN | Cable assembly - From DC controller board to main motor | Find 7 |
| 8 | RH7-5219-000CN | Main motor - Mounted on rear of chassis | Find 8 |
| 9 | RB2-3631-000CN | Clutch cover - Paper feed clutch cover | Find 9 |
| 10 | C4214-69017 | Paper pick-up assembly - Includes pick-up roller, feed and separation rollers - Picks up paper from upper and lower paper trays | Find 10 |
| 11 | C4265-69007 | Fusing assembly - For 220 VAC to 240 VAC operation - Bonds toner to paper with heat | Find 11 |
| 12 | RG5-4365-000CN | Main drive gear assembly - Driven by main motor - Mounted on rear of chassis | Find 12 |
| 13 | RG5-4303-030CN | Registration assembly - Set of rollers before toner cartridge and after feed rollers - Has green handle with the number 2 printed on it | Find 13 |
| 14 | RG5-4305-000CN | Feeder assembly - Transfer roller and registration assembly are mounted on this assembly - Mounted on upper right side of chassis | Find 14 |
| 15 | RG5-4330-000CN | Paper pickup assembly - For multipurpose/tray one paper input | Find 15 |
| 16 | RG5-4329-000CN | Multi-Purpose paper input tray (Tray 1) - Multipurpose Paper Input Tray (Tray 1) - Includes pull out extender tray | Find 16 |
| 17 | RG5-1874-110CN | Face down delivery assembly - Feeds paper to top of printer | Find 17 |
| 18 | RG5-1875-000CN | Face Up solenoid assembly - Face Up solenoid assembly - Mounted to rear of chassis | Find 18 |

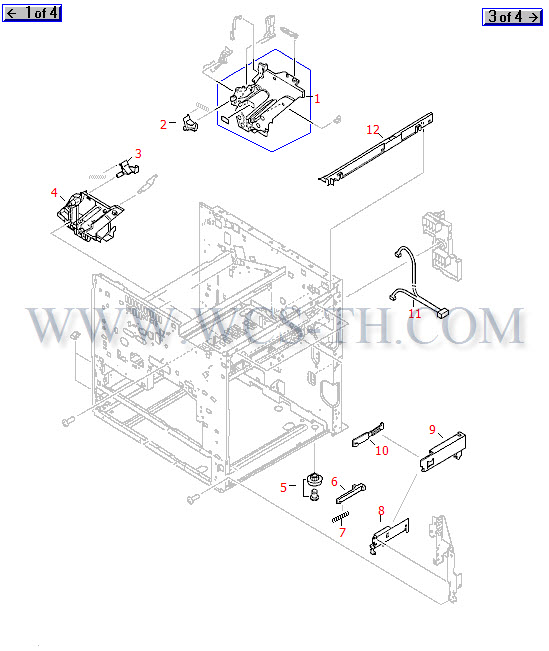

Internal Components (2 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-4364-000CN | Toner cartridge guide - Rear guide - Plastic piece with slot to guide toner cartridge | Find 1 |
| 2 | RB1-6446-000CN | Release arm - Toner cartridge release arm - Hook shaped cartridge holder - Toner cartridge release arm - Hook shaped cartridge holder - Right side toner cartridge guide slot | Find 2 |
| 3 | RB1-6444-000CN | Release arm - Front toner cartridge release arm - Hook shaped cartridge holder - Left side of toner cartridge guide slot | Find 3 |
| 4 | RB2-3622-000CN | Toner cartridge guide - Plastic piece with slot to guide toner cartridge | Find 4 |
| 5 | RB1-6421-000CN | Chassis foot - Support for right side of printer chassis - Two used | Find 5 |
| 6 | RB1-6778-000CN | Rod - Tray connector rod for springs | Find 6 |
| 7 | RS5-2499-000CN | Tension spring - Front spring on metal slide | Find 7 |
| 8 | RB1-6776-000CN | Tray rail guide (Spring loaded metal guide) - Support for tray 2 and 3 - Mounts on the right side of the internal chassis | Find 8 |
| 9 | RB1-6777-000CN | Right side tray rail - Channel that attaches to metal frame for tray two and three support | Find 9 |
| 10 | RB1-6783-000CN | Tray stop - Right side tray stopper - Attached to right rear side of Tray 2 and 3 - Blue plastic piece | Find 10 |
| 11 | RG5-1920-000CN | Cassette size sensor cable - Between cassette size sensor PCA and formatter board | Find 11 |
| 12 | RB1-6464-000CN | Upper right side cover - Above drop down tray 1 | Find 12 |

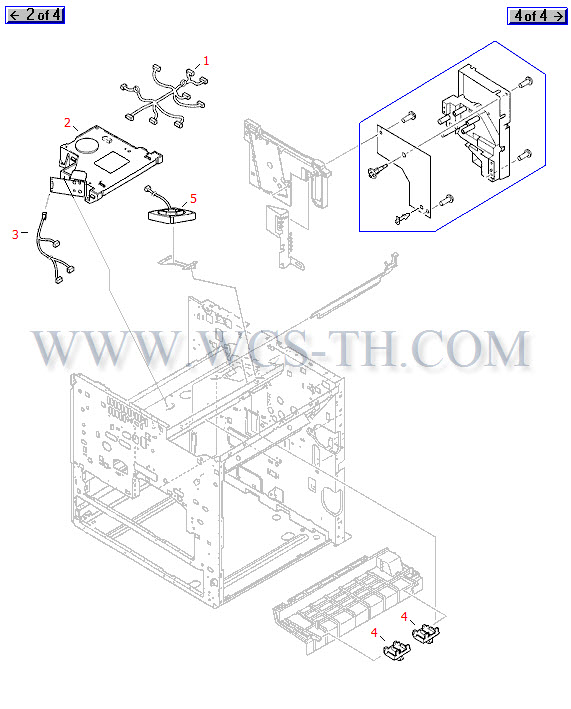

Internal Components (3 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-4378-000CN | Cable assembly with ferrites - Has many connectors: a 14-pin (F), an 11-pin (F), two 7-pin (F), a 5-pin (F), two 4-pin (F), and two 3-pin (F) - 85.6cm (33.7in) long - Scanner motor cable | Find 1 |
| 2 | RG5-4344-000CN | Laser/scanner assembly | Find 2 |
| 3 | RG5-4377-000CN | Cable assembly - An 11-pin (F) connector, a 10-pin (F) connector, and two 7-pin (F) connectors - 1.1m (3.7ft) long - Laser and control panel cable | Find 3 |
| 4 | RB1-6427-000CN | CG stopper - Toner cartridge guide stop - Holds toner cartridge in place | Find 4 |
| 5 | RH7-1396-000CN | Tubeaxial fan (low profile) - (FM1) - for the laser/scanner assembly power supply | Find 5 |
Internal Components (4 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB1-6771-000CN | PCA guide - Formatter board support guides | Find 1 |
| 2 | RF5-2678-000CN | Formatter board EMI shield - EMI shield - Formatter Board EMI protective cover | Find 2 |
| 3 | RB1-6775-000CN | Slide guide - Guide for formatter PCA | Find 3 |
| 4 | RF5-1464-000CN | Switch/sensor board plate - Shields switch/sensor PCA | Find 4 |
| 5 | C4265-69006 | Low voltage power supply 120 VAC, 60Hz - Includes power switch, AC receptacle and DC power supply | Find 5 |
| 5 | RG5-4301-040CN | Low voltage power supply - 240VAC, 50Hz - Includes power switch, AC receptacle and DC power supply | Find 5 |
| 6 | VD5-0066-301CN | Low voltage power supply fuse - For 110/120V operation | Find 6 |
| 6 | VD7-0646-301CN | Low voltage power supply fuse - For 220/240V operation | Find 6 |
| 7 | RG5-1928-000CN | Registration cable assembly - Includes 7P and 3P connectors | Find 7 |
| 7 | RG5-4306-050CN | High voltage power supply assembly | Find 7 |
| 8 | RG5-1850-000CN | Duplexer cable assembly - From duplexer to DC controller | Find 8 |
| 9 | RG5-4381-000CN | Cable assembly - 18-pin (F) connector to 25.4cm (10in) grounding wire with ring terminal, 35.7cm (14in) cable with 4-pin (F) connector, 53.3cm (21in) cable with 1-pin (F) connector, and 86.4cm (34in) cable with 4-pin (F) connector - Fuser cable 1 | Find 9 |
| 10 | RH7-1271-000CN | Tubeaxial fan - (FM3) - For the formatter board cooling - Mounts on the rear of the chassis | Find 10 |
| 11 | RG5-1921-000CN | Fan cable - Fan 3 power cable | Find 11 |
| 12 | RH7-1266-000CN | Tubeaxial fan - (FM2) - For the low voltage power supply | Find 12 |
Major Printer and Paper Handling Parts
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C4781A | HP LaserJet 8000, 8100, and 5Si Series Optional 2000 sheet paper tray (Tray 4) - Holds up to 2000 sheets of letter, legal, tabloid/ledger, A3, A4, B, or B4 size paper - Does NOT include paper handling controller board - Optional 2000 sheet paper tray (Tra | Find 1 |
| 2 | C4787A | 5-bin mail box with stapler - Holds 2100 sheets of paper used with 5Si family, Mopier and 8000 printers | Find 2 |
Multibin Mailbox (1 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C4787-69513 | Stapling unit - Includes top cover, bed assembly, and board | Find 1 |
| 2 | C4787-69515 | 5-bin mailbox - Used when stapler option is present | Find 2 |
| 3 | C4785-60515 | Status LED display - With cable | Find 3 |
| 4 | C4785-60511 | Fixed caster - Adjustable height caster | Find 4 |
| 5 | C4785-60516 | Attachment kit - Attachment rod, bracket and cables | Find 5 |
| 6 | C4785-60503 | Blind cover - Covers space trays and face-up bin - Home position cover for head assembly | Find 6 |
| 7 | C4785-60502 | Paper output bin | Find 7 |
| 8 | C3764-60505 | Face-up paper output bin | Find 8 |
| 9 | C4785-60504 | Front cover - Front side cover | Find 9 |
| 10 | C4785-60510 | Fixed caster - Non-adjustable height caster | Find 10 |
| 11 | C3764-60555 | Top cover - For Multi-Bin Mailbox | Find 11 |

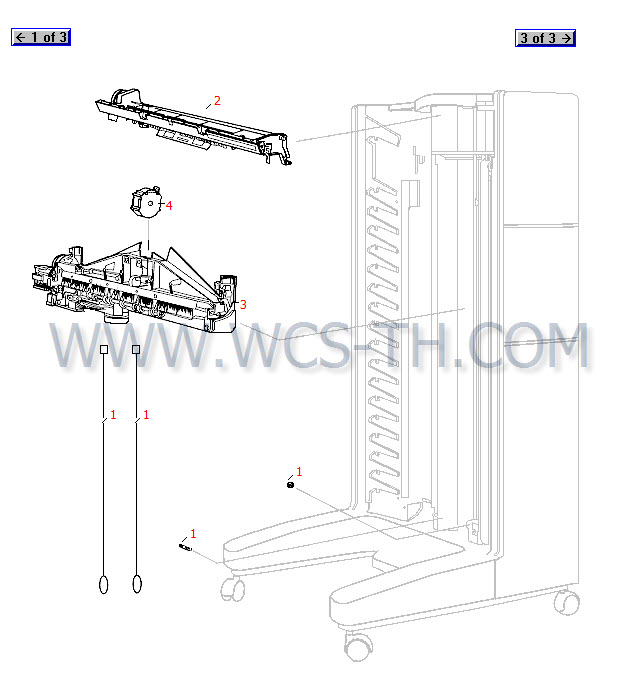

Multibin Mailbox (2 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C4785-60519 | Plastic kit - Contains two small bottom pullies, flat cable holder, three small and thirteen larger white plastic rollers | Find 1 |
| 2 | Q5693-67922 | Flipper assembly (with cable) - Moves paper from printer to face down mailbox tray or the face up bin on top - Includes firmware chip | Find 2 |
| 3 | C4785-60523 | Head assembly - Moves paper up and down the mailbox to the correct mailbox bin | Find 3 |
| 4 | C4785-60524 | Metallic tape and housing assembly - Guides and holds the paper against the transport belt (Wide tape version used with the single belt transport belt system) | Find 4 |

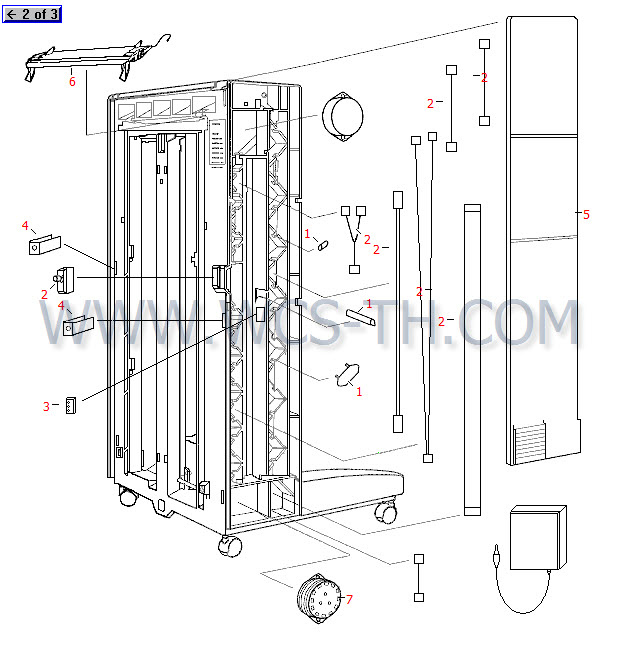

Multibin Mailbox (3 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C4785-60519 | Plastic kit - Contains two small bottom pullies, flat cable holder, three small and thirteen larger white plastic rollers | Find 1 |
| 2 | C4785-60520 | Cable kit - Includes interlock switch, head motor cable, flipper sensor, encoder, motor controller cables, ESD cable, and delivery head assembly flat cable | Find 2 |
| 3 | C4785-60514 | Diagnostic LED display board - With cable | Find 3 |
| 4 | C4785-60512 | Multibin mailbox attachment clip - Attachment clip - Attaches multibin mailbox to printer | Find 4 |
| 5 | C4785-60505 | Side cover - Back side cover | Find 5 |
| 6 | C3764-60561 | Paper input guide | Find 6 |
| 7 | C4785-60518 | Transport belt motor - Includes fan | Find 7 |
Optical Unit
| Pic No. | Parts ID | Parts Name | Link |
| 1 | PA03002-C115FJ | Upper lamp - Lamp in upper portion of ADF unit | Find 1 |
| 2 | PA03002-C252FJ | ADF unit lamp PCA - ADF Unit Lamp PCA - | Find 2 |
| 3 | PA03002-C108FJ | Automatic document feeder assembly | Find 3 |
| 4 | PA03002-C117FJ | Upper scanner portion of ADF unit - Scans page as it feeds through the ADF - Provides double sided copies | Find 4 |

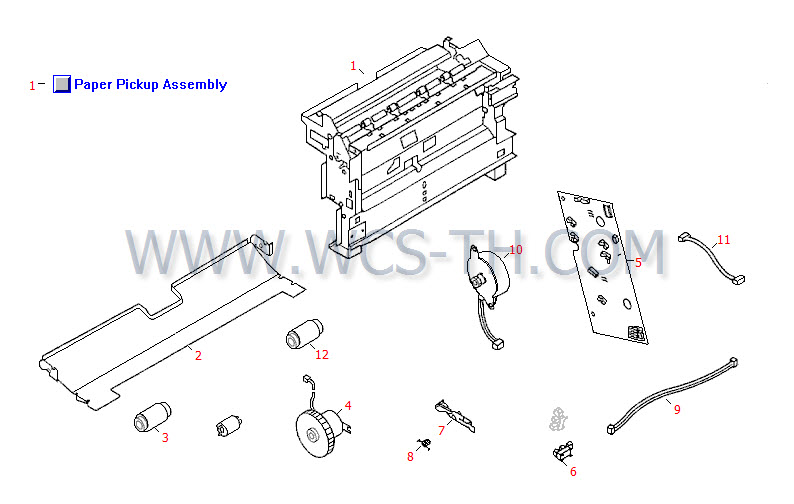

Paper Pickup Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C4214-69017 | Paper pick-up assembly - Includes pick-up roller, feed and separation rollers - Picks up paper from upper and lower paper trays | Find 1 |
| 2 | RB1-6582-020CN | Upper paper guide plate | Find 2 |
| 3 | RF5-2708-000CN | Pickup roller - Used in paper pickup assembly - 2 used | Find 3 |
| 4 | RH7-5204-000CN | Paper feed clutch - On right side of paper input unit | Find 4 |
| 5 | RG5-1860-000CN | Paper pickup board - Includes 8 photosensors - Paper Pickup Board - Includes 8 Photosensors - Mounted to Side of Paper Pickup Assembly | Find 5 |
| 6 | RY7-5080-000CN | Photo sensor kit - Includes photo sensors PS 1,3,5 and 6 - Photo sensor - For paper registration or paper pickup sensor - Two used | Find 6 |
| 7 | RB1-6557-020CN | Paper input unit sensor arm - Senses when paper passes through paper input unit | Find 7 |
| 8 | RB1-6558-020CN | Sensor arm torsion spring - Holds tension on PIU paper sensor arm | Find 8 |
| 9 | RG5-1859-000CN | Sensor cable - PIU PS2 sensor cable - J13 to J1205 | Find 9 |
| 10 | RH7-1350-000CN | Paper input motor - Drives rollers to pickup and feed paper from lower paper trays | Find 10 |
| 11 | RG5-1861-000CN | Cable assembly - 20-pin (F) connector on each end - 39.4cm (15.5in) long - Sensor cable - PIU paper sensor cable - J1201 to J219 | Find 11 |
| 12 | RF5-1834-000CN | Feed/separation roller - Has a blue gear on one end and blue release tab on the other - Mounts in the paper input unit assembly (four used) | Find 12 |
PCB Assembly Location
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-1846-000CN | Switch/sensor board - Includes face down tray sensors, fusing delivery sensor and door switch - Switch/Sensor Board - Includes Face Down Tray Sensors and, Fusing Delivery Sensor | Find 1 |
| 2 | C4214-69009 | DC controller board assembly | Find 2 |
| 3 | RG5-1884-000CN | Multipurpose paper tray board - Includes paper sensors PS1301 and PS1302 - Multipurpose Paper Tray Board - Mounted to Right Side of Pickup Assembly - Includes paper sensors PS1301 and PS1302 | Find 3 |
| 4 | RG5-1845-020CN | Paper size sensor board - Used to sense paper size in upper and lower paper trays - | Find 4 |
| 5 | RG5-1860-000CN | Paper pickup board - Includes 8 photosensors - Paper Pickup Board - Includes 8 Photosensors - Mounted to Side of Paper Pickup Assembly | Find 5 |
Stapler
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C3766-60501 | Stapling unit top cover | Find 1 |
| 2 | C3766-60503 | Stapling unit bed assembly - Includes sliders that move sheets of paper to stapling position | Find 2 |
| 3 | C4787-60514 | Stapling unit control board - Stapling Unit Control Board - Mounted Behind Back Plate | Find 3 |
| 4 | C3766-60506 | Stapling unit hinges - Set of 2 | Find 4 |
| 5 | C3766-60507 | Paper exit guide (Wire-form) - Mounts in the paper exit of the stapling unit | Find 5 |
| 6 | C3766-60508 | Stapling unit antistatic brush - Eliminates static charge on paper | Find 6 |
| 7 | C4787-60507 | Stapler unit C-link cable - Has two high density 15-pin (M) connectors - 91.4cm (36in) long - From multibin mailbox to stapler unit | Find 7 |
Tray 1 Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-4330-000CN | Paper pickup assembly - For multipurpose/tray one paper input | Find 1 |
| 2 | RH7-1397-000CN | Tubeaxial fan - (FM5) - Mounts in the tray 1 paper pickup assembly | Find 2 |
| 3 | RB1-9526-000CN | Pickup roller - Used in tray 1 paper pickup assembly | Find 3 |
| 4 | RF5-2703-000CN | Separation pad - Tray 1 separation pad | Find 4 |
