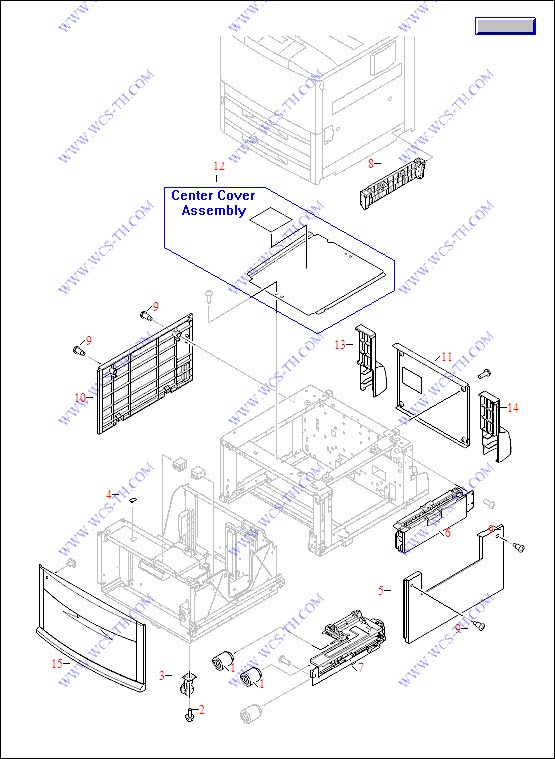

2000 Sheet Feeder (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RF5-3338-000CN | Feed separation pick-up roller - Rubber roller on a plastic collar with integrated gear and locking tab | Find 1 |
| 2 | XA9-1448-000CN | Screw - M4 X 8mm long | Find 2 |
| 2 | XA9-1300-000CN | Screw - M4 X 8mm long | Find 2 |
| 3 | RB2-7709-020CN | Caster | Find 3 |
| 3 | RB2-7709-000CN | Caster | Find 3 |
| 4 | RB2-7762-020CN | Paper size switching lever - To adjust paper size in tray (standard or custom size) | Find 4 |
| 5 | RB2-7649-000CN | Right cover for the 2,000-sheet paper feeder assembly | Find 5 |
| 6 | RG5-6225-070CN | Vertical registration assembly | Find 6 |
| 6 | RG5-6225-100CN | Vertical registration assembly | Find 6 |

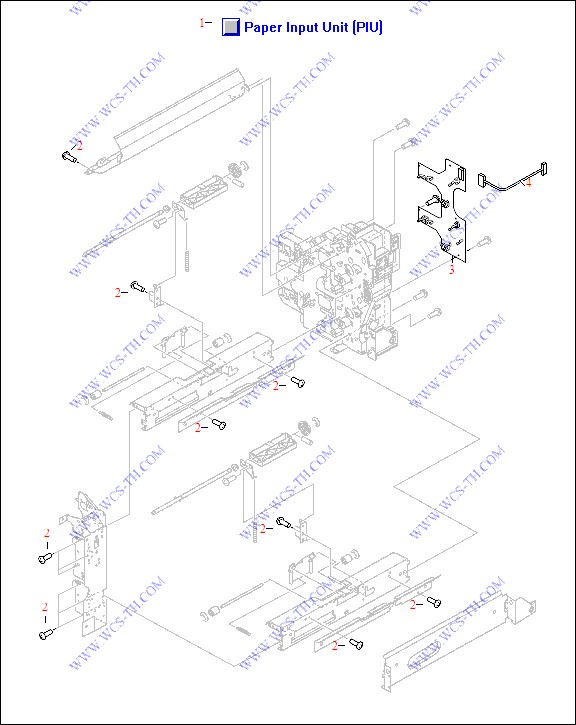

| 7 | RG5-6208-150CN | Paper Input Unit (PIU) | Find 7 |
| 7 | RG5-6208-180CN | Paper Input Unit (PIU) - For tray 4 | Find 7 |
| 8 | RG5-6227-000CN | Paper path connection assembly - Directs paper from the high capacity input assembly output to the vertical input path on the print engine | Find 8 |
| 8 | RG5-6227-040CN | Paper path connection assembly - Directs paper from the high capacity input assembly output to the vertical input path on the print engine | Find 8 |
| 9 | RS5-9099-000CN | Stepped screw - Larger shoulder screw used to fasten the left side cover to the frame of the 2,000-sheet paper feeder assembly (two used) | Find 9 |
| 10 | RF5-3645-000CN | Left cover for the 2,000-sheet paper feeder assembly | Find 10 |
| 11 | RF5-3644-000CN | Rear center cover for the 2,000-sheet paper feeder assembly | Find 11 |
| 11 | RF5-3644-020CN | Rear center cover for the 2,000-sheet paper feeder assembly | Find 11 |
| 12 | RB2-7652-000CN | Top cover for the 2,000-sheet paper feeder assembly | Find 12 |
| 13 | RB2-7651-000CN | Left rear cover for the 2,000-sheet paper feeder assembly | Find 13 |
| 14 | RB2-7650-000CN | Right rear cover for the 2,000-sheet paper feeder assembly | Find 14 |
| 15 | RB2-7648-040CN | Front cover for the 2,000-sheet paper feeder assembly | Find 15 |

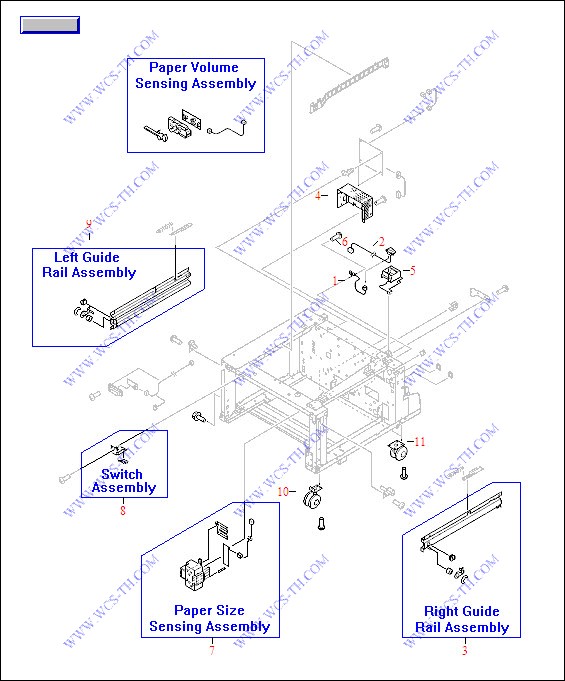

2000 Sheet Feeder (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-6249-000CN | Jetlink connector grounding cable | Find 1 |
| 2 | RG5-6240-020CN | Jetlink connector socket and cable | Find 2 |
| 2 | RG5-6240-000CN | Jetlink connector socket and cable | Find 2 |
| 3 | RG5-6204-000CN | Right rail guide | Find 3 |
| 4 | RG5-6250-000CN | Power supply assembly | Find 4 |
| 4 | RG5-6250-040CN | Power supply assembly | Find 4 |
| 5 | RB2-7662-000CN | Jetlink connector housing and cable holder assembly | Find 5 |
| 6 | XA9-0994-000CN | Screw - M4 x 6mm long | Find 6 |
| 7 | RG5-6207-060CN | Paper size sensing assembly | Find 7 |
| 7 | RG5-6229-040CN | Paper volume sensing assembly | Find 7 |
| 7 | RG5-6229-030CN | Paper volume sensing assembly | Find 7 |
| 7 | RG5-6207-040CN | Paper size sensing assembly | Find 7 |
| 8 | RG5-6206-030CN | Switch assembly - Custom/standard paper switch | Find 8 |
| 8 | RG5-6206-020CN | Switch assembly - Custom/standard paper switch | Find 8 |
| 9 | RG5-6205-000CN | Left rail guide | Find 9 |
| 10 | RB3-0304-050CN | Front swivel caster - Mounts on the bottom frame of the 2,000-sheet paper feeder assembly (two used) | Find 10 |
| 10 | RB3-0304-040CN | Front swivel caster - Mounts on the bottom frame of the 2,000-sheet paper feeder assembly (two used) | Find 10 |
| 11 | RB2-7678-020CN | Stationary rear caster - Mounts on the bottom frame of the 2,000-sheet paper feeder assembly (two used) | Find 11 |
| 11 | RB2-7678-030CN | Stationary rear caster - Mounts on the bottom frame of the 2,000-sheet paper feeder assembly (two used) | Find 11 |

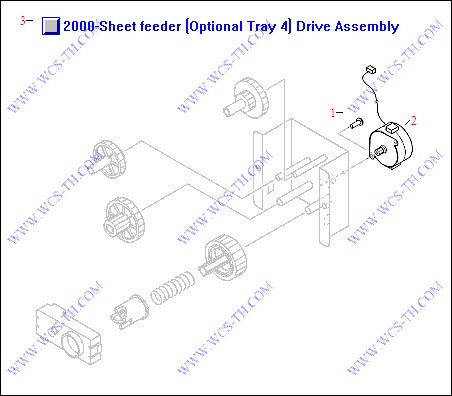

2000 Sheet Feeder Drive Assembly (Tray 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XB2-6300-607CN | Screw - M3 X 6mm long | Find 1 |
| 2 | RH7-1481-020CN | Deck drive motor (M303) only - Mounts in the 2,000-sheet paper feeder assembly | Find 2 |
| 2 | RH7-1481-000CN | Deck drive motor (M303) only - Mounts in the 2,000-sheet paper feeder assembly | Find 2 |
| 3 | RG5-6228-060CN | Feed drive assembly - Includes the drive motor (M303), support bracket, and the four drive gears - Mounts in the 2,000-sheet paper feeder assembly | Find 3 |
| 3 | RG5-6228-040CN | Feed drive assembly - Includes the drive motor (M303), support bracket, and the four drive gears - Mounts in the 2,000-sheet paper feeder assembly | Find 3 |

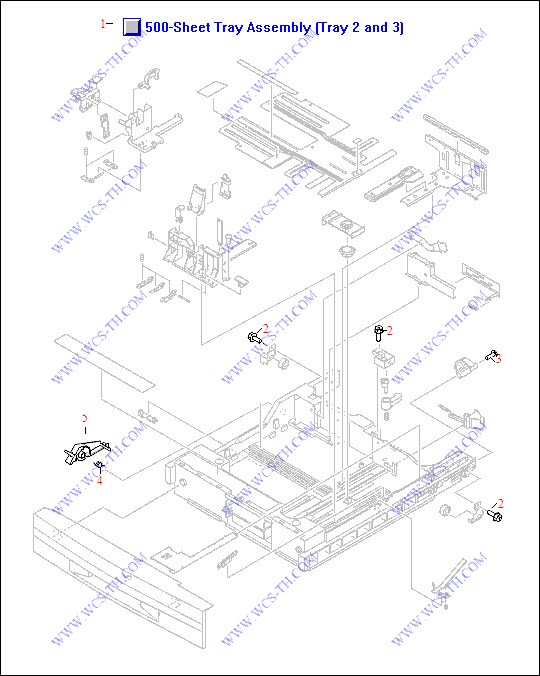

500 Sheet Tray Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5635-080CN | 500-sheet paper input tray assembly | Find 1 |
| 1 | RG5-5635-110CN | 500-sheet paper cassette - Paper cassette used for tray 2 and tray 3 | Find 1 |
| 2 | XB4-5401-009CN | Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal | Find 2 |
| 2 | XA9-1469-000CN | Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal | Find 2 |
| 2 | XA9-1189-000CN | Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal | Find 2 |
| 3 | XA9-1466-000CN | Machine screw with captured washer - M3 X 29.5mm long | Find 3 |
| 3 | XA9-0668-000CN | Machine screw with captured washer - M3 X 29.5mm long | Find 3 |
| 4 | RB2-5816-000CN | Torsion spring - Provides tension for paper selector switch | Find 4 |
| 5 | RB2-5813-000CN | Custom/standard media size selection switch lever - Mounts on the left side of the 500-sheet paper input tray | Find 5 |

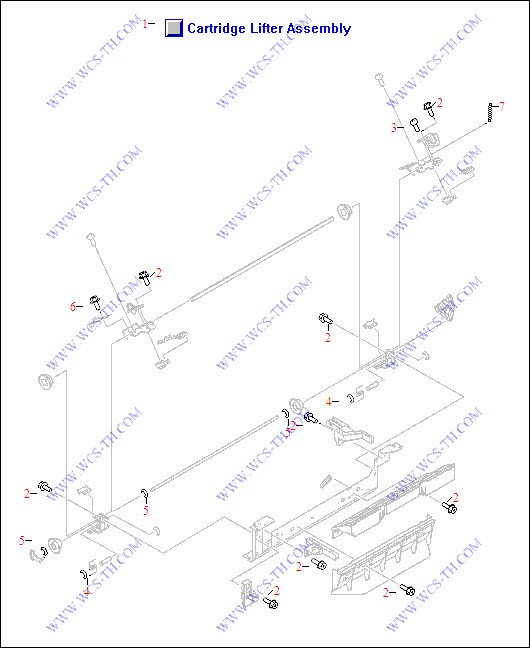

Cartridge Lifter Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5741-040CN | Cartridge lifter assembly | Find 1 |
| 1 | RG5-5741-020CN | Cartridge lifter assembly | Find 1 |
| 2 | XA9-1276-000CN | Wafer head machine screw, clear zinc, 3M X 8mm - Secures plastic to metal | Find 2 |
| 2 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 2 |
| 3 | XA9-0596-000CN | M3 X 6 screw | Find 3 |
| 4 | XD9-0134-000CN | E-ring retainer clip | Find 4 |
| 4 | XD2-1100-322CN | E-ring retainer clip | Find 4 |
| 5 | XD9-0136-000CN | Retaining E-ring | Find 5 |
| 5 | XD9-0233-000CN | Retaining E-ring | Find 5 |
| 6 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 6 |
| 6 | XA9-1275-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 6 |
| 7 | RS6-2298-020CN | Tension spring | Find 7 |

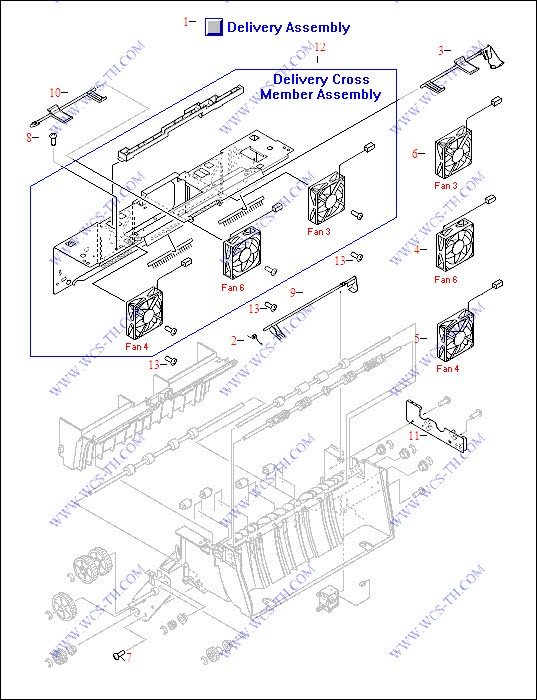

Delivery Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5643-030CN | Delivery assembly - Includes the curved plastic structure, various rollers and gears, and the |L| shaped metal support structure with three fans | Find 1 |
| 1 | RG5-5643-080CN | Delivery assembly - Includes the curved plastic structure, various rollers and gears, and the |L| shaped metal support structure with three fans | Find 1 |
| 1 | RG5-5643-060CN | Delivery assembly - Includes the curved plastic structure, various rollers and gears, and the |L| shaped metal support structure with three fans | Find 1 |
| 2 | RB2-6042-000CN | Torsion spring - Provides tension for bin full flag | Find 2 |
| 3 | RB2-6036-000CN | Sensor flag - Short rod with two flat flags and a curved end flag | Find 3 |
| 4 | RH7-5297-000CN | Tubeaxial fan | Find 4 |
| 4 | RH7-1659-000CN | Tubeaxial fan | Find 4 |
| 5 | RH7-5297-000CN | Tubeaxial fan | Find 5 |
| 5 | RH7-1659-000CN | Tubeaxial fan | Find 5 |
| 6 | RH7-5296-000CN | Tubeaxial fan | Find 6 |
| 7 | XA9-1276-000CN | Wafer head machine screw, clear zinc, 3M X 8mm - Secures plastic to metal | Find 7 |
| 5 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 5 |
| 8 | XA9-1189-000CN | Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal | Find 8 |
| 8 | XA9-1469-000CN | Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal | Find 8 |
| 8 | XB4-5401-009CN | Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal | Find 8 |
| 9 | RB2-6035-000CN | Sensor flag - Long rod with forked flag toward one end and curved flag at the other | Find 9 |
| 10 | RB2-6037-000CN | Sensor flag - Short rod with two flags on it | Find 10 |
| 11 | RG5-5649-000CN | Delivery assembly PC board | Find 11 |
| 11 | RG5-8013-000CN | Delivery assembly PC board | Find 11 |
| 12 | RG5-5645-000CN | Delivery cross member assembly - Includes the |L| shaped support bracket with the rear delivery fan (Fan 3), front delivery fan (Fan 4), and face down tray fan (Fan 6) | Find 12 |
| 12 | RG5-5645-020CN | Delivery cross member assembly - Includes the |L| shaped support bracket with the rear delivery fan (fan 3), front delivery fan (fan 4), and face down tray fan (fan 6) | Find 12 |
| 13 | XB6-7303-005CN | Machine screw - M3, 30mm long with self-tapping threads - Typically used to hold metal to plastic | Find 13 |

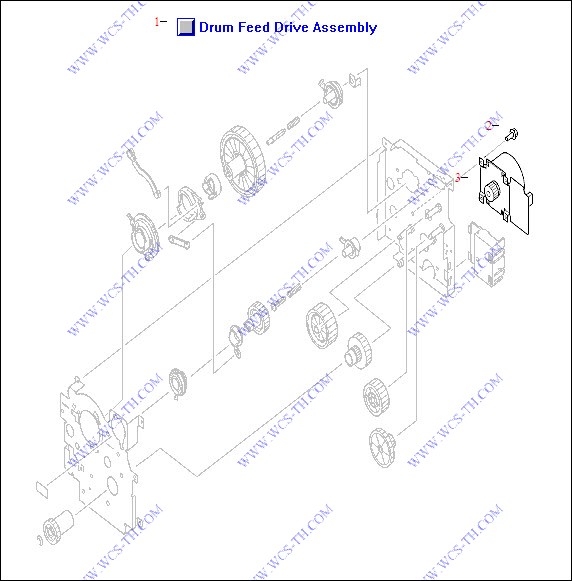

Drum Feed Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5656-060CN | Drum feed drive assembly | Find 1 |
| 1 | RG5-5656-080CN | Drum feed drive assembly | Find 1 |
| 2 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 2 |
| 2 | XA9-1275-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 2 |
| 3 | RH7-5287-000CN | Drum feed drive motor | Find 3 |
| 3 | RH7-1656-000CN | Drum feed drive motor | Find 3 |

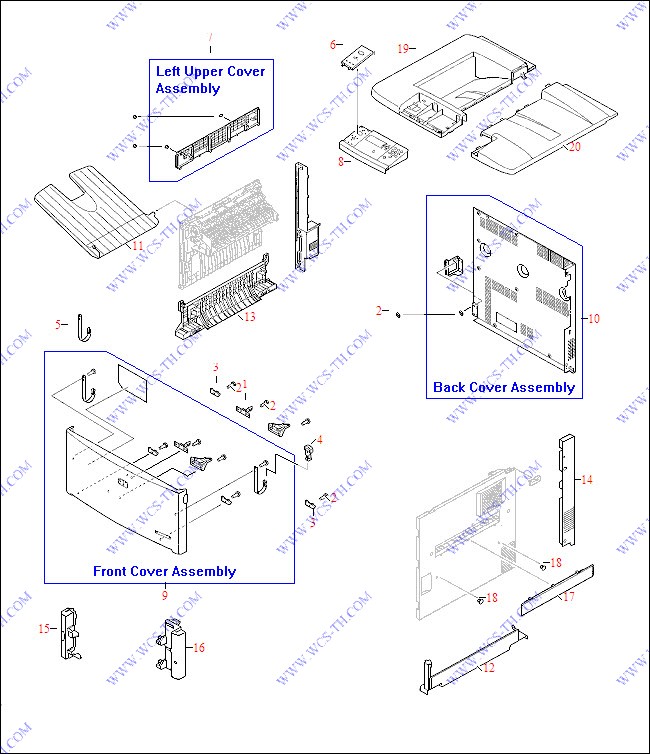

External Covers and Panels
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-5700-000CN | Front cover latch - Roller latch that holds front cover | Find 1 |
| 2 | XA9-0135-000CN | Push nut retainer | Find 2 |
| 3 | RB2-5652-000CN | Cover hinge - Half of hinge that attaches to front cover | Find 3 |
| 4 | RB2-5655-000CN | Retaining clip | Find 4 |
| 5 | RB2-5653-000CN | Restraining strap | Find 5 |
| 6 | RB3-1349-000CN | Control panel overlay - For 110V application | Find 6 |
| 6 | RB2-5701-000CN | Control panel overlay - For 110V application | Find 6 |
| 6 | RB2-5703-000CN | Control panel overlay - For 220V application | Find 6 |
| 7 | RG5-5705-030CN | Left upper cover - Small cover above left door | Find 7 |
| 7 | RG5-5705-000CN | Left upper cover - Small cover above left door | Find 7 |
| 8 | RG5-8012-000CN | Control Panel - Includes display | Find 8 |
| 8 | RG5-5703-060CN | Control Panel - Includes display | Find 8 |
| 9 | RG5-5702-000CN | Front cover assembly - Large door above trays 2 and 3 | Find 9 |
| 9 | RG5-5702-050CN | Front cover assembly - Large door above trays 2 and 3 | Find 9 |
| 10 | RG5-5701-000CN | Rear cover assembly | Find 10 |
| 11 | RB2-5690-000CN | Face up paper output tray | Find 11 |
| 12 | RB2-5689-000CN | Lower right cover - Small plastic piece below right door assembly | Find 12 |
| 13 | RB2-5687-000CN | Lower left cover - Smaller plastic piece below left door and diverter assembly | Find 13 |
| 14 | RB2-5684-000CN | Right rear cover - small cover strip on rear side of right cover assembly | Find 14 |
| 15 | RB2-5683-000CN | Lower left front corner cover for tray 2 and 3 - Does not include power button | Find 15 |
| 16 | RB2-5682-000CN | Lower right front corner cover for tray 2 and 3 | Find 16 |
| 17 | RB2-5676-000CN | Tray 1 blanking cover | Find 17 |
| 18 | RB2-5675-000CN | Right cover cap | Find 18 |
| 19 | RB2-5660-000CN | Top left cover - Face down paper output cover - Located on the left side portion of the top cover | Find 19 |
| 20 | RB2-5659-000CN | Top right cover - Located on the right side portion of the top cover | Find 20 |

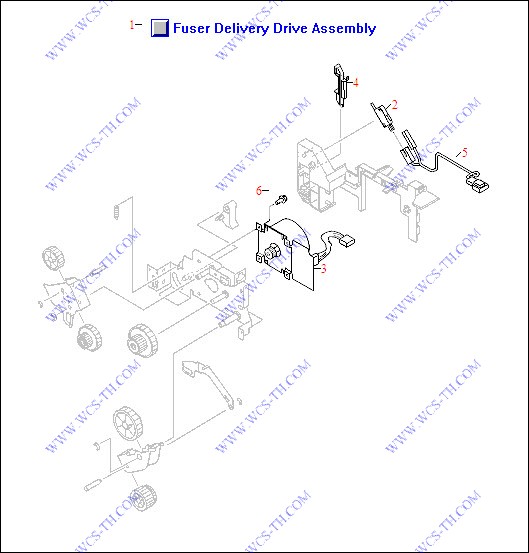

Fuser Drive Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5659-000CN | Fuser delivery drive assembly - Includes gears, motor and microswitch for fuser drive - Also drives delivery roller | Find 1 |
| 1 | RG5-5659-070CN | Fuser delivery drive assembly - Includes gears, motor and microswitch for fuser drive - Also drives delivery roller | Find 1 |
| 2 | WC4-5171-000CN | Fuser delivery drive assembly microswitch | Find 2 |
| 2 | WC4-5136-000CN | Black toner cartridge switch - Detects when black cartridge is in correct position | Find 2 |
| 3 | RH7-5288-000CN | Fuser delivery motor - 24VDC | Find 3 |
| 4 | RB2-6077-000CN | Microswitch lever - Activates interlock switches from both the front and left doors | Find 4 |
| 5 | RG5-5770-000CN | Cable assembly | Find 5 |
| 6 | XA9-1275-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 6 |
| 6 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 6 |

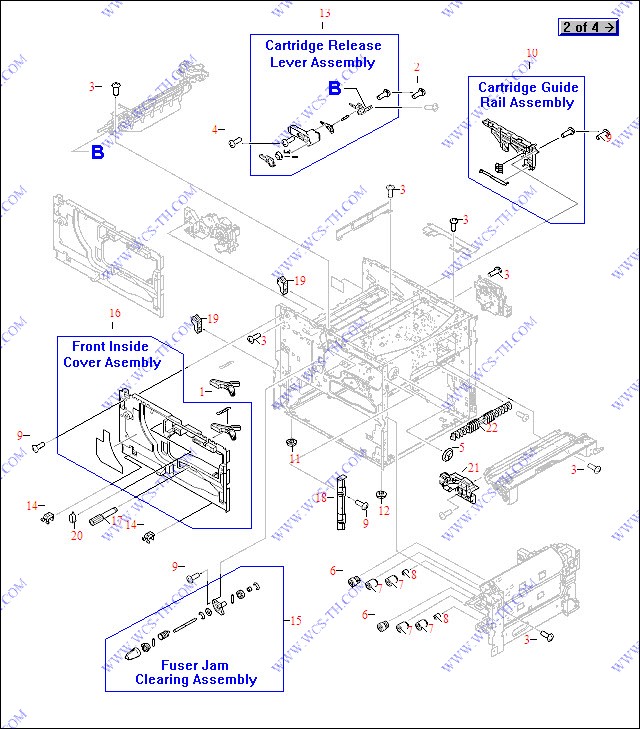

Internal Components (1 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RB2-5528-000CN | Connector link - Door ajar flag | Find 1 |
| 2 | XB6-7300-605CN | TP Screw - Pan/washer head machine screw - M3X6 | Find 2 |
| 3 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 3 |
| 3 | XA9-1275-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 3 |
| 4 | XB6-7300-805CN | TP Screw - Pan/washer head machine screw - M3X8 | Find 4 |
| 5 | RB2-5547-000CN | Left side alignment latch for front door | Find 5 |
| 6 | RF5-3340-000CN | Paper pick-up and feed roller assembly - Rubber roller with drive gear | Find 6 |
| 7 | RF5-3338-000CN | Feed separation pick-up roller - Rubber roller on a plastic collar with integrated gear and locking tab | Find 7 |
| 8 | RB2-5759-000CN | Torque limiter | Find 8 |
| 9 | XA9-1276-000CN | Wafer head machine screw, clear zinc, 3M X 8mm - Secures plastic to metal | Find 9 |
| 9 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 9 |
| 10 | RG5-5718-000CN | Cartridge guide rail - Right side toner cartridge guide rail | Find 10 |
| 11 | RB2-5529-000CN | Chassis foot - Support for left side of printer chassis - Two used | Find 11 |
| 12 | RB1-6421-000CN | Chassis foot - Support for right side of printer chassis - Two used | Find 12 |
| 13 | RG5-5746-030CN | Cartridge release lever assembly | Find 13 |
| 13 | RG5-5746-000CN | Cartridge release lever assembly | Find 13 |
| 14 | RB2-5654-000CN | Front cover hinge | Find 14 |
| 15 | RG5-5700-000CN | Fuser jam removal knob | Find 15 |
| 15 | RG5-5700-030CN | Fuser jam removal knob | Find 15 |
| 16 | RG5-5721-000CN | Front inside cover - Cover behind front drop down cover | Find 16 |
| 17 | RB2-5845-000CN | Jam removal knob | Find 17 |
| 18 | RB2-5697-000CN | Right front inside corner cover | Find 18 |
| 19 | RB2-5570-020CN | Door dampener hinge mount - Left side/fuser door dampener mount (two used) | Find 19 |
| 20 | RB2-5531-000CN | Blanking cover - Located behind the cartridge release lever | Find 20 |
| 21 | RB2-5526-000CN | Cartridge guide - Plastic structure with cartridge guide slot molded into it - Mounts on the upper front side of the registration assembly | Find 21 |
| 22 | RB2-5522-000CN | Paper pickup guide - Plastic shaft with several fins on it - Mounts on the upper right side of the print engine frame assembly | Find 22 |
Internal Components (2 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RS6-2296-000CN | Laser shutter spring - Provides tension for laser shutter | Find 1 |
| 2 | RB2-5640-000CN | Laser shutter - Cartridge shutter actuator - Piece that opens cartridge shutter as it is inserted into the printer | Find 2 |
| 3 | RB2-5639-000CN | Shutter arm | Find 3 |
| 4 | RS6-2299-000CN | Shutter arm spring - Provides tension for shutter arm | Find 4 |
| 5 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 5 |
| 5 | XA9-1276-000CN | Wafer head machine screw, clear zinc, 3M X 8mm - Secures plastic to metal | Find 5 |
| 6 | RG5-5717-000CN | Toner cartridge contact assembly | Find 6 |
| 6 | RG5-5717-020CN | Toner cartridge contact assembly | Find 6 |
| 7 | C8519-69033 | Fusing Assembly - For 100 VAC to 127 VAC - Bonds toner to paper with heat | Find 7 |
| 7 | RG5-5750-240CN | Fusing Assembly - For 100 VAC to 127 VAC - Bonds toner to paper with heat | Find 7 |
| 7 | C8519-69034 | Fusing Assembly - Bonds toner to paper with heat - For 220-240V | Find 7 |
| 7 | C8519-69031 | Fusing Assembly - Bonds toner to paper with heat - For 100V to 127V Operation | Find 7 |
| 7 | C8519-69036 | Fusing Assembly - For 220 VAC to 240 VAC - Bonds toner to paper with heat | Find 7 |
| 8 | XA9-1275-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 8 |
| 8 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 8 |
| 9 | RG5-5651-030CN | Transfer guide assembly (Ribbed plastic piece) - Has slot for the transfer roller assembly | Find 9 |
| 9 | RG5-5651-000CN | Transfer guide assembly (Ribbed plastic piece) - Has slot for the transfer roller assembly | Find 9 |
| 10 | RG5-8034-000CN | Fusing assembly high voltage cable and connectors | Find 10 |
| 10 | RG5-5772-000CN | Fusing assembly high voltage cable and connectors | Find 10 |
| 11 | RS5-0708-000CN | 21-tooth gear | Find 11 |
| 12 | RG5-8025-000CN | Cable assembly - Fuser power cable | Find 12 |
| 12 | RG5-5771-000CN | Cable assembly | Find 12 |
| 13 | RG5-5724-020CN | Fuser connector holder assembly | Find 13 |
| 13 | RG5-5724-050CN | Fuser connector holder assembly | Find 13 |
| 14 | XA9-1275-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 14 |
| 14 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 14 |
| 15 | RB2-5523-000CN | Fuser electrical contact leaf spring | Find 15 |
| 16 | RB2-5518-000CN | Rear fusing assembly mount | Find 16 |
| 16 | RB2-5518-020CN | Rear fusing assembly mount | Find 16 |
| 17 | RB2-5516-000CN | Rear fusing rail | Find 17 |
| 18 | RB2-5515-000CN | Front fusing rail | Find 18 |
| 19 | RB2-5517-000CN | Front fusing assembly mount | Find 19 |
| 19 | RB2-5517-020CN | Front fusing assembly mount | Find 19 |

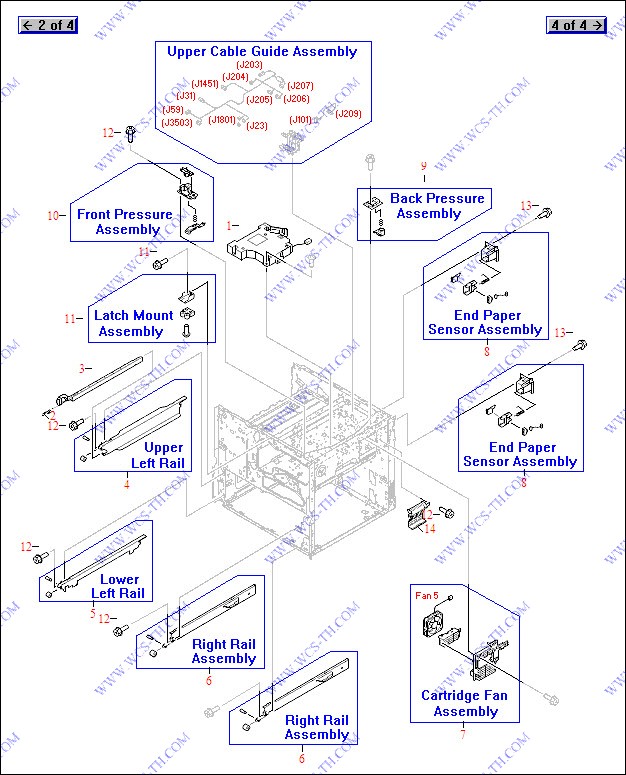

Internal Components (3 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5826-000CN | Laser/Scanner assembly - Mounts on the support structue in the print engine frame assembly | Find 1 |
| 1 | RG5-5826-090CN | Laser/Scanner assembly - Mounts on the support structure in the print engine frame assembly | Find 1 |
| 2 | RS6-2302-000CN | Compression spring - Provides tension for ON/OFF switch | Find 2 |
| 3 | RB2-5661-000CN | ON/OFF switch push rod | Find 3 |
| 4 | RG5-5713-000CN | Left upper rail assembly | Find 4 |
| 4 | RG5-5713-020CN | Left upper rail assembly | Find 4 |
| 5 | RG5-5714-020CN | Left lower rail assembly | Find 5 |
| 5 | RG5-5714-000CN | Left lower rail assembly | Find 5 |
| 6 | RG5-5715-000CN | Right rail assembly | Find 6 |
| 6 | RG5-5715-030CN | Right rail assembly | Find 6 |
| 7 | RG5-5729-000CN | Tubeaxial fan | Find 7 |
| 8 | RG5-5699-040CN | End paper sensor assembly - Contains Tray 2 and 3 paper length detection switches | Find 8 |
| 8 | RG5-5699-000CN | End paper sensor assembly - Contains Tray 2 and 3 paper length detection switches | Find 8 |
| 9 | RG5-5723-000CN | Upper cable guide assembly | Find 9 |
| 10 | RG5-5709-000CN | Front pressure mount for toner cartridge | Find 10 |
| 11 | RG5-5704-000CN | Latch mount assembly | Find 11 |
| 11 | RG5-5704-040CN | Latch mount assembly | Find 11 |
| 12 | XA9-1276-000CN | Wafer head machine screw, clear zinc, 3M X 8mm - Secures plastic to metal | Find 12 |
| 12 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 12 |
| 13 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 13 |
| 13 | XA9-1275-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 13 |
| 13 | XA9-1276-000CN | Wafer head machine screw, clear zinc, 3M X 8mm - Secures plastic to metal | Find 13 |
| 13 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 13 |
| 14 | RB2-5607-020CN | Fan cover - Metal cover for fan #5 - Cartridge fan cover | Find 14 |
| 14 | RB2-5607-000CN | Fan cover - Metal cover for fan #5 - Cartridge fan cover | Find 14 |
Internal Components (4 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XA9-1276-000CN | Wafer head machine screw, clear zinc, 3M X 8mm - Secures plastic to metal | Find 1 |
| 1 | XA9-1500-000CN | M3 pan-head Phillips screw with flat washer - 8mm long | Find 1 |
| 2 | RG5-5727-000CN | A/C power input receptacle module and power switch | Find 2 |
| 2 | RG5-5727-030CN | A/C power input receptacle module and power switch | Find 2 |
| 3 | XA9-1275-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 3 |
| 3 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 3 |
| 4 | RG5-5722-000CN | Main cable harness and holder assembly | Find 4 |
| 4 | RG5-5722-030CN | Main cable harness and holder assembly | Find 4 |
| 5 | XA9-1200-000CN | M3 X 8 Screw | Find 5 |
| 5 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 5 |
| 6 | RH7-1657-000CN | Tubeaxial fan (fan 1) - Provides air to the power supply | Find 6 |
| 6 | RH7-5294-000CN | Tubeaxial fan | Find 6 |
| 7 | RG5-5759-000CN | Fan connecting cable - For both Fan 1 and 2 | Find 7 |
| 8 | RG5-5725-030CN | Fan control cable - Includes cable and holder - On back of printer routes cable around DC controller PC board | Find 8 |
| 9 | XA9-1200-000CN | M3 X 8 Screw | Find 9 |
| 9 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 9 |
| 10 | RG5-5779-030CN | Jetlink connector - Connector between tray 4 and printer engine | Find 10 |
| 10 | RG5-5779-000CN | Jetlink connector - Connector between Tray 4 and printer engine | Find 10 |
| 11 | VD5-0246-301CN | Low voltage power supply fuse - 110V | Find 11 |
| 11 | VD7-0643-151CN | Fuse - 3.15A, 250V max | Find 11 |
| 12 | C8519-69015 | High voltage power supply board - Mounts on the upper rear of the printer | Find 12 |
| 13 | RH2-5445-000CN | High voltage power supply ribbon cable | Find 13 |
| 14 | RH7-5295-000CN | Controller board tubeaxial fan | Find 14 |
| 15 | RG5-5719-100CN | Memory controller PC Board - Toner cartridge | Find 15 |
| 15 | RG5-5719-000CN | Memory controller PC Board - Toner cartridge | Find 15 |
| 17 | RG5-5731-000CN | Low voltage power supply - 220V | Find 17 |
| 17 | C8519-69008 | Low voltage power supply - 220V | Find 17 |
Left Door and Diverter
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5646-050CN | Left door assembly | Find 1 |
| 1 | RG5-5646-070CN | Left door and diverter assembly | Find 1 |
| 2 | XA9-1469-000CN | Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal | Find 2 |
| 2 | XB4-5401-009CN | Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal | Find 2 |
| 2 | XA9-1189-000CN | Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal | Find 2 |
| 3 | RG5-5648-020CN | Left door damper assembly | Find 3 |
| 3 | RG5-5648-000CN | Left door damper assembly | Find 3 |
| 4 | RG5-5647-070CN | Face-up delivery assembly | Find 4 |
| 4 | RG5-5647-050CN | Face-up delivery assembly | Find 4 |
| 5 | RB2-6007-000CN | Left side door - Left cover that diverter assembly attaches to | Find 5 |

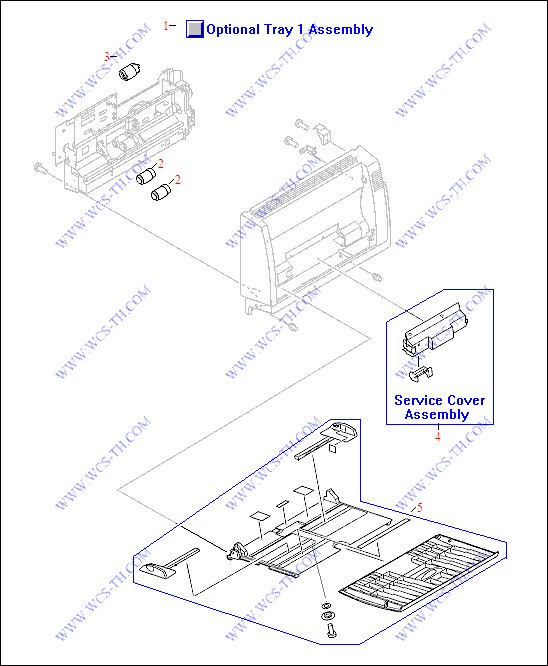

Optional Tray 1 Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | C8568-69002 | Optional Tray 1 assembly - Complete Tray 1 assembly including rollers and mechanical drives | Find 1 |
| 1 | C8568-67902 | Optional Tray 1 assembly - Complete Tray 1 assembly including rollers and mechanical drives | Find 1 |
| 2 | RF5-3404-000CN | Separation roller - For tray 1 assembly | Find 2 |
| 3 | RF5-3403-000CN | Pick-up roller for optional tray 1 | Find 3 |
| 4 | RG5-5811-040CN | Service cover assembly - Cover for pickup and separation rollers | Find 4 |
| 5 | RG5-5809-060CN | Multi-purpose/tray 1 - Optional tray 1 drop down paper input tray assembly - Includes drop down flip output tray and paper width guides | Find 5 |
| 5 | RG5-5809-000CN | Multi-purpose Tray - Optional Tray 1 drop down paper input tray assembly only - Includes drop down flip out tray and paper width guides | Find 5 |
Paper Input Unit (PIU)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5681-030CN | Paper pickup assembly | Find 1 |
| 1 | RG5-5681-090CN | Paper input unit - Entire assembly | Find 1 |
| 2 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 2 |
| 2 | XA9-1275-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 2 |
| 3 | RG5-7896-000CN | Paper pickup board | Find 3 |
| 3 | RG5-5678-000CN | Paper pickup board | Find 3 |
| 4 | RG5-8021-000CN | Cable assembly | Find 4 |
| 4 | RG5-5679-000CN | Cable assembly | Find 4 |

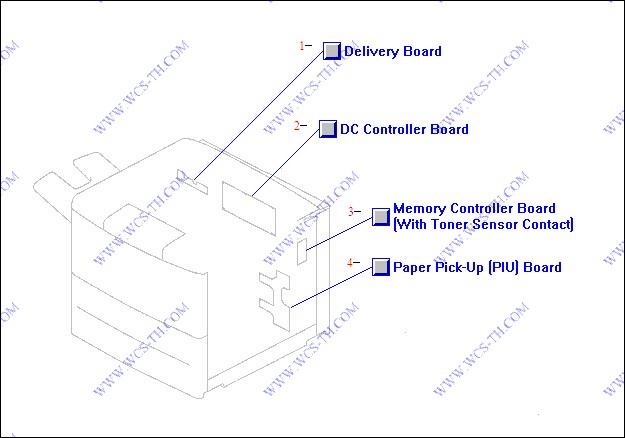

PC Assembly Locations
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-7780-060CN | DC controller board assembly | Find 1 |
| 1 | RG5-7780-000CN | DC controller board assembly | Find 1 |
| 2 | RG5-8013-000CN | Delivery assembly PC board | Find 2 |
| 2 | RG5-5649-000CN | Delivery assembly PC board | Find 2 |
| 3 | RG5-6996-000CN | Cartridge memory controller board - Between ECU and the toner cartridge memory antenna | Find 3 |
| 3 | RG5-8009-000CN | Cartridge memory controller board - Between ECU and the toner cartridge memory antenna | Find 3 |
| 4 | RG5-5678-000CN | Paper pickup board | Find 4 |
| 4 | RG5-7896-000CN | Paper pickup board | Find 4 |
Registration Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5663-000CN | Registration roller assembly | Find 1 |
| 2 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 2 |
| 2 | XA9-1275-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 2 |
| 3 | RB2-5828-000CN | Registration guide handle | Find 3 |

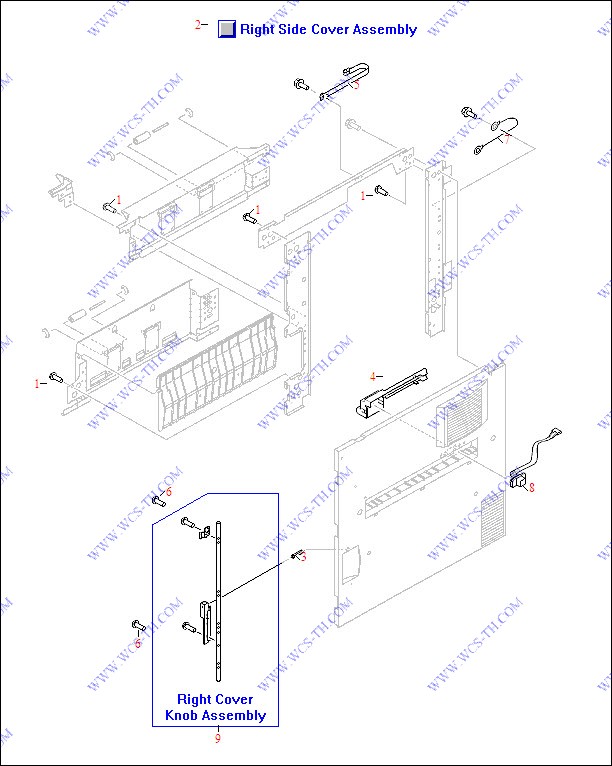

Right Side Cover
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XA9-1273-000CN | M4 X 12mm Indented pan head screw | Find 1 |
| 2 | RG5-5737-090CN | Right cover assembly - Includes all components attached to this door | Find 2 |
| 2 | RG5-5737-000CN | Right cover assembly - Includes all components attached to this door | Find 2 |
| 3 | RS6-2301-000CN | Compression spring - provides tension for right cover latch | Find 3 |
| 4 | RB2-5664-000CN | Tray 1/MP Tray cable cover | Find 4 |
| 5 | RB2-5653-000CN | Restraining strap | Find 5 |
| 6 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 6 |
| 6 | XA9-1200-000CN | M3 X 8 Screw | Find 6 |
| 7 | RG5-5764-000CN | Cable assembly - Grounding cable for tray 1 | Find 7 |
| 8 | RG5-5763-000CN | Cable assembly | Find 8 |
| 8 | RG5-8038-000CN | Multi-purpose/tray 1 cable assembly | Find 8 |
| 9 | RG5-5740-000CN | Right cover latch handle assembly | Find 9 |
| 9 | RG5-5740-020CN | Right cover latch handle assembly | Find 9 |

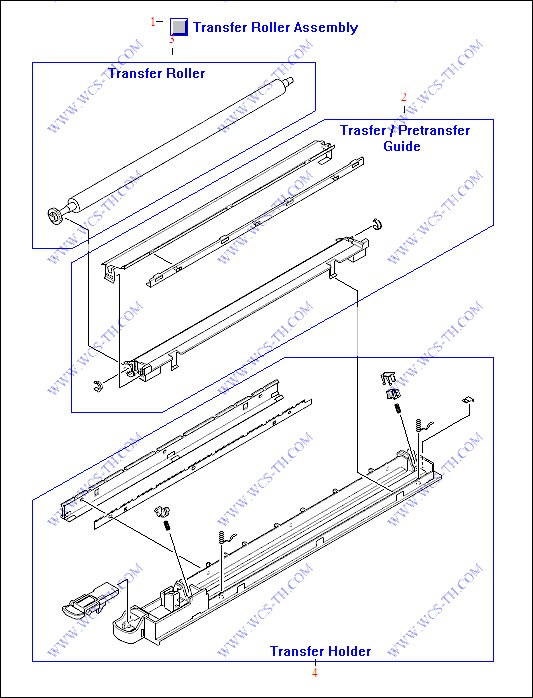

Transfer Roller Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-5662-050CN | Transfer roller assembly - Includes both transfer guides and transfer roller | Find 1 |
| 1 | RG5-5662-000CN | Transfer roller assembly - Includes both transfer guides and transfer roller | Find 1 |
| 2 | RG5-5654-000CN | Transfer roller guide - Mounts to the top of the base structure of the transfer roller assembly | Find 2 |
| 3 | RF5-3319-000CN | Transfer roller - Includes the long black spongy roller, roller shaft, and drive gear - Transfers static charge to the paper | Find 3 |
| 4 | RG5-5653-030CN | Transfer roller holder assembly - Includes the base structure, latch, anti-static brush, pressure springs, bushings, and contact springs - Assembly that the transfer roller mounts in | Find 4 |
| 4 | RG5-5653-000CN | Transfer roller holder assembly - Includes the base structure, latch, anti-static brush, pressure springs, bushings, and contact springs - Assembly that the transfer roller mounts in | Find 4 |
Tray 4 PC Board Locations
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RG5-6239-020CN | LED board - Small PC board with two LEDs and a connector - For indicating the operating status | Find 1 |
| 1 | RG5-6239-000CN | LED board - Small PC board with two LEDs and a connector - For indicating the operating status | Find 1 |
| 2 | RG5-6235-150CN | Controller PC board | Find 2 |
| 2 | RG5-6235-120CN | Controller PC board | Find 2 |
| 2 | RG5-6235-140CN | Controller PC board | Find 2 |
| 3 | RG5-6237-000CN | Paper volume sensor board | Find 3 |
| 3 | RG5-6237-020CN | Paper volume sensor board | Find 3 |
| 4 | RG5-6238-020CN | Paper size PC board | Find 4 |
| 4 | RG5-6238-000CN | Paper size PC board | Find 4 |
