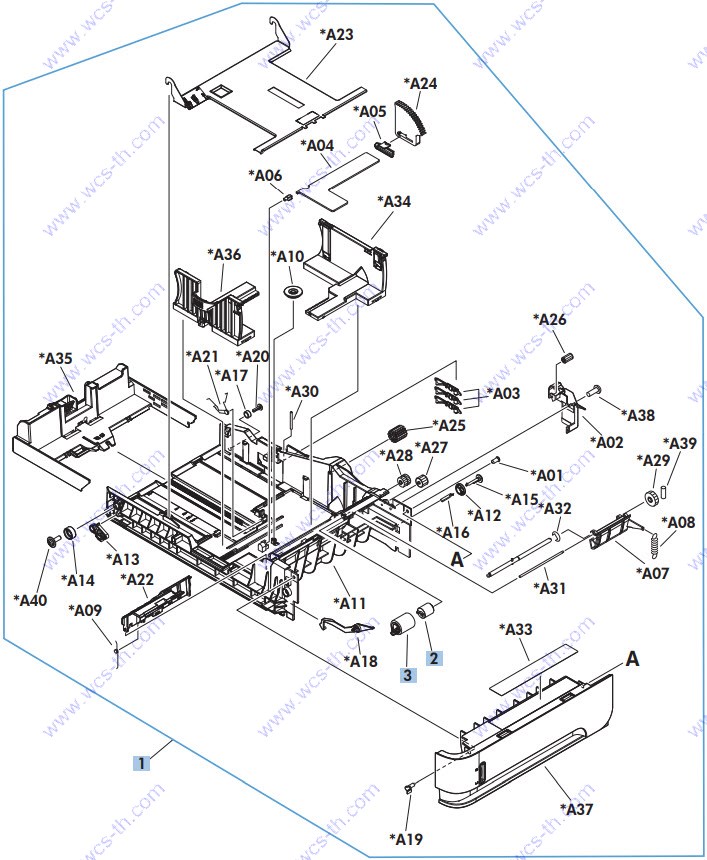

Cassette (1x500)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4559-020CN | Cassette (1x500) | Find 1 |
| 2 | RC2-5771-000CN | Torque limiter (1x500) | Find 2 |
| 3 | RM1-0037-020CN | Roller, paper feed assembly (1x500) | Find 3 |

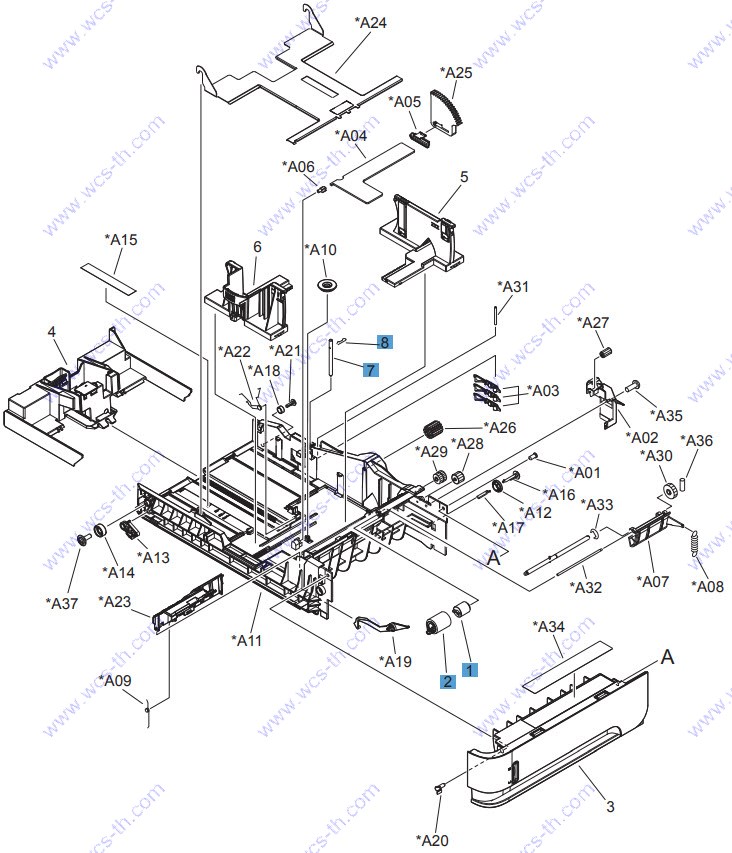

Cassette (custom media)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0037-000CN | Torque limiter (custom media) | Find 1 |
| 2 | RM1-4560-000CN | Roller, paper feed assembly (custom media) | Find 2 |
| 7 | RC2-6486-000CN | Pin, cassette (custom media) | Find 7 |
| 8 | RC2-6487-000CN | Pin, stopper (custom media) | Find 8 |
Cassette (Tray 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4559-020CN | Cassette (Tray 2) | Find 1 |
| 2 | RC2-5771-000CN | Torque limiter (Tray 2) | Find 2 |
| 3 | RM1-0037-020CN | Roller, paper feed assembly (Tray 2) | Find 3 |

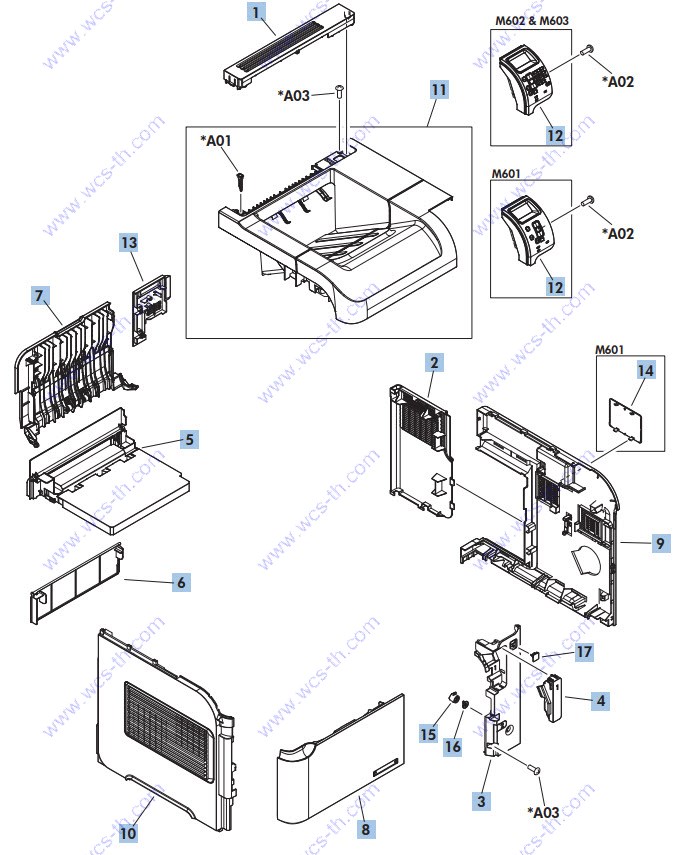

Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC2-2459-000CN | Cover, option | Find 1 |
| 2 | RC2-2468-000CN | Cover, formatter | Find 2 |
| 3 | RC3-1426-000CN | Cover, right front | Find 3 |
| 4 | RC2-2476-000CN | Cover, envelope connector | Find 4 |
| 5 | RM1-8399-000CN | Cover, duplexing assembly | Find 5 |
| 6 | RC2-5239-000CN | Cover, legal | Find 6 |
| 7 | RM1-8388-000CN | Face-up tray assembly | Find 7 |
| 8 | RM1-8408-000CN | Cover, front assembly | Find 8 |
| 9 | RM1-8400-000CN | Cover, right (M602 and M603) | Find 9 |
| 9 | RM1-8445-000CN | Cover, right (M601) | Find 9 |
| 10 | RM1-8401-000CN | Cover, left assembly | Find 10 |
| 11 | RM1-8394-000CN | Cover, top assembly (M602 and M603) | Find 11 |
| 11 | RM1-8434-000CN | Cover, top assembly (M601) | Find 11 |
| 12 | RM1-8289-000CN | Control-panel assembly (M602 and M603) | Find 12 |
| 12 | RM1-8290-000CN | Control-panel assembly (M601) | Find 12 |
| 13 | RC2-2478-000CN | Cover, right rear | Find 13 |
| 14 | RC3-1424-000CN | Cover, HIP (M602 and M603) | Find 14 |
| 15 | RC3-1430-000CN | Button, power | Find 15 |
| 16 | RC3-1431-000CN | Cap, power button | Find 16 |
| 17 | RC3-1434-000CN | Cover, USB | Find 17 |

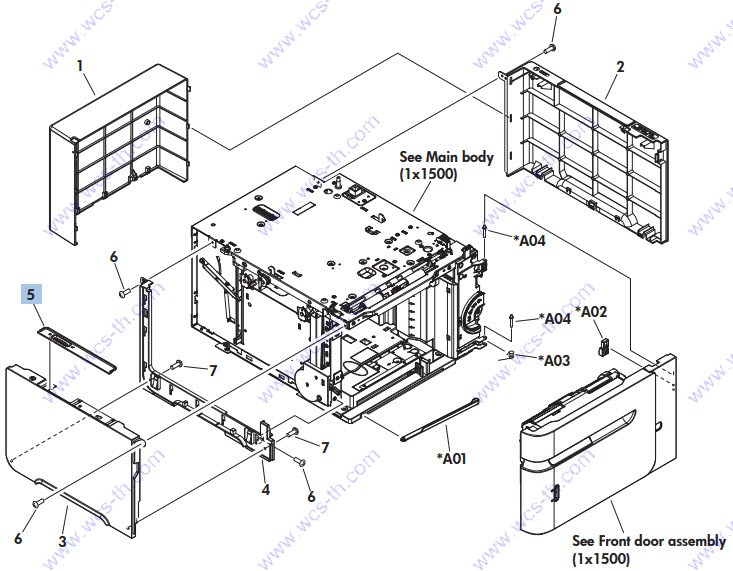

Covers (1x1500)
| Pic No. | Parts ID | Parts Name | Link |
| 5 | RC2-2584-000CN | Cover, lock (1x1500) | Find 5 |

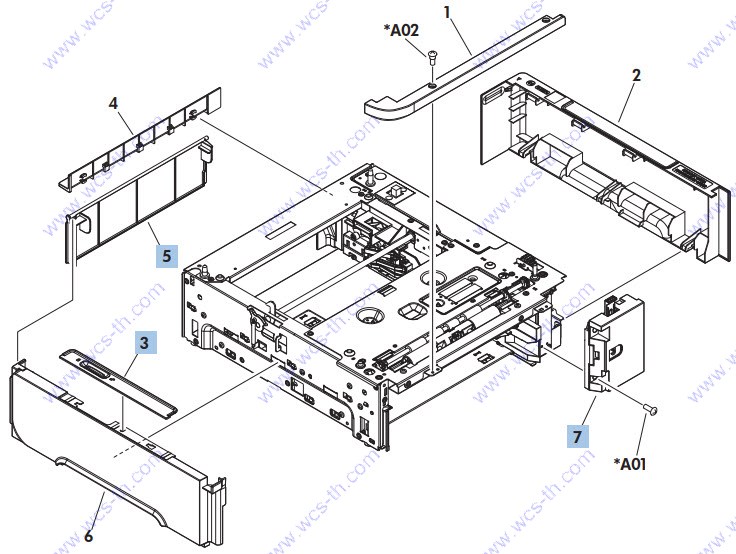

Covers (1x500)
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RC2-2584-000CN | Cover,lock (1 x500) | Find 3 |
| 5 | RC2-5239-000CN | Cover, legal (lx500) | Find 5 |
| 7 | RM1-4591-000CN | Number dial assembly (1 x500) | Find 7 |

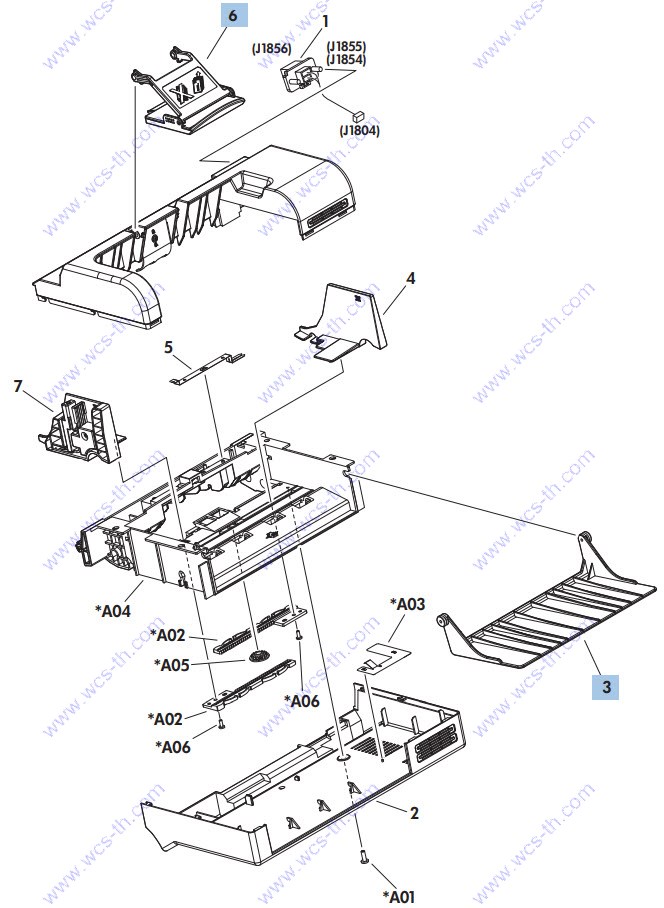

Covers (envelope feeder)
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RC2-5705-000CN | Tray, extension (envelope feeder) | Find 3 |
| 6 | RM1-5226-000CN | Weight assembly (envelope feeder) | Find 6 |

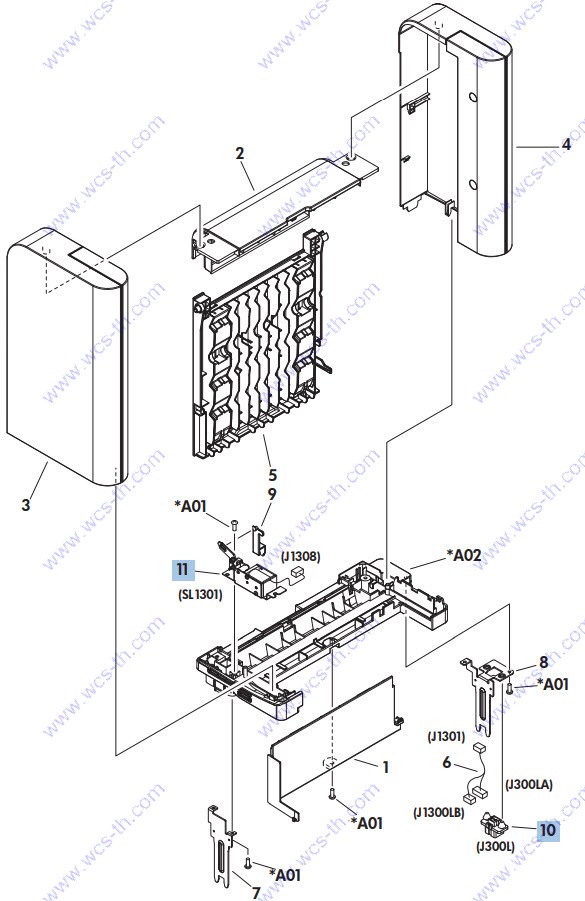

Covers (MBM)
| Pic No. | Parts ID | Parts Name | Link |
| 10 | VS1-7500-008CN | Connector 8P (MBM) | Find 10 |
| 11 | RM1-5270-000CN | Solenoid assembly, IN (MBM) | Find 11 |

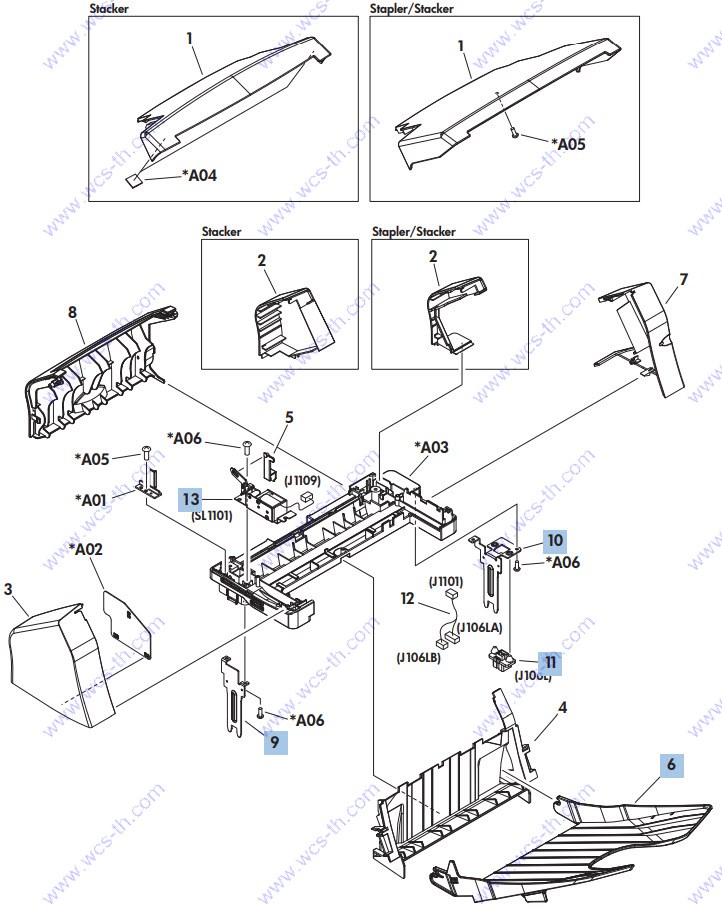

Covers (S and S/S)
| Pic No. | Parts ID | Parts Name | Link |
| 6 | RM1-4671-000CN | Tray assembly (S and S/S) | Find 6 |
| 9 | RL1-1703-000CN | Joint, left (S and S/S) | Find 9 |
| 10 | RL1-1704-000CN | Joint, right (S and S/S) | Find 10 |
| 11 | VS1-7500-008CN | Connector 8P (S and S/S) | Find 11 |
| 13 | RM1-5270-000CN | Solenoid assembly, IN (S and S/S) | Find 13 |

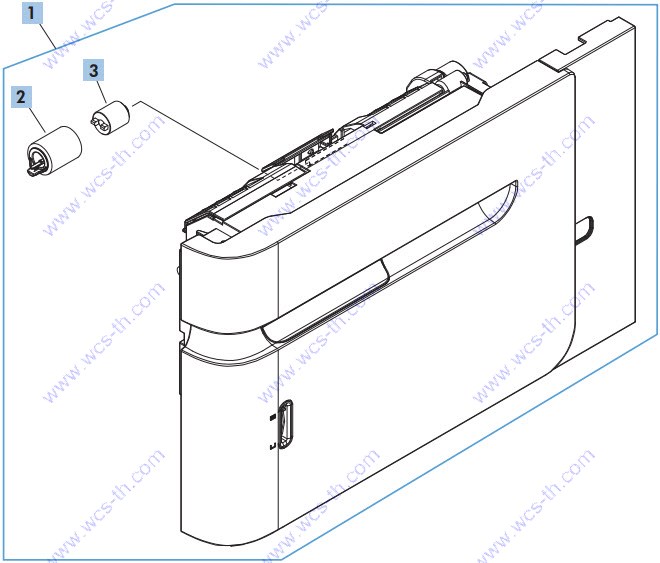

Front door assembly (1x1500)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-5255-020CN | Front door assembly (1x1500) | Find 1 |
| 2 | RM1-0037-020CN | Roller, paper feed assembly (1x1500) | Find 2 |
| 3 | RC2-5771-000CN | Torque limiter (1x1500) | Find 3 |
Fuser assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-8395-000CN | Fuser assembly 110V | Find 1 |
| 1 | RM1-8396-000CN | Fuser assembly 220V | Find 1 |

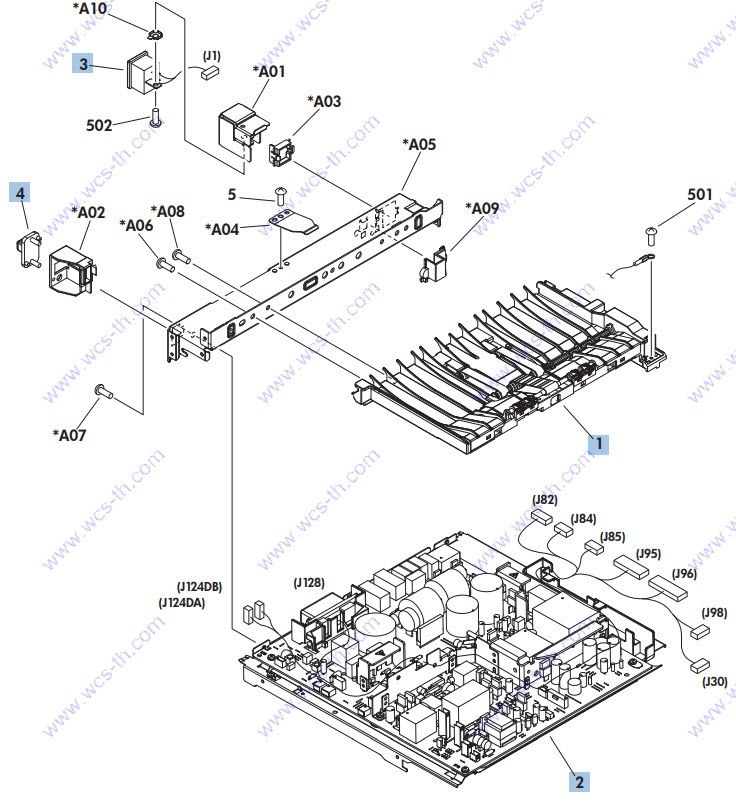

High-voltage power supply
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4548-000CN | Paper feed assembly | Find 1 |
| 2 | RM1-8392-000CN | High-voltage power supply 110V | Find 2 |
| 2 | RM1-8393-000CN | High-voltage power supply 220V | Find 2 |
| 3 | RM1-8348-000CN | Connector, inlet | Find 3 |
| 4 | VS1-7514-006CN | Connector, drawer 6P | Find 4 |
Internal components 1
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RL1-1667-000CN | Cover, envelope feeder | Find 1 |
| 2 | RM1-8491-000CN | Transfer roller | Find 2 |
| 3 | RC2-2480-000CN | Arm, release A | Find 3 |
| 4 | RC2-2481-000CN | Arm, release B | Find 4 |
| 5 | RM1-8358-000CN | Motor, drum assembly (M102) | Find 5 |
| 6 | RM1-4525-000CN | Size detect assembly | Find 6 |
| 7 | RM1-8308-000CN | Cable, drum motor | Find 7 |
| 8 | RM1-5091-000CN | Cable, size sensor | Find 8 |
| 9 | RM1-5461-000CN | Plate, ground assembly | Find 9 |
| 10 | XA9-1671-000CN | Screw, D, M3x8 | Find 10 |
| 11 | XA9-1503-000CN | Screw, tap, M3x6 | Find 11 |
| 12 | RC3-1470-000CN | Spring, torsion | Find 12 |
| 13 | RC2-2633-000CN | Screw, M4x5 | Find 13 |
| 14 | RM1-8428-000CN | PCA, switch assembly | Find 14 |
| 15 | RC2-2482-000CN | Rod, release, upper | Find 15 |
| 16 | RM1-8489-000CN | Drum drive assembly | Find 16 |
| 17 | RC2-2483-000CN | Rod, release lower | Find 17 |
| 18 | RC1-0247-000CN | Guard, edge | Find 18 |
| 19 | RC2-2725-000CN | Spacer, frame | Find 19 |
| 501 | XB4-7401-607CN | Screw, tapping pan head M4X10 | Find 501 |

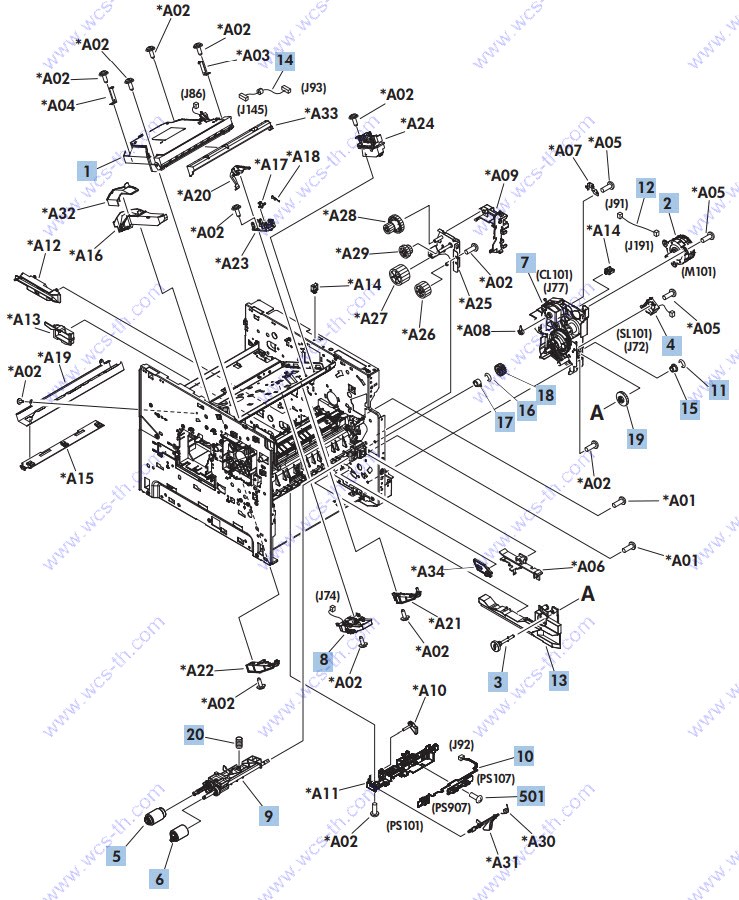

Internal components 2
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-8406-000CN | Laser/scanner assembly | Find 1 |
| 2 | RM1-8285-000CN | Motor, paper feed assembly (M101) | Find 2 |
| 3 | RL1-3020-000CN | Shaft retard drive | Find 3 |
| 4 | RK2-4078-000CN | Solenoid | Find 4 |
| 5 | RM1-0036-020CN | Paper pickup roller assembly | Find 5 |
| 6 | RM1-0037-020CN | Paper feed roller assembly | Find 6 |
| 7 | RM1-8415-000CN | Paper pickup drive assembly | Find 7 |
| 8 | RM1-4539-000CN | Tag holder assembly | Find 8 |
| 9 | RM1-8424-000CN | Paper feed shaft assembly | Find 9 |
| 10 | RM1-8298-000CN | Cable, feed sensor | Find 10 |
| 11 | XD9-0232-000CN | Ring, E | Find 11 |
| 12 | RM1-8311-000CN | Cable, feed motor | Find 12 |
| 13 | RM1-8427-000CN | Guide, front right assembly | Find 13 |
| 14 | RM1-8340-000CN | Cable, laser | Find 14 |
| 15 | RC1-0214-000CN | Bushing | Find 15 |
| 16 | XD9-0233-010CN | Ring, E | Find 16 |
| 17 | RC3-1403-000CN | Bushing | Find 17 |
| 18 | RU5-0088-000CN | Gear, 18T | Find 18 |
| 19 | RU5-0040-000CN | Gear, 23T | Find 19 |
| 20 | RC1-0213-000CN | Spring, compression | Find 20 |
| 501 | XB4-7300-809CN | Screw, tap, binding head, M3x8 | Find 501 |

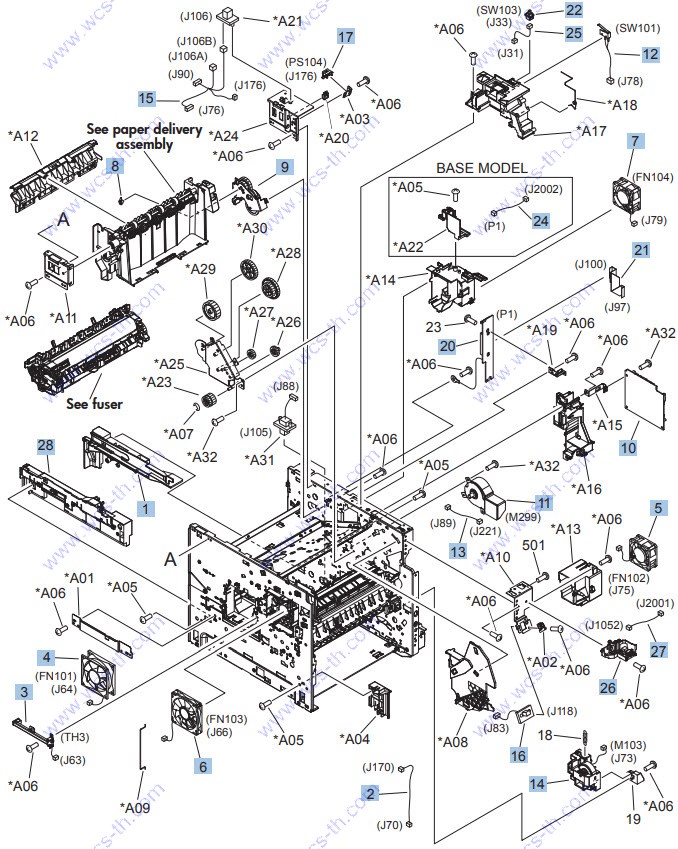

Internal components 3
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4558-000CN | Guide, right assembly | Find 1 |
| 2 | RM1-8341-000CN | Cable, panel | Find 2 |
| 3 | RM1-8438-000CN | Sensor, temperature assembly | Find 3 |
| 4 | RK2-1988-000CN | Fan (FN101) | Find 4 |
| 5 | RK2-1989-000CN | Fan (FN102) | Find 5 |
| 6 | RK2-3244-000CN | Fan (FN103) | Find 6 |
| 7 | RK2-1992-000CN | Fan (FN104) | Find 7 |
| 8 | RC1-0136-000CN | Bushing, paper delivery | Find 8 |
| 9 | RM1-8410-000CN | Paper delivery drive assembly | Find 9 |
| 10 | RM1-8293-000CN | PCA, DC controller | Find 10 |
| 11 | RM1-5051-020CN | Motor, fuser (M299) | Find 11 |
| 12 | RM1-8307-000CN | Switch, interlock assembly | Find 12 |
| 13 | RM1-5088-000CN | Cable, fuser motor | Find 13 |
| 14 | RM1-4585-000CN | Lifter drive assembly | Find 14 |
| 15 | RM1-8927-000CN | Cable, full sensor | Find 15 |
| 16 | RM1-5085-000CN | Cable, envelope feeder | Find 16 |
| 17 | WG8-5849-000CN | Photo interrupter, IC | Find 17 |
| 20 | RM1-8294-000CN | PCA, inner connecting | Find 20 |
| 21 | RK2-4077-000CN | Cable, flat flexible (FFC) | Find 21 |
| 22 | WC2-5637-000CN | Switch, push | Find 22 |
| 24 | RK2-4152-000CN | Cable, HIP (M602 and M603) | Find 24 |
| 25 | RM1-8344-000CN | Cable, door switch | Find 25 |
| 26 | RM1-8429-000CN | USB PCA | Find 26 |
| 27 | RK2-4149-000CN | Cable, USB | Find 27 |
| 28 | RM1-8439-000CN | Guide assembly, left | Find 28 |

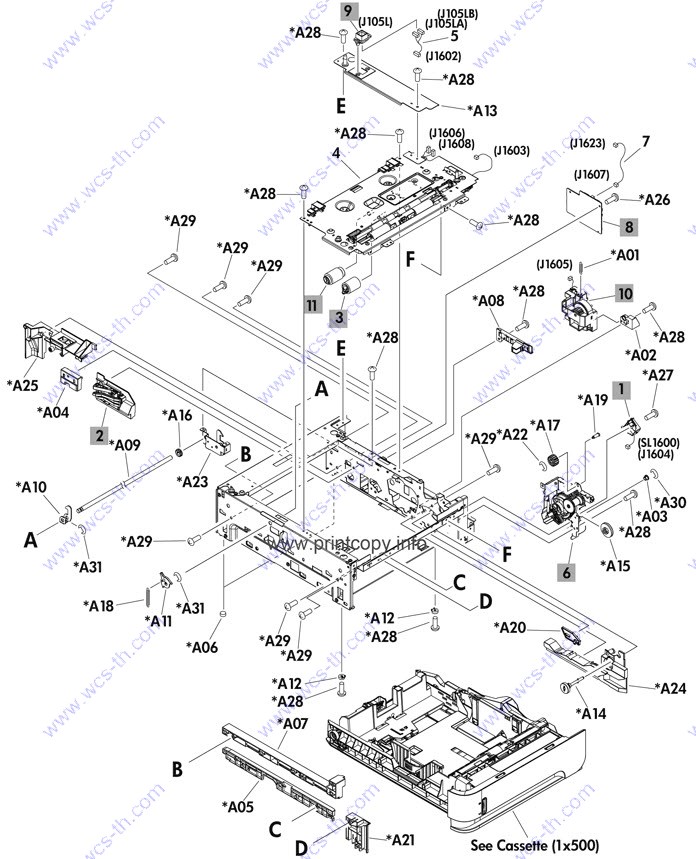

Main body (1x500)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RK2-0270-000CN | Solenoid (1x500) | Find 1 |
| 2 | RM1-4525-000CN | Size detect assembly (1x500) | Find 2 |
| 3 | RM1-0037-020CN | Roller, paper feed assembly (1x500) | Find 3 |
| 6 | RM1-8441-000CN | Plate, pickup drive side assembly (1x500) | Find 6 |
| 8 | RM1-8302-000CN | PCA, Feeder (1x500) | Find 8 |
| 9 | VS1-7500-006CN | Connector, drawer 6P (1x500) | Find 9 |
| 10 | RM1-1094-050CN | Lifter drive assembly (1x500) | Find 10 |
| 11 | RM1-0036-020CN | Roller, paper pickup assembly (1x500) | Find 11 |

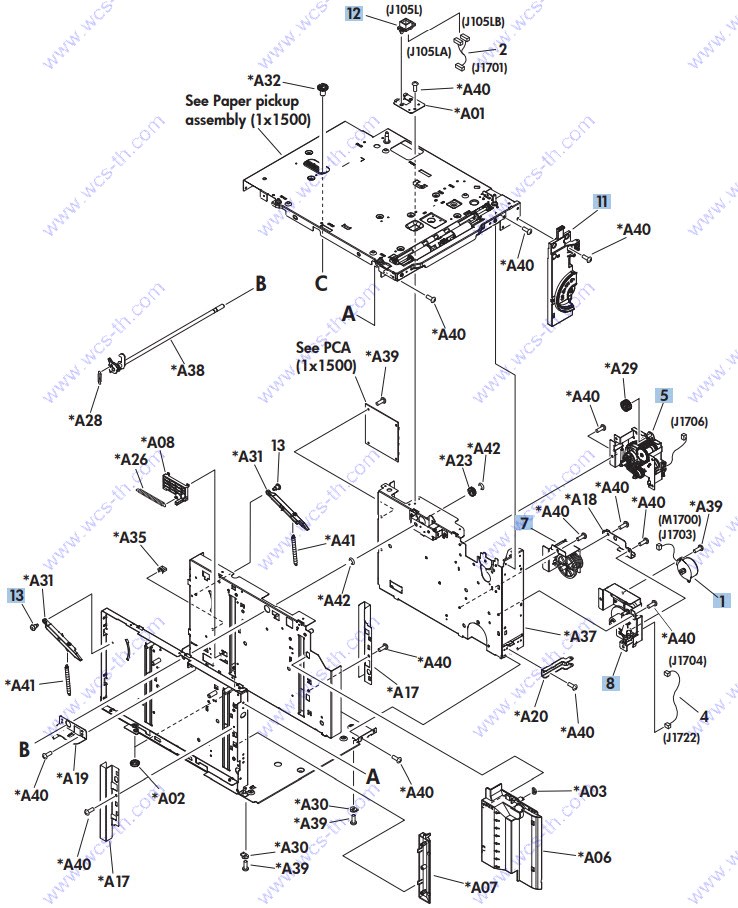

Main body (1x500) 1
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RH7-1603-020CN | Motor, stepping (M1700) (1x1500) | Find 1 |
| 5 | RM1-8457-000CN | Paper pickup drive assembly (1x1500) | Find 5 |
| 7 | RM1-0289-030CN | Oil damper assembly (1x1500) | Find 7 |
| 8 | RM1-8453-000CN | Lifter drive assembly (1x1500) | Find 8 |
| 11 | RM1-5265-000CN | Numbering assembly (1x1500) | Find 11 |
| 12 | VS1-7500-006CN | Connector, drawer 6 pin(1x1500) | Find 12 |

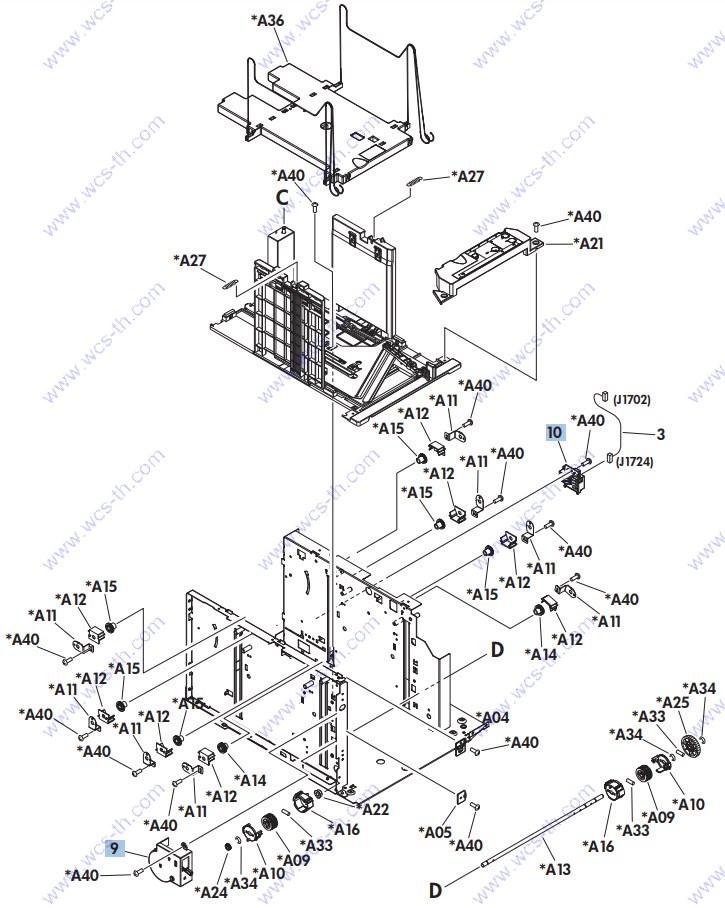

Main body (1x500) 2
| Pic No. | Parts ID | Parts Name | Link |
| 9 | RM1-5259-000CN | Remnant indication assembly (1x1500) | Find 9 |
| 10 | RM1-5261-000CN | Paper size detect assembly (1x1500) | Find 10 |

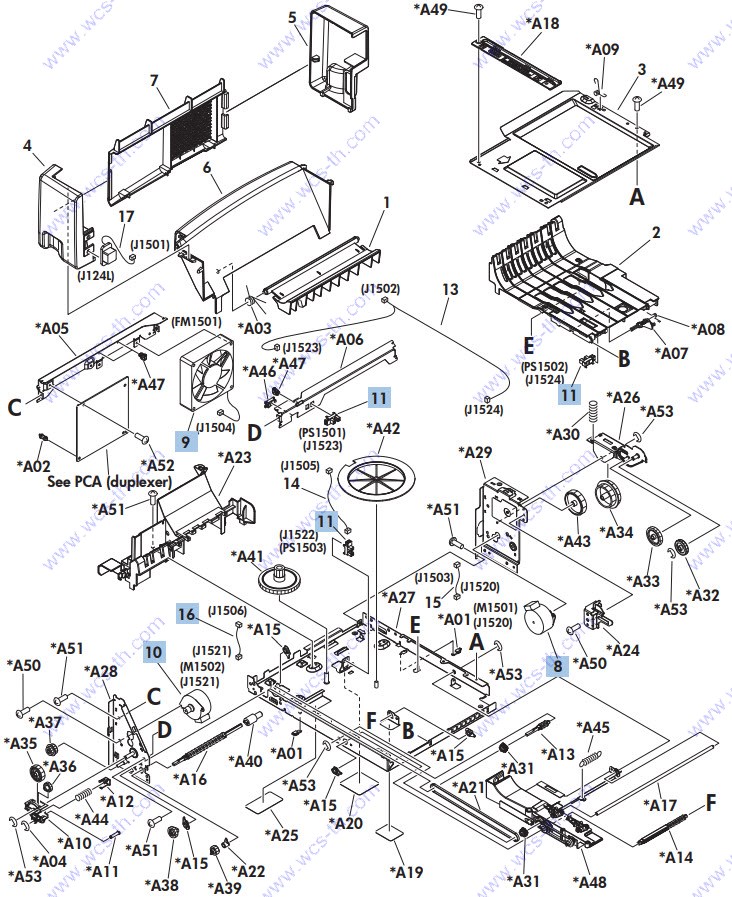

Main body (duplexer)
| Pic No. | Parts ID | Parts Name | Link |
| 8 | RK2-2015-000CN | Motor, stepping, DC 24V (M1501) (duplexer) | Find 8 |
| 9 | RK2-2016-000CN | Fan (FN1501) (duplexer) | Find 9 |
| 10 | RK2-2139-000CN | Motor, stepping, DC 24V (M1502) (duplexer) | Find 10 |
| 11 | WG8-5849-000CN | Photo interrupter (duplexer) | Find 11 |
| 16 | RM1-5141-000CN | Cable, paper re-pickup motor (duplexer) | Find 16 |

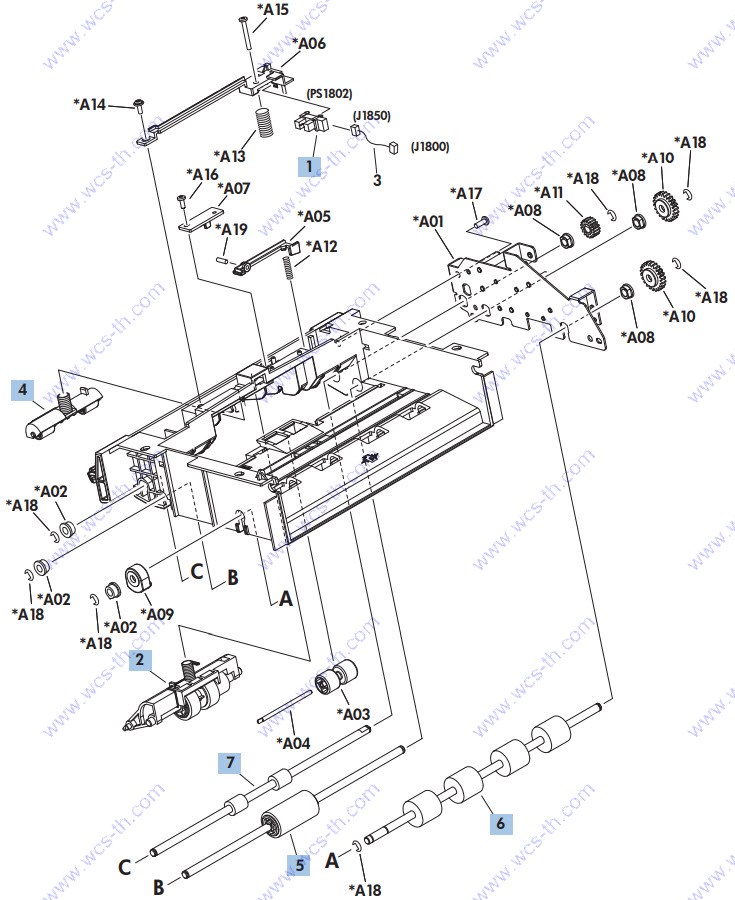

Main body (envelope feeder) 1
| Pic No. | Parts ID | Parts Name | Link |
| 1 | WG8-5624-000CN | Photo interrupter (envelope feeder) | Find 1 |
| 2 | RM1-5224-000CN | Roller, separation assembly (envelope feeder) | Find 2 |
| 4 | RM1-5223-000CN | Roller, paper feed assembly (envelope feeder) | Find 4 |
| 5 | RM1-5221-000CN | Roller, paper pickup assembly (envelope feeder) | Find 5 |
| 6 | RC2-5700-000CN | Roller, paper pickup (envelope feeder) | Find 6 |
| 7 | RC2-5701-000CN | Roller, paper feed (envelope feeder) | Find 7 |
Main body (envelope feeder) 2
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RK2-2162-000CN | Motor, stepping, DC 24V (M1800) (envelope feeder) | Find 1 |

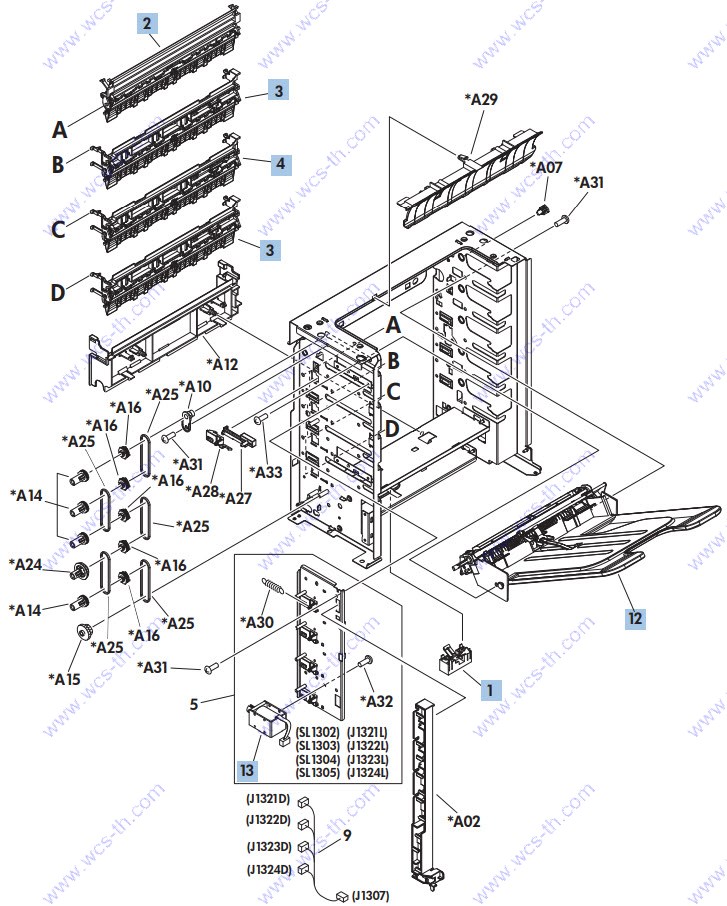

Main body (MBM) 1
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-5269-000CN | Flag, paper sensing (MBM) | Find 1 |
| 2 | RM1-4665-000CN | Top bin flapper assembly (MBM) | Find 2 |
| 3 | RM1-4666-000CN | Bin flapper assembly (MBM) | Find 3 |
| 4 | RM1-4667-000CN | Center bin flapper assembly (MBM) | Find 4 |
| 12 | RM1-6672-000CN | Bin assembly (MBM) | Find 12 |
| 13 | RL1-1709-000CN | Solenoid (MBM) | Find 13 |

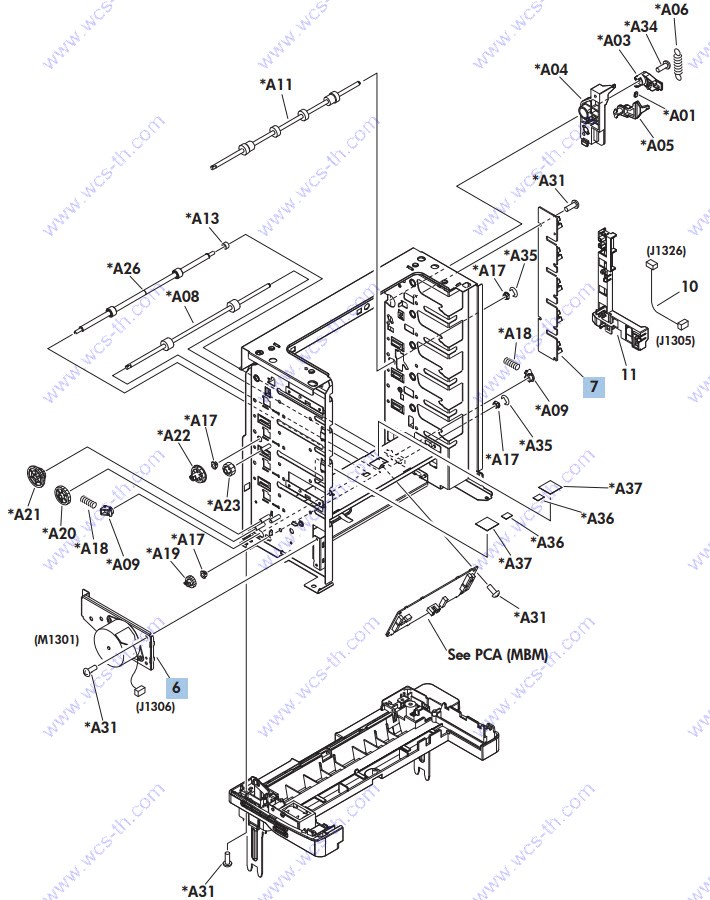

Main body (MBM) 2
| Pic No. | Parts ID | Parts Name | Link |
| 6 | RM1-5267-000CN | Drive assembly (MBM) | Find 6 |
| 7 | RM1-5096-000CN | Sensor assembly (MBM) | Find 7 |
Main body (S)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RK2-2025-000CN | Motor, stepping, DC 24V (M1103) (S) | Find 1 |
| 5 | RM1-4676-000CN | Stapler mount assembly (S) | Find 5 |

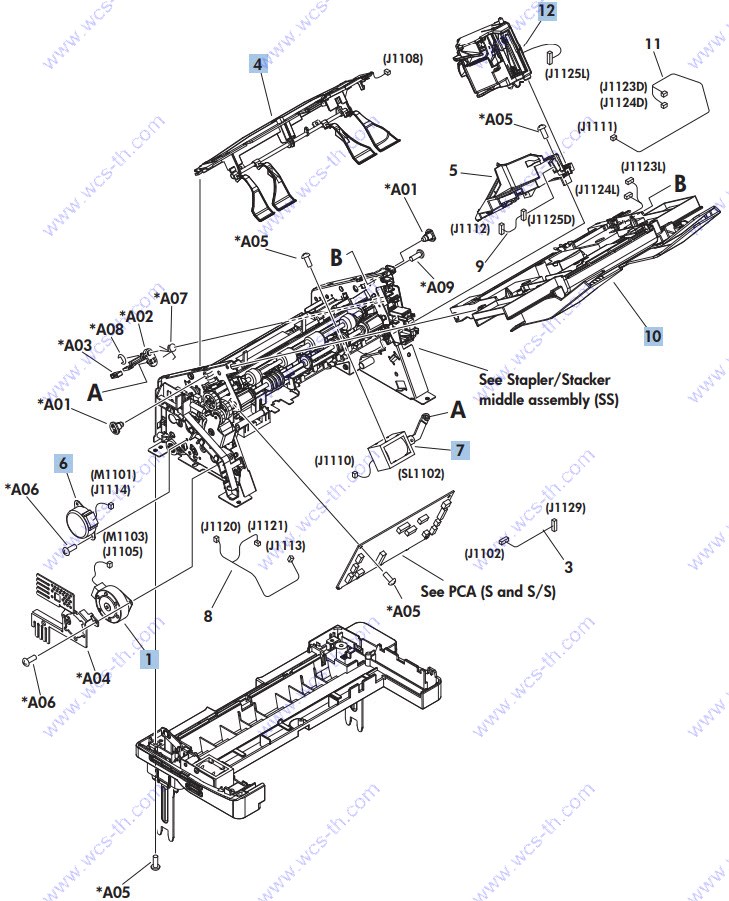

Main body (SS)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RK2-2025-000CN | Motor, stepping, DC 24V (M1103) (S/S) | Find 1 |
| 4 | RM1-1166-000CN | Sensor, paper full assembly (S/S) | Find 4 |
| 6 | RK2-2027-000CN | Motor, stepping, DC 24V (M1101) (S/S) | Find 6 |
| 7 | RL1-0506-000CN | Solenoid (S/S) | Find 7 |
| 10 | RM1-4670-000CN | Jog assembly (S/S) | Find 10 |
| 12 | RM1-4826-000CN | Stapler assembly (S/S) | Find 12 |

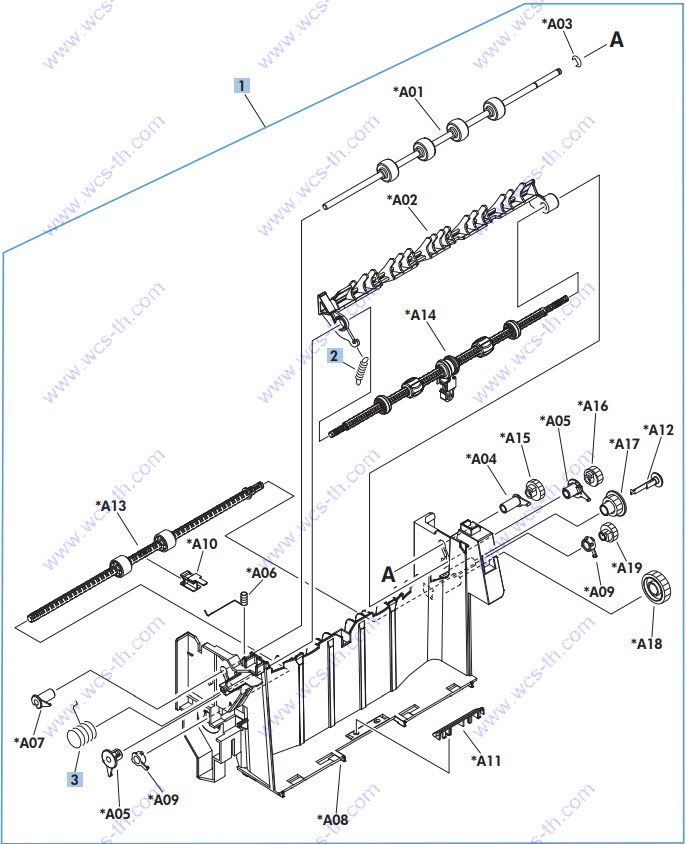

Paper delivery assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-8414-000CN | Paper delivery assembly | Find 1 |
| 2 | RC1-0133-000CN | Spring, tension | Find 2 |
| 3 | RU6-2105-000CN | Spring, grounding | Find 3 |
Paper feed roller assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-8411-000CN | Paper feed roller assembly | Find 1 |

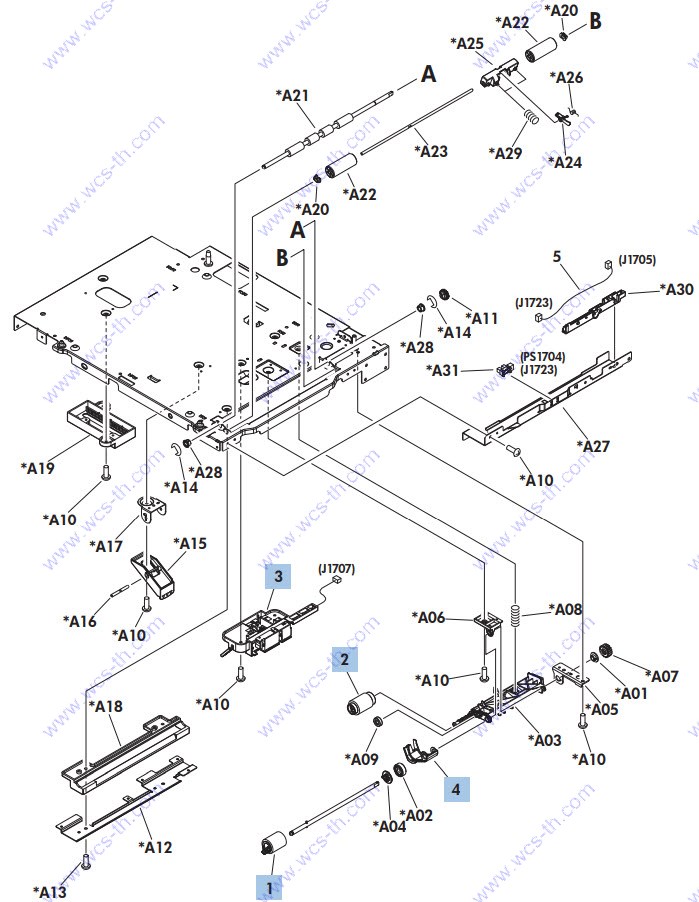

Paper pickup assembly (1x500)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0037-020CN | Roller, paper feed assembly (1x1500) | Find 1 |
| 2 | RM1-0036-020CN | Roller, paper pickup assembly (1x1500) | Find 2 |
| 3 | RM1-8456-000CN | Paper detect sensor assembly (1x1500) | Find 3 |
| 4 | RC2-2524-000CN | Flag, paper detect (1x1500) | Find 4 |

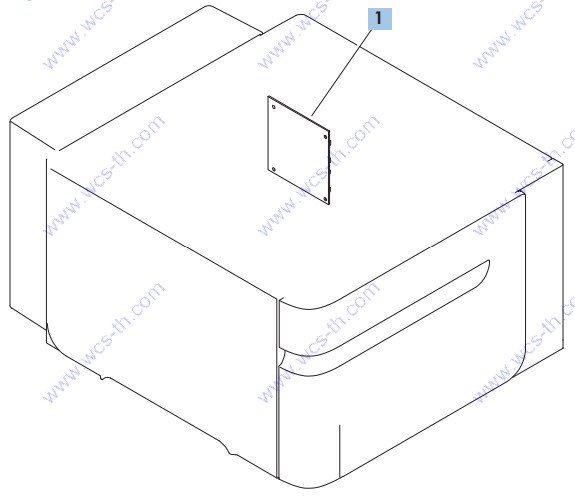

PCA (1x1500)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-8303-000CN | PCA, feeder (1x1500) | Find 1 |

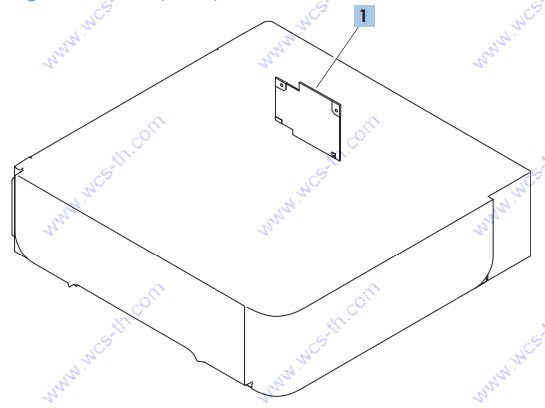

PCA (1x500)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-8302-000CN | PCA, feeder (1x500) | Find 1 |

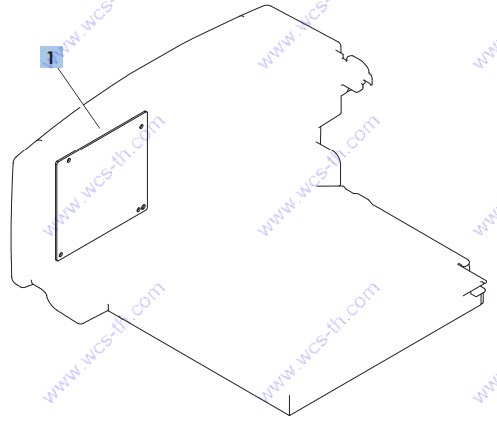

PCA (duplexer)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-8305-000CN | PCA (duplexer) | Find 1 |

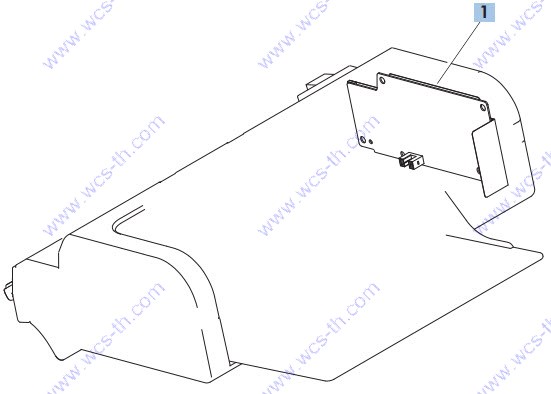

PCA (envelope feeder)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-9030-000CN | PCA (envelope feeder) | Find 1 |

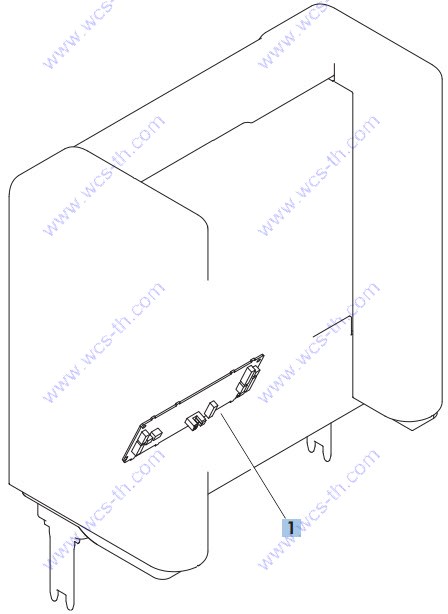

PCA (MBM)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-8350-000CN | PCA (MBM) | Find 1 |

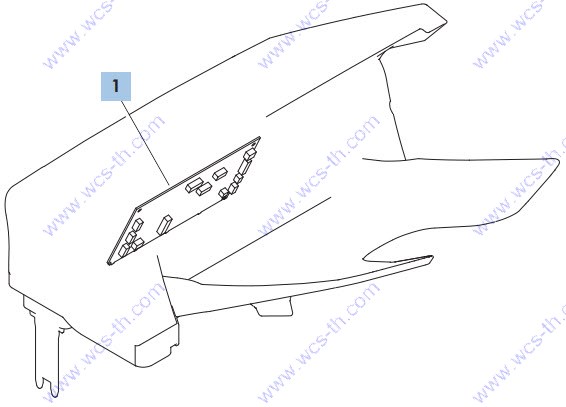

PCA (S and S/S)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-8351-000CN | PCA (S/S) | Find 1 |
| 1 | RM1-8352-000CN | PCA (S) | Find 1 |

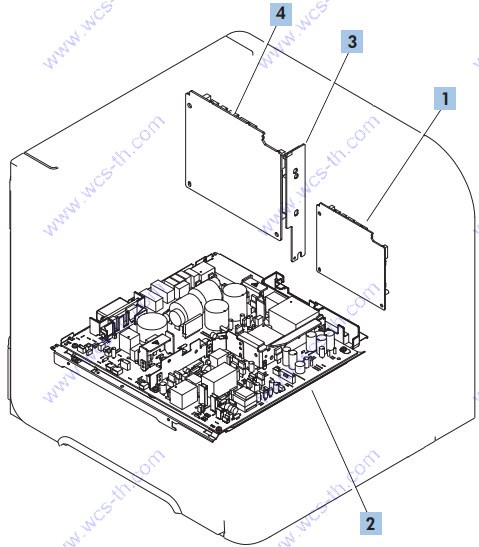

PCAs (product base)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-8293-000CN | PCA, DC controller | Find 1 |
| 2 | RM1-8392-000CN | Power supply, high-voltage 110V | Find 2 |
| 2 | RM1-8393-000CN | Power supply, low-voltage 220V | Find 2 |
| 3 | RM1-8294-000CN | PCA, inner connecting | Find 3 |
| 4 | CE988-67906 | Formatter | Find 4 |

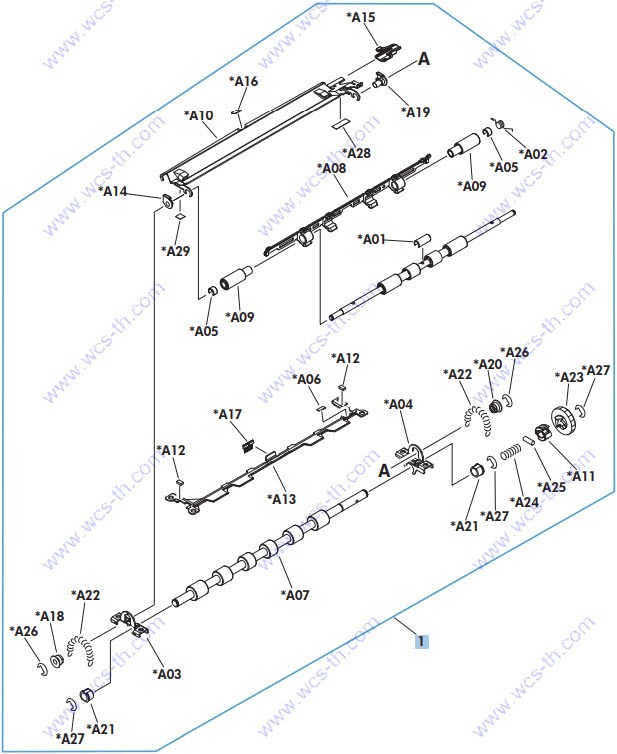

Registration assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-8413-0000CN | Registration assembly | Find 1 |

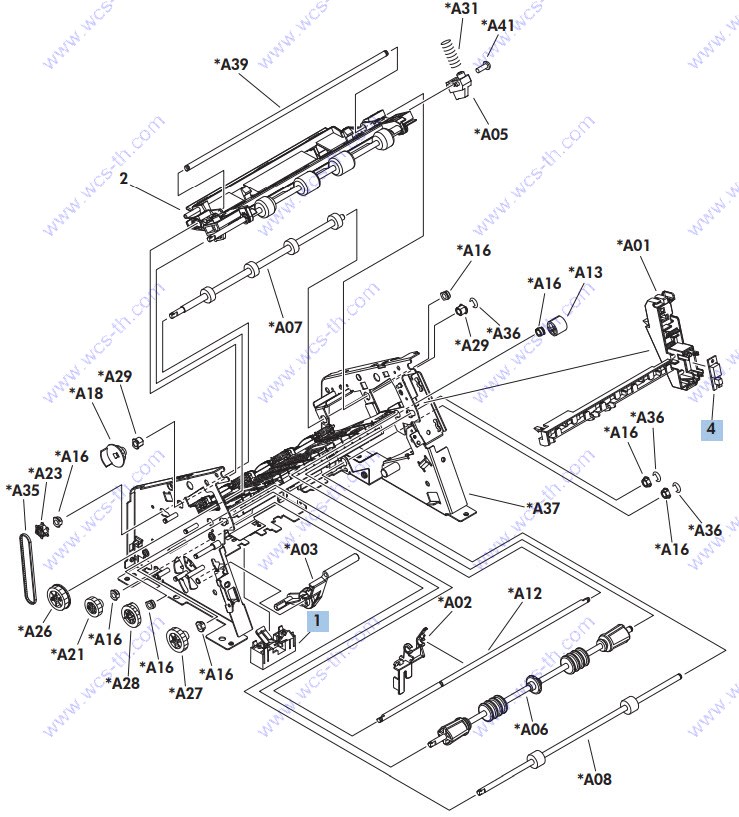

Stacker middle assembly (S) 1
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0239-000CN | Flag, paper sensing assembly (S) | Find 1 |
| 4 | RG1-4266-030CN | LED PCA (S) | Find 4 |

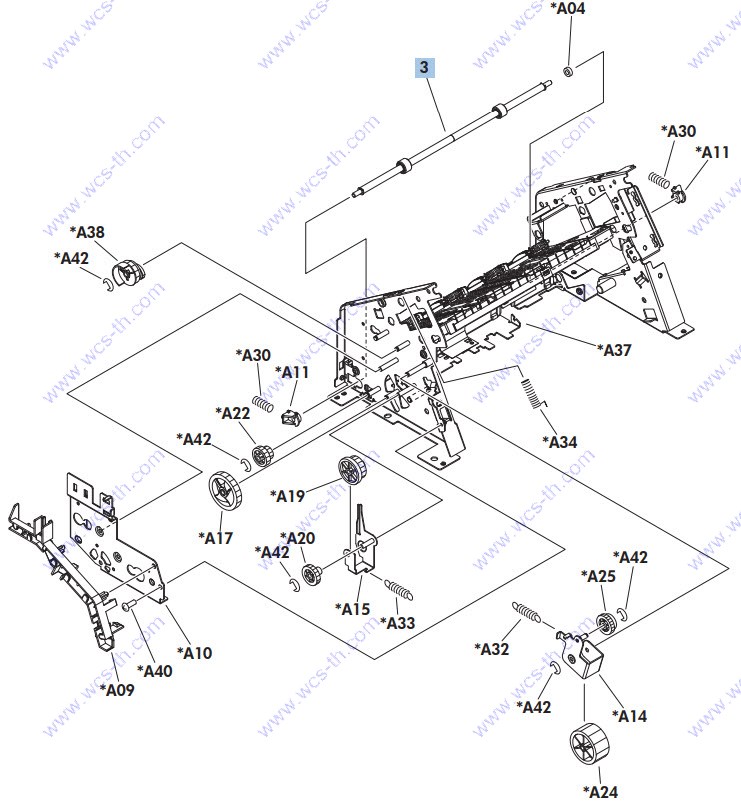

Stacker middle assembly (S) 2
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RM1-0253-020CN | Roller, paper feed assembly (S) | Find 3 |
Stapler/Stacker middle assembly (S/S) 1
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0239-000CN | Flag, paper sensing (S/S) | Find 1 |

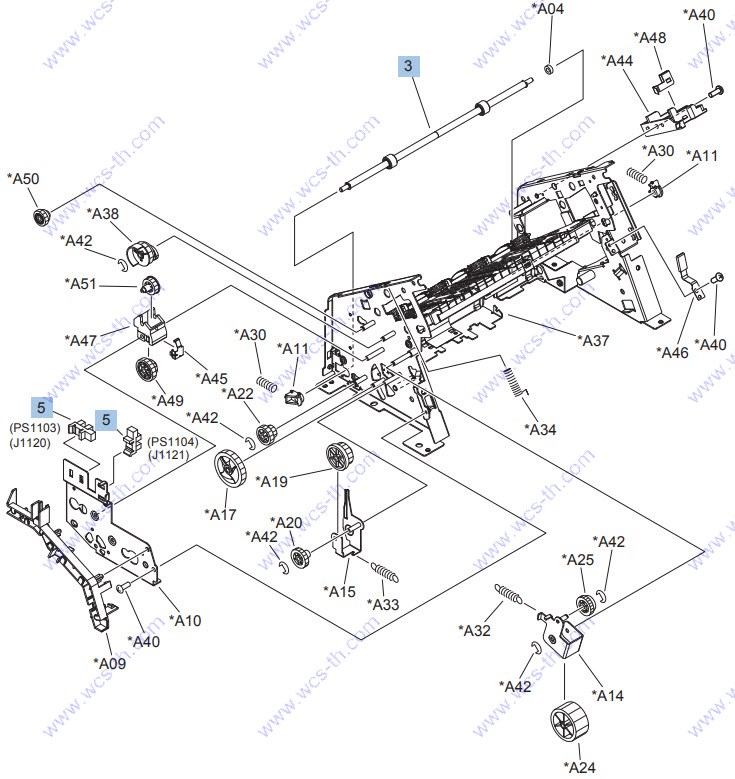

Stapler/Stacker middle assembly (S/S) 2
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RM1-0253-020CN | Roller, paper feed assembly (S/S) | Find 3 |
| 5 | WG8-5645-000CN | Photo interrupter (S/S) | Find 5 |

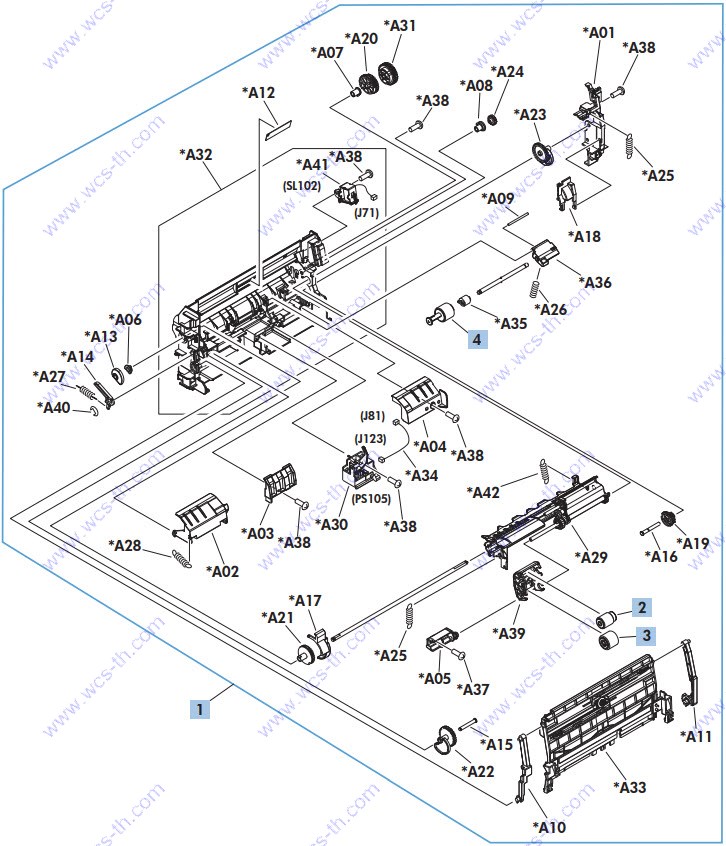

Tray 1 (MP) pickup assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-8425-000CN | Tray 1 (MP) pickup assembly | Find 1 |
| 2 | RL1-1641-000CN | Roller pickup, Tray 1 (MP) | Find 2 |
| 3 | RL1-1663-000CN | Roller feed, Tray 1 (MP) | Find 3 |
| 4 | RL1-1654-020CN | Roller separation, Tray 1 (MP) | Find 4 |
