External covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-2476-000CN | Scanner cushion - Square foam pices that cushion the scanner when locked in place - Mount in the square front recesses on the scanner frame assembly | Find 1 |
| 2 | RC1-2476-000CN | Scanner cushion - Square foam pices that cushion the scanner when locked in place - Mount in the square front recesses on the scanner frame assembly | Find 2 |
| 3 | RU5-2885-000CN | Compression spring - Provides pressure for scanner link - Two used, one on each side | Find 3 |
| 4 | RM1-3954-000CN | Right scanner link assembly - Connects between the top of the printer and the bottom of the scanner - Allows for limited tilting of the scanner assembly for toner cartridge access | Find 4 |
| 5 | RM1-3953-000CN | Left scanner link assembly - Connects between the top of the printer and the bottom of the scanner - Allows for limited tilting of the scanner assembly for toner cartridge access | Find 5 |
| 6 | RC2-1027-000CN | Toner cartridge access door - Door under scanner assembly used for accessing the toner cartridge and transfer roller assembly | Find 6 |
| 7 | RC2-1026-000CN | Right side cover assembly - Slightly curved plastic cover with the HP logo molded into it - Has cutout for the rear panel interface connectors | Find 7 |
| 8 | RL1-1430-000CN | Front cover assembly - Has cutouts for the toner cartridge door release button, and paper input tray assembly | Find 8 |
| 9 | RC2-1025-000CN | Left side cover assembly - Slightly curved plastic cover with the HP logo molded into it - Has cutout for the rear panel power switch and power cord receptacle - Covers | Find 9 |
| 10 | RC1-2474-040CN | Upper rear cover assembly - Small plastic cover that protects the fusing assembly - Mounts on the top rear of the printer - Has air louvers for ventilation | Find 10 |
| 10 | RC1-2474-020CN | Upper rear cover assembly - Small plastic cover that protects the fusing assembly - Mounts on the top rear of the printer - Has air louvers for ventilation | Find 10 |
| 11 | RL1-1431-000CN | Scanner support frame - C-shaped plastic frame that mounts to the top of the printer - Has rear hinge pins for the top cover and scanner assembly, and recesses for the scanner link arms, lift springs and cushions | Find 11 |
Formatter
| Pic No. | Parts ID | Parts Name | Link |
| 1 | CB397-60001 | Formatter board - Main logic PCA | Find 1 |
| 2 | RC2-1025-000CN | Left side cover assembly - Slightly curved plastic cover with the HP logo molded into it - Has cutout for the rear panel power switch and power cord receptacle - Covers | Find 2 |

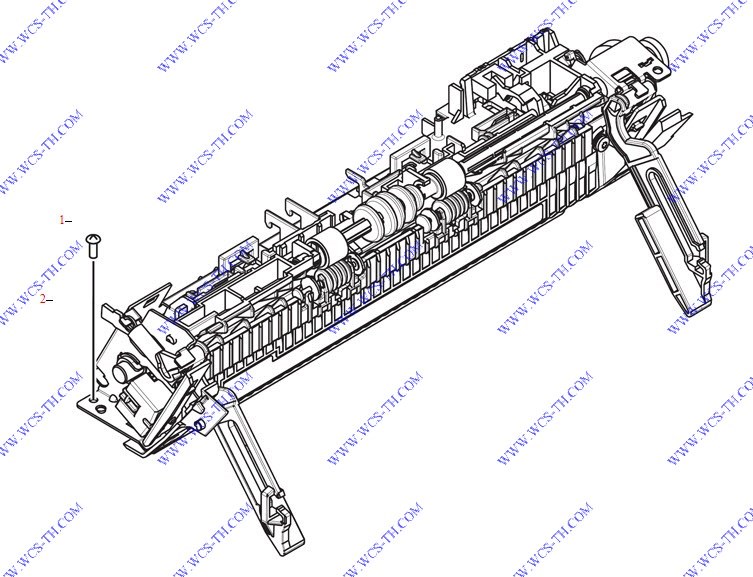

Fuser assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XB2-8300-609CN | M3 screw with captive flat washer - 6mm long | Find 1 |
| 2 | RM1-3952-000CN | Fuser assembly - 110 VAC - For LaserJet M1005 series | Find 2 |
| 2 | RM1-3955-020CN | Fuser assembly - For 220 VAC operation - For LaserJet M1005 series | Find 2 |
Internal components (1 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XB4-5401-009CN | Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal | Find 1 |
| 2 | XB2-7300-605CN | Machine screw with attached washer - M3, 6mm - Used to hold plastic to metal | Find 2 |
| 3 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 3 |
| 4 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 4 |
| 5 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 5 |
| 6 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 6 |
| 7 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 7 |
| 8 | XB2-7300-605CN | Machine screw with attached washer - M3, 6mm - Used to hold plastic to metal | Find 8 |
| 9 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 9 |
| 10 | RM1-2093-000CN | Transfer roller assembly - Transfers static charge to the media being printed on | Find 10 |
| 11 | RK2-0799-000CN | Stepping Motor - Main drive motor for the printer - Mounts on the upper front of the internal right frame assembly | Find 11 |
| 12 | RM1-3942-000CN | Power supply assembly - For 220-240 VAC - Includes the power supply board with integrated power switch and power cord receptacle | Find 12 |
| 12 | RM1-3941-000CN | Power supply assembly - For 110-127 VAC - Includes the power supply board with integrated power switch and power cord receptacle | Find 12 |
| 13 | RM1-0648-000CN | Separation Pad assembly - Bracket with spring loaded pad | Find 13 |
| 14 | RC1-1985-000CN | Lower rear cover assembly - Covers the paper pickup assembly - Larger of the two covers on the rear of the printer | Find 14 |
Internal components (2 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-2499-000CN | Right side scanner latch - This latch holds the scanner in place - Cartridge release lever activates this latch to allow scanner to rise and give access to the toner cart area | Find 1 |
| 1 | RC1-2498-000CN | Left side scanner latch - This latch holds the scanner in place - Cartridge release lever activates this latch to allow scanner to rise and give access to the toner cart area | Find 1 |
| 1 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 1 |
| 1 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 1 |
| 1 | XA9-1501-000CN | M3 pan-head Phillips screw - 10mm long | Find 1 |
| 2 | RM1-2084-000CN | Laser/scanner assembly - Does NOT include the laser shutter arm | Find 2 |
| 2 | RM1-3956-000CN | Laser/scanner assembly - Does NOT include the laser shutter arm | Find 2 |
| 2 | RM1-3943-000CN | Print engine control board - Provides motor drive, paper motion monitoring and printing control - Mounts next to the laser/scanner assembly | Find 2 |
Internal components (3 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-1953-000CN | Bushing - Twist locks into place | Find 1 |
| 2 | XA9-1495-000CN | Wafer head machine screw - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal | Find 2 |
| 3 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 3 |
| 4 | RC1-2485-000CN | Lower coupler link - Connects between the toner cartridge drive gear disengaging cam and the top link coupler (bracket) | Find 4 |
| 5 | RC1-2494-000CN | Top coupler link - L-shaped plastic bracket - Pulls the lower coupler link to disengage to toner cartridge drive gear | Find 5 |
Paper pickup assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-2091-020CN | Paper pickup assembly - Includes the pickup roller, feed roller assembly, drive gears, plastic housing and other associated parts - Does NOT include the separation pad assembly | Find 1 |
| 1 | RM1-2091-000CN | Paper pickup assembly - Includes the pickup roller, feed roller assembly, drive gears, plastic housing and other associated parts - Does NOT include the separation pad assembly | Find 1 |
| 2 | RL1-0266-000CN | Paper pickup roller (D-shaped roller) - Picks media from paper input tray | Find 2 |
| 3 | XB4-5401-009CN | Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal | Find 3 |
| 4 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 4 |
Pickup and delivery tray assemblies
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0859-000CN | Printer face-down output (delivery) tray assembly - Includes small flat tray with the pull-out extender | Find 1 |
| 2 | RM1-4305-000CN | Printer paper input (pickup) tray assembly - Includes the U-shaped paper tray with the pull-out extender, paper stop and cover | Find 2 |
Scanner assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | 7121-8285 | HP jewel - Small plastic HP logo that attaches to top of printer | Find 1 |
| 2 | 0515-4671 | Pan head screw with washer - M3.0 x 1.27, 9.1mm long, Number 2 Phillips recess - Steel, nickel plated finish | Find 2 |
| 3 | CB376-60105 | Scanner cover - Flatbed scanner cover lid | Find 3 |
| 4 | CB376-60101 | Control panel assembly - Control buttons and display on top right front of printer | Find 4 |
| 5 | CB376-67901 | Flatbed scanner assembly for LaserJet M1005 all-in-one - Includes flatbed scanner frame and glass | Find 5 |
