ADF internal components
| Pic No. | Parts ID | Parts Name | Link |
| 1 | 5851-2559 | ADF pickup roller assembly - Includes frame that pickup rollers attach to and both pickup rollers | Find 1 |
| 2 | 5851-2559 | ADF pickup roller assembly - Includes frame that pickup rollers attach to and both pickup rollers | Find 2 |
| 3 | Q2665-60125 | ADF paper seperation pad assembly - Mounts in the center of the ADF separation pad frame assembly at the rear of the paper input tray | Find 3 |

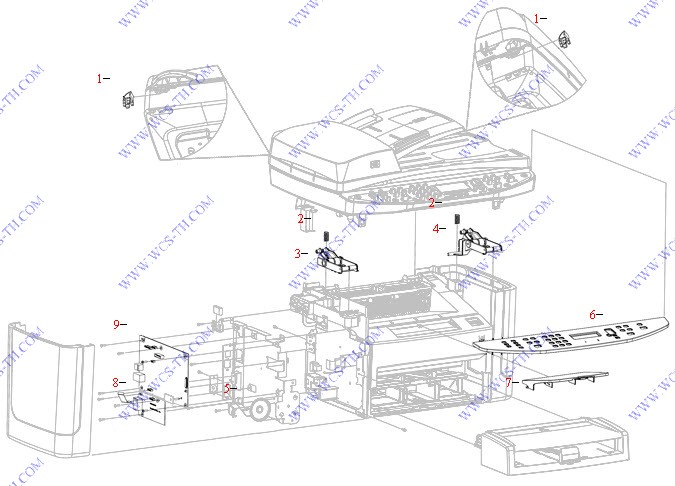

Assemblies
| Pic No. | Parts ID | Parts Name | Link |
| 1 | Q1636-40036 | Hinge locking clip - Locks the ADF/scanner lid assembly on the flatbed scanner | Find 1 |
| 2 | RU5-2885-000CN | Compression spring - Provides pressure for scanner link - Two used, one on each side | Find 2 |
| 3 | RM1-0898-000CN | Left scanner link assembly - Connects between the top of the printer and the bottom of the scanner - Allows for limited tilting of the scanner assembly for toner cartridge access | Find 3 |
| 4 | RM1-0899-000CN | Right scanner link assembly - Connects between the top of the printer and the bottom of the scanner - Allows for limited tilting of the scanner assembly for toner cartridge access | Find 4 |
| 5 | Q3948-60113 | Internal speaker - Located on the left side of the printer | Find 5 |
| 6 | CB534-40019 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Norwegian) | Find 6 |
| 6 | CB534-40011 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (English) | Find 6 |
| 6 | CB534-40029 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Hebrew) | Find 6 |
| 6 | CB534-40052 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Indonesian) | Find 6 |
| 6 | CB534-40048 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Catalan) | Find 6 |
| 6 | CB534-40022 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Russian) | Find 6 |
| 6 | CB534-40025 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Polish) | Find 6 |
| 6 | CB534-40015 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (French) | Find 6 |
| 6 | CB534-40054 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Bulgarian) | Find 6 |
| 6 | CB534-40056 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Serbian) | Find 6 |
| 6 | CB534-40017 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Italian) | Find 6 |
| 6 | CB534-40018 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Swedish) | Find 6 |
| 6 | CB534-40014 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (German) | Find 6 |
| 6 | CB534-40020 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Finnish) | Find 6 |
| 6 | CB534-40050 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Croatian) | Find 6 |
| 6 | CB534-40030 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Arabic) | Find 6 |
| 6 | CB534-40035 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Vietnamese) | Find 6 |
| 6 | CB534-40024 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Hungarian) | Find 6 |
| 6 | CB534-40026 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Slovak) | Find 6 |
| 6 | CB534-40059 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Latvian) | Find 6 |
| 6 | CB534-40013 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Portuguese) | Find 6 |
| 6 | CB534-40047 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (German unpainted) | Find 6 |
| 6 | CB534-40021 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Danish) | Find 6 |
| 6 | CB534-40049 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Romanian) | Find 6 |
| 6 | CB534-40053 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Kazakh) | Find 6 |
| 6 | CB534-40031 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Traditional Chinese) | Find 6 |
| 6 | CB534-40016 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Dutch) | Find 6 |
| 6 | CB534-40051 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Slovenian) | Find 6 |
| 6 | CB534-40033 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Simplified Chinese) | Find 6 |
| 6 | CB534-40057 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Lithuanian) | Find 6 |
| 6 | CB534-40058 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Estonian) | Find 6 |
| 6 | CB534-40012 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Spanish) | Find 6 |
| 6 | CB534-40055 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Ukranian) | Find 6 |
| 6 | CB534-40032 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Korean) | Find 6 |
| 6 | CB534-40034 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Thai) | Find 6 |
| 6 | CB534-40028 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Greek) | Find 6 |
| 6 | CB534-40023 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Czech) | Find 6 |
| 6 | CB534-40027 | Control panel overlay - Snaps on top of the control panel assembly - For fax models only (Turkish) | Find 6 |
| 7 | RM1-4725-000CN | Output paper tray assembly - Holds the paper after it has been printed | Find 7 |
| 8 | CC502-60001 | Fax module assembly - Provides fax capabilities to printer (US/Asia Pasific) | Find 8 |
| 8 | CC396-60001 | Formatter (main logic) board - For HP Laserjet M1522n MFP series - For copy models only | Find 8 |
| 9 | CC368-60001 | Formatter (Main logic) board - For HP Laserjet M1522nf MFP series - For fax models only | Find 9 |
| 9 | CC369-60001 | Fax module assembly - Provides fax capabilities to printer (EMEA) | Find 9 |
External covers and panels
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC2-2971-000CN | Fuser rear cover - Protects the fuser assembly - Located on the top rear side of the printer | Find 1 |
| 2 | RC2-2960-000CN | Cartridge access top cover - Protects carriage and printer mechanism | Find 2 |
| 3 | RC1-2476-000CN | Scanner cushion - Square foam pices that cushion the scanner when locked in place - Mount in the square front recesses on the scanner frame assembly | Find 3 |
| 4 | RL1-1736-000CN | Right cover - Plastic cover that protects the right side of the printer | Find 4 |
| 5 | RL1-1734-000CN | Front cover assembly - Covers the front and top center of the printer | Find 5 |
| 6 | RL1-1735-000CN | Left cover - Plastic cover that protects the left side of the printer | Find 6 |
| 7 | RL1-1732-000CN | Top cover assembly - Protects the top part of the printer chassis | Find 7 |

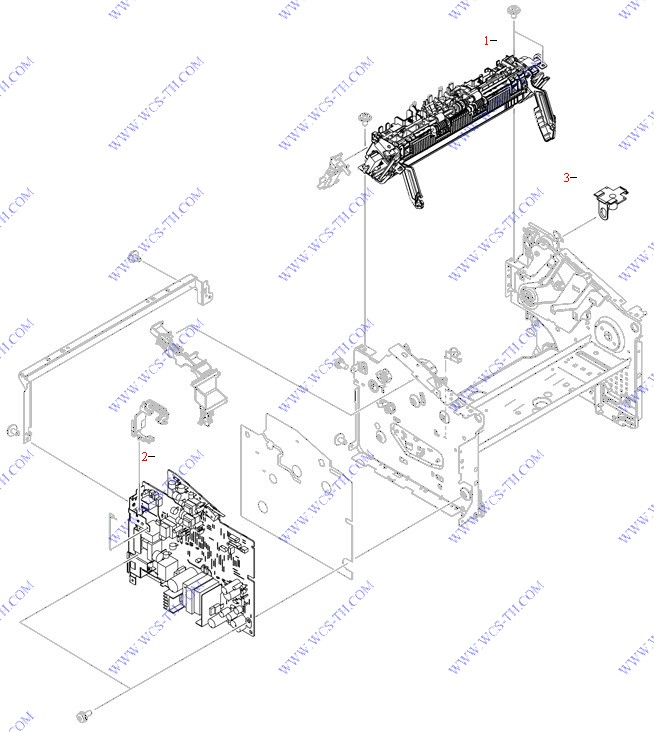

Internal components (1 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4728-020CN | Fusing Assembly - For 110 VAC to 120 VAC operation - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-4726-000CN | Fusing Assembly - For 220/240 VAC - Bonds toner to paper with heat | Find 1 |
| 1 | RM1-4721-000CN | Fusing Assembly - For 110/220 VAC operation - Bonds toner to paper with heat | Find 1 |
| 2 | RM1-4932-000CN | Engine controller PC board assembly - For 110/220 VAC operation - Provides all power supply and motor control functions | Find 2 |
| 2 | RM1-4936-000CN | Engine controller PC board assembly - For 220/240 VAC operation - Provides all power supply and motor control functions | Find 2 |
| 3 | RC2-2965-000CN | Coupling link - Located on the upper right side of the printer chassis | Find 3 |
Internal components (2 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4727-000CN | Paper pick-up assembly - Includes transfer roller and D-shaped pick-up roller | Find 1 |
| 1 | RM1-4730-000CN | Paper pick-up assembly - Includes transfer roller and D-shaped pick-up roller | Find 1 |
| 2 | RM1-4234-000CN | Transfer roller assembly - Long metal shaft with black roller | Find 2 |
| 2 | RM1-4023-000CN | Transfer roller assembly - Long metal shaft with black roller | Find 2 |
| 3 | RL1-1497-000CN | D-shaped pick-up roller - Located on the paper pick-up assembly | Find 3 |
| 4 | RM1-4207-000CN | Separation pad assembly - Located on the paper pick-up assembly | Find 4 |
| 5 | RC1-2498-000CN | Left side scanner latch - This latch holds the scanner in place - Cartridge release lever activates this latch to allow scanner to rise and give access to the toner cart area | Find 5 |
| 6 | RC1-2499-000CN | Right side scanner latch - This latch holds the scanner in place - Cartridge release lever activates this latch to allow scanner to rise and give access to the toner cart area | Find 6 |
Internal components (3 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4724-000CN | Laser/scanner assembly - For LaserJet M1522 MFP series | Find 1 |
| 2 | RM1-4935-000CN | Main motor control PC board assembly | Find 2 |
| 3 | RC2-2979-000CN | Left side tray guide | Find 3 |
| 4 | RC2-2980-000CN | Right side tray guide | Find 4 |
| 5 | RM1-4196-000CN | 24VDC gear motor | Find 5 |
Scanner and ADF assemblies
| Pic No. | Parts ID | Parts Name | Link |
| 1 | CB534-67901 | Automatic document feeder (ADF) replacement unit - For LaserJet M1522MFP | Find 1 |
| 2 | CB534-67903 | Flatbed scanner assembly - For Color LaserJet M1522 MFP - Includes flatbed scanner frame and glass | Find 2 |
| 3 | CB534-60101 | Control panel assembly - For Laserjet M1522 fax models only (Western) | Find 3 |
| 4 | CB534-60112 | ADF input tray - Automatic document feeder input support | Find 4 |
| 5 | Q3948-67902 | ADF paper sensor flag replacement kit - Includes the paper sensor flag and spring | Find 5 |
| 6 | CB534-40037 | ADF motor shield - Plastic cover that protects the ADF motor - Located on the back side of the ADF assembly | Find 6 |
| 7 | CB534-67907 | Automatic ducoment feeder (ADF) top cover - Plastic cover that protects the paper pick-up mechanism | Find 7 |
