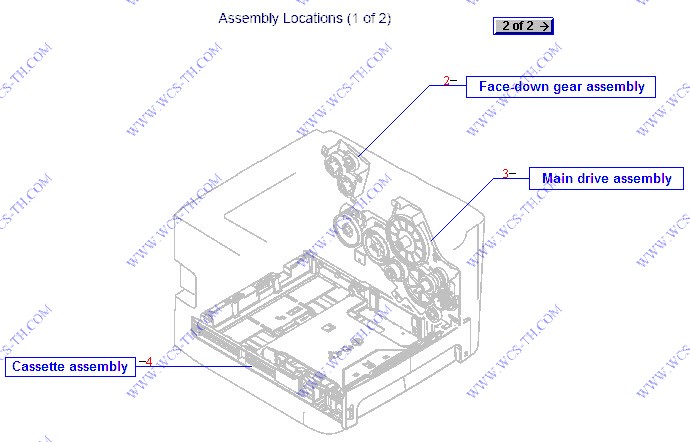

Assembly Locations (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RM1-1305-000CN | Top output gear assembly - Includes three white plastic gears mounted on a support bracket - Drives the top output bin roller | Find 2 |
| 3 | RM1-4253-000CN | Main drive assembly | Find 3 |
| 4 | RM1-4251-000CN | 250-sheet paper input tray 2 cassette - Pull out cassette that paper is loaded into | Find 4 |

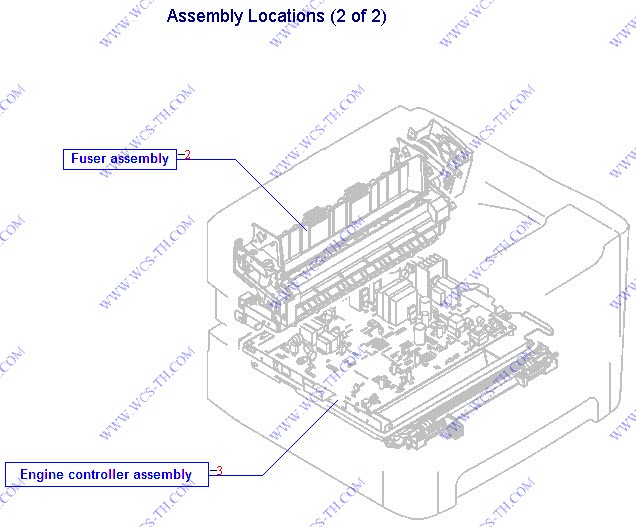

Assembly locations (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RM1-4247-000CN | Fusing Assembly - Bonds toner to paper with heat - For 110-127VAC (+/- 10%) operation | Find 2 |
| 2 | RM1-4247-020CN | Fusing assembly - For 110-127 VAC (+/- 10%) operation - Bonds toner to paper with heat | Find 2 |
| 2 | RM1-4248-000CN | Fusing Assembly - For 220/240 VAC - Bonds toner to paper with heat | Find 2 |
| 2 | RM1-4248-020CN | Fusing Assembly - For 220-240 VAC - Bonds toner to paper with heat | Find 2 |
| 3 | RM1-4273-000CN | Engine controller board (ECU) - 110VAC - For Laserjet P2010 printer series | Find 3 |
| 3 | RM1-4274-000CN | Engine controller board (ECU) - 220VAC - For the Laserjet P2010 printer series | Find 3 |

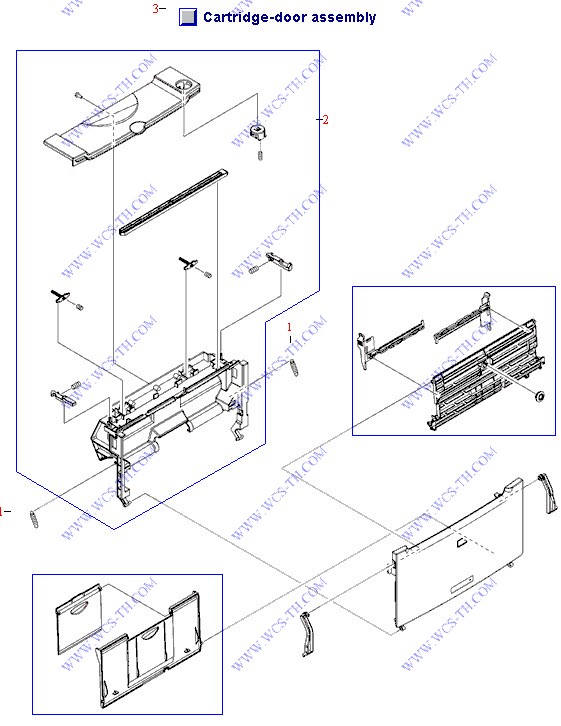

Cartridge-door assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RU5-2894-000CN | Compression spring - Located on the separation pad base of the multipurpose tray | Find 1 |
| 2 | RM1-4267-000CN | Inner cover assembly of cartridge door | Find 2 |
| 3 | RM1-4266-000CN | Cartridge door assembly - Complete assembly | Find 3 |

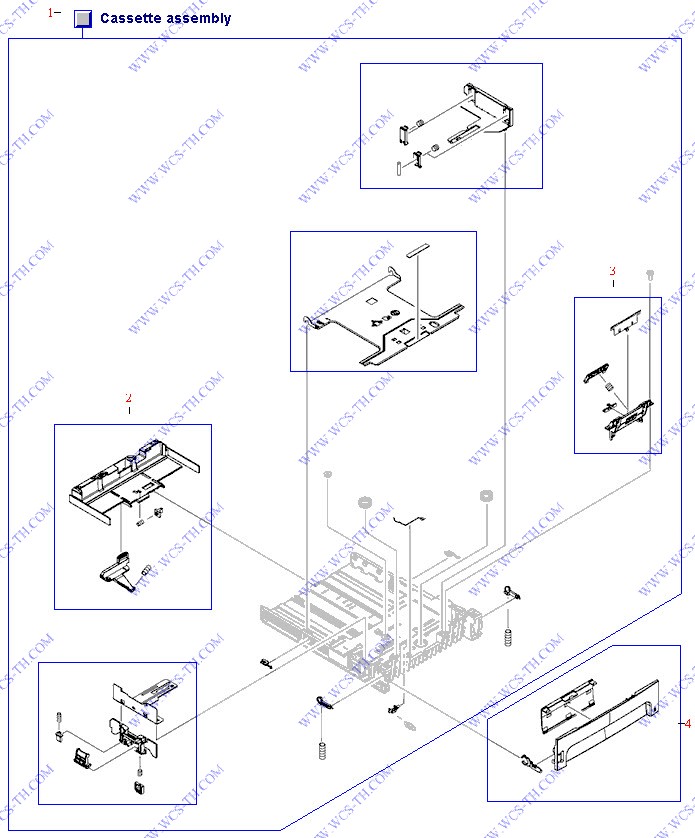

Cassette assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4251-000CN | 250-sheet paper input tray 2 cassette - Pull out cassette that paper is loaded into | Find 1 |
| 2 | RM1-1295-000CN | TRAY 2 REAR ASSY | Find 2 |
| 2 | RM1-1295-010CN | TRAY 2 REAR ASSY | Find 2 |
| 3 | RM1-1298-000CN | Separation pad assembly - Includes the pad and spring located on the arm in the holder frame - Mounts toward the front of the tray 2 | Find 3 |
| 4 | RM1-4252-000CN | TRAY 2 C COVER ASSY | Find 4 |

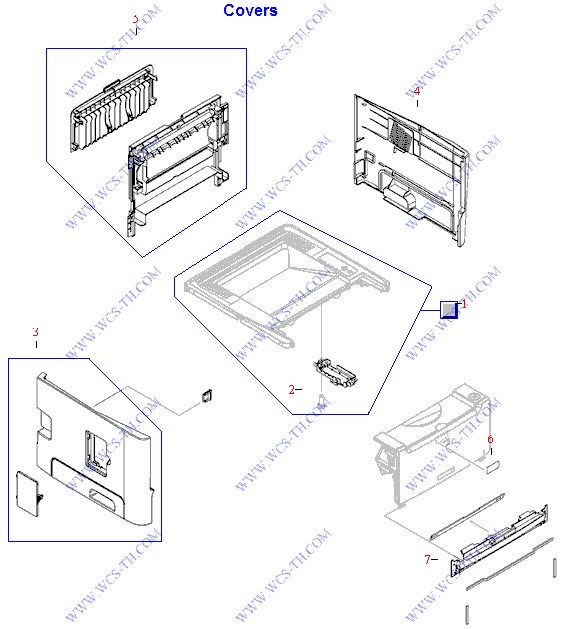

Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4272-000CN | Top cover assembly - For the LaserJet P2010 printer series | Find 1 |
| 2 | XB4-7300-809CN | M3 self-tapping pan head phillips screw (Black oxide finish) - 8mm long | Find 2 |
| 3 | RL1-1529-000CN | Left side cover assembly - For the LaserJet P2010 printer series | Find 3 |
| 4 | RL1-1530-000CN | Right side cover assembly - For the LaserJet P2010 printer series | Find 4 |
| 5 | RM1-4272-000CN | Top cover assembly - For the LaserJet P2010 printer series | Find 5 |
| 5 | RM1-4277-020CN | Rear cover assembly - For the LaserJet P2010 printer series | Find 5 |
| 6 | RC1-3794-000CN | Caution label - Do not run staples through the engine - Has graphic of a staple with a red circle/line through it | Find 6 |
| 7 | RC2-0330-000CN | Front cover - Plastic cover located at the buttom of the cartridge door assembly | Find 7 |

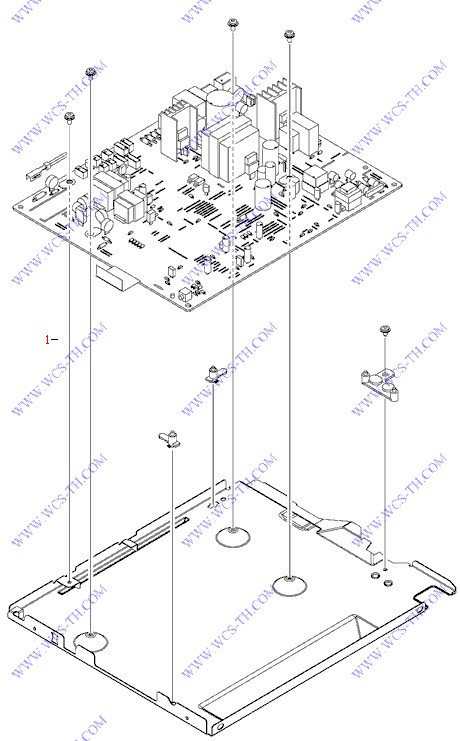

ECU assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4274-000CN | Engine controller board (ECU) - 220VAC - For the Laserjet P2010 printer series | Find 1 |
| 1 | RM1-4273-000CN | Engine controller board (ECU) - 110VAC - For Laserjet P2010 printer series | Find 1 |

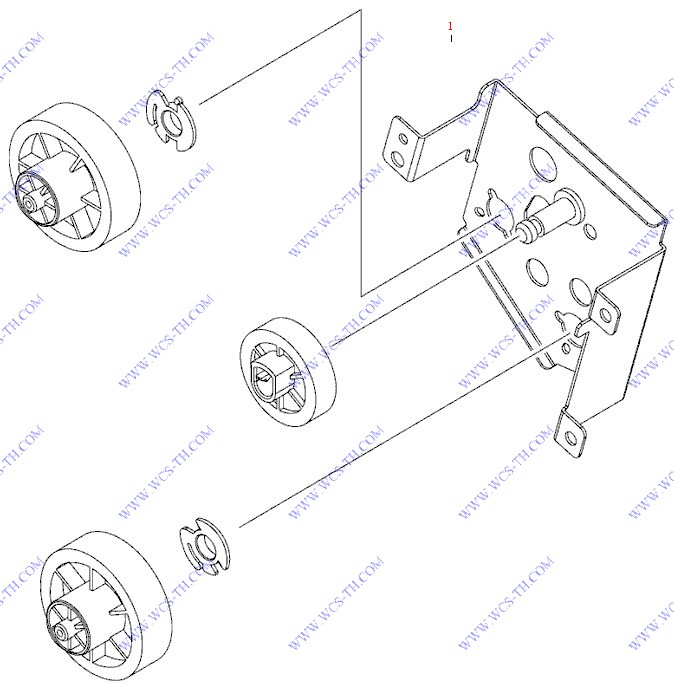

Face-down gear assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1305-000CN | Top output gear assembly - Includes three white plastic gears mounted on a support bracket - Drives the top output bin roller | Find 1 |

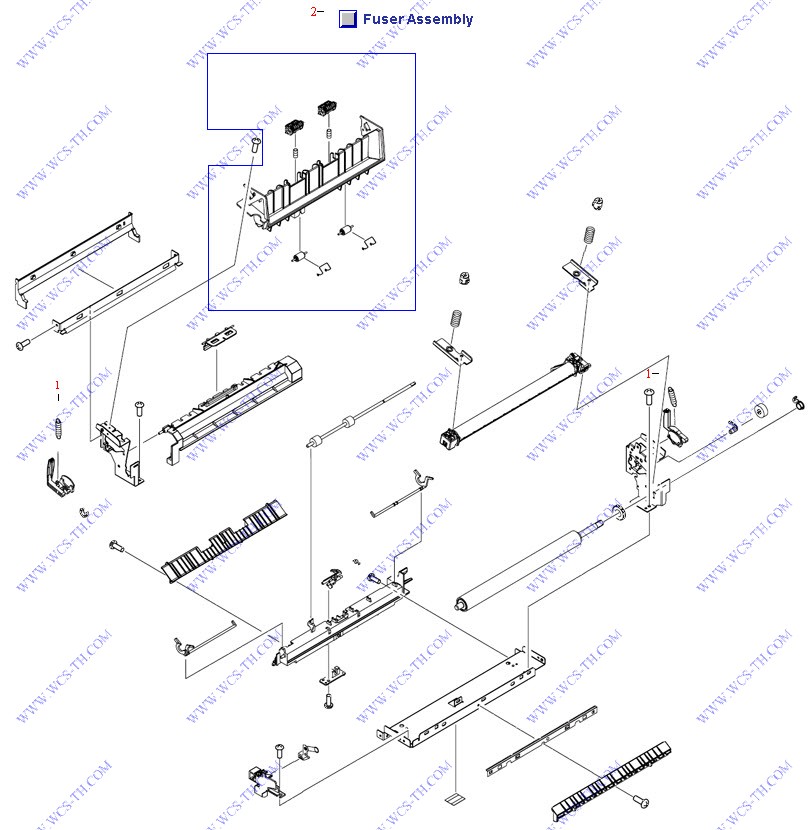

Fuser assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RA0-1090-000CN | Tension spring | Find 1 |
| 2 | RM1-4248-000CN | Fusing Assembly - For 220/240 VAC - Bonds toner to paper with heat | Find 2 |
| 2 | RM1-4247-020CN | Fusing assembly - For 110-127 VAC (+/- 10%) operation - Bonds toner to paper with heat | Find 2 |
| 2 | RM1-4248-020CN | Fusing Assembly - For 220-240 VAC - Bonds toner to paper with heat | Find 2 |
| 2 | RM1-4247-000CN | Fusing Assembly - Bonds toner to paper with heat - For 110-127VAC (+/- 10%) operation | Find 2 |

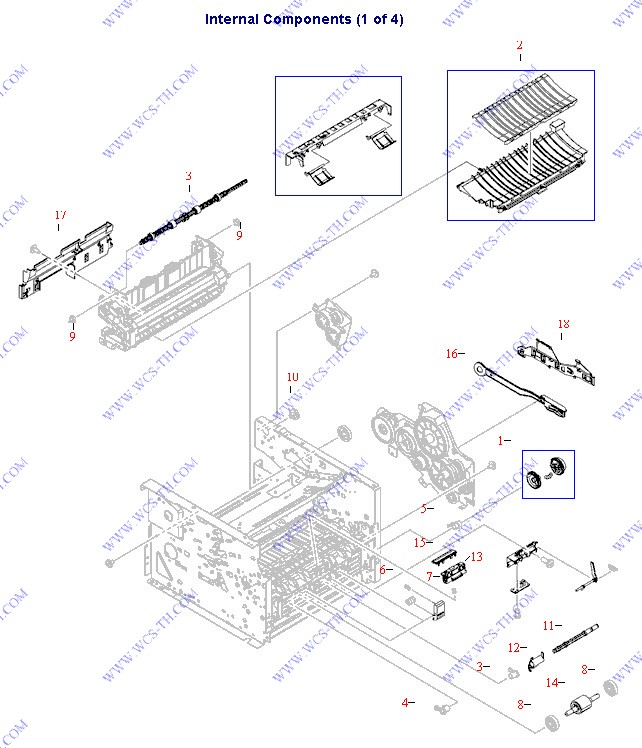

Internal components (1 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-1301-000CN | Double gear assembly - Includes the gear body, inset gear (both with a toothless area) and compression spring - For driving the paper pickup roller | Find 1 |
| 2 | RM1-4263-000CN | Paper feed guide assembly | Find 2 |
| 3 | RL1-0527-000CN | Top output bin delivery roller assembly - Plastic rod with four rubber wheels (two narrow and two wide) | Find 3 |
| 4 | RB2-2896-000CN | Shaft bushing/retainer - Left side pickup roller support bushing | Find 4 |
| 5 | RB2-2897-020CN | Shaft bushing/retainer | Find 5 |
| 5 | RB2-2897-000CN | Shaft bushing/retainer | Find 5 |
| 6 | RU5-2323-000CN | Compression spring | Find 6 |
| 7 | RU5-2894-000CN | Compression spring - Located on the separation pad base of the multipurpose tray | Find 7 |
| 8 | RC1-3470-000CN | Idler roller (plastic) - Free wheeling roller - Two used | Find 8 |
| 9 | RC1-3665-000CN | Shaft bushing/retainer - Small plastic cylinder with four nubs that twist - Locks into the side frame | Find 9 |
| 10 | RU5-0332-000CN | 19-tooth gear (White plastic) | Find 10 |
| 11 | RC1-3471-000CN | Drive shaft - Drives pickup roller | Find 11 |
| 12 | RC1-3472-000CN | Paper sensor flag - Cylindrical plastic piece with a flag on each end (One senses the paper, the other activates the photo-sensor) | Find 12 |
| 13 | RC2-0419-000CN | Multipurpose paper input tray separation pad base - Where the separation pad attaches to | Find 13 |
| 14 | RL1-0540-000CN | Paper pickup roller - Includes the D shaped pickup roller spindle with the rubber tire - Does NOT include the idler rollers on each side of the pickup roller | Find 14 |
| 15 | RL1-1524-000CN | Multipurpose paper input tray separation pad | Find 15 |
| 16 | RC1-3668-000CN | Gear release link | Find 16 |
| 17 | RU5-0331-000CN | 29-tooth gear (White plastic) - Main drive gear for the fusing assembly - Mounts on the right end of the fusing assembly | Find 17 |
| 18 | RC2-1569-000CN | DC cable guide - Attaches to the main drive assembly | Find 18 |

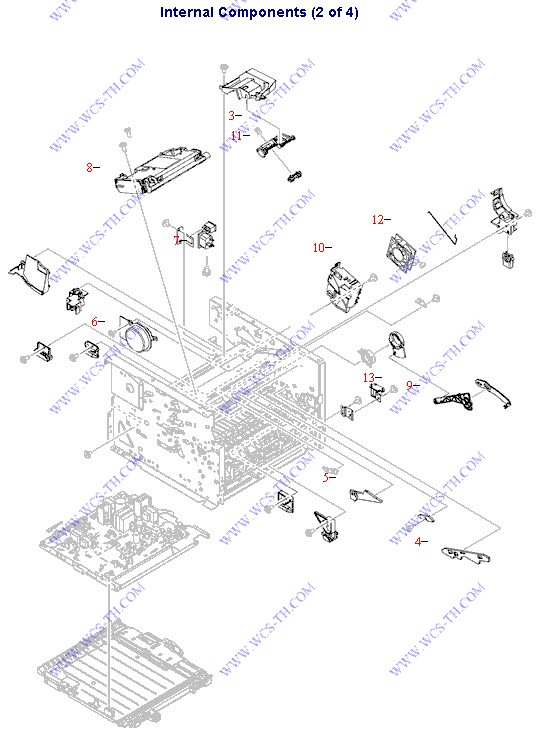

Internal components (2 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RU5-2335-000CN | Compression spring - Applies downward pressure on the memory tag arm to contact the toner cartridge | Find 3 |
| 4 | RC2-0346-000CN | Right lower cartridge guide | Find 4 |
| 5 | RC2-0426-000CN | Right upper cartridge guide | Find 5 |
| 6 | RK2-1567-000CN | DC Motor - Provides power for drive assembly - Located on the right side of printer - Motor (M1) | Find 6 |
| 7 | RM1-4169-000CN | PWR INLET ASSY | Find 7 |
| 8 | RM1-4262-000CN | Laser/Scanner assembly - Mounts on top of print structure | Find 8 |
| 9 | RC2-0405-000CN | Cam arm - Attaches to the drawer connector | Find 9 |
| 10 | RC2-0349-000CN | Fan holder - Holds the cooling fan | Find 10 |
| 11 | RC2-0392-000CN | Arm tag | Find 11 |
| 12 | RK2-1589-000CN | Fan assembly - For the LaserJet P2010 printer series | Find 12 |
| 13 | RK2-0424-000CN | 24V DC Solenoid (SL1) - Engages the pickup roller gear/clutch assembly for tray 2 (250-sheet tray) - Mounts on the right side plate assembly | Find 13 |

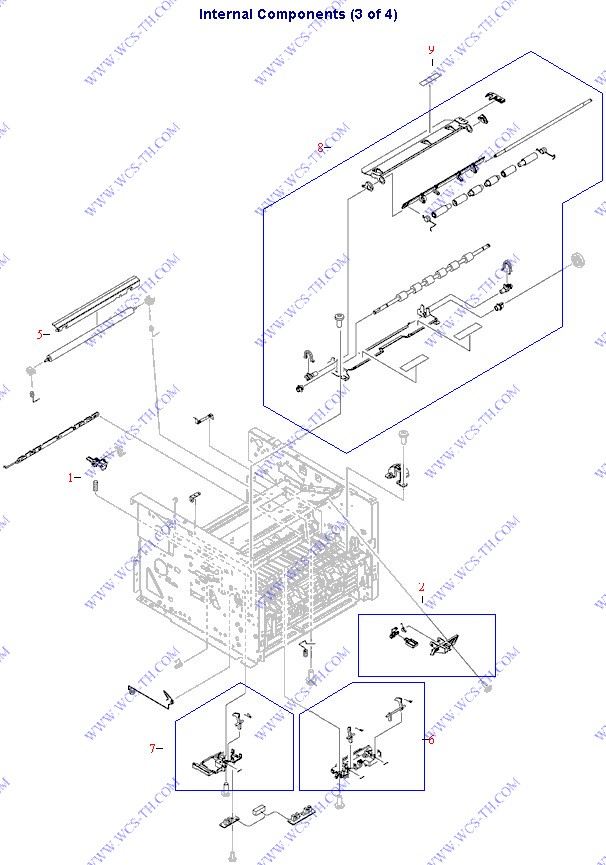

Internal components (3 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RU5-2335-000CN | Compression spring - Applies downward pressure on the memory tag arm to contact the toner cartridge | Find 1 |
| 2 | RM1-1321-000CN | Shutter link assembly - Spring loaded link which engages the shutter on the laser/scanner assembly (blocking the laser beam) when the toner cartridge access door is opened - Mounts on the left front of the laser/scanner support shelf | Find 2 |
| 5 | RM1-4279-000CN | Transfer roller - Transfer charge roller | Find 5 |
| 6 | RM1-1283-000CN | Top sensor assembly - Includes the bracket and flags for the top of page detection sensor (PS912), and paper width detection sensor (PS913) - Mounts behind the registration roller assembly | Find 6 |
| 7 | RM1-4245-000CN | Paper width sensor assembly | Find 7 |
| 8 | RM1-4244-000CN | Registration assembly - Set of rollers before toner cartridge and after feed rollers | Find 8 |
| 9 | RC1-3796-000CN | Transfer Guide Open label - Located on registration roller assembly | Find 9 |

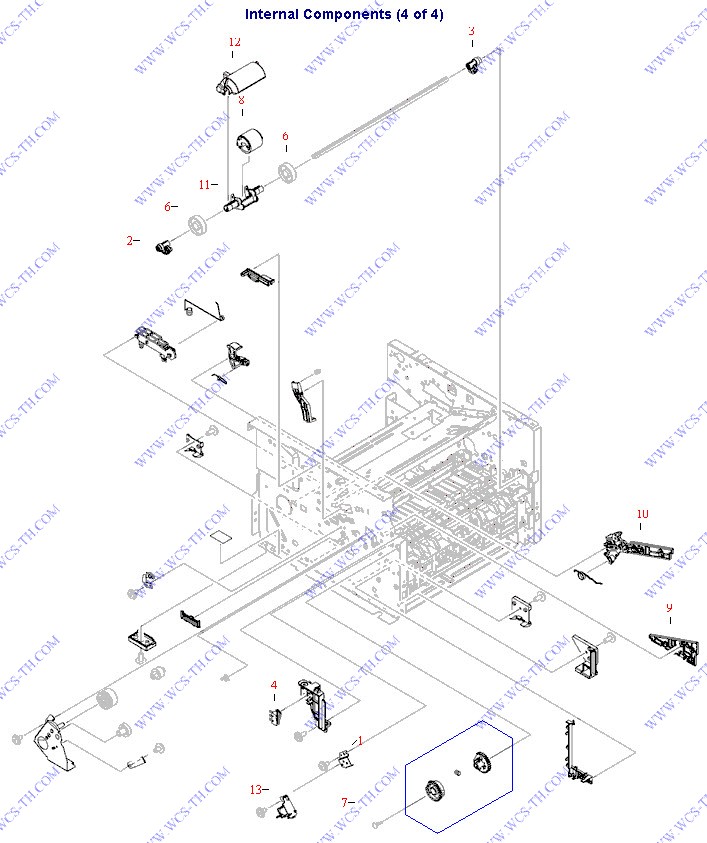

Internal components (4 of 4)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC2-0334-000CN | Solenoid holder:mount : For solenoid SL2 : Used on multipurpose tray | Find 1 |
| 2 | RC2-0387-000CN | Multipurpose paper input tray left side cam - Small plastic cam that moves inside the paper pick-up roller holder | Find 2 |
| 3 | RC2-0388-000CN | Multipurpose paper input tray right side cam - Small plastic cam that moves inside the paper pick-up roller holder | Find 3 |
| 4 | RK2-0534-000CN | Microswitch - Door open switch (SW501) | Find 4 |
| 6 | RC1-0950-000CN | M.P. ROLLER | Find 6 |
| 7 | RA0-1068-000CN | Continuity cap - Gear retainer for 30 tooth Tray 1 pickup roller shaft | Find 7 |
| 8 | RL1-1525-000CN | Multipurpose paper input tray pick-up roller | Find 8 |
| 9 | RC2-0339-000CN | Left lower cartridge guide | Find 9 |
| 10 | RC2-0425-000CN | Left upper cartridge guide | Find 10 |
| 11 | RC2-0386-000CN | Paper pick-up roller holder | Find 11 |
| 12 | RC2-0420-000CN | Multipurpose paper input tray pick-up roller cover - Plastic cover that protects the paper pick-up roller | Find 12 |
| 13 | RK2-1587-000CN | Multipurpose paper input tray solenoid (SL2) | Find 13 |

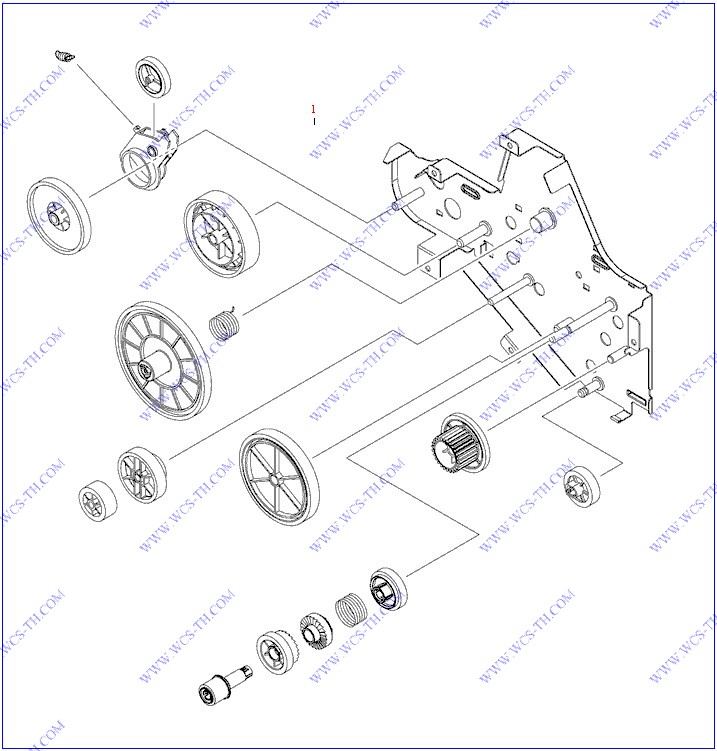

Main drive assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4253-000CN | Main drive assembly | Find 1 |
PCB assembly locations
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4273-000CN | Engine controller board (ECU) - 110VAC - For Laserjet P2010 printer series | Find 1 |
| 1 | RM1-4274-000CN | Engine controller board (ECU) - 220VAC - For the Laserjet P2010 printer series | Find 1 |
