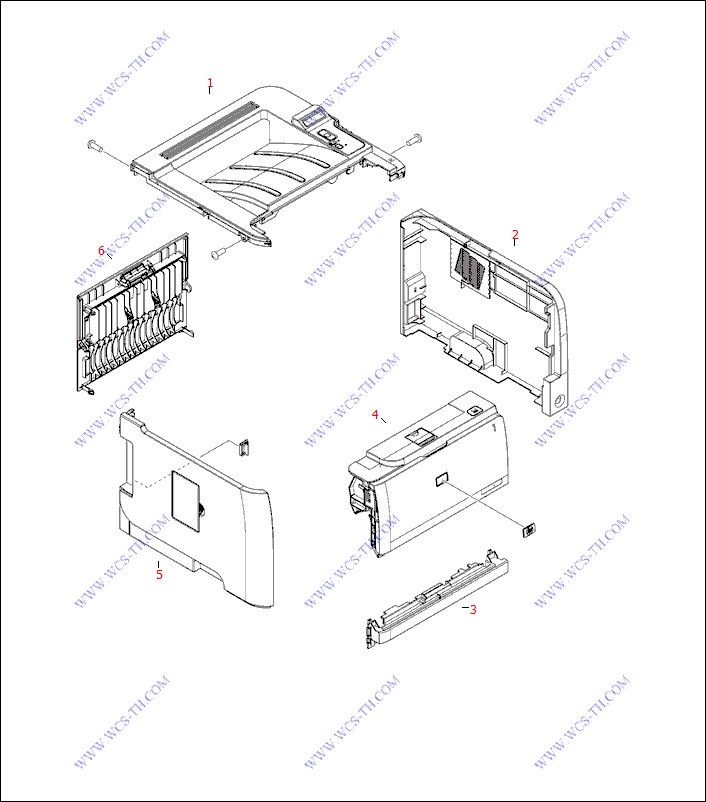

External covers, panels, and doors
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-6429-000CN | Top cover assembly - For the LaserJet P2055 printer series | Find 1 |
| 2 | RC2-6254-000CN | Right side cover assembly - For the LaserJet P2055 printer series | Find 2 |
| 3 | RL1-2124-000CN | Front cover assembly - For the LaserJet P2035/P2055 printer series | Find 3 |
| 4 | RM1-6425-000CN | Pen access door - Allows access to the print cartridges - For the LaserJet P2055 printer series | Find 4 |
| 5 | RM1-6428-000CN | Left side cover assembly - For the LaserJet P2055 printer series | Find 5 |
| 6 | RM1-6444-000CN | Rear cover assembly - For the LaserJet P2055 printer series | Find 6 |

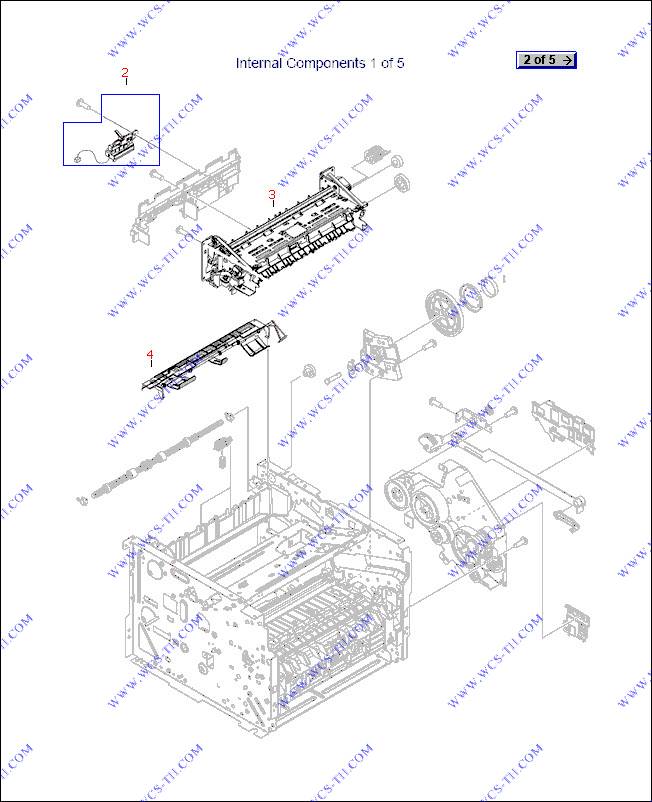

Internal components (1 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RM1-6445-000CN | Reverse-sensor assembly - For the LaserJet P2055 printer series | Find 2 |
| 3 | RM1-6405-000CN | Fusing Assembly - Bonds toner to paper with heat - For 110-127VAC (+/- 10%) operation | Find 3 |
| 3 | RM1-6406-000CN | Fusing Assembly - Bonds toner to paper with heat - For 220-240VAC (+/- 10%) operation | Find 3 |
| 4 | RM1-6401-000CN | Paper retaining delivery assembly - For the LaserJet P2035/P2055 printer series | Find 4 |
Internal components (2 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RM1-6378-000CN | Main motor assembly - For the LaserJet P2035/P2055 printer series | Find 3 |
| 4 | RM1-6375-000CN | Inlet cable assembly - For the LaserJet P2035/P2055 printer series | Find 4 |
| 5 | RM1-6414-000CN | Paper pickup roller assembly - For the LaserJet P2035/P2055 printer series | Find 5 |

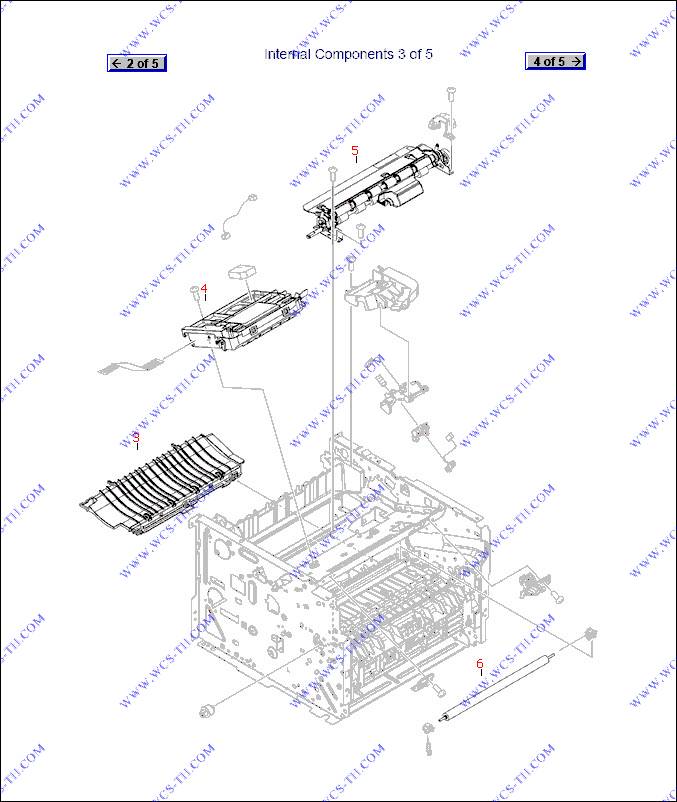

Internal components (3 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RM1-6402-000CN | Paper feed guide assembly - Feeds paper from the paper cassette into the printer - For the LaserJet P2035/P2055 printer series | Find 3 |
| 4 | RM1-6424-000CN | Scanner assembly - For the LaserJet P2035/P2055 printer series | Find 4 |
| 5 | RM1-6419-000CN | Registration assembly - For the LaserJet P2035/P2055 printer series | Find 5 |
| 6 | RM1-6450-000CN | Transfer roller assembly - Transfers static charge to the paper - For the LaserJet P2035/P2055 printer series | Find 6 |

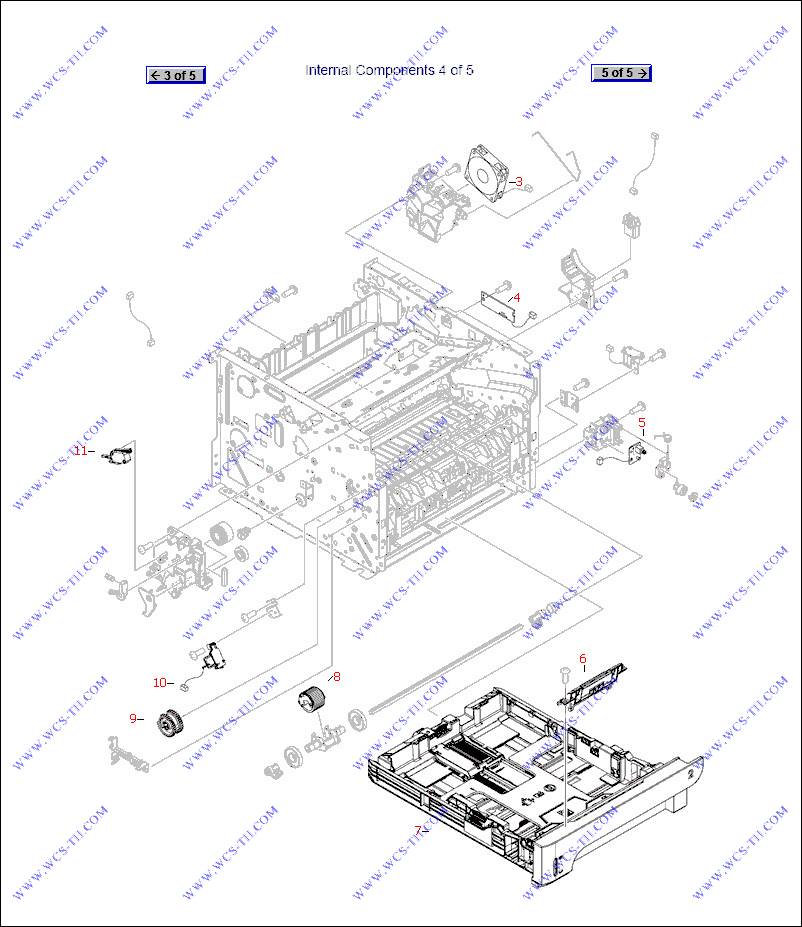

Internal components (4 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 3 | RK2-2727-000CN | Fan assembly - For the LaserJet P2035/P2055 printer series | Find 3 |
| 4 | RM1-6346-000CN | Connector PC board assembly - Small interconnecting board | Find 4 |
| 5 | RM1-6348-000CN | Power switch assembly - For power supply PC board | Find 5 |
| 6 | RM1-6397-000CN | Separation pad assembly - Includes pad holder and separation pad - For tray 2 | Find 6 |
| 7 | RM1-6394-000CN | 250-sheet paper cassette - Paper cassette used for tray 2 | Find 7 |
| 8 | RL1-2120-000CN | Pick-up roller for optional tray 1 | Find 8 |
| 9 | RM1-4275-000CN | Pickup roller gear assembly - For the LaserJet P2035/P2055 printer series | Find 9 |
| 10 | RK2-2731-000CN | 24V DC Solenoid (SL1) - Engages the pickup roller gear/clutch assembly for tray 1 (250-sheet tray) | Find 10 |
| 11 | WC4-5171-000CN | Fuser delivery drive assembly microswitch | Find 11 |
Internal components (5 of 5)
| Pic No. | Parts ID | Parts Name | Link |
| 2 | RM1-6393-000CN | Engine control unit (ECU) PC board - Control and power supply board for the printer (For 220V to 240V operation) | Find 2 |
| 2 | RM1-6392-000CN | Engine control unit (ECU) PC board - Control and power supply board for the printer (For 110V to 127V operation) | Find 2 |
| 3 | K2-2733-000CN | Solenoid (SL3) - Duplexer solenoid | Find 3 |
| 4 | RM1-6423-000CN | Reverse drive assembly - Duplexer media reverse direction drive assembly - For the LaserJet P2055 printer series | Find 4 |
| 5 | CC528-69002 | Formatter (main logic) board - For the LaserJet P2055dn/P2055x printers only | Find 5 |
| 5 | CC528-60001 | Formatter (main logic) board - For the LaserJet P2055dn/P2055x printers only | Find 5 |
| 5 | CC527-69002 | Formatter (main logic) board - For the LaserJet P2055D printer only | Find 5 |
| 5 | CC527-60001 | Formatter (main logic) board - For the LaserJet P2055D printer only | Find 5 |
| 6 | RM1-6346-000CN | Connector PC board assembly - Small interconnecting board | Find 6 |
