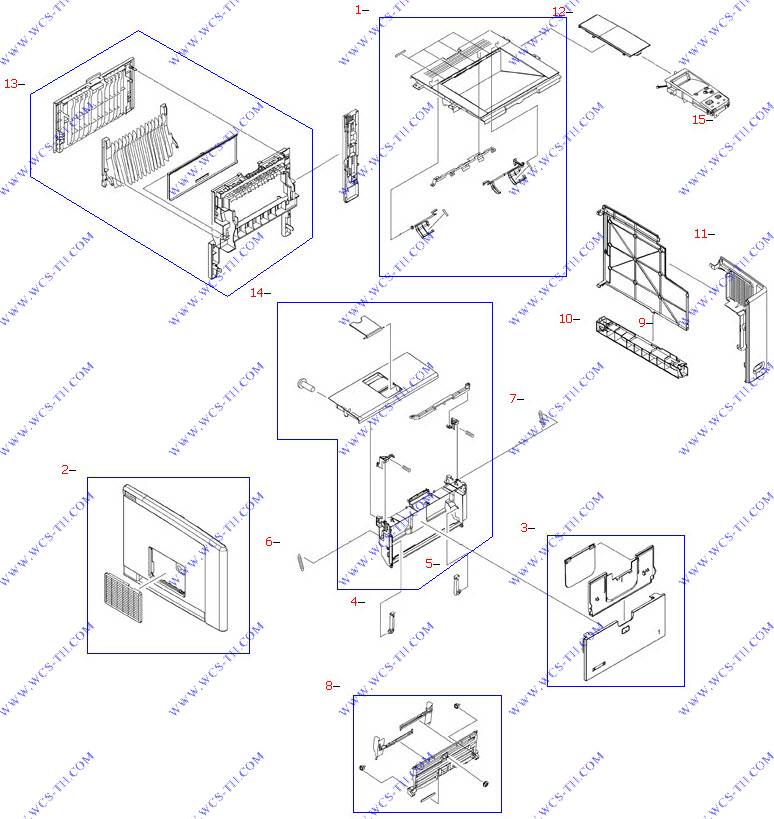

Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-3720-020CN | Top cover assembly - Mounts on the top of the printer holds the paper when it is printed | Find 1 |
| 1 | RM1-3720-000CN | Top cover assembly - Mounts on the top of the printer holds the paper when it is printed | Find 1 |
| 2 | RM1-3721-000CN | Left cover assembly | Find 2 |
| 3 | RM1-3723-000CN | Multi-purpose input tray cover assembly - Includes pull-out and flip-out tray extensions | Find 3 |
| 4 | RC1-4057-000CN | Tray hinge - Left side hinge for drop down tray 1 assembly | Find 4 |
| 5 | RC1-4058-000CN | Tray hinge - Right side hinge for drop down tray 1 assembly | Find 5 |
| 6 | RU5-2388-000CN | Tension spring - Provides tension for white plastic arm on left side of cartridge access door | Find 6 |
| 7 | RU5-2388-000CN | Tension spring - Provides tension for white plastic arm on left side of cartridge access door | Find 7 |
| 8 | RM1-1490-000CN | MP/Tray 1 support assembly - Hinged support and adjustable paper width guide assembly - Tray 1 cover assembly attaches to this assembly | Find 8 |
| 9 | RC2-0602-000CN | Right side cover - Located on the right side of the printer - Provides access to DIMMs | Find 9 |
| 10 | RC2-0603-000CN | Right lower cover - Horizontal plastic cover - Mounts on the right lower side of the printer | Find 10 |
| 11 | RL1-1367-000CN | Right front cover - Vertical plastic cover - Mounts on the right front of the printer | Find 11 |
| 12 | RC2-0605-000CN | Right upper cover - Used to cover the top side of the formatter board | Find 12 |
| 13 | RM1-3724-000CN | Rear cover assembly - Includes rear door assembly | Find 13 |
| 14 | RM1-3722-000CN | Cartridge access door assembly - Provides access to the cartridges | Find 14 |
| 15 | RM1-3725-000CN | Control panel assembly - Includes the display mounted on the right top side of the printer | Find 15 |

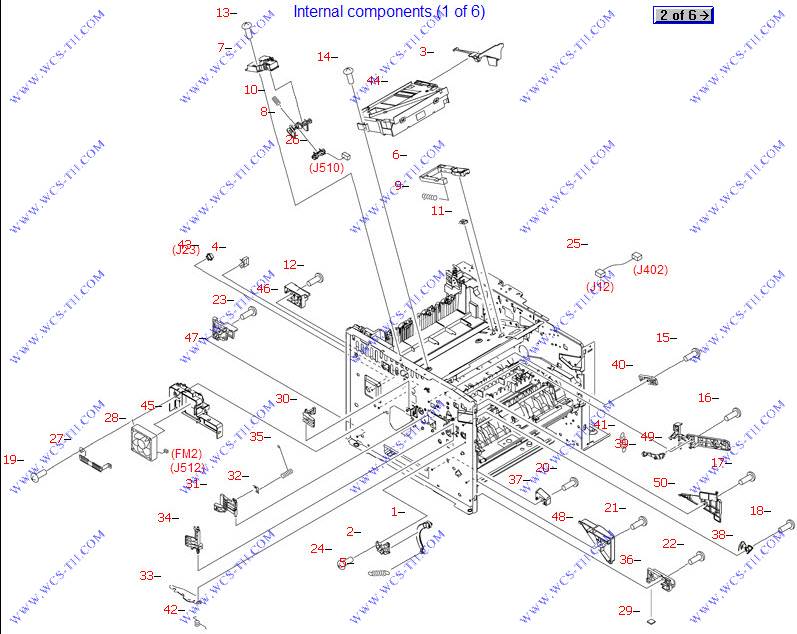

Internal components (1 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-4055-000CN | Door arm - White plastic arm that connects to left side cartridge access door | Find 1 |
| 2 | RC1-4056-000CN | Door arm guide - White plastic guide for cartridge door lever | Find 2 |
| 3 | RC1-4128-020CN | Plastic duct that vents air from the lower right front fan to the laser/scanner. | Find 3 |
| 4 | WT2-5694-000CN | Snap-in cable clamp | Find 4 |
| 5 | RU5-2407-000CN | Tension spring - Provides tension for cartridge access door arm | Find 5 |
| 6 | RC1-4125-000CN | Laser shutter link - Enables the laser scanner shutter by pressing up this link on the underside of the laser/scanner assembly | Find 6 |
| 7 | RC1-4126-000CN | Reader holder cover - Plastic housing that covers cartridge E-label reader and holder assembly | Find 7 |
| 8 | RC1-4127-000CN | E-label reader holder - Housing that holds cartridge E-label reader | Find 8 |
| 9 | RU5-2404-000CN | Compression spring - Spring provides pressure to the laser shutter which when pulled back (spring is compressed) enables the laser scanner shutter by pressing up the plastic mechanical link on the underside of the laser/scanner assembly | Find 9 |
| 10 | RU5-2405-000CN | Compression spring - Provides pressure for E-reader holder | Find 10 |
| 11 | WT2-5812-000CN | Cable clip - 'C' shaped white plastic clip | Find 11 |
| 12 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 12 |
| 13 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 13 |
| 14 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 14 |
| 15 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 15 |
| 16 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 16 |
| 17 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 17 |
| 18 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 18 |
| 19 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 19 |
| 20 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 20 |
| 21 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 21 |
| 22 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 22 |
| 23 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 23 |
| 24 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 24 |
| 25 | RM1-4053-000CN | Laser scanner motor cable - Connects ECU to scanner motor (M3) | Find 25 |
| 26 | RM1-4054-000CN | Contacts and cable - For toner cartridge memory tag - Connects to ECU memory control | Find 26 |
| 27 | RC2-0623-000CN | Left plate fan shield - Holds the left side fan (FM2) | Find 27 |
| 28 | RK2-1499-000CN | Cooling fan (FM2) - Located on the left side of the printer - Small fan that cools the fuser assembly and print cartridge area | Find 28 |
| 29 | RA0-1003-000CN | Rubber foot - For bottom of printer - Three used | Find 29 |
| 30 | RC1-4065-000CN | Grounding contact lever - Lever on left side that is moved by contact when the toner cartridge is installed | Find 30 |
| 31 | RC1-4066-020CN | Grounding contact lever - Lever on left side that pushes both contact springs against toner cartridge contacts on left side of cartridge | Find 31 |
| 32 | RC1-4067-000CN | Leaf spring - Leaf spring that provides electrical connection to left side of toner cartridge | Find 32 |
| 33 | RC1-4136-000CN | Protective plate | Find 33 |
| 34 | RC1-4137-020CN | Contact cam - Vertical piece that inserts into protective plate | Find 34 |
| 35 | RC1-4140-000CN | Compression spring - Provides pressure to grounding contact link on left side of cartridge guide - Pushes link arm away when cartridge is removed | Find 35 |
| 36 | RC2-0565-000CN | Cassette guide - Left side guide for media cassette | Find 36 |
| 37 | RC2-0585-000CN | Left wing feed guide stopper | Find 37 |
| 38 | RC2-0705-000CN | Drive release lever | Find 38 |
| 39 | RC2-0706-000CN | Cartridge clamp lever - Attaches to upper left toner cartridge guide - Provides mechanical lock for toner cartridge | Find 39 |
| 40 | RC2-0707-000CN | Left cartridge stopper - Provided a predetermined position for the cartridge | Find 40 |
| 41 | RU5-2403-000CN | Tension spring - Provides tension for cartridge clamp lever that holds lefts side of cartridge in a stable position when inserted | Find 41 |
| 42 | RU5-2410-020CN | Torsion spring - Provides pressure to move protective plate back into cartridge compartment when the cartridge is removed | Find 42 |
| 43 | VS1-7257-007CN | Drawer connector - Connector located on top of tray assembly frame (right side), which connects tray assemblies to each other | Find 43 |
| 44 | RM1-1521-030CN | Laser/Scanner assembly - Mounts on top of print structure | Find 44 |
| 45 | RC2-0622-000CN | Fan holder - Chassis left fan holder | Find 45 |
| 46 | RC1-4009-000CN | Plate holder - Holds the left rear corner of the paper access plate (duplex pan) | Find 46 |
| 47 | RC2-0566-000CN | Cassette guide - Left rear side cassette guide | Find 47 |
| 48 | RC2-0567-000CN | Center guide - Left center guide plate | Find 48 |
| 49 | RC2-0703-000CN | Cartridge guide - Upper left side toner cartridge guide | Find 49 |
| 50 | RC2-0704-000CN | Cartridge guide - Lower left side toner cartridge guide | Find 50 |

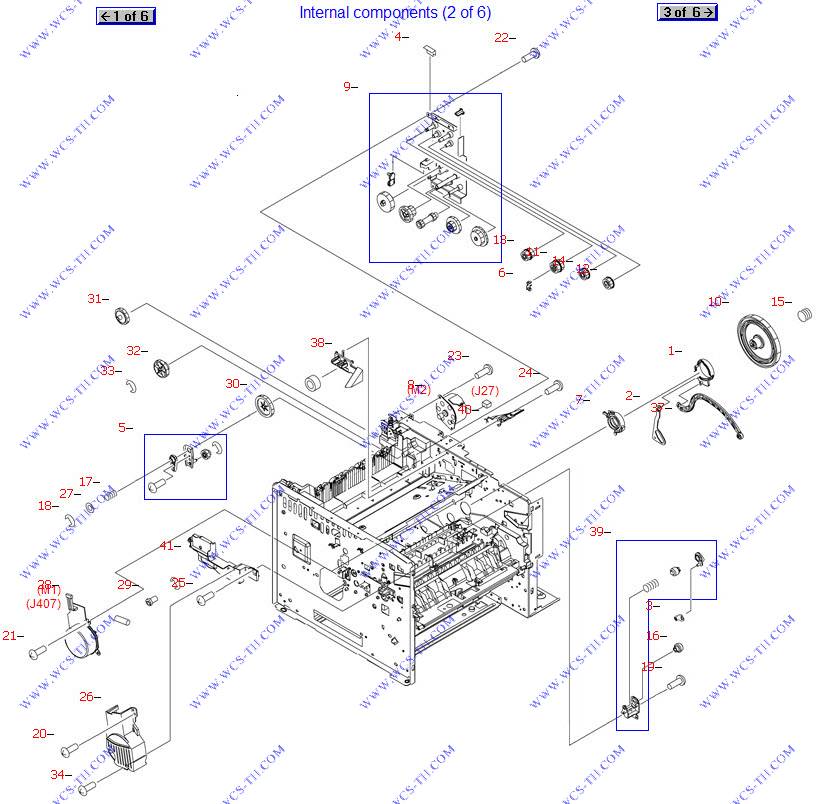

Internal components (2 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-4114-000CN | Cam - Located between large white 201-tooth gear and drive release lever | Find 1 |
| 2 | RC1-4116-000CN | Drive release lever | Find 2 |
| 3 | RC1-4116-000CN | Drive release lever | Find 3 |
| 4 | RC2-0649-000CN | Fuser film drive side plate - Located on the fuser assembly | Find 4 |
| 5 | RM1-3748-000CN | Duplexing pendulum assembly - Gear assembly that transfers power from main motor to run duplexing capability | Find 5 |
| 6 | RC2-0657-000CN | Fuser thrust stopper - Located on the fuser drive assembly | Find 6 |
| 7 | RC2-0701-000CN | Inner bushing - Rides on the large white 201-tooth drive gear | Find 7 |
| 8 | RK2-1489-000CN | Stepping DC motor (M2) - Drives all fuser rollers and fuser drive assembly | Find 8 |
| 9 | RM1-3746-000CN | Fuser drive side plate and gear assembly - Drive gear assembly and mounting plate for fuser - Located on right side of printer | Find 9 |
| 10 | RU5-0950-000CN | Gear - 201-tooth gear | Find 10 |
| 11 | RU5-0956-000CN | Gear - 20/20 tooth - Goes on the fuser drive assembly | Find 11 |
| 12 | RU5-0957-000CN | Gear - 20-tooth - Goes on the fuser drive assembly | Find 12 |
| 13 | RU5-0958-000CN | Gear - 17/17 tooth - Goes on the fuser drive assembly | Find 13 |
| 14 | RU5-0959-000CN | Gear - 19-tooth - Goes on the fuser drive assembly | Find 14 |
| 15 | RU5-2401-000CN | Compression spring - Provides pressure for the large 201-tooth white gear on right side of printer | Find 15 |
| 16 | RU5-0394-000CN | Gear - 12-tooth Gear - Goes on the drive release assembly | Find 16 |
| 17 | RU5-2920-000CN | Compression spring - Goes on the pendulum assembly | Find 17 |
| 18 | XD9-0232-000CN | E-ring keeper - Attaches to drive end of registration roller to secure cluster gear | Find 18 |
| 19 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 19 |
| 20 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 20 |
| 21 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 21 |
| 22 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 22 |
| 23 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 23 |
| 24 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 24 |
| 25 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 25 |
| 26 | RC1-4108-000CN | Cover for main motor M1 - Located on lower right side of printer | Find 26 |
| 27 | RC2-0652-000CN | Plain Washer - Located on the pendulum assembly | Find 27 |
| 28 | RK2-1488-000CN | Main motor (M1) - DC motor located on the upper left side of the printer | Find 28 |
| 29 | RU5-0951-000CN | Gear - 16-tooth gear | Find 29 |
| 30 | RU5-0955-000CN | Gear - 42-tooth - Goes with the pendulum assembly | Find 30 |
| 31 | RU5-0960-000CN | Gear - 31-tooth gear | Find 31 |
| 32 | RU5-0962-000CN | Gear - 65-tooth gear | Find 32 |
| 33 | XD9-0232-000CN | E-ring keeper - Attaches to drive end of registration roller to secure cluster gear | Find 33 |
| 34 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 34 |
| 37 | RC1-4115-000CN | Coupling lever - White plastic lever between large white gear cam and drive release assembly | Find 37 |
| 38 | RC2-0590-000CN | Cartridge duct - Small vent duct to route air from the fan (FM1) to the cartridge area | Find 38 |
| 39 | RM1-1522-000CN | Drive release assembly - | Find 39 |
| 39 | RM1-1522-020CN | Drive release assembly | Find 39 |
| 40 | RC2-0648-000CN | Air guide - Located next to the cartridge duct | Find 40 |
| 41 | RC2-0579-000CN | Gear cover - Mounts on the left side of the printer chassis | Find 41 |
Internal components (3 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC1-0922-000CN | Roller bushing - Right side transfer roller bushing | Find 1 |
| 2 | RC1-4027-000CN | Sensor lever - Top of page sensor flag - Used to detect edge of paper | Find 2 |
| 3 | RC1-4028-000CN | Torsion spring - Provides tension for top of page sensor flag | Find 3 |
| 4 | RC1-4059-000CN | Torsion spring - Tiny spring that attaches to small metal U-shaped cartridge grounding contact - Rear cartridge contact spring | Find 4 |
| 5 | RC1-4060-000CN | Grounding contact - Tiny U-shaped metal cartridge grounding contact - Contacts copper grounding strip on left side of toner cartridge | Find 5 |
| 6 | RC1-4061-000CN | Torsion spring - Tiny spring that attaches to small metal U-shaped cartridge grounding contact - Front cartridge contact spring | Find 6 |
| 7 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 7 |
| 8 | RC1-4070-000CN | Sheet static charge - Dissipates static charge from paper | Find 8 |
| 9 | RU5-2408-000CN | Compression spring - Right side transfer roller spring - Provides tension for transfer roller | Find 9 |
| 10 | RC1-4189-000CN | Gear stopper - Small bushing between right side of registration assembly and registration roller drive gear | Find 10 |
| 11 | RU5-2385-000CN | Compression spring - Provides pressure for tray 1 seperation pad | Find 11 |
| 12 | RC2-0575-000CN | Arm paper - Includes sensor | Find 12 |
| 13 | RC2-0576-000CN | Torsion spring - Provides tension to the arm paper | Find 13 |
| 14 | RM1-4057-000CN | Cable harness - For paper delivery sensor and fuser thermistors | Find 14 |
| 15 | RA0-1172-000CN | 17-tooth gear assembly - Includes the 17-tooth gear mounted on a black plastic lever/bracket | Find 15 |
| 16 | RC2-0483-000CN | Compression spring | Find 16 |
| 17 | RU5-0366-000CN | Gear - 30-tooth - Attaches to right side end of tray 1 pickup roller shaft | Find 17 |
| 18 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 18 |
| 19 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 19 |
| 20 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 20 |
| 21 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 21 |
| 24 | RM1-1508-000CN | Transfer roller assembly - Long metal shaft with black roller - Includes right side bushing and tension spring | Find 24 |
| 25 | RC1-0939-000CN | Multi-purpose/tray 1 separation pad - Does not include holder | Find 25 |
| 26 | RC1-3935-000CN | Feed guide assembly - Mounts above transfer roller assembly | Find 26 |
| 27 | RC1-3936-020CN | Registration roller assembly cover | Find 27 |
| 28 | RC1-3937-000CN | Separation pad holder | Find 28 |
| 29 | RC1-4025-000CN | Static charge eliminator - Comb that mounts above upper delivery roller that dissipates static charge as paper exits printer | Find 29 |
| 30 | RM1-3715-000CN | Registration roller assembly | Find 30 |
| 31 | RM1-3716-000CN | Multi-purpose tray pickup roller assembly - Includes pickup roller, roller cam, right and left cams, both round rollers and dowel pin | Find 31 |
| 32 | RM1-3757-000CN | Lower transfer guide assembly - Guides paper into transfer roller | Find 32 |
Internal components (4 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-3759-000CN | Lower paper feed assembly - Vertical transfer unit - Transfers paper from pickup assembly up to the printer input | Find 1 |
| 2 | RM1-3760-000CN | Paper feed guide assembly | Find 2 |
| 3 | RC1-4085-000CN | Grounding plate - High voltage power supply grounding plate - Attaches to left rear of power supply | Find 3 |
| 4 | RM1-1506-000CN | Position guide assembly - Guides the paper along the right side duplex path - Attaches just above power supply | Find 4 |
| 5 | RM1-4040-000CN | Top sensor printed circuit board (PCB) assembly (PS-901) - Top of page sensor, detects pick, delivery and stationary | Find 5 |
| 6 | RM1-4042-000CN | Paper width sensor - Printed circuit board (PCB) assembly | Find 6 |
| 7 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 7 |
| 8 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 8 |
| 9 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 9 |
| 10 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 10 |
| 11 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 11 |
| 12 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 12 |
| 13 | XB2-7300-605CN | Machine screw with attached washer - M3, 6mm - Used to hold plastic to metal | Find 13 |
| 16 | RC1-4096-000CN | Guide assembly - Duplexer portion paper input guide assembly | Find 16 |
| 17 | RM1-3758-000CN | High voltage power supply PC board assembly | Find 17 |

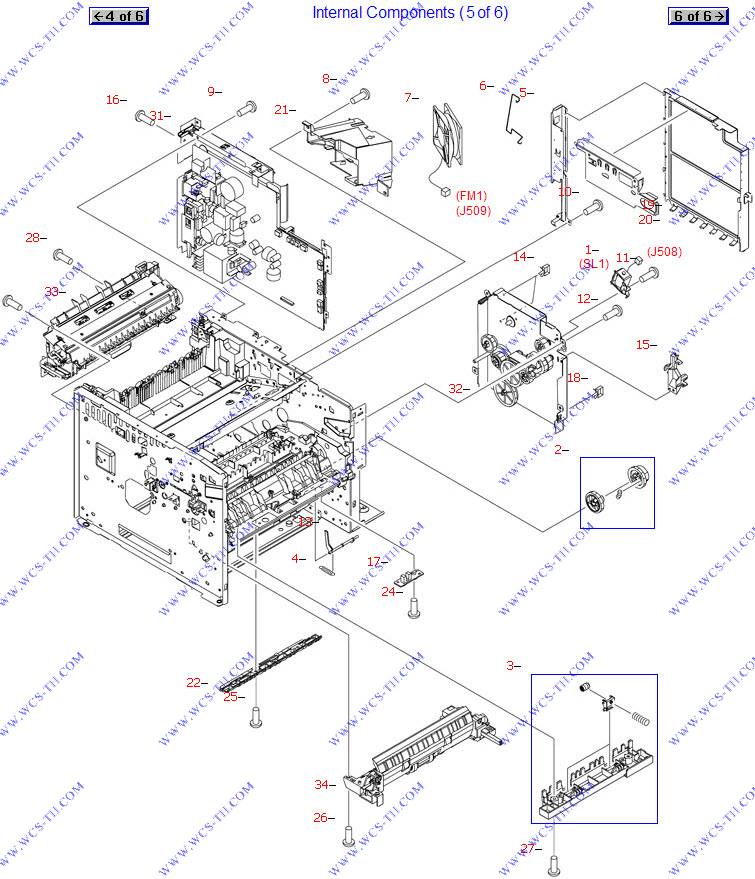

Internal components (5 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RK2-1490-000CN | Solenoid (SL1) - For tray 1 - Mounts on the main drive assembly | Find 1 |
| 2 | RM1-3714-000CN | Gear - Pick up roller gear assembly | Find 2 |
| 3 | RM1-1485-000CN | Roller assembly - Black plastic housing that holds rollers in front of tray 2 pickup roller assembly | Find 3 |
| 4 | RU5-2386-000CN | Torsion spring - Provides tension for tray 1 paper sensor flag | Find 4 |
| 5 | RC2-0638-000CN | I/O face plate - Mounts on the formatter board cover (non-network models) | Find 5 |
| 6 | RC2-0593-000CN | Fan rod - Metal rod that mounts against fan (FM1) on right side of printer - Used for noise reduction | Find 6 |
| 7 | RK2-1497-000CN | Cooling fan - Located on the right side of the printer | Find 7 |
| 8 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 8 |
| 9 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 9 |
| 10 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 10 |
| 11 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 11 |
| 12 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 12 |
| 13 | RC1-3939-000CN | Paper sensor lever - Mechanical device that activates photo sensor (PS902) - For tray 1 | Find 13 |
| 14 | WT2-5694-000CN | Snap-in cable clamp | Find 14 |
| 15 | RC2-0588-000CN | Cable holder - Mounts on the main drive assembly | Find 15 |
| 16 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 16 |
| 17 | RM1-4041-000CN | Multipurpose paper tray sensor - Printed circuit assembly (PCA) - Includes paper sensors (PS3) | Find 17 |
| 18 | WT2-5678-000CN | Cable clip - White plastic push-in clip with mounting pin | Find 18 |
| 19 | RC2-0627-000CN | Formatter cover - Mounts on the left back side of the printer | Find 19 |
| 20 | RC2-0628-000CN | Anti-magnetic plate - Located on the formatter cover | Find 20 |
| 21 | RC2-0592-000CN | Main fan holder - Plastic fan holder for main cooling fan (FM1) - Located on the upper right side of the printer | Find 21 |
| 22 | RC1-4083-000CN | Paper guide - Located under the registration roller assembly | Find 22 |
| 23 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 23 |
| 24 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 24 |
| 25 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 25 |
| 26 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 26 |
| 27 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 27 |
| 28 | XB2-7300-605CN | Machine screw with attached washer - M3, 6mm - Used to hold plastic to metal | Find 28 |
| 31 | RM1-3730-060CN | Engine controller assembly - For 110/127 VAC - Engine controller PC board and metal pan | Find 31 |
| 31 | RM1-3731-000CN | Engine controller PC board assembly and metal pan - For 220 VAC to 240 VAC operation | Find 31 |
| 31 | RM1-3730-000CN | Engine controller assembly - For 110/127 VAC - Engine controller PC board and metal pan | Find 31 |
| 31 | RM1-3731-060CN | Engine controller PC board assembly and metal pan - For 220 VAC to 240 VAC operation | Find 31 |
| 32 | RM1-3712-000CN | Main drive assembly - Mounts on the right side of the printer - Metal plate with gears attached - Also known as main gear drive assembly | Find 32 |
| 33 | RM1-3717-000CN | Fusing assembly - For 110-127 VAC - Bonds toner to paper by heat - Includes 20-tooth gear | Find 33 |
| 33 | RM1-3740-030CN | Fusing assembly - For 110-127 VAC - Bonds toner to paper by heat | Find 33 |
| 33 | 5851-3997 | Fusing assembly - For 220 VAC to 240 VAC operation - Bonds toner to paper with heat | Find 33 |
| 33 | RM1-3761-000CN | Fusing assembly - For 220 VAC to 240 VAC - Bonds toner to paper with heat - Includes 20-tooth gear | Find 33 |
| 33 | RM1-3741-030CN | Fusing assembly - For 220 VAC to 240 VAC operation - Bonds toner to paper with heat | Find 33 |
| 34 | RM1-3762-000CN | Paper pick-up assembly - Includes the pickup roller, feed roller assembly, drive gears, and plastic housing | Find 34 |

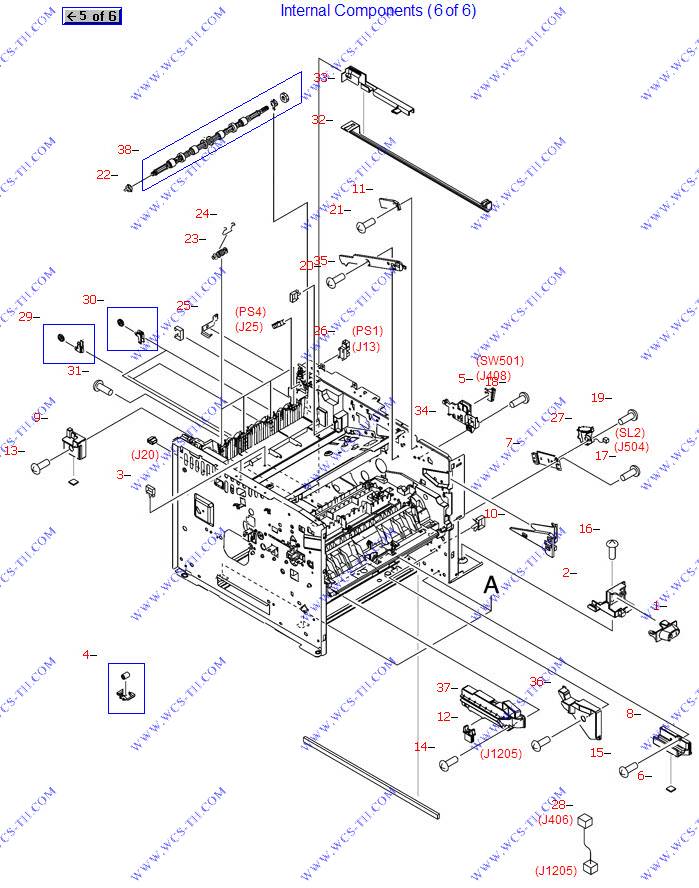

Internal components (6 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC2-0631-000CN | Power on/off switch - Located on the front right side of the printer | Find 1 |
| 2 | RC2-0632-000CN | Switch holder - Holds the power on/off switch | Find 2 |
| 3 | WT2-5678-000CN | Cable clip - White plastic push-in clip with mounting pin | Find 3 |
| 4 | RM1-3727-000CN | Bottom support plate for the roller assembly | Find 4 |
| 5 | RK2-0534-000CN | Microswitch - Door open switch (SW501) | Find 5 |
| 6 | RA0-1003-000CN | Rubber foot - For bottom of printer - Three used | Find 6 |
| 7 | RC2-0498-000CN | Solenoid Mount | Find 7 |
| 8 | RC2-0559-000CN | Cassette guide - Right side guide for media cassette | Find 8 |
| 9 | RC2-0560-000CN | Cassette guide - Right rear side cassette guide | Find 9 |
| 10 | RC2-0700-000CN | Cartridge guide - Lower right side toner cartridge guide | Find 10 |
| 11 | RC2-0702-000CN | Right cartridge stopper - Provided a predetermined position for the cartridge | Find 11 |
| 12 | VS1-7257-007CN | Drawer connector - Connector located on top of tray assembly frame (right side), which connects tray assemblies to each other | Find 12 |
| 13 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 13 |
| 14 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 14 |
| 15 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 15 |
| 16 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 16 |
| 17 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 17 |
| 18 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 18 |
| 19 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 19 |
| 20 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 20 |
| 21 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 21 |
| 22 | RC1-3665-000CN | Shaft bushing/retainer - Small plastic cylinder with four nubs that twist - Locks into the side frame | Find 22 |
| 23 | RC1-3994-000CN | Face down roller - Small individual feed roller that rides against face down shaft roller - Held by torsion spring - Four used | Find 23 |
| 24 | RC2-0665-000CN | Torsion spring - Tiny spring that attaches the face down roller | Find 24 |
| 25 | RC2-0697-000CN | Face-up shield plate | Find 25 |
| 26 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated | Find 26 |
| 27 | RK2-1492-000CN | Solenoid (SL2) - Controls paper pickup roller for tray 2 | Find 27 |
| 28 | RM1-4062-000CN | Option input tray cable | Find 28 |
| 29 | RM1-1497-000CN | Delivery roller assembly - Lower face-down output roller assembly - Includes roller and holder Four used | Find 29 |
| 30 | RM1-1497-000CN | Delivery roller assembly - Lower face-down output roller assembly - Includes roller and holder Four used | Find 30 |
| 31 | XB4-7401-005CN | M4 pan-head phillips screw with self-tapping threads - 10mm long | Find 31 |
| 32 | RC2-0633-000CN | Link switch - Metal arm that links power switch to power supply | Find 32 |
| 33 | RC2-0634-000CN | Link switch holder - Plastic guide that holds power link arm in place | Find 33 |
| 34 | RC2-0595-000CN | Holder - Plastic assembly that holds interlock switch for cover | Find 34 |
| 35 | RC2-0492-000CN | Cartridge guide - Right side toner cartridge guide | Find 35 |
| 36 | RC2-0561-000CN | Right center side plate guide | Find 36 |
| 37 | RC2-0562-000CN | Holder - Plastic assembly that holds optional input connector | Find 37 |
| 38 | RM1-3749-000CN | Face-down output roller assembly - Black roller shaft with four soft rollers | Find 38 |

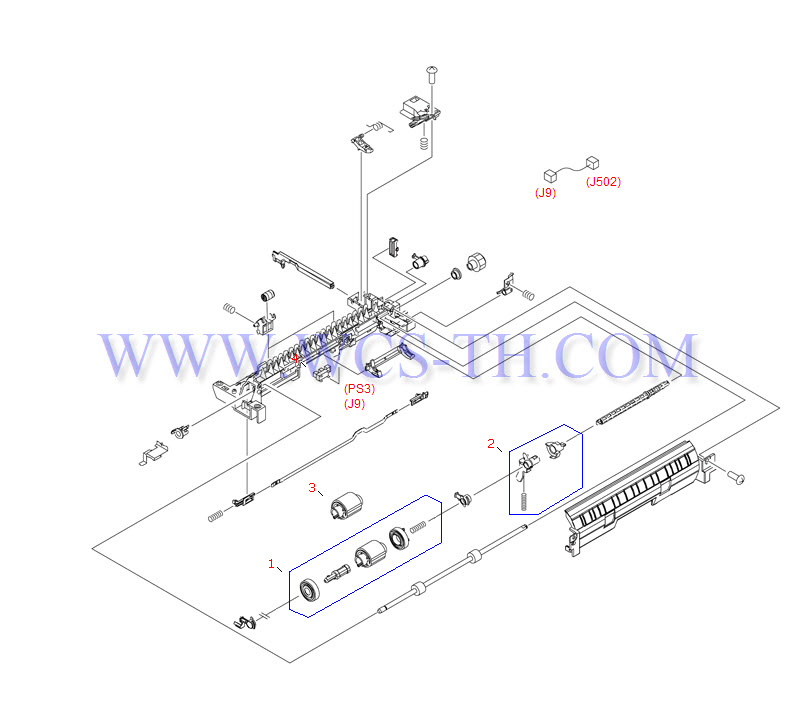

Tray 2 pickup assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-3763-000CN | Pick up roller assembly - Tray 2 pickup roller assembly | Find 1 |
| 1 | RM1-3762-000CN | Paper pick-up assembly - Includes the pickup roller, feed roller assembly, drive gears, and plastic housing | Find 1 |
| 2 | RM1-3769-000CN | Sensor flag assembly for tray 2 - Short rod with one flag on it - Mounts next to the pickup roller assembly | Find 2 |
| 3 | RL1-1370-000CN | Paper pickup roller - Picks up media from the paper input tray | Find 3 |
| 4 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated | Find 4 |
