Diagram HP LaserJet P3015
500-sheet input tray (Tray 3 and Tray 4)
| Pic No. | Parts ID | Parts Name | Link |
| No pic | CE530-69001 | Optional 500-sheet tray and feeder unit | |
| 1 | RM1-6306-000CN | Base plate roller assembly | Find 1 |
| 2 | RM1-6279-000CN | Cassette | Find 2 |
| 3 | RM1-6313-000CN | Pickup roller set, cassette | Find 3 |
| 4 | RM1-6303-000CN | Separation holder assembly | Find 4 |
Base product (no optional trays or accessories)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | N/A | Control panel | Find 1 |
| 2 | N/A | DIMM cover | Find 2 |
| 3 | N/A | Front-right and right-side cover assembly | Find 3 |
| 4 | N/A | Power switch | Find 4 |
| 5 | N/A | Left cover | Find 5 |
| 6 | N/A | Rear-door assembly | Find 6 |
| 7 | N/A | Power recepticle | Find 7 |
| 8 | N/A | Tray 2 cassette | Find 8 |
| 9 | N/A | Tray 1 (multipurpose tray) | Find 9 |
| 10 | N/A | Cartridge-door assembly (print-cartridge door) | Find 10 |
| 11 | N/A | Output bin (face-down tray) | Find 11 |
Base product (optional trays or accessories)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | N/A | Connector | Find 1 |
| 2 | N/A | Tray 3 or Tray 4 cassette | Find 2 |
| 3 | N/A | Positioning pin | Find 3 |
Covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC2-7670-000CN | Cover, right | Find 1 |
| 2 | RC2-7672-000CN | Cover, right-front | Find 2 |
| 3 | RC2-7673-000CN | Cover, right-rear | Find 3 |
| 4 | RC2-7674-000CN | Cover, DIMM | Find 4 |
| 5 | RC2-7675-000CN | Cover, handle right | Find 5 |
| 6 | RC2-7676-000CN | Cover, upper-right (top-right); duplex models | Find 6 |
| 6 | RC2-7707-000CN | Cover, upper-right (top-right); simplex models | Find 6 |
| 7 | RC2-7688-000CN | Cover, formatter | Find 7 |
| 8 | RC2-7677-000CN | Cover, upper-right (top-right) sub; duplex models | Find 8 |
| 9 | RM1-6264-000CN | Cartridge-door assembly | Find 9 |
| 10 | RM1-6265-000CN | Cover, multipurpose assembly | Find 10 |
| 11 | RM1-6266-000CN | Multipurpose lifting plate assembly | Find 11 |
| 12 | RM1-6289-000CN | Cover, top assembly | Find 12 |
| 13 | RM1-6291-000CN | Cover, left | Find 13 |
| 14 | RM1-6292-000CN | Cover, rear assembly | Find 14 |
| 15 | RM1-6518-000CN | Control panel; duplex models | Find 15 |
| 15 | RM1-6519-000CN | Control panel; duplex models | Find 15 |
Internal assemblies (1 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-6284-000CN | Tag holder assembly | Find 1 |
| 2 | RM1-6322-000CN | Laser/scanner | Find 2 |
| 3 | WG8-5696-000CN | Photo interrupter, TLP1243 | Find 3 |
| 4 | RC2-7933-000CN | Stopper, bushing arm | Find 4 |
| 5 | RK2-3103-000CN | Cable, flat | Find 5 |
Internal assemblies (2 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RK2-1490-000CN | Tray 1 solenoid | Find 1 |
| 2 | RK2-1492-000CN | Tray 2 solenoid | Find 2 |
Internal assemblies (3 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-6272-000CN | Registration roller assembly | Find 1 |
| 2 | RL1-2412-000CN | Roller, multipurpose | Find 2 |
| 3 | RM1-6315-000CN | Transfer lower guide assembly | Find 3 |
| 4 | RM1-6279-000CN | Cassette | Find 4 |
| 5 | RM1-6306-000CN | Base plate roller assembly | Find 5 |
| 6 | RM1-6321-000CN | Roller, transfer | Find 6 |
| 7 | RC2-8575-000CN | Pad, multipurpose separation | Find 7 |
| 8 | RM1-6303-000CN | Separation holder assembly | Find 8 |
Internal assemblies (4 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RK2-1499-000CN | Fan, sub | Find 1 |
| 2 | RM1-6263-000CN | Lower paper feed guide; duplex models | Find 2 |
| 3 | RM1-6270-000CN | Paper-feed guide assembly | Find 3 |
| 4 | RM1-6273-000CN | Position-guide assembly; duplex models | Find 4 |
| 5 | RM1-6280-000CN | High-voltage power supply; duplex models | Find 5 |
| 5 | RM1-6300-000CN | High-voltage power supply; simplex models | Find 5 |
| 6 | RM1-6511-000CN | TOP sensor PCA | Find 6 |
| 7 | RM1-6512-000CN | Paper width sensor PCA | Find 7 |
| 8 | RM1-6283-000CN | Switch assembly, power | Find 8 |
| 9 | RK2-3101-000CN | Cable, flat | Find 9 |
Internal assemblies (5 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RK2-1497-000CN | Fan, main | Find 1 |
| 2 | RM1-6268-000CN | Cassette, paper pickup assembly; duplex models | Find 2 |
| 2 | RM1-6299-000CN | Cassette, paper pickup assembly; simplex models | Find 2 |
| 3 | RM1-6271-000CN | Idler roller assembly | Find 3 |
| 4 | RM1-6510-000CN | Multipurpose sensor PCA | Find 4 |
| 5 | RM1-6274-000CN | Fuser assembly 110V | Find 5 |
| 5 | RM1-6319-000CN | Fuser assembly 220V | Find 5 |
| 6 | RM1-6281-000CN | Engine controller PCA 110V | Find 6 |
| 6 | RM1-6318-000CN | Engine controller PCA 220V | Find 6 |
| 7 | RM1-6514-000CN | Front USB PCA | Find 7 |
| 8 | WC4-5171-000CN | Microswitch | Find 8 |
| 9 | RM1-6515-000CN | Environmental sensor assembly | Find 9 |
| 10 | RM1-6313-000CN | Cassette pickup roller | Find 10 |
| 11 | RK2-2788-000CN | Cable, flat | Find 11 |

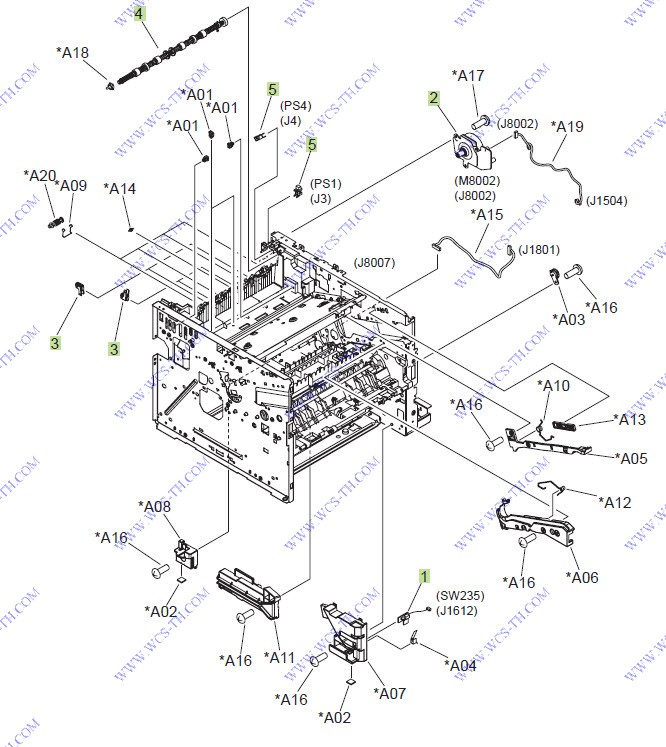

Internal assemblies (6 of 6)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-6487-000CN | Tray sensor PCA | Find 1 |
| 2 | RM1-6296-000CN | Fuser motor assembly | Find 2 |
| 3 | RM1-6301-000CN | Paper delivery roller assembly | Find 3 |
| 4 | RM1-6311-000CN | Face-down roller assembly | Find 4 |
| 5 | WG8-5696-000CN | Photo interrupter, TLP1243 | Find 5 |
