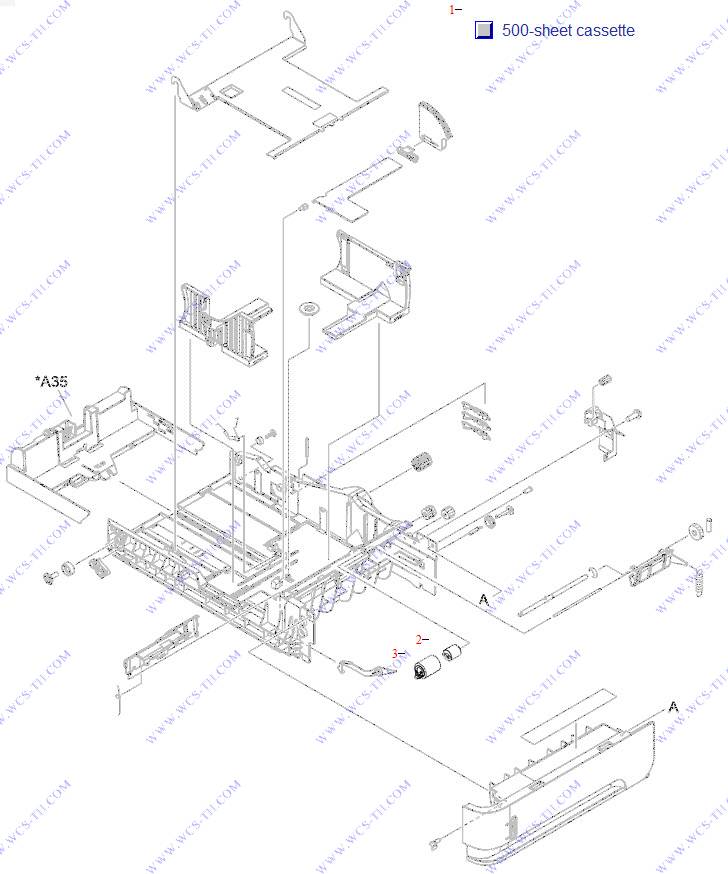

500-sheet cassette
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4559-000CN | 500-sheet paper cassette tray 2 | Find 1 |
| 2 | RC2-5262-000CN | 500-sheet cassette torque limiter | Find 2 |
| 3 | RM1-0037-020CN | Paper feed/separation roller assembly - Gray rubber roller on a blue plastic cylinder | Find 3 |

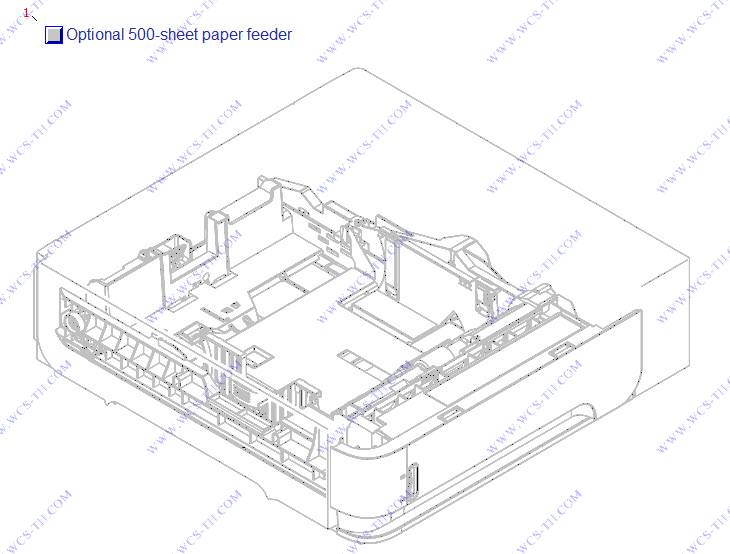

Assembly location-optional 500-sheet paper feeder
| Pic No. | Parts ID | Parts Name | Link |
| 1 | CB506-67904 | Roller kit for trays 2, 3, 4, 5, and 6 - Contains a pickup roller, a feed roller, and a separation roller | Find 1 |
Assembly locations-base unit
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-5460-000CN | Registration assembly - Registration shutter and roller with holder frame assembly | Find 1 |
| 2 | RM1-4527-000CN | Paper feed roller assembly - Mounts on the multi-purpose/tray 1 pick-up assembly | Find 2 |
| 3 | RM1-4529-000CN | Paper delivery assembly | Find 3 |
| 4 | RM1-4578-000CN | AC Power supply assembly (electrical components) - For 220 VAC 240 VAC | Find 4 |
| 4 | RM1-4549-000CN | AC Power supply assembly (electrical components) - For 110 VAC 127 VAC | Find 4 |
| 4 | RM1-4549-030CN | AC Power supply assembly - For 110 VAC 127 VAC | Find 4 |
| 5 | RM1-4563-000CN | Paper pickup assembly - Paper pickup drive assembly for multi-purpose/tray 1 | Find 5 |
| 6 | CB506-67901 | Fusing Assembly - For 110 VAC - Bonds toner to paper with heat | Find 6 |
| 6 | CB506-67902 | Fusing Assembly - For 220 VAC - Bonds toner to paper with heat | Find 6 |
| 7 | RM1-4559-000CN | 500-sheet paper cassette tray 2 | Find 7 |
Assembly locations-optional 1500-sheet paper feeder
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0036-020CN | Paper pickup roller - Gray spongy rubber roller on a white cylinder and 24-tooth white gear on one side | Find 1 |
| 2 | RM1-5255-000CN | Optional 1,500-sheet feeder front door assembly | Find 2 |

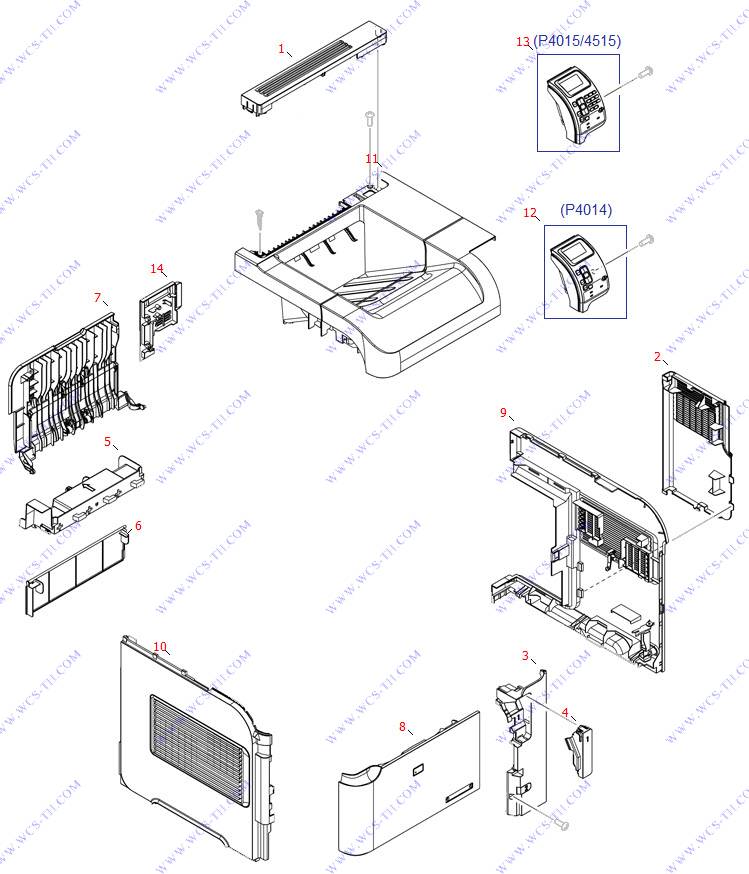

Covers-base unit
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC2-2459-000CN | Option cover - Mounts on the top cover assembly | Find 1 |
| 2 | RC2-2468-000CN | Formatter cover - Plastic cover that protects the formatter board - Mounts on the right cover assembly - For Laserjet P4015/P4515 series | Find 2 |
| 3 | RC2-2475-000CN | Right front cover - For laserjet P4015/P4515 series | Find 3 |
| 4 | RC2-2476-000CN | Envelope connector cover - Mounts on the right front cover - For Laserjet P4015/P4515 series | Find 4 |
| 5 | RC2-2510-000CN | Duplexing outer cover - For laserjet P4015/P4515 series | Find 5 |
| 6 | RC2-5239-000CN | Legal tray cover - For Laserjet P4015/4515 series | Find 6 |
| 7 | RM1-4531-000CN | Face-up drop-down output tray assembly - For Laserjet P4015/P4515 series | Find 7 |
| 8 | RM1-4534-000CN | Front cover assembly - Used for the Laserjet P4014/P4015/P4515 series | Find 8 |
| 9 | RM1-4550-000CN | Right cover assembly - Plastic cover that protects the right side of the printer - For the Laserjet P4015/P4515 series | Find 9 |
| 10 | RM1-4551-000CN | Left cover assembly - Plastic cover that protects the left side of the printer - For the Laserjet P4014/P4515 series | Find 10 |
| 11 | RM1-4552-020CN | Top cover assembly - Includes the face-down output tray that holds the paper after it has been printed - For the Laserjet P4015/P4515 series | Find 11 |
| 11 | RM1-4552-000CN | Top cover assembly - Includes the face-down output tray that holds the paper after it has been printed - For the Laserjet P4015/P4515 series | Find 11 |
| 12 | RM1-5059-000CN | Control panel assembly - Control buttons and display located on top right front of printer - For the Laserjet 4015/P4515 series | Find 12 |
| 13 | RM1-5060-000CN | Control panel assembly - Control buttons and display located on top right front of printer - For the Laserjet P4014 series | Find 13 |
| 14 | RC2-2478-000CN | Right rear cover - Plastic covert located next to the face-up tray assembly - For Laserjet P4015/P4515 series | Find 14 |

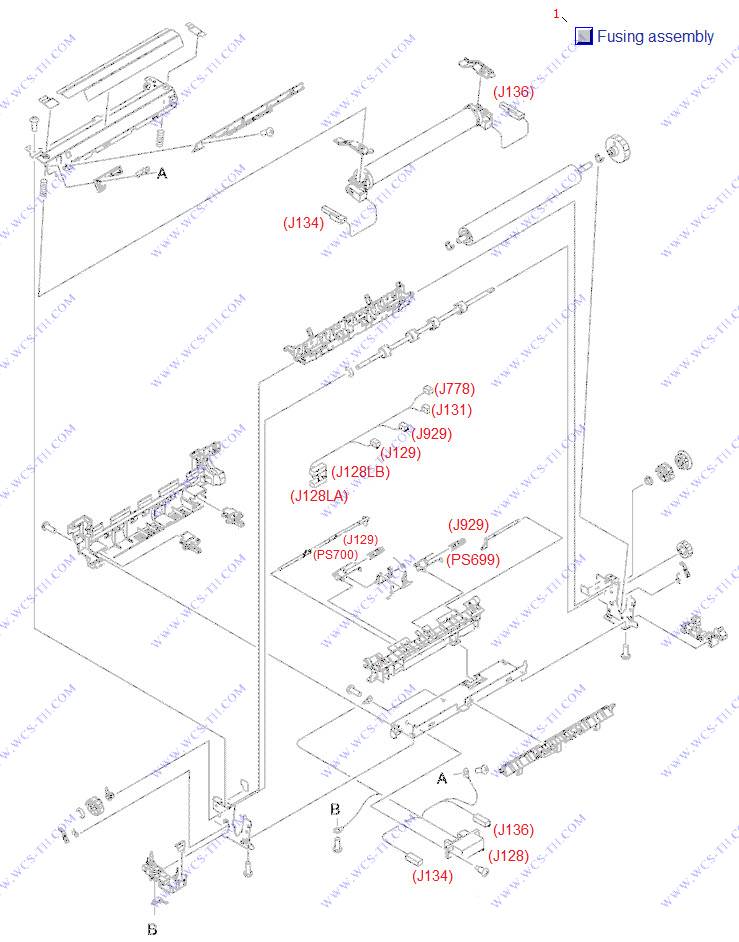

Fusing assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | CB506-67902 | Fusing Assembly - For 220 VAC - Bonds toner to paper with heat | Find 1 |
| 1 | CB506-67901 | Fusing Assembly - For 110 VAC - Bonds toner to paper with heat | Find 1 |

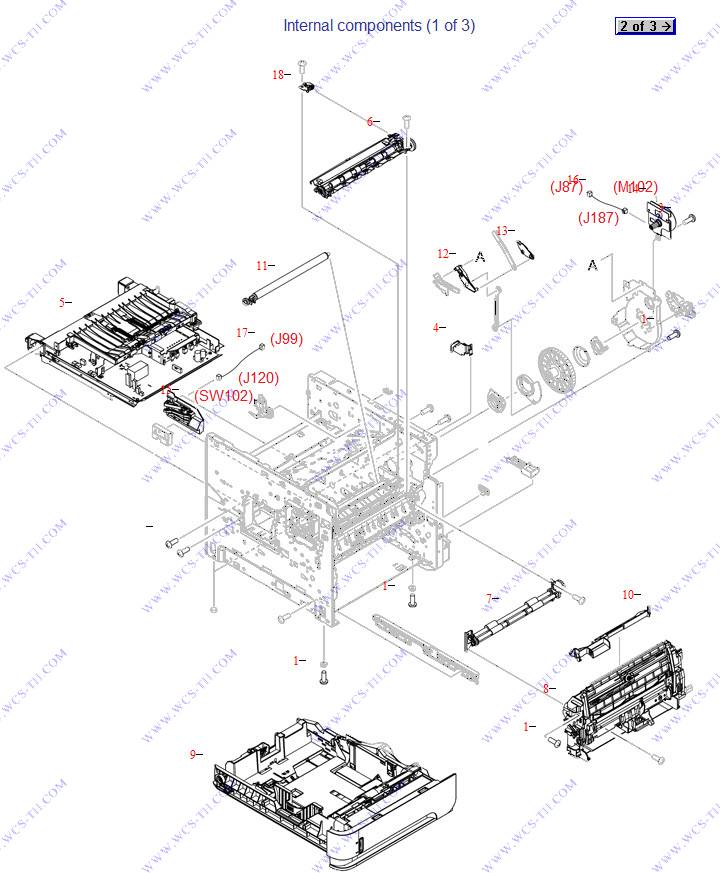

Internal components (1 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XA9-1671-000CN | Screw - M3 X 8mm long | Find 1 |
| 3 | XA9-1503-000CN | M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long | Find 3 |
| 4 | RC1-0386-000CN | Connecting cable guide - Routes and protects all cables running from top portion of printer to the DC controller board | Find 4 |
| 5 | RM1-4549-030CN | AC Power supply assembly - For 110 VAC 127 VAC | Find 5 |
| 5 | RM1-4549-000CN | AC Power supply assembly (electrical components) - For 110 VAC 127 VAC | Find 5 |
| 5 | RM1-4578-000CN | AC Power supply assembly (electrical components) - For 220 VAC 240 VAC | Find 5 |
| 6 | RM1-5460-000CN | Registration assembly - Registration shutter and roller with holder frame assembly | Find 6 |
| 7 | RM1-4527-000CN | Paper feed roller assembly - Mounts on the multi-purpose/tray 1 pick-up assembly | Find 7 |
| 8 | RM1-4563-000CN | Paper pickup assembly - Paper pickup drive assembly for multi-purpose/tray 1 | Find 8 |
| 9 | RM1-4559-000CN | 500-sheet paper cassette tray 2 | Find 9 |
| 10 | RL1-1667-000CN | Envelope cover | Find 10 |
| 11 | CB506-67903 | Transfer roller assembly - Long black foam type roller - Transfers static charge to paper | Find 11 |
| 12 | RC2-2480-000CN | ARM, RELEASE, A | Find 12 |
| 13 | RC2-2481-000CN | ARM, RELEASE, B | Find 13 |
| 14 | RL1-1659-000CN | Drum drive DC motor (M102) - Drives the photosensitive drum, primary charging roller, and transfer roller | Find 14 |
| 15 | RM1-4525-000CN | Paper size sensor/detect assembly | Find 15 |
| 16 | RM1-5090-000CN | Drum motor cable - Provides power to the drum drive motor (M102) | Find 16 |
| 17 | RM1-5091-000CN | Paper size sensor cable - Connects to the paper size detect assembly | Find 17 |
| 18 | RM1-5461-000CN | Grounding plate assembly - Located next to the transfer roller | Find 18 |

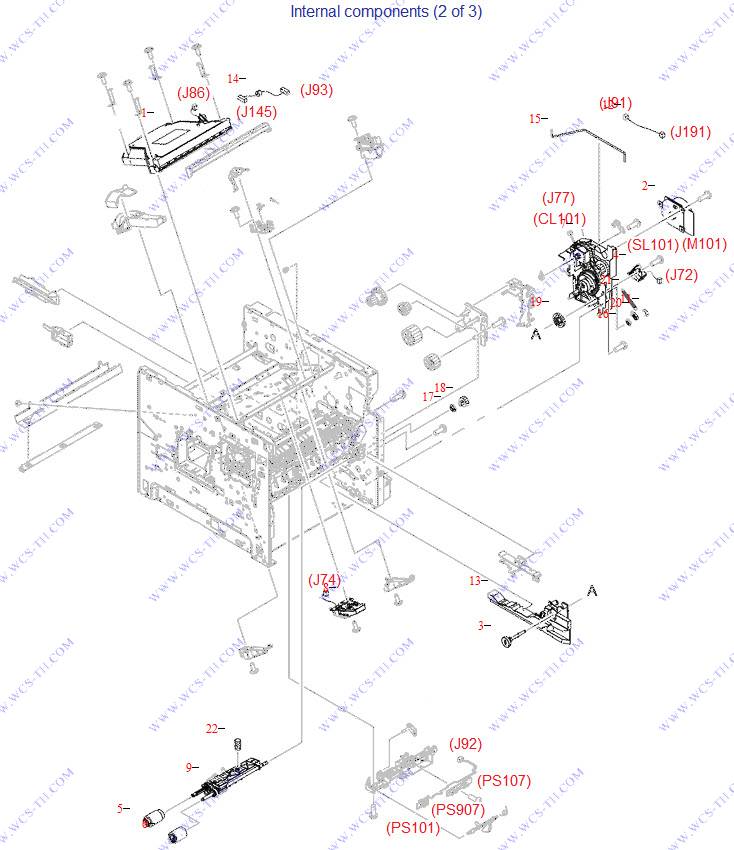

Internal components (2 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-5465-000CN | Laser/Scanner assembly - Mounts on the support structure in the print engine frame assembly | Find 1 |
| 2 | RL1-1657-000CN | Main drive motor (M101) - Drives the tray 1 pickup roller, tray 2 pickup roller, and feed roller | Find 2 |
| 3 | RL1-1658-000CN | Retard drive shaft - Mounts on the right front guide assembly | Find 3 |
| 4 | RK2-0270-000CN | Tray 2 pick-up solenoid - Mounts on the paper pick-up drive assembly | Find 4 |
| 5 | RM1-0036-020CN | Paper pickup roller - Gray spongy rubber roller on a white cylinder and 24-tooth white gear on one side | Find 5 |
| 6 | RM1-0037-020CN | Paper feed/separation roller assembly - Gray rubber roller on a blue plastic cylinder | Find 6 |
| 7 | RM1-4532-000CN | Paper pickup drive assembly - Includes a metal plate with the paper feeder pick-up clutch, pick-up roller drive shaft, and drive gears | Find 7 |
| 8 | RM1-4539-000CN | Memory tag holder assembly | Find 8 |
| 9 | RM1-4562-000CN | Paper feed shaft (Z) assembly - Where paper pick-up roller and feed roller mounts on | Find 9 |
| 11 | XD9-0232-000CN | E-ring keeper - Attaches to drive end of registration roller to secure cluster gear | Find 11 |
| 12 | RM1-5089-000CN | Feed motor cable - Connects the motor (M101) to the multi-bin mail box | Find 12 |
| 13 | RM1-4576-000CN | Right front guide assembly - For tray 2 | Find 13 |
| 14 | RM1-5087-000CN | Laser/scanner cable - Connects laser/scanner to the laser driver PCB | Find 14 |
| 15 | RC2-2667-000CN | Rod switch | Find 15 |
| 16 | RC1-0206-000CN | Bushing - On right side of paper pickup drive assembly | Find 16 |
| 17 | RC1-0264-000CN | Feed roller shaft bushing - Bushing on right side of printer that supports the feed roller shaft. | Find 17 |
| 18 | RU5-0045-020CN | 18-tooth gear - Located on right side of printer in the Tray 2 paper pickup assembly | Find 18 |
| 19 | RU6-0159-000CN | 23-tooth gear - Located on the paper pick-up drive assembly | Find 19 |
| 20 | RC2-5783-000CN | Bushing - Mounts on the paper pick-up drive assembly | Find 20 |
| 21 | RU6-2115-000CN | Torsion spring - Provides torsion to the tag holder assembly | Find 21 |
| 22 | RC1-0213-000CN | Compression spring - Provides pressure for paper pickup and feed rollers in Tray 2 pickup assembly | Find 22 |

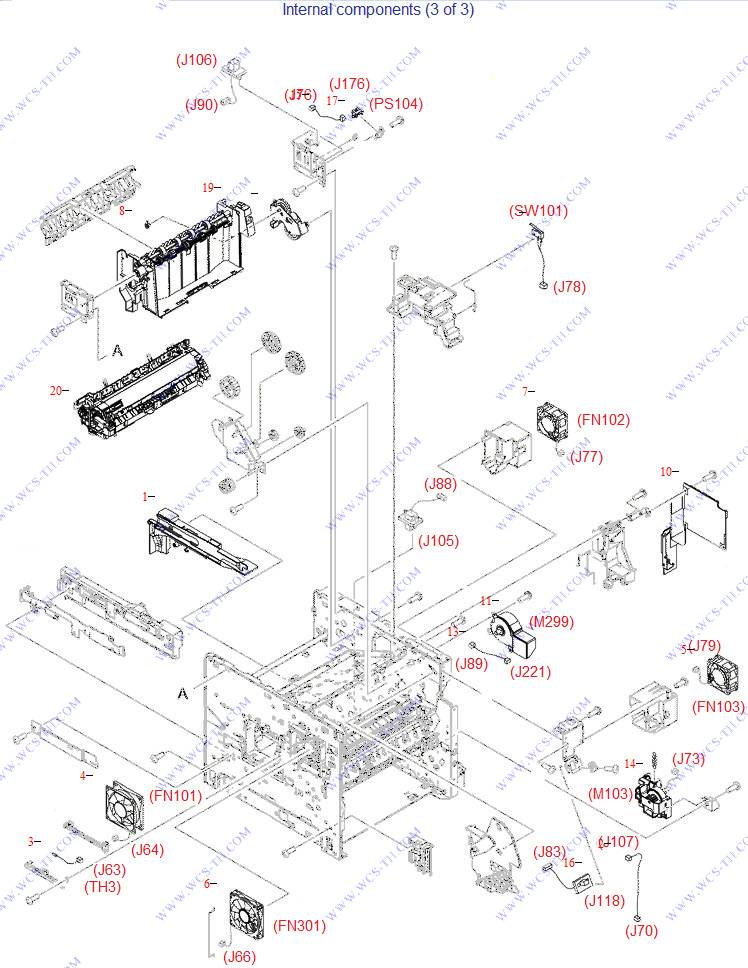

Internal components (3 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4558-000CN | Fuser right guide assembly - For Laserjet P4015/P4515 series | Find 1 |
| 2 | RM1-5082-000CN | Operation panel cable - Connects panel with the DC controller board | Find 2 |
| 3 | RK2-0359-000CN | Environment temperature detection thermistor - Detects ambient air temperature to determine length of time for fuser warm up | Find 3 |
| 4 | RK2-1988-000CN | Cooling fan (FN101) - Fan that cools the cartridge and power supply area | Find 4 |
| 5 | RK2-1989-000CN | Cooling fan (FN103) - Fan that cools the cartridge area | Find 5 |
| 6 | RK2-1991-000CN | Cooling fan (FN301) - Fan that cools the cartridge and laser/scanner area | Find 6 |
| 7 | RK2-1992-000CN | Cooling fan (FN102) - Exhausts heat from toner cartridges | Find 7 |
| 8 | RC1-0136-000CN | Roller bushing - Bushing that supports middle of paper delivery roller | Find 8 |
| 9 | RM1-4526-000CN | Paper delivery drive assembly - Two gears mounted on a plate located on the paper delivery assembly | Find 9 |
| 10 | RM1-4582-070CN | DC controller board assembly - DC Controller for LaserJet P4014/P4015 series | Find 10 |
| 10 | RM1-4582-050CN | DC controller board assembly - DC Controller for LaserJet P4014/P4015 series | Find 10 |
| 10 | RM1-4582-000CN | DC controller board assembly - DC Controller for LaserJet P4014/P4015 series | Find 10 |
| 11 | RM1-5051-000CN | Fuser motor (M299) assembly - Drives the pressure roller and feed roller when rotated counterclockwise it releases the fusing pressure for easier jam removal | Find 11 |
| 12 | RM1-5080-000CN | Door switch cable - Connects the door open detection switch to DC controller board (J78) | Find 12 |
| 13 | RM1-5088-000CN | Fuser motor cable - Connects fuser motor (M229) to the controller board | Find 13 |
| 14 | RM1-4585-000CN | Lifter drive assembly - Drives the lifting plate of the tray | Find 14 |
| 15 | RM1-5081-000CN | Media full sensor cable - Connects media full sensor (PS104) to DC controller board (J76) | Find 15 |
| 16 | RM1-5085-000CN | Envelope feeder cable - Connects envelope feeder to DC controller board | Find 16 |
| 17 | WG8-5624-000CN | Photo-sensor (TLP1241) - Sensor flag activated | Find 17 |
| 19 | RM1-4529-000CN | Paper delivery assembly | Find 19 |
| 20 | CB506-67901 | Fusing Assembly - For 110 VAC - Bonds toner to paper with heat | Find 20 |
| 20 | CB506-67902 | Fusing Assembly - For 220 VAC - Bonds toner to paper with heat | Find 20 |

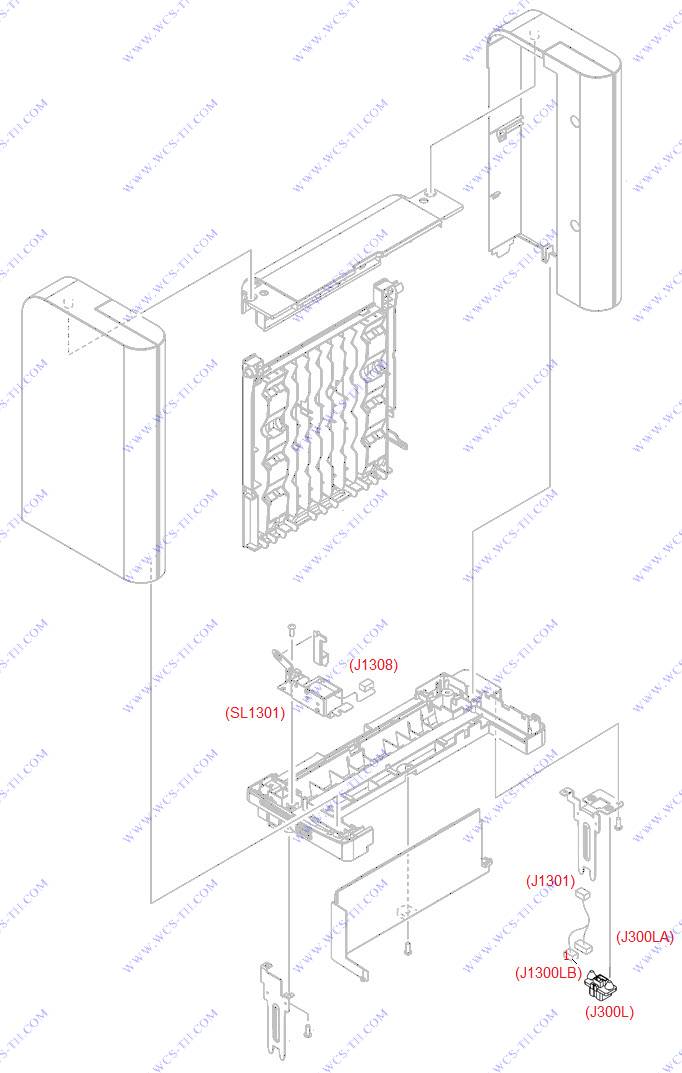

Multi-bin mailbox covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | VS1-7500-008CN | Connector (8-pin) | Find 1 |

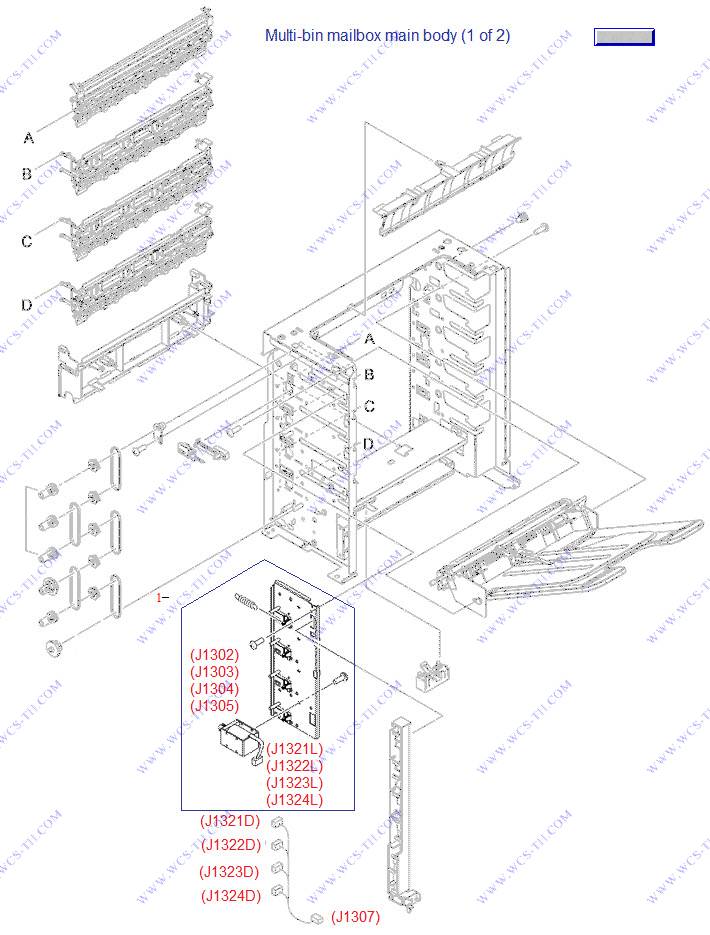

Multi-bin mailbox main body (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-5266-000CN | Multi-bin mailbox solenoid assembly | Find 1 |

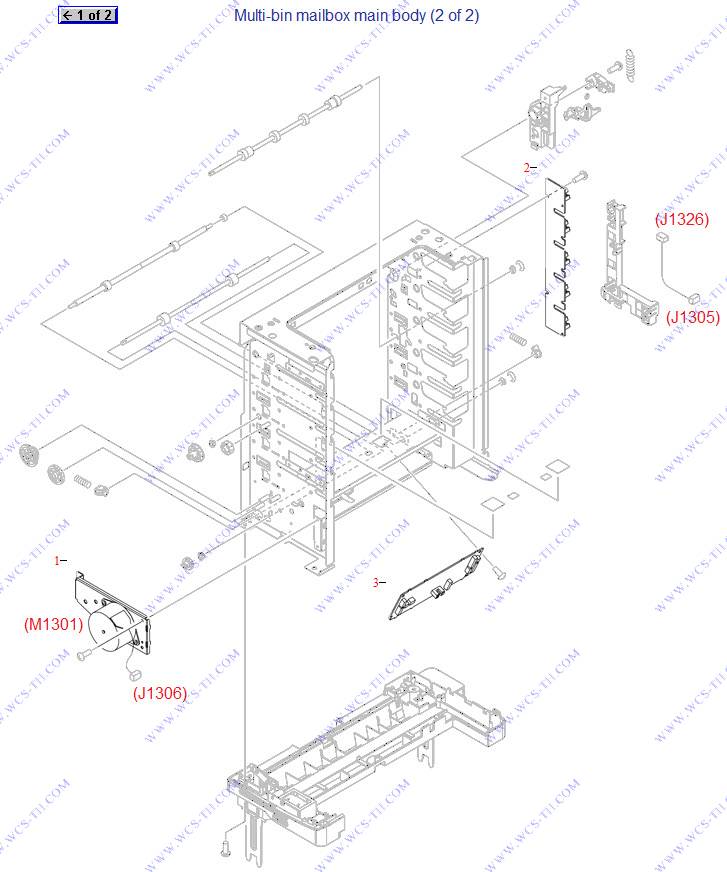

Multi-bin mailbox main body (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-5267-000CN | Drive assembly - Located on the multi-bin mailbox main body | Find 1 |
| 2 | RM1-5096-000CN | Multi-bin mailbox sensor assembly | Find 2 |
| 3 | RM1-6224-000CN | Multi-bin mailbox PCA | Find 3 |

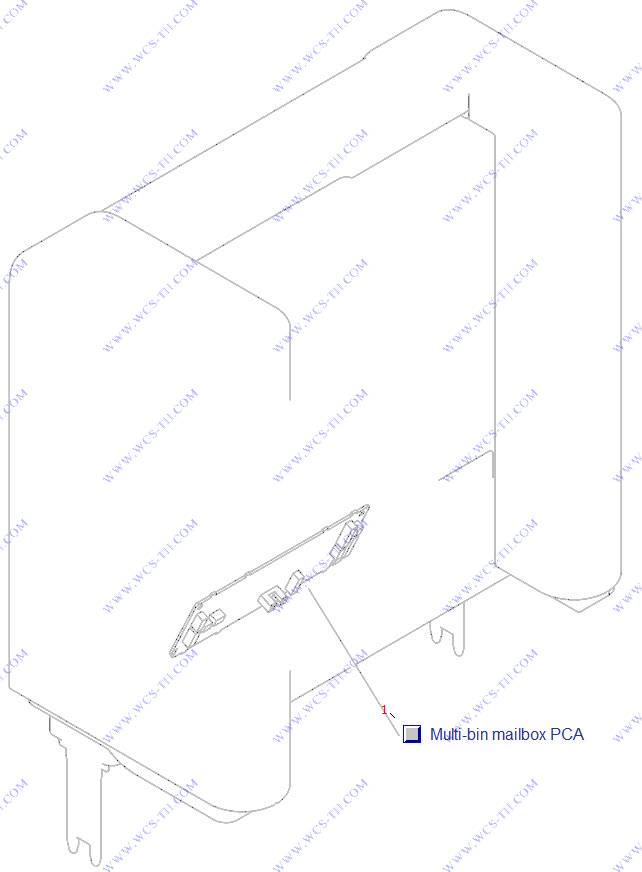

Multi-bin mailbox PCA
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-6224-000CN | Multi-bin mailbox PCA | Find 1 |

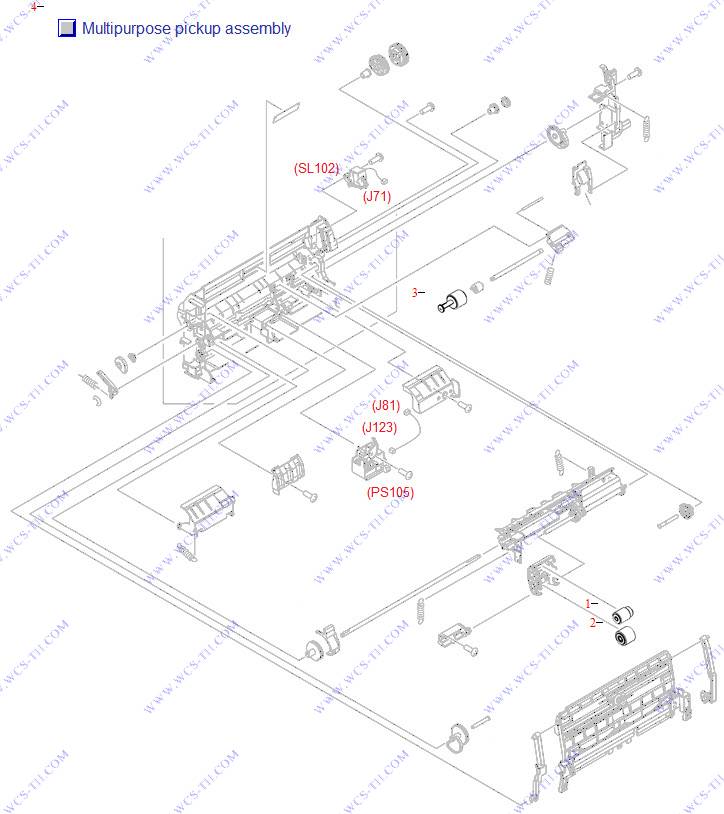

Multipurpose pickup assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RL1-1641-000CN | Multi-purpose/tray 1 paper pickup roller | Find 1 |
| 2 | RL1-1663-000CN | Multi-purpose/tray 1 feed roller | Find 2 |
| 3 | RL1-1654-000CN | Multi-purpose/tray 1 separation roller | Find 3 |
| 4 | RM1-4563-000CN | Paper pickup assembly - Paper pickup drive assembly for multi-purpose/tray 1 | Find 4 |

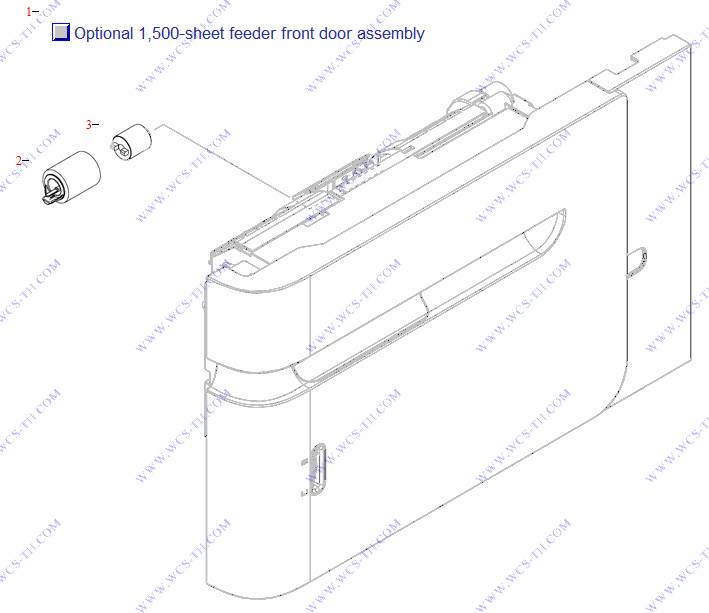

Optional 1500-sheet feeder front door assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-5255-000CN | Optional 1,500-sheet feeder front door assembly | Find 1 |
| 2 | RM1-0037-020CN | Paper feed/separation roller assembly - Gray rubber roller on a blue plastic cylinder | Find 2 |
| 3 | RC2-5262-000CN | 500-sheet cassette torque limiter | Find 3 |

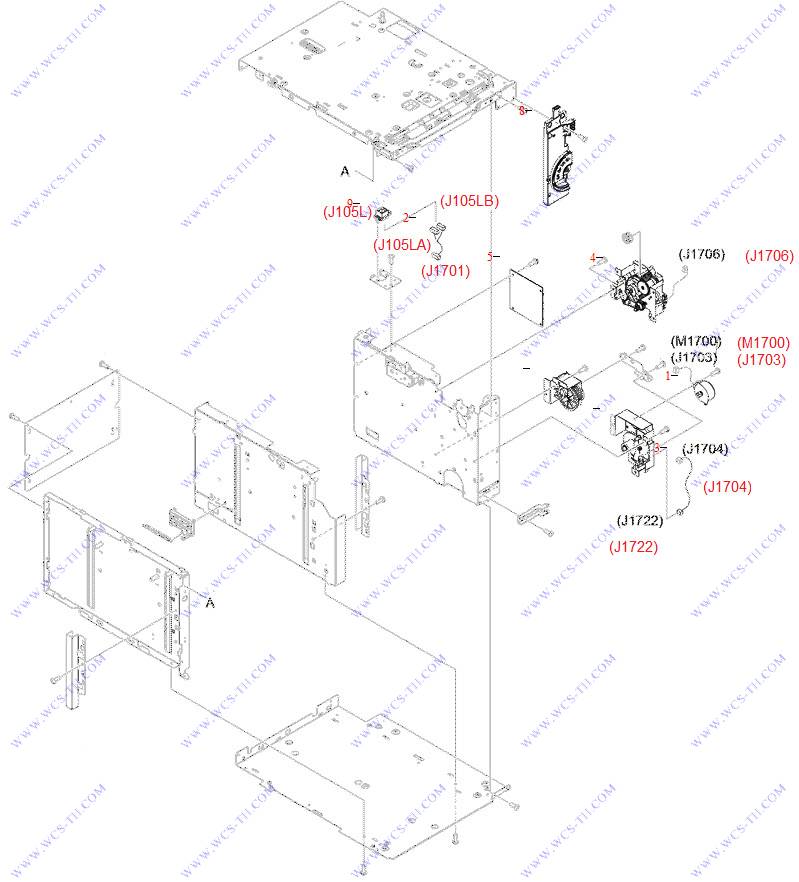

Optional 1500-sheet feeder main body (1 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RH7-1603-020CN | Motor - Stepper motor in 1500 sheet feeder assembly | Find 1 |
| 2 | RM1-5126-000CN | Interface cable - Connects the 1,500-sheet feeder to printer | Find 2 |
| 3 | RM1-5128-000CN | Optional 1,500-sheet feeder door sensor cable | Find 3 |
| 4 | RM1-5262-000CN | Paper pick-up drive assembly - Located on the 1,500-sheet feeder main body | Find 4 |
| 5 | RM1-6214-000CN | 1,500-sheet feeder driver PCA | Find 5 |
| 6 | RM1-0289-030CN | Oil damper assembly - For the 1,500-sheet feeder | Find 6 |
| 7 | RM1-1136-000CN | Lifter drive assembly for 1500 sheet feeder | Find 7 |
| 8 | RM1-5265-000CN | 1,500-sheet feeder numbering assembly - Let you select the tray number | Find 8 |
| 9 | VS1-7500-006CN | Connector (6-point) | Find 9 |

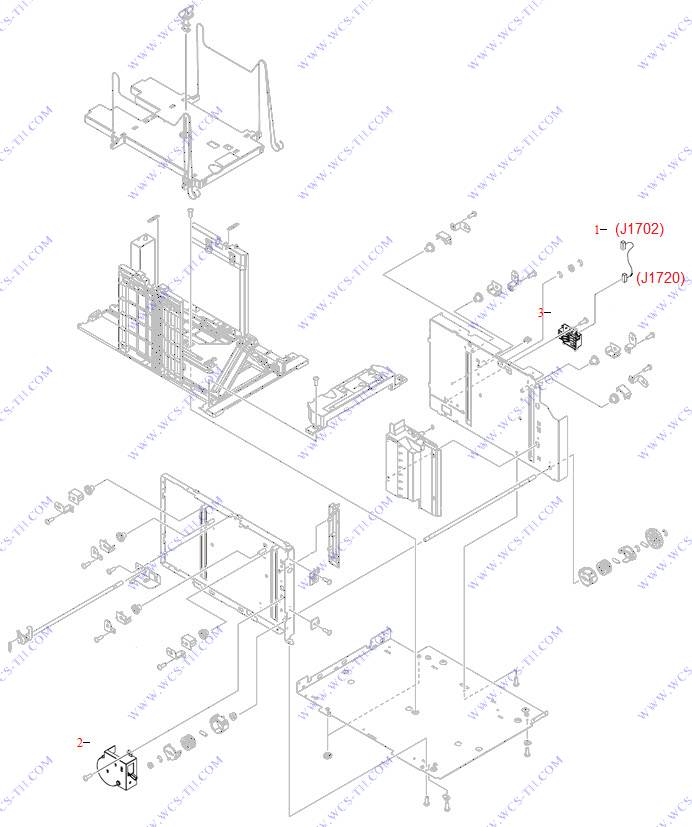

Optional 1500-sheet feeder main body (2 of 2)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-5127-000CN | Optional 1,500-sheet feeder paper size sensor cable | Find 1 |
| 2 | RM1-5259-000CN | Remnant indication assembly - For the 1,500-sheet feeder | Find 2 |
| 3 | RM1-5261-000CN | Paper size sensor/detect assembly - For the 1,500-sheet feeder | Find 3 |

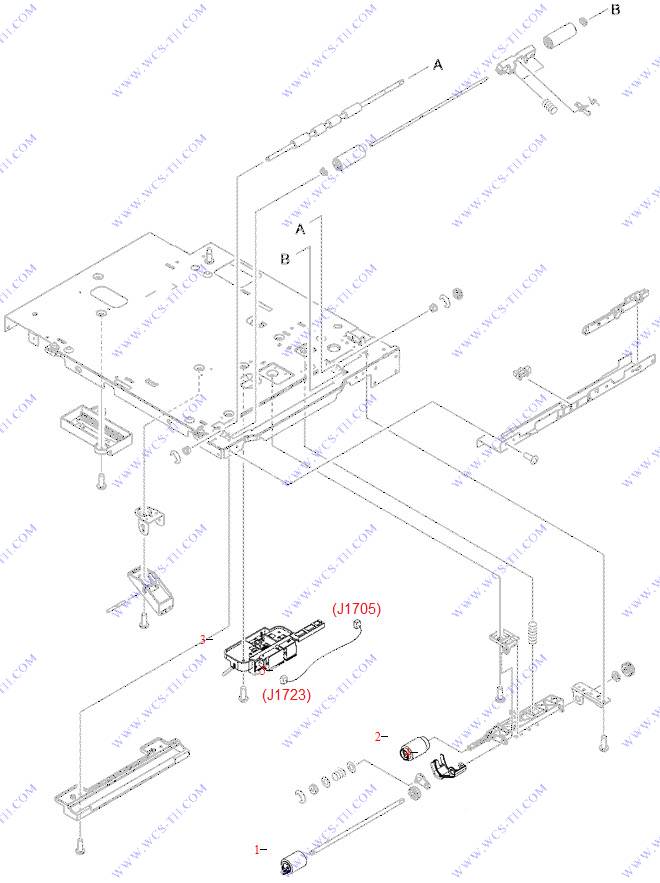

Optional 1500-sheet feeder paper pickup assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0037-020CN | Paper feed/separation roller assembly - Gray rubber roller on a blue plastic cylinder | Find 1 |
| 2 | RM1-0036-020CN | Paper pickup roller - Gray spongy rubber roller on a white cylinder and 24-tooth white gear on one side | Find 2 |
| 3 | RM1-5264-000CN | Paper detect sensor assembly - Located on the 1,500-sheet feeder paper pickup assembly | Find 3 |
| 4 | RC2-2524-000CN | Paper detect flag - Locted on the 1,500-sheet feeder paper pickup assembly | Find 4 |
| 5 | RM1-5129-000CN | Optional 1,500-sheet paper feed sensor cable | Find 5 |

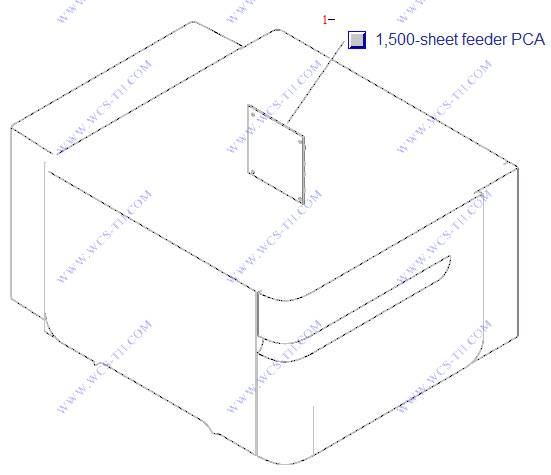

Optional 1500-sheet feeder PCA
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-6214-000CN | 1,500-sheet feeder driver PCA | Find 1 |

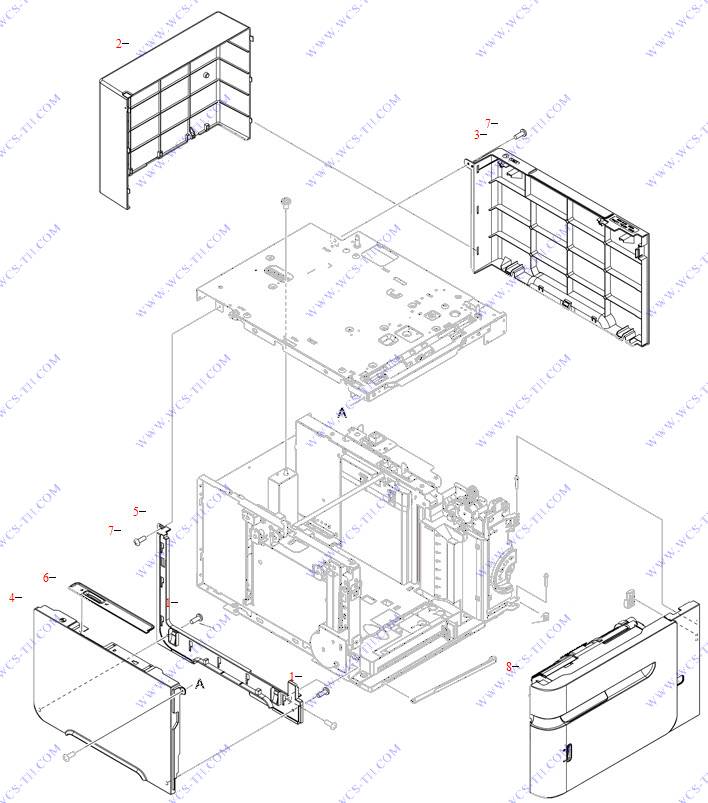

Optional 1500-sheet paper feeder covers
| Pic No. | Parts ID | Parts Name | Link |
| 1 | XB4-7401-007CN | M4 X 10 self tapping pan head screw | Find 1 |
| 2 | RC2-2640-000CN | Rear cover - Plastic cover that protects the rear side of the 1,500-sheet paper feeder | Find 2 |
| 3 | RC2-2641-000CN | Right cover - Plastic cover that protects the right side of the 1,500-sheet paper feeder | Find 3 |
| 4 | RC2-2642-000CN | Left cover - Plastic cover that protects the left side of the 1,500-sheet paper feeder | Find 4 |
| 5 | RC2-2643-000CN | Lower left cover - Plastic 'L' shaped covert that protects the lower left side of the 1,500-sheet paper feeder | Find 5 |
| 6 | RC2-2584-000CN | Lock cover - Mounts on top of the left cover on the 1,500-sheet paper feeder | Find 6 |
| 7 | XA9-1420-000CN | M3 X 8mm pan head phillips screw with captive flat and split-lock washers | Find 7 |
| 8 | RM1-5255-000CN | Optional 1,500-sheet feeder front door assembly | Find 8 |

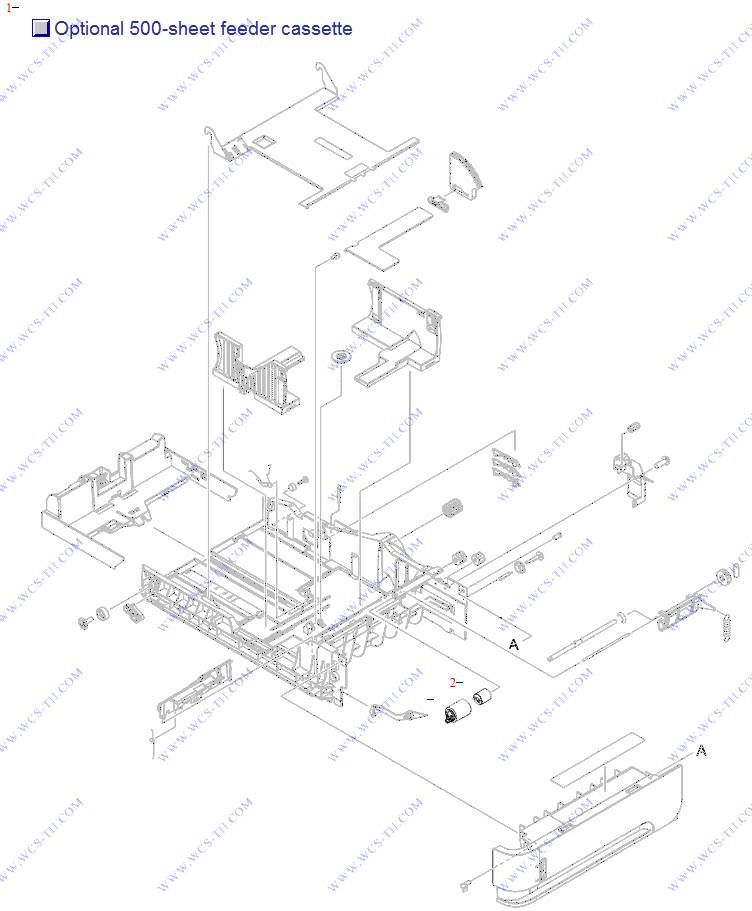

Optional 500-sheet feeder cassette
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4559-000CN | 500-sheet paper cassette tray 2 | Find 1 |
| 2 | RC2-5262-000CN | 500-sheet cassette torque limiter | Find 2 |
| 3 | RM1-0037-020CN | Paper feed/separation roller assembly - Gray rubber roller on a blue plastic cylinder | Find 3 |

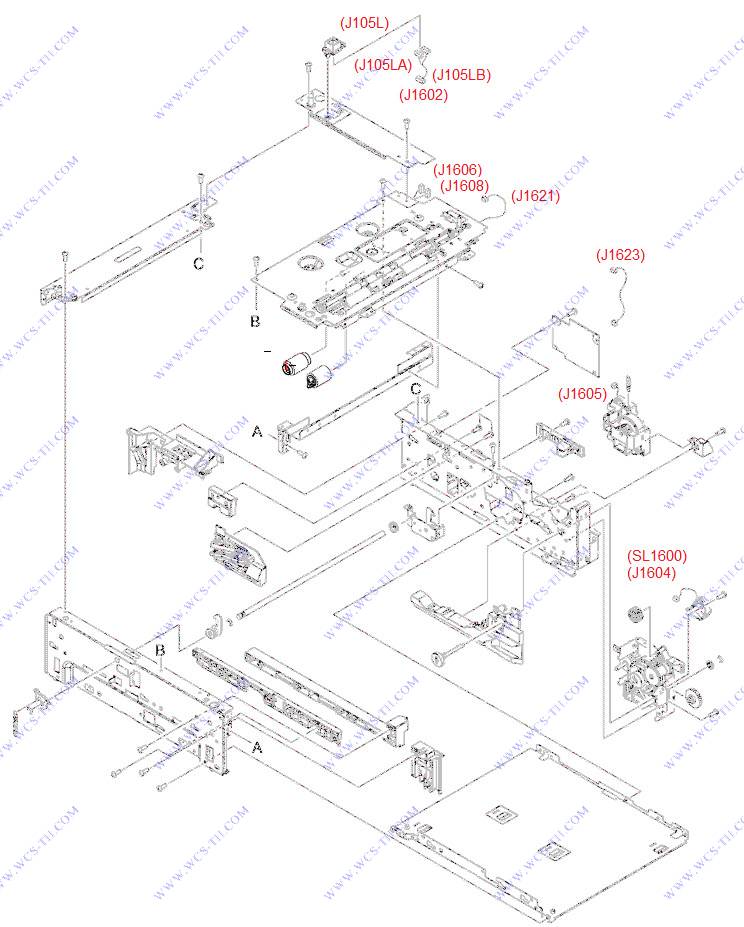

Optional 500-sheet paper feeder main body
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-0037-020CN | Paper feed/separation roller assembly - Gray rubber roller on a blue plastic cylinder | Find 1 |
| 2 | RM1-0036-020CN | Paper pickup roller - Gray spongy rubber roller on a white cylinder and 24-tooth white gear on one side | Find 2 |
Paper delivery assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4529-000CN | Paper delivery assembly | Find 1 |
| 2 | RC1-0133-000CN | Tension spring - Provides tension to the delivery deflector - Located on the paper delivery assembly | Find 2 |
| 3 | RU6-2105-000CN | Grounding spring - Attaches to the face down frame | Find 3 |

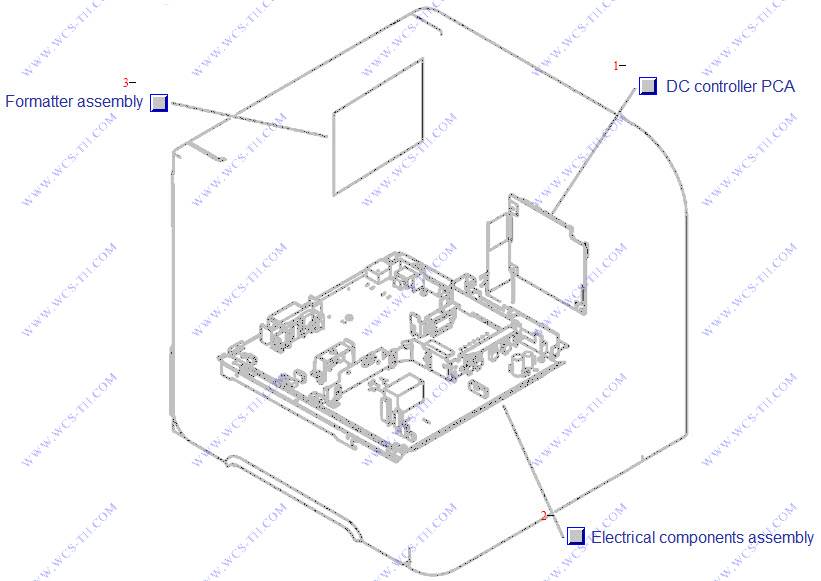

PCAs-base unit
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4582-000CN | DC controller board assembly - DC Controller for LaserJet P4014/P4015 series | Find 1 |
| 1 | RM1-4582-050CN | DC controller board assembly - DC Controller for LaserJet P4014/P4015 series | Find 1 |
| 1 | RM1-4582-070CN | DC controller board assembly - DC Controller for LaserJet P4014/P4015 series | Find 1 |
| 2 | RM1-4578-000CN | AC Power supply assembly (electrical components) - For 220 VAC 240 VAC | Find 2 |
| 2 | RM1-4549-030CN | AC Power supply assembly - For 110 VAC 127 VAC | Find 2 |
| 2 | RM1-4549-000CN | AC Power supply assembly (electrical components) - For 110 VAC 127 VAC | Find 2 |
| 3 | CB437-69001 | Formatter (main logic) board - For base model only | Find 3 |
| 3 | CB438-69001 | Formatter (main logic) board - For network models only | Find 3 |

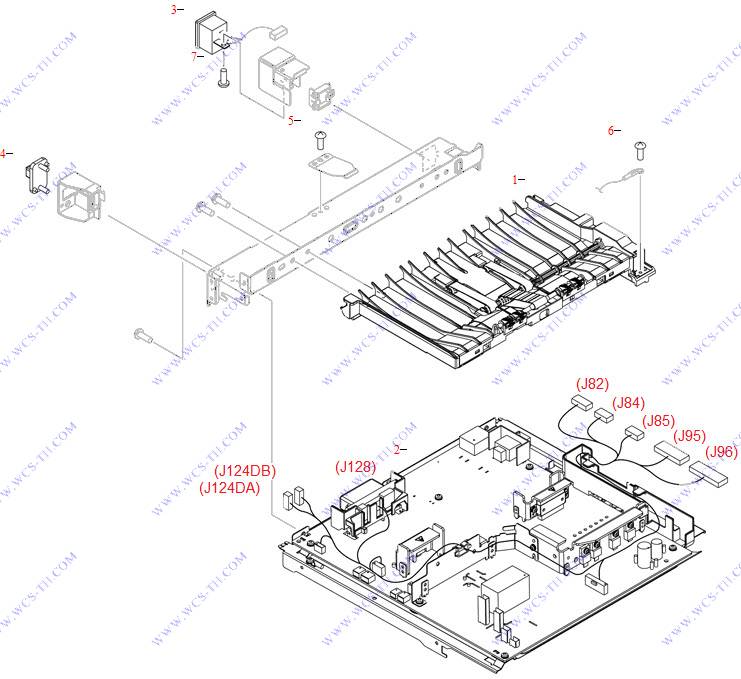

Power supply assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-4548-000CN | Paper feed guide assembly | Find 1 |
| 2 | RM1-4549-030CN | AC Power supply assembly - For 110 VAC 127 VAC | Find 2 |
| 2 | RM1-4549-000CN | AC Power supply assembly (electrical components) - For 110 VAC 127 VAC | Find 2 |
| 2 | RM1-4578-000CN | AC Power supply assembly (electrical components) - For 220 VAC 240 VAC | Find 2 |
| 3 | RM1-5078-000CN | Inlet cable - For 110 VAC to 127 VAC | Find 3 |
| 3 | RM1-5079-000CN | Inlet cable - For 220 VAC to 240 VAC | Find 3 |
| 4 | VS1-7514-006CN | Duplexer connector - Connector on power supply assembly for duplexer | Find 4 |
| 5 | XA9-1464-000CN | Screw - Flat head phillips drive machine screw - M3 X 6mm | Find 5 |
| 6 | XB1-1300-605CN | M3x6mm machine pan head screw | Find 6 |
| 7 | XB2-7400-606CN | Screw toothed washer - M4 x 6mm - Used to secure metal components to metal components | Find 7 |
