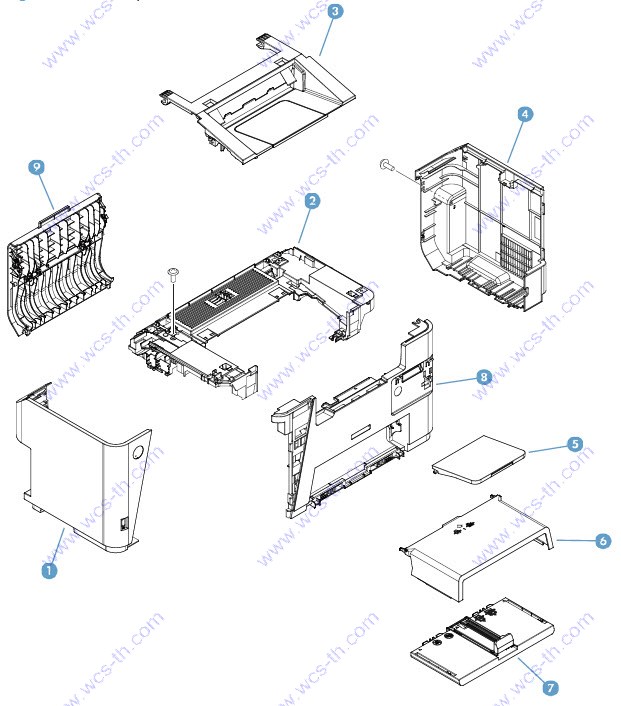

1. External panels and covers

| Pic No. | Parts ID | Parts Name | Link |
| 1 | RL1-3803-000 | Cover, left | Find 1 |
| 2 | RC3-4790-000 | Cover, top | Find 2 |
| 3 | RM1-9890-000 | Cartridge door assembly | Find 3 |
| 4 | RC3-4792-000 | Cover, right | Find 4 |
| 5 | RM1-9649-000 | Paper delivery tray assembly | Find 5 |
| 6 | RC3-3902-000 | Cover, dust | Find 6 |
| 7 | RM1-9677-000 | Paper pick-up tray assembly | Find 7 |
| 8 | RL1-3802-000 | Cover, front | Find 8 |
| 9 | RM1-9654-000 | Duplexing door assembly | Find 9 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

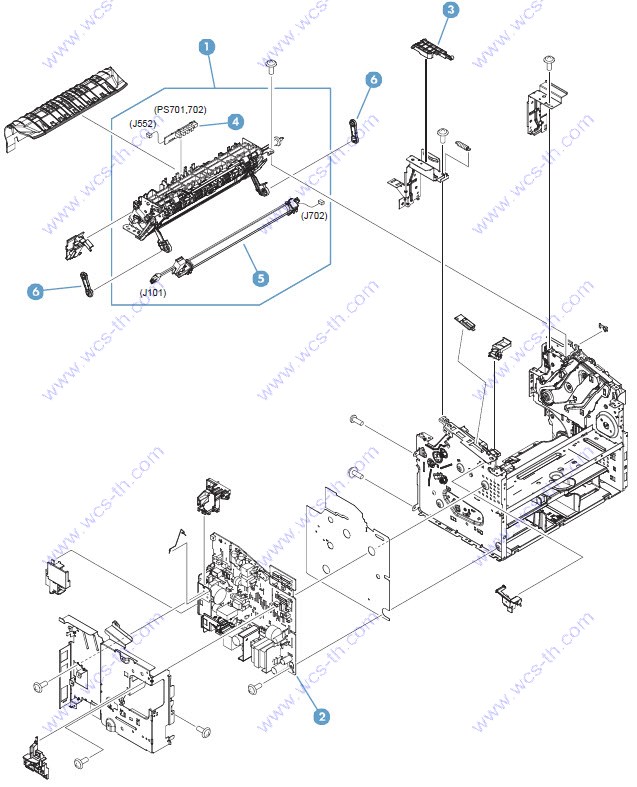

2. Internal assemblies (1 of 3)

| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM1-9891-000 | Fixing assembly, 110-127V | Find 1 |
| 1 | RM1-9892-000 | Fixing assembly, 220-240V | Find 1 |
| 2 | RM2-7632-000 | Engine control PCB assembly, 110-127V | Find 2 |
| 2 | RM2-7633-000 | Engine control PCB assembly, 220-240V | Find 2 |
| 2 | RM2-8080-000 | Engine control PCB assembly, 220-240V, CH IN | Find 2 |
| 3 | RC2-9527-000 | Link, cartridge door | Find 3 |
| 4 | RM2-7629-000 | Delivery sensor PCB assembly | Find 4 |
| 5 | RM1-9656-000 | Fixing film assembly, 110-127V | Find 5 |
| 5 | RM1-9657-000 | Fixing film assembly, 220-240V | Find 5 |
| 6 | RC2-9531-000 | Link, pressure release | Find 6 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

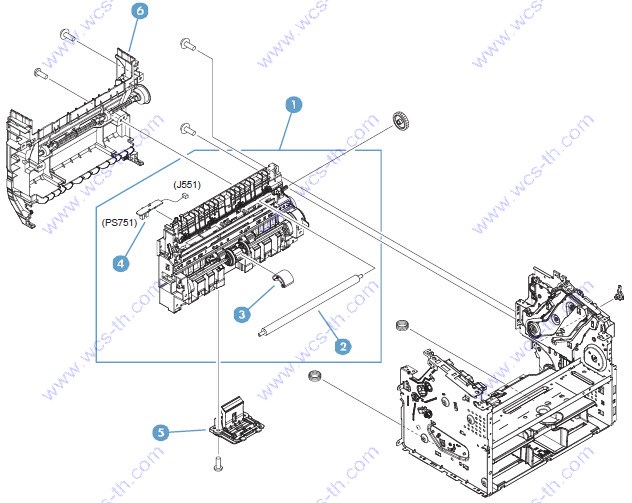

3. Internal assemblies (2 of 3)

| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM2-6524-000 | Paper pick-up assembly | Find 1 |
| 2 | RM1-4023-000 | Roller, transfer | Find 2 |
| 3 | RL1-3642-000 | Roller, pickup | Find 3 |
| 4 | RM2-7635-000 | Paper pick-up sensor PCB assemby | Find 4 |
| 5 | RM1-4227-000 | Separation pad assembly | Find 5 |
| 6 | RM1-9655-000 | Duplexing frame assembly | Find 6 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

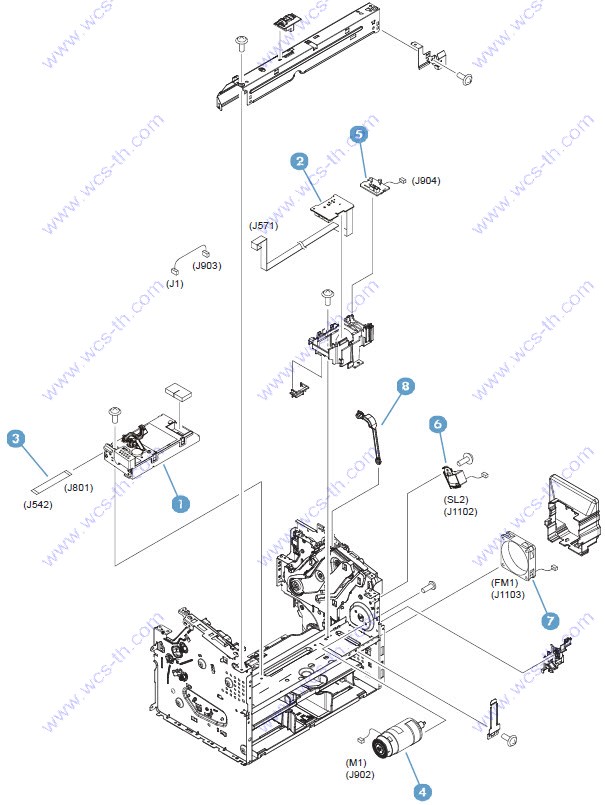

4. Internal assemblies (3 of 3)

| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM2-0426-000 | Laser scanner assembly | Find 1 |
| 2 | RM2-7634-000 | Motor PCB assembly | Find 2 |
| 3 | RK2-6691-000 | Cable, flat | Find 3 |
| 4 | RM2-0418-000 | Motor, DC24V | Find 4 |
| 5 | RM2-7608-000 | Duplexing PCB assembly | Find 5 |
| 6 | RK2-0420-000 | Solenoid | Find 6 |
| 7 | RK2-6694-000 | Fan | Find 7 |
| 8 | RC2-9514-000 | Link, cartridge door, CH IN | Find 8 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

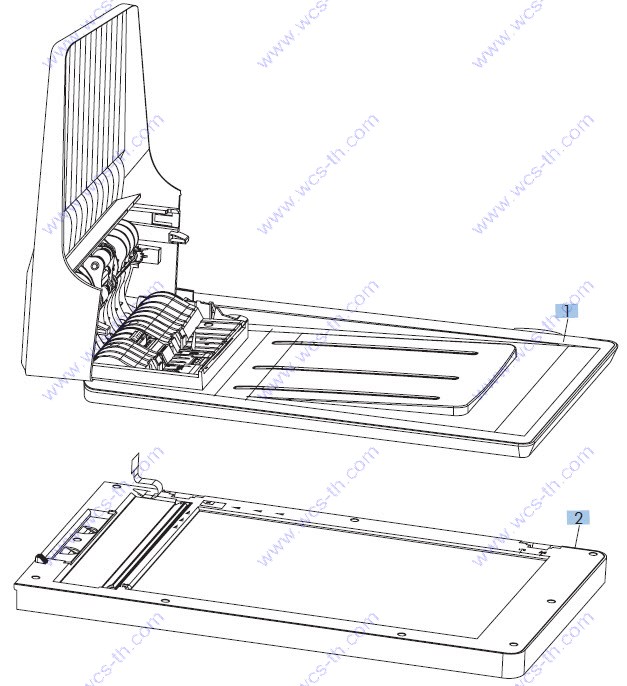

5. Scanner and document feeder (ADF) main assemblies

| Pic No. | Parts ID | Parts Name | Link |
| 1 | CF484-60116 | Assembly, Auto Document Feeder | Find 1 |
| 2 | CF484-60110 | 1200PPI scanner assembly | Find 2 |
| NA | CF484-60103 | Assembly, scanner/ADF (complete) | Find NA |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

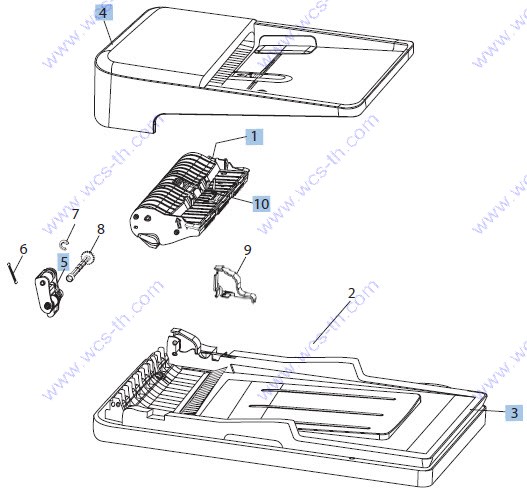

6. Document feeder internal components

| Pic No. | Parts ID | Parts Name | Link |
| 1 | CF484-60118 | Assembly, ADF core | Find 1 |
| 3 | CF484-60120 | Assembly, ADF base | Find 3 |
| 4 | CF484-60127 | Assembly, ADF cover and adjuster | Find 4 |
| 5 | CF144-60142 | Assembly, pick arm | Find 5 |
| 10 | Q7400-60005 | Assembly, separator pad | Find 10 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

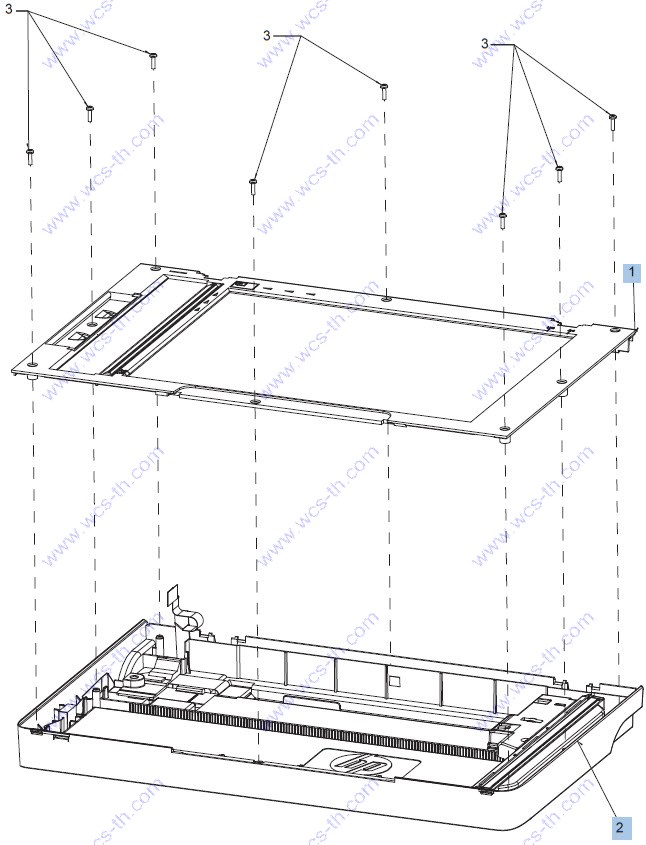

7. Scanner assembly internal components (1 of 2)

| Pic No. | Parts ID | Parts Name | Link |
| 1 | CF484-60111 | Assembly, scan bezel1 | Find 1 |
| 2 | CF484-60112 | Assembly, scanner base1 | Find 2 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

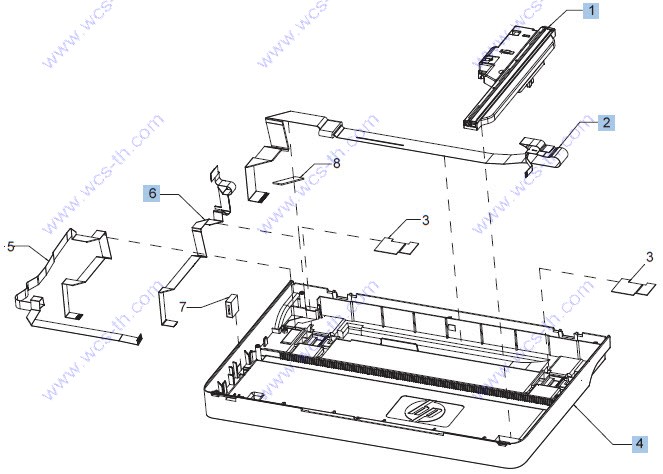

8. Scanner assembly internal components (2 of 2)

| Pic No. | Parts ID | Parts Name | Link |
| 1 | CF484-60113 | Assembly, scan drive system1 | Find 1 |
| 2 | CF484-60105 | Assembly, scan module/motor cable1 | Find 2 |
| 4 | CF484-40001 | Scanner base1 | Find 4 |
| 6 | CF484-60104 | Assembly, ADF cable1 | Find 6 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000
