Document feeder and scanner whole units (M274, M277 models only)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | B3Q10-60125 | Scanner assembly (M274, M277 models only) | Find 1 |
Internal components (1 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM2-5578-000CN | Paper pickup guide assembly | Find 1 |
| 2 | RM2-5881-000CN | Separation roller assembly | Find 2 |
| 3 | RM2-5576-000CN | Paper pickup roller assembly | Find 3 |
| 4 | RM2-5577-000CN | Feed roller assembly | Find 4 |
| 5 | RM2-5865-000CN | Multi feed tray assembly | Find 5 |
| 6 | RM2-5866-000CN | Priority slot assembly | Find 6 |
| 7 | RM2-5872-000CN | Duplexing drive assembly (duplex models only) | Find 7 |
| 8 | RM2-5607-000CN | Sub drive assembly (duplex models) | Find 8 |
| 8 | RM2-5884-000CN | Sub drive assembly (simplex models) | Find 8 |
| 9 | RM2-5886-000CN | Cassette assembly (Tray 2) (M274, M277 models) | Find 9 |
| 9 | RM2-5885-000CN | Cassette assembly (Tray 2) (M252 models) | Find 9 |
Internal components (2 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RM2-7419-000CN | Fan | Find 1 |
| 2 | RM2-5888-000CN | Main drive assembly (duplex models) | Find 2 |
| 2 | RM2-5605-000CN | Main drive assembly (simplex models) | Find 2 |
| 3 | RM2-7407-000CN | Main motor | Find 3 |
| 4 | RM2-7409-000CN | Fuser motor | Find 4 |
| 5 | RM2-5871-000CN | Cartridge tray assembly | Find 5 |
| 6 | RM2-5895-000CN | Paper delivery (output) sensor assembly (duplex models only) | Find 6 |
| 7 | RM2-5896-000CN | Power switch assembly | Find 7 |
| 8 | RM2-8050-000CN | Low-voltage power supply assembly, 110-127 V | Find 8 |
| 8 | RM2-8051-000CN | Low-voltage power supply assembly, 220-240 V | Find 8 |
| 9 | RM2-5583-000CN | Fuser assembly (duplex models), 110-127 V | Find 9 |
| 9 | RM2-5584-000CN | Fuser assembly (duplex models), 220-240 V | Find 9 |
| 9 | RM2-5582-000CN | Fuser assembly (simplex models), 220-240 V | Find 9 |
Internal components (3 of 3)
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RK2-6383-000CN | Cable, flat | Find 1 |
| 2 | RK2-6384-000CN | Cable, flat | Find 2 |
| 3 | RK2-6398-000CN | Cable, flat (M252 models) | Find 3 |
| 4 | RK2-6416-000CN | Cable, flat (M274, M277 duplex models) | Find 4 |
| 4 | RK2-6414-000CN | Cable, flat (M252 duplex models) | Find 4 |
| 5 | RM2-5874-000CN | Density detect sensor assembly | Find 5 |
| 6 | RM2-8063-000CN | DC controller PCA (duplex models) | Find 6 |
| 6 | RM2-8062-000CN | DC controller PCA (simplex models) | Find 6 |
| 7 | RM2-5907-000CN | Intermediate transfer belt (ITB) assembly | Find 7 |

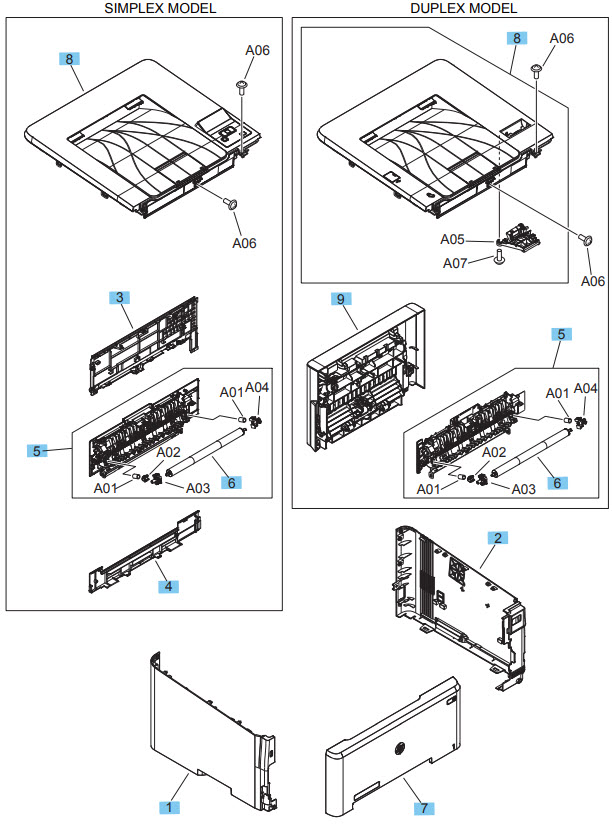

M252 covers and control panels
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC4-3815-000CN | Cover, left | Find 1 |
| 2 | RC4-3816-000CN | Cover, right | Find 2 |
| 3 | RC4-3817-000CN | Cover, rear (simplex models) | Find 3 |
| 4 | RC4-3820-000CN | Cover, rear bottom (simplex models) | Find 4 |
| 5 | RM2-5580-000CN | Rear door assembly (duplex models) | Find 5 |
| 5 | RM2-5579-000CN | Rear door assembly (simplex models) | Find 5 |
| 6 | RM2-5906-000CN | Roller, secondary transfer | Find 6 |
| 7 | RM2-5590-000CN | Front door assembly | Find 7 |
| 8 | RM2-5908-000CN | Top cover assembly (duplex models) | Find 8 |
| 8 | RM2-5596-000CN | Top cover assembly (simplex models)1 | Find 8 |
| 9 | RM2-5867-000CN | Duplexer door assembly (duplex models) | Find 9 |
M274, M277 covers and control panel
| Pic No. | Parts ID | Parts Name | Link |
| 1 | RC4-3816-000CN | Cover, right | Find 1 |
| 2 | RC4-3817-000CN | Cover, rear (simplex models) | Find 2 |
| 3 | RC4-3820-000CN | Cover, rear bottom (simplex models) | Find 3 |
| 4 | RC4-3997-000CN | Cover, flat cable | Find 4 |
| 5 | RM2-5579-000CN | Rear door assembly (simplex models) | Find 5 |
| 6 | RC4-4000-000 | Cover, left | Find 6 |
| 6 | RM2-5580-000CN | Rear door assembly (duplex models) | Find 6 |
| 7 | RM2-5906-000CN | Roller, secondary transfer | Find 7 |
| 8 | RM2-5591-000CN | Front door assembly | Find 8 |
| 9 | RM2-5598-000CN | Top cover assembly (duplex models) | Find 9 |
| 9 | RM2-5597-000CN | Top cover assembly (simplex models) | Find 9 |
| 10 | RM2-5867-000CN | Duplexer door assembly (duplex models) | Find 10 |
