Cassette
| Pic No. | Parts ID | Parts Name | Link |
| No pic | JC90-00980A | CASSETTE | |
| 1 | JC90-00978A | CASSETTE-REGISTRATION | Find 1 |
| 2 | JC97-02888A | MEA-KNOCK_UP_PLATE | Find 2 |
| 3 | JC90-00972A | CASSETTE-EXTENSION | Find 3 |
| 4 | JC97-02889A | MEA UNIT-GEAR_BASE | Find 4 |
| 5 | JC97-02893A | MEA-GEAR PICKUP_MP | Find 5 |
| 6 | JC90-00976A | CASSETTE-COVER ASSY | Find 6 |
| 7 | JC97-02892A | MEA-HOLDER PAD_MP | Find 7 |
| 8 | JC97-02891A | MEA-KNOCKJJP PLATE_MP | Find 8 |
| 9 | JC96-02686B | ELA UNIT-ROLLER P/JP MP | Find 9 |
| 10 | JC90-00977A | CASSETTE-GUIDE DUPLEX | Find 10 |
| 11 | JC97-03077A | MEA-HOLDERjPADjSHEET | Find 11 |
| 12 | JC72-01003A | PMO-IDLE PICK UP MP | Find 12 |
| 13 | JC66-01348A | SHAFT-MPjPICKjJP | Find 13 |
| 14 | JC63-01286B | COVER-DRAW_CONNECTOR | Find 14 |
| 15 | JC39-01333A | HARNESS-MP DRAWER_MP | Find 15 |
| 16 | JC63-01282A | GROUND-REGIjBRKT | Find 16 |
| 17 | JC66-01403A | ACTUATOR-FEEDjEMPTY | Find 17 |
| 18 | 0604-001095 | PHOTO-INTERRUPTER | Find 18 |
| 19 | JC61-01865A | GUIDE-PAPERjMPF | Find 19 |
| 20 | JC66-01347A | ROLLER-FEED | Find 20 |
| 21 | JC72-00972A | PMO-PLATEjLOCKER | Find 21 |
| 22 | JG61-70531A | SPRING ETC-LOCKER,PLATE | Find 22 |
| 23 | 6107-001166 | SPRING-CS | Find 23 |
| 24 | JC70-00300A | ADJUST-M-CASSETTEjL | Find 24 |
| 25 | JC70-00301A | ADJUST-M-CASSETTEjR | Find 25 |
| 26 | JC61-01940A | PLATE-GNDjKNOCKUP | Find 26 |
| 27 | JC63-01291A | SHEET-MPF | Find 27 |
| 28 | JC61-01923A | PLATE-GND-BRKT-GEAR | Find 28 |
| 29 | JC61-01128A | HOLDER-jMjGEAR REGI | Find 29 |
| 30 | 6107-001249 | SPRING-CS | Find 30 |
| 31 | JC66-00774A | GEAR-M-REGI | Find 31 |
| 32 | JC61-01127A | HOLDER-jMjCLUTCH GEAR | Find 32 |
| 33 | JC63-01285A | COVER-GEARjBOX | Find 33 |
| 34 | JC33-00022A | SOLENOID-PICKjUP | Find 34 |
| 35 | JC66-01355C | LEVER-LINKjINDICATOR | Find 35 |
| 36 | JG66-40003A | GEAR-PINION | Find 36 |
| 37 | JC66-00764A | ROLLER-IDLE FEED | Find 37 |
| 38 | JC61-01274A | SPRING ETC-ROLLER | Find 38 |
| 39 | JC72-41191B | PMO-BEARING SHAFT | Find 39 |
| 40 | JC61-00699A | BUSH-D6/L4 | Find 40 |
| 41 | 6003-000196 | screw-taptype | Find 41 |
| 42 | 6044-000125 | RING-E | Find 42 |
| 43 | 6031-001543 | washer-plain | Find 43 |
| 44 | JC62-00326A | seal-waste SIDE | Find 44 |
| 45 | JC61-70913A | SPRING ETC-KNOCK UP MP | Find 45 |
| 46 | JC63-01756A | SHEET-CASSETTE | Find 46 |
| 47 | JC68-02020A | LABEL-INFORMATION | Find 47 |
| 48 | 6003-000264 | screw-taptype | Find 48 |
| 49 | JC61-01856A | FRAME-CASSETTE | Find 49 |
| 50 | JC61-03704A | HOLDER-ACTUATOR | Find 50 |
| 51 | JB61-00107A | SPRING ETC-LEVER SENSOR | Find 51 |
| 52 | JC66-02556A | ACTUATOR-CHECK PAPER | Find 52 |
| 53 | 0604-001393 | PHOTO-INTERRUPTER | Find 53 |
| 54 | 0205-001003 | GREASE-BEARING | Find 54 |
| 55 | 0205-001067 | GREASE-GRAPHITE | Find 55 |
| 56 | 0205-001144 | GREASE-BEARING | Find 56 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

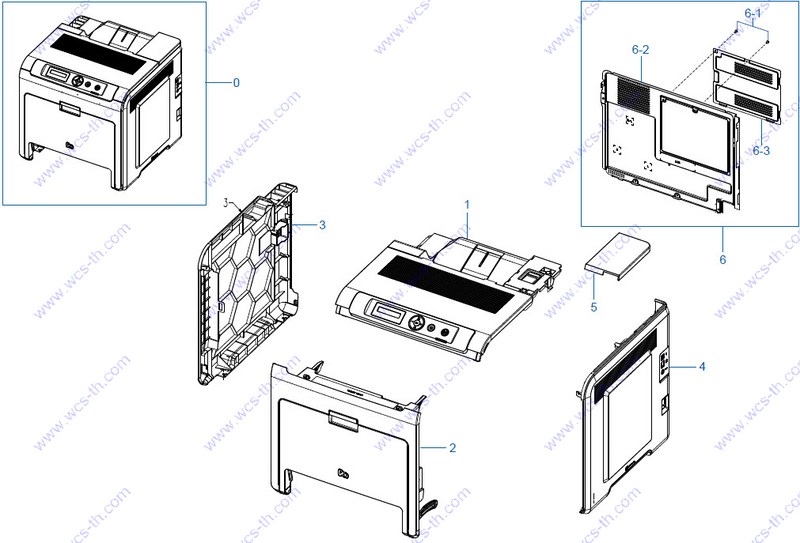

COVER
| Pic No. | Parts ID | Parts Name | Link |
| No pic | JC95-01158A | COVER 670ND | |
| No pic | JC95-01158B | COVER 620ND | |
| 1 | JC95-01155A | COVER-TOP 670ND | Find 1 |
| 1 | JC95-01155B | COVER-TOP 620ND | Find 1 |
| 2 | JC95-01157A | COVER-FRONT | Find 2 |
| 3 | JC63-01275B | COVER-LEFT | Find 3 |
| 4 | JC63-01276B | COVER-RIGHT | Find 4 |
| 5 | JC63-01279B | COVER-TOP SUB | Find 5 |
| 6 | JC97-03052A | MEA-BRACKET REAR | Find 6 |
| 6_1 | 6003-000269 | SCREW-TAPTYPE | Find 6_1 |
| 6_2 | JC61-02211A | BRACKET-REAR | Find 6_2 |
| 6_3 | JC63-01314A | COVER-REAR HDD | Find 6_3 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

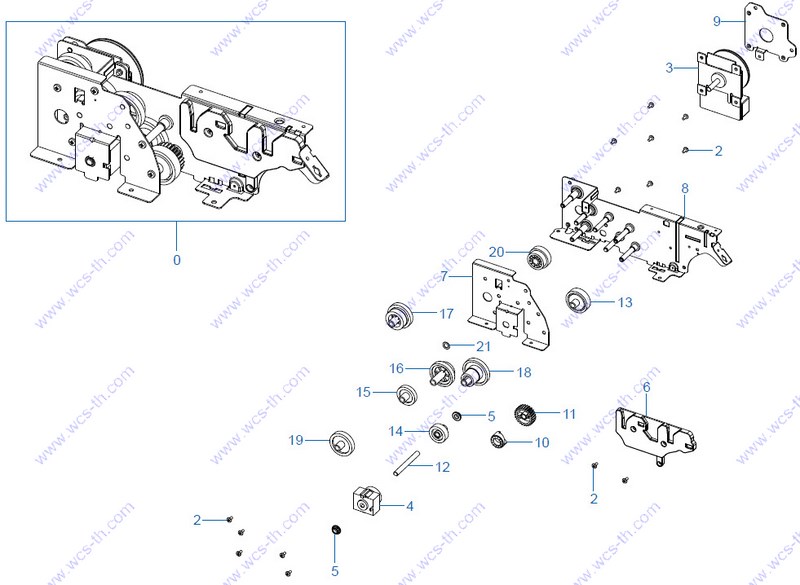

DRIVE FUSER-BRACKET
| Pic No. | Parts ID | Parts Name | Link |
| No pic | JC93-00152A | DRIVE FUSER-BRACKET | |
| 2 | 6003-000269 | SCREW-TAPTYPE | Find 2 |
| 3 | JC31-00075A | MOTOR BLDC | Find 3 |
| 4 | JC47-00006D | CLUTCH-BK DEVE | Find 4 |
| 5 | JC61-00699A | BUSH-D6/L4 | Find 5 |
| 6 | JC61-01851A | GUIDE-FUSER R | Find 6 |
| 7 | JC61-01859B | BRACKET-FUSER DRIVE L | Find 7 |
| 8 | JC61-01860B | BRACKET-FUSER R BLDC | Find 8 |
| 9 | JC61-02550A | BRACKET-FUSER MOTOR | Find 9 |
| 10 | JC66-01070A | LATCH-M-HUB CLUTCH | Find 10 |
| 11 | JC66-01155A | GEAR-FUSER RDCN OUT V | Find 11 |
| 12 | JC66-01341A | SHAFT-CLUTCH FU | Find 12 |
| 13 | JC66-01362A | GEAR-DRV FU | Find 13 |
| 14 | JC66-01366A | GEAR-IDLE DEVE | Find 14 |
| 15 | JC66-01368A | GEAR-IDLE DEVE | Find 15 |
| 16 | JC66-01386A | GEAR- RDCN FU | Find 16 |
| 17 | JC66-01387A | GEAR-RDCN FU | Find 17 |
| 18 | JC66-01388A | GEAR-RDCN FU | Find 18 |
| 19 | JC66-01393A | GEAR-IDLE DEVE | Find 19 |
| 20 | JC66-02434A | GEAR-RDCN FUCZ | Find 20 |
| 21 | JG74-10541A | MPR-RING CHARGE | Find 21 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

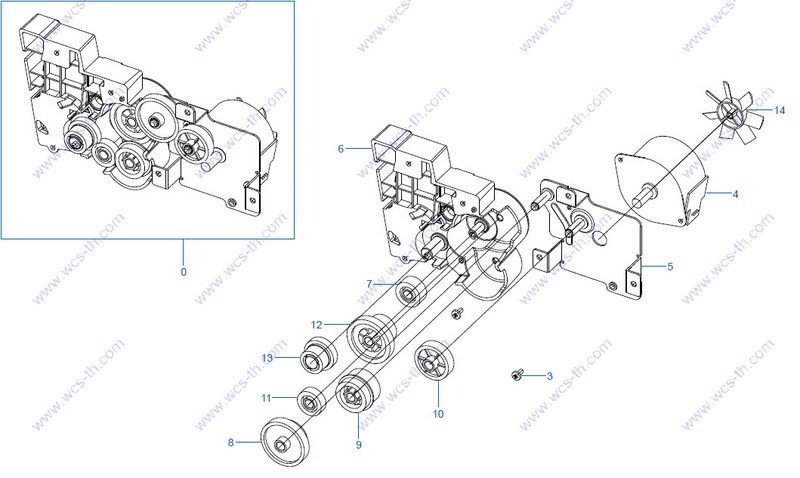

FEED DRIVE
| Pic No. | Parts ID | Parts Name | Link |
| No pic | JC93-00153A | DRIVE-FEED | |
| 2 | 0205-001232 | GREASE | Find 2 |
| 3 | 6003-000269 | SCREW-TAPTYPE | Find 3 |
| 4 | JC31-00112A | MOTOR STEP | Find 4 |
| 5 | JC61-02776B | BRACKET-FEED MOTOR | Find 5 |
| 6 | JC61-03520A | BRACKET-FEED GEAR | Find 6 |
| 7 | JC66-01363A | GEAR-DRV MAIN PICK-UP | Find 7 |
| 8 | JC66-02040A | GEAR-RDCN FEED A | Find 8 |
| 9 | JC66-02042A | GEAR-RDCN FEED C | Find 9 |
| 10 | JC66-02043A | GEAR-IDLE FEED A | Find 10 |
| 11 | JC66-02044A | GEAR-IDLE FEED B | Find 11 |
| 12 | JC66-02436A | GEAR-RCDN FEED B | Find 12 |
| 13 | JC66-02437A | GEAR-RCDN FEED D | Find 13 |
| 14 | JC72-00825A | PMO-IMPELLER DRV | Find 14 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

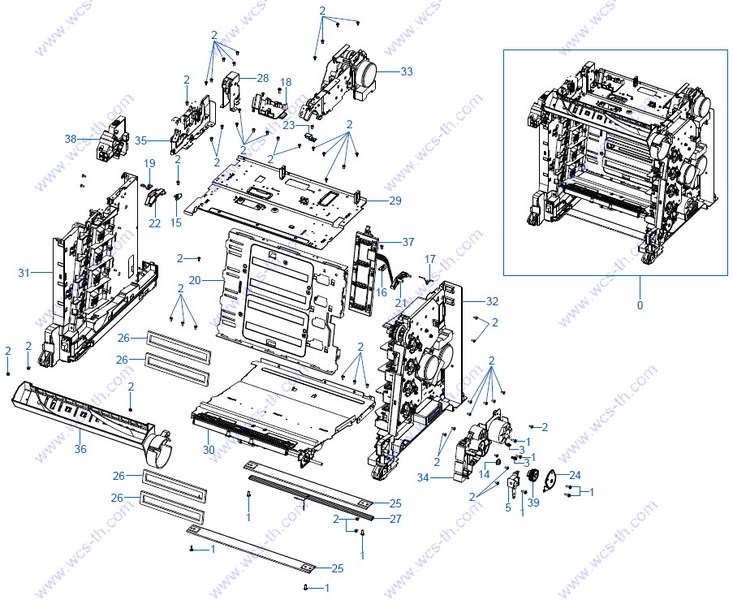

FRAME
| Pic No. | Parts ID | Parts Name | Link |
| No pic | JC93-00147A | FRAME 670ND | |
| No pic | JC93-00147B | FRAME 620ND | |
| 1 | 6003-000196 | SCREW-TAPTYPE | Find 1 |
| 2 | 6003-000269 | SCREW-TAPTYPE | Find 2 |
| 3 | 6006-001193 | SCREW-MACHINE | Find 3 |
| 4 | JC32-00005A | SENSOR-HUMIDITY | Find 4 |
| 5 | JC33-00022A | SOLENOID-PICKJJP | Find 5 |
| 7 | JC39-00938A | HARNESS-BLDC_CLU_FAN | Find 7 |
| 8 | JC39-01026A | HARNESS-OPC BLDC | Find 8 |
| 9 | JC39-01028A | HARNESS-DEVE BLDC PICKUP SOL | Find 9 |
| 10 | JC39-01249A | HARNESS-FEEDSTEPjMOTOR | Find 10 |
| 11 | JC39-01337A | HARNESS-EXITjSTEPMOTOR | Find 11 |
| 12 | JC39-01249A | HARNESS-FEEDSTEPjMOTOR | Find 12 |
| 13 | JC39-01340A | HARNESS-HVPS_24V | Find 13 |
| 14 | JC61-00423A | BJSH-6_D | Find 14 |
| 15 | JC61-01855A | BRACKET-LOCKERjPTBjL | Find 15 |
| 16 | JC61-01869A | BRACKET-LOCKERjPTBjR | Find 16 |
| 17 | JC61-01879A | SPRING ETC-LOCKjPTBjR | Find 17 |
| 18 | JC61-01890A | GJIDE-HARNESSjCABLE | Find 18 |
| 19 | JC61-01899A | SPRING ETC-LOCKjPTBjL | Find 19 |
| 20 | JC61-01927A | FRAME-LSJ | Find 20 |
| 21 | JC64-00303A | LOCKER-PTBjR | Find 21 |
| 22 | JC64-00304A | LOCKER-PTBjL | Find 22 |
| 23 | JC66-01300A | LEVER-FUSER FRAME | Find 23 |
| 24 | JC67-00215A | CAP-MAIN PICK-UP GEAR | Find 24 |
| 25 | JC71-00042A | BAR-PjCROSS BOTTOM | Find 25 |
| 26 | JC72-01539A | SPONGE-SEALINGjLSU | Find 26 |
| 27 | JC72-01553A | SPONGE-BARjCROSS | Find 27 |
| 28 | JC93-00126A | DRIVE EXIT-BRACKET | Find 28 |
| 29 | JC93-00145A | FRAME-TOP 670ND | Find 29 |
| 29 | JC93-00145B | FRAME-TOP 620ND | Find 29 |
| 30 | JC93-00146A | FRAME-BOTTOM | Find 30 |
| 31 | JC93-00150A | FRAME-LEFT | Find 31 |
| 32 | JC93-00151A | FRAME-RIGHT 670ND | Find 32 |
| 32 | JC93-00151B | FRAME-RIGHT 620ND | Find 32 |
| 33 | JC93-00152A | DRIVE FUSER-BRACKET | Find 33 |
| 34 | JC93-00153A | DRIVE-FEED | Find 34 |
| 35 | JC96-04481A | ELA UNIT-OPEjLEFT | Find 35 |
| 36 | JC96-04487A | ELA UNIT-DUCTjFUSER | Find 36 |
| 37 | JC96-05420A | ELA UNIT-DEVEjCRUM | Find 37 |
| 38 | JC97-02883A | MEA UNIT-COVERjOPEN | Find 38 |
| 39 | JC97-02895A | MEA-GEAR PICK UP | Find 39 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

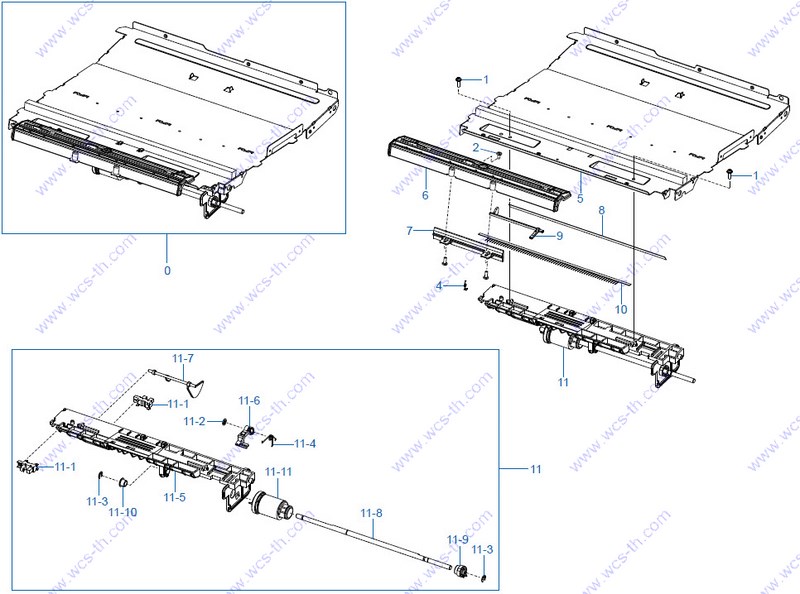

FRAME BOTTOM
| Pic No. | Parts ID | Parts Name | Link |
| No pic | JC93-00146A | FRAME-BOTTOM | |
| 1 | 6003-000196 | SCREW-TAPTYPE | Find 1 |
| 2 | 6003-000269 | SCREW-TAPTYPE | Find 2 |
| 3 | 6003-000282 | SCREW-TAPTYPE | Find 3 |
| 4 | 6107-001165 | SPRING-TS | Find 4 |
| 5 | JC61-01871A | FRAME-BOTTOM | Find 5 |
| 6 | JC61-01878A | GUIDE-PICKUP | Find 6 |
| 7 | JC61-03333A | FRAME-PICKUP_GUIDE | Find 7 |
| 8 | JC62-00364A | SEAL-FILM SCATTERING | Find 8 |
| 9 | JC66-02294A | ACTUATOR-REGI_DALI | Find 9 |
| 10 | JC67-00295A | BRUSH-ANTISTATIC | Find 10 |
| 11 | JC96-04491A | ELA UNIT-PICK UP | Find 11 |
| 11_1 | 0604-001095 | PHOTO-INTERRUPTER | Find 11_1 |
| 11_2 | 6044-000001 | RING-CS | Find 11_2 |
| 11_3 | 6044-000125 | RING-E | Find 11_3 |
| 11_4 | 6107-001170 | SPRING-TS | Find 11_4 |
| 11_5 | JC61-01838A | FRAME-PICK UP | Find 11_5 |
| 11_6 | JC66-00377A | CAM-M-PICK_UP | Find 11_6 |
| 11_7 | JC66-01187A | LEVER-ACTUATOR EMPTY | Find 11_7 |
| 11_8 | JC66-01336A | SHAFT-PICK UP | Find 11_8 |
| 11_9 | JC66-01402A | CAM-SHAFT_PICK UP | Find 11_9 |
| 11_10 | JC72-41364A | PMO-BUSHING_P/U,MP | Find 11_10 |
| 11_11 | JC90-00932A | ASF-PICK UP | Find 11_11 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

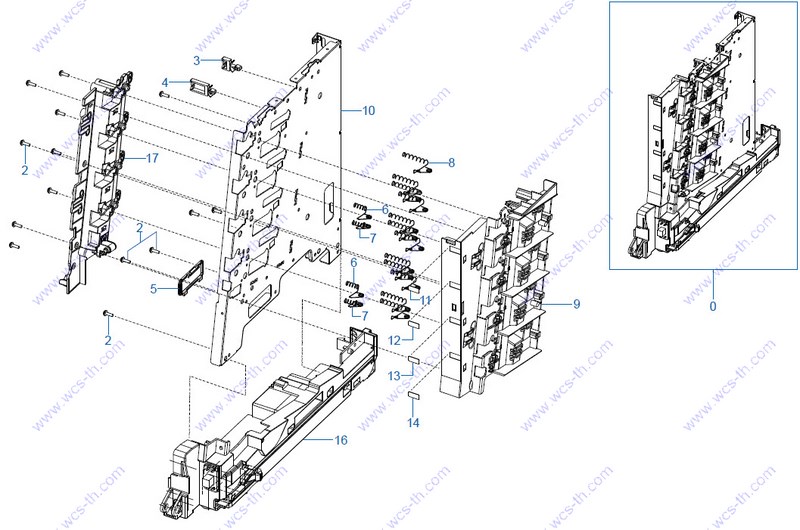

FRAME LEFT
| Pic No. | Parts ID | Parts Name | Link |
| No pic | JC93-00150A | FRAME-LEFT | |
| 1 | JC98-01242A | BOARD-PTL | Find 1 |
| 2 | 6003-000196 | SCREW-TAPTYPE | Find 2 |
| 3 | 6502-000132 | CABLE CLAMP | Find 3 |
| 4 | 6502-001093 | CABLE CLAMP | Find 4 |
| 5 | JC61-01012A | GUIDE-_M_BUSH HARNESS S | Find 5 |
| 6 | JC61-01883A | SPRING ETC-PTB_C | Find 6 |
| 7 | JC61-01884A | SPRING ETC-PTB_B | Find 7 |
| 8 | JC61-01885A | SPRING ETC-DEVE | Find 8 |
| 9 | JC61-01908A | GUIDE-RAIL-L | Find 9 |
| 10 | JC61-01926A | FRAME-LEFT | Find 10 |
| 11 | JC68-01503B | LABEL-BLANK | Find 11 |
| 12 | JC68-01504A | LABEL(R)-C | Find 12 |
| 13 | JC68-01505A | LABEL(R)-M | Find 13 |
| 14 | JC68-01506A | LABEL(R)-Y | Find 14 |
| 15 | JC68-02050A | LABEL-CAUTION | Find 15 |
| 16 | JC93-00149A | FRAME BASE-LEFT | Find 16 |
| 17 | JC96-05423A | ELA UNIT-PTB TERMINAL | Find 17 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

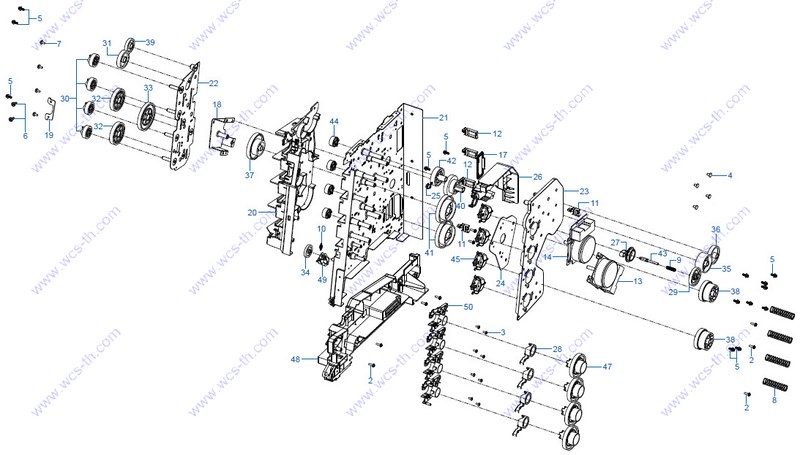

FRAME RIGHT
| Pic No. | Parts ID | Parts Name | Link |
| No pic | JC93-00151A | FRAME-RIGHT 670ND | |
| No pic | JC93-00151B | FRAME-RIGHT 620ND | |
| 2 | 6003-000196 | SCREW-TAPTYPE | Find 2 |
| 3 | 6003-000269 | SCREW-TAPTYPE | Find 3 |
| 4 | 6003-000301 | SCREW-TAPTYPE | Find 4 |
| 5 | 6006-001193 | SCREW-MACHINE | Find 5 |
| 6 | 6009-001396 | SCREW-SPECIAL | Find 6 |
| 7 | 6009-001492 | SCREW-HEX | Find 7 |
| 8 | 6107-001317 | SPRING-CS | Find 8 |
| 9 | 6107-001318 | SPRING-CS | Find 9 |
| 10 | 6107-001320 | SPRING-ES | Find 10 |
| 11 | 6502-000132 | CABLE CLAMP | Find 11 |
| 12 | 6502-001093 | CABLE CLAMP | Find 12 |
| 13 | JC31-00075A | MOTOR BLDC | Find 13 |
| 14 | JC31-00091A | MOTOR BLDC 620ND | Find 14 |
| 14 | JC31-00117A | MOTOR BLDC 670ND | Find 14 |
| 15 | JC39-00663A | HARNESS-PTB DRAW_FR | Find 15 |
| 16 | JC39-00956A | HARNESS-FUSER_GND | Find 16 |
| 17 | JC61-01012A | GUIDE-_M_BUSH HARNESS S | Find 17 |
| 18 | JC61-01837A | BRACKET-GEAR DEVE | Find 18 |
| 19 | JC61-01898A | BRACKET-DRAWER_PTB | Find 19 |
| 20 | JC61-01907A | GUIDE-RAIL-R | Find 20 |
| 21 | JC61-01925C | FRAME-RIGHT | Find 21 |
| 22 | JC61-02160B | BRACKET-DEVE_DR B | Find 22 |
| 23 | JC61-02775A | BRACKET-MAIN COVER | Find 23 |
| 24 | JC61-02777A | BRACKET-BLDC MOTOR | Find 24 |
| 25 | JC61-02778A | HOLDER-PTB GEAR | Find 25 |
| 26 | JC63-02079A | COVER-PTB GEAR | Find 26 |
| 27 | JC66-01343A | CAM-PTB COUPLING | Find 27 |
| 28 | JC66-01344A | CAM-OPC COUPLING | Find 28 |
| 29 | JC66-01361A | GEAR-COUPLING DRV PTB | Find 29 |
| 30 | JC66-01365A | GEAR-DRV2 DEVE | Find 30 |
| 31 | JC66-01367A | GEAR-IDLE DEVE | Find 31 |
| 32 | JC66-01369A | GEAR-IDLE DEVE | Find 32 |
| 33 | JC66-01370A | GEAR-IDLE DEVE | Find 33 |
| 34 | JC66-01373A | GEAR-IDLE FEED | Find 34 |
| 35 | JC66-01377A | GEAR- IDLE PTB A | Find 35 |
| 36 | JC66-01378A | GEAR-IDLE PTB B | Find 36 |
| 37 | JC66-01380A | GEAR-RDCN DEVE | Find 37 |
| 38 | JC66-01389A | GEAR-RDCN OPC | Find 38 |
| 39 | JC66-01394A | GEAR-IDLE DEVE | Find 39 |
| 40 | JC66-02047A | GEAR-RDCN PTB A | Find 40 |
| 41 | JC66-02048A | GEAR-RDCN OPC A | Find 41 |
| 42 | JC66-02049A | GEAR-IDLE PTB C | Find 42 |
| 43 | JC66-02105A | SHAFT-PTB GEAR | Find 43 |
| 44 | JC66-02443A | GEAR-DRV DEVE CZ | Find 44 |
| 45 | JC67-00341A | CAP-OPC GEAR | Find 45 |
| 46 | JC92-02107A | PBA SUB-TEMP | Find 46 |
| 47 | JC93-00112A | DRIVE MAIN-GEAR OPC | Find 47 |
| 48 | JC93-00148A | FRAME BASE-RIGHT | Find 48 |
| 49 | JC97-02851A | MEA UNIT-SWING | Find 49 |
| 50 | JC97-02853A | MEA UNIT-COUPLING OPC | Find 50 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

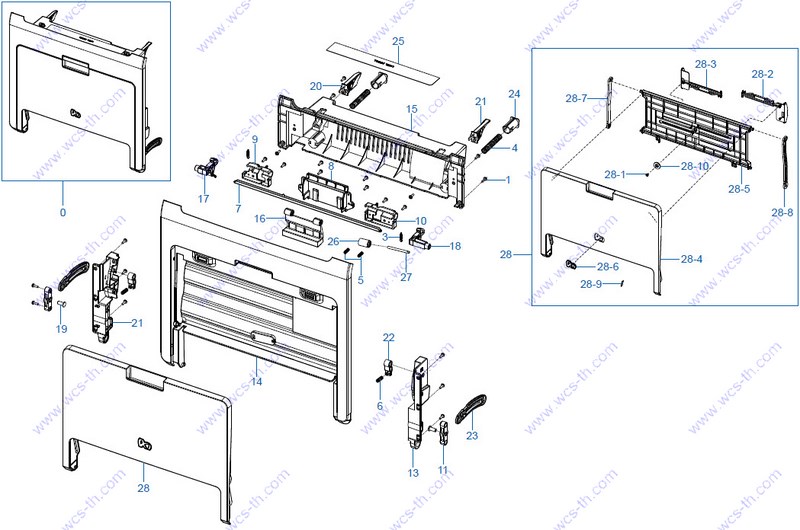

FRONT COVER
| Pic No. | Parts ID | Parts Name | Link |
| No pic | JC95-01157A | COVER-FRONT | |
| 1 | 6003-000196 | SCREW-TAPTYPE | Find 1 |
| 3 | 6107-001138 | SPRING-ES | Find 3 |
| 4 | 6107-001345 | SPRING-CS | Find 4 |
| 5 | 6107-001218 | SPRING-CS | Find 5 |
| 6 | JC61-00038A | SPRING ETC-GUIDE DEVE | Find 6 |
| 7 | JC61-01050A | BRACKET-P-COVER LOCK | Find 7 |
| 8 | JC61-01841A | HOLDER-KNOB HANDLE | Find 8 |
| 9 | JC61-01842A | HOLDER-LOCKER FRONT L | Find 9 |
| 10 | JC61-01843A | HOLDER-LOCKER FRONT R | Find 10 |
| 11 | JC61-01846B | HOLDER-LINK FRONT | Find 11 |
| 12 | JC61-01848B | SUPPORT-PTB L | Find 12 |
| 13 | JC61-01849B | SUPPORT-PTB R | Find 13 |
| 14 | JC63-01274B | COVER-FRONT | Find 14 |
| 15 | JC63-01290B | COVER-FRONT PATH | Find 15 |
| 16 | JC64-00299B | KNOB-HANDLE | Find 16 |
| 17 | JC64-00305A | LOCKER-FRONT L | Find 17 |
| 18 | JC64-00306A | LOCKER-FRONT R | Find 18 |
| 19 | JC66-00835A | SHAFT-HINGE LINK | Find 19 |
| 20 | JC66-01022A | ROLLER-M_IDLE SCF | Find 20 |
| 21 | JC66-01352A | LEVER-COUPLING L | Find 21 |
| 22 | JC66-01353A | LEVER-COUPLING R | Find 22 |
| 23 | JC66-01354A | LEVER-PTB | Find 23 |
| 24 | JC66-01358A | LINK-SUPPORT | Find 24 |
| 25 | JC66-01421A | LEVER-PTB TOP | Find 25 |
| 26 | JC66-01846A | SHAFT-DUP_ROLLER | Find 26 |
| 27 | JC68-01905A | LABEL-INSTALL | Find 27 |
| 28 | JC95-01154A | COVER-MP | Find 28 |
| 2810 | JG66-40003A | GEAR-PINION | Find 2810 |
| 28_1 | 6003-000264 | SCREW-TAPTYPE | Find 28_1 |
| 28_2 | JC61-01042D | GUIDE-SIDE MP R | Find 28_2 |
| 28_3 | JC61-01043D | GUIDE-SIDE MP L | Find 28_3 |
| 28_4 | JC63-01287B | COVER-MP_TRAY | Find 28_4 |
| 28_5 | JC63-01293B | TRAY-ASF_INPUT | Find 28_5 |
| 28_6 | JC64-00428A | BADGE-COLOR MIDDLE | Find 28_6 |
| 28_7 | JC66-01349A | LINK-TRAY_MP_L | Find 28_7 |
| 28_8 | JC66-01350A | LINK-TRAY_MP_R | Find 28_8 |
| 28_9 | JC68-01528A | LABEL(R)-HEIGHT MP | Find 28_9 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

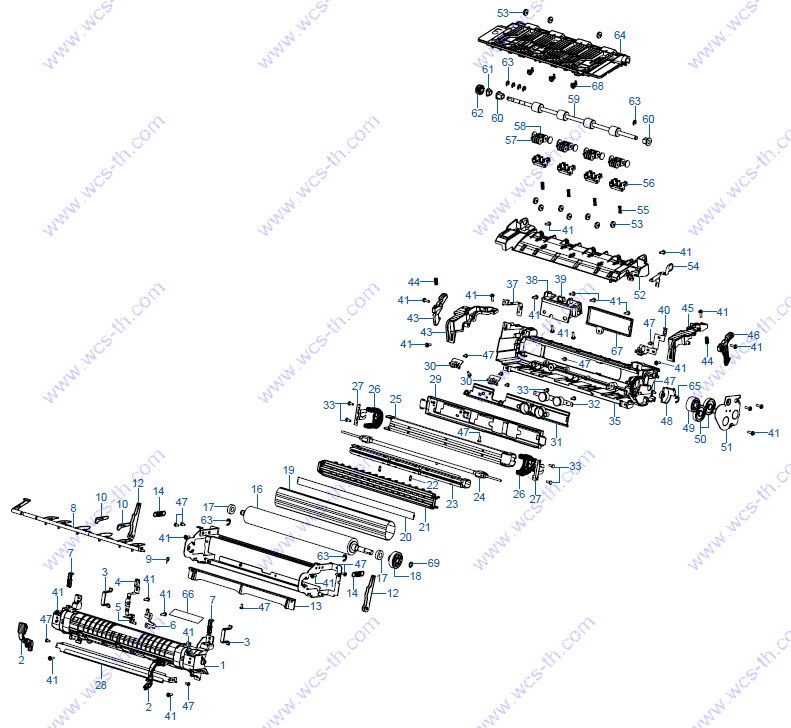

FUSER
| Pic No. | Parts ID | Parts Name | Link |
| No pic | JC91-00970A | FUSER 620ND/110V | |
| No pic | JC91-00971A | FUSER 620ND/220V | |
| No pic | JC91-0096 | FUSER 670ND/110V | |
| No pic | JC91-00969A | FUSER 620ND/220V | |
| 1 | JC61-02724A | FRAME-LOWER FUSER | Find 1 |
| 2 | JC66-02023A | LEVER-JAM | Find 2 |
| 3 | JC66-02024A | LEVER-RELEASE | Find 3 |
| 4 | JC63-02504A | GROUND-PR_SUB | Find 4 |
| 5 | JC61-02738A | PLATE-GROUND SUB | Find 5 |
| 6 | JC61-02727A | PLATE-GROUND FUSER PR | Find 6 |
| 7 | JC61-03507A | HOLDER-RELEASE | Find 7 |
| 8 | JC66-01404A | ACTUATOR-FUSER | Find 8 |
| 9 | JC61-70903A | SPRING ETC-ACTUATOR | Find 9 |
| 10 | JC61-02731A | GUIDE-ACTUATOR | Find 10 |
| 11 | JC61-02718A | BRACKET-FUSER MAIN | Find 11 |
| 12 | JC61-03494A | BRACKET-BUSH | Find 12 |
| 13 | JC61-02732A | GUIDE-PLATE | Find 13 |
| 14 | 6107-001835 | SPRING-ES | Find 14 |
| 15 | JC61-02723A | BRACKET-SUPPORT | Find 15 |
| 16 | JC66-02433A | ROLLER-PRESSURE | Find 16 |
| 17 | 6601-001341 | BEARING-BALL | Find 17 |
| 18 | JC66-02022A | GEAR-PR | Find 18 |
| 19 | JC66-02037A | DRUM-FUSER_BELT | Find 19 |
| 20 | JC61-02722A | BRACKET-NIP SUB | Find 20 |
| 21 | JC61-02735A | HOLDER-INNER | Find 21 |
| 22 | JC61-02662A | BRACKET-GAP | Find 22 |
| 23 | JC61-02721A | BRACKET-NIP | Find 23 |
| 24 | 4713-001284 | LAMP-HALOGEN 620ND/110V | Find 24 |
| 24 | 4713-001285 | LAMP-HALOGEN 620ND/220V | Find 24 |
| 24 | 4713-001272 | LAMP-HALOGEN 670ND/110V | Find 24 |
| 24 | 4713-001273 | LAMP-HALOGEN 670ND/220V | Find 24 |
| 25 | JC61-02720A | BRACKET-INNER BELT PI30 | Find 25 |
| 26 | JC61-02737A | BUSH-BELT | Find 26 |
| 27 | JC61-02739A | HOLDER-LAMP | Find 27 |
| 28 | JC61-03705A | GUIDE-INPUT_P | Find 28 |
| 29 | JC61-02713A | BRACKET-BELT | Find 29 |
| 30 | JC61-02769A | BRACKET-THERMISTOR | Find 30 |
| 31 | JC61-02734A | HOLDER-HARNESS | Find 31 |
| 32 | 4712-001050 | THERMOSTAT | Find 32 |
| 33 | 6003-000282 | SCREW-TAPTYPE | Find 33 |
| 34 | 6003-000267 | SCREW-TAPTYPE | Find 34 |
| 35 | JC61-02725A | FRAME-UPPER FUSER | Find 35 |
| 36 | JC63-02572A | COVER-THERMOSTAT | Find 36 |
| 37 | JC63-02503A | GROUND-LOWER | Find 37 |
| 38 | JC61-01929A | HOLDER-CONNECTOR | Find 38 |
| 39 | JC61-02657A | HOLDER-THERMISTOR | Find 39 |
| 40 | JC63-01309A | GROUND-UPPER | Find 40 |
| 41 | 6003-000196 | SCREW-TAPTYPE | Find 41 |
| 42 | JC64-00525A | HANDLE-FUSER_LC | Find 42 |
| 43 | JC64-00310A | LOCKER-FUSER_L | Find 43 |
| 44 | JC61-00550A | SPRING ETC-DEVE REAR | Find 44 |
| 45 | JC64-00524A | HANDLE-FUSER_RC | Find 45 |
| 46 | JC64-00309A | LOCKER-FUSER_R | Find 46 |
| 47 | 6003-000269 | SCREW-TAPTYPE | Find 47 |
| 48 | JC63-02445A | COVER-GEAR FUSER | Find 48 |
| 49 | JC66-02025A | GEAR-IDLE PR | Find 49 |
| 50 | JC66-02026A | GEAR-IDLE SUB | Find 50 |
| 51 | JC61-02717A | BRACKET-DRIVE FUSER | Find 51 |
| 52 | JC61-02728A | GUIDE-OUTPUT FUSER | Find 52 |
| 53 | JC66-00608A | ROLLER-EXIT IDLE | Find 53 |
| 54 | JC63-01310A | GROUND-EXIT | Find 54 |
| 55 | JC61-70911A | SPRING ETC-EXIT ROLL FD | Find 55 |
| 56 | JC61-00547A | HOLDER-EXIT(MC) | Find 56 |
| 57 | JC66-01233A | ROLLER FD R | Find 57 |
| 58 | JC72-41007A | PMO-ROLLER FD F | Find 58 |
| 59 | JC66-02558A | ROLLER-EXIT | Find 59 |
| 60 | JC61-00884A | BUSH-6_D(L) | Find 60 |
| 61 | JC61-00423A | BUSH-6_D | Find 61 |
| 62 | JC66-00782A | GEAR-_M_EXIT | Find 62 |
| 63 | 6044-000125 | RING-E | Find 63 |
| 64 | JC61-01935A | GUIDE-DUPLEX | Find 64 |
| 65 | 6044-000125 | RING-E | Find 65 |
| 66 | JC68-01581C | LABEL-CAUTION | Find 66 |
| 67 | JC63-02572A | COVER-THERMOSTAT | Find 67 |
| 68 | JC61-03752A | HOLDER_RIB | Find 68 |
| 69 | 6031-000023 | WASHER-PLAN | Find 69 |
| 70 | 1404-001486 | THERMISTOR-NTC ASSY | Find 70 |
| 71 | JC39-00668A | HARNESS-FUSER DRAW_F | Find 71 |
| 72 | JC68-01381A | LABEL(R)-PPID(DEVE) | Find 72 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

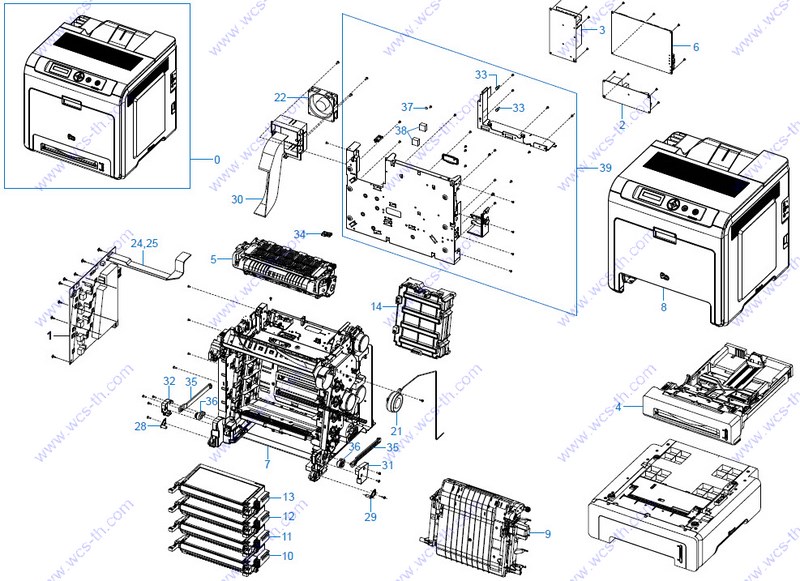

MAIN
| Pic No. | Parts ID | Parts Name | Link |
| 1 | JC44-00183A | HVPS | Find 1 |
| 2 | JC44-00186A | FDB-SINGLE TRIAC V1 620ND/110V | Find 2 |
| 2 | JC44-00184A | FDB-1LAMP-ZC-V2 620ND/220V | Find 2 |
| 2 | JC44-00185A | FDB-MULTI TRIAC V1 670ND/110V | Find 2 |
| 2 | JC44-00187A | FDB-MULTI TRIAC V2 670ND/220V | Find 2 |
| 3 | JC44-00091B | SMPS-V1 110V | Find 3 |
| 3 | JC44-00092B | SMPS-V2C 220V | Find 3 |
| 4 | JC90-00974A | CASSETTE | Find 4 |
| 5 | JC91-00968A | FUSER 670ND/110V | Find 5 |
| 5 | JC91-00969A | FUSER 670ND/220V | Find 5 |
| 5 | JC91-00970A | FUSER 620ND/110V | Find 5 |
| 5 | JC91-00971A | FUSER 620ND/220V | Find 5 |
| 6 | JC92-02236A | PBA-MAIN 620ND/Others | Find 6 |
| 6 | JC92-02236B | PBA-MAIN 620ND/SEE | Find 6 |
| 6 | JC92-02236E | PBA-MAIN 620ND/ETS | Find 6 |
| 6 | JC92-02237A | PBA-MAIN 670ND/Others | Find 6 |
| 6 | JC92-02237B | PBA-MAIN 670ND/SEE | Find 6 |
| 6 | JC92-02237J | PBA-MAIN 670ND/ETS | Find 6 |
| 7 | JC93-00147A | FRAME 670ND | Find 7 |
| 7 | JC93-00147B | FRAME 620ND | Find 7 |
| 8 | JC95-01158A | COVER 670ND | Find 8 |
| 8 | JC95-01158B | COVER 620ND | Find 8 |
| 9 | CLT-T508 | CARTRIDGE-TRANSFER 50K | Find 9 |
| 10 | CLT-Y508S | CARTRIDGE-TONER Y | Find 10 |
| 11 | CLT-M508S | CARTRIDGE-TONER M | Find 11 |
| 12 | CLT-C508S | CARTRIDGE-TONER C | Find 12 |
| 13 | CLT-K508S | CARTRIDGE-TONER K | Find 13 |
| 14 | JC97-03733A | LSU | Find 14 |
| 21 | JC31-00072A | FAN | Find 21 |
| 22 | JC31-00088A | FAN-DC | Find 22 |
| 24 | JC39-00650A | FLAT CABLE | Find 24 |
| 25 | JC39-00651A | FLAT CABLE | Find 25 |
| 28 | JC61-01896A | BRACKET-HINGE_L | Find 28 |
| 29 | JC61-01897A | BRACKET-HINGE_R | Find 29 |
| 30 | JC61-01910A | FRAME-DUCT | Find 30 |
| 31 | JC61-01911D | FRAME-DAMPER_R | Find 31 |
| 32 | JC61-01912D | FRAME-DAMPER_L | Find 32 |
| 33 | JC61-02543A | SUPPORT-PCB | Find 33 |
| 34 | JC61-03706A | HOLDER-LOCK FUSER | Find 34 |
| 35 | JC66-01422A | LINK-HINGE | Find 35 |
| 36 | JC66-01425A | DAMPER-HINGE | Find 36 |
| 37 | JC68-01760A | LABEL-INFORMATION | Find 37 |
| 38 | JC73-00276A | RUBBER-SUPPORT | Find 38 |
| 39 | JC98-01225A | ETC-BRACKET | Find 39 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

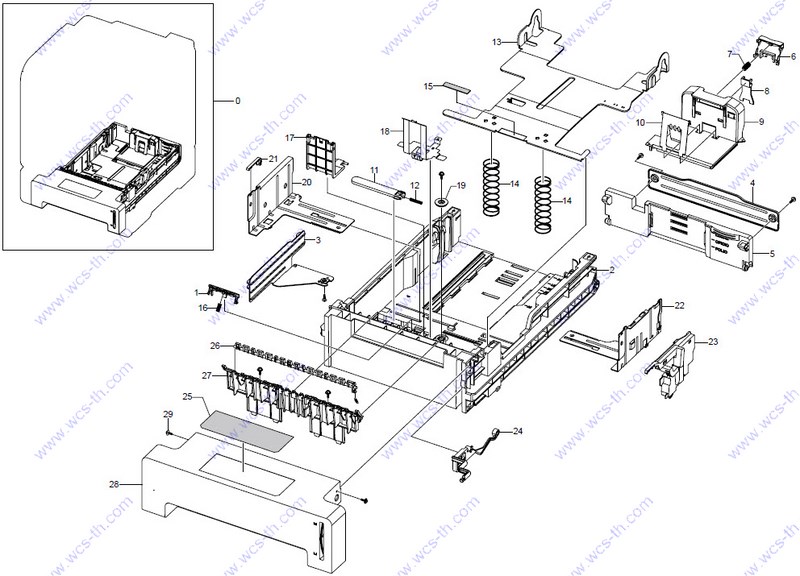

SCF Cassette
| Pic No. | Parts ID | Parts Name | Link |
| No pic | JC96-04503A | ELA HOU-UNIT-CASSETTE | |
| 1 | JC97-02844A | MEA-UNIT_HOLDER PAD | Find 1 |
| 2 | JC61-01220C | FRAME-M_CASSETTE | Find 2 |
| 3 | JC61-01227A | GUIDE-M-PAPER SIZE | Find 3 |
| 4 | JC61-01223A | FRACKET-P-EXTENTION | Find 4 |
| 5 | JC61-01224C | GUIDE-M_EXTENSION CST | Find 5 |
| 6 | JC64-00190B | KNOB-M_REAR | Find 6 |
| 7 | JC61-00414A | SPRING ETC-GUIDE PAPER | Find 7 |
| 8 | JC61-00267B | GUIDE-M-LOCK A | Find 8 |
| 9 | JC61-01226B | GUIDEM_REAR | Find 9 |
| 10 | JC61-00751A | GUIDE-P-REAR PAPER CST | Find 10 |
| 11 | JC72-41210A | PMO-LOCKER PLATE | Find 11 |
| 12 | JC61-70531A | SPRING ETC-LOCKER_PLATE | Find 12 |
| 13 | JC61-01245A | PLATE-P-KNOCK UP | Find 13 |
| 14 | JC61-00455A | SPRING ETC-PLATE K/UP | Find 14 |
| 15 | JC73-00141A | RPR-PAD CASSETTE | Find 15 |
| 16 | JC61-70911A | SPRING ETC-EXIT ROLL FD | Find 16 |
| 17 | JC61-01228A | HOLDER-M-PAD_HOUSING | Find 17 |
| 18 | JC63-01206A | GROUND-CASSETTE | Find 18 |
| 19 | JC66-40003A | GEAR-PINION | Find 19 |
| 20 | JC67-01222A | GUIDE-P-SIDE_L | Find 20 |
| 21 | JC67-00037A | CAP-M-GUIDE SIDE_L | Find 21 |
| 22 | JC61-01244A | GUIDE-P-SIDE_R | Find 22 |
| 23 | JC61-01225B | GUIDE-M_SIDE LOCK | Find 23 |
| 24 | JC66-01409A | LEVER-INDICATOR_SCF | Find 24 |
| 25 | JC68-01552A | LABEL-CASSETTE | Find 25 |
| 26 | JC64-00268A | SHUTTER-PATH | Find 26 |
| 27 | JC61-01724A | GUIDE-PAPER | Find 27 |
| 28 | JC63-01306A | COVER_HANDLE | Find 28 |
| 29 | 6002-000440 | SCREW-TAPPING | Find 29 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

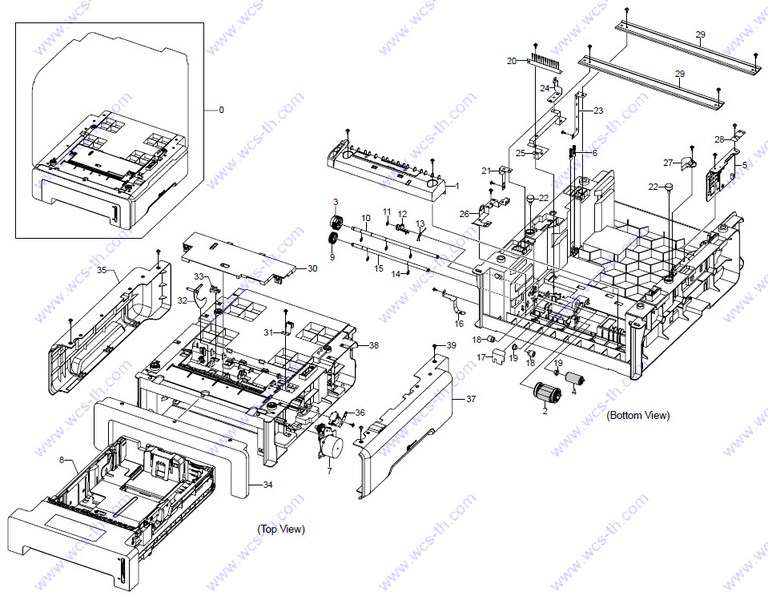

SCF Unit
| Pic No. | Parts ID | Parts Name | Link |
| No pic | JC96-04502A | ELA HOU-UNIT_SCF | |
| 1 | JC96-04019A | ELA UNIT-IDLE_SCF | Find 1 |
| 2 | JC97-02233A | MEA UNIT-P/UP_HOUSING | Find 2 |
| 3 | JC97-02691A | MEA UNIT-GEAR_PICK_UP | Find 3 |
| 4 | JC81-03458A | AS-UNIT_FEED1 | Find 4 |
| 5 | JC96-02127A | ELA HOU-CST SENSOR HAWK16 | Find 5 |
| 6 | JC97-01401A | MEA UNIT-TERMINAL:TR | Find 6 |
| 7 | JC96-03956A | ELA UNIT-MOTOR SCF | Find 7 |
| 8 | JC96-04503A | ELA HOU-UNIT_CASSETTE | Find 8 |
| 9 | JC66-01262A | GEAR-FEED | Find 9 |
| 10 | JC66-01277A | SHAFT-PICK UP_SCF | Find 10 |
| 11 | 6044-000001 | RING-CS | Find 11 |
| 12 | JC61-01743A | HOLDER-PICK_UP_SCF | Find 12 |
| 13 | 6107-001170 | SPRING-TS | Find 13 |
| 14 | 6044-000125 | RING-E | Find 14 |
| 15 | JC66-01276A | SHAFT-FEED_SCF | Find 15 |
| 16 | JC63-01137A | GROUND-P_MOTOR_SCF | Find 16 |
| 17 | JC63-01163A | SHEET-GUIDE_PATH | Find 17 |
| 18 | JC61-01579A | HOLDER-P-REGI | Find 18 |
| 19 | JC66-10202A | BEARING-PICK UP | Find 19 |
| 20 | JC67-00204A | BRUSH-PICK | Find 20 |
| 21 | JC63-01136A | GROUND-P_FRONT_BOTTOM | Find 21 |
| 22 | JC61-40001A | FOOT-ML80 | Find 22 |
| 23 | JC63-01140A | GROUND-P_REAR_BOTTOM | Find 23 |
| 24 | JC61-01904A | PLATE-GND_REAR_TOP | Find 24 |
| 25 | JC61-01903A | PLATE-GND_FRAME_SCF | Find 25 |
| 26 | JC63-01141A | GROUND-P_SHAFT | Find 26 |
| 27 | JC72-01355A | PMO-REMOVE_LOCK_CST | Find 27 |
| 28 | JC63-00675A | GROUND-P-PAPER_SIZE | Find 28 |
| 29 | JC71-00042A | BAR-P_CROSS BOTTOM | Find 29 |
| 30 | JC63-00686A | COVER-M-DUMMY_SCF | Find 30 |
| 31 | JC70-11028A | IPR-GROUND TOP | Find 31 |
| 32 | JC72-00992A | PMO-ACTUATOR EMPTY,SCF | Find 32 |
| 33 | 0604-001095 | PHOTO-INTERRUPTER | Find 33 |
| 34 | JC63-01305A | COVER-FRONT_SCF | Find 34 |
| 35 | JC63-01303A | COVER-LEFT_SCF | Find 35 |
| 36 | JC33-00012A | SOLENOID-MAIN | Find 36 |
| 37 | JC63-01304A | COVER-RIGHT_SCF | Find 37 |
| 38 | JC61-01902A | FRAME-SCF | Find 38 |
| 39 | 6003-000196 | SCREW-TAPTITE | Find 39 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

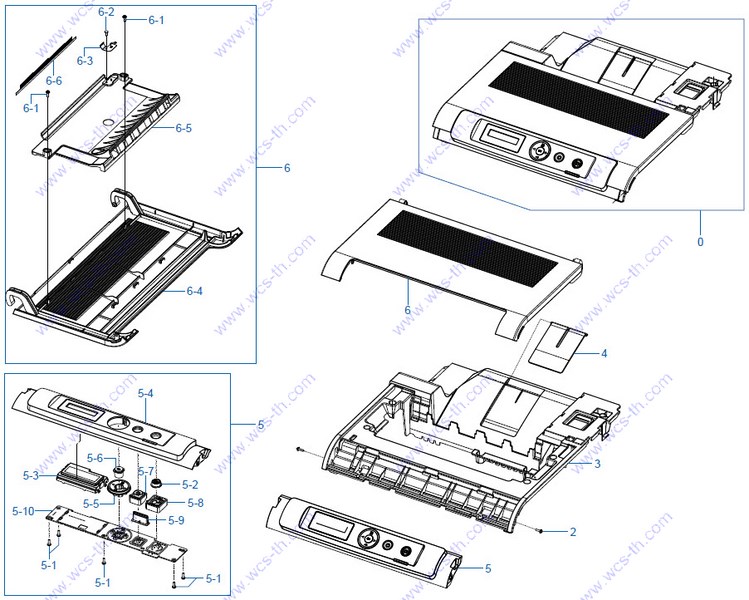

TOP COVER
| Pic No. | Parts ID | Parts Name | Link |
| No pic | JC95-01155A | COVER-TOP 670ND | |
| No pic | JC95-01155B | COVER-TOP 620ND | |
| 2 | 6003-000196 | SCREW-TAPTYPE | Find 2 |
| 3 | JC63-01278B | COVER-TOP | Find 3 |
| 4 | JC72-01346G | PMO-STACKER | Find 4 |
| 5 | JC97-03744A | OPE-COVER 670ND | Find 5 |
| 5 | JC97-03744B | OPE-COVER 620ND | Find 5 |
| 6 | JC95-01156A | COVER-EXIT | Find 6 |
| 55 | JC64-00388A | KEY-MENU | Find 55 |
| 5_1 | 6003-000196 | SCREW-TAPTYPE | Find 5_1 |
| 5_2 | JB64-00114B | KEY-POWER | Find 5_2 |
| 5_3 | JC61-03525A | HOLDER-LCD | Find 5_3 |
| 5_4 | JC63-02502A | COVER-OPE 670ND | Find 5_4 |
| 5_4 | JC63-02502B | COVER-OPE 620ND | Find 5_4 |
| 5_6 | JC64-00389A | KEY-OK | Find 5_6 |
| 5_7 | JC64-00393A | KEY-STOP | Find 5_7 |
| 5_8 | JC64-00443A | KEY-POWER_B | Find 5_8 |
| 5_9 | JC67-00427A | LENS-STATUS | Find 5_9 |
| 6_1 | 6003-000196 | SCREW-TAPTYPE | Find 6_1 |
| 6_2 | 6003-000282 | SCREW-TAPTYPE | Find 6_2 |
| 6_3 | JC63-01277A | GROUND-EXIT | Find 6_3 |
| 6_4 | JC63-01289B | COVER-EXIT | Find 6_4 |
| 6_5 | JC63-01299A | COVER-FUSER EXIT | Find 6_5 |
| 6_6 | JC67-00295A | BRUSH-ANTISTATIC | Find 6_6 |
| 5_10 | JC92-02234A | PBA-OPE | Find 5_10 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000
