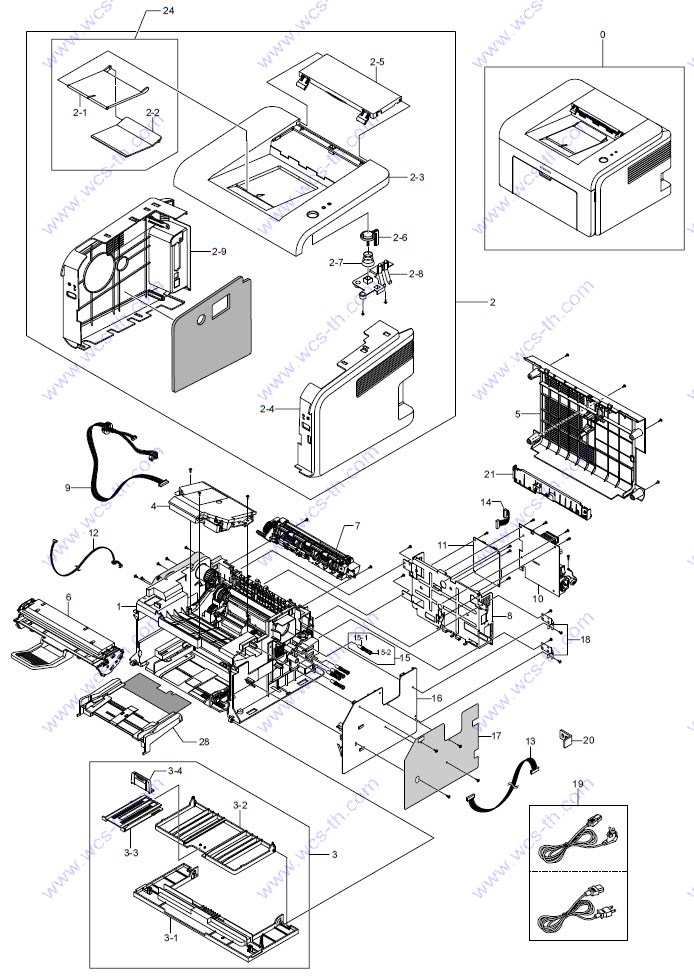

1. Main Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | JC96-04023A | ELA UNIT-FRAME_LOWER;ML-2571N,SAMSUNG,-, | Find 1 |
| 2 | JC96-04013A | ELA HOU-COVER;ML-2571N,SEC,ORIOLE,-,-,-, | Find 2 |
| 2-1 | JC61-01155C | GUIDE-STACKER;ML-2571N,HIPS,2,110.15,110 | Find 2-1 |
| 2-2 | JC61-01156C | GUIDE-SUB STACKER;ML-2571N,HIPS,2,86,106 | Find 2-2 |
| 2-3 | JC63-01108A | COVER-M_TOP;ML-2571N,HIPS,2,248,245,HB,- | Find 2-3 |
| 2-4 | JC63-01105A | COVER-M_SIDE R;ML-2571N,HIPS,2,288,239,- | Find 2-4 |
| 2-5 | JC63-01103A | COVER-M_JAM;ML-2571N,HIPS,2.5,83,222,HB, | Find 2-5 |
| 2-6 | JC64-00266A | KEY-M_ONLINE;ML-2571N,ABS,18.2,HB,-,-,- | Find 2-6 |
| 2-7 | JC66-01242A | ACTUATOR-M_JAM;ML-2571N,PC,-,48.6,75.2,- | Find 2-7 |
| 2-8 | JC67-00167A | LENS-M_LED;ML-2571N,PMMA,TRANSPARENT,L72 | Find 2-8 |
| 2-9 | JC63-01106A | COVER-M_SIDE L;ML-2571N,HIPS,2,288,239,- | Find 2-9 |
| 3 | JC97-02654A | MEA UNIT-COVER FRONT;ML-2571N,SAMSUNG,-, | Find 3 |
| 3-1 | JC63-01104A | COVER-M_FRONT;ML-2571N,HIPS,2.5,154.65,3 | Find 3-1 |
| 3-2 | JC63-00617B | TRAY-CASSETTE;ML-1610,HIPS,2,277,108,HB, | Find 3-2 |
| 3-4 | JC63-01112A | TRAY-M_EXTENSION S;ML-2571N,HIPS,2.5,38. | Find 3-4 |
| 4 | JC96-04065A | ELA UNIT-LSU;ML-2570,-,-,25PPM,600DPI,SI | Find 4 |
| 5 | JC63-01107A | COVER-M_SMPS;ML-2571N,PC/ABS,2,324.6,230 | Find 5 |
| 6 | JC96-03352R | ELA UNIT-DEVE INITIAL;ML-2010,SAMSUNG,EX | Find 6 |
| 7 | JC96-04062A | ELA HOU-FUSER;ML-2571N,SAMSUNG,-,LAMP,22 | Find 7 |
| 8 | JC63-01109A | SHIELD-P_ENGINE;ML-2571N,SECC,T0.8,145,3 | Find 8 |
| 9 | JC39-00614A | HARNESS-LSU;ML-2510,CBF,UL1061,14PIN,750 | Find 9 |
| 10 | JC44-00102A | SMPS-WHITENY+(V2C);SCX-4521F,*,AC/DC,-,2 | Find 10 |
| 11 | JC92-01805A | PBA MAIN-CONTROLLER;ML-2571N,SEC,KOREA,- | Find 11 |
| 12 | JC39-00405A | CBF HARNESS-MOTOR;ML-1610,CBF HARNESS,UL | Find 12 |
| 13 | JC39-00400A | CBF HARNESS-HVPS;ML-1610,WIRE HARNESS,UL | Find 13 |
| 14 | JC39-00613A | HARNESS-SMPS;ML-2510,CBF,UL1061,9PIN,75M | Find 14 |
| 15 | JC96-01672A | ELA UNIT-TERMINAL TR L;ML-6060A,SEC,220V | Find 15 |
| 15-1 | JC61-00031A | SPRING ETC--HV LARGE;ML-6060A,SUS 304 WP | Find 15-1 |
| 15-2 | JC70-40912A | ICT-SHAFT HV LARGE;ML-5000A,SWCH18A,-,?4 | Find 15-2 |
| 16 | JC44-00079A | HVPS-SKYLARK;-,24V,21.6V~27.6V,-,MAX 5KV | Find 16 |
| 17 | JC63-00722A | SHEET-HVPS;ML-1610,PP PP,T0.254,155,201, | Find 17 |
| 18 | JC63-00631A | GROUND-P-HVPS;ML-1610,SUS304CSP 1/2H,0.2 | Find 18 |
| 19 | 3903-000042 | CBF-POWER CORD;DT,EU,FP3/YES,IEC320 C13/ | Find 19 |
| 20 | JC61-01726A | PLATE-P_CHANNEL;ML-2571N,SECC,1.2,18.5,1 | Find 20 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

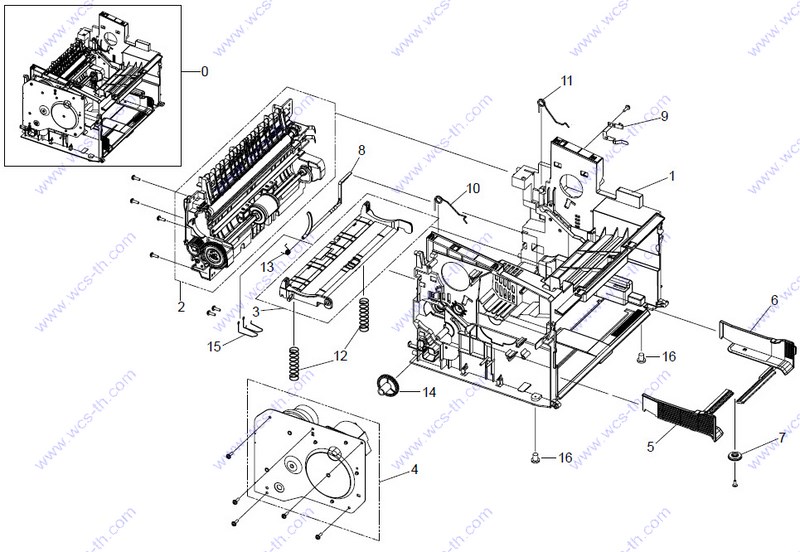

2. Frame Assembly
| Pic No. | Parts ID | Parts Name | Link |
| 1 | JC61-01703A | FRAME-M_BASE;ML-2571N,PC/ABS,-,-,BLK,2,2 | Find 1 |
| 2 | JC97-02664A | MEA UNIT-PAPER PATH;ML-2571N,SAMSUNG,-,- | Find 2 |
| 3 | JC97-02670A | MEA UNIT-KNOCK_UP;ML-2571N,SAMSUNG,-,-,- | Find 3 |
| 4 | JC96-04033A | ELA UNIT-RX DRIVE;ML-2571N,SAMSUNG,-,ORI | Find 4 |
| 5 | JC70-00527A | ADJUST-CASSETTE_L;ML-2571N,ABS,2.5T,124. | Find 5 |
| 6 | JC70-00528A | ADJUST-CASSETTE_R;ML-2571N,ABS,2.5T,124. | Find 6 |
| 7 | JG66-40003A | GEAR-PINION;SF4000,POM,WHT,M1,Z16 | Find 7 |
| 8 | JC66-01257A | ACTUATOR-EMPTY;ML-2571N,PC,-,38.2,98.3,- | Find 8 |
| 9 | JC63-00622A | GROUND-P-OPC;ML-1610,SUS304CSP 1/2H,0.2, | Find 9 |
| 10 | JC61-01258A | SPRING ETC-TORSION DEVE_L;ML-1610,SUS304 | Find 10 |
| 11 | JC61-01259A | SPRING ETC-TORSION DEVE_R;ML-1610,SUS304 | Find 11 |
| 12 | 6107-001169 | SPRING-CS;SUS304-WPB,-,PI0.55,D9.3,14.25 | Find 12 |
| 12 | 6107-001297 | SPRING-CS;SWP,-,PI0.6,D12.6,L50,-,-,ID12 | Find 12 |
| 13 | JB61-00076A | SPRING ETC-TORSION DOC (CC2-F);SCX-1110F | Find 13 |
| 14 | JC66-00808A | GEAR-FEED DR 41;ML-1610,POM,0.8,41,-,WHI | Find 14 |
| 16 | JC61-00836A | FOOT-FRONT;ML-1750,NBR,D7,-,11.5,-,- | Find 16 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

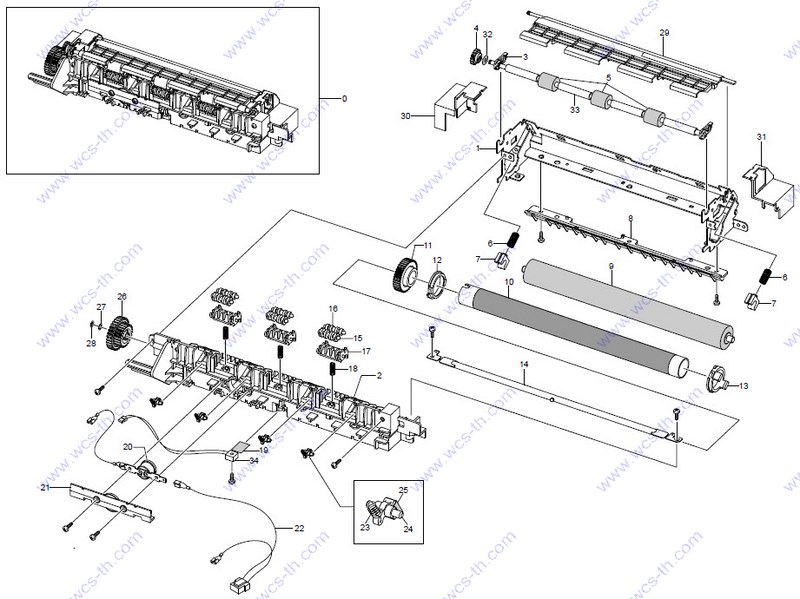

3. Fuser Unit
| Pic No. | Parts ID | Parts Name | Link |
| 1 | JC61-01720A | FRAME-P_FUSER;ML-2571N,SECC,-,-,-,1.2,23 | Find 1 |
| 2 | JC63-01126A | COVER-FUSER;ML-2571N,PET+GF30%,2,29.32,3 | Find 2 |
| 3 | JC61-01172A | HOLDER-M-EXIT F/DOWN;ML-1610,PC,T2.0,W18 | Find 3 |
| 4 | JC66-00810A | GEAR-EXIT_DRV17;ML-1610,POM,0.8,17,-,BLK | Find 4 |
| 7 | JC66-10901A | BEARING-PRESSURE/R;ML-165,PPS(RBA313N),- | Find 7 |
| 8 | JC61-00595A | GUIDE-M-INPUT;ML-1710,PET+GF30%,-,-,-,BL | Find 8 |
| 9 | JC66-00600A | ROLLER-PRESSURE;ML-1710,SUM24L+LSR+PFA,2 | Find 9 |
| 10 | JC66-01256A | ROLLER-HEAT;ML-2571N,AL 5052+ PFA COAT,2 | Find 10 |
| 11 | JC66-01254A | GEAR-FUSER;ML-2571N,PPS(OFL4036),0.8,45, | Find 11 |
| 12 | JC61-00888A | BUSH-M-HR L_R2;SCX-4920N,PPS(RBA313N),25 | Find 12 |
| 13 | JC61-00887A | BUSH-M-HR R_R2;SCX-4920N,PPS(RBA313N),25 | Find 13 |
| 14 | 4713-001212 | LAMP-HALOGEN;230V,-,750W,-,-,-,8X284MM | Find 14 |
| 15 | JC66-00824A | ROLLER-M-EXIT MAIN;ML-1610,POM,8.5,L23.6 | Find 15 |
| 16 | JC66-00934A | ROLLER-M_EXIT FR;ML-1610,TEFLON-NTR,6.5, | Find 16 |
| 18 | 6107-001163 | SPRING-CS;SUS304-WPB,-,PI0.4,D3.9,L13,-, | Find 18 |
| 19 | 1404-001373 | THERMISTOR-NTC ASSY;7KOHM,-,3370K,0.3MW/ | Find 19 |
| 20 | 4712-001032 | THERMOSTAT;125/250VAC,15/7.5A,150+-5C,0C | Find 20 |
| 21 | JC39-00404A | CBF HARNESS-FUSER JOINT;ML-1610,WIRE HAR | Find 21 |
| 23 | JC61-00064A | SPRING ETC-CLAW;ML-5200A,SUS 304 WPB,?0. | Find 23 |
| 25 | JC61-01721A | GUIDE-CLAW;ML-2571N,PEEK,2,14,23.35,GREE | Find 25 |
| 26 | JC66-00801A | GEAR-EXIT_DR38/25;ML-1610,POM,0.8,38/25, | Find 26 |
| 27 | 6031-001051 | WASHER-PLAIN;M4,ID4.1,OD7.0,T0.13,*,POLY | Find 27 |
| 29 | JC63-01128A | COVER-FUSER-DUMMY;ML-2571N,PET+GF30%,2,3 | Find 29 |
| 30 | JC63-01130A | COVER-LAMP_L;ML-2571N,PET+GF30%,2,40,28, | Find 30 |
| 31 | JC63-01129A | COVER-LAMP_R;ML-2571N,PET+GF30%,2,27.55, | Find 31 |
| 32 | 6107-001167 | SPRING-CS;SUS304-WPB,-,PI0.25,D3.25,L9.6 | Find 32 |
| 33 | JC66-01255A | ROLLER-EXIT F/DOWN;ML-2571N,SUM22+EPDM,1 | Find 33 |
| 34 | JC67-00085A | CAP-M-THERMO;ML-1610,PET+GF30%,1.2,11.92 | Find 34 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

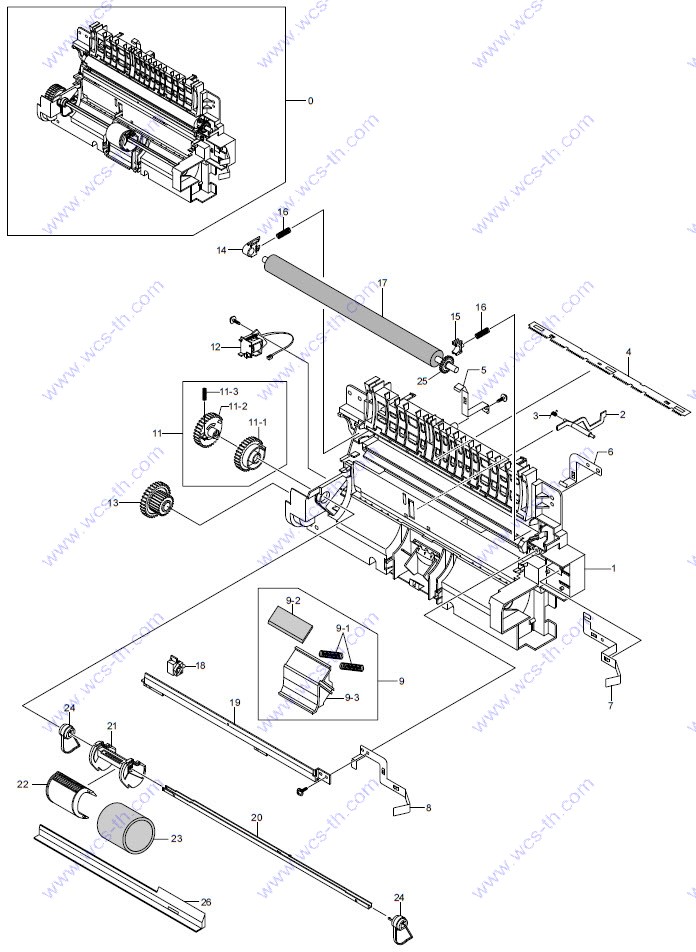

4. Paper Path Unit
| Pic No. | Parts ID | Parts Name | Link |
| 1 | JC61-01710A | GUIDE-PAPER PATH;ML-2571N,ABS HB,T2.5,15 | Find 1 |
| 2 | JC66-01250A | ACTUATOR-FEED SENSOR;ML-2571N,PC,-,22.2, | Find 2 |
| 3 | JB61-00107A | SPRING ETC-LEVER SENSOR;SF-430,SUS304,0. | Find 3 |
| 4 | JC70-10232A | IPR-PLATE SAW;ML-80,SUS304 CSP 1/2H,-,T0 | Find 4 |
| 5 | JC63-00625A | GROUND-P-VARISTOR;ML-1610,SUS304CSP1/2H, | Find 5 |
| 7 | JC63-00623A | GROUND-P-THV;ML-1610,SUS304CSP 1/2H,0.2, | Find 7 |
| 8 | JC63-01125A | GROUND-P_SAW;ML-2571N,C5210P,0.2,54.5,49 | Find 8 |
| 9 | JC97-02669A | MEA UNIT-HOLDER_PAD;ML-2571N,SAMSUNG,-,- | Find 9 |
| 9-1 | JC61-70911A | SPRING ETC-EXIT ROLL FD;ML-165,SUS304 WP | Find 9-1 |
| 9-2 | JC69-00987A | PAD-FRICTION;ML-2571N,NBB,T1.0,W8.5,L29, | Find 9-2 |
| 9-3 | JC61-01711A | HOLDER-PAD;ML-2571N,PC/ABS,2.5,48,20.8,B | Find 9-3 |
| 11 | JC97-02665A | MEA UNIT-PICK UP GEAR;ML-2571N,SAMSUNG,- | Find 11 |
| 12 | JC33-00015B | SOLENOID-MP_R2;-,SCX-4720F,DC24V,-,-,-,- | Find 12 |
| 13 | JC66-01247A | GEAR-FEED;ML-2571N,POM,0.8,28,-,WHITE,24 | Find 13 |
| 15 | JC72-00102A | PMO-BUSHING_TR(L);SF-5100,POM (CH-15),BL | Find 15 |
| 16 | JC61-70940A | SPRING ETC-TR(12);ML-5500,-,4.5,-,12.7,1 | Find 16 |
| 17 | JC66-01218A | ROLLER-TRANSFER;SCX-4200,NBR+ECO,15,218m | Find 17 |
| 19 | JC70-00307A | IPR-P-EARTH TRANSFER;ML-1710,SECC,-,1.0T | Find 19 |
| 20 | JC66-00829A | SHAFT-P-PICK_UP;ML-1610,SECC,264,T1.2,-, | Find 20 |
| 21 | JC61-01716A | HOUSING-PICK UP A;ML-2571N,PC+ABS,-,28,2 | Find 21 |
| 22 | JC61-01717A | HOUSING-PICK UP B;ML-2571N,PC+ABS,-,-,37 | Find 22 |
| 23 | JC73-00239A | RUBBER-PICK_UP;ML-2571N,EPDM+IR,OD29,ID2 | Find 23 |
| 24 | JC66-01258A | CAM-PICK_UP;ML-2571N,POM,22.8,21.5,NTR,- | Find 24 |
| 25 | JC66-00813A | GEAR-TRANSFER;ML-1610,POM,0.6,24,-,BLK,1 | Find 25 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

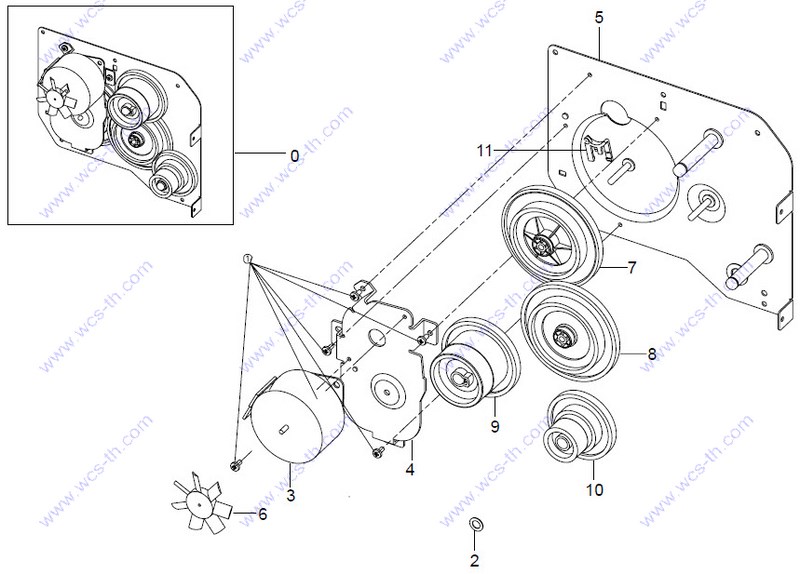

5. RX Drive
| Pic No. | Parts ID | Parts Name | Link |
| 1 | 6003-000196 | SCREW-TAPTITE;PWH,+,B,M3,L10,NI PLT,SWRC | Find 1 |
| 1 | 6003-000261 | SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(YEL),SWRC | Find 1 |
| 1 | 6003-000282 | SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW | Find 1 |
| 1 | 6003-000301 | SCREW-TAPTITE;BH,+,S,M4,L6,ZPC(YEL),SWRC | Find 1 |
| 1 | 6003-000269 | SCREW-TAPTITE;BH,+,-,S,M3,L6,ZPC(YEL),SW | Find 1 |
| 2 | 6031-000023 | WASHER-PLAIN;-,ID5.9,OD10.0,T0.5,BLK,POL | Find 2 |
| 3 | JC31-00068A | MOTOR STEP;M55SP-3NK,ML-2571N,1.3A,1037P | Find 3 |
| 4 | JC61-01708A | BRACKET-P_MOTOR;ML-2571N,SECC,T1.6,70.4, | Find 4 |
| 5 | JC61-01727A | BRACKET-P_GEAR;ML-2571N,SECC,T1.0,145.2, | Find 5 |
| 6 | JC72-00825A | PMO-IMPELLER_DRV;ML-6200,NYLON66,BLK,-,- | Find 6 |
| 7 | JC66-00804A | GEAR-RDCN 139/83;ML-1610,POM,0.5/0.6,139 | Find 7 |
| 8 | JC66-00805A | GEAR-RDCN 113/83;ML-1610,POM,0.6/0.6,113 | Find 8 |
| 9 | JC66-01244A | GEAR-FUSER DRIVER;ML-2571N,POM,0.6/0.8,8 | Find 9 |
| 10 | JC66-00806A | GEAR-OPC DR 76/38/29;ML-1610,POM,0.6/0.8 | Find 10 |
| 11 | JC60-00023A | SPACER-GEAR;ML-2571N,POM, M90-44,17,-,-, | Find 11 |
