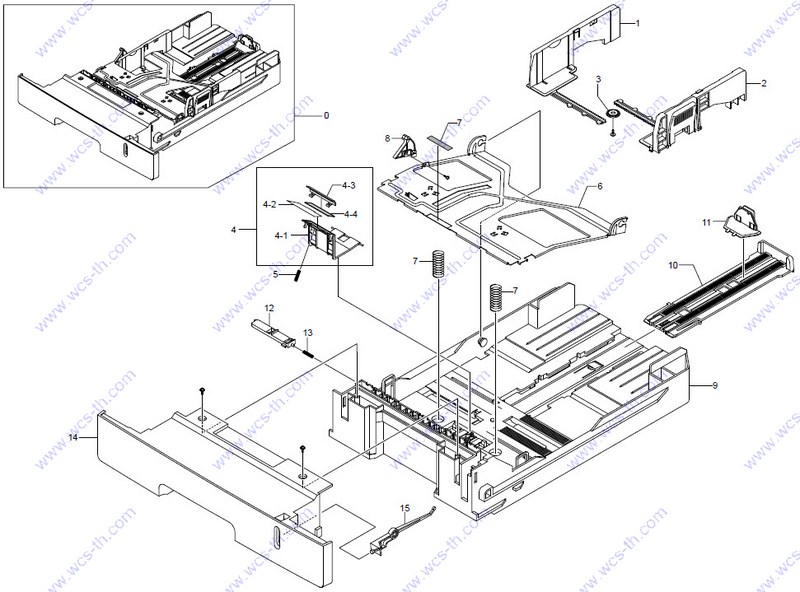

Cassette Unit
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC97-02415A | MEA UNIT-CASSETTE | Find 0 |
| 1 | JC70-00300A | ADJUST-M-CASSETTE_L | Find 1 |
| 2 | JC70-00301A | ADJUST-M-CASSETTE_R | Find 2 |
| 3 | JG66-40003A | GEAR-PINION | Find 3 |
| 4 | JC97-01931A | MEA UNIT-HOLDER PAD | Find 4 |
| 5 | JC61-70911A | SPRING ETC-EXIT ROLL FD | Find 5 |
| 6 | JC61-00603A | PLATE-P-KNOCK_UP | Find 6 |
| 7 | 6107-001166 | SPRING-CS | Find 7 |
| 8 | JC66-00719A | CAM-M-KNOCK UP | Find 8 |
| 9 | JC61-00876A | FRAME-M_CASSETTE | Find 9 |
| 10 | JC61-00918B | GUIDE-M-EXTENSION L2 | Find 10 |
| 11 | JC72-00971A | PMO-EXTENSION SMALL | Find 11 |
| 12 | JC72-00972A | PMO-PLATE_LOCKER | Find 12 |
| 13 | JG61-70531A | SPRING ETC-LOCKER,PLATE | Find 13 |
| 14 | JC63-00974A | COVER-M_SUB CST | Find 14 |
| 15 | JC64-00253A | INDICATOR-M_CASSETTE | Find 15 |
| 4-1 | JC61-00580A | HOLDER-M-PAD | Find 4-1 |
| 4-2 | JC63-00407A | SHEET-HOLDER PAD R2 | Find 4-2 |
| 4-3 | JC70-00314A | IPR-PLATE PAD | Find 4-3 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

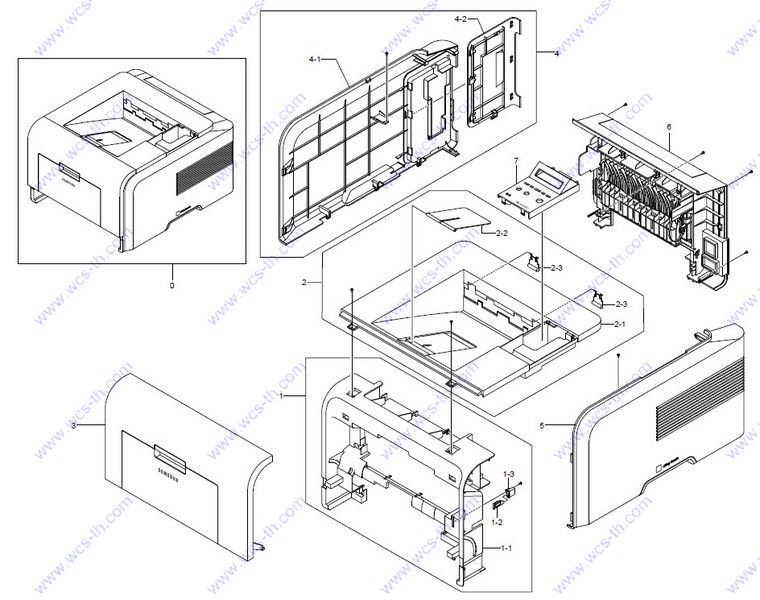

Cover Assy
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC97-02395G | MEA-COVER ML-3051ND | Find 0 |
| 0 | JC97-02446D | MEA-COVER ML-3051N | Find 0 |
| 1 | JC97-02399A | MEA-COVER MIDDLE | Find 1 |
| 2 | JC97-02442A | MEA-COVER TOP | Find 2 |
| 3 | JC97-02396A | MEA-COVER FRONT | Find 3 |
| 4 | JC97-02397A | MEA-COVER SIDE L | Find 4 |
| 5 | JC63-00965A | COVER-M_SIDE R | Find 5 |
| 6 | JC97-02398B | MEA-COVER REAR | Find 6 |
| 7 | JC96-03830F | ELA HOU-COVER OPE ML-3051ND | Find 7 |
| 7 | JC96-03836D | ELA HOU-COVER OPE ML-3051N | Find 7 |
| 7 | JC96-03831A | ELA HOU-COVER OPE ML-3050 | Find 7 |
| 1-1 | JC63-00964A | COVER-M_MIDDLE | Find 1-1 |
| 1-2 | JC72-01339A | PMO-M-SUB ACTUATOR | Find 1-2 |
| 1-3 | JC67-00068C | CAP-M_SUB ACTUATOR | Find 1-3 |
| 2-1 | JC63-00970A | COVER-M_TOP | Find 2-1 |
| 2-2 | JC72-01346D | PMO-STACKER RX | Find 2-2 |
| 2-3 | JC72-01001A | PMO-SUB STACKER | Find 2-3 |
| 4-1 | JC63-00966A | COVER-M_SIDE L | Find 4-1 |
| 4-2 | JC63-00967A | COVER-M_DIMM | Find 4-2 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000
Duplex Unit (Optional)
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC97-02393A | MEA UNIT-DUPLEX | Find 0 |
| 1 | JC61-01594A | FRAME-M_DUP | Find 1 |
| 2 | JC61-01596A | BRACKET-P-ALIGN DUP | Find 2 |
| 3 | JC61-00665A | BUSH-M-FEED, DUP | Find 3 |
| 4 | JC96-03662B | ELA UNIT-ROLLER_DUP2 | Find 4 |
| 5 | JC66-00899A | PULLEY-18_DUP | Find 5 |
| 6 | JC66-00038A | GEAR-EXIT F/DOWN | Find 6 |
| 7 | JC96-03662A | ELA UNIT-ROLLER_DUP | Find 7 |
| 8 | JC66-00900A | PULLEY-M-18-DUMMY_DUP | Find 8 |
| 9 | JC66-20901A | BELT-TIMMING | Find 9 |
| 10 | JC65-00017A | TERMINAL-P-GND DUP | Find 10 |
| 11 | JC61-01595A | GUIDE-M_UPPER DUP | Find 11 |
| 12 | 6107-001156 | SPRING-TS | Find 12 |
| 13 | JK72-00058A | PCT-SILP WASHER | Find 13 |
| 14 | JC66-00896A | ROLLER-M-IDLE_ DUP | Find 14 |
| 15 | JC66-00444A | SHAFT-IDLE ROLL, DUP | Find 15 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

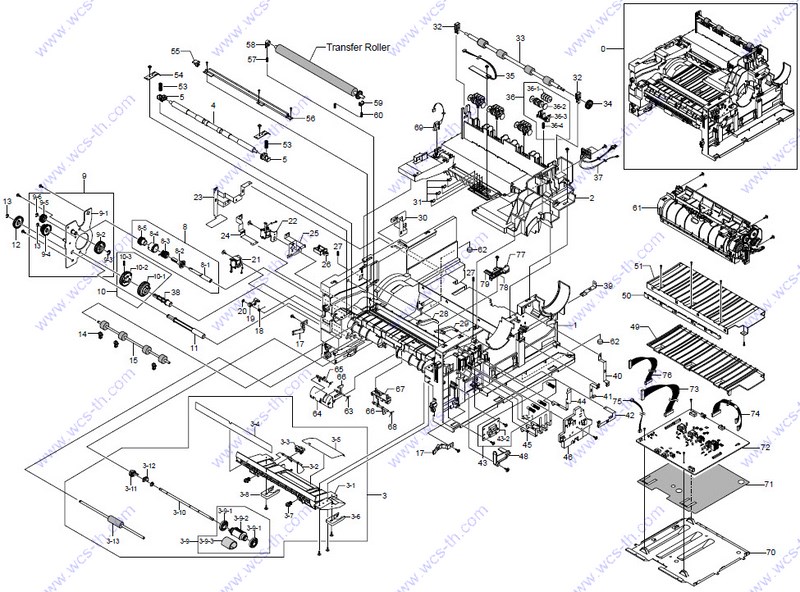

Frame
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-03992A | ELA HOU-FRAME 220V | Find 0 |
| 0 | JC96-03993B | ELA HOU-FRAME 110V | Find 0 |
| 1 | JC61-01620A | FRAME-M_BASE | Find 1 |
| 2 | JC61-01621A | FRAME-M_EXIT | Find 2 |
| 3 | JC96-03829A | ELA HOU-GUIDE DUP F | Find 3 |
| 4 | JC66-00527A | SHAFT-FEED IDLE | Find 4 |
| 5 | JC61-00585A | BUSH-M-FEED IDLE | Find 5 |
| 8 | JC97-01788A | MEA UNIT-CLUTCH | Find 8 |
| 9 | JC97-02394A | MEA UNIT-BRACKET FEED | Find 9 |
| 10 | JC97-02648A | MEA UNIT-GEAR PICK UP | Find 10 |
| 11 | JC66-01160A | SHAFT-M_FEED2 | Find 11 |
| 12 | JC66-01165A | GEAR-FEED2 Z27 | Find 12 |
| 13 | 6044-000001 | RING-CS | Find 13 |
| 14 | JC72-00382B | PMO-BUSHING FEED | Find 14 |
| 15 | JC66-00526A | ROLLER-FEED ROLLER 1 | Find 15 |
| 17 | JC72-00983A | PMO-LOCKER CST | Find 17 |
| 18 | 6107-001170 | SPRING-TS | Find 18 |
| 19 | JC66-00377A | CAM-M-PICK_UP | Find 19 |
| 20 | 6044-000001 | RING-CS | Find 20 |
| 21 | JC33-00010A | SOLENOID-HB (MANUAL) | Find 21 |
| 22 | JC33-00014A | SOLENOID-FEED ROCKY2 | Find 22 |
| 23 | JC63-00917A | GROUND-P-DRIVE | Find 23 |
| 24 | JC63-00923A | GROUND-P-PUSH BUSHING | Find 24 |
| 25 | JC63-00922A | GROUND-P-DRIVE2 | Find 25 |
| 26 | 6502-001093 | CABLE CLAMP | Find 26 |
| 27 | JC61-70932A | SPRING ETC-GUIDE DEVE | Find 27 |
| 28 | JC72-00984A | PMO-PLATE GUIDE DEVE_L | Find 28 |
| 29 | JC72-00985A | PMO-PLATE GUIDE DEVE_R | Find 29 |
| 30 | JC63-00926A | GROUND-P-SHIELD | Find 30 |
| 31 | JC65-00019A | TERMINAL-CRUM | Find 31 |
| 32 | JC61-00829A | HOLDER-BEARING EXIT F/DOWN | Find 32 |
| 33 | JC66-01196A | ROLLER-EXIT F/DOWN | Find 33 |
| 34 | JC66-40209A | GEAR-EXIT | Find 34 |
| 35 | JC92-01829A | PBA SUB-TERMINAL | Find 35 |
| 36 | JC97-01034A | MEA RACK-EXIT ROLLER | Find 36 |
| 37 | JC39-00522A | CBF HARNESS-FUSER AC | Find 37 |
| 38 | JC61-01602A | HOLDER-M_PICK UP | Find 38 |
| 39 | JC63-00920A | GROUND-P-FUSER | Find 39 |
| 40 | JC63-00925A | GROUND-P-MOTOR FUSER | Find 40 |
| 41 | JC63-00924A | GROUND-P-SHIELD SMPS | Find 41 |
| 42 | JC63-00921A | GROUND-P-GUIDE TR | Find 42 |
| 43 | JC75-00049A | MEC-TERMINAL | Find 43 |
| 44 | JC65-00014A | TERMINAL-P-HV CR | Find 44 |
| 45 | JC70-00312A | IPR-P-TERMINAL CON | Find 45 |
| 46 | JC61-01584A | HOUSING-M_TERMINAL | Find 46 |
| 47 | JC92-01828A | PBA SUB-CONNECTION | Find 47 |
| 48 | JC72-00974A | PMO-ACTUATOR CVR OPEN | Find 48 |
| 49 | JC61-01746A | GUIDE-TR RIB | Find 49 |
| 50 | JC61-00604B | PLATE-E_SAW | Find 50 |
| 51 | JC61-00607A | GUIDE-P-TR | Find 51 |
| 53 | JC61-70958A | SPRING ETC-TR | Find 53 |
| 54 | JC61-00914A | PLATE-P-PUSH BUSHING | Find 54 |
| 55 | JC61-00907A | HOLDER-M-PTL R2 | Find 55 |
| 56 | JC70-00307A | IPR-P-EARTH TRANSFER | Find 56 |
| 57 | JC61-00047A | SPRING ETC-TR L HAWK | Find 57 |
| 58 | JC61-00588A | BUSH-M-TR L | Find 58 |
| 59 | JC72-00102A | PMO-BUSHING_TR(L) | Find 59 |
| 60 | JC65-00018A | TERMINAL-TR | Find 60 |
| 61 | JC96-03965A | ELA UNIT-FUSER_220V | Find 61 |
| 61 | JC96-03964A | ELA UNIT-FUSER 110V | Find 61 |
| 62 | JC61-00835A | FOOT-BACK | Find 62 |
| 63 | 6107-001164 | SPRING-TS | Find 63 |
| 64 | JC61-01619A | HOLDER-M_ACT REGI | Find 64 |
| 65 | JC66-01191A | LEVER-M_ACTUATOR REGI | Find 65 |
| 66 | JC66-01190A | LEVER-M_ACT DUP OUT | Find 66 |
| 67 | JC61-01618A | HOLDER-M_ACT FEED | Find 67 |
| 69 | JC39-00524A | CBF HARNESS-LSU S/W | Find 69 |
| 70 | JC63-00914A | SHIELD-P-HVPS | Find 70 |
| 71 | JC63-00961A | SHEET-INSULATORJHVPS | Find 71 |
| 72 | JC44-00107A | HVPS-ELBERT | Find 72 |
| 73 | JC39-00519A | CBF HARNESS-SMPS | Find 73 |
| 74 | JC39-00518A | CBF HARNESS-ENGINE | Find 74 |
| 75 | JC39-00528A | CBF HARNESS-PAPER EMP | Find 75 |
| 76 | JC39-00526A | CBF HARNESS-DUPLEX | Find 76 |
| 77 | JC61-01623A | GUIDE-MJHOLDER TR | Find 77 |
| 78 | 6107-001237 | SPRING-ES | Find 78 |
| 79 | JC61-01622A | HOLDER-MjTR | Find 79 |
| 3-1 | JC61-01600A | GUIDE-M_FRONT DUPLEX | Find 3-1 |
| 3-2 | JC66-01187A | LEVER-ACTUATOR EMPTY | Find 3-2 |
| 3-3 | 0604-001095 | PHOTO-INTERRUPTER | Find 3-3 |
| 3-4 | JC63-01095A | SHEET-GUIDE DUP_OUT | Find 3-4 |
| 3-5 | JC63-00992A | SHEET-GUIDE FRONT DU | Find 3-5 |
| 3-6 | JC66-01170A | CAM-SHAFT PICK UP | Find 3-6 |
| 3-7 | JC72-00382B | PMO-BUSHING FEED | Find 3-7 |
| 3-8 | JC61-01367A | FIXER-M_E RING 4PI | Find 3-8 |
| 3-9 | JC97-02441A | MEA-ROLLER PICK UP | Find 3-9 |
| 8-1 | JC66-00398A | SHAFT-FEED | Find 8-1 |
| 8-2 | JC72-00981A | PMO-HUB CLUTCH | Find 8-2 |
| 8-3 | 6107-001238 | SPRING-TS | Find 8-3 |
| 8-3 | 6107-001171 | SPRING-TS | Find 8-3 |
| 8-4 | JC72-00978A | PMO-COLLAR_SPRING | Find 8-4 |
| 8-5 | JC66-00393A | GEAR-FEED 1 | Find 8-5 |
| 9-1 | JC61-01582A | BRACKET-P-FEED | Find 9-1 |
| 9-2 | JC66-01166A | GEAR-IDLE Z29 HELICAL | Find 9-2 |
| 9-3 | 6044-000231 | RING-E | Find 9-3 |
| 9-4 | JC66-01164A | GEAR-RETARD 39/19 | Find 9-4 |
| 9-5 | JC66-00484A | GEAR-T2 IDEL_Z27 | Find 9-5 |
| 9-6 | 6044-000125 | RING-E | Find 9-6 |
| 10-1 | JC66-01183A | GEAR-PICK UP_INNER | Find 10-1 |
| 10-2 | JC66-01184A | GEAR-PICK UP_OUTER | Find 10-2 |
| 10-3 | 6107-001167 | SPRING-CS | Find 10-3 |
| 3-10 | JC66-01171A | SHAFT-PICK UP | Find 3-10 |
| 3-11 | JC72-41364A | PMO-BUSHING_P/U,MP | Find 3-11 |
| 3-12 | JC66-00050A | CAM-CATCH | Find 3-12 |
| 3-13 | JC66-01173A | ROLLER-FEED | Find 3-13 |
| 36-1 | JC72-41008A | PMO-ROLLER FD R | Find 36-1 |
| 36-2 | JC72-41007A | PMO-ROLLER FD F | Find 36-2 |
| 36-3 | JC72-41006A | PMO-HOLDER EXIT ROLL | Find 36-3 |
| 36-4 | JC61-70911A | SPRING ETC-EXIT ROLL FD | Find 36-4 |
| 43-1 | JC61-00035A | SPRING ETC-HV APOLLO | Find 43-1 |
| 43-2 | JC70-00050A | IPR-TERMINAL | Find 43-2 |
| 3-9-1 | JC66-01169A | ROLLER-IDLE PICK UP | Find 3-9-1 |
| 3-9-2 | JC61-01601A | HOUSING-M_PICK UP | Find 3-9-2 |
| 3-9-3 | JC66-01168A | ROLLER-PICK UP | Find 3-9-3 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

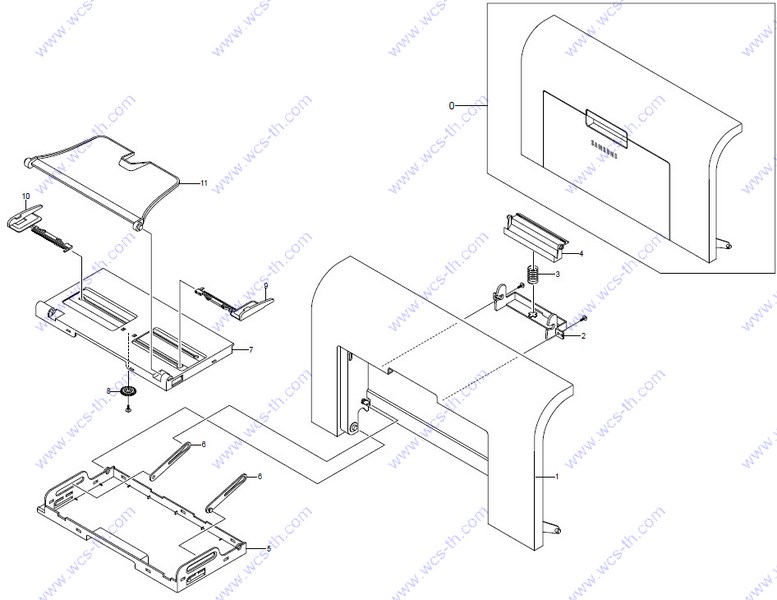

Front Cover Assy
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC97-02396A | MEA-COVER FRONT | Find 0 |
| 1 | JC63-00969A | COVER-M_FRONT | Find 1 |
| 2 | JC61-01588A | HOLDER-M_LOCKER | Find 2 |
| 3 | JG61-70549A | SPRING ETC-CIS(C2) | Find 3 |
| 4 | JC64-00233A | KNOB-M_LOCKER | Find 4 |
| 5 | JC63-00971A | TRAY-M-ASF_INPUT | Find 5 |
| 6 | JC63-00444A | TRAY-M-LINK_MP | Find 6 |
| 7 | JC63-00446E | TRAY-M-ASF_INPUT UPPER | Find 7 |
| 8 | JG66-40003A | GEAR-PINION | Find 8 |
| 9 | JC70-00479D | ADJUST-M_MP R | Find 9 |
| 10 | JC70-00478D | ADJUST-M_MP L | Find 10 |
| 11 | JC63-00447E | TRAY-M-ASF_FOLDER | Find 11 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

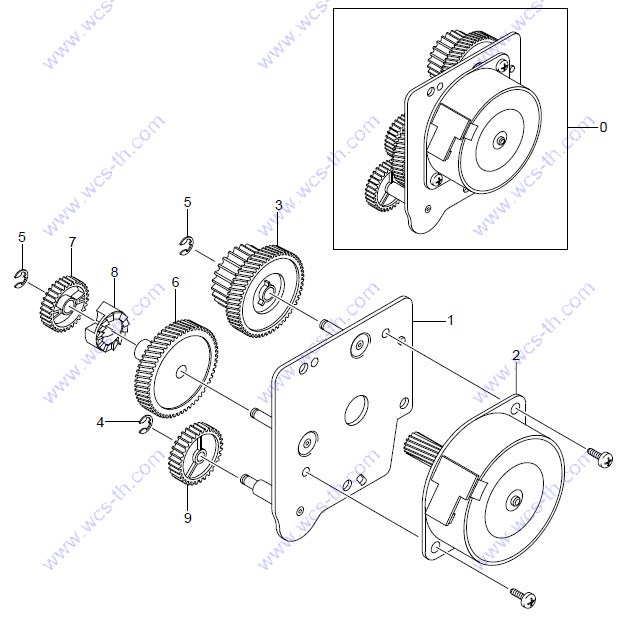

Fuser Drive Assy
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-03866A | ELA HOU-FUSER DRIVE | Find 0 |
| 1 | JC61-01598A | BRACKET-P-FUSER EXIT | Find 1 |
| 2 | JC31-00037E | MOTOR STEP-MAIN | Find 2 |
| 3 | JC66-01158A | GEAR-EXIT RDCN 87/24 | Find 3 |
| 6 | JC66-01163A | GEAR-FUSER RDCN IN 95 | Find 6 |
| 7 | JC66-00417A | GEAR-RDCN FUSER OUT | Find 7 |
| 8 | JC66-00340A | GEAR-HUB CLUTCH | Find 8 |
| 9 | JC66-01210A | GEAR-FUSER IDLE FR | Find 9 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

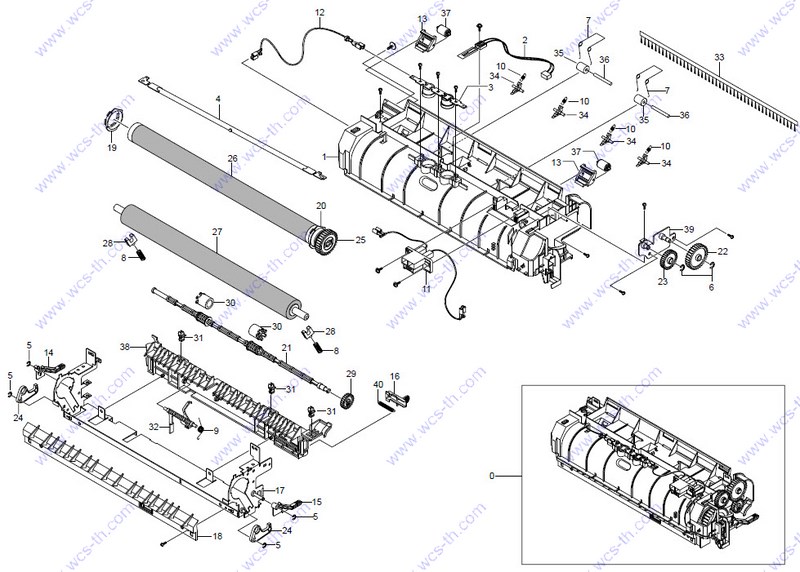

Fuser Unit
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-03965A | ELA UNIT-FUSER_220V | Find 0 |
| 0 | JC96-03964B | ELA UNIT-FUSER | Find 0 |
| 1 | JC63-01005A | COVER-M_FUSER | Find 1 |
| 2 | 1404-001364 | THERMISTOR-NTC ASSY | Find 2 |
| 3 | 4712-001031 | THERMOSTAT | Find 3 |
| 4 | 4713-001208 | LAMP-HALOGEN | Find 4 |
| 4 | 4713-001207 | LAMP-HALOGEN | Find 4 |
| 5 | 6044-000125 | RING-E | Find 5 |
| 6 | 6044-000231 | RING-E | Find 6 |
| 7 | 6107-001159 | SPRING-TS | Find 7 |
| 8 | 6107-001193 | SPRING-CS | Find 8 |
| 9 | JC61-70903A | SPRING ETC-ACTUATOR | Find 9 |
| 10 | 6107-001291 | SPRING-ES | Find 10 |
| 11 | JC39-00520A | CBF HARNESS-FUSER CON | Find 11 |
| 12 | JC39-00609A | CBF HARNESS-FUSER R_2 | Find 12 |
| 13 | JC61-00785A | HOLDER-M-IDLE ROLLER | Find 13 |
| 14 | JC61-01305A | HOLDER-M_JAM L | Find 14 |
| 15 | JC61-01306A | HOLDER-M_JAM R | Find 15 |
| 16 | JC61-01625A | HOLDER-M_REAR_LEVER | Find 16 |
| 17 | JC61-01632A | FRAME-P-FUSER | Find 17 |
| 18 | JC61-01628A | GUIDE-M_INPUT | Find 18 |
| 19 | JC61-01629A | BUSH-M_HR R | Find 19 |
| 20 | JC61-01631A | BUSH-M_HR L_LAMP | Find 20 |
| 21 | JC66-00402A | SHAFT-M-EXIT_F/UP | Find 21 |
| 22 | JC66-00425A | GEAR-IDLE 33 | Find 22 |
| 23 | JC66-00396A | GEAR-IDLE 23 | Find 23 |
| 24 | JC66-00957A | LEVER-MJJNK JAM | Find 24 |
| 25 | JC66-01192A | GEAR-M_FUSER | Find 25 |
| 26 | JC66-01194A | ROLLER-HEAT | Find 26 |
| 27 | JC66-01195A | ROLLER-PRESSURE | Find 27 |
| 28 | JC66-10901A | BUSH | Find 28 |
| 29 | JC66-40209A | GEAR-EXIT | Find 29 |
| 30 | JC70-20901A | IEX-SHAFT IDLE,F/UP | Find 30 |
| 31 | JC72-00382A | PMO-BUSHING TX | Find 31 |
| 32 | JC66-01284A | ACTUATOR-EXIT | Find 32 |
| 33 | JC75-00095A | MEC-BRUSH ANTISTATIC | Find 33 |
| 34 | JC72-41128B | PMO-GUIDE CLAW GREEN | Find 34 |
| 35 | JC73-40909B | RMO-RUBBER EXITJF/UP | Find 35 |
| 36 | JC72-20902A | PEX-ROLLER F/UP(2) | Find 36 |
| 37 | JC72-40981A | PMO-ROLLER UPPER DP | Find 37 |
| 38 | JC61-01633A | GUIDE-MjREAR | Find 38 |
| 39 | JC61-01627A | BRACKET-P-FUSER | Find 39 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000
Main
| Pic No. | Parts ID | Parts Name | Link |
| 0 | ML-3051N | MONO LASER,24PPM,NETWORK | Find 0 |
| 0 | ML-3051ND | MONO LASER,24PPM,NETWORK,DUPLEX | Find 0 |
| 1 | JC96-03992A | ELA HOU-FRAME 220V | Find 1 |
| 1 | JC96-03993A | ELA HOU-FRAME 110V | Find 1 |
| 2 | JC96-03761A | ELA UNIT-MAIN DRIVE | Find 2 |
| 3 | JC96-03837A | ELA HOU-MPF | Find 3 |
| 6 | JC31-00025A | FAN-DC | Find 6 |
| 7 | JC31-00025B | FAN-DC | Find 7 |
| 8 | JC96-03866A | ELA HOU-FUSER DRIVE | Find 8 |
| 9 | JC97-02697A | MEA-SHIELD CONTROLLER | Find 9 |
| 10 | JC63-00962A | SHEET-INSULATOR_PBA | Find 10 |
| 11 | JC92-01745C | PBA MAIN-CONTROLLER ML-3051ND | Find 11 |
| 11 | JC92-01795B | PBA MAIN-CONTROLLER ML-3051N | Find 11 |
| 11 | JC92-01796B | PBA MAIN-CONTROLLER ML-3050 | Find 11 |
| 12 | JC39-00533B | CBF HARNESS-LCD_OPE | Find 12 |
| 13 | JC97-02652A | MEA-TRANSFER ROLLER | Find 13 |
| 14 | JC59-00027A | UNIT-LSU | Find 14 |
| 15 | JC97-02395G | MEA-COVER ML-3051ND | Find 15 |
| 15 | JC97-02446A | MEA-COVER ML-3051N | Find 15 |
| 16 | JC96-03979A | ELA UNIT-INITIAL DEVE | Find 16 |
| 17 | JC97-02415A | MEA UNIT-CASSETTE | Find 17 |
| 24 | JC39-00529A | CBF HARNESS-EXIT MTR | Find 24 |
| 25 | JC39-00527A | CBF HARNESS-MAIN MTR | Find 25 |
| 26 | JC96-03762A | ELA UNIT-DUPLEX DRIVE ML-3051ND | Find 26 |
| 27 | JC63-01273A | SHIELD-SMPS GRILL | Find 27 |
| 28 | JC39-00523A | CBF HARNESS-AC INLET | Find 28 |
| 29 | 6502-000132 | CABLE CLAMP | Find 29 |
| 31 | JC44-00096A | SMPS-PSP_TYPE2_V2C 220V | Find 31 |
| 31 | JC44-00095A | SMPS-PSP_TYPE2_V1 110V | Find 31 |
| 13-1 | JC66-01181A | ROLLER-TRANSFER | Find 13-1 |
| 13-2 | JC66-00395A | GEAR-TRANSFER | Find 13-2 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

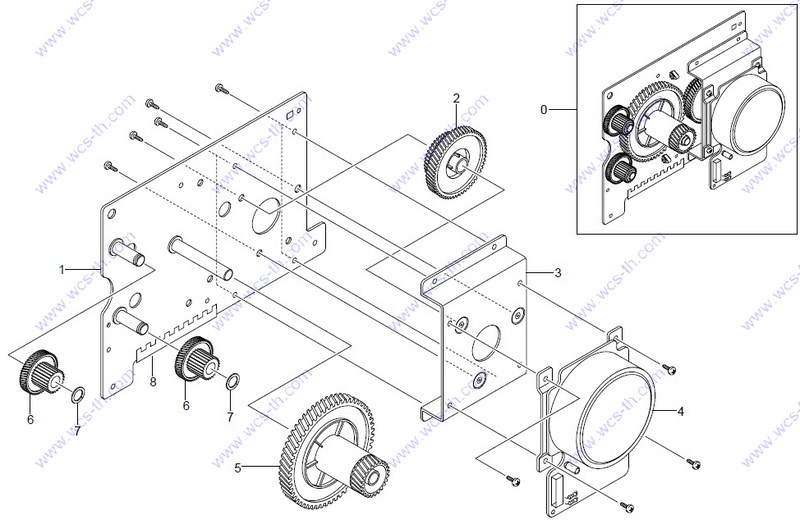

Main Drive Assy
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-03761A | ELA UNIT-MAIN DRIVE | Find 0 |
| 1 | JC31-00047A | MOTOR DC-BLDC MAIN | Find 1 |
| 2 | JC61-01593A | BRACKET-P-GEAR MAIN | Find 2 |
| 3 | JC61-01597A | BRACKET-P-MOTOR MAIN | Find 3 |
| 4 | JC66-01156A | GEAR-OPC RDCN 93/61 | Find 4 |
| 5 | JC66-01157A | GEAR-OPC DRV 113/33 | Find 5 |
| 6 | JC66-01162A | GEAR-FEED RDCN 55/18 | Find 6 |
| 7 | 6031-000023 | WASHER-PLAIN | Find 7 |
| 8 | 6302-001056 | GASKET | Find 8 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

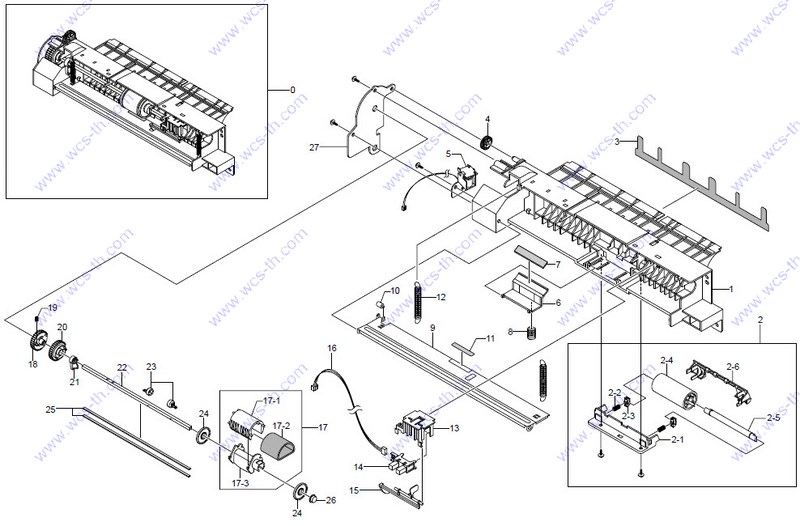

MP Assy
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-03837A | ELA HOU-MPF | Find 0 |
| 1 | JC61-01603A | FRAME-M_MP | Find 1 |
| 2 | JC97-02443A | MEA-IDLE FEED | Find 2 |
| 3 | JC63-01094A | SHEET-GUIDE MP | Find 3 |
| 4 | JC66-00396A | GEAR-IDLE 23 | Find 4 |
| 5 | JC33-00015A | SOLENOID-MP | Find 5 |
| 6 | JC61-00924A | HOLDER-M-PAD_MP | Find 6 |
| 7 | JC73-00140A | RPR-FRICTION PAD | Find 7 |
| 9 | JC61-00927A | PLATE-P-KNOCK UP_MP | Find 9 |
| 10 | JC72-00761A | PMO-ROLLER CAM.MP | Find 10 |
| 11 | JC73-00141A | RPR-PAD CASSETTE | Find 11 |
| 12 | 6107-001237 | SPRING-ES | Find 12 |
| 13 | JC61-00926A | HOLDER-M-SENSOR_MP | Find 13 |
| 14 | 0604-001095 | PHOTO-INTERRUPTER | Find 14 |
| 15 | JC72-01338A | PMO-M-ACT EMPTY MP | Find 15 |
| 16 | JC39-00365A | CBF HARNESS-MPF SEN | Find 16 |
| 17 | JC97-02034A | MEA-PICK UP_MP | Find 17 |
| 18 | JC66-00710A | GEAR-M-PICK UP_MP | Find 18 |
| 19 | 6107-001167 | SPRING-CS | Find 19 |
| 20 | JC66-00709A | GEAR-M-HOLDER_MP | Find 20 |
| 21 | JC66-01205A | CAM-M_PICK UP MP | Find 21 |
| 22 | JC66-00399A | SHAFT-P-PICK_UP | Find 22 |
| 23 | JC61-00915A | STOPPER-M-PICK UP_R2 | Find 23 |
| 24 | JC72-00982A | PMO-IDLE PICK_UP | Find 24 |
| 25 | JC66-00720A | SHAFT-P-CORE | Find 25 |
| 26 | JC61-00587A | BUSH-M-PICK_UP R | Find 26 |
| 27 | JC61-00932A | BRACKET-P-PICKUP_MP | Find 27 |
| 2-1 | JC61-01604A | HOLDER-M_IDLE FEED | Find 2-1 |
| 2-2 | JC61-00484A | SPRING ETC-EXIT LOWER IDLE | Find 2-2 |
| 2-3 | JC61-01605A | HOLDER-M_SHAFT IDLE | Find 2-3 |
| 2-4 | JC66-01186A | ROLLER-IDLE FEED | Find 2-4 |
| 2-5 | JC66-01172A | SHAFT-IDLE FEED | Find 2-5 |
| 2-6 | JC63-00997A | COVER-M_IDLE FEED | Find 2-6 |
| 17-1 | JC73-00194A | RUBBER-PICK UP MP | Find 17-1 |
| 17-2 | JC61-00925A | HOUSING-M_PICK UP_MP | Find 17-2 |
| 17-3 | JC61-00910A | HOUSING-M-PICK UP2_R2 | Find 17-3 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000
OPE Cover Assy
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-03830F | ELA HOU-COVER OPE ML-3051ND | Find 0 |
| 0 | JC96-03836D | ELA HOU-COVER OPE ML-3051N | Find 0 |
| 0 | JC96-03831D | ELA HOU-COVER OPE ML-3050 | Find 0 |
| 1 | JC63-00972L | COVER-KEY MENU_LCD ML-3051ND | Find 1 |
| 1 | JC63-00972B | COVER-M_KEY MENU_LCD ML-3051N | Find 1 |
| 2 | JC72-00672B | PCT-LCD WINDOW | Find 2 |
| 3 | JC64-00235A | KEY-M_BUTTON | Find 3 |
| 4 | JC64-00236A | KEY-M_STOP | Find 4 |
| 5 | JC67-00147A | LENS LED-M_STATUS | Find 5 |
| 7 | JC41-00321A | PCB-LCD_OPE | Find 7 |
| 8 | 6003-000196 | SCREW-TAPTITE | Find 8 |
| 9 | 6003-000264 | SCREW-TAPTITE | Find 9 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

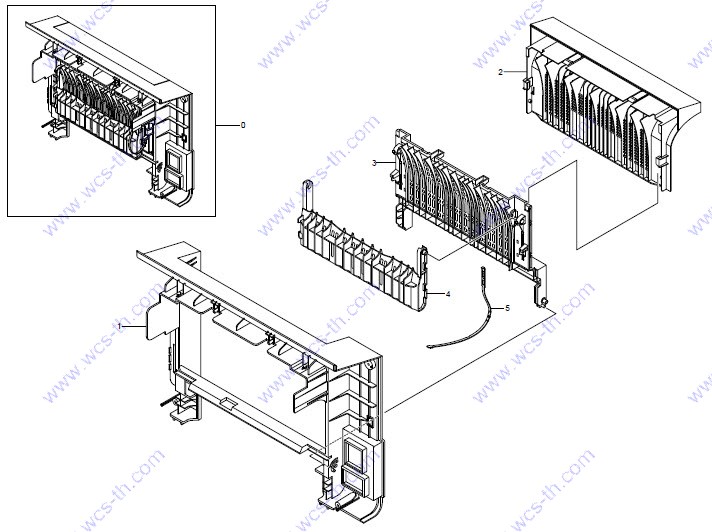

Rear Cover Assy
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC97-02398A | MEA-COVER REAR ML-3051ND | Find 0 |
| 0 | JC97-02398B | MEA-COVER REAR ML-3050 | Find 0 |
| 1 | JC63-00978A | COVER-M_REAR ML-3051ND | Find 1 |
| 1 | JC63-00978B | COVER-REAR ML-3050 | Find 1 |
| 2 | JC63-00968A | COVER-M_FACE UP | Find 2 |
| 3 | JC63-00937A | COVER-M STACKER REAR | Find 3 |
| 4 | JC61-01583A | GUIDE-OUTPUT FUSER | Find 4 |
| 5 | JC61-01653A | STOPPER-M-STRAP | Find 5 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000
