01. Main Assembly

Samsung ML-4551 01. Main Assembly

Pic No.	Parts ID	Parts Name	Link
0	ML-4550	MONO LASER,43PPM/A4	Find 0
0	ML-4551N	MONO LASER,43PPM/A4,NETWORK	Find 0
0	ML-4551ND	MONO LASER,43PPM/A4,NETWORK,DUPLEX	Find 0
1	JC96-04004A	ELA UNIT-FRAME BASE 110V	Find 1
1	JC96-04004B	ELA UNIT-FRAME BASE 220V	Find 1
2	JC96-04064A	ELA HOU BASE-HOUSING ML-4551N	Find 2
2	JC96-04064B	ELA HOU BASE-HOUSING ML-4551ND	Find 2
2	JC96-04064E	ELA HOU BASE-HOUSING ML-4551NDR	Find 2
2	JC96-04064C	ELA HOU BASE-HOUSING ML-4550R,4551NR	Find 2
3	JC97-02230B	MEA UNIT-KNOCK UP MP	Find 3
3	JC97-02230D	MEA UNIT-KNOCK UP MP ML-4551NDR	Find 3
4	JC97-02231A	MEA UNIT-COVER MP SEC	Find 4
4	JC97-02231D	MEA UNIT-COVER MP ML-4551NDR	Find 4
5	JC63-00694B	TRAY-M_LINK MP(L)	Find 5
5	JC63-00694C	TRAY-M LINK MP(L) ML-4551NDR	Find 5
6	JC63-00689B	TRAY-M LINK MP(R)	Find 6
6	JC63-00689C	TRAY-M_LINK MP(R) ML-4551NDR	Find 6
7	JC66-00540B	ROLLER-TRANSFER	Find 7
8	JC96-01729A	ELA UNIT-HOLDER TR R	Find 8
9	JC96-01730B	ELA UNIT-HOLDER TR L	Find 9
10	JC72-41292B	PMO-CAP TR	Find 10
11	JC66-00039A	GEAR-TR29	Find 11
12	JC96-03959A	ELA UNIT-REGI	Find 12
13	JC66-00420A	GEAR-REGI Z25	Find 13
14	JC67-00039A	CAP-M-GEAR	Find 14
15	JC96-04066A	ELA UNIT-LSU	Find 15
16	JC96-03426A	ELA UNIT-EXIT SOL	Find 16
17	JC96-03408A	ELA UNIT-DEVE MOTOR	Find 17
18	JC96-04063A	ELA UNIT-MAIN	Find 18
19	JC96-04109A	ELA HOU-MAIN	Find 19
20	JC97-02226A	MEA UNIT-GEAR PICK UP	Find 20
21	JC97-01738A	MEA UNIT-GEAR P/UP MP CARDINA	Find 21
22	JC66-10202A	BEARING-PICK UP	Find 22
23	JC61-00755A	BRACKET-P-SHAFT MP	Find 23
24	JC61-01735A	HOLDER-FAN	Find 24
25	JC33-00012A	SOLENOID-MAIN	Find 25
26	JC33-00016A	SOLENOID-MP	Find 26
27	JC96-04121A	ELA UNIT-DEVE_ERASER	Find 27
28	JC63-01133A	SHIELD-SMPS	Find 28
29	JC96-04003B	ELA HOU-SMPS HVPS V2 220V	Find 29
29	JC96-04003A	ELA HOU-SMPS HVPS V1 110V	Find 29
30	JC71-00042A	BAR-P CROSS BOTTOM	Find 30
31	JC31-00050A	FAN	Find 31
32	JC61-00667A	STOPPER-M-FAN80	Find 32
33	JC61-01760A	HOLDER-ERASER	Find 33
34	JC96-03963A	ELA UNIT-DEVE	Find 34
35	JC96-04015A	ELA UNIT-CASSETTE	Find 35
35	JC96-04015B	ELA UNIT-CASSETTE ML-4551NDR	Find 35
36	JC92-01839A	PBA-ERASE LAMP	Find 36
37	JC96-03412C	ELA UNIT-DUPLEX	Find 37
37	JC96-03412E	ELA UNIT-DUPLEX ML-4551NDR	Find 37
38	JC31-00050A	FAN	Find 38
39	JC96-03586A	ELA HOU-EMBEDDED_MAC	Find 39
3-1	JC61-01251B	PLATE-M_KNOCK UP MP	Find 3-1
3-1	JC61-01251C	PLATE-M_KNOCKUP MP ML-4551NDR	Find 3-1
3-2	JC74-00011A	MPR-PAD KNOCK UP MP	Find 3-2
3-3	JC72-01006B	PMO-SIDE GUIDE MP(R)	Find 3-3
3-4	JC72-01005B	PMO-SIDE GUIDE MP(L)	Find 3-4
3-5	JG66-40003A	GEAR-PINION	Find 3-5
3-6	JC66-00895A	SHAFT-REINFORCEMENT	Find 3-6
4-1	JC63-00695A	COVER-M-MP_SEC	Find 4-1
4-1	JC63-00695D	COVER-M MP ML-4551NDR	Find 4-1
4-2	JC63-00691B	TRAY-M EXTEND MP	Find 4-2
4-2	JC63-00691C	TRAY-M_EXTEND_MP ML-4551NDR	Find 4-2
8-1	JC72-41142A	PMO-BUSHING TR	Find 8-1
8-2	JC61-00046A	SPRING ETC-TR R HAWK	Find 8-2
8-3	JC72-41145C	PMO-TRANSFER HOLDER R	Find 8-3
8-4	JC70-11053A	IPR-PLATE TR	Find 8-4
9-1	JC72-41142A	PMO-BUSHING TR	Find 9-1
9-2	JC61-00046A	SPRING ETC-TR R HAWK	Find 9-2
9-3	JC72-41145F	PMO-TRANSFER HOLDER L	Find 9-3
19-1	JC92-01823A	PBA MAIN-CONTROLLER	Find 19-1
19-2	JC92-01824A	PBA MAIN-DIMM	Find 19-2
20-1	JC66-00870A	GEAR-M-PICK UP CAM	Find 20-1
20-2	JC66-00876A	GEAR-M-PICK UP	Find 20-2
20-3	JC61-00003A	SPRING ETC--CAM MP	Find 20-3
21-1	JC66-00424A	GEAR-MP HOLDER_CAM	Find 21-1
21-2	JC66-00423A	GEAR-MP PICK_UP	Find 21-2
21-3	JC61-00003A	SPRING ETC--CAM MP	Find 21-3
39-1	JC92-01700B	PBA SUB-NPC_PRT	Find 39-1
39-2	JC61-00809A	BRACKET-_M_NPC	Find 39-2

หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

02. Cover Assembly

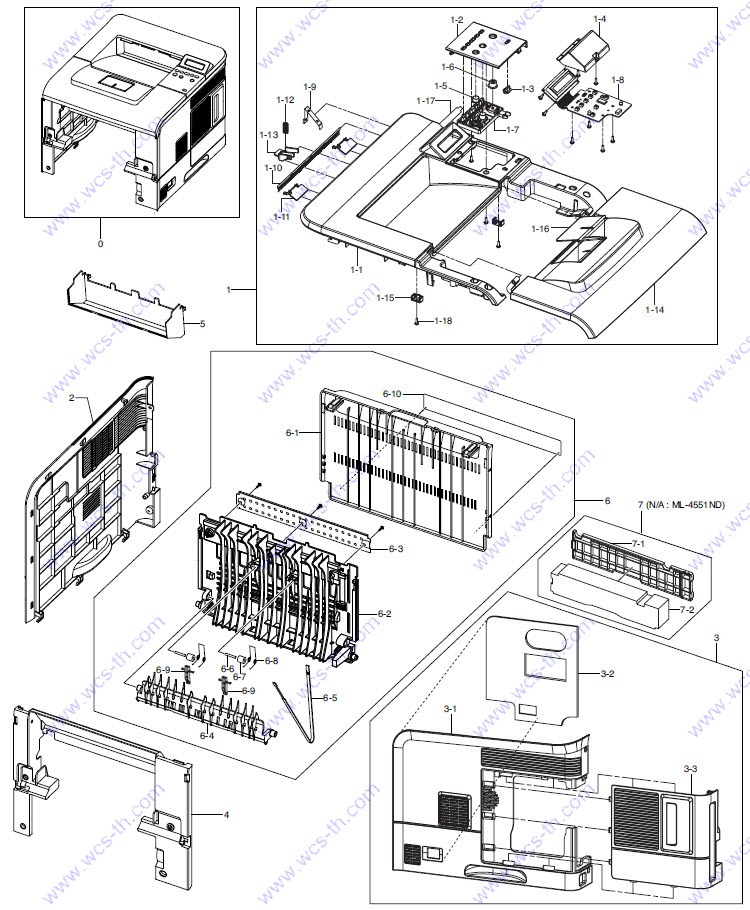

Samsung ML-4551 02. Cover Assembly

Pic No.	Parts ID	Parts Name	Link
0	JC96-04064A	ELA HOU BASE-HOUSING ML-4550	Find 0
0	JC96-04064B	ELA HOU BASE-HOUSING ML-4551ND	Find 0
0	JC96-04064E	ELA HOU BASE-HOUSING ML-4551NDR	Find 0
0	JC96-04064C	ELA HOU BASE-HOUSING ML-4550R,4551NR	Find 0
1	JC96-03978A	ELA UNIT-COVER TOP ML-4550	Find 1
1	JC96-03978B	ELA UNIT-COVER TOP ML-4550	Find 1
1	JC96-03978C	ELA UNIT-COVER TOP ML-4551ND	Find 1
1	JC96-03978W	ELA UNIT-COVER TOP ML-4551NDR	Find 1
1	JC96-03978U	ELA UNIT-COVER TOP ML-4551NR	Find 1
1	JC96-03978Q	ELA UNIT-COVER TOP ML-4550R	Find 1
2	JC63-00684B	COVER-M LEFT	Find 2
2	JC63-00684C	COVER-M_LEFT ML-4551NDR	Find 2
3	JC63-00701B	COVER-M_RIGHT	Find 3
3	JC63-00701C	COVER-M RIGHT ML-4551NDR	Find 3
4	JC63-00702B	COVER-M CONTROL BOX	Find 4
4	JC63-00702C	COVER-M_CONTROL BOX ML-4551NDR	Find 4
5	JC63-00685B	COVER-M_FRONT INNER	Find 5
5	JC63-00685C	COVER-M FRONT INNER ML-4551NDR	Find 5
6	JC97-02232B	MEA UNIT-COVER REAR	Find 6
6	JC97-02232C	MEA UNIT-COVER REAR ML-4551NDR	Find 6
7	JC97-02389B	MEA UNIT-COVER DUMMY ML-4550	Find 7
7	JC97-02389C	MEA UNIT-COVER DUMMY ML-4550R	Find 7
7	JC97-02389C	MEA UNIT-COVER DUMMY ML-4551NR	Find 7
8	JC63-00696B	COVER-M FRAME EXIT	Find 8
8	JC63-00696C	COVER-M_FRAME EXIT ML-4551NDR	Find 8
1-1	JC63-00699B	COVER-M_TOP	Find 1-1
1-1	JC63-00699B	COVER-M_TOP	Find 1-1
1-1	JC63-00699C	COVER-TOP ML-4551NDR	Find 1-1
1-2	JC63-01101A	COVER-M OPEN	Find 1-2
1-2	JC63-01101B	COVER-M_OPEN ML-4551NDR	Find 1-2
1-3	JC72-01367B	PMO-STACKER_RX	Find 1-3
1-3	JC72-01367C	PMO-STACKER RX ML-4551NDR	Find 1-3
1-4	JC66-00902B	LEVER-M STACKING 38	Find 1-4
1-4	JC66-00902C	LEVER-STACKING ML-4551NDR	Find 1-4
1-5	JC61-00656A	STOPPER-M-HINGE OPEN	Find 1-5
1-6	JC63-01100C	COVER-OP PANEL	Find 1-6
1-6	JC63-01445C	COVER-OP PANEL ML-4551NDR	Find 1-6
1-6	JC63-01445A	COVER-OP PANEL ML-4551NR	Find 1-6
1-6	JC63-01100W	COVER-OP PANEL ML-4550R	Find 1-6
1-7	JC67-00147A	LENS LED-M STATUS	Find 1-7
1-8	JC75-00095A	MEC-BRUSH ANTISTATIC	Find 1-8
1-9	JC92-01825B	PBA SUB-PANEL	Find 1-9
6-1	JC63-00703B	COVER-M_REAR	Find 6-1
6-1	JC63-00703C	COVER-M REAR ML-4551NDR	Find 6-1
6-2	JC72-01357A	PMO-STACKER REAR	Find 6-2
6-2	JC72-01357B	PMO-STACKER REAR ML-4551NDR	Find 6-2
6-3	JC70-00007A	ICT-BRKT REAR COVER	Find 6-3
6-4	JC61-01217A	GUIDE-M EXIT	Find 6-4
6-5	JC72-01359A	PMO-STRIPE	Find 6-5
6-6	JC70-20901A	IEX-SHAFT IDLE,F/UP	Find 6-6
6-7	JC72-20902A	PEX-ROLLER F/UP(2)	Find 6-7
6-8	JC61-01774A	SPRING ETC-SEPERATION	Find 6-8
6-9	JC68-01526A	LABEL(P)-JAM REMOVAL	Find 6-9
7-1	JC72-01374A	SPONGE-COVER DUMMY ML-4550	Find 7-1
7-2	JC63-00697B	COVER-M_DUMMY DUP ML-4550	Find 7-2
7-2	JC63-00697C	COVER-M_DUMMY DUP ML-4550R,4551NR	Find 7-2
1-10	JC64-00265A	KEY-M_BUTTON	Find 1-10
1-10	JC64-00265B	KEY-M BUTTON ML-4551NDR	Find 1-10
1-11	JC64-00236A	KEY-M STOP	Find 1-11
1-12	JC64-00047A	KEY-M-SAVE MODE	Find 1-12
1-13	JC64-00194A	WINDOW-M-LCD	Find 1-13
1-14	JC63-00836A	GROUND-P-TOP COVER	Find 1-14

หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

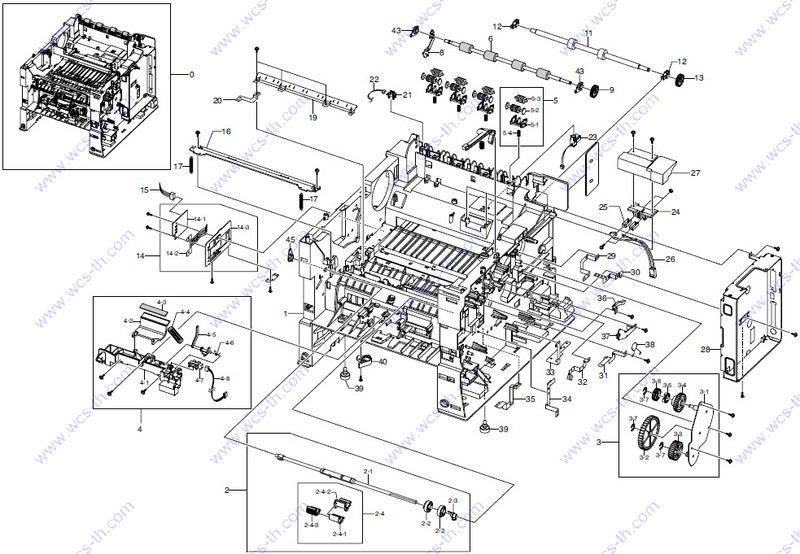

03. Frame Assembly(1/2)

Samsung ML-4551 03. Frame Assembly(1/2)

Pic No.	Parts ID	Parts Name	Link
0	JC96-04004A	ELA UNIT-FRAME BASE 110V	Find 0
0	JC96-04004B	ELA UNIT-FRAME BASE 220V	Find 0
1	JC61-01206A	FRAME-M_BASE	Find 1
2	JC97-02649A	MEA UNIT-PICK UP MP	Find 2
3	JC97-02238A	MEA UNIT-GEAR IDLE	Find 3
4	JC96-03403A	ELA HOU BASE-HOLDER	Find 4
5	JC97-01034A	MEA RACK-EXIT ROLLER	Find 5
6	JC66-00883A	ROLLER-EXIT F/DOWN	Find 6
8	JC72-01310A	PMO-ACTUATOR OUTFULL	Find 8
9	JC66-00674A	GEAR-M-EXIT Z17	Find 9
12	JC61-01262A	BUSH-M EXIT D7	Find 12
13	JC66-00854A	GEAR-M-EXIT DUP Z21	Find 13
14	JC96-02127A	ELA HOU-CST SENSOR HAWK16	Find 14
15	JC39-00261A	CBF HARNESS-SENSOR	Find 15
16	JC61-00675A	GUIDE-P_REGI UPPER	Find 16
17	JC61-70918A	SPRING ETC-LEVER	Find 17
19	JC61-00691A	GUIDE-PLATE PAPER	Find 19
20	JC70-00339A	IPR-P_GROUND PLATE PAPER	Find 20
21	0604-001095	PHOTO-INTERRUPTER	Find 21
23	JC39-00458A	CBF HARNESS-THERM	Find 23
24	JC61-01581A	HOUSING-M TERMINAL	Find 24
25	JC65-00013A	TERMINAL-P-FUSER	Find 25
26	JC39-00456A	CBF HARNESS-FUSER	Find 26
27	JC67-00099A	CAP-M-HOUS TERM	Find 27
28	JC63-01132A	SHIELD-CTRL	Find 28
29	JC63-00677A	GROUND-P-MOTOR_DEVE	Find 29
30	JC63-00669A	GROUND-P_GUIDE TR	Find 30
31	JC63-00672A	GROUND-P-REGI ROLLER	Find 31
32	JC63-00678A	GROUND-P-PICK_UP_MP	Find 32
33	JC63-00673A	GROUND-P-SCF_MAIN	Find 33
34	JC63-00671A	GROUND-P-MOTOR_MAIN	Find 34
35	JC63-00680A	GROUND-P-GUIDE DUP	Find 35
36	JC67-00093A	CAP-M-GUIDE_HARNESS	Find 36
37	JC72-01356A	PMO-DUMMY_DEVE	Find 37
38	JC96-01772A	ELA HOU-VARISTOR	Find 38
39	JC61-40001A	FOOT-ML80	Find 39
40	JC72-01355A	PMO-REMOVE_LOCK_CST	Find 40
43	JC72-41191B	PMO-BEARING SHAFT	Find 43
47	JC96-03960A	ELA HOU-FRAME_LSU_LO	Find 47
48	JC96-03425A	ELA UNIT-FEED3X5	Find 48
49	JC96-04016A	ELA UNIT-ROLLER_IDLE	Find 49
50	JC96-03421A	ELA UNIT-FEED2 IDLE	Find 50
51	JC61-01250A	STOPPER-M-KNOCK UP MP_L	Find 51
52	JC61-01249A	STOPPER-M-KNOCK UP MP R	Find 52
53	JC61-01252A	RAIL-M-LEFT DUP	Find 53
54	JC61-01253A	RAIL-M-RIGHT_DUP	Find 54
55	JC72-41191B	PMO-BEARING SHAFT	Find 55
56	JC66-01262A	GEAR-FEED	Find 56
57	JC72-01362A	PMO- M CAM PICK UP	Find 57
58	JC72-00991A	PMO-ACTUATOR EMPTY	Find 58
59	JC96-03422A	ELA UNIT-PICK UP	Find 59
60	JC96-04119A	ELA UNIT-FEED	Find 60
61	JC92-01704A	PBA SUB-JOINT	Find 61
62	JC39-00441A	CBF HARNESS-TRAY OUT	Find 62
63	JC67-00094A	CAP-M_POWER	Find 63
64	JC39-00624A	HARNESS-INLET	Find 64
65	JC66-00888A	SHAFT-M BELT GEAR	Find 65
66	JC72-41191B	PMO-BEARING SHAFT	Find 66
67	JC66-00674A	GEAR-M-EXIT Z17	Find 67
68	JC67-00092A	CAP-M-DEVE_MOTOR	Find 68
69	JC39-00449A	CBF HARNESS-DUPLEX	Find 69
71	JC67-00036A	CAP-M-WIRE PTL LOWER	Find 71
72	JC65-00001A	TERMINAL-P_PTL	Find 72
73	JC92-01516A	PBA SUB-PTL2	Find 73
76	JC92-01512B	PBA SUB-EXIT SENSOR	Find 76
77	JC92-01261C	PBA SUB-FUSER SW	Find 77
78	JC61-01218A	GUIDE-M-FRONT	Find 78
79	JC65-00010B	TERMINAL-GUIDE_FRONT	Find 79
81	JC72-00317A	PMO-GUIDE DEVE L	Find 81
82	JC72-00318A	PMO-GUIDE DEVE R	Find 82
83	JC61-70932A	SPRING ETC-GUIDE DEVE	Find 83
84	JC65-00008A	TERMINAL-P-TR_KESTREL	Find 84
86	JC65-00009A	TERMINAL-SPRING TR	Find 86
89	JC63-00679A	GROUND-P-ZENER	Find 89
90	JC63-00676A	GROUND-P-FUSER	Find 90
91	JC65-00006A	TERMINAL-P_HV CARDINAL	Find 91
92	JC97-01401A	MEA UNIT-TERMINAL:TR	Find 92
93	JC39-00625A	HARNESS-HVPS	Find 93
94	JC70-00332A	IPR-P_GROUND OPC	Find 94
95	JC92-01831A	PBA SUB-EMPTY	Find 95
96	JC39-00620A	HARNESS-SENSOR	Find 96
97	JC92-01262C	PBA SUB-FEED SENSOR	Find 97
98	JC67-00098A	CAP-M_HV	Find 98
99	JC67-00097A	CAP-M_SENSOR_FEED	Find 99
2-1	JC66-01265A	SHAFT-PICK UP MP	Find 2-1
2-2	JC72-01003A	PMO-IDLE PICK UP MP	Find 2-2
2-3	JC66-00893A	CAM-M-SHAFT	Find 2-3
2-4	JC96-02686B	ELA UNIT-ROLLER P/UP MP	Find 2-4
3-1	JC61-01200A	BRACKET-P-GEAR IDLE	Find 3-1
3-2	JC66-00872A	GEAR-FUSER IDLE 3	Find 3-2
3-3	JC66-00859A	GEAR-M-FUSER IDLE 2	Find 3-3
3-4	JC66-00858A	GEAR-M-FUSER DRV IN	Find 3-4
3-5	JC66-00868A	CLUTCH-M-HUB	Find 3-5
3-6	JC66-01155A	GEAR-FUSER RDCN OUT V	Find 3-6
3-7	6044-000231	RING-E	Find 3-7
4-1	JC61-01248A	FRAME-M-HOLDER PAD	Find 4-1
4-2	JC61-00684A	HOLDER-M-PAD	Find 4-2
4-3	JC73-00132A	RPR-FRICTION PAD MP	Find 4-3
4-4	JC61-00387A	SPRING ETC-PAD	Find 4-4
4-5	JC72-01365A	PMO-ACTUATOR EMPTY MP	Find 4-5
4-6	JC61-70965A	SPRING ETC-EMPTY	Find 4-6
4-7	0604-001095	PHOTO-INTERRUPTER	Find 4-7
4-8	JC39-00451A	CBF HARNESS-MP_EMPTY	Find 4-8
5-1	JC72-41006A	PMO-HOLDER EXIT ROLL	Find 5-1
5-2	JC72-41007A	PMO-ROLLER FD F	Find 5-2
5-3	JC72-41008A	PMO-ROLLER FD R	Find 5-3
5-4	JC61-70911A	SPRING ETC-EXIT ROLL FD	Find 5-4
14-1	JC92-01336A	PBA SUB-CASSETTE	Find 14-1
14-2	JC70-00192A	IPR-PLATE SENSOR	Find 14-2
14-3	JC70-00195A	IPR-BRACKET SENSOR	Find 14-3
47-1	JC61-01732A	FRAME-PART UPPER	Find 47-1
47-2	JC92-01807A	PBA SUB-TONER_SENSOR	Find 47-2
47-3	JC65-00004A	TERMINAL-P_DEVE	Find 47-3
47-4	JC92-01730A	PBA SUB-COVER OEPN	Find 47-4
47-5	JC67-00095A	CAP-M COVER OPEN	Find 47-5
48-1	JC61-01240A	HOLDER-M-SAW	Find 48-1
48-2	JC61-01235A	GUIDE-P-TRANSFER_FRONT	Find 48-2
48-3	JC61-01236A	PLATE-P-SAW	Find 48-3
48-4	JC66-00889A	SHAFT-M ROLLER BELT	Find 48-4
48-5	JC66-00887A	ROLLER-M IDLE_BELT	Find 48-5
48-6	JC70-20901A	IEX-SHAFT IDLE F/UP	Find 48-6
48-7	JC73-00206A	RUBBER-BELT FEED	Find 48-7
48-8	JC61-01239A	GUIDE-M SHAFT BELT	Find 48-8
49-2	JC61-00635A	HOUSING-M-RETARD	Find 49-2
49-3	JC73-00207A	RUBBER-RETARD	Find 49-3
49-4	JC72-00993A	PMO-HUB OUT RETARD	Find 49-4
49-5	JC66-01273A	SHAFT-IDLE FEED	Find 49-5
49-6	JC64-00271A	SHUTTER-PATH_FEED	Find 49-6
49-7	JC61-01550A	STOPPER-SPACE	Find 49-7
49-8	JC64-00272A	SHUTTER-CLAW	Find 49-8
49-9	JC61-01741A	HOLD-IDLE FRONT	Find 49-9
50-1	JC61-01242A	HOLDER-IDLE FEED2	Find 50-1
50-2	JC67-00105A	CAP-M IDLE FEED2	Find 50-2
50-3	JC61-00387A	SPRING ETC-PAD	Find 50-3
50-4	JC61-00652A	BUSH-M-RETARD	Find 50-4
50-5	JC66-00912A	SHAFT-IDLE FEED2	Find 50-5
50-6	6044-000231	RING-E	Find 50-6
50-7	JC66-00892A	ROLLER-M IDLE_FEED2	Find 50-7
59-1	JC66-00910A	SHAFT-PICK UP	Find 59-1
59-2	JC97-02233A	MEA UNIT-P/UP HOUSING	Find 59-2
59-3	JC61-01579A	HOLDER-P-REGI	Find 59-3
59-4	JC66-00911A	SHAFT-FEED1	Find 59-4
59-5	JC81-03458A	AS-UNIT_FEED1	Find 59-5
59-6	JC63-00674A	GROUND-P-PICK_UP_MAIN	Find 59-6
59-7	JC61-01579A	HOLDER-P-REGI	Find 59-7
59-8	JC72-00382B	PMO-BUSHING FEED	Find 59-8
59-9	JC61-01234A	GUIDE-P-FRONT-DUP-PICKUP	Find 59-9
2-4-1	JC61-00705A	HOLDER-M-PICKUP MP	Find 2-4-1
2-4-2	JC61-00685A	HOUSING-M-PICK UP MP	Find 2-4-2
2-4-3	JC73-00224A	RUBBER-PICK UP MP	Find 2-4-3
49-10	JC61-00652A	BUSH-M-RETARD	Find 49-10
49-11	JC61-00387A	SPRING ETC-PAD	Find 49-11
49-12	JC61-01739A	HOLD-IDLE REAR	Find 49-12
49-14	JC64-00270A	SHUTTER-TENSION	Find 49-14
59-10	JC61-01233A	GUIDE-M SUPPORT-PICKUP	Find 59-10
59-2-1	JC72-01361A	PMO-M IDLE-PICK UP	Find 59-2-1
59-2-2	JC61-01238A	HOUSING-M-PICK UP	Find 59-2-2
59-2-3	JC73-00223A	RUBBER-PICK UP	Find 59-2-3
59-5-1	JC61-01237A	HOUSING-M-FEED1	Find 59-5-1
59-5-2	JC73-00208A	RUBBER-FEED1	Find 59-5-2

หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

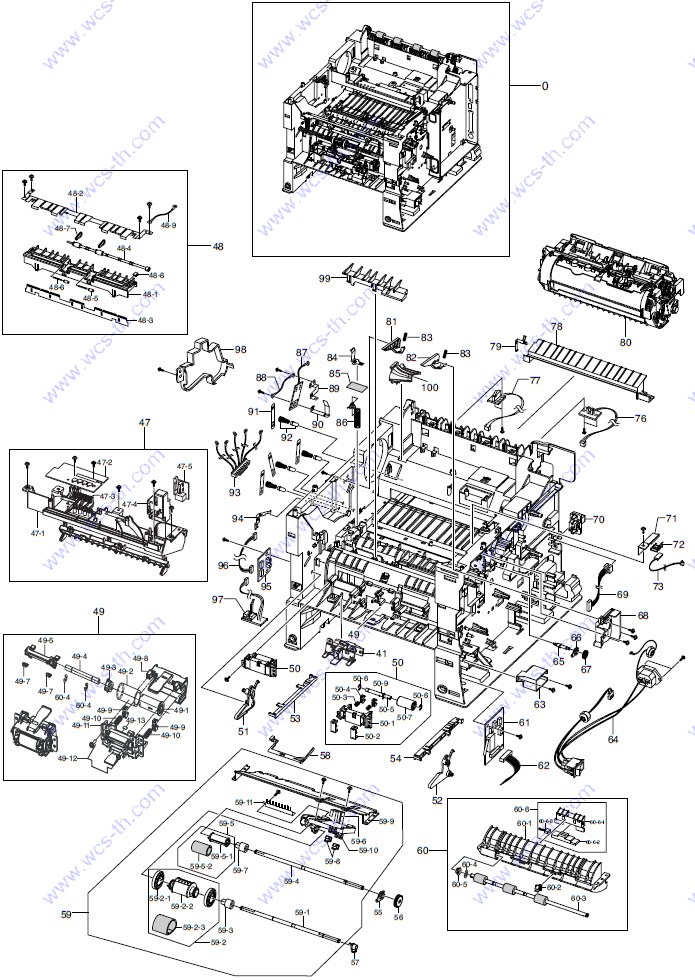

04. Frame Assembly(2/2)

Samsung ML-4551 04. Frame Assembly(2/2)

Pic No.	Parts ID	Parts Name	Link
0	JC96-04004A	ELA UNIT-FRAME BASE 110V	Find 0
0	JC96-04004B	ELA UNIT-FRAME BASE 220V	Find 0
1	JC61-01206A	FRAME-M_BASE	Find 1
2	JC97-02649A	MEA UNIT-PICK UP MP	Find 2
3	JC97-02238A	MEA UNIT-GEAR IDLE	Find 3
4	JC96-03403A	ELA HOU BASE-HOLDER	Find 4
5	JC97-01034A	MEA RACK-EXIT ROLLER	Find 5
6	JC66-00883A	ROLLER-EXIT F/DOWN	Find 6
8	JC72-01310A	PMO-ACTUATOR OUTFULL	Find 8
9	JC66-00674A	GEAR-M-EXIT Z17	Find 9
12	JC61-01262A	BUSH-M EXIT D7	Find 12
13	JC66-00854A	GEAR-M-EXIT DUP Z21	Find 13
14	JC96-02127A	ELA HOU-CST SENSOR HAWK16	Find 14
15	JC39-00261A	CBF HARNESS-SENSOR	Find 15
16	JC61-00675A	GUIDE-P_REGI UPPER	Find 16
17	JC61-70918A	SPRING ETC-LEVER	Find 17
19	JC61-00691A	GUIDE-PLATE PAPER	Find 19
20	JC70-00339A	IPR-P_GROUND PLATE PAPER	Find 20
21	0604-001095	PHOTO-INTERRUPTER	Find 21
23	JC39-00458A	CBF HARNESS-THERM	Find 23
24	JC61-01581A	HOUSING-M TERMINAL	Find 24
25	JC65-00013A	TERMINAL-P-FUSER	Find 25
26	JC39-00456A	CBF HARNESS-FUSER	Find 26
27	JC67-00099A	CAP-M-HOUS TERM	Find 27
28	JC63-01132A	SHIELD-CTRL	Find 28
29	JC63-00677A	GROUND-P-MOTOR_DEVE	Find 29
30	JC63-00669A	GROUND-P_GUIDE TR	Find 30
31	JC63-00672A	GROUND-P-REGI ROLLER	Find 31
32	JC63-00678A	GROUND-P-PICK_UP_MP	Find 32
33	JC63-00673A	GROUND-P-SCF_MAIN	Find 33
34	JC63-00671A	GROUND-P-MOTOR_MAIN	Find 34
35	JC63-00680A	GROUND-P-GUIDE DUP	Find 35
36	JC67-00093A	CAP-M-GUIDE_HARNESS	Find 36
37	JC72-01356A	PMO-DUMMY_DEVE	Find 37
38	JC96-01772A	ELA HOU-VARISTOR	Find 38
39	JC61-40001A	FOOT-ML80	Find 39
40	JC72-01355A	PMO-REMOVE_LOCK_CST	Find 40
43	JC72-41191B	PMO-BEARING SHAFT	Find 43
47	JC96-03960A	ELA HOU-FRAME_LSU_LO	Find 47
48	JC96-03425A	ELA UNIT-FEED3X5	Find 48
49	JC96-04016A	ELA UNIT-ROLLER_IDLE	Find 49
50	JC96-03421A	ELA UNIT-FEED2 IDLE	Find 50
51	JC61-01250A	STOPPER-M-KNOCK UP MP_L	Find 51
52	JC61-01249A	STOPPER-M-KNOCK UP MP R	Find 52
53	JC61-01252A	RAIL-M-LEFT DUP	Find 53
54	JC61-01253A	RAIL-M-RIGHT_DUP	Find 54
55	JC72-41191B	PMO-BEARING SHAFT	Find 55
56	JC66-01262A	GEAR-FEED	Find 56
57	JC72-01362A	PMO- M CAM PICK UP	Find 57
58	JC72-00991A	PMO-ACTUATOR EMPTY	Find 58
59	JC96-03422A	ELA UNIT-PICK UP	Find 59
60	JC96-04119A	ELA UNIT-FEED	Find 60
61	JC92-01704A	PBA SUB-JOINT	Find 61
62	JC39-00441A	CBF HARNESS-TRAY OUT	Find 62
63	JC67-00094A	CAP-M_POWER	Find 63
64	JC39-00624A	HARNESS-INLET	Find 64
65	JC66-00888A	SHAFT-M BELT GEAR	Find 65
66	JC72-41191B	PMO-BEARING SHAFT	Find 66
67	JC66-00674A	GEAR-M-EXIT Z17	Find 67
68	JC67-00092A	CAP-M-DEVE_MOTOR	Find 68
69	JC39-00449A	CBF HARNESS-DUPLEX	Find 69
71	JC67-00036A	CAP-M-WIRE PTL LOWER	Find 71
72	JC65-00001A	TERMINAL-P_PTL	Find 72
73	JC92-01516A	PBA SUB-PTL2	Find 73
76	JC92-01512B	PBA SUB-EXIT SENSOR	Find 76
77	JC92-01261C	PBA SUB-FUSER SW	Find 77
78	JC61-01218A	GUIDE-M-FRONT	Find 78
79	JC65-00010B	TERMINAL-GUIDE_FRONT	Find 79
81	JC72-00317A	PMO-GUIDE DEVE L	Find 81
82	JC72-00318A	PMO-GUIDE DEVE R	Find 82
83	JC61-70932A	SPRING ETC-GUIDE DEVE	Find 83
84	JC65-00008A	TERMINAL-P-TR_KESTREL	Find 84
86	JC65-00009A	TERMINAL-SPRING TR	Find 86
89	JC63-00679A	GROUND-P-ZENER	Find 89
90	JC63-00676A	GROUND-P-FUSER	Find 90
91	JC65-00006A	TERMINAL-P_HV CARDINAL	Find 91
92	JC97-01401A	MEA UNIT-TERMINAL:TR	Find 92
93	JC39-00625A	HARNESS-HVPS	Find 93
94	JC70-00332A	IPR-P_GROUND OPC	Find 94
95	JC92-01831A	PBA SUB-EMPTY	Find 95
96	JC39-00620A	HARNESS-SENSOR	Find 96
97	JC92-01262C	PBA SUB-FEED SENSOR	Find 97
98	JC67-00098A	CAP-M_HV	Find 98
99	JC67-00097A	CAP-M_SENSOR_FEED	Find 99
2-1	JC66-01265A	SHAFT-PICK UP MP	Find 2-1
2-2	JC72-01003A	PMO-IDLE PICK UP MP	Find 2-2
2-3	JC66-00893A	CAM-M-SHAFT	Find 2-3
2-4	JC96-02686B	ELA UNIT-ROLLER P/UP MP	Find 2-4
3-1	JC61-01200A	BRACKET-P-GEAR IDLE	Find 3-1
3-2	JC66-00872A	GEAR-FUSER IDLE 3	Find 3-2
3-3	JC66-00859A	GEAR-M-FUSER IDLE 2	Find 3-3
3-4	JC66-00858A	GEAR-M-FUSER DRV IN	Find 3-4
3-5	JC66-00868A	CLUTCH-M-HUB	Find 3-5
3-6	JC66-01155A	GEAR-FUSER RDCN OUT V	Find 3-6
3-7	6044-000231	RING-E	Find 3-7
4-1	JC61-01248A	FRAME-M-HOLDER PAD	Find 4-1
4-2	JC61-00684A	HOLDER-M-PAD	Find 4-2
4-3	JC73-00132A	RPR-FRICTION PAD MP	Find 4-3
4-4	JC61-00387A	SPRING ETC-PAD	Find 4-4
4-5	JC72-01365A	PMO-ACTUATOR EMPTY MP	Find 4-5
4-6	JC61-70965A	SPRING ETC-EMPTY	Find 4-6
4-7	0604-001095	PHOTO-INTERRUPTER	Find 4-7
4-8	JC39-00451A	CBF HARNESS-MP_EMPTY	Find 4-8
5-1	JC72-41006A	PMO-HOLDER EXIT ROLL	Find 5-1
5-2	JC72-41007A	PMO-ROLLER FD F	Find 5-2
5-3	JC72-41008A	PMO-ROLLER FD R	Find 5-3
5-4	JC61-70911A	SPRING ETC-EXIT ROLL FD	Find 5-4
14-1	JC92-01336A	PBA SUB-CASSETTE	Find 14-1
14-2	JC70-00192A	IPR-PLATE SENSOR	Find 14-2
14-3	JC70-00195A	IPR-BRACKET SENSOR	Find 14-3
47-1	JC61-01732A	FRAME-PART UPPER	Find 47-1
47-2	JC92-01807A	PBA SUB-TONER_SENSOR	Find 47-2
47-3	JC65-00004A	TERMINAL-P_DEVE	Find 47-3
47-4	JC92-01730A	PBA SUB-COVER OEPN	Find 47-4
47-5	JC67-00095A	CAP-M COVER OPEN	Find 47-5
48-1	JC61-01240A	HOLDER-M-SAW	Find 48-1
48-2	JC61-01235A	GUIDE-P-TRANSFER_FRONT	Find 48-2
48-3	JC61-01236A	PLATE-P-SAW	Find 48-3
48-4	JC66-00889A	SHAFT-M ROLLER BELT	Find 48-4
48-5	JC66-00887A	ROLLER-M IDLE_BELT	Find 48-5
48-6	JC70-20901A	IEX-SHAFT IDLE F/UP	Find 48-6
48-7	JC73-00206A	RUBBER-BELT FEED	Find 48-7
48-8	JC61-01239A	GUIDE-M SHAFT BELT	Find 48-8
49-2	JC61-00635A	HOUSING-M-RETARD	Find 49-2
49-3	JC73-00207A	RUBBER-RETARD	Find 49-3
49-4	JC72-00993A	PMO-HUB OUT RETARD	Find 49-4
49-5	JC66-01273A	SHAFT-IDLE FEED	Find 49-5
49-6	JC64-00271A	SHUTTER-PATH_FEED	Find 49-6
49-7	JC61-01550A	STOPPER-SPACE	Find 49-7
49-8	JC64-00272A	SHUTTER-CLAW	Find 49-8
49-9	JC61-01741A	HOLD-IDLE FRONT	Find 49-9
50-1	JC61-01242A	HOLDER-IDLE FEED2	Find 50-1
50-2	JC67-00105A	CAP-M IDLE FEED2	Find 50-2
50-3	JC61-00387A	SPRING ETC-PAD	Find 50-3
50-4	JC61-00652A	BUSH-M-RETARD	Find 50-4
50-5	JC66-00912A	SHAFT-IDLE FEED2	Find 50-5
50-6	6044-000231	RING-E	Find 50-6
50-7	JC66-00892A	ROLLER-M IDLE_FEED2	Find 50-7
59-1	JC66-00910A	SHAFT-PICK UP	Find 59-1
59-2	JC97-02233A	MEA UNIT-P/UP HOUSING	Find 59-2
59-3	JC61-01579A	HOLDER-P-REGI	Find 59-3
59-4	JC66-00911A	SHAFT-FEED1	Find 59-4
59-5	JC81-03458A	AS-UNIT_FEED1	Find 59-5
59-6	JC63-00674A	GROUND-P-PICK_UP_MAIN	Find 59-6
59-7	JC61-01579A	HOLDER-P-REGI	Find 59-7
59-8	JC72-00382B	PMO-BUSHING FEED	Find 59-8
59-9	JC61-01234A	GUIDE-P-FRONT-DUP-PICKUP	Find 59-9
2-4-1	JC61-00705A	HOLDER-M-PICKUP MP	Find 2-4-1
2-4-2	JC61-00685A	HOUSING-M-PICK UP MP	Find 2-4-2
2-4-3	JC73-00224A	RUBBER-PICK UP MP	Find 2-4-3
49-10	JC61-00652A	BUSH-M-RETARD	Find 49-10
49-11	JC61-00387A	SPRING ETC-PAD	Find 49-11
49-12	JC61-01739A	HOLD-IDLE REAR	Find 49-12
49-14	JC64-00270A	SHUTTER-TENSION	Find 49-14
59-10	JC61-01233A	GUIDE-M SUPPORT-PICKUP	Find 59-10
59-2-1	JC72-01361A	PMO-M IDLE-PICK UP	Find 59-2-1
59-2-2	JC61-01238A	HOUSING-M-PICK UP	Find 59-2-2
59-2-3	JC73-00223A	RUBBER-PICK UP	Find 59-2-3
59-5-1	JC61-01237A	HOUSING-M-FEED1	Find 59-5-1
59-5-2	JC73-00208A	RUBBER-FEED1	Find 59-5-2

หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

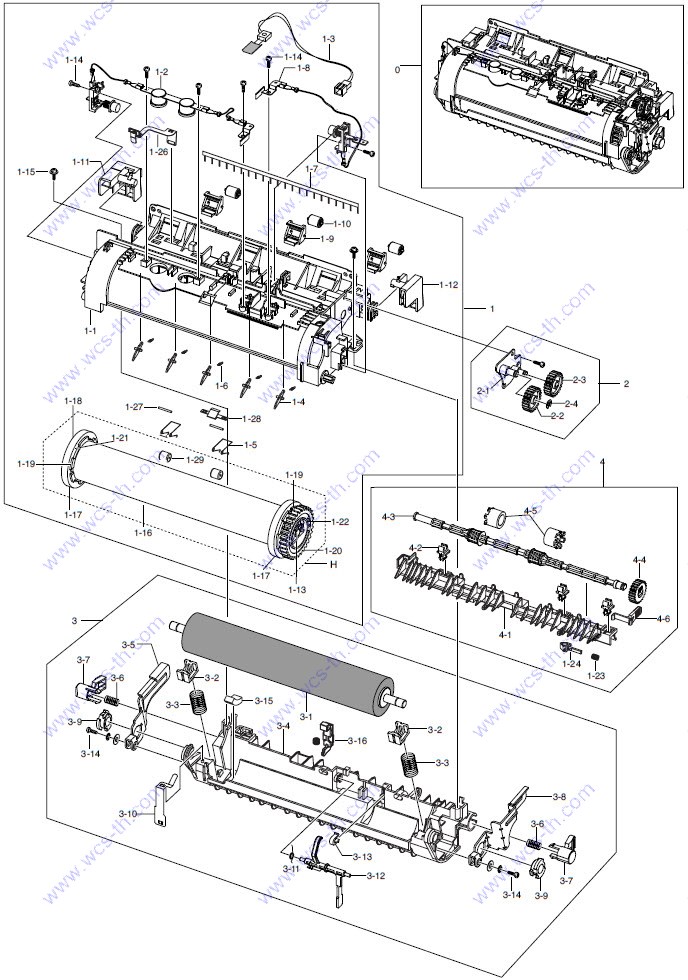

05. Fuser Unit

Samsung ML-4551 05. Fuser Unit

Pic No.	Parts ID	Parts Name	Link
0	JC96-03957B	ELA UNIT-FUSER 220V 220V	Find 0
0	JC96-03957A	ELA UNIT-FUSER 110V 110V	Find 0
1	JC96-03958A	ELA UNIT-FUSERJJPPER 110V	Find 1
1	JC96-03958B	ELA UNIT-FUSER_UPPER 220V	Find 1
3	JC97-02630A	MEA UNIT-FUSER_LOWER	Find 3
4	JC97-02631A	MEA UNIT-FUSER_GU_R	Find 4
1-2	JC71-00056A	ELECTRODE-P-FU L 08	Find 1-2
1-4	JC72-41012C	PMO-GUIDE CLAW GREEN	Find 1-4
1-5	6107-001165	SPRING-TS	Find 1-5
1-8	JC61-01215A	HOLDER-M-LEVER_L	Find 1-8
1-9	JC61-00785A	HOLDER-M-IDLE ROLLER	Find 1-9
2-1	JC61-01213A	BRACKET-P-FUSER	Find 2-1
2-3	JC66-00869A	GEAR-M-IDLE 25	Find 2-3
3-1	JC66-00931A	ROLLER-PRESSURE	Find 3-1
3-3	6107-001304	SPRING-CS	Find 3-3
3-5	JC66-00880A	LEVER-P-RELEASE_L	Find 3-5
3-6	6107-001304	SPRING-CS	Find 3-6
3-7	JC67-00102A	CAP-M-FUSER LOCK	Find 3-7
3-8	JC66-00881A	LEVER-P-RELEASE R	Find 3-8
4-1	JC61-01226B	GUIDE-M REAR	Find 4-1
4-2	JC72-00382A	PMO-BUSHING TX	Find 4-2
4-6	JC61-01549A	HOLDER-M REAR_LEVER	Find 4-6
1-10	JC72-40981A	PMO-ROLLER UPPER DP	Find 1-10
1-12	JC61-01216A	HOLDER-M-LEVER_R	Find 1-12
1-13	JC71-00052A	ELECTRODE-P-SUPPORT	Find 1-13
1-15	6003-000196	SCREW-TAPTITE	Find 1-15
1-16	JC66-01268A	ROLLER-HEAT 110V	Find 1-16
1-16	JC66-01268B	ROLLER-HEAT 220V	Find 1-16
1-17	6601-001384	BEARING-BALL	Find 1-17
1-19	JC61-01260A	BUSH-M_HR	Find 1-19
1-21	JC61-01550A	STOPPER-SPACER	Find 1-21
1-22	JC71-00051A	ELECTRODE-FU	Find 1-22
1-24	JC67-00111A	CAP-M ACTUATOR UP	Find 1-24
1-25	JC63-00726A	COVER-M-REAR GUIDE UP	Find 1-25
1-26	JC71-00055A	ELECTRODE-P-SU CARBON	Find 1-26
1-28	JC61-01284A	HOLDER-P-SL CONNECTOR	Find 1-28
3-10	JC63-00683A	GROUND-P-HR	Find 3-10
3-11	JC61-70903A	SPRING ETC-ACTUATOR	Find 3-11
3-12	JC72-01358A	PMO-ACTUATOR EXIT	Find 3-12
3-13	JC67-00103A	CAP-M-ACTUATOR	Find 3-13
3-14	6003-000196	SCREW-TAPTITE	Find 3-14
1-KIT	JC96-04058A	ELA UNIT-HEAT 110V	Find 1-KIT
1-KIT	JC96-04058B	ELA UNIT-HEAT 220V	Find 1-KIT

หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

06. REGI Assembly

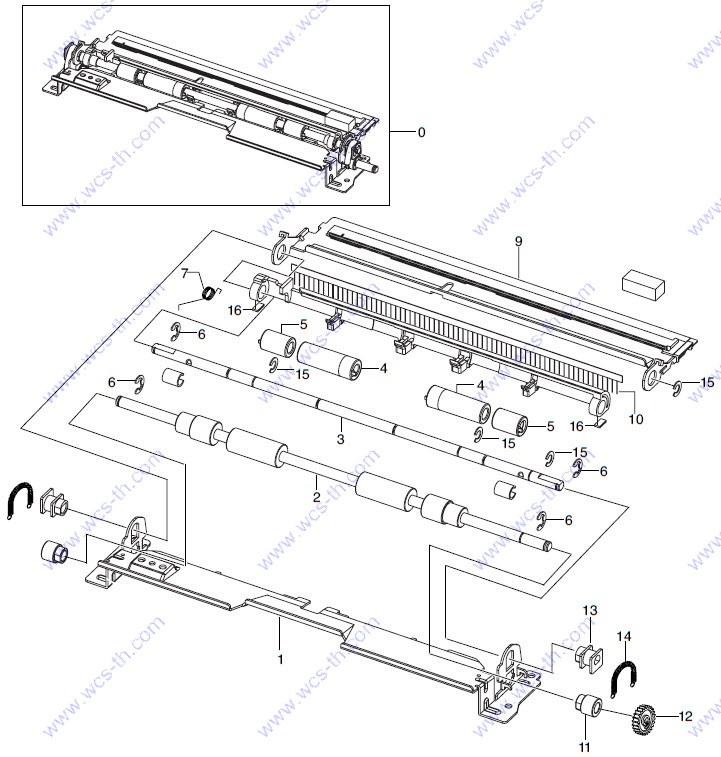

Samsung ML-4551 06. REGI Assembly

Pic No.	Parts ID	Parts Name	Link
0	JC96-03959A	ELA UNIT-REGI	Find 0
1	JC61-00674A	GUIDE-P REGI LOWER	Find 1
2	JC66-00450A	ROLLER-REGI LOWER L	Find 2
3	JC66-00446A	SHAFT-REGI UPPER	Find 3
4	JC66-00647A	ROLLER-M REGI IDLE L25	Find 4
5	JC66-00648A	ROLLER-M REGI IDLE S25	Find 5
6	6044-000231	RING-E	Find 6
7	6107-001165	SPRING-TS	Find 7
8	JC72-00998A	PMO-ACTUATOR REGISHUTTER	Find 8
9	JC61-00670A	GUIDE-P REGI PLATE	Find 9
10	JC75-00095A	MEC-BRUSH ANTISTATIC	Find 10
11	JC61-00669A	BUSH-M-ROLLER REGI U	Find 11
12	JC66-00420A	GEAR-REGI Z25	Find 12
13	JC61-00669A	BUSH-M-ROLLER REGI U	Find 13
14	6107-001155	SPRING-ES	Find 14

หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

07. Main Motor Assembly

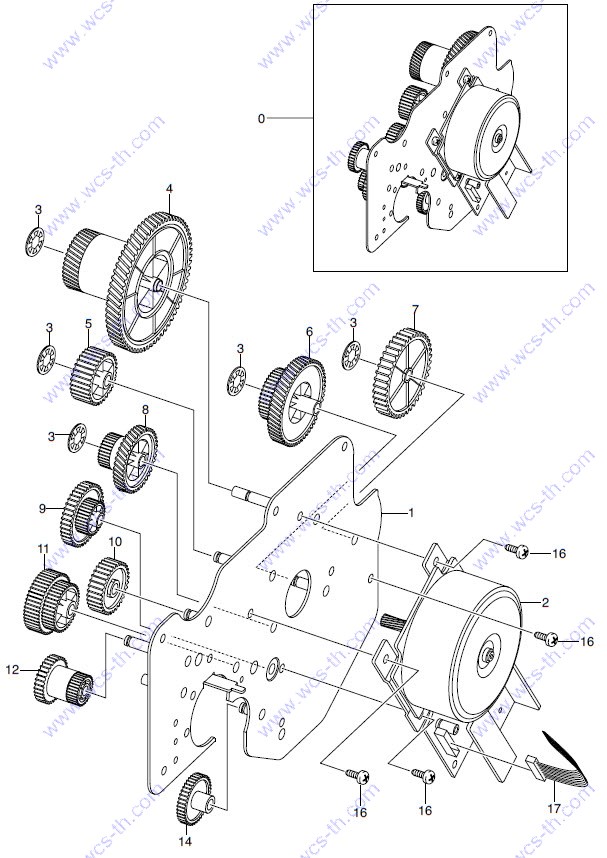

Samsung ML-4551 07. Main Motor Assembly

Pic No.	Parts ID	Parts Name	Link
0	JC96-04063A	ELA UNIT-MAIN	Find 0
1	JC61-01204A	BRACKET-P-MAIN	Find 1
2	JC31-00040A	MOTOR DC-BLDC MAIN	Find 2
3	6031-001255	WASHER-PLAIN	Find 3
4	JC66-00867A	GEAR-M-OPC DRV	Find 4
5	JC66-00864A	GEAR-M-REGI DRV	Find 5
6	JC66-00860A	GEAR-M-RDCN FUSER	Find 6
7	JC66-00875A	GEAR-M-FUSER IDLE 1	Find 7
8	JC66-00865A	GEAR-M-RDCN REGI	Find 8
9	JC66-00866A	GEAR-M-RDCN PICK UP	Find 9
10	JC66-00861A	GEAR-M-MP DRV	Find 10
11	JC66-00862A	GEAR-M-FEED DRV	Find 11
12	JC66-00873A	GEAR-M-RDCN MP	Find 12
14	JC66-00863A	GEAR-M-PICK UP DRV	Find 14

หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

08. Deve Motor Assembly

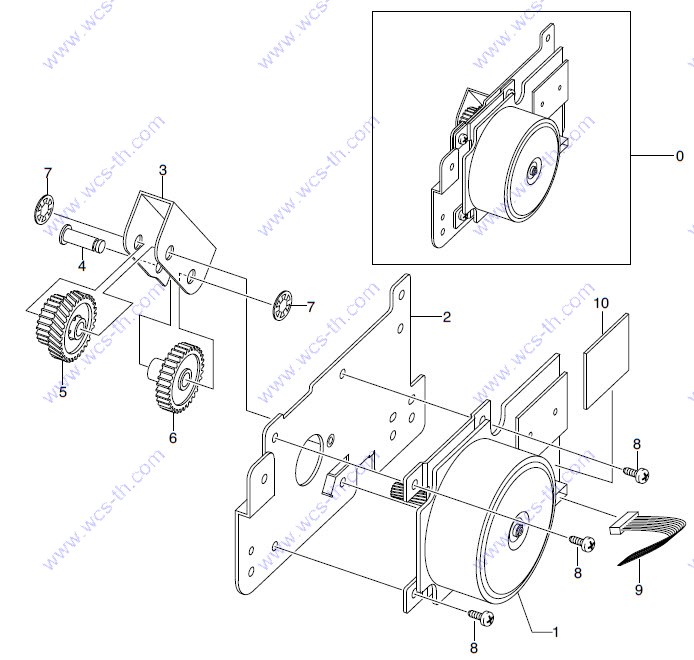

Samsung ML-4551 08. Deve Motor Assembly

Pic No.	Parts ID	Parts Name	Link
0	JC96-03408A	ELA UNIT-DEVE MOTOR	Find 0
1	JC31-00039A	MOTOR DC-BLDC DEVE	Find 1
2	JC61-01201A	BRACKET-P-DEVE	Find 2
3	JC61-01203A	BRACKET-P-SWING	Find 3
4	JC66-00915A	SHAFT-SWING DEVE	Find 4
5	JC66-00871A	GEAR-M-RDCN DEVE	Find 5
6	JC66-00857A	GEAR-M-SWING	Find 6

หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

09. Duplex Sorenoid Assembly

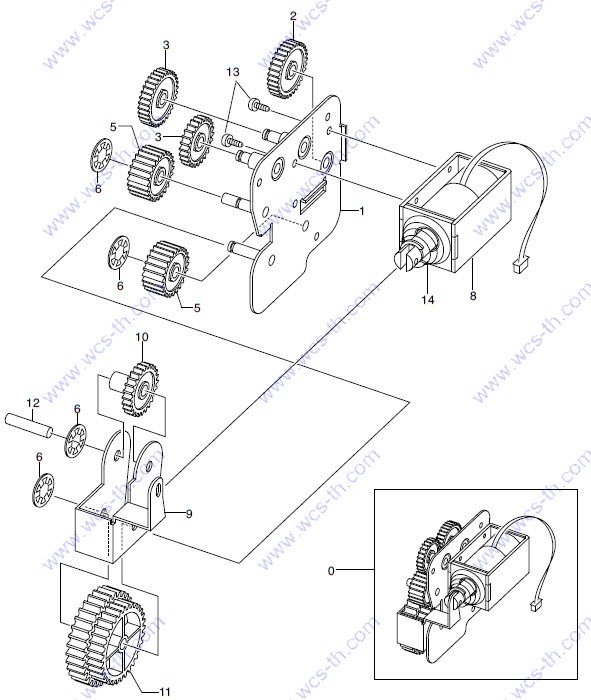

Samsung ML-4551 09. Duplex Sorenoid Assembly

Pic No.	Parts ID	Parts Name	Link
0	JC96-03426A	ELA UNIT-EXIT SOL	Find 0
1	JC61-01205A	BRACKET-P-EXIT	Find 1
2	JC66-00869A	GEAR-M-IDLE 25	Find 2
3	JC66-00869A	GEAR-M-IDLE 25	Find 3
4	JC66-40911A	GEAR-DP,IDLE	Find 4
5	JC66-00100A	GEAR-6	Find 5
6	6031-001255	WASHER-PLAIN	Find 6
8	JC33-00008A	SOLENOID-DUPLEX	Find 8
9	JC61-01202A	BRACKET-P-LINK SWING	Find 9
10	JC66-00855A	GEAR-M-SWING DUPLEX	Find 10
11	JC66-00856A	GEAR-M-RDCN EXIT	Find 11
12	JC66-00916A	SHAFT-SWING DUPLEX	Find 12

หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

10. Cassette Assembly

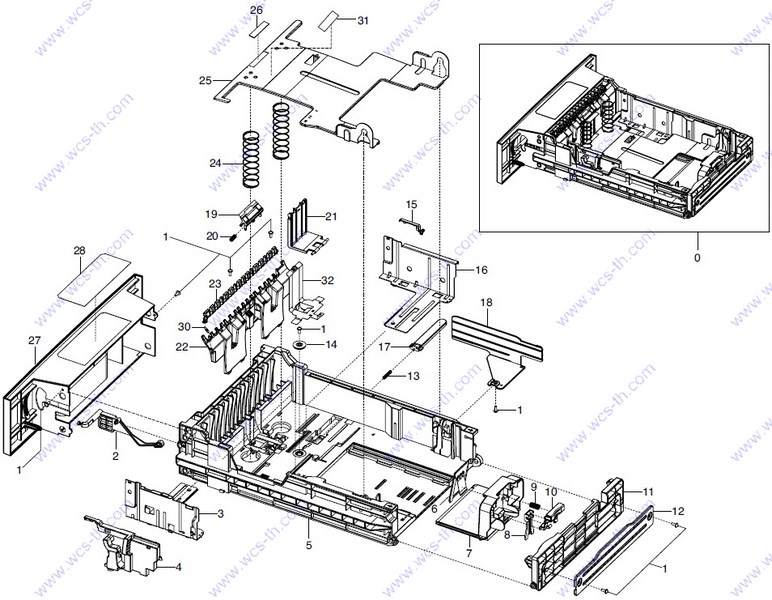

Samsung ML-4551 10. Cassette Assembly

Pic No.	Parts ID	Parts Name	Link
0	JC96-04015A	ELA UNIT-CASSETTE	Find 0
0	JC96-04015B	ELA UNIT-CASSETTE ML-4551NDR	Find 0
1	6002-000440	SCREW-TAPPING	Find 1
2	JC64-00189B	INDICATOR-M_EMPTY	Find 2
3	JC61-01244A	GUIDE-P-SIDE_R	Find 3
4	JC61-01225B	GUIDE-M_SIDE LOCK	Find 4
5	JC61-01220B	FRAME-M_CASSETTE	Find 5
5	JC61-01220C	FRAME-M_CASSETTE ML-4551NDR	Find 5
6	JC61-00751A	GUIDE-P-REAR PAPER CST	Find 6
7	JC61-01226B	GUIDE-M_REAR	Find 7
8	JC61-00267B	GUIDE-M-LOCK A	Find 8
9	JC61-00414A	SPRING ETC-GUIDE PAPER	Find 9
10	JC64-00190B	KNOB-M_REAR	Find 10
11	JC61-01224B	GUIDE-M_EXTENSION CST	Find 11
11	JC61-01224C	GUIDE-M_EXTENSION CST ML-4551NDR	Find 11
12	JC61-01223A	BRACKET-P-EXTENTION	Find 12
13	JG61-70531A	SPRING ETC-LOCKER,PLATE	Find 13
14	JG66-40003A	GEAR-PINION	Find 14
15	JC67-00037A	CAP-M-GUIDE SIDE,L	Find 15
16	JC61-01222A	GUIDE-P-SIDE_L	Find 16
17	JC72-41210A	PMO-LOCKER PLATE	Find 17
18	JC61-01227A	GUIDE-M-PAPER SIZE	Find 18
19	JC97-02234A	MEA UNIT-HOLDER PAD	Find 19
20	JC61-70911A	SPRING ETC-EXIT ROLL FD	Find 20
21	JC61-01228A	HOLDER-M-PAD_HOUSING	Find 21
22	JC61-01724A	GUIDE-PAPER	Find 22
23	JC64-00268A	SHUTTER-PATH	Find 23
24	JC61-00455A	SPRING ETC-PLATE K/UP	Find 24
25	JC61-01245A	PLATE-P-KNOCK UP	Find 25
26	JC73-00141A	RPR-PAD CASSETTE	Find 26
27	JC61-01221B	GUIDE-M_HANDLE	Find 27
27	JC61-01221C	GUIDE-M_HANDLE ML-4551NDR	Find 27
28	JC68-01552A	LABEL(R)-CASSETTE	Find 28

หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

11. Duplex Unit

Samsung ML-4551 11. Duplex Unit

Pic No.	Parts ID	Parts Name	Link
0	JC96-03412C	ELA UNIT-DUPLEX	Find 0
0	JC96-03412E	ELA UNIT-DUPLEX ML-4551NDR	Find 0
1	JC61-01254A	FRAME-M-DUPLEX	Find 1
2	JC61-01255A	GUIDE-M-UPPER_DUP	Find 2
3	JC63-00693B	COVER-M REAR DUP	Find 3
3	JC63-00693C	COVER-M REAR DUP ML-4551NDR	Find 3
4	JC61-01697A	GUIDE-M_ALIGN_DPX	Find 4
5	JC67-00107A	CAP-M-CONNECTOR_DUP	Find 5
6	JC67-00106A	DUCT-M-FAN DUP	Find 6
7	JC31-00004A	FAN-DC HAWK	Find 7
8	JC92-01679A	PBA SUB-DUPLEX	Find 8
8	JC92-01883A	PBA-DPX ML-4551NDR	Find 8
10	JC70-00512A	IPR-TERMINAL GND DUP	Find 10
11	JC64-00191A	LOCKER-M-DUP	Find 11
12	JC63-00706A	SHEET-FRAME_DUP	Find 12
13	6107-001165	SPRING-TS	Find 13
14	JC72-01366A	PMO-ACTUATOR FEED DUP	Find 14
15	JC92-01362A	PBA SUB-MP SEN	Find 15
16	JB39-00103A	CBF HARNESS-LIU GND	Find 16
17	JC31-00009A	MOTOR STEP	Find 17
18	JC61-01257A	BRACKET-P-MOTOR DUP	Find 18
19	JC66-00897A	PULLEY-M-30 DUP	Find 19
20	6602-001084	BELT-TIMING GEAR	Find 20
21	JC66-00898A	PULLEY-M-30-DUMMY_DUP	Find 21
22	6044-000231	RING-E	Find 22
23	JC39-00450A	CBF HARNESS-D JOINT	Find 23
24	JC66-00444A	SHAFT-IDLE ROLL, DUP	Find 24
25	JC66-00896A	ROLLER-M-IDLE_ DUP	Find 25
26	JK72-00058A	PCT-SILP WASHER	Find 26
27	JC61-01277A	SPRING ETC-DUP	Find 27
28	JC66-00900A	PULLEY-M-18-DUMMY_DUP	Find 28
29	JC66-00899A	PULLEY-18_DUP	Find 29
30	JC61-00665A	BUSH-M-FEED, DUP	Find 30
32	JC66-00901A	ROLLER-FEED DUP	Find 32
33	6044-000107	RING-C	Find 33
34	JC70-00457A	ICT-STUD PAPER GUIDE, DP	Find 34

หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

12. SCF Unit

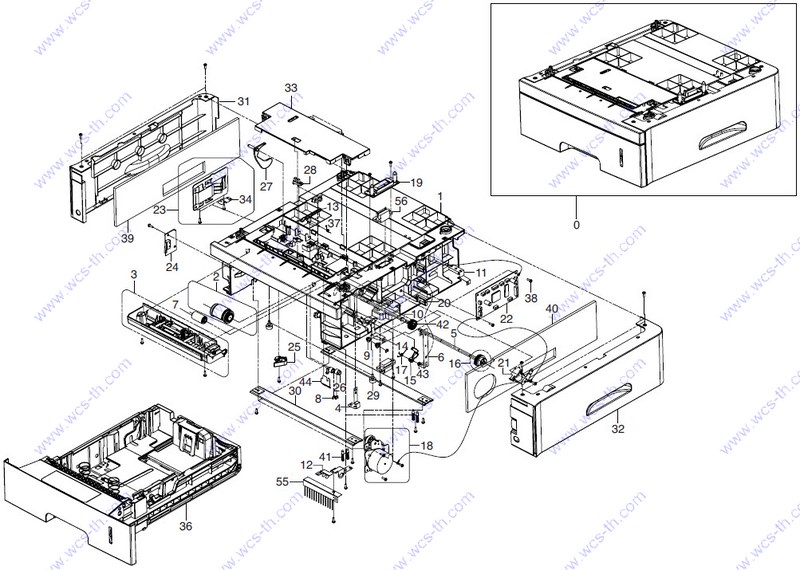

Samsung ML-4551 12. SCF Unit

Pic No.	Parts ID	Parts Name	Link
0	JC96-04015D	ELA UNIT-CASSETTE	Find 0
0	JC96-04015E	ELA UNIT-CASSETTE ML-4551NDR	Find 0
1	6002-000440	SCREW-TAPPING	Find 1
2	JC64-00189B	INDICATOR-M_EMPTY	Find 2
3	JC61-01244A	GUIDE-P-SIDE R	Find 3
4	JC61-01225C	GUIDE-M SIDE LOCK	Find 4
5	JC61-01220B	FRAME-M_CASSETTE	Find 5
5	JC61-01220C	FRAME-M_CASSETTE ML-4551NDR	Find 5
6	JC61-00751A	GUIDE-P-REAR PAPER CST	Find 6
7	JC61-01226C	GUIDE-M REAR	Find 7
8	JC61-00267D	GUIDE-M_LOCK A	Find 8
9	JC61-00414A	SPRING ETC-GUIDE PAPER	Find 9
10	JC64-00190C	KNOB-M REAR	Find 10
11	JC61-01224B	GUIDE-M EXTENSION CST	Find 11
11	JC61-01224C	GUIDE-M_EXTENSION CST ML-4551NDR	Find 11
12	JC61-01223A	BRACKET-P-EXTENTION	Find 12
13	JG61-70531A	SPRING ETC-LOCKER,PLATE	Find 13
14	JG66-40003A	GEAR-PINION	Find 14
15	JC67-00037A	CAP-M-GUIDE SIDE,L	Find 15
16	JC61-01222A	GUIDE-P-SIDE_L	Find 16
17	JC72-41210A	PMO-LOCKER PLATE	Find 17
18	JC61-01227A	GUIDE-M-PAPER SIZE	Find 18
19	JC97-02844A	MEA-UNIT_HOLDER PAD	Find 19
20	JC61-70911A	SPRING ETC-EXIT ROLL FD	Find 20
21	JC61-01228A	HOLDER-M-PAD HOUSING	Find 21
22	JC61-01724A	GUIDE-PAPER	Find 22
23	JC64-00268A	SHUTTER-PATH	Find 23
24	JC61-00455A	SPRING ETC-PLATE K/UP	Find 24
25	JC61-01245A	PLATE-P-KNOCK UP	Find 25
26	JC73-00141A	RPR-PAD CASSETTE	Find 26
27	JC61-01221B	GUIDE-M_HANDLE	Find 27
27	JC61-01221C	GUIDE-M_HANDLE ML-4551NDR	Find 27
28	JC68-01552A	LABEL(R)-CASSETTE	Find 28
30	JC61-00064A	SPRING ETC-CLAW	Find 30
32	JC63-01206A	GROUND-CASSETTE	Find 32

หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

ข้อมูลบริษัท เวิลด์ไวด์ คอม เซอร์วิส จำกัด

สมัครจดหมายข่าว

บริการลูกค้า

เกี่ยวกับ WCS
