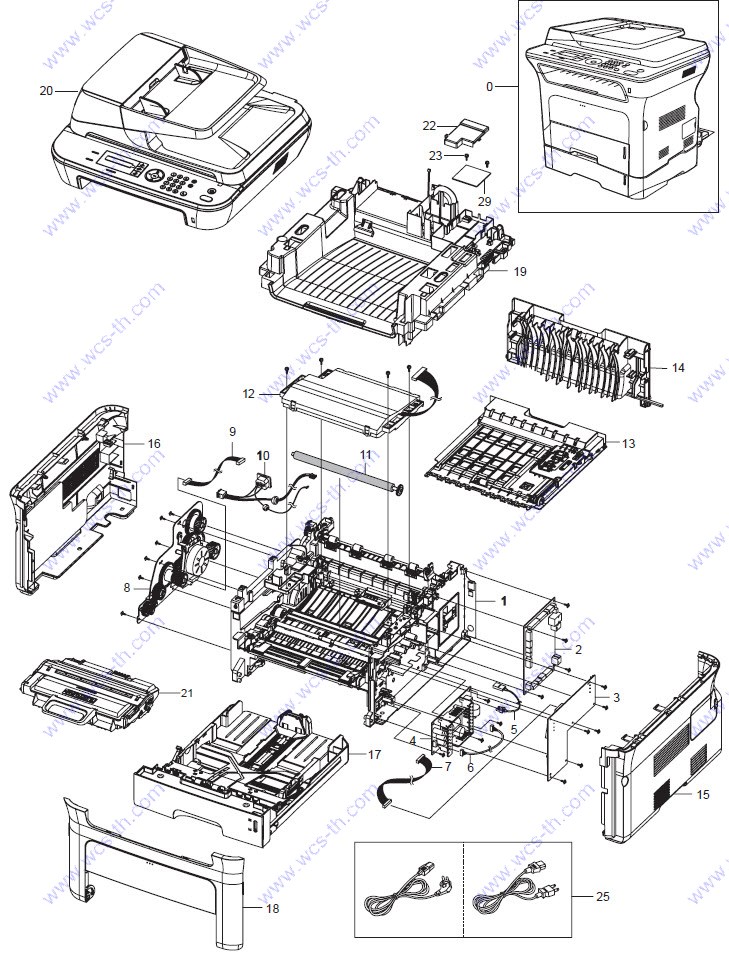

01. Main
| Pic No. | Parts ID | Parts Name | Link |
| 0 | SCX-4828FN | 28 PPM, Mono Laser MFP | Find 0 |
| 0 | SCX-4824FN | 24 PPM, Mono Laser MFP | Find 0 |
| 1 | JC96-05077A | ELA HOU-FRAME_220V | Find 1 |
| 1 | JC96-05076A | ELA HOU-FRAME_110V | Find 1 |
| 2 | JC92-02028A | PBA-MAIN SCX-4828FN | Find 2 |
| 2 | JC92-02038A | PBA-MAIN SCX-4824FN | Find 2 |
| 3 | JC44-00156A | HVPS | Find 3 |
| 4 | JC44-00095B | SMPS-V1 110V | Find 4 |
| 4 | JC44-00096B | SMPS-V2C 220V | Find 4 |
| 5 | JC39-00817A | CBF HARNESS-FUSER AC(SMPS) | Find 5 |
| 6 | JC39-00828A | HARNESS-SMPS | Find 6 |
| 7 | JC39-00824A | CBF HARNESS-HVPS | Find 7 |
| 8 | JC96-04731A | ELA UNIT-RX DRIVE | Find 8 |
| 9 | JC39-00820A | CBF HARNESS-MOTOR & SOLENOID | Find 9 |
| 10 | JC39-00816A | CBF HARNESS-AC-INLET | Find 10 |
| 11 | JC66-01218A | ROLLER-TRANSFER | Find 11 |
| 12 | JC96-04733A | ELA UNIT-LSU | Find 12 |
| 13 | JC96-04736A | MEA UNIT-DUPLEX | Find 13 |
| 14 | JC97-03015A | MEA UNIT-COVER_REAR | Find 14 |
| 15 | JC96-05079B | ELA HOU-COVER-RIGHT | Find 15 |
| 16 | JC97-03221A | MEA-COVER LEFT | Find 16 |
| 17 | JC97-03017A | MEA UNIT-CASSETTE | Find 17 |
| 18 | JC97-03222A | MEA-COVER FRONT | Find 18 |
| 19 | JC96-05078A | ELA HOU-COVER-MIDDLE | Find 19 |
| 20 | JC96-05074Q | ELA HOU-SCAN_LOW | Find 20 |
| 21 | JC96-04823B | CARTRIDGE-TONER | Find 21 |
| 22 | JC63-01926A | COVER-H_FAX_BOARD | Find 22 |
| 23 | 6003-000196 | SCREW-TAPTITE | Find 23 |
| 24 | JC92-01746A | PBA SUB-MODEM | Find 24 |
| 25 | 3903-000146 | CBF-POWER CORD | Find 25 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

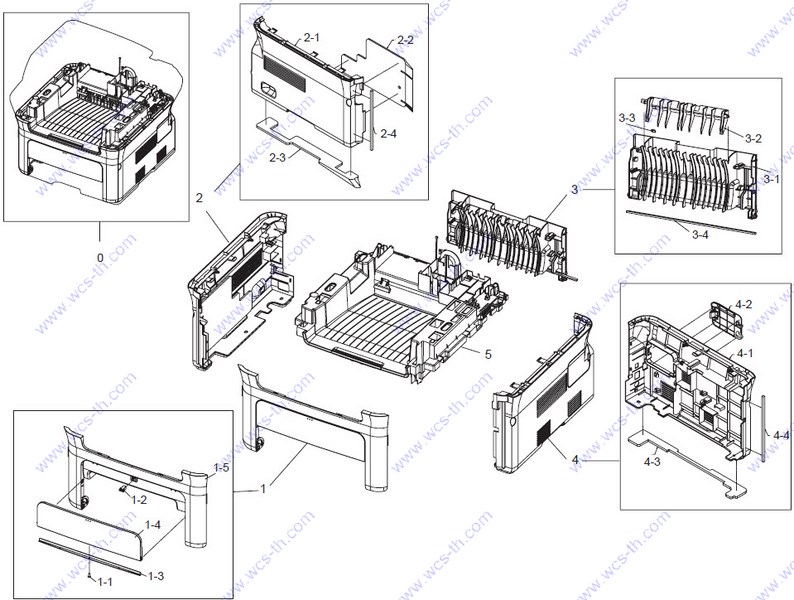

02. Cover Assy
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-05099B | ELA HOU-COVER | Find 0 |
| 1 | JC97-03222A | MEA-COVER FRONT | Find 1 |
| 2 | JC97-03221A | MEA-COVER LEFT | Find 2 |
| 3 | JC97-03015A | MEA UNIT-COVER_REAR | Find 3 |
| 4 | JC96-05079A | ELA HOU-COVER-RIGHT | Find 4 |
| 1-1 | 6003-000282 | SCREW-TAPTITE | Find 1-1 |
| 1-2 | JB64-00007A | LOCKER-LATCH PUSH | Find 1-2 |
| 1-3 | JC61-02267A | BRACKET-MANUAL | Find 1-3 |
| 1-4 | JC63-01569D | COVER-MANUAL | Find 1-4 |
| 1-5 | JC63-01919A | COVER-FRONT | Find 1-5 |
| 2-1 | JC63-01920A | COVER-LEFT | Find 2-1 |
| 2-2 | JC72-01405A | SPONGE-COVER SIDE L | Find 2-2 |
| 2-3 | JC72-01460A | SPONGE-SIDE BOTTOM L | Find 2-3 |
| 2-4 | JC72-01462A | SPONGE-SIDE FRONT | Find 2-4 |
| 3-1 | JC63-01526A | COVER-REAR | Find 3-1 |
| 3-2 | JC61-02399A | GUIDE-CHANGE_DUP | Find 3-2 |
| 3-3 | JC72-01444A | SPONGE-GUIDE CHANGE DUP | Find 3-3 |
| 3-4 | JC72-01445A | SPONGE-COVER REAR | Find 3-4 |
| 4-1 | JC63-01925B | COVER-RIGHT | Find 4-1 |
| 4-2 | JC63-01928B | COVER-RIGHT DIMM | Find 4-2 |
| 4-3 | JC72-01461A | SPONGE-SIDE BOTTOM R | Find 4-3 |
| 4-4 | JC72-01462A | SPONGE-SIDE FRONT | Find 4-4 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

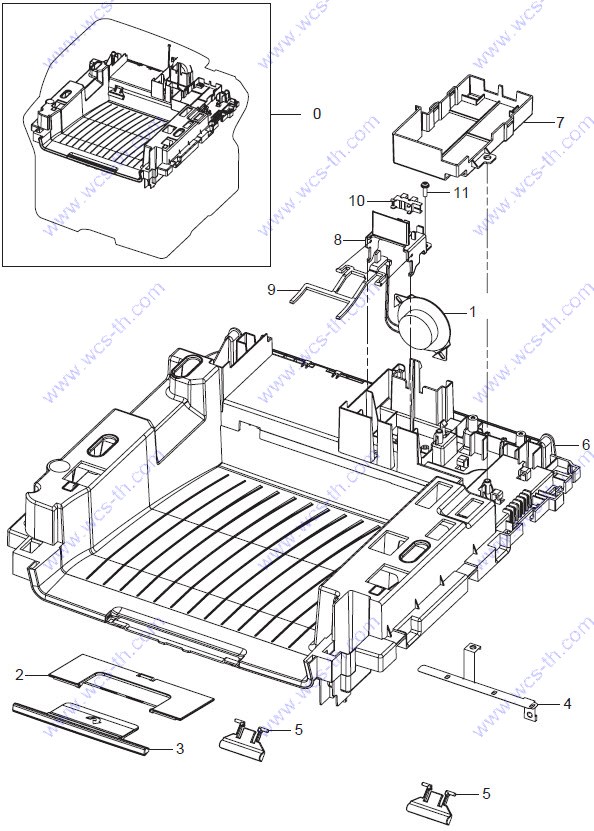

03. Cover Middle
| Pic No. | Parts ID | Parts Name | Link |
| - | JC39-00971A | HARNESS-BIN FULL UPPER | Find - |
| - | JC39-00949A | HARNESS-SPEACKER JOINT | Find - |
| 0 | JC96-05078A | ELA HOU-COVER-MIDDLE | Find 0 |
| 1 | 3001-002262 | SPEAKER | Find 1 |
| 2 | JC61-02583A | STACKER-RX LARGE | Find 2 |
| 3 | JC61-02584A | STACKER-RX SMALL | Find 3 |
| 4 | JC63-01913A | GROUND-BRUSH | Find 4 |
| 5 | JC72-01343A | PMO-SUB_M_STACKER | Find 5 |
| 6 | JC63-01921A | COVER-MIDDLE | Find 6 |
| 7 | JC63-01927A | COVER-L_FAX_BOARD | Find 7 |
| 8 | JC61-02701A | HOLDER-ACTUATOR BINFUL | Find 8 |
| 9 | JC66-02009A | ACTUATOR-BIN FULL | Find 9 |
| 10 | 0604-001095 | PHOTO-INTERRUPTER | Find 10 |
| 11 | 6003-000196 | SCREW-TAPTITE | Find 11 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

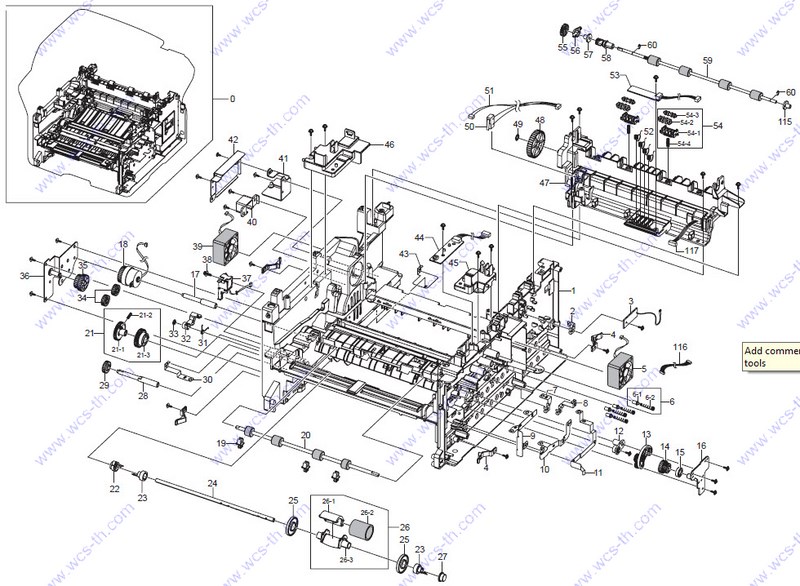

04. Frame1
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-05076A | ELA HOU-FRAME_110V | Find 0 |
| 0 | JC96-05077A | ELA HOU-FRAME_220V | Find 0 |
| 1 | JC61-02187A | FRAME-BASE | Find 1 |
| 2 | JC63-01616A | GROUND-ZENOR | Find 2 |
| 3 | JC92-01488A | PBA MAIN-ZENER | Find 3 |
| 4 | JC72-00983A | PMO-LOCKER CST | Find 4 |
| 5 | JC31-00085A | FAN-DC | Find 5 |
| 7 | JC63-01619A | GROUND-MOTOR_MAIN | Find 7 |
| 8 | JC63-01618A | GROUND-CONTROLLER | Find 8 |
| 9 | JC63-01620A | GROUND-PAPER | Find 9 |
| 10 | JC63-01613A | GROUND-BRKT FRONT | Find 10 |
| 11 | JC63-01621A | GROUND-TRANSFER | Find 11 |
| 12 | JC61-02233A | HOLDER-REGI | Find 12 |
| 13 | JC96-04732A | MEA UNIT SWING | Find 13 |
| 14 | JC66-01651A | GEAR DUPLEX RDCN | Find 14 |
| 15 | JC61-02220A | COLLAR SWING | Find 15 |
| 16 | JC61-02225A | BRKT SWING | Find 16 |
| 17 | JC66-01655A | SHAFT-FEED REGI | Find 17 |
| 18 | JC66-01865A | CLUTCH ELECTRIC | Find 18 |
| 19 | JC72-00382B | PMO-BUSHING FEED | Find 19 |
| 20 | JC66-01656A | ROLLER-FEED REGI | Find 20 |
| 21 | JC97-03141A | MEA UNIT-GEAR PICK UP | Find 21 |
| 22 | JC66-01889A | CAM-PICK UP | Find 22 |
| 23 | JC72-00982A | PMO-IDLE PICK_UP | Find 23 |
| 24 | JC66-01692A | SHAFT-P-PICK_UP | Find 24 |
| 25 | JC61-00915A | STOPPER-M-PICK UP_R2 | Find 25 |
| 26 | JC97-03062A | MEA UNIT-PICK UP | Find 26 |
| 27 | JC61-00587A | BUSH-M-PICK_UP R2 | Find 27 |
| 28 | JC66-01660A | SHAFT-FEED | Find 28 |
| 29 | JC66-01634A | GEAR-FEED DR 16 | Find 29 |
| 30 | JC63-01614A | GROUND-GUIDE TR | Find 30 |
| 31 | 6107-001352 | SPRING-TS | Find 31 |
| 32 | JC66-00377A | CAM-M-PICKJJP | Find 32 |
| 33 | 6044-000001 | RING-CS ID3,OD3,T0.25,BLACK,SU | Find 33 |
| 34 | JC66-40964A | GEAR-EXIT,IDLE(Z17) | Find 34 |
| 35 | JC66-01627A | GEAR-FEED RDCN 24/19 | Find 35 |
| 36 | JC61-02226A | BRACKET-FEED | Find 36 |
| 37 | JC33-00026A | SOLENOID PCIKJP | Find 37 |
| 38 | 6003-000301 | SCREW-TAPTITE | Find 38 |
| 39 | JC31-00085A | FAN-DC | Find 39 |
| 40 | JC61-02232A | HOLDER-POWER | Find 40 |
| 41 | JC63-01571A | SHIELD-POWERjSWITCH | Find 41 |
| 42 | JC61-02238A | PLATE-POWER CAP | Find 42 |
| 43 | JC63-01615A | GROJND-SCF | Find 43 |
| 44 | JC92-01439A | PBA LED-PANEL | Find 44 |
| 45 | JC61-02312A | FRAME-LSJ-HOLDER-R | Find 45 |
| 46 | JC61-02311A | FRAME-LSJ-HOLDERjL | Find 46 |
| 47 | JC61-02574A | FRAME-EXITjHIGH | Find 47 |
| 48 | JC66-00875A | GEAR-M-FJSER IDLE 1 | Find 48 |
| 49 | 6044-001005 | RING-CS | Find 49 |
| 50 | JC39-00826A | CBF HARNESS-LSJ SW&FAN | Find 50 |
| 52 | JC65-00019A | TERMINAL-CRJM | Find 52 |
| 53 | JC92-01829A | PBA SUB-TERMINAL | Find 53 |
| 55 | JC66-40209A | GEAR-M-EXIT | Find 55 |
| 56 | JC72-41191B | PMO-BEARING SHAFT | Find 56 |
| 57 | JC61-02308A | SUPPORT-ROLLER | Find 57 |
| 59 | JC66-01662A | ROLLER-EXIT F/DOWN | Find 59 |
| 63 | JC63-01916A | SHIELD-CONTROLLER | Find 63 |
| 64 | JC63-01573A | SHIELD-SMPS | Find 64 |
| 65 | JC62-00461A | INSJLATION-SMPS | Find 65 |
| 66 | JC61-40001A | FOOT-ML80 | Find 66 |
| 67 | JC70-00546A | ADJUST-MANUAL L | Find 67 |
| 68 | JC70-00547A | ADJUST-MANUAL R | Find 68 |
| 69 | JC70-00304A | ADJUST RACK-M-MANUAL | Find 69 |
| 71 | JC66-00387A | GEAR-RACKjPINION | Find 71 |
| 72 | JC66-01647A | ACTUATOR-FEED | Find 72 |
| 73 | JC66-01646A | ACTUATOR-DUPLEX | Find 73 |
| 74 | 6107-001164 | SPRING-TS | Find 74 |
| 75 | 0604-001095 | PHOTO INTERRRUPTER | Find 75 |
| 76 | JC39-00824A | CBF HARNESS-HVPS | Find 76 |
| 77 | JC61-02309A | FRAME-DUPLEX_PATH | Find 77 |
| 78 | JC66-01022A | ROLLER-M-IDLE SCF | Find 78 |
| 79 | JC66-01846A | SHAFT-DUP_ROLLER | Find 79 |
| 80 | JC61-02303A | GUIDE-FRAME_DUPLEX | Find 80 |
| 81 | JC63-01743A | SHEET-GUIDE_DUP_PATH | Find 81 |
| 82 | JC72-00382B | PMO-BUSHING FEED | Find 82 |
| 83 | JC66-00598A | ROLLER-FEED | Find 83 |
| 84 | JC66-01648A | ACTUATOR-EMPTY | Find 84 |
| 85 | JC63-01617A | GROUND-PICKJJP | Find 85 |
| 86 | JC63-00527A | SHEET-BRUSH | Find 86 |
| 87 | JC75-00095A | MEC-BRUSH PICK UP | Find 87 |
| 88 | JC61-02268A | BRACKET-COVER FRONT | Find 88 |
| 89 | JC63-01676A | GROUND-BRUSH PICK UP | Find 89 |
| 90 | JC61-02306A | GUIDE-PAPER | Find 90 |
| 91 | JC61-02400A | GUIDE FRONT PAPER | Find 91 |
| 92 | JC61-02305A | GUIDE-TRjRIB | Find 92 |
| 93 | JC61-00604A | PLATE-EjSAW | Find 93 |
| 94 | JC61-02307A | GUIDE-TR | Find 94 |
| 95 | JC61-02196A | GUIDE-INPUT | Find 95 |
| 96 | JC61-02236A | PLATE EARTH TRANSFER | Find 96 |
| 97 | JC66-01654A | SHAFT-FEED IDLE | Find 97 |
| 98 | JC61-00585A | BUSH-M-FEED IDLE | Find 98 |
| 99 | JC61-70958A | SPRING ETC-TR | Find 99 |
| 100 | JC61-00914A | PLATE-P-PUSH BUSHING | Find 100 |
| 101 | JC72-00984A | PMO-PLATE GUIDE DEVE_L | Find 101 |
| 102 | JC61-70932A | SPRING ETC-GUIDE DEVE | Find 102 |
| 103 | JC72-00985A | PMO-PLATE GUIDE DEVE_R | Find 103 |
| 104 | 6107-001370 | SPRING TR | Find 104 |
| 105 | JC61-02468A | BUSH-TRjL | Find 105 |
| 106 | JC65-00033A | TERMINAL SPRING TR | Find 106 |
| 107 | JC61-00588A | PMO-BUSHINGjTR(L) | Find 107 |
| 108 | JC61-02304A | GUIDE-HOLDERjTR | Find 108 |
| 109 | JC61-00553A | SPRING ETC-ES (Guide holder TR) | Find 109 |
| 110 | JC61-02231A | HOLDER-TRANSFER | Find 110 |
| 111 | JC66-01649A | LINK-COVERjREAR | Find 111 |
| 112 | 6107-001172 | SPRING-CS | Find 112 |
| 114 | JC97-03067A | MEA UNIT-GUIDE REAR | Find 114 |
| 115 | JC61-00424A | BUSH-4 | Find 115 |
| 116 | JC39-00856A | HARNESS-CCD HOME | Find 116 |
| 117 | JC39-00945A | HANESS-FUSER SMPS | Find 117 |
| 6-1 | JC70-40912A | ICT SHAFT HV LARGE | Find 6-1 |
| 6-2 | JC61-00031A | SPRING ETC-HV LARGE | Find 6-2 |
| 21-1 | JC72-00979A | GEAR PICK UP A | Find 21-1 |
| 21-2 | 6107-001167 | SPRING-CS | Find 21-2 |
| 21-3 | JC72-00980A | GEAR PICKUP B | Find 21-3 |
| 26-1 | JC73-00265A | RUBBER PICK_UP | Find 26-1 |
| 26-2 | JC61-00910A | HOUSING-M-PICK UP | Find 26-2 |
| 26-3 | JC61-00909A | HOUSING-M-PICK UP_R2 | Find 26-3 |
| 54-1 | JC61-02702A | HOLDER-EXIT ROLLER | Find 54-1 |
| 54-2 | JC66-00824A | ROLLER-EXIT MAIN | Find 54-2 |
| 54-3 | JC66-00830A | ROLLER-EXIT FR | Find 54-3 |
| 54-4 | 6107-001163 | SPRING CS | Find 54-4 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

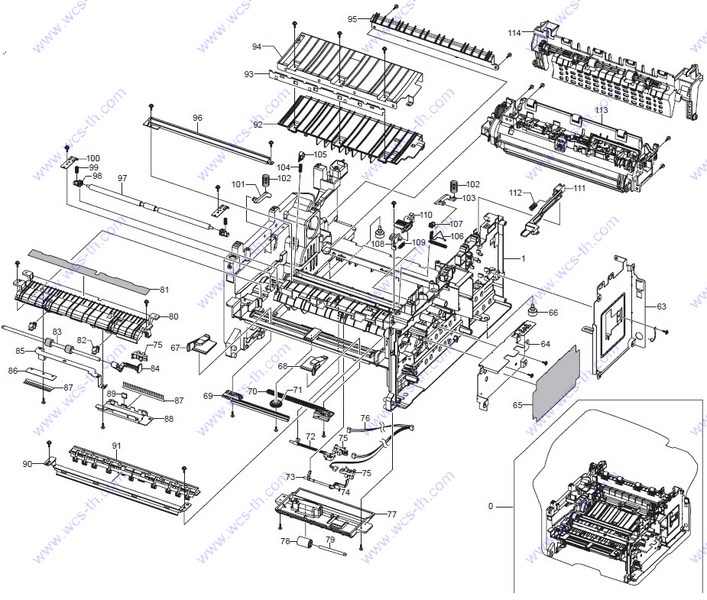

05. Frame2
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-05076A | ELA HOU-FRAME_110V | Find 0 |
| 0 | JC96-05077A | ELA HOU-FRAME_220V | Find 0 |
| 1 | JC61-02187A | FRAME-BASE | Find 1 |
| 2 | JC63-01616A | GROUND-ZENOR | Find 2 |
| 3 | JC92-01488A | PBA MAIN-ZENER | Find 3 |
| 4 | JC72-00983A | PMO-LOCKER CST | Find 4 |
| 5 | JC31-00085A | FAN-DC | Find 5 |
| 7 | JC63-01619A | GROUND-MOTOR_MAIN | Find 7 |
| 8 | JC63-01618A | GROUND-CONTROLLER | Find 8 |
| 9 | JC63-01620A | GROUND-PAPER | Find 9 |
| 10 | JC63-01613A | GROUND-BRKT FRONT | Find 10 |
| 11 | JC63-01621A | GROUND-TRANSFER | Find 11 |
| 12 | JC61-02233A | HOLDER-REGI | Find 12 |
| 13 | JC96-04732A | MEA UNIT SWING | Find 13 |
| 14 | JC66-01651A | GEAR DUPLEX RDCN | Find 14 |
| 15 | JC61-02220A | COLLAR SWING | Find 15 |
| 16 | JC61-02225A | BRKT SWING | Find 16 |
| 17 | JC66-01655A | SHAFT-FEED REGI | Find 17 |
| 18 | JC66-01865A | CLUTCH ELECTRIC | Find 18 |
| 19 | JC72-00382B | PMO-BUSHING FEED | Find 19 |
| 20 | JC66-01656A | ROLLER-FEED REGI | Find 20 |
| 21 | JC97-03141A | MEA UNIT-GEAR PICK UP | Find 21 |
| 22 | JC66-01889A | CAM-PICK UP | Find 22 |
| 23 | JC72-00982A | PMO-IDLE PICK_UP | Find 23 |
| 24 | JC66-01692A | SHAFT-P-PICK_UP | Find 24 |
| 25 | JC61-00915A | STOPPER-M-PICK UP_R2 | Find 25 |
| 26 | JC97-03062A | MEA UNIT-PICK UP | Find 26 |
| 27 | JC61-00587A | BUSH-M-PICK_UP R2 | Find 27 |
| 28 | JC66-01660A | SHAFT-FEED | Find 28 |
| 29 | JC66-01634A | GEAR-FEED DR 16 | Find 29 |
| 30 | JC63-01614A | GROUND-GUIDE TR | Find 30 |
| 31 | 6107-001352 | SPRING-TS | Find 31 |
| 32 | JC66-00377A | CAM-M-PICKJJP | Find 32 |
| 33 | 6044-000001 | RING-CS ID3,OD3,T0.25,BLACK,SU | Find 33 |
| 34 | JC66-40964A | GEAR-EXIT,IDLE(Z17) | Find 34 |
| 35 | JC66-01627A | GEAR-FEED RDCN 24/19 | Find 35 |
| 36 | JC61-02226A | BRACKET-FEED | Find 36 |
| 37 | JC33-00026A | SOLENOID PCIKJP | Find 37 |
| 38 | 6003-000301 | SCREW-TAPTITE | Find 38 |
| 39 | JC31-00085A | FAN-DC | Find 39 |
| 40 | JC61-02232A | HOLDER-POWER | Find 40 |
| 41 | JC63-01571A | SHIELD-POWERjSWITCH | Find 41 |
| 42 | JC61-02238A | PLATE-POWER CAP | Find 42 |
| 43 | JC63-01615A | GROJND-SCF | Find 43 |
| 44 | JC92-01439A | PBA LED-PANEL | Find 44 |
| 45 | JC61-02312A | FRAME-LSJ-HOLDER-R | Find 45 |
| 46 | JC61-02311A | FRAME-LSJ-HOLDERjL | Find 46 |
| 47 | JC61-02574A | FRAME-EXITjHIGH | Find 47 |
| 48 | JC66-00875A | GEAR-M-FJSER IDLE 1 | Find 48 |
| 49 | 6044-001005 | RING-CS | Find 49 |
| 50 | JC39-00826A | CBF HARNESS-LSJ SW&FAN | Find 50 |
| 52 | JC65-00019A | TERMINAL-CRJM | Find 52 |
| 53 | JC92-01829A | PBA SUB-TERMINAL | Find 53 |
| 55 | JC66-40209A | GEAR-M-EXIT | Find 55 |
| 56 | JC72-41191B | PMO-BEARING SHAFT | Find 56 |
| 57 | JC61-02308A | SUPPORT-ROLLER | Find 57 |
| 59 | JC66-01662A | ROLLER-EXIT F/DOWN | Find 59 |
| 63 | JC63-01916A | SHIELD-CONTROLLER | Find 63 |
| 64 | JC63-01573A | SHIELD-SMPS | Find 64 |
| 65 | JC62-00461A | INSJLATION-SMPS | Find 65 |
| 66 | JC61-40001A | FOOT-ML80 | Find 66 |
| 67 | JC70-00546A | ADJUST-MANUAL L | Find 67 |
| 68 | JC70-00547A | ADJUST-MANUAL R | Find 68 |
| 69 | JC70-00304A | ADJUST RACK-M-MANUAL | Find 69 |
| 71 | JC66-00387A | GEAR-RACKjPINION | Find 71 |
| 72 | JC66-01647A | ACTUATOR-FEED | Find 72 |
| 73 | JC66-01646A | ACTUATOR-DUPLEX | Find 73 |
| 74 | 6107-001164 | SPRING-TS | Find 74 |
| 75 | 0604-001095 | PHOTO INTERRRUPTER | Find 75 |
| 76 | JC39-00824A | CBF HARNESS-HVPS | Find 76 |
| 77 | JC61-02309A | FRAME-DUPLEX_PATH | Find 77 |
| 78 | JC66-01022A | ROLLER-M-IDLE SCF | Find 78 |
| 79 | JC66-01846A | SHAFT-DUP_ROLLER | Find 79 |
| 80 | JC61-02303A | GUIDE-FRAME_DUPLEX | Find 80 |
| 81 | JC63-01743A | SHEET-GUIDE_DUP_PATH | Find 81 |
| 82 | JC72-00382B | PMO-BUSHING FEED | Find 82 |
| 83 | JC66-00598A | ROLLER-FEED | Find 83 |
| 84 | JC66-01648A | ACTUATOR-EMPTY | Find 84 |
| 85 | JC63-01617A | GROUND-PICKJJP | Find 85 |
| 86 | JC63-00527A | SHEET-BRUSH | Find 86 |
| 87 | JC75-00095A | MEC-BRUSH PICK UP | Find 87 |
| 88 | JC61-02268A | BRACKET-COVER FRONT | Find 88 |
| 89 | JC63-01676A | GROUND-BRUSH PICK UP | Find 89 |
| 90 | JC61-02306A | GUIDE-PAPER | Find 90 |
| 91 | JC61-02400A | GUIDE FRONT PAPER | Find 91 |
| 92 | JC61-02305A | GUIDE-TRjRIB | Find 92 |
| 93 | JC61-00604A | PLATE-EjSAW | Find 93 |
| 94 | JC61-02307A | GUIDE-TR | Find 94 |
| 95 | JC61-02196A | GUIDE-INPUT | Find 95 |
| 96 | JC61-02236A | PLATE EARTH TRANSFER | Find 96 |
| 97 | JC66-01654A | SHAFT-FEED IDLE | Find 97 |
| 98 | JC61-00585A | BUSH-M-FEED IDLE | Find 98 |
| 99 | JC61-70958A | SPRING ETC-TR | Find 99 |
| 100 | JC61-00914A | PLATE-P-PUSH BUSHING | Find 100 |
| 101 | JC72-00984A | PMO-PLATE GUIDE DEVE_L | Find 101 |
| 102 | JC61-70932A | SPRING ETC-GUIDE DEVE | Find 102 |
| 103 | JC72-00985A | PMO-PLATE GUIDE DEVE_R | Find 103 |
| 104 | 6107-001370 | SPRING TR | Find 104 |
| 105 | JC61-02468A | BUSH-TRjL | Find 105 |
| 106 | JC65-00033A | TERMINAL SPRING TR | Find 106 |
| 107 | JC61-00588A | PMO-BUSHINGjTR(L) | Find 107 |
| 108 | JC61-02304A | GUIDE-HOLDERjTR | Find 108 |
| 109 | JC61-00553A | SPRING ETC-ES (Guide holder TR) | Find 109 |
| 110 | JC61-02231A | HOLDER-TRANSFER | Find 110 |
| 111 | JC66-01649A | LINK-COVERjREAR | Find 111 |
| 112 | 6107-001172 | SPRING-CS | Find 112 |
| 114 | JC97-03067A | MEA UNIT-GUIDE REAR | Find 114 |
| 115 | JC61-00424A | BUSH-4 | Find 115 |
| 116 | JC39-00856A | HARNESS-CCD HOME | Find 116 |
| 117 | JC39-00945A | HANESS-FUSER SMPS | Find 117 |
| 6-1 | JC70-40912A | ICT SHAFT HV LARGE | Find 6-1 |
| 6-2 | JC61-00031A | SPRING ETC-HV LARGE | Find 6-2 |
| 21-1 | JC72-00979A | GEAR PICK UP A | Find 21-1 |
| 21-2 | 6107-001167 | SPRING-CS | Find 21-2 |
| 21-3 | JC72-00980A | GEAR PICKUP B | Find 21-3 |
| 26-1 | JC73-00265A | RUBBER PICK_UP | Find 26-1 |
| 26-2 | JC61-00910A | HOUSING-M-PICK UP | Find 26-2 |
| 26-3 | JC61-00909A | HOUSING-M-PICK UP_R2 | Find 26-3 |
| 54-1 | JC61-02702A | HOLDER-EXIT ROLLER | Find 54-1 |
| 54-2 | JC66-00824A | ROLLER-EXIT MAIN | Find 54-2 |
| 54-3 | JC66-00830A | ROLLER-EXIT FR | Find 54-3 |
| 54-4 | 6107-001163 | SPRING CS | Find 54-4 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

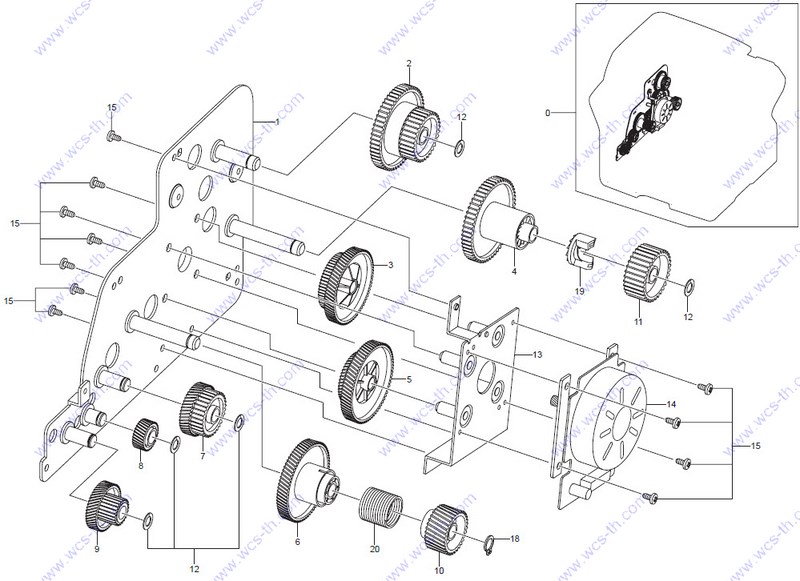

06. Main Drive
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-04731A | ELA UNIT-DRIVE | Find 0 |
| 1 | JC61-02195A | BRACKET-GEAR | Find 1 |
| 2 | JC66-01641A | GEAR-EXIT RDCN 61/28 | Find 2 |
| 3 | JC66-01628A | GEAR-RDCN 83/40 | Find 3 |
| 4 | JC66-01632A | GEAR-FUSER DR IN 61 | Find 4 |
| 5 | JC66-01626A | GEAR-RDCN 89/55 | Find 5 |
| 6 | JC66-01633A | GEAR-OPC DR IN 89 | Find 6 |
| 7 | JC66-01625A | GEAR-FEED RDCN 56/25 | Find 7 |
| 8 | JC66-01640A | GEAR-PICKUP IDLE 31 | Find 8 |
| 9 | JC66-01650A | GEAR-RDCN 52/18 | Find 9 |
| 10 | JC66-01798A | GEAR-OPC CLUTCH 29 | Find 10 |
| 11 | JC66-01637A | GEAR-FUSER DR OUT 37 | Find 11 |
| 12 | 6031-000023 | WASHER-PLAIN | Find 12 |
| 13 | JC61-02227A | BRACKET-MOTOR | Find 13 |
| 14 | JC31-00090A | MOTOR BLDC | Find 14 |
| 15 | 6003-000269 | SCREW-TAPTITE | Find 15 |
| 18 | 6044-001130 | RING-C | Find 18 |
| 19 | JC66-00340A | GEAR HUB CLUTCH | Find 19 |
| 20 | 6107-001372 | SPRING CLUTCH | Find 20 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

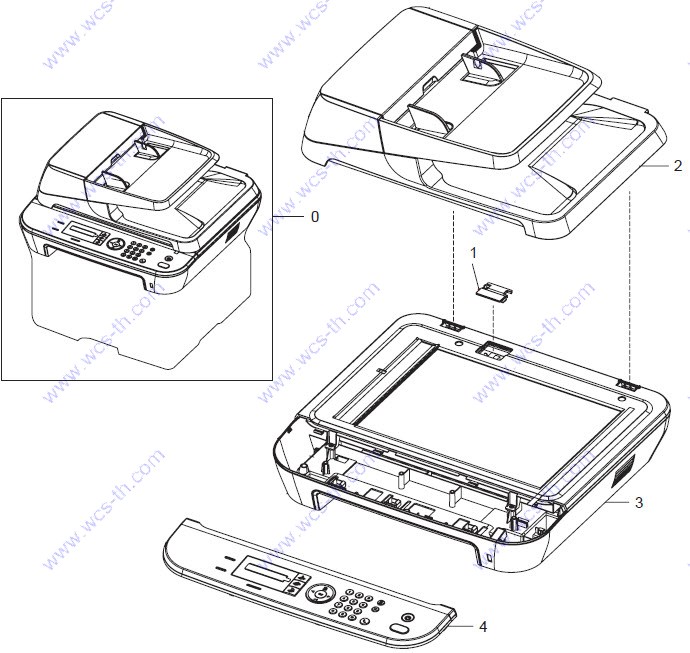

07. Main Drive
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-05074D | ELA HOU-SCAN_HIGH SCX-4828FN | Find 0 |
| 0 | JC96-05461A | ELA HOU-SCAN_LOW SCX-4824FN | Find 0 |
| 1 | JC67-00304A | CAP-ADF CONNECTOR | Find 1 |
| 2 | JC96-05091A | ELA HOU-ADF | Find 2 |
| 3 | JC96-05095A | ELA HOU-PLATEN_HIGH SCX-4828FN | Find 3 |
| 3 | JC96-05097A | ELA HOU-PLATEN_LOW SCX-4824FN | Find 3 |
| 4 | JC96-05094D | ELA HOU-OPE SCX-4828FN | Find 4 |
| 4 | JC96-05460A | ELA HOU-OPE SCX-4824FN | Find 4 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

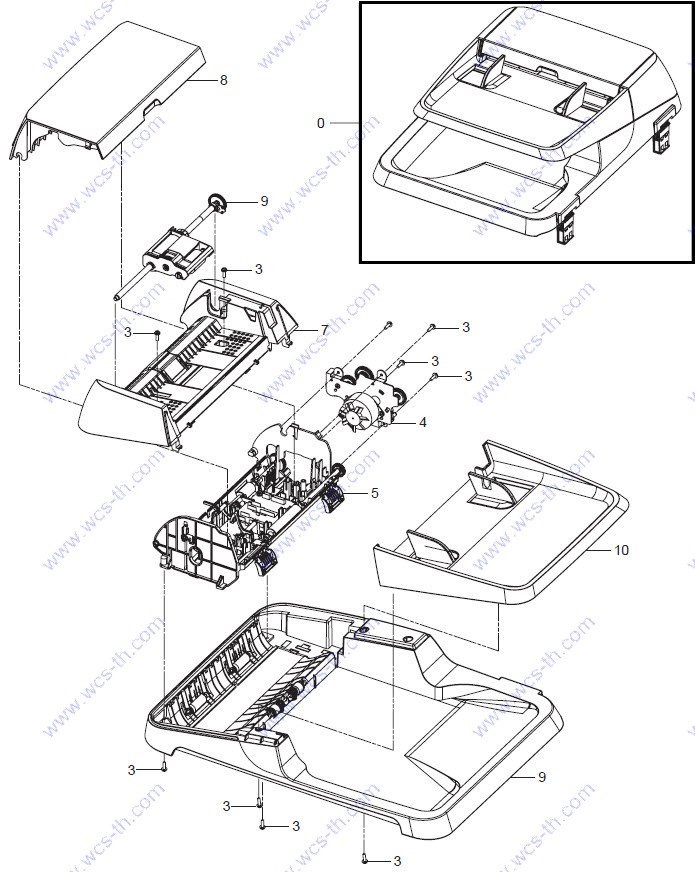

08. ADF Assy
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-05091A | ELA HOU-ADF | Find 0 |
| 3 | 6003-000196 | SCREW-TAPTITE | Find 3 |
| 4 | JC96-05092A | ELA HOU-ADF MOTOR | Find 4 |
| 5 | JC96-05093A | ELA HOU-ADF LOWER | Find 5 |
| 6 | JC97-01962A | MEA UNIT-PICKUP DELL | Find 6 |
| 7 | JC97-03223A | MEA-ADF UPPER | Find 7 |
| 8 | JC97-03224A | MEA-COVER OPEN | Find 8 |
| 9 | JC97-03225A | MEA-COVER PLATEN | Find 9 |
| 10 | JC97-03226A | MEA-TX STACKER | Find 10 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

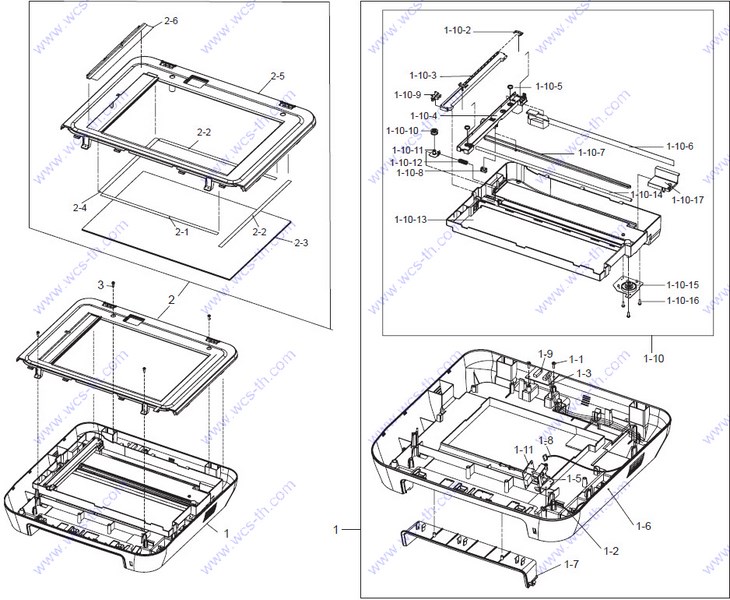

09. Platen Assy
| Pic No. | Parts ID | Parts Name | Link |
| 1 | JC96-05096A | ELA HOU-SCAN LOWER_H SCX-4828FN | Find 1 |
| 1 | JC96-05098A | ELA HOU-SCAN LOWER_L SCX-4824FN | Find 1 |
| 2 | JC97-03227A | MEA-SCAN UPPER | Find 2 |
| 1-1 | 6003-000196 | SCREW-TAPTITE | Find 1-1 |
| 1-2 | JC39-00944A | HARNESS-OPE | Find 1-2 |
| 1-3 | JC39-00948A | HARNESS-ADF LOWER | Find 1-3 |
| 1-4 | JC39-00951A | FLAT CABLE | Find 1-4 |
| 1-5 | JC61-02575A | HOLDER-USB | Find 1-5 |
| 1-6 | JC63-01922A | COVER-SCAN LOWER | Find 1-6 |
| 1-7 | JC63-01929A | COVER-MIDDLE DECO | Find 1-7 |
| 1-8 | JC39-00953A | HARNESS-USB HOST SCX-4828FN | Find 1-8 |
| 1-9 | JC92-02033A | PBA-JOINT | Find 1-9 |
| 2-1 | 0203-001266 | TAPE-DOUBLE FACE | Find 2-1 |
| 2-2 | 0203-001267 | TAPE-DOUBLE FACE | Find 2-2 |
| 2-3 | JB01-00002A | GLASS-PLATEN | Find 2-3 |
| 2-4 | JC63-01906A | SHEET-SHADING | Find 2-4 |
| 2-5 | JC63-01923A | COVER-SCAN UPPER | Find 2-5 |
| 2-6 | JC97-03237A | MEA HOU-ADF SHEET | Find 2-6 |
| 1-10 | JC96-05131A | ELA UNIT-STANDARD SCAN | Find 1-10 |
| 1-11 | JC92-02065A | PBA-USB HOST SCX-4828FN | Find 1-11 |
| 1-10-2 | JC66-01580A | SLIDER-CIS | Find 1-10-2 |
| 1-10-3 | 0609-001305 | CONTACT IMAGE SENSOR | Find 1-10-3 |
| 1-10-4 | JC61-02506A | BRACKET-CIS | Find 1-10-4 |
| 1-10-5 | 6107-001137 | SPRING-CS | Find 1-10-5 |
| 1-10-6 | JC39-00951A | FLAT CABLE | Find 1-10-6 |
| 1-10-7 | 6602-001637 | BELT-TIMING GEAR | Find 1-10-7 |
| 1-10-8 | JB61-00232A | CLIP-P-BELT | Find 1-10-8 |
| 1-10-9 | 0604-001095 | PHOTO-INTERRUPTER | Find 1-10-9 |
| 1-10-10 | JC66-00713A | PULLEY-M_IDLE | Find 1-10-10 |
| 1-10-11 | JC61-00931A | BRACKET-P-PULLEY | Find 1-10-11 |
| 1-10-12 | 6107-001194 | SPRING-CS | Find 1-10-12 |
| 1-10-13 | JC61-02517A | FRAME-SCAN LOWER | Find 1-10-13 |
| 1-10-14 | JC66-01448A | SHAFT-CIS | Find 1-10-14 |
| 1-10-15 | JC96-05013A | ELA UNIT-SCAN DRIVE | Find 1-10-15 |
| 1-10-16 | 6003-000196 | SCREW-TAPTITE | Find 1-10-16 |
| 1-10-17 | JC63-01803A | COVER-FFC | Find 1-10-17 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

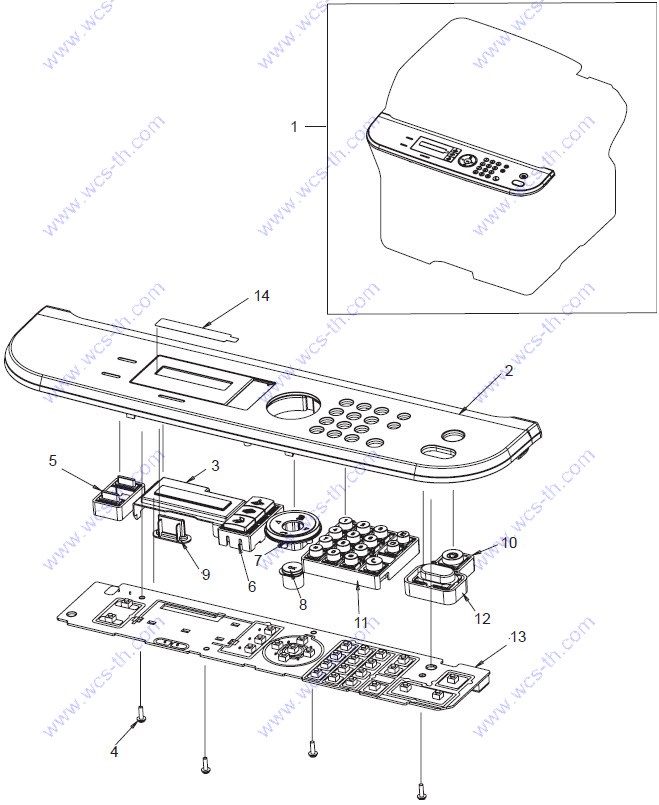

10. OPE Unit
| Pic No. | Parts ID | Parts Name | Link |
| 1 | JC96-05094Q | ELA HOU-OPE | Find 1 |
| 2 | JC63-01924Q | COVER-OPE | Find 2 |
| 3 | JC63-00076A | COVER-WINDOW SF-530 | Find 3 |
| 4 | 6003-000196 | SCREW-TAPTITE | Find 4 |
| 5 | JC64-00386A | KEY-EXTRA | Find 5 |
| 6 | JC64-00387A | KEY-FAX | Find 6 |
| 7 | JC64-00388A | KEY-MENU | Find 7 |
| 8 | JC64-00389A | KEY-OK | Find 8 |
| 9 | JC64-00392A | KEY-STATUS | Find 9 |
| 10 | JC64-00393A | KEY-STOP | Find 10 |
| 11 | JC64-00394A | KEY-TEL | Find 11 |
| 12 | JC64-00410A | KEY-START | Find 12 |
| 13 | JC92-02019A | PBA SUB-OPE | Find 13 |
| 14 | JC63-01802A | COVER-LCD | Find 14 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

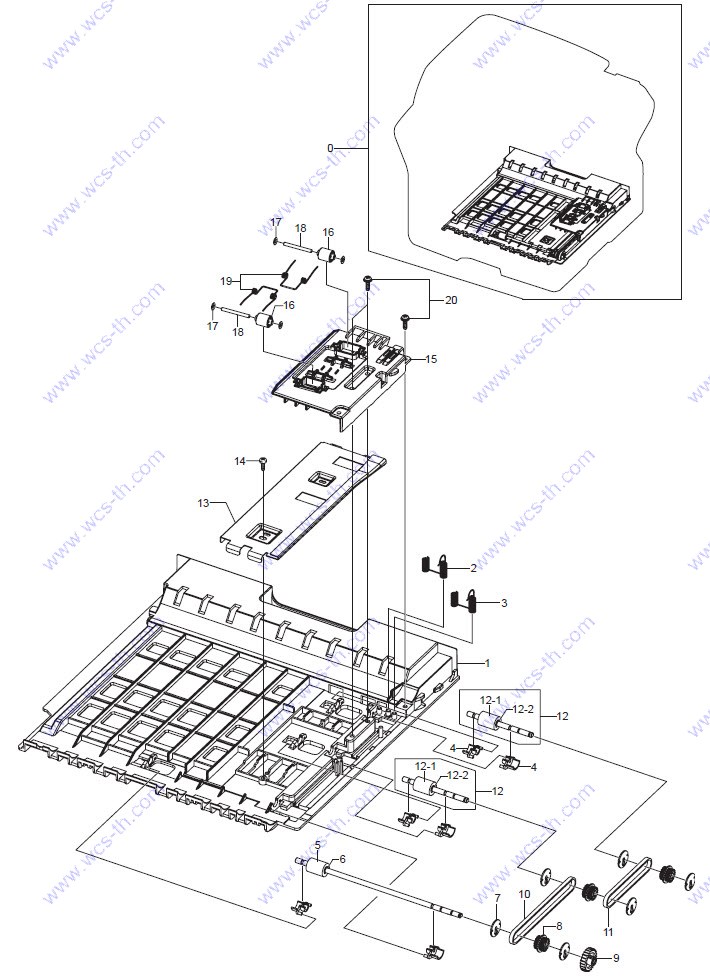

11. Duplex Unit(Only SCX-4828FN)
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-04736A | ELA UNIT-DUPLEX | Find 0 |
| 1 | JC61-02188A | FRAME-DUPLEX_BASE | Find 1 |
| 2 | JC65-00036A | TERMINAL-GND_DUP L | Find 2 |
| 3 | JC65-00035A | TERMINAL-GND_DUP S | Find 3 |
| 4 | JC61-00665A | BUSH-M-FEED, DUP | Find 4 |
| 5 | JC66-01657A | ROLLER-FEED_DUP2 | Find 5 |
| 6 | 6044-000107 | RING-C | Find 6 |
| 7 | JC66-00900A | PULLEY-M-18-DUMMY_DUP | Find 7 |
| 8 | JC66-00899A | PULLEY-18_DUP | Find 8 |
| 9 | JC66-00038A | GEAR-EXIT F/DOWN | Find 9 |
| 10 | 6602-001589 | BELT-TIMING GEAR | Find 10 |
| 11 | 6602-001588 | BELT-TIMING GEAR | Find 11 |
| 12 | JC96-04983A | ELA UNIT-ROLLER_DUP | Find 12 |
| 13 | JC61-02235A | BRACKET-DUPLEX_ALIGN | Find 13 |
| 14 | 6002-000440 | SCREW-TAPPING | Find 14 |
| 15 | JC61-02314A | GUIDE-DUPLEXJJPPER | Find 15 |
| 16 | JC66-00896A | ROLLER-M-IDLE_ DUP | Find 16 |
| 17 | JK72-00058A | PCT-SILP WASHER | Find 17 |
| 18 | JC66-00444A | SHAFT-IDLE ROLL, DUP | Find 18 |
| 19 | 6107-001156 | SPRING-TS | Find 19 |
| 20 | 6003-000196 | SCREW-TAPTITE | Find 20 |
| 12-1 | JC66-00901A | ROLLER-FEED_DUP | Find 12-1 |
| 12-2 | 6044-000107 | RING-C | Find 12-2 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

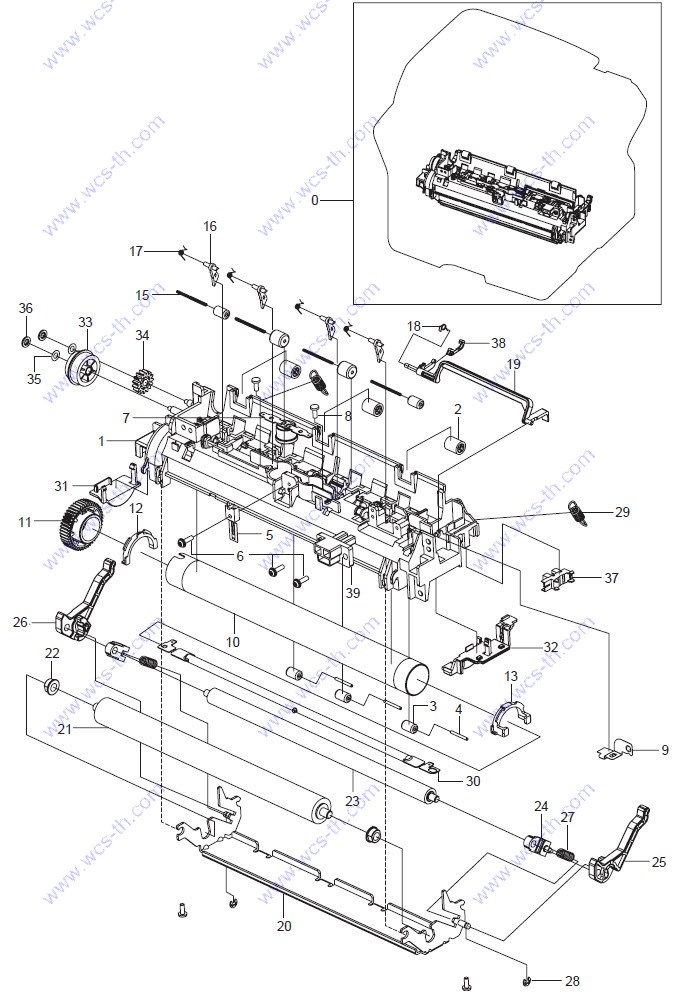

12. Fuser
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC96-05132A | ELA UNIT-FUSER 220V | Find 0 |
| 0 | JC96-05133A | ELA UNIT-FUSER 110V | Find 0 |
| 1 | JC63-01917A | COVER-FUSER | Find 1 |
| 2 | JC72-40981A | PMO-ROLLER UPPER DP | Find 2 |
| 3 | JC66-01312A | ROLLER-IDLE | Find 3 |
| 4 | JC70-20901A | IEX-SHAFT IDLE,F/UP | Find 4 |
| 5 | 1404-001364 | THERMISTOR-NTC ASSY | Find 5 |
| 6 | 6003-000196 | SCREW-TAPTITE | Find 6 |
| 7 | 4712-001031 | THERMOSTAT | Find 7 |
| 8 | 6003-000282 | SCREW-TAPTITE | Find 8 |
| 9 | JC63-01536A | GROUND-FUSER | Find 9 |
| 10 | JC66-01256B | ROLLER-HEAT | Find 10 |
| 11 | JC66-01254A | GEAR-FUSER | Find 11 |
| 12 | JC61-02334A | BUSH-HR-L | Find 12 |
| 13 | JC61-02335A | BUSH-HR-R | Find 13 |
| 14 | JC72-20902A | PEX-ROLLER F/UP(2) | Find 14 |
| 15 | 6107-001359 | SPRING-ETC | Find 15 |
| 16 | JC61-02538A | GUIDE-CLAW | Find 16 |
| 17 | JC61-01950A | SPRING ETC-CLAW | Find 17 |
| 18 | 6107-001165 | SPRING-TS | Find 18 |
| 19 | JC66-01595A | ACTUATOR-EXIT | Find 19 |
| 20 | JC61-02197A | FRAME-FUSER | Find 20 |
| 21 | JC66-01663A | ROLLER-PRESSURE | Find 21 |
| 22 | JC61-02336A | BUSH-PR-1ST | Find 22 |
| 23 | JC66-01664A | ROLLER-PRESSURE_2ND | Find 23 |
| 24 | JC61-02337A | BUSH-PR-2ND | Find 24 |
| 25 | JC66-01598A | LEVER-LINK JAM_R | Find 25 |
| 26 | JC66-01597A | LEVER-LINK JAM_L | Find 26 |
| 27 | 6107-001246 | SPRING-CS | Find 27 |
| 28 | 6044-000159 | RING-C | Find 28 |
| 29 | 6107-001361 | SPRING-ES | Find 29 |
| 30 | 4713-001212 | LAMP-HALOGEN 220V | Find 30 |
| 30 | 4713-001211 | LAMP-HALOGEN 110V | Find 30 |
| 31 | JC67-00266A | CAP-LAMP_L | Find 31 |
| 32 | JC67-00267A | CAP-LAMP_R | Find 32 |
| 33 | JC66-01638A | GEAR-FUSER RDCN 28-20 | Find 33 |
| 34 | JC66-00056A | GEAR-MPF 5 | Find 34 |
| 35 | 6031-001051 | WASHER-PLAIN | Find 35 |
| 36 | 6044-000001 | RING-CS | Find 36 |
| 37 | 0604-001095 | PHOTO-INTERRUPTER | Find 37 |
| 38 | JC61-02520A | PLATE-ACTUATOR | Find 38 |
| 39 | JC39-00946A | HARNESS-FUSER AC | Find 39 |
| 40 | JC39-00819A | HARNESS-FUSER JOINT | Find 40 |
| 41 | JC39-00823A | HARNESS-EXIT SENSOR | Find 41 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

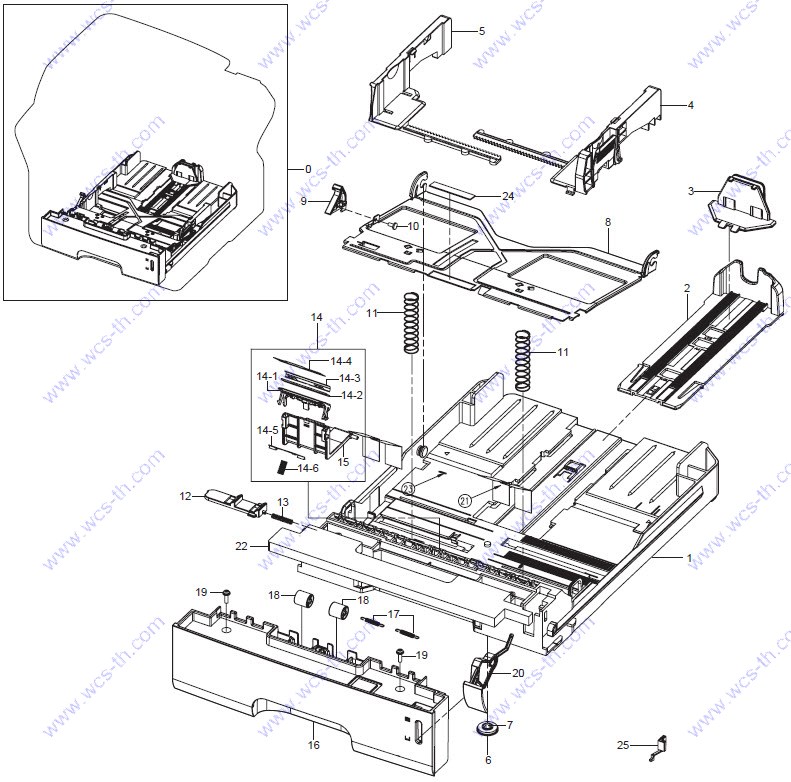

13. Cassette
| Pic No. | Parts ID | Parts Name | Link |
| 0 | JC97-03017A | MEA UNIT-CASSETTE | Find 0 |
| 1 | JC61-00876A | FRAME-M_CASSETTE | Find 1 |
| 2 | JC61-00918B | GUIDE-M-EXTENSION L2 | Find 2 |
| 3 | JC72-00971A | PMO-EXTENSION SMALL | Find 3 |
| 4 | JC70-00301A | ADJUST-M-CASSETTE_R | Find 4 |
| 5 | JC70-00300A | ADJUST-M-CASSETTE_L | Find 5 |
| 6 | JG66-40003A | GEAR-PINION | Find 6 |
| 7 | 6003-000264 | SCREW-TAPTITE | Find 7 |
| 8 | JC61-00603A | PLATE-P-KNOCKJJP | Find 8 |
| 9 | JC66-00719A | CAM-M-KNOCK UP | Find 9 |
| 10 | 6003-000261 | SCREW-TAPTITE | Find 10 |
| 11 | 6107-001166 | SPRING-CS | Find 11 |
| 12 | JC72-00972A | PMO-PLATEjLOCKER | Find 12 |
| 13 | JG61-70531A | SPRING ETC-LOCKER,PLATE | Find 13 |
| 14 | JC96-04743A | ELA HOJ-HOLDERjPAD | Find 14 |
| 15 | JC61-01978A | housing-holder PAD | Find 15 |
| 16 | JC63-01531A | COVER-HANDLEjCASSETTE | Find 16 |
| 17 | 6107-001047 | SPRING-ES | Find 17 |
| 18 | JC66-00529A | ROLLER-M-IDLE FEED | Find 18 |
| 19 | 6003-000196 | SCREW-TAPTITE | Find 19 |
| 20 | JC64-00353A | INDICATOR-PAPER | Find 20 |
| 21 | JC63-01670A | SHEET-GJIDEjSIDEjFAR | Find 21 |
| 22 | JC72-01442A | SPONGE CST TOP | Find 22 |
| 23 | JC61-01692A | support-holder PAD | Find 23 |
| 24 | JC73-00141A | RPR-PAD CASSETTE | Find 24 |
| 25 | JC61-02484A | STOPPER-ADJUSTER | Find 25 |
| 14-1 | JC61-02159A | HOLDER-PAD | Find 14-1 |
| 14-2 | JC73-00140A | RPR-FRICTION PAD | Find 14-2 |
| 14-3 | JC61-02237A | PLATE-PAD | Find 14-3 |
| 14-4 | JC63-01669A | sheet PAD | Find 14-4 |
| 14-5 | JC63-01205A | GROUND-PAD | Find 14-5 |
| 14-6 | JC61-70911A | SPRING ETC-EXIT ROLL FD | Find 14-6 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000

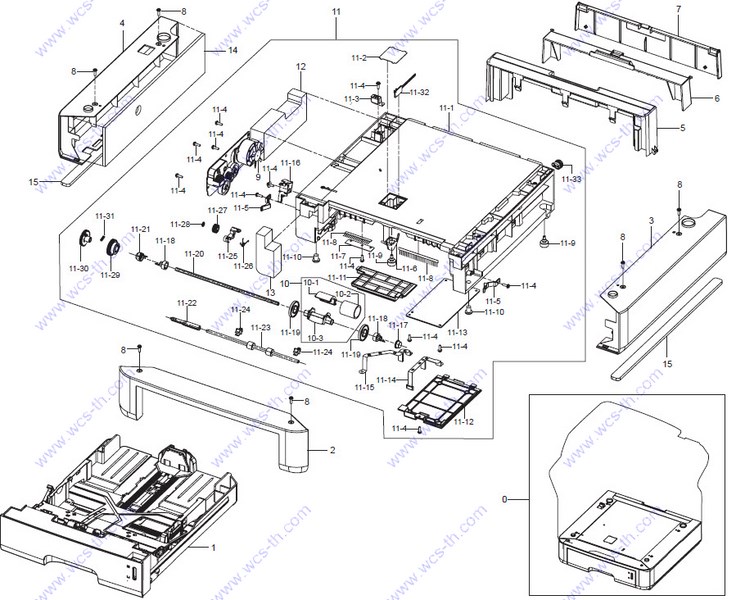

14. SCF
| Pic No. | Parts ID | Parts Name | Link |
| - | JC39-00920A | CBF HARNESS-SCF | Find - |
| - | JC39-00859A | HARNESS-CLJTCHjJOINT | Find - |
| - | JC39-00567A | CBF HARNESS-SYSjGND | Find - |
| - | JC39-00228A | CBF HARNESS-GND | Find - |
| 0 | JC96-05108A | ELA HOU-SCF | Find 0 |
| 1 | JC97-03017A | MEA UNIT-CASSETTE | Find 1 |
| 2 | JC63-01964A | COVER-FRONT_SCF | Find 2 |
| 3 | JC63-01963A | COVER-RIGHT_SCF | Find 3 |
| 4 | JC63-01962A | COVER-LEFT_SCF | Find 4 |
| 5 | JC63-01608A | COVER-REAR_SCF | Find 5 |
| 6 | JC63-01650A | COVER-DUPLEX | Find 6 |
| 7 | JC63-01651A | COVER-REAR DUPLEX | Find 7 |
| 8 | 6003-000196 | SCREW-TAPTITE | Find 8 |
| 9 | JC96-04772A | ELA HOU-MOTOR_SCF | Find 9 |
| 10 | JC97-03062A | MEA UNIT-PICK UP | Find 10 |
| 11 | JC96-04771A | ELA HOU-FRAME_SCF | Find 11 |
| 12 | JC72-01447A | SPONGE-SCFjFRAME | Find 12 |
| 13 | JC72-01448A | SPONGE-SCFjFRONT | Find 13 |
| 14 | JC72-01449A | SPONGE-SCFjGEAR | Find 14 |
| 15 | JC72-01463A | SPONGE-SIDE SCF | Find 15 |
| 10-1 | JC61-00909A | HOUSING-M-PICK UP_R2 | Find 10-1 |
| 10-2 | JC73-00265A | SPONGE-ROLLER PICK UP | Find 10-2 |
| 10-3 | JC61-00910A | HOUSING-M-PICK UP2_R2 | Find 10-3 |
| 11-1 | JC61-02189A | FRAME-SCF | Find 11-1 |
| 11-2 | JC63-00369A | SHEET-COVER SENSOR | Find 11-2 |
| 11-3 | JC70-11028A | IPR-GROUND TOP | Find 11-3 |
| 11-4 | 6003-000196 | SCREW-TAPTITE | Find 11-4 |
| 11-5 | JC72-00983A | PMO-LOCKER CST | Find 11-5 |
| 11-6 | JC72-00975A | PMO-ACTUATOR EMPTY | Find 11-6 |
| 11-7 | JC63-00527A | SHEET-BRUSH | Find 11-7 |
| 11-8 | JC75-00095A | MEC-BRUSH ANTISTATIC | Find 11-8 |
| 11-9 | JC61-40001A | FOOT-ML80 | Find 11-9 |
| 11-10 | JC61-00836A | FOOT-FRONT | Find 11-10 |
| 11-11 | JC63-01609A | COVER-HARNESS_SCF | Find 11-11 |
| 11-12 | JC63-00492A | COVER-M-SIMM R2 | Find 11-12 |
| 11-13 | JC92-01911A | PBA-SCF | Find 11-13 |
| 11-14 | JC63-01635A | GROUND-BRUSH_SCF | Find 11-14 |
| 11-15 | JC63-01636A | GROUND-PAPER_SCF | Find 11-15 |
| 11-16 | JC33-00026A | SOLENOID-PICK UP | Find 11-16 |
| 11-17 | JC61-00587A | BUSH-M-PICK_UP R | Find 11-17 |
| 11-18 | JC61-00915A | STOPPER-M-PICK UP_R2 | Find 11-18 |
| 11-19 | JC72-00982A | PMO-IDLE PICK_UP | Find 11-19 |
| 11-20 | JC66-01658A | SHAFT-PICK_UP_SCF | Find 11-20 |
| 11-21 | JC61-00586A | BUSH-M-PICK_UP L | Find 11-21 |
| 11-22 | JC66-01653A | SHAFT-FEED_SCF | Find 11-22 |
| 11-23 | JC66-00598A | ROLLER-FEED | Find 11-23 |
| 11-24 | JC72-00382B | PMO-BUSHING FEED | Find 11-24 |
| 11-25 | JC66-00377A | CAM-M-PICKJJP | Find 11-25 |
| 11-26 | 6107-001170 | SPRING-TS | Find 11-26 |
| 11-27 | JC66-00394A | GEAR-FEED 2 | Find 11-27 |
| 11-28 | 6044-000001 | RING-CS | Find 11-28 |
| 11-29 | JC72-00979A | PMO-GEAR PICKjJP A | Find 11-29 |
| 11-30 | JC72-00980A | PMO-GEAR PICKjJP B | Find 11-30 |
| 11-31 | 6107-001167 | SPRING-CS | Find 11-31 |
| 11-32 | JC41-00133A | PCB-SENSOR | Find 11-32 |
| 11-33 | JC61-00804A | BUSH-CABLE | Find 11-33 |
หาอะไหล่ ปริ้นเตอร์ สแกนเนอร์ ไม่พบ Line หาเราที่ @wcs2000
